JBL CSS8004 4" 70V/100V Ceiling Speakers, Set of 4
JBL CSS8004 4" 70V/100V Ceiling Speakers, Set of 4
4" Ceiling Speakers, 70V/100V/25V, Set of 4, Dual-Cone Design
Free Shipping
Regular price
$126.68
Sale price
$126.68
Regular price
$92.00
Unit price
/
per
Shipping calculated at checkout.
Features
- Set of 4 matching 4" dual-cone ceiling speakers
- 90 dB sensitivity keeps output strong even at low tap settings
- 175° coverage pattern spreads sound evenly under the ceiling
- 70V, 100V, and 25V taps cover a range of distributed systems
- Open-back design installs into a standard cutout without a backcan
Couldn't load pickup availability
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
What's Included in the box

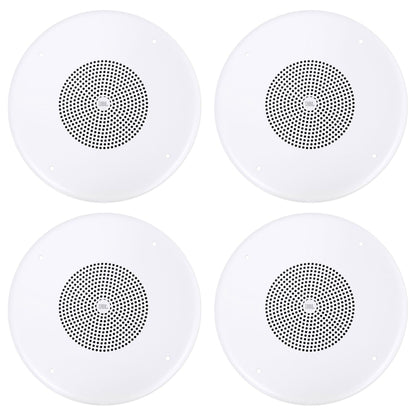

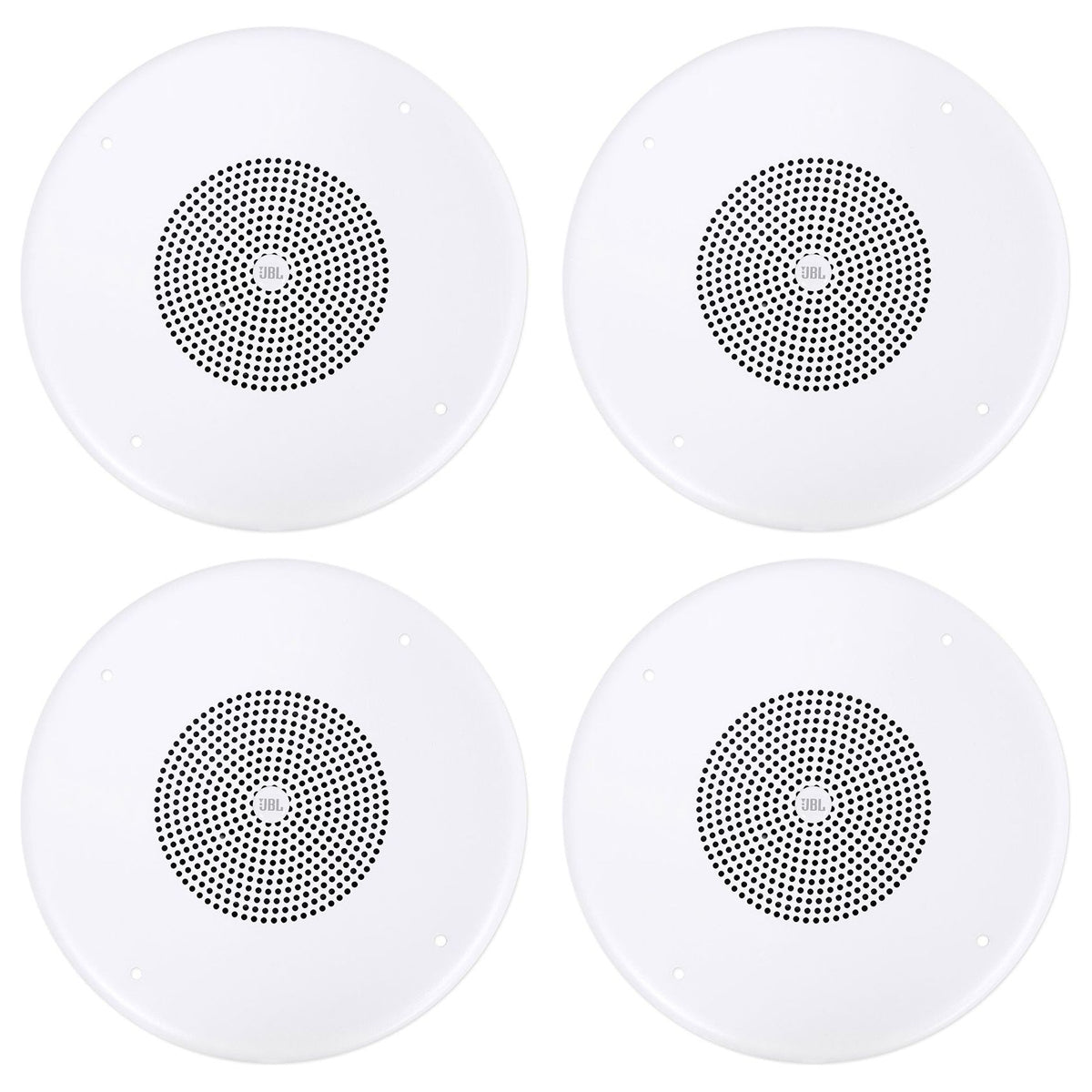

- 4 x JBL CSS8004 Ceiling Speakers
SKU: SKU: (4) CSS8004
View full details






Product Description
This bundle includes 4 JBL CSS8004 ceiling speakers, giving you a matched set for paging and background music in a small dining room, cafe, or retail space. Each 100mm dual-cone driver reaches 90 dB sensitivity, so the set delivers solid sound levels even at low tap settings, which keeps multiple zones balanced without pushing any single amplifier channel hard.
A wide 175-degree coverage pattern spreads sound evenly beneath a standard ceiling grid, and the speaker's 70V, 100V, and 25V taps give installers the flexibility to match 4 units to whatever distributed system is already in place. Each speaker pairs with the optional CSS-BB4 backcan when a job needs a sealed enclosure, but the open-back design installs directly into a standard cutout for jobs that don't.
A wide 175-degree coverage pattern spreads sound evenly beneath a standard ceiling grid, and the speaker's 70V, 100V, and 25V taps give installers the flexibility to match 4 units to whatever distributed system is already in place. Each speaker pairs with the optional CSS-BB4 backcan when a job needs a sealed enclosure, but the open-back design installs directly into a standard cutout for jobs that don't.
Features
Strong Output At Low Taps
A 90 dB sensitivity rating keeps sound levels solid even when the amplifier is set to a lower tap.
Even Coverage Underfoot
A wide 175° pattern spreads background music and paging evenly across the ceiling area.
Multiple Voltage Options
70V, 100V, and 25V taps let installers match the speaker to whatever distributed system is already in place.
Simple Open-Back Install
The speaker mounts directly into a standard cutout, skipping the need for a sealed backcan on basic jobs.
Compatible Backcan Available
The matching CSS-BB4 backcan is available for jobs that call for a sealed enclosure.
Technical Specifications
- Product Type 70V/100V Commercial Ceiling Speaker Set
- Quantity Included 4 Speakers
- Driver 100mm Dual Cone
- Sensitivity 90 dB
- Frequency Range 85 Hz - 18 kHz
- Coverage 175°

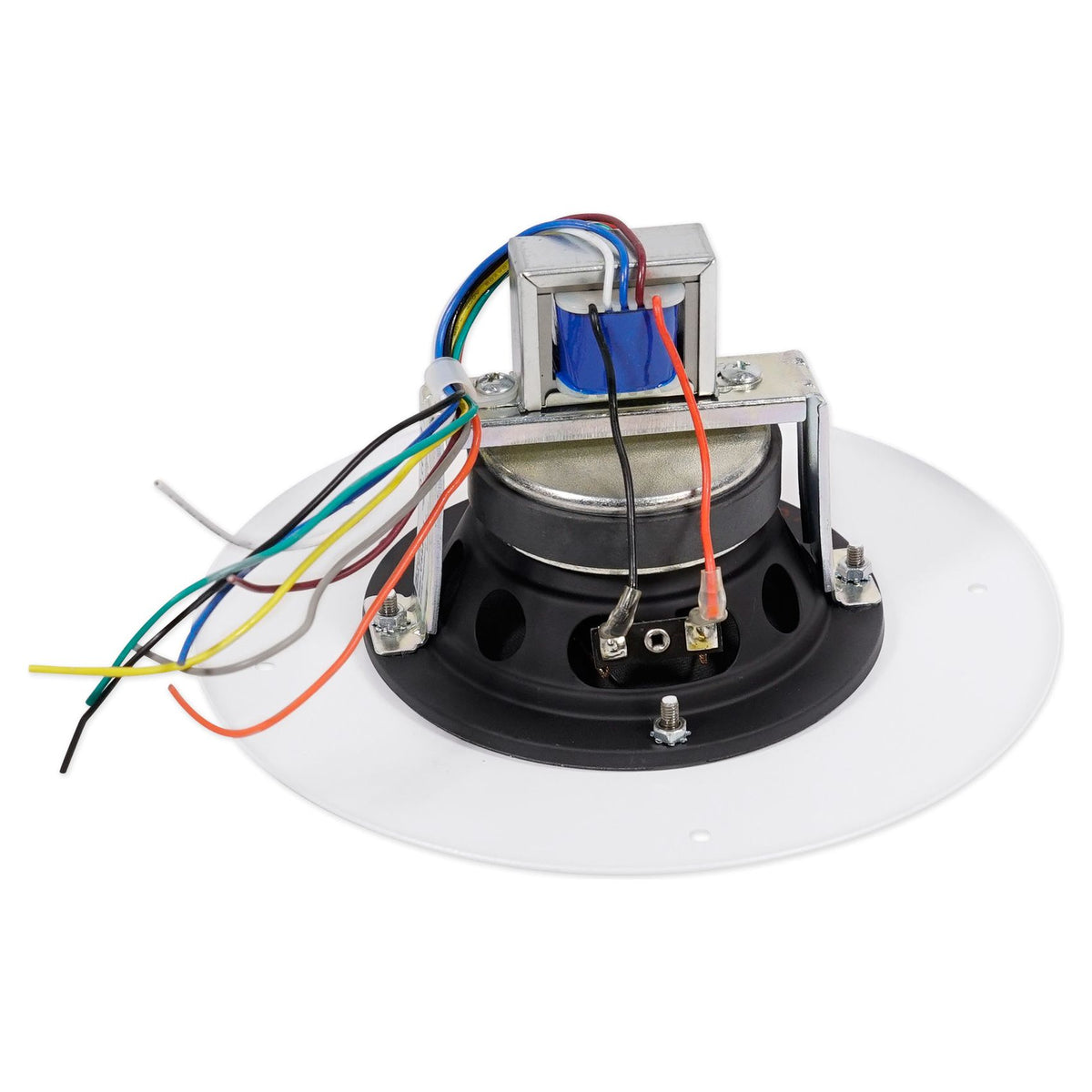

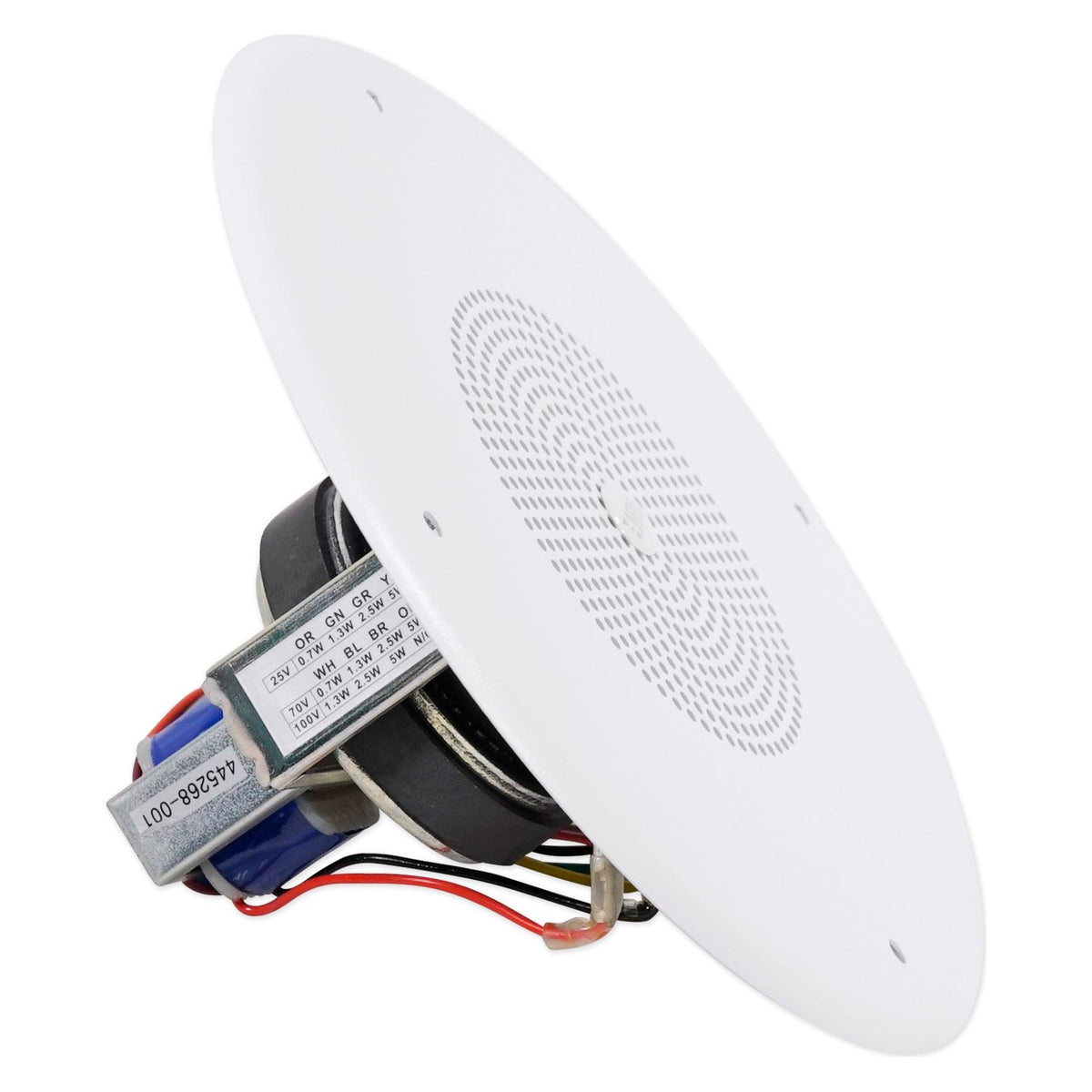

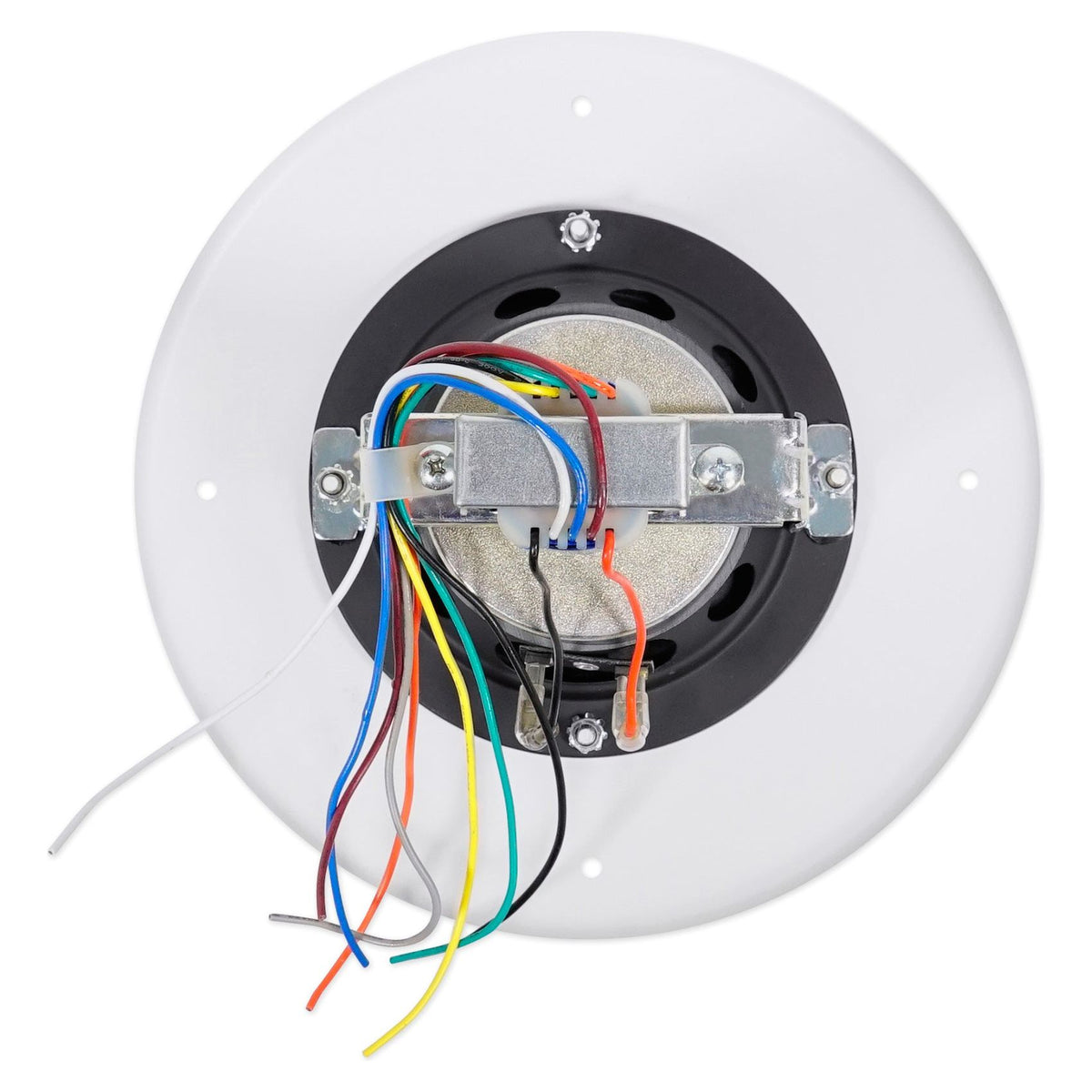

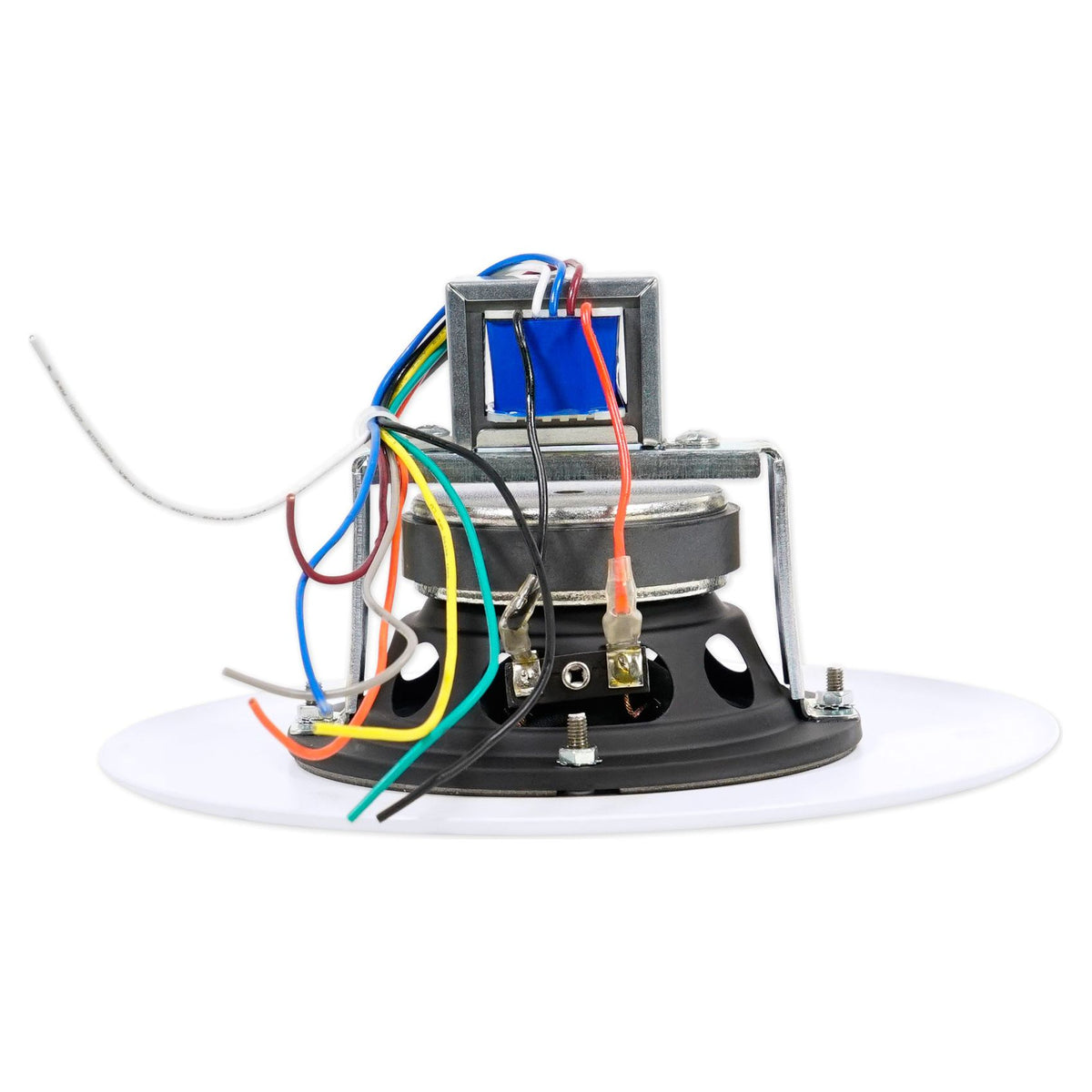

- Transformer Taps 70V/100V/25V: 5W, 2.5W, 1.3W (0.7W at 70V/25V)
- Weight 1.0 lb (each)
- Cutout Diameter 5.0" open-back (each)
