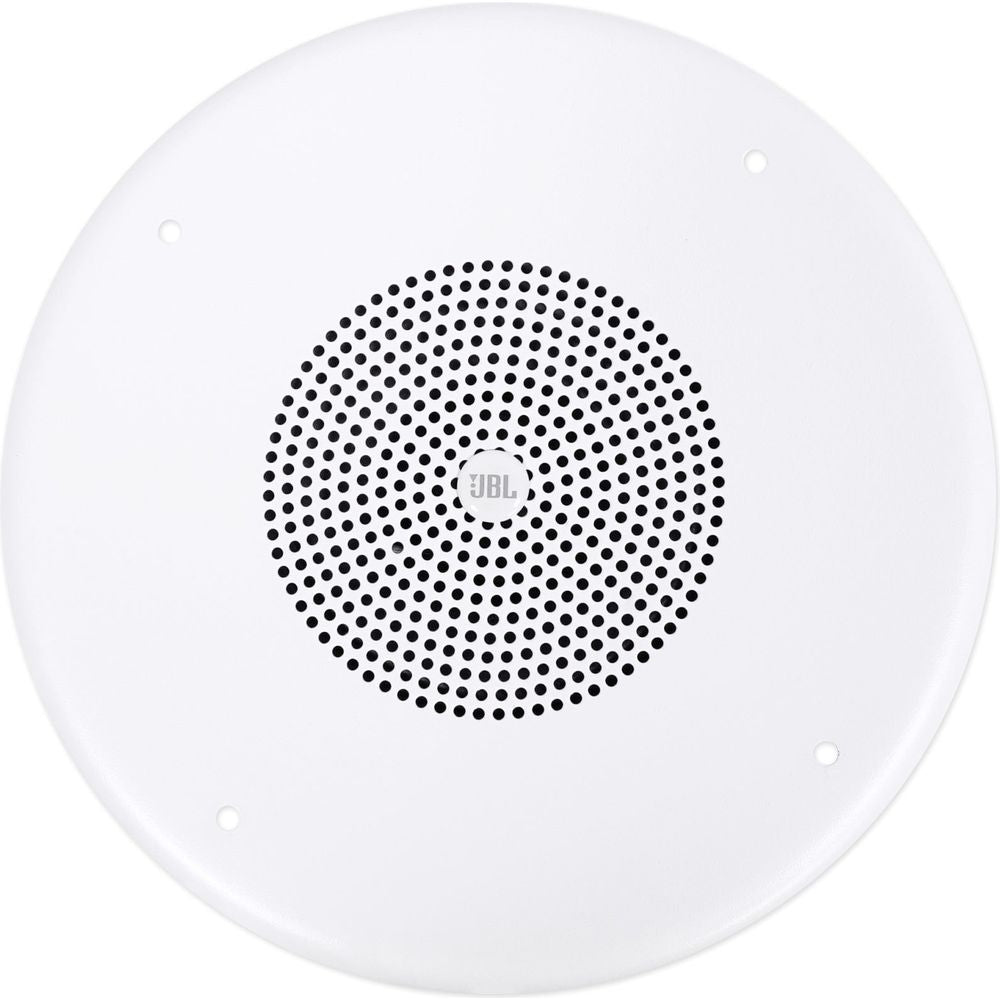

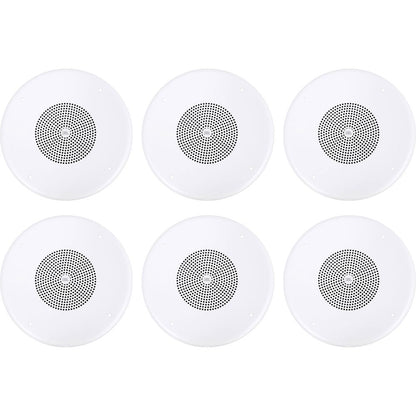

(6) CSS8004 4" Commercial 70V/100V 5W Ceiling Speakers
JBL
(6) CSS8004 4" Commercial 70V/100V 5W Ceiling Speakers
(6) CSS8004 4" Commercial 70V/100V 5W Ceiling Speakers
4" 70V/100V Ceiling Speakers, Six-Pack, 5W Multi-Tap For Background Paging Systems
Free Shipping
Features
- 4-inch dual-cone driver with 90 dB sensitivity
- 175-degree coverage angle from a single ceiling point
- Selectable 70V, 100V, and 25V taps from 0.7W to 5W
- 85 Hz to 18 kHz frequency range for clear paging and music
- Compact 125 mm open-back cutout for easy ceiling installation
Couldn't load pickup availability
What's Included in the box

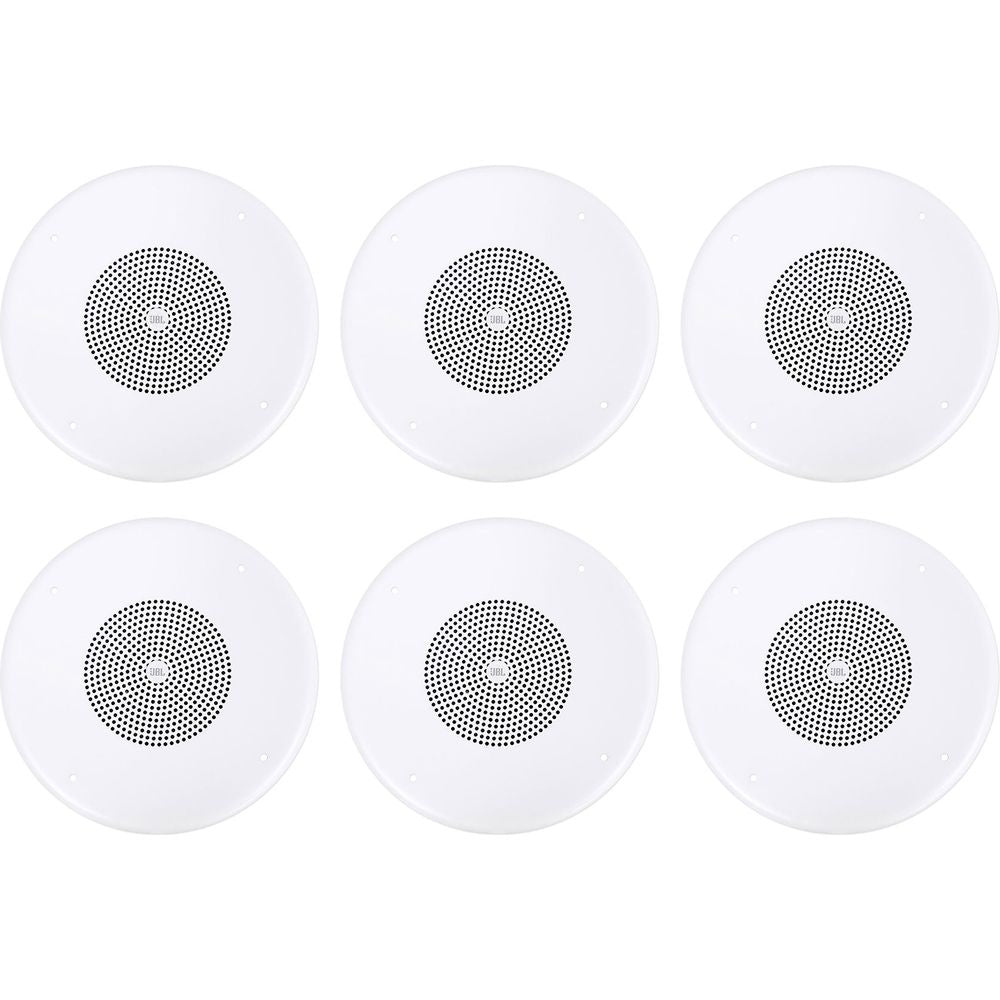

- (6) JBL CSS8004 4-inch ceiling speakers
SKU: SKU: (6) CSS8004
View full details






Product Description

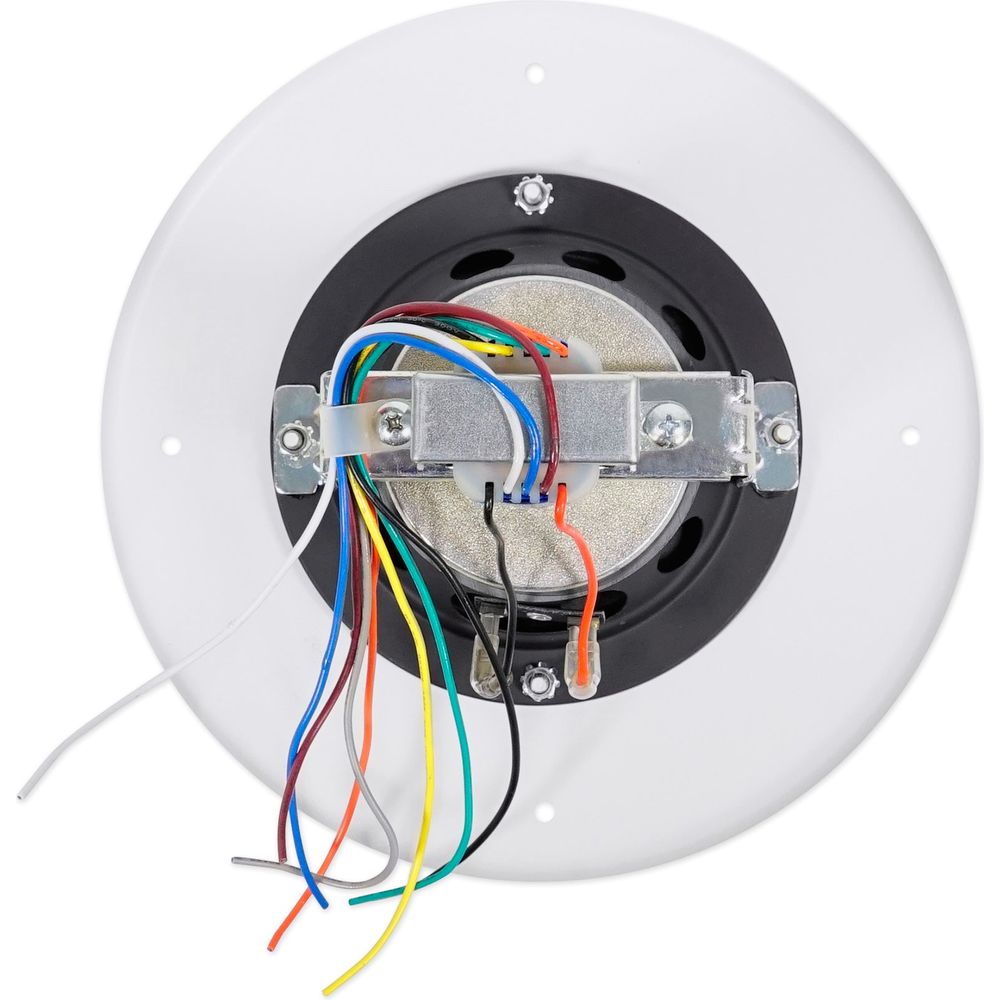

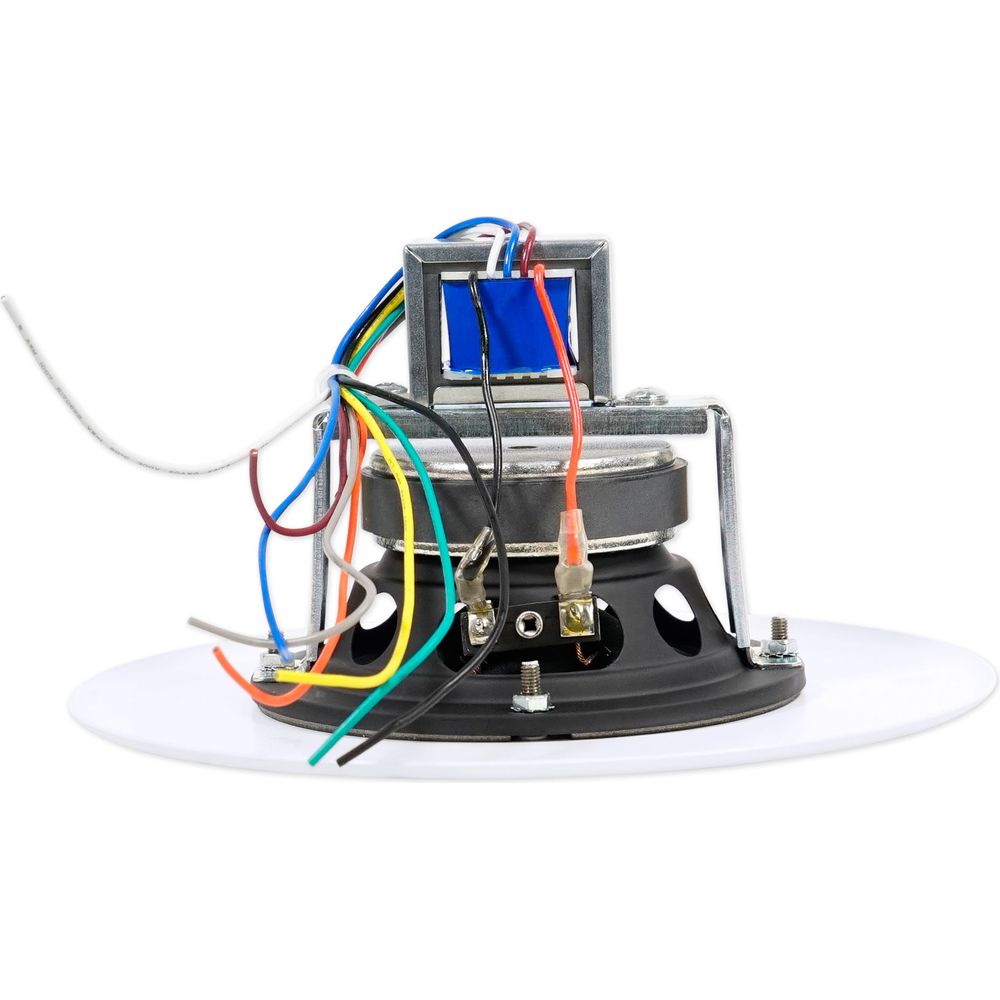

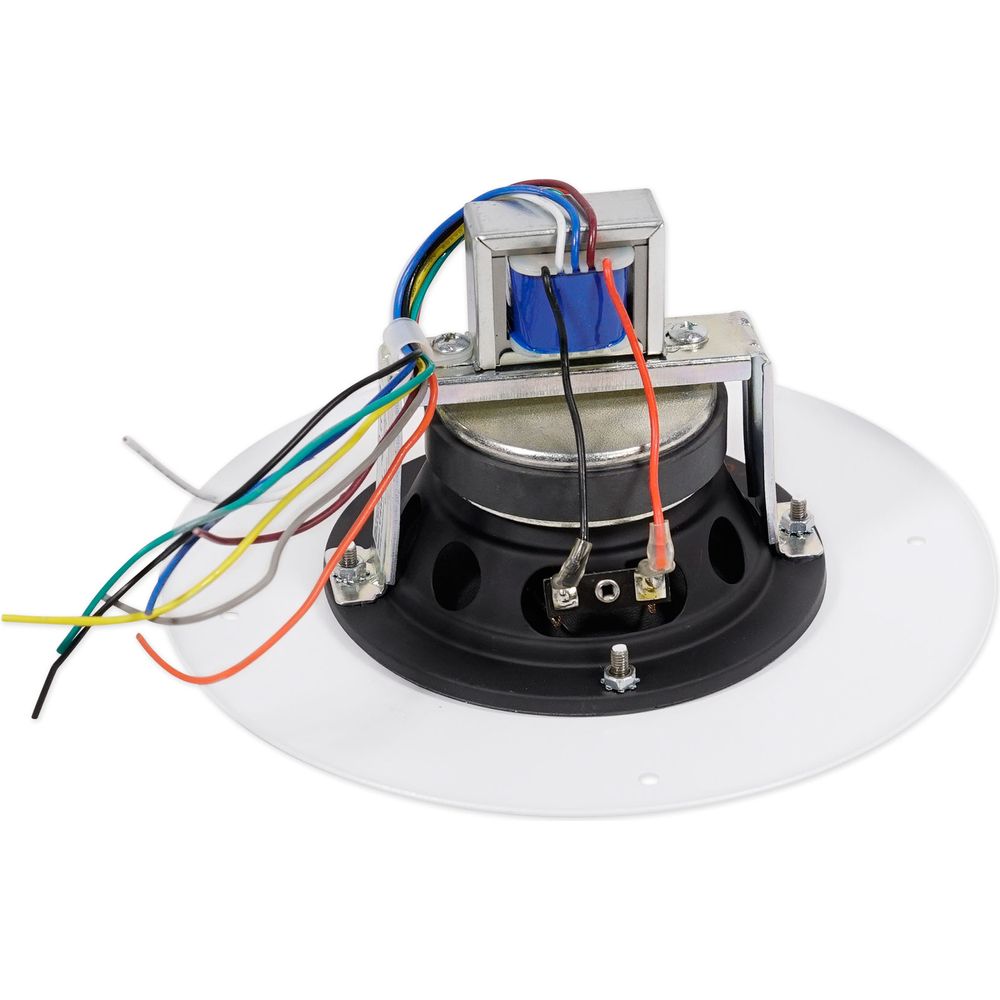

Because the driver’s sensitivity stays high even at low tap settings, these speakers deliver clear paging and even background music without demanding excess amplifier power, which keeps a multi-zone install efficient. Bare-wire transformer connections and a compact open-back cutout of 125 mm keep installation simple, and the set pairs with an optional CSS-BB4 backcan when a sealed enclosure is required. With six identically specified units, this pack gives an installer enough matched coverage to wire an entire dining room, retail floor, or office suite from one product line, without mixing driver sizes or tonal characteristics across zones.
Features
Wide Single-Point Coverage
A 175-degree coverage angle lets one ceiling speaker fill a room evenly, cutting down on the number of units a zone needs.
Efficient At Any Volume
High 90 dB sensitivity keeps sound clear even at the lowest tap setting, so amplifier power goes further across a multi-zone system.
Tap Settings For Every Zone
Selectable 70V, 100V, and 25V taps from 0.7W to 5W let installers match output to hallways, dining rooms, or offices independently.
Compact Ceiling Footprint
A 125 mm open-back cutout keeps installation simple in spaces without room for a bulky backcan.
Matched Six-Speaker Set
Six identical units let an installer wire a full restaurant or retail floor with consistent tone and coverage throughout.
Technical Specifications
- Product Type Ceiling Speaker (Set of 6)
- Driver Size 100 mm (4 in) dual cone
- Sensitivity 90 dB
- Frequency Range 85 Hz to 18 kHz
- Coverage 175 degrees
- Continuous Power Handling 15 W

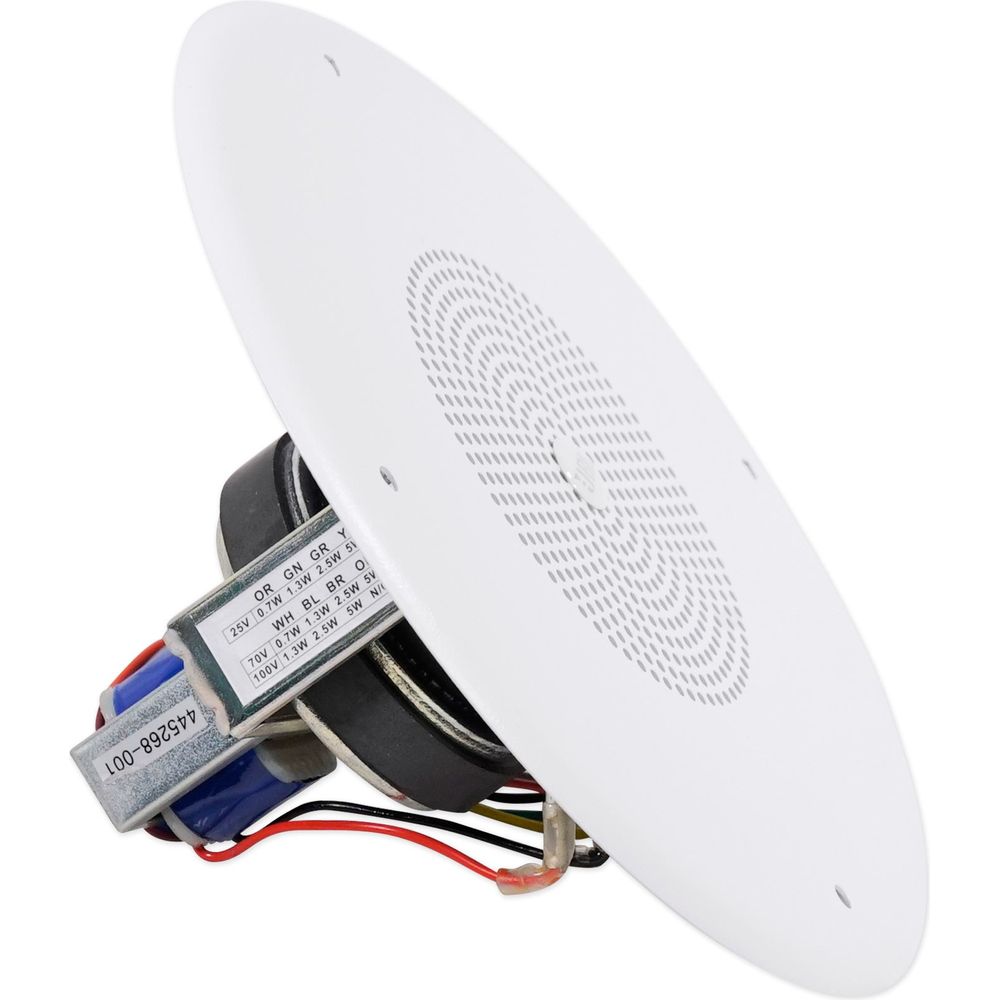

- 100V Taps 5W, 2.5W, 1.3W
- 70V Taps 5W, 2.5W, 1.3W, 0.7W
- Cutout Diameter (Open-Back) 125 mm (5.0 in)
- Weight 1.0 lb
