(6) CSS8008 8" Commercial 70V/100V 5W Ceiling Speakers
(6) CSS8008 8" Commercial 70V/100V 5W Ceiling Speakers
8" 70V/100V Ceiling Speakers, Six-Pack, 5W Multi-Tap For Restaurant And Retail Paging
Free Shipping
Regular price
$218.16
Sale price
$218.16
Regular price
$186.00
Unit price
/
per
Shipping calculated at checkout.
Features
- 8-inch dual-cone driver with 96 dB sensitivity
- 120-degree coverage pattern for restaurants and larger rooms
- Selectable 70V, 100V, and 25V taps from 0.7W to 5W
- 55 Hz to 16 kHz frequency range for fuller bass response
- 8.5-inch open-back cutout compatible with standard ceiling tile
Couldn't load pickup availability
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
What's Included in the box

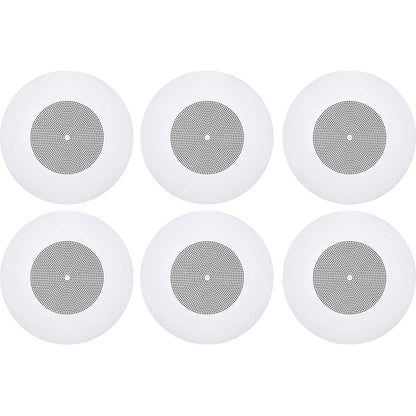

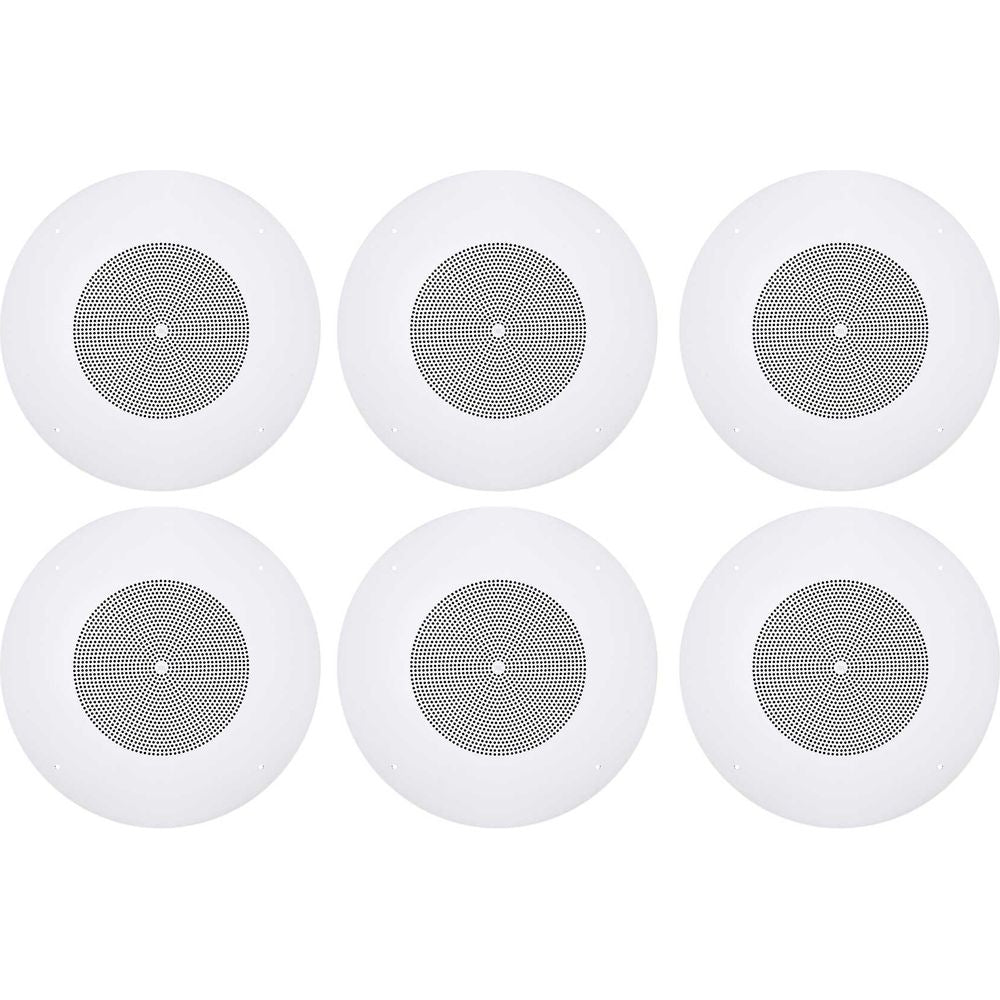

- (6) JBL CSS8008 8-inch ceiling speakers
SKU: SKU: (6) CSS8008
View full details







Product Description

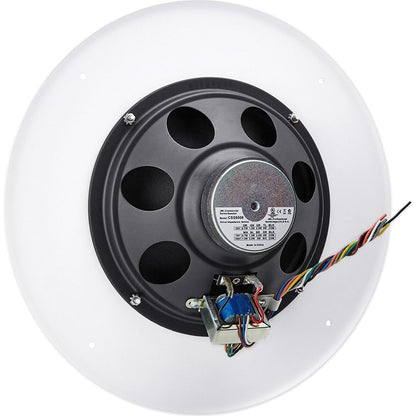

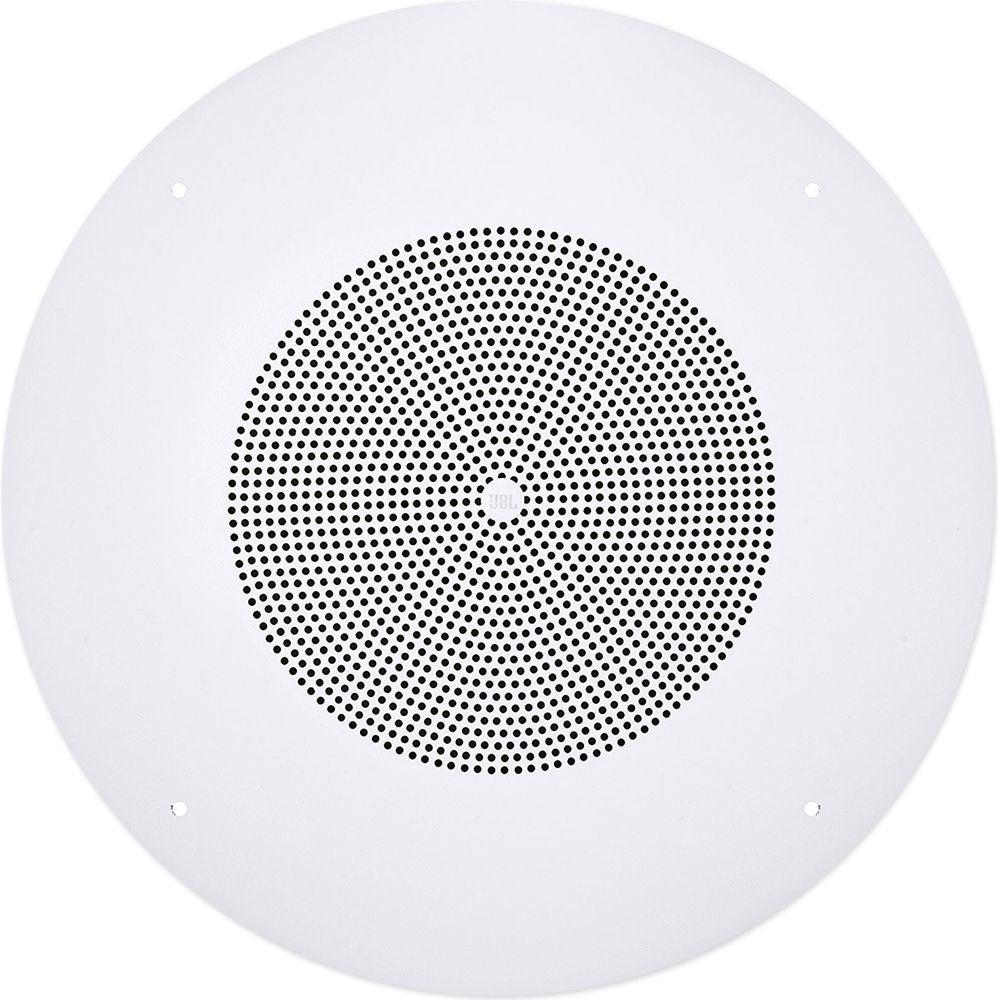

Six JBL CSS8008 ceiling speakers step up to an 8-inch dual-cone driver for spaces that want fuller bass response than a 4-inch speaker can deliver, while keeping the same easy-tap 70V/100V wiring. Each speaker reaches 96 dB sensitivity and a 55 Hz to 16 kHz frequency range, with a 120-degree coverage pattern suited to restaurants, stores, and larger rooms where background music needs more low-end presence. Selectable 70V, 100V, and 25V taps from 0.7 to 5 watts let each zone be set independently from the same amplifier.
The higher sensitivity of the 8-inch driver means these speakers produce strong output even at conservative tap settings, so a single amplifier can drive more zones without running out of headroom. An 8.5-inch open-back cutout keeps installation compatible with standard ceiling tile work, and the matching CSS-BB8 backcan is available when a sealed enclosure is required for fire or acoustic isolation. With six identically specified speakers in the set, this pack is built to wire a full dining room, retail floor, or lobby with consistent tone and coverage, giving a fuller low end than a 4-inch speaker without moving up to a dedicated subwoofer.
The higher sensitivity of the 8-inch driver means these speakers produce strong output even at conservative tap settings, so a single amplifier can drive more zones without running out of headroom. An 8.5-inch open-back cutout keeps installation compatible with standard ceiling tile work, and the matching CSS-BB8 backcan is available when a sealed enclosure is required for fire or acoustic isolation. With six identically specified speakers in the set, this pack is built to wire a full dining room, retail floor, or lobby with consistent tone and coverage, giving a fuller low end than a 4-inch speaker without moving up to a dedicated subwoofer.
Features
Fuller Background Sound
An 8-inch driver reaches lower frequencies than smaller ceiling speakers, giving background music more body without adding a subwoofer.
High-Efficiency Design
96 dB sensitivity keeps output strong even on low tap settings, letting a single amplifier cover more zones.
Independent Zone Tuning
Selectable 70V, 100V, and 25V taps from 0.7W to 5W allow each area to be set to its own volume.
Standard Ceiling Compatibility
An 8.5-inch open-back cutout fits standard ceiling tile installations without special framing.
Consistent Coverage At Scale
Six matched speakers make it easy to wire a full room with even tone and output from corner to corner.
Technical Specifications
- Product Type Ceiling Speaker (Set of 6)
- Driver Size 200 mm (8 in) dual cone
- Sensitivity 96 dB
- Frequency Range 55 Hz to 16 kHz
- Coverage 120 degrees
- Continuous Power Handling 15 W
- 100V Taps 5W, 2.5W, 1.3W
- 70V Taps 5W, 2.5W, 1.3W, 0.7W
- Cutout Diameter (Open-Back) 216 mm (8.5 in)
- Weight 2.8 lb
