(2) JBL Control 67 P/T 6.5" 60w Commercial 70v White Pendant Speakers C67P/T-WH
(2) JBL Control 67 P/T 6.5" 60w Commercial 70v White Pendant Speakers C67P/T-WH
JBL
(2) JBL Control 67 P/T 6.5" 60w Commercial 70v White Pendant Speakers C67P/T-WH
(2) JBL Control 67 P/T 6.5" 60w Commercial 70v White Pendant Speakers C67P/T-WH
6.5" Pendant Speaker Pair, 75W At 8 Ohms, 60W 70V/100V Taps, Suspension Cables And Euroblock Connectors Included
Free Shipping
Features
- 6.5 in woofer and 1 in soft-dome tweeter cover 58 Hz to 18 kHz
- 75 W at 8 ohms, or 60 W, 30 W, 15 W and 7.5 W taps on 70V lines
- 120 degree conical coverage from the Radiation Boundary Integrator waveguide
- IP44 rated for covered patios, atriums and unconditioned spaces
- Two 15 ft steel suspension cables per speaker with adjustable fasteners
Couldn't load pickup availability

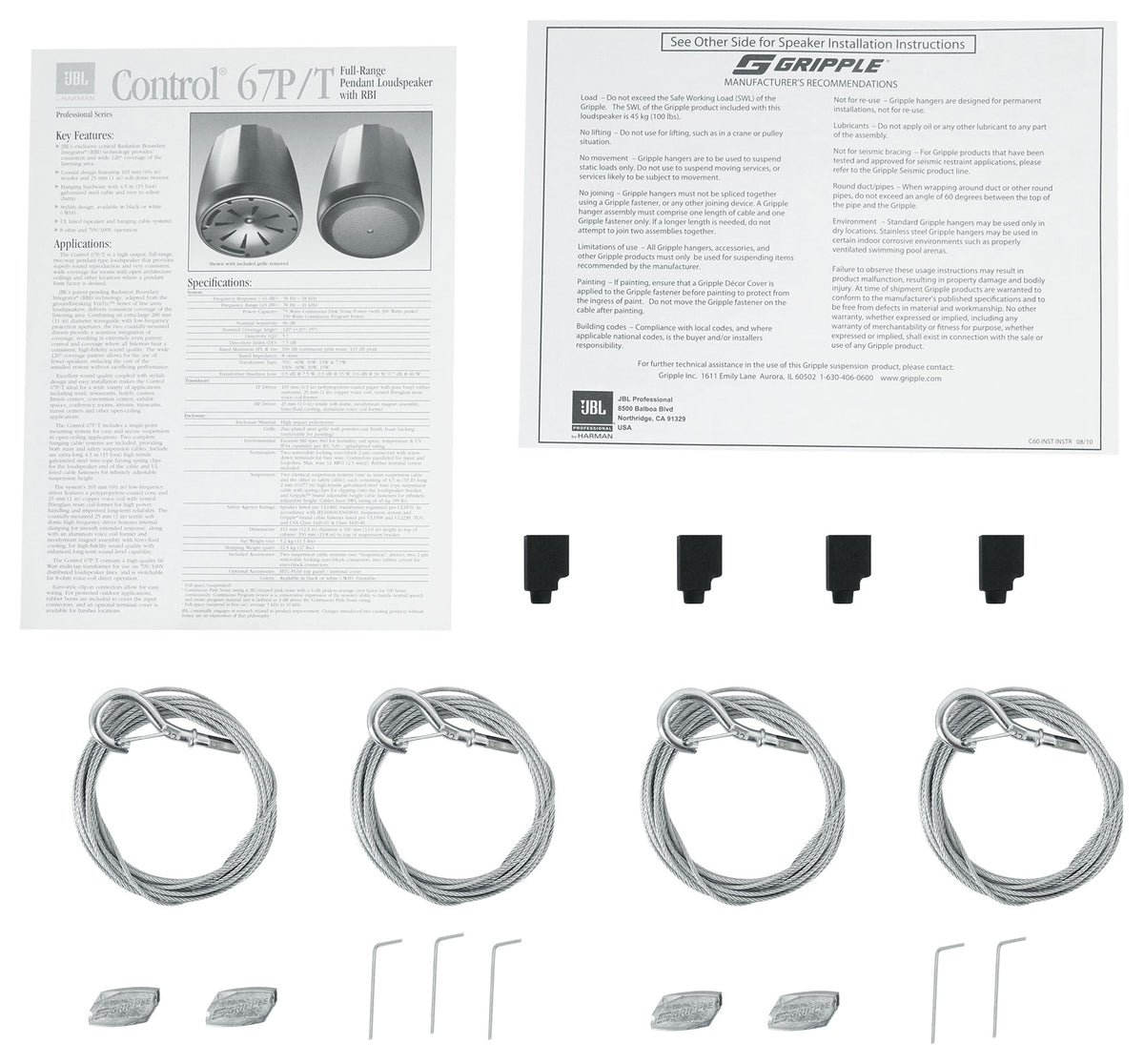

What's Included in the box
- Two Control 67P/T pendant speakers (white)
- Four suspension cable systems, two per speaker
- Four 2-pin locking euroblock connectors
- Four rubber terminal covers
SKU: SKU: C67P/T-WH U
View full details






Product Description
A 6.5 in polypropylene-coated paper woofer and 1 in textile soft-dome tweeter cover 58 Hz to 18 kHz, which gives you real low end for music playback instead of paging-only thinness. JBL's extra-large Radiation Boundary Integrator holds the 120 degree conical pattern consistent across frequencies, so a layout usually needs fewer speakers to cover the same floor area.

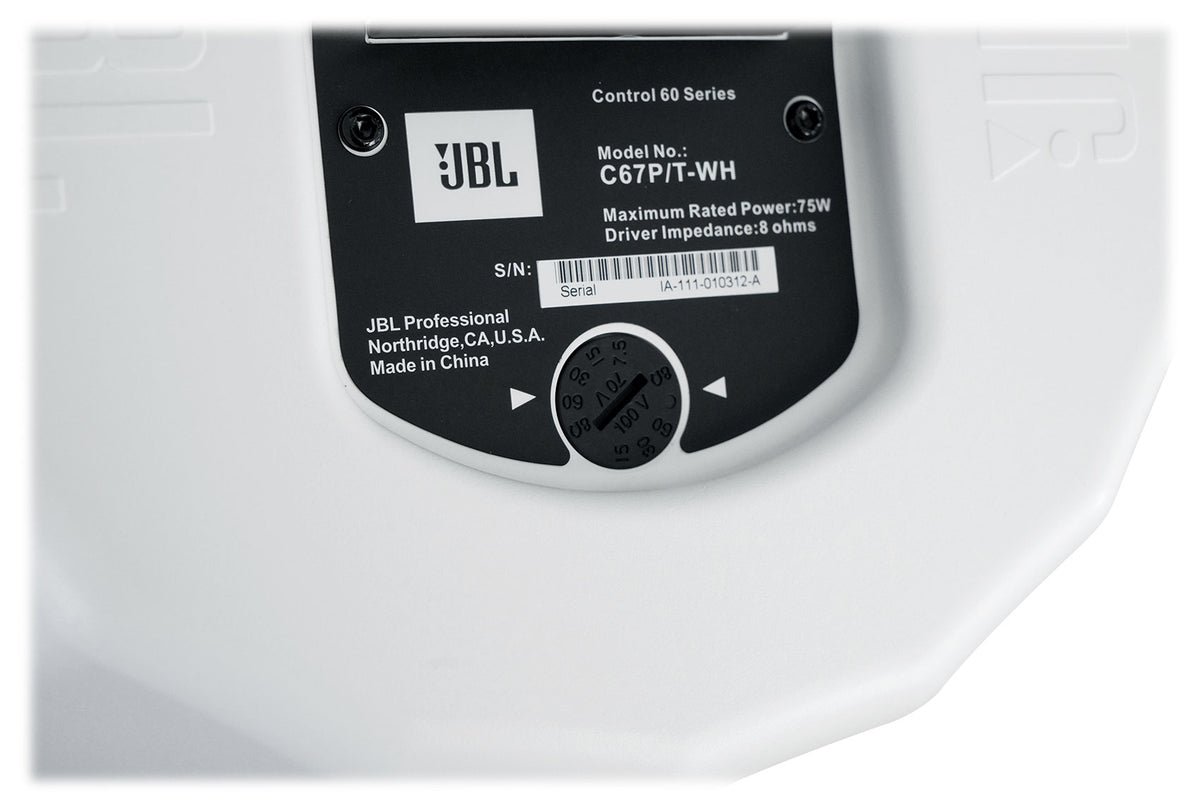

Wiring is flexible. Run each speaker at 8 ohms for 75 W continuous, or use the built-in multi-tap transformer on 70V lines at 60 W, 30 W, 15 W, or 7.5 W (100V: 60 W, 30 W, 15 W). Two paralleled euroblock connectors handle input and loop-thru, so a run of pendants daisy-chains without extra junction boxes.
Rated IP44 and tested past Mil Spec 810 for humidity, salt spray, temperature, and UV, the Control 67P/T holds up under covered patios and in unconditioned spaces. The zinc-plated steel grille lifts off and the enclosure takes paint, so the speakers can be finished to match the ceiling above them.
Each cabinet weighs 11.5 lb and measures 12.3 in across by 13.0 in tall. Two independent suspension systems ship per speaker, one as the main cable and one as a safety, each rated at 99 lb.
Features
Hangs Where Nothing Else Can Mount
Two 15 ft steel cable systems per speaker with Gripple adjustable fasteners set any drop height under open structure, with a second cable acting as the safety.
Wide Coverage, Fewer Speakers
The extra-large Radiation Boundary Integrator holds a 120 degree conical pattern across the band, so a layout covers the same floor with fewer units.
Music-Capable Low End
A 6.5 in woofer paired with a 1 in soft-dome tweeter reaches down to 58 Hz, giving foreground music body instead of the thin sound of paging speakers.
Low Impedance Or 70V Lines
Run 75 W at 8 ohms, or tap the internal transformer at 60 W, 30 W, 15 W, or 7.5 W to sit on an existing distributed audio line.
Rated For Damp And Salty Air
IP44 splashproof construction that exceeds Mil Spec 810 for humidity, salt spray, and UV lets these hang under covered patios and in unconditioned rooms.
Technical Specifications
- Product Type 6.5 in Two-Way Pendant Speaker (Pair)
- Frequency Range (-10 dB) 58 Hz - 18 kHz
- Frequency Response (+/-3 dB) 78 Hz - 16 kHz
- Power Rating 75 W continuous pink noise, 150 W continuous program, 300 W peak
- Nominal Sensitivity 90 dB
- Coverage Angle 120 degrees conical
- Maximum SPL (1m) 109 dB continuous, 115 dB peak
- Impedance 8 ohms
- Transformer Taps 70V: 60 W, 30 W, 15 W, 7.5 W / 100V: 60 W, 30 W, 15 W
- Drivers 6.5 in polypropylene-coated paper woofer, 1 in textile soft-dome tweeter
- Enclosure High impact polystyrene
- Grille Zinc-plated steel with powder-coat finish, removable for painting
- Outdoor Rating IP44 per IEC 529, exceeds Mil Spec 810

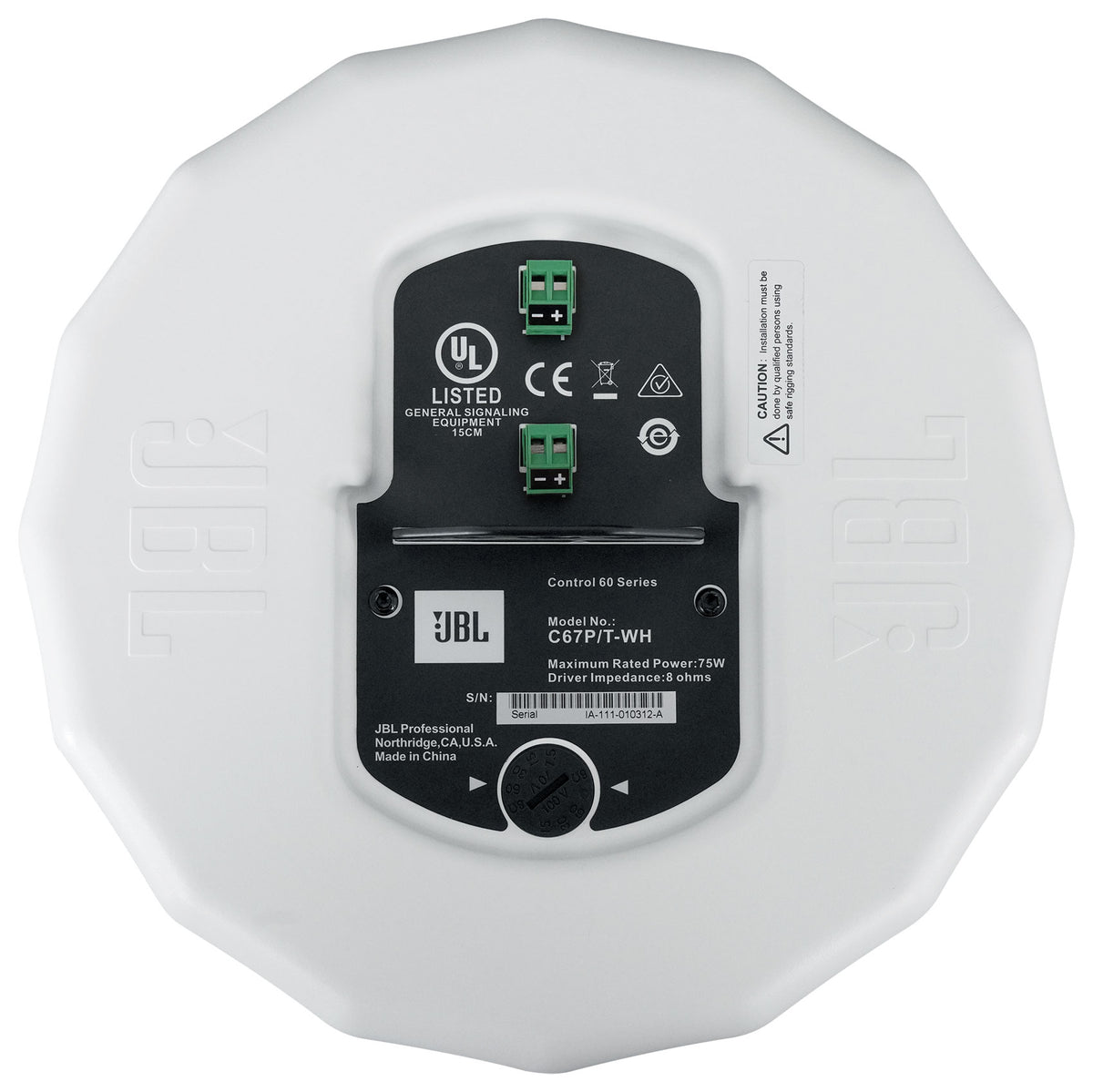

- Input Connectors Two removable locking 2-pin euroblock, paralleled for loop-thru
- Color White
- Weight 11.5 lb each
- Dimensions 12.3 in diameter x 13.0 in height
