(2) JBL Control 426C/T 6.5" Commercial 70v/12-ohm Ceiling Speakers 4 Restaurant
(2) JBL Control 426C/T 6.5" Commercial 70v/12-ohm Ceiling Speakers 4 Restaurant
JBL
(2) JBL Control 426C/T 6.5" Commercial 70v/12-ohm Ceiling Speakers 4 Restaurant
(2) JBL Control 426C/T 6.5" Commercial 70v/12-ohm Ceiling Speakers 4 Restaurant
6.5" Two-Way Ceiling Speakers, 110 W, 70V/100V/12-Ohm, Pair With Paintable Magnetic Grilles
Free Shipping
Features

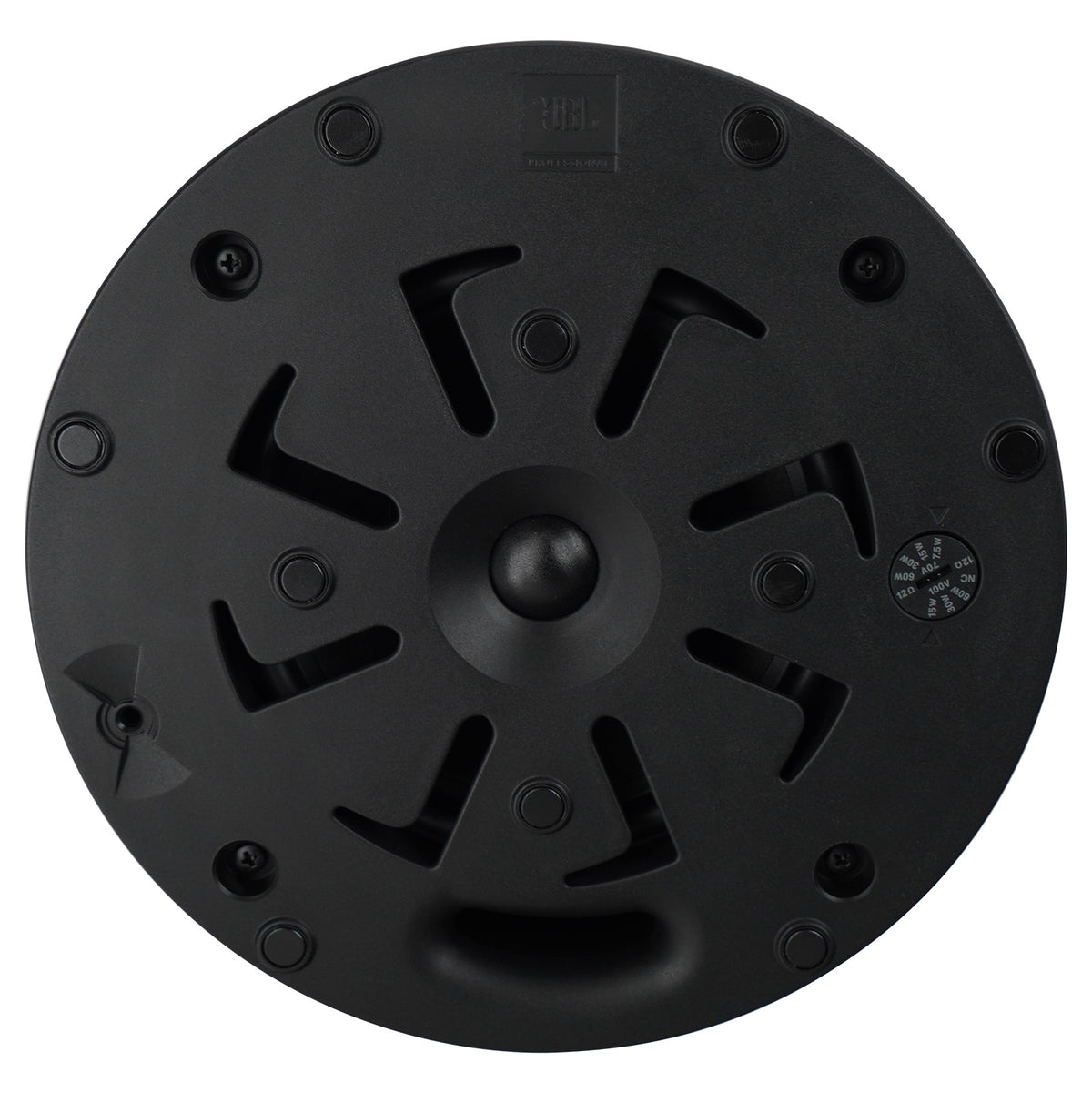

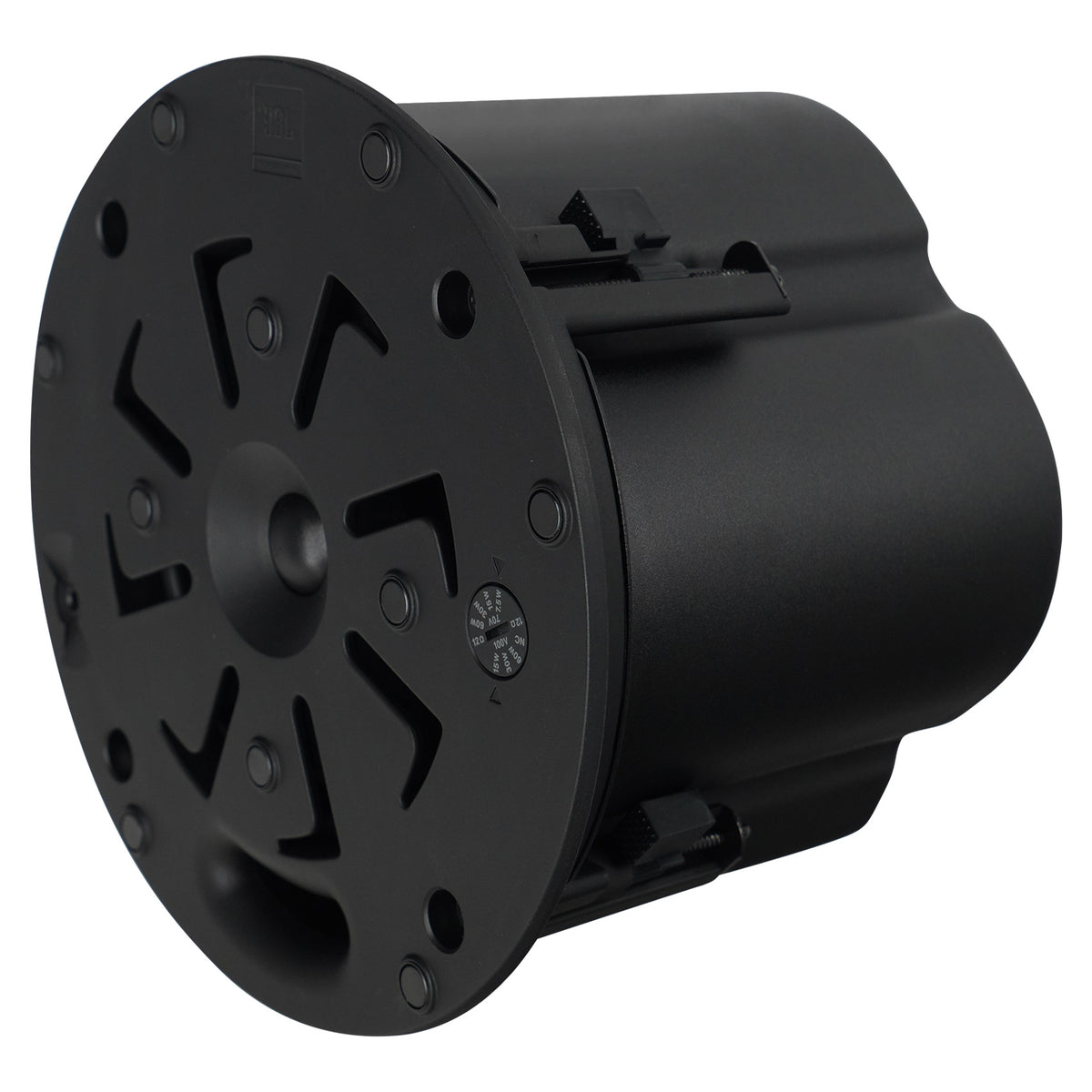

- 6.5-inch woofer and 1-inch soft-dome tweeter in a coaxial two-way design
- CRBI technology spreads 110-degree conical coverage evenly across the room
- 70V/100V multi-tap transformer plus 12-ohm direct input for low-impedance runs
- Paintable full-face magnetic grille with a safety tether mounted to the baffle
- IP33 rated and UL2043 listed for use in air-handling ceiling spaces
Couldn't load pickup availability

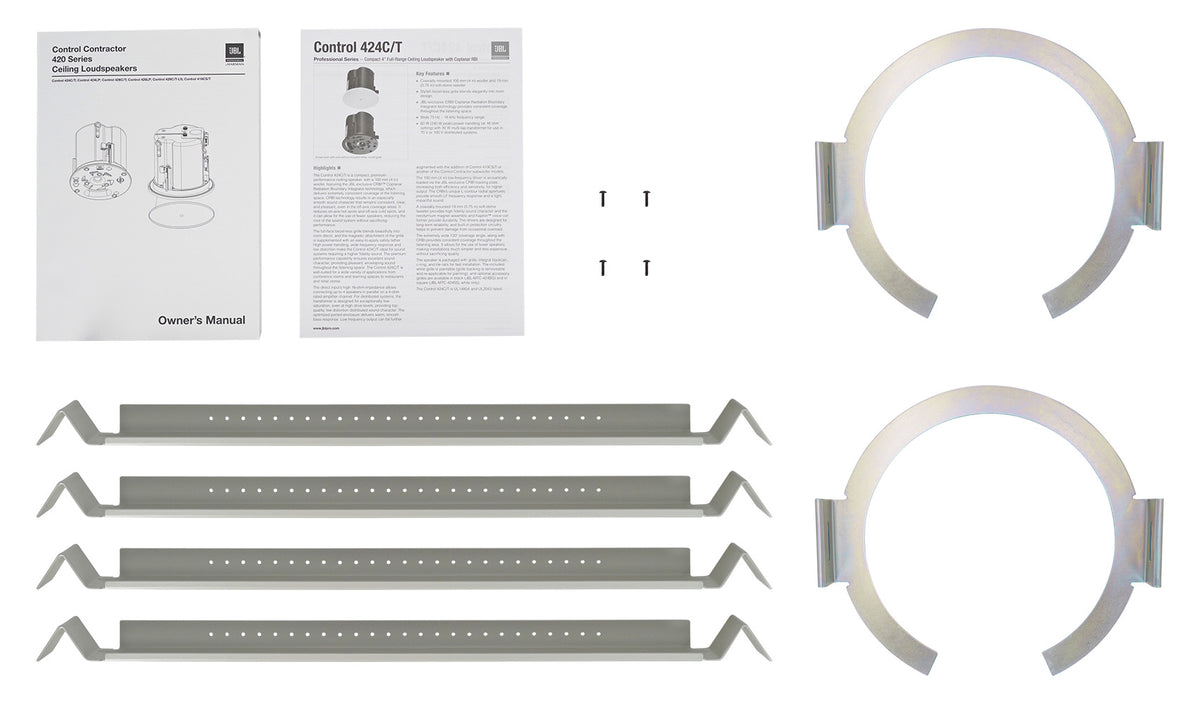

What's Included in the box

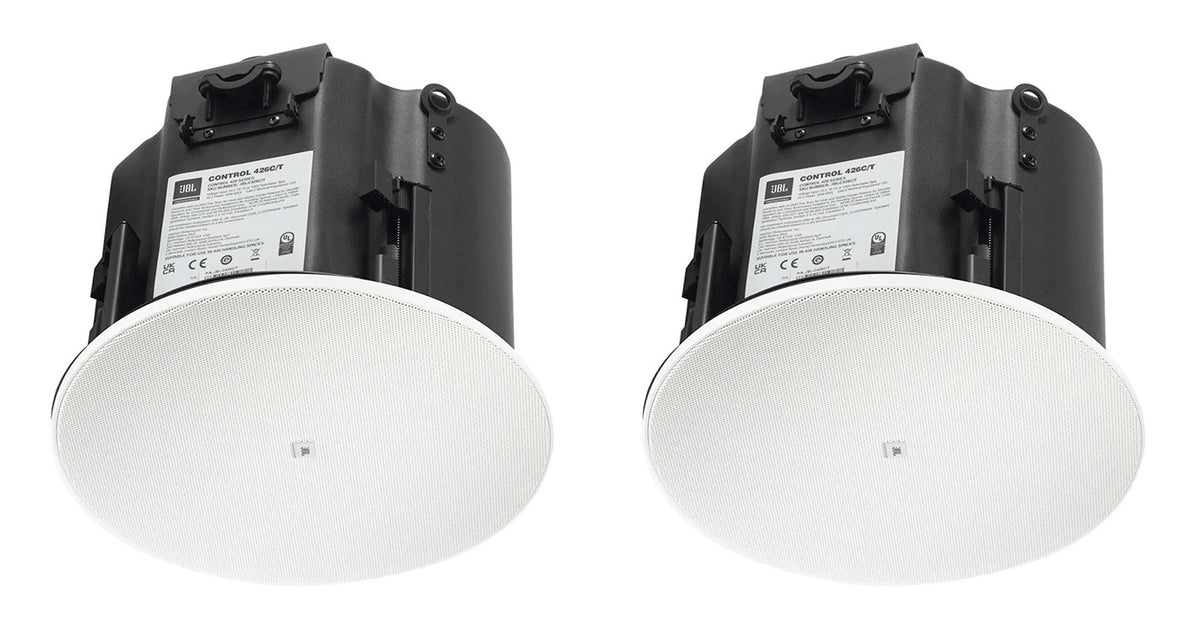

- (2) Control 426C/T Ceiling Speakers
- (2) White Full-Face Magnetic Grilles
- (2) Terminal Covers
SKU: SKU: Control 426C/T
View full details








Product Description
Features
Even Coverage Across The Room
CRBI technology spreads 110 degrees of conical coverage, keeping music and paging levels consistent as listeners move from one side of the space to the other.
Wiring Flexibility
The built-in multi-tap transformer handles 70V and 100V distributed lines, while the 12-ohm direct input supports low-impedance wiring on smaller single-zone systems.
Fits Standard Plenums

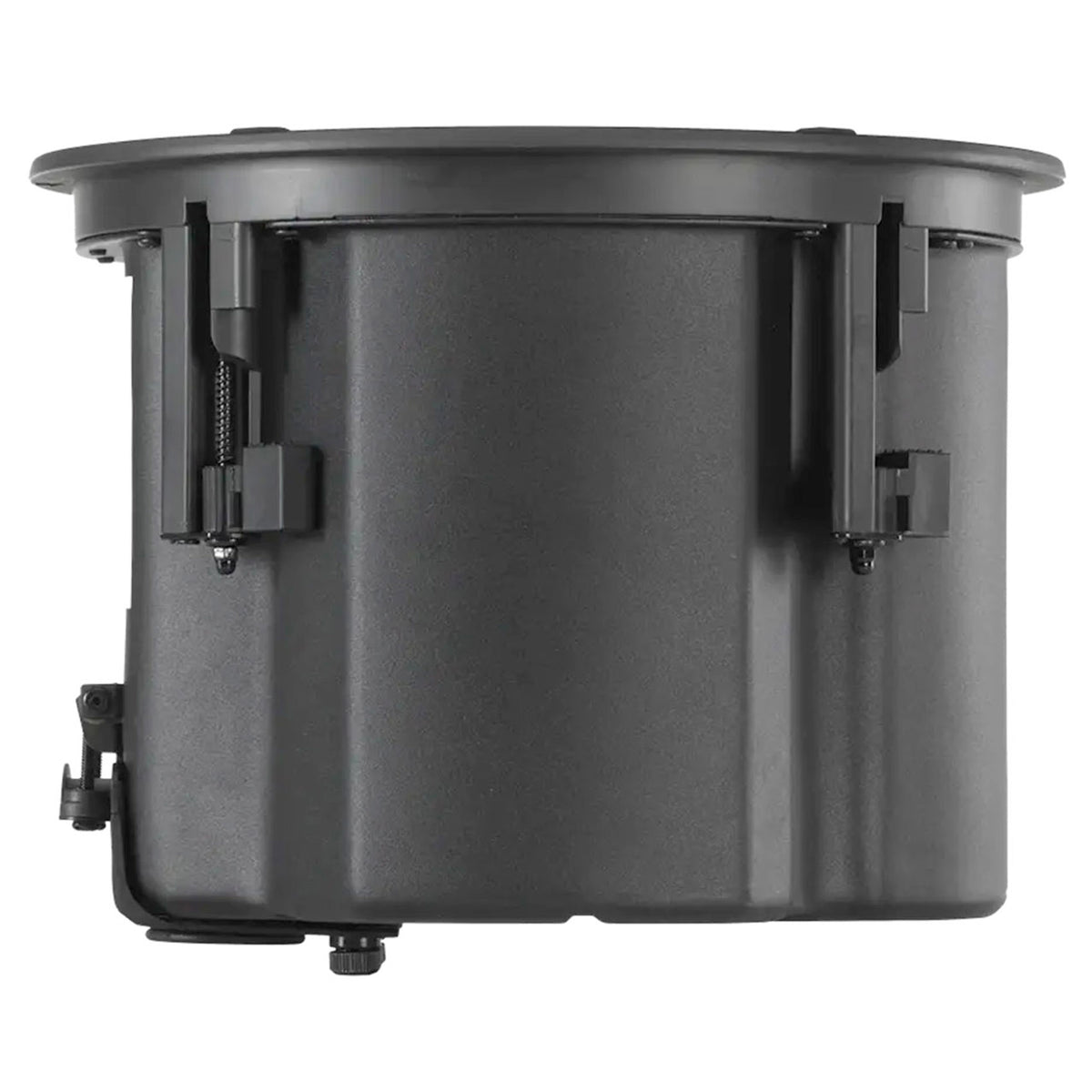

The integrated back can stands 7.4 in tall and fits most ceiling plenum spaces, so you can retrofit existing tile ceilings without structural changes.
Faster Installation

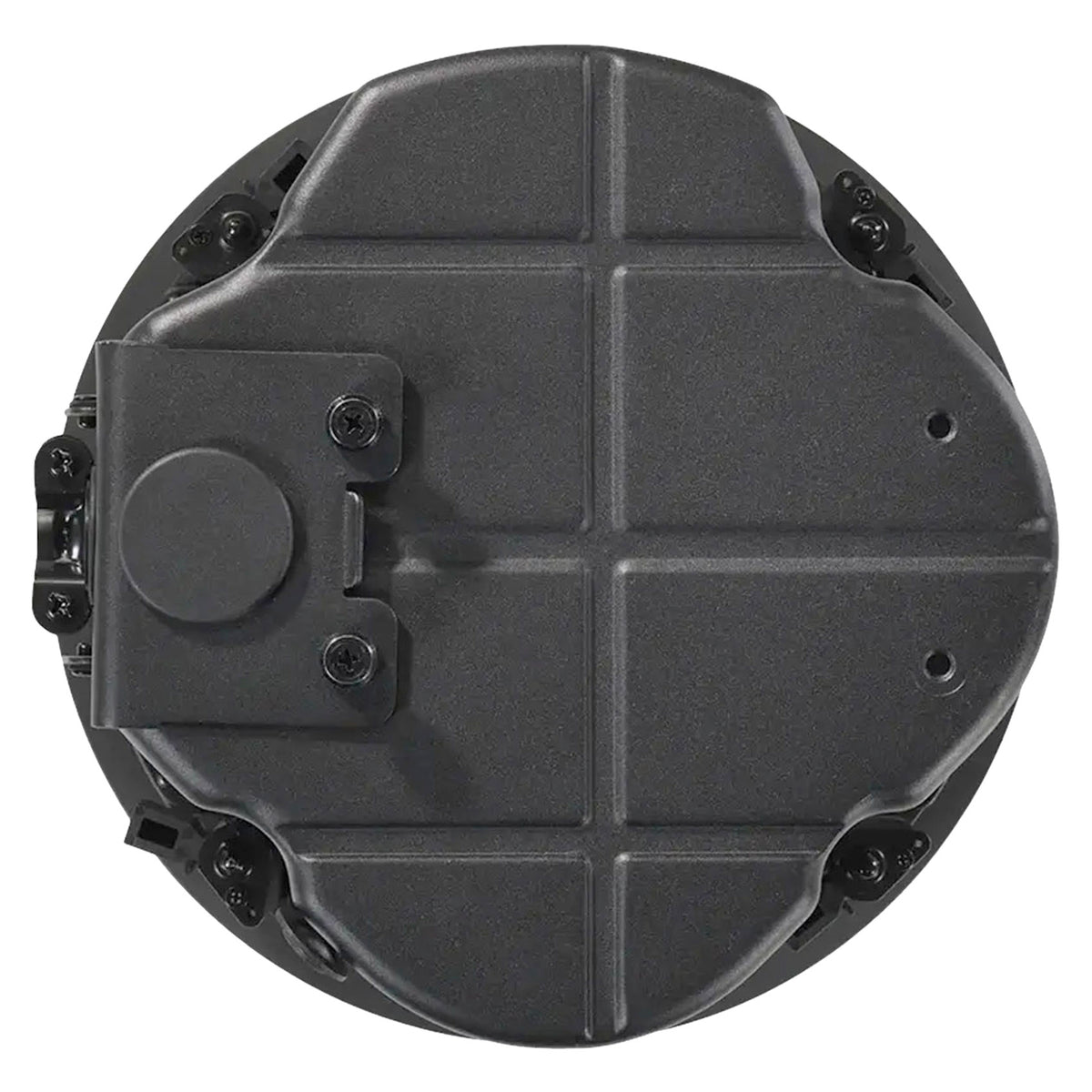

Terminal covers give you top and side cable entry with captive hand-screws, and captive dogears clamp securely across a wide range of ceiling thicknesses.
Clean Ceiling Appearance

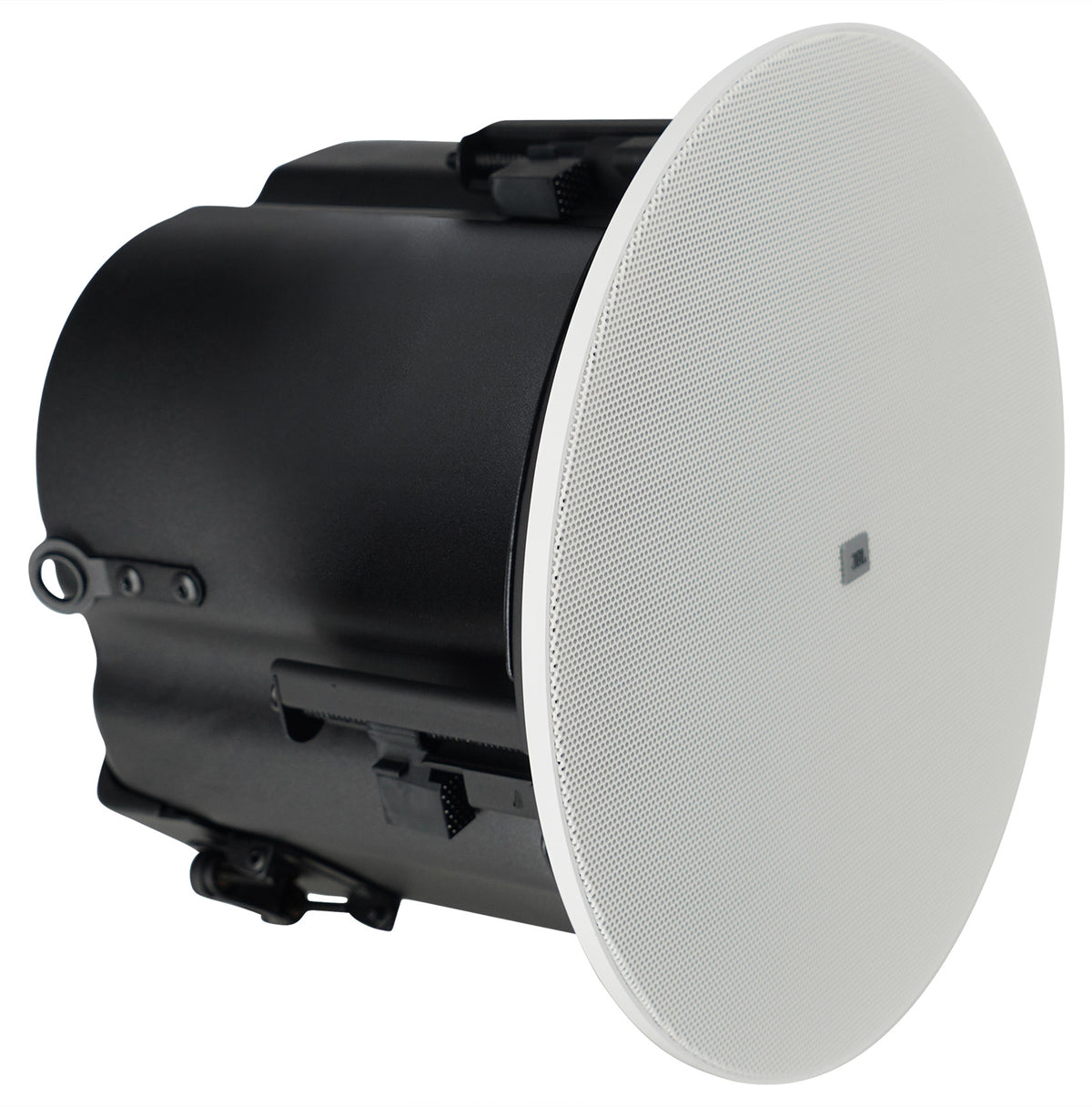

Full-face magnetic grilles sit flush and accept paint, with a safety tether anchored into the baffle for added security in high-traffic rooms.
Technical Specifications
- Product Type 6.5" Two-Way Coaxial In-Ceiling Speaker (Pair)
- Frequency Range (-10 dB) 72 Hz - 19 kHz
- Power Capacity 110 W (440 W peak), continuous pink noise (2 hrs)
- Sensitivity (1m/1W) 89 dB
- Coverage Angle 110 degrees conical
- Maximum SPL (1m) 109 dB continuous, 115 dB peak
- Nominal Impedance 12 ohms

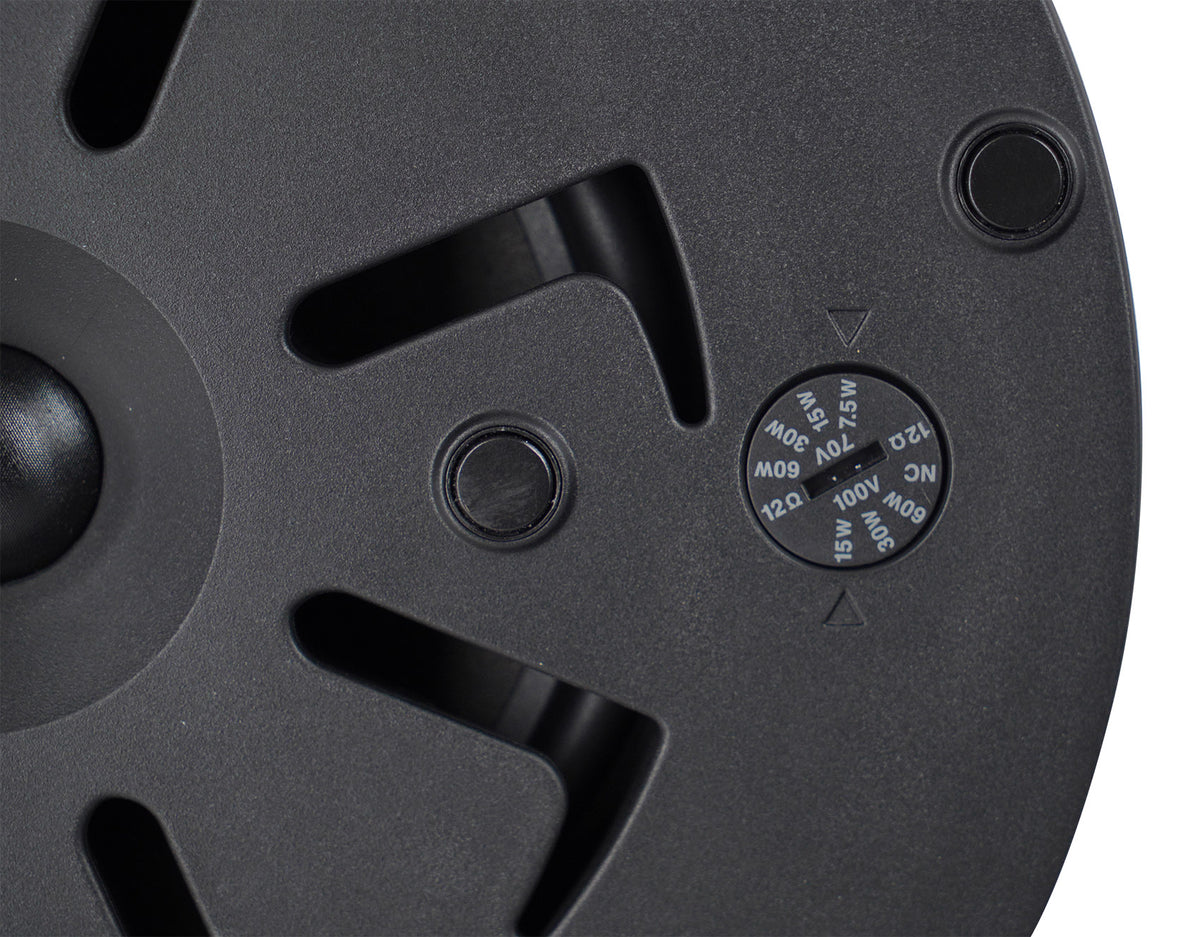

- Transformer Taps 70V: 60 W, 30 W, 15 W, 7.5 W; 100V: 60 W, 30 W, 15 W
- LF Driver 165 mm (6.5 in) treated paper cone
- HF Driver 25 mm (1.0 in) textile soft dome, neodymium magnet
- Ceiling Cutout Size 223 mm (8.8 in)
- Environmental Rating IP33 per EN/IEC 60529
- Operating Temperature 0 C to 45 C
- Safety Agency Rating UL2043, NFPA 90A, NFPA 70, CSA C22.2 no. 205, S7232/UL1480A
- Color White (RAL9003), paintable
- Weight 9.3 lb each
- Dimensions 7.4 in H x 9.9 in dia.
