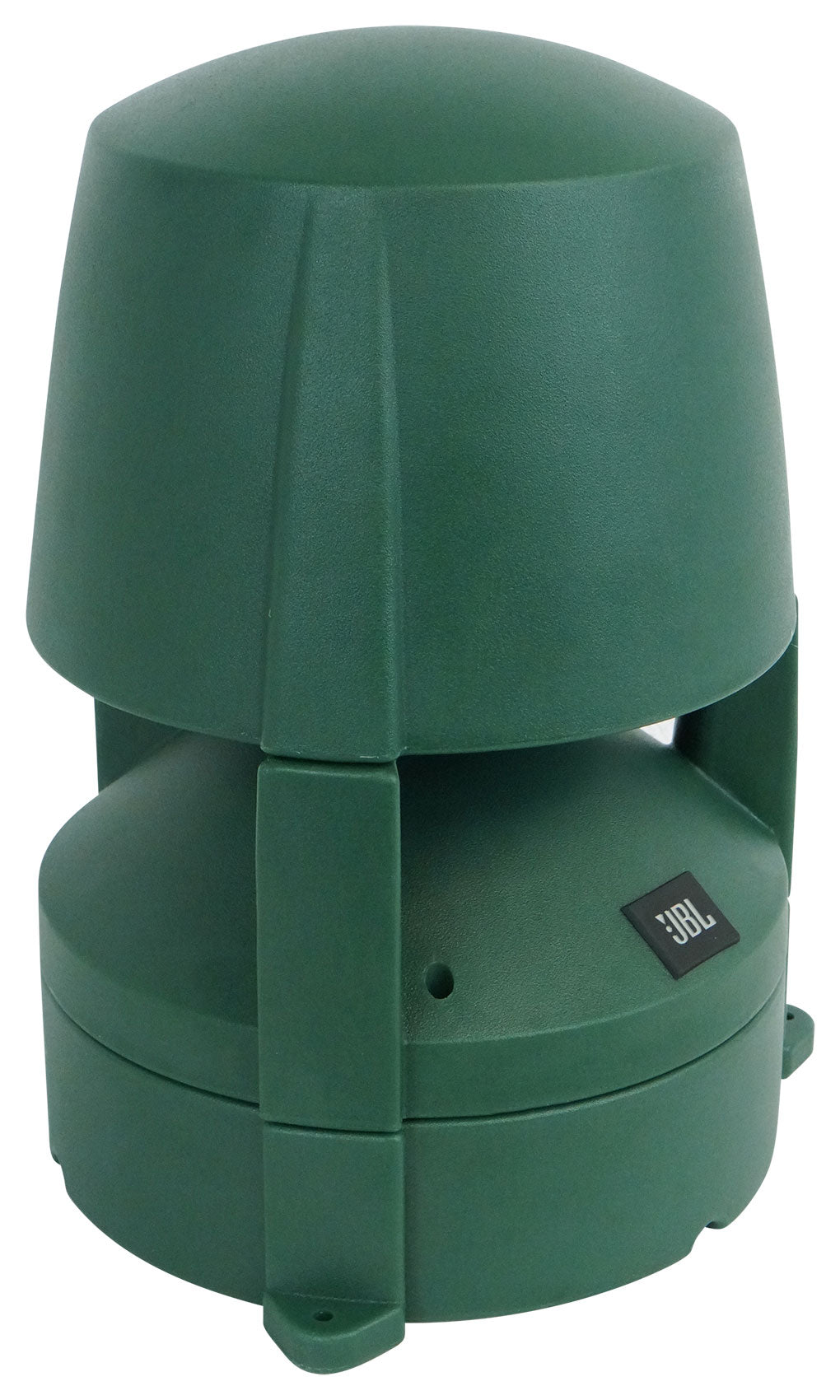

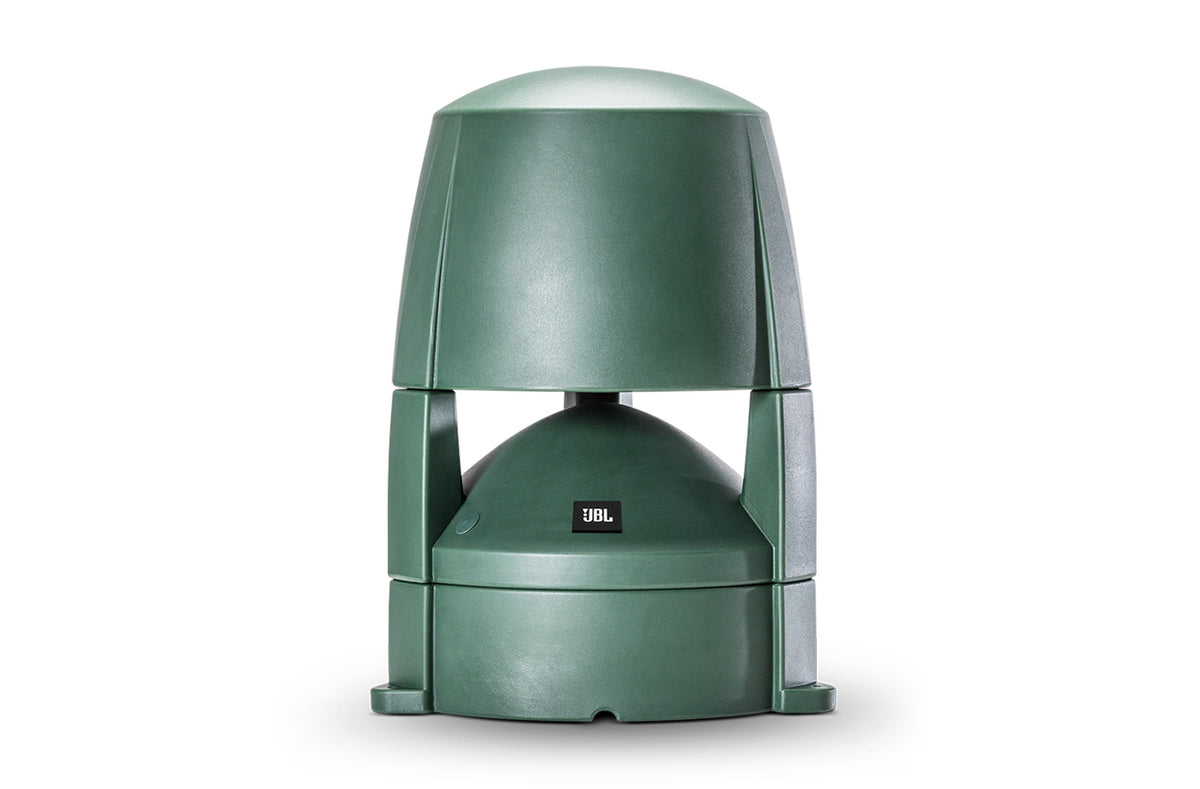

JBL CONTROL 88M 8" Commercial 70v Outdoor Inground/On ground Landscape Speaker
JBL CONTROL 88M 8" Commercial 70v Outdoor Inground/On ground Landscape Speaker
JBL
JBL CONTROL 88M 8" Commercial 70v Outdoor Inground/On ground Landscape Speaker
JBL CONTROL 88M 8" Commercial 70v Outdoor Inground/On ground Landscape Speaker
8" Two-Way Landscape Speaker, 120 W, 70V/100V/8-Ohm, With Wire Nuts, Gland Nuts, Screwdriver
Free Shipping
Features

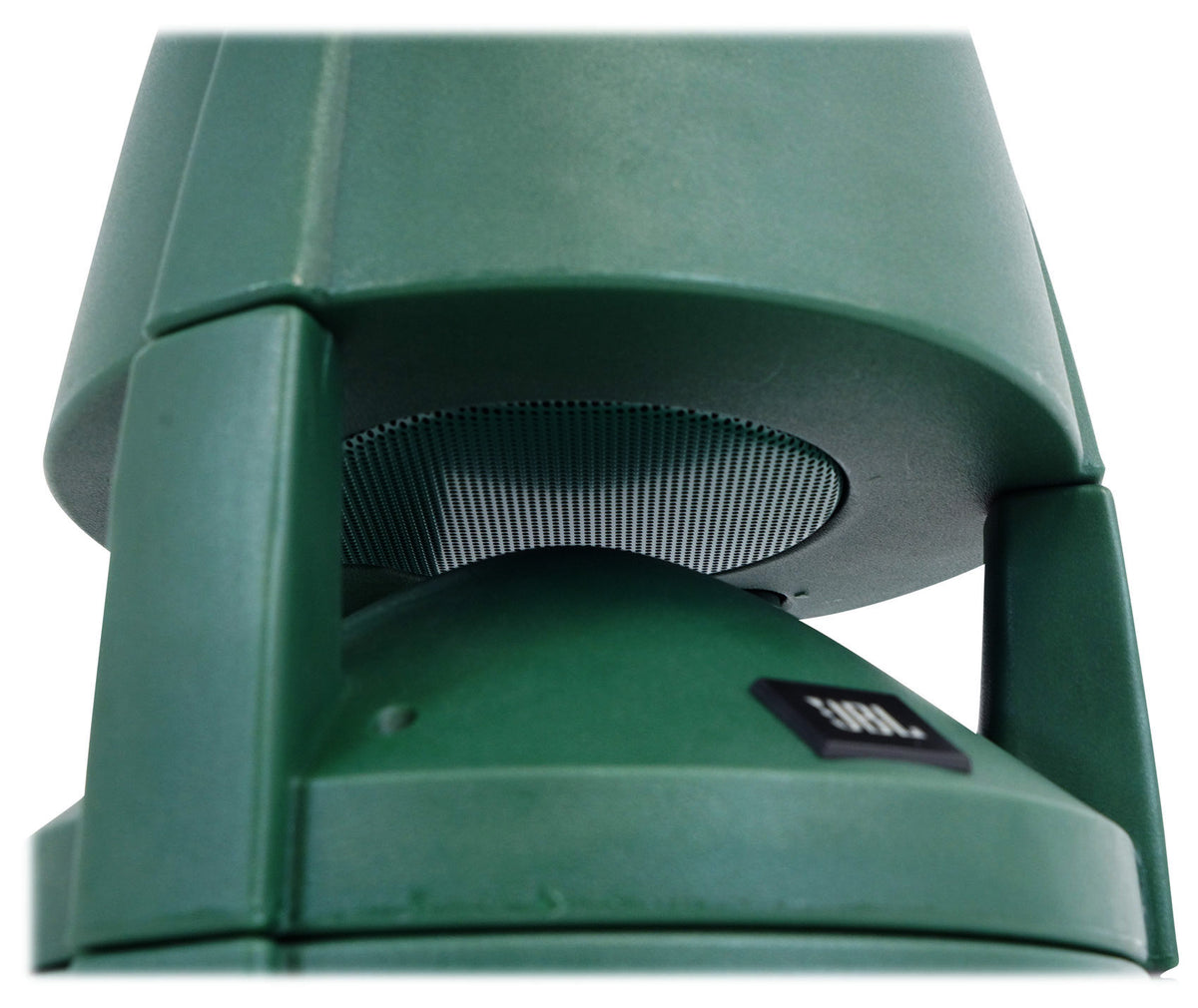

- 360-degree horizontal coverage from an 8-inch woofer and 1-inch dome tweeter
- 120 W pink noise handling at 8 ohms plus a 60 W 70V/100V multi-tap transformer
- Frequency range down to 47 Hz for full music playback outdoors
- IP-56 polyethylene enclosure resists lawn equipment, water jets and dust
- Isolated center chamber with two-stage gland nuts protects all wiring
Couldn't load pickup availability

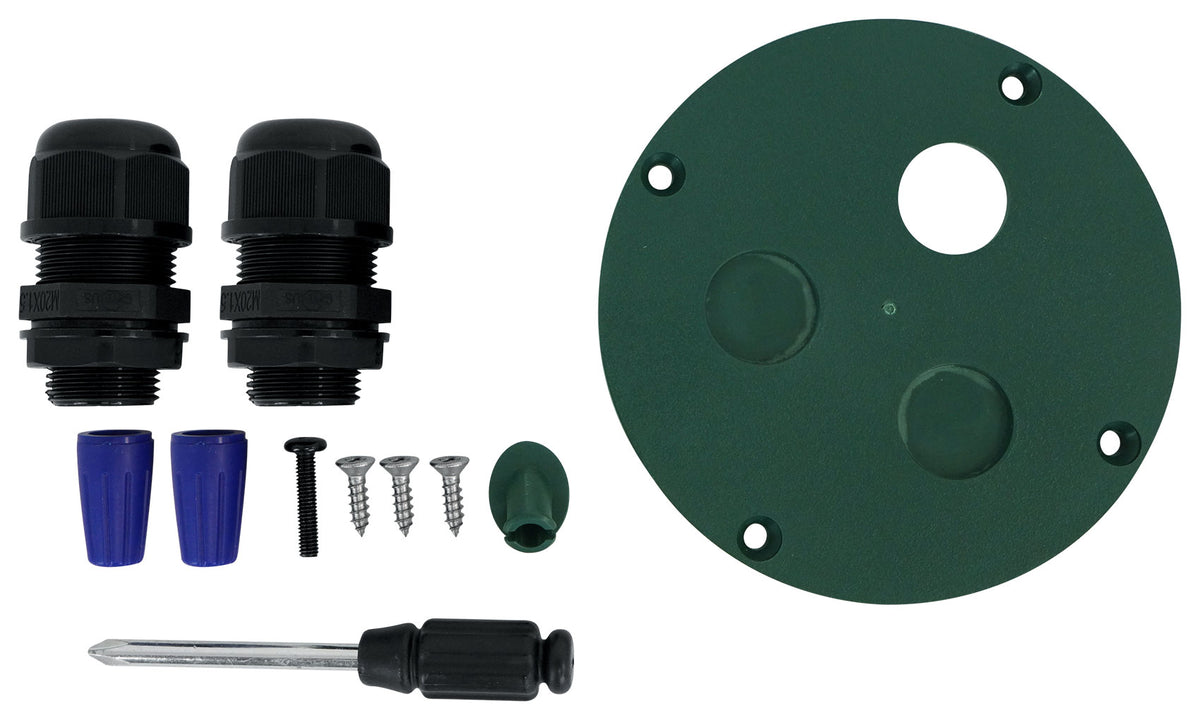

What's Included in the box
- (1) Control 88M Landscape Speaker
- (2) Wire Nuts
- (2) Gland Nuts
- (1) Right-Angle Screwdriver
SKU: SKU: CONTROL 88M
View full details











Product Description
Features
Covers More Ground
120 W handling and 108 dB maximum SPL let one unit cover a wide plaza or pool deck, reducing the number of speakers and amplifier channels needed.
Real Low End Outdoors
The 8-inch woofer reaches 47 Hz, keeping music full in open air where there are no walls or ceilings to reinforce bass.
Built For Long Cable Runs
The 60 W multi-tap transformer supports 70V and 100V distributed lines, holding signal loss down across the long distances typical of outdoor properties.
Survives The Yard
A 6 mm polyethylene enclosure resists mowers and trimmers, and the color runs through the material so scrapes never leave a visible mark.

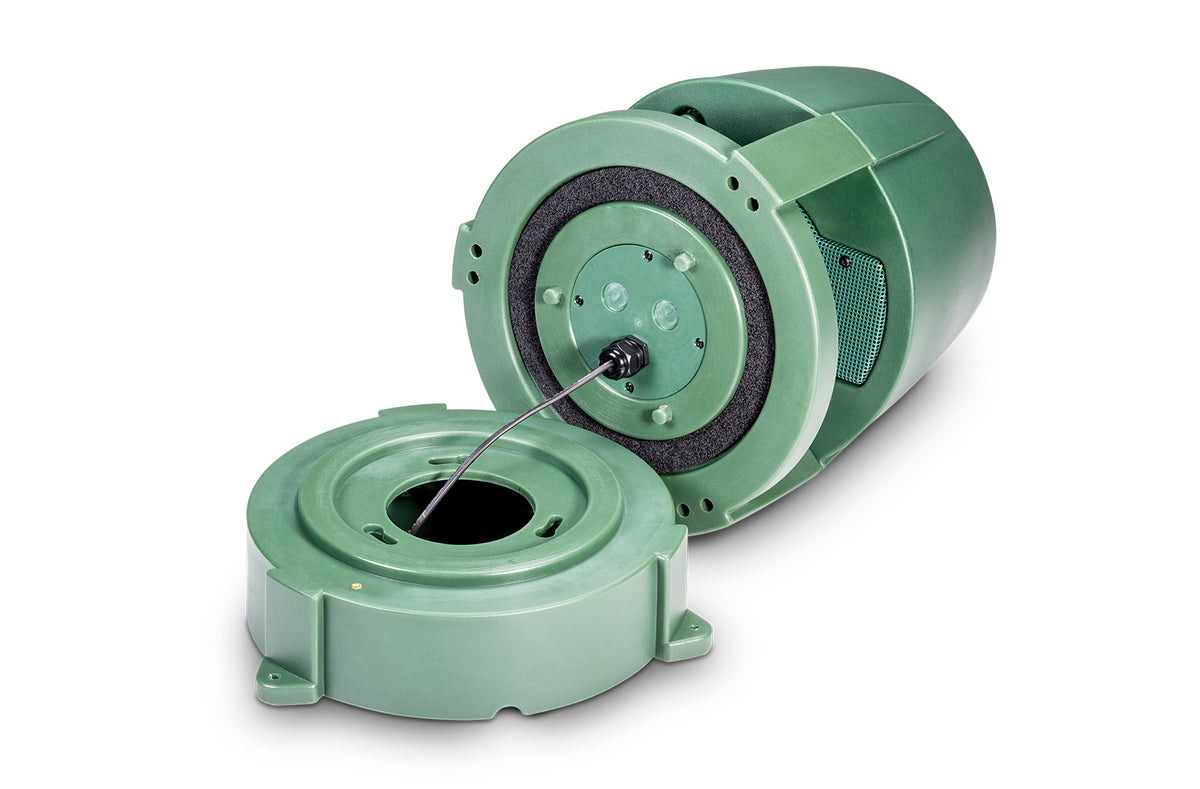

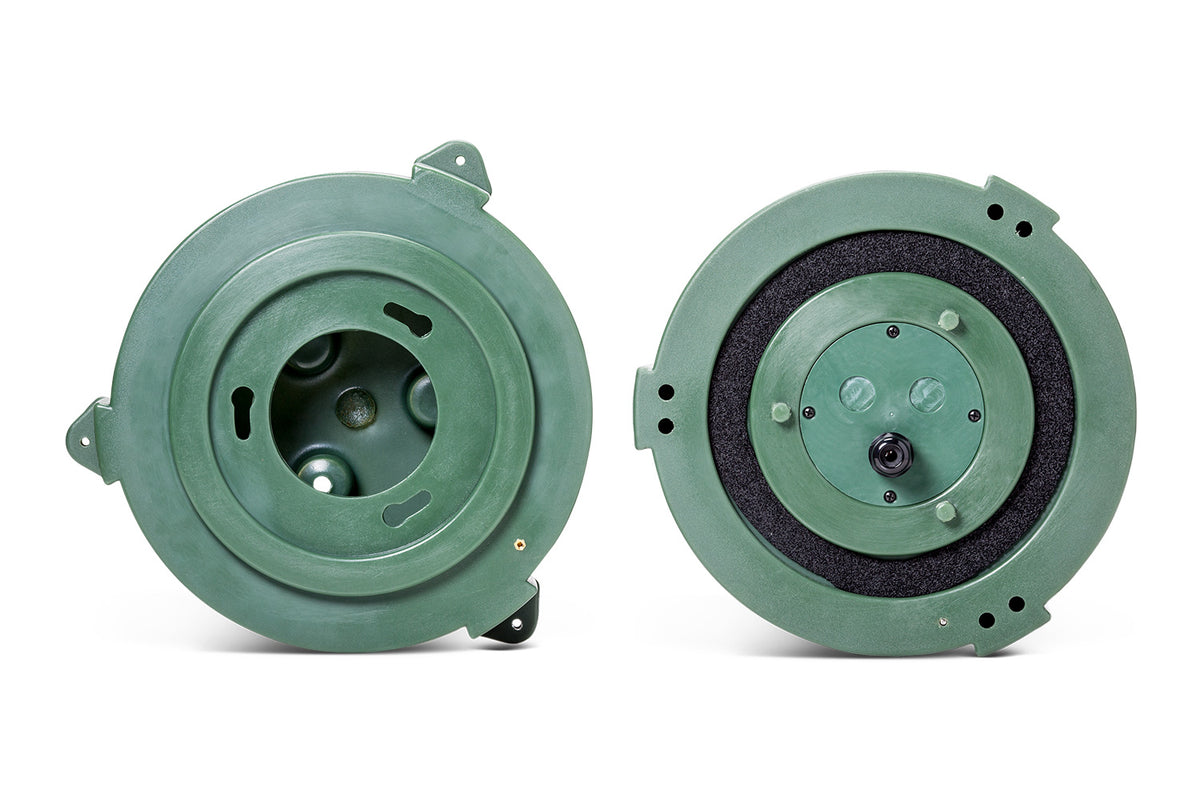

Weather Sealed Wiring
An isolated center chamber and two stages of gland nuts keep water off the connections, backed by an IP-56 dust and water jet rating.
Technical Specifications
- Product Type 8" Two-Way Coaxial Landscape Speaker
- Frequency Range (-10 dB) 47 Hz - 16 kHz
- Frequency Response (+/-3 dB) 60 Hz - 15 kHz
- Power Rating 120 W continuous pink noise (480 W peak), 240 W continuous program
- Sensitivity 87 dB, 1 W @ 1m
- Coverage Angle 360 degrees horizontal, 160 degrees vertical
- Maximum SPL (1m) 108 dB
- Impedance 8 ohms

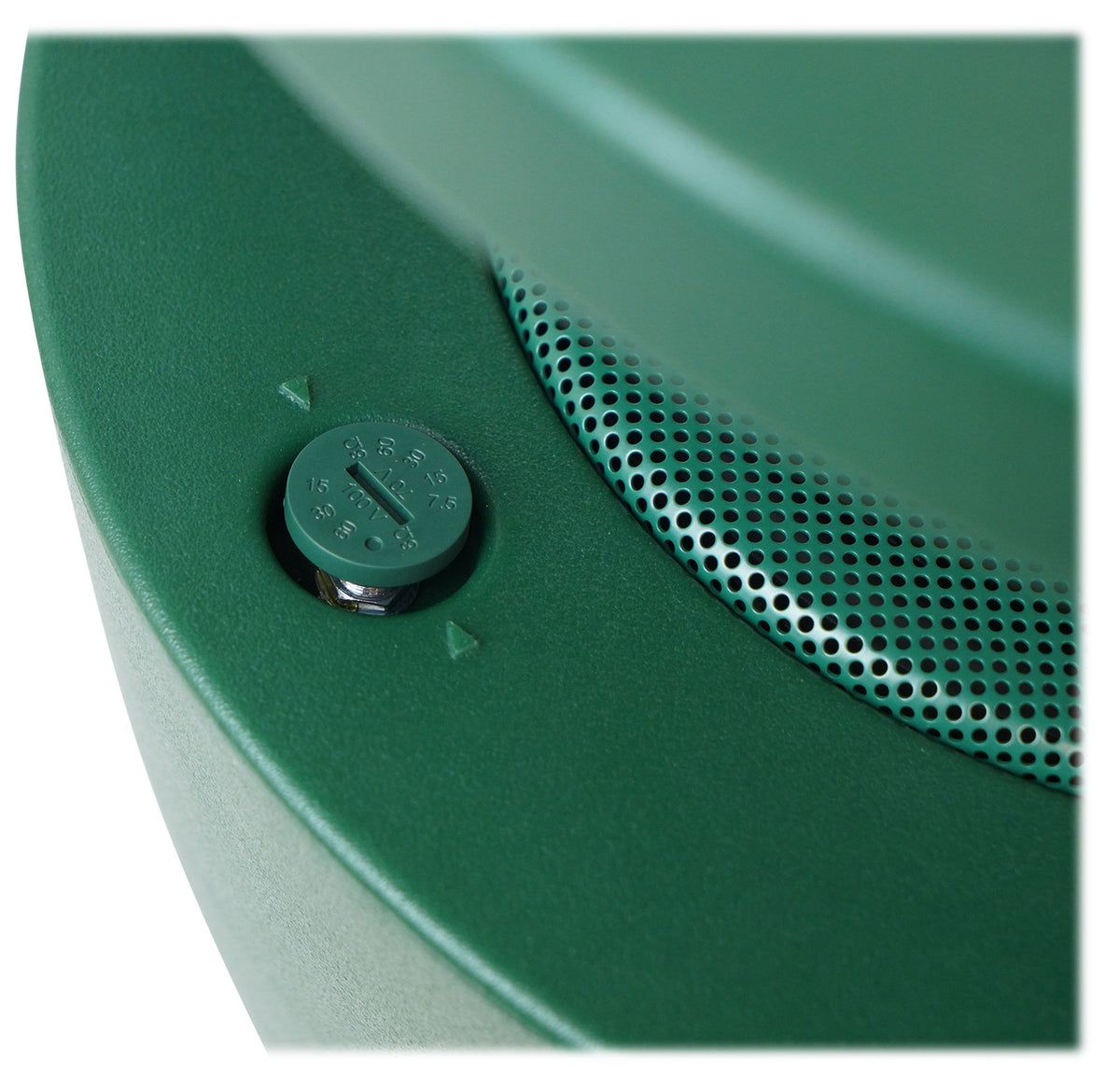

- Transformer Taps 70V: 60 W, 30 W, 15 W, 7.5 W; 100V: 60 W, 30 W, 15 W
- LF Driver 200 mm (8 in) polypropylene cone, 38 mm voice coil
- HF Driver 25 mm (1.0 in) polyetherimide dome
- Enclosure LDPE polyethylene, 6 mm wall, UL94V-0 rated
- Grille Powder-coated stainless steel
- Environmental Rating IP-56 per IEC529, exceeds Mil Spec 810
- Safety Agency UL1480, transformer UL recognized per UL1876, RoHS compliant
- Color Hunter Green, RAL6018
- Weight 17 lb
- Dimensions 20.7 x 14 x 14 in (H x W x D)
