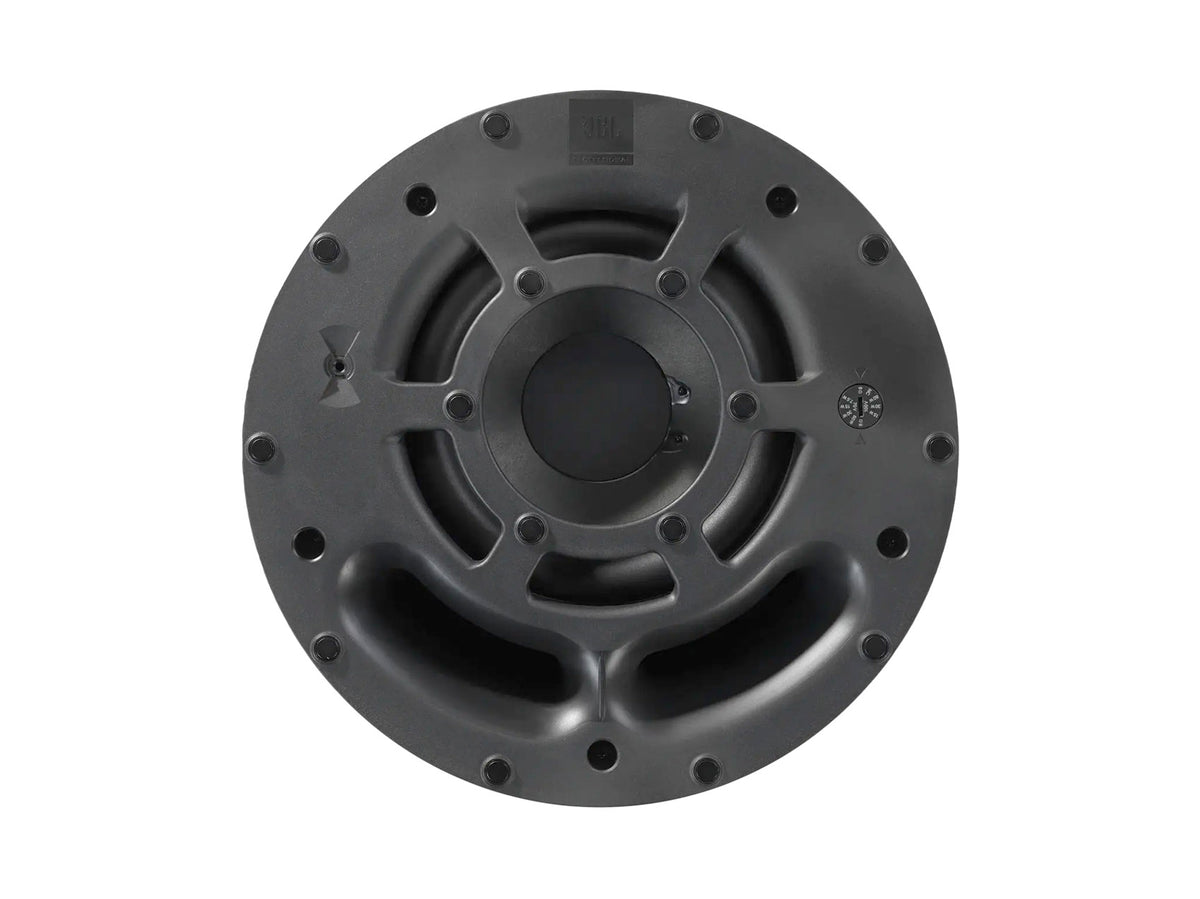

(2) JBL Control 419CS/T 8" Commercial In-Ceiling Subwoofers 70v Restaurant Subs
(2) JBL Control 419CS/T 8" Commercial In-Ceiling Subwoofers 70v Restaurant Subs
JBL
(2) JBL Control 419CS/T 8" Commercial In-Ceiling Subwoofers 70v Restaurant Subs
(2) JBL Control 419CS/T 8" Commercial In-Ceiling Subwoofers 70v Restaurant Subs

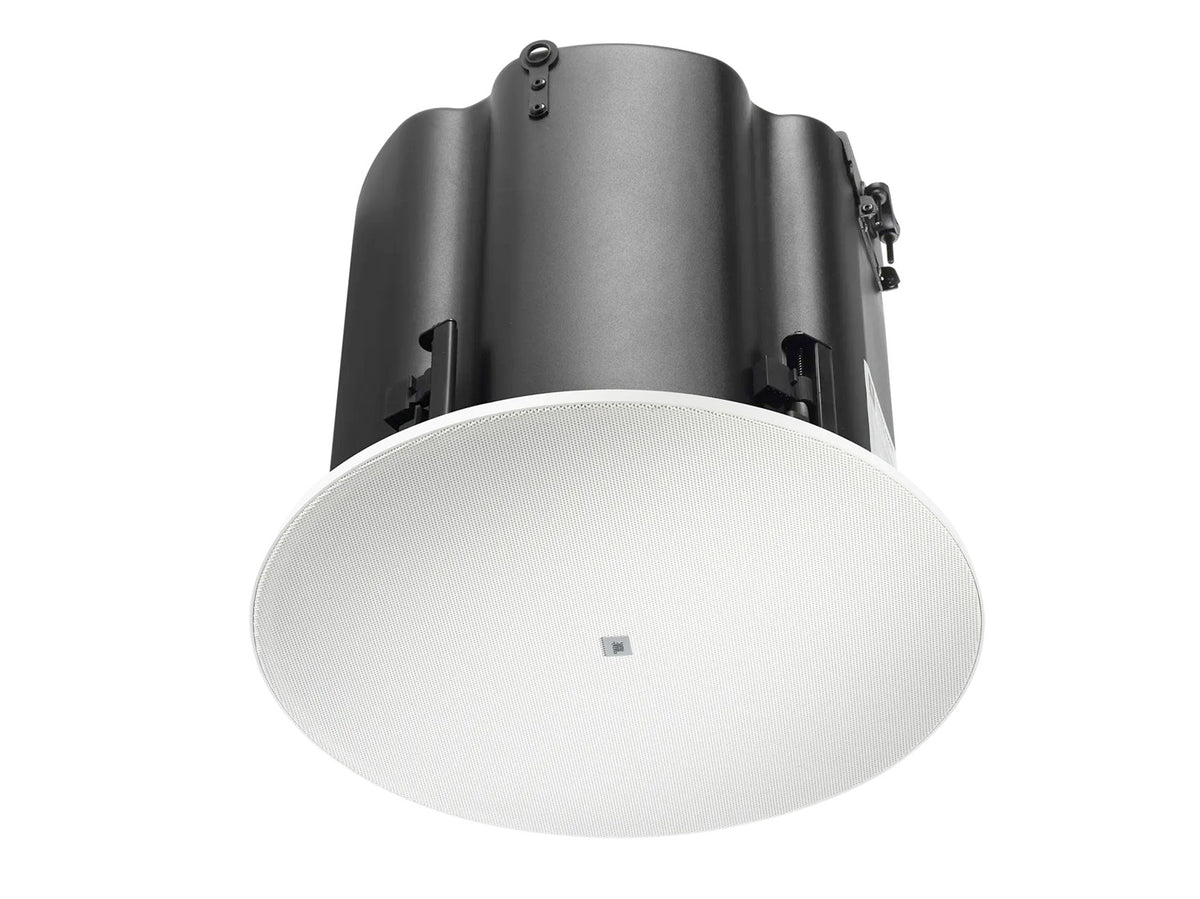

8" In-Ceiling Subwoofers, 160 W, 70V/100V/8-Ohm, Pair With Paintable Magnetic Grilles
Free Shipping
Features
- 8-inch woofer with two large tapered ports for warm, full bass response
- Built-in passive low-pass filter connects directly alongside full-range speakers
- 70V/100V multi-tap transformer plus 8-ohm direct input for low-impedance runs
- Up to 112 dB continuous output with a 47 Hz to 320 Hz frequency range
- IP33 rated and UL2043 listed for use in air-handling ceiling spaces
Couldn't load pickup availability
What's Included in the box

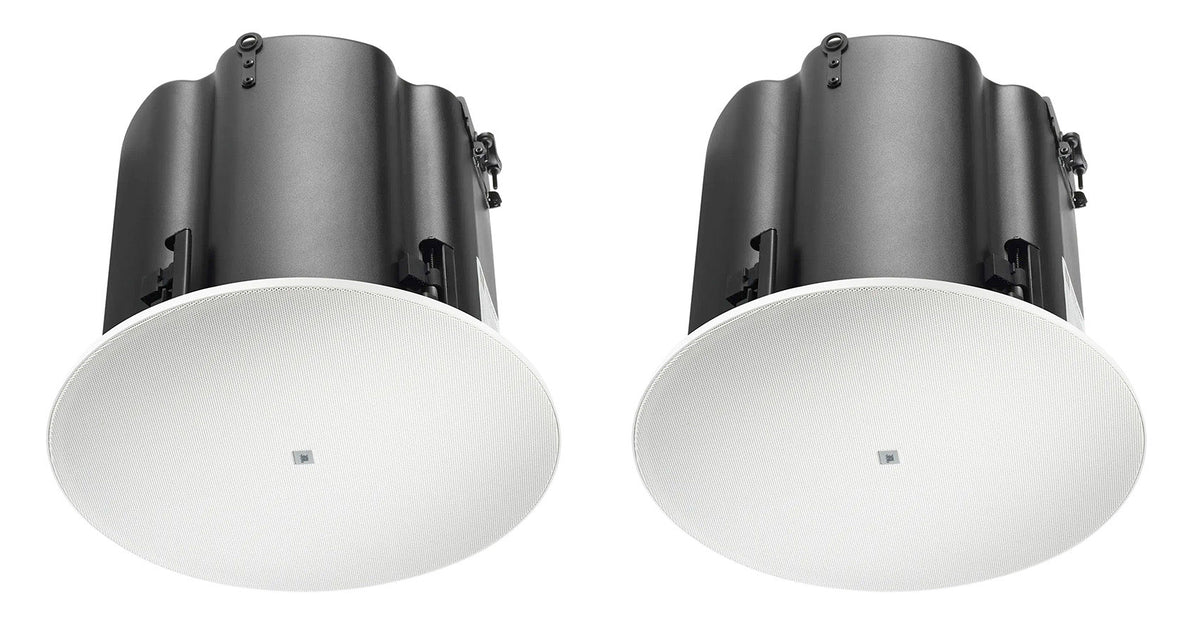

- (2) Control 419CS/T In-Ceiling Subwoofers
- (2) White Full-Face Magnetic Grilles
- (2) Terminal Covers
SKU: SKU: Control C419CS/T
View full details








Product Description
Features
Bass Without Floor Space

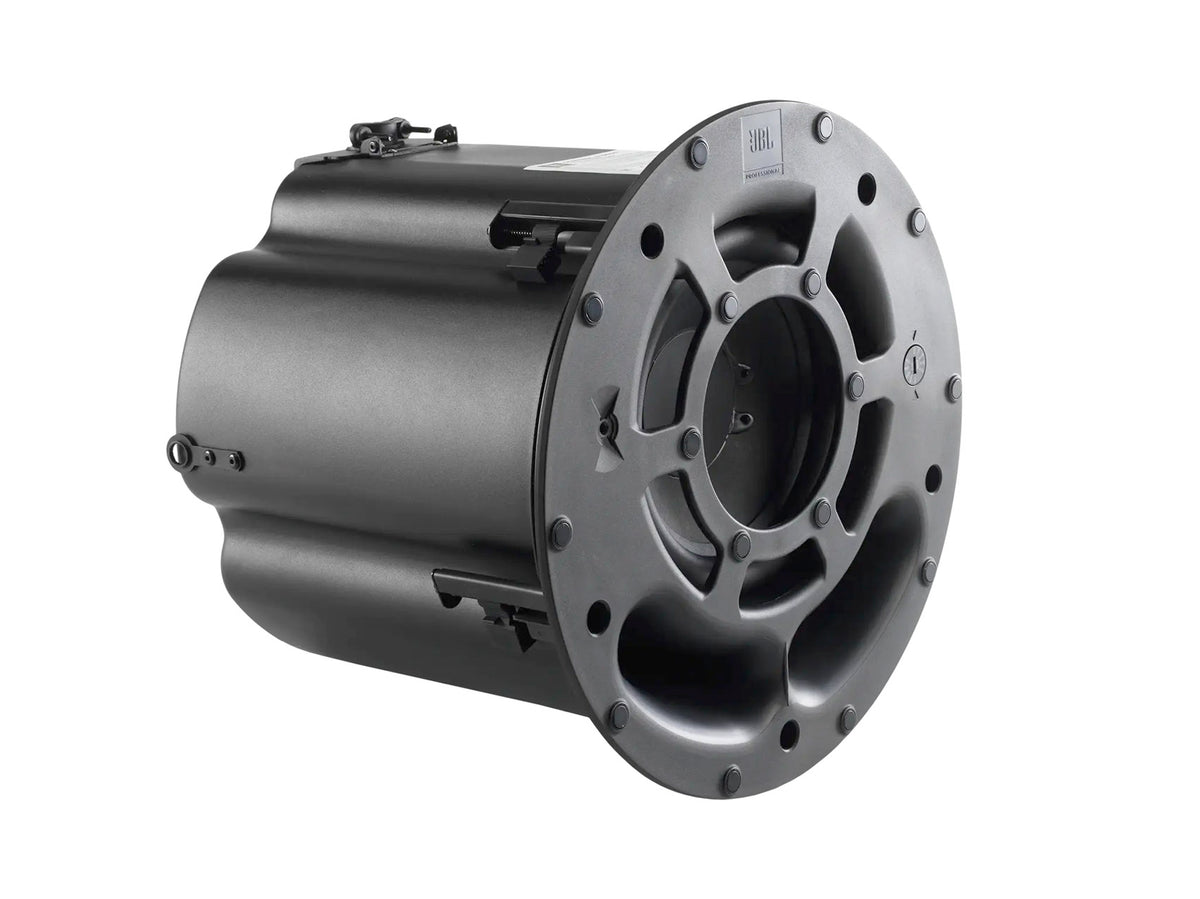

An 8-inch woofer and two tapered ports produce low end down to 47 Hz from inside the ceiling, leaving the floor plan free of subwoofer cabinets.
Simple System Integration
The built-in passive low-pass filter handles the crossover, so the subwoofer shares the same amplifier line as full-range ceiling speakers with no extra processing.
Wiring Flexibility
A subwoofer-band multi-tap transformer covers 70V and 100V distributed systems at four settings, with an 8-ohm direct input for low-impedance zones.
Faster Installation

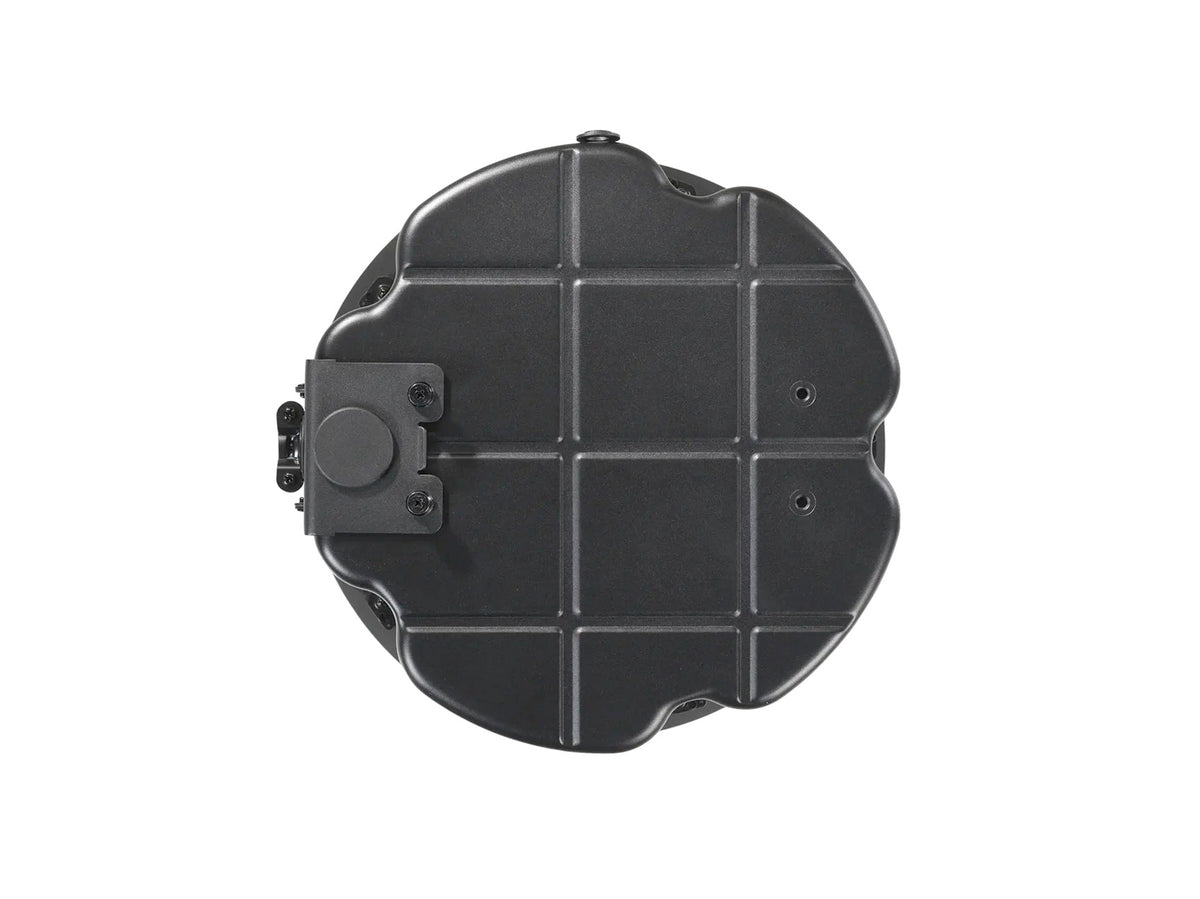

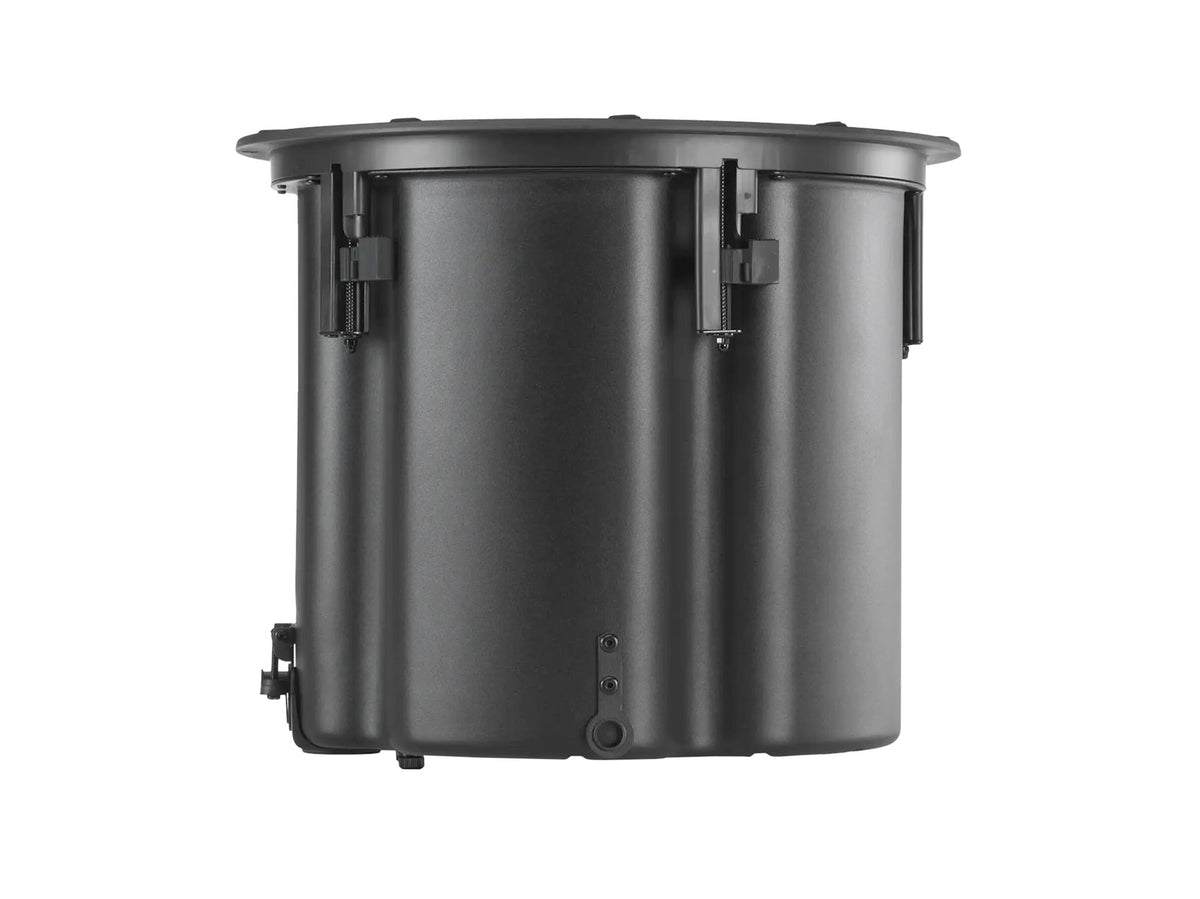

Terminal covers give you top and side cable entry with captive hand-screws, and captive dogears clamp securely across a wide range of ceiling thicknesses.
Clean Ceiling Appearance

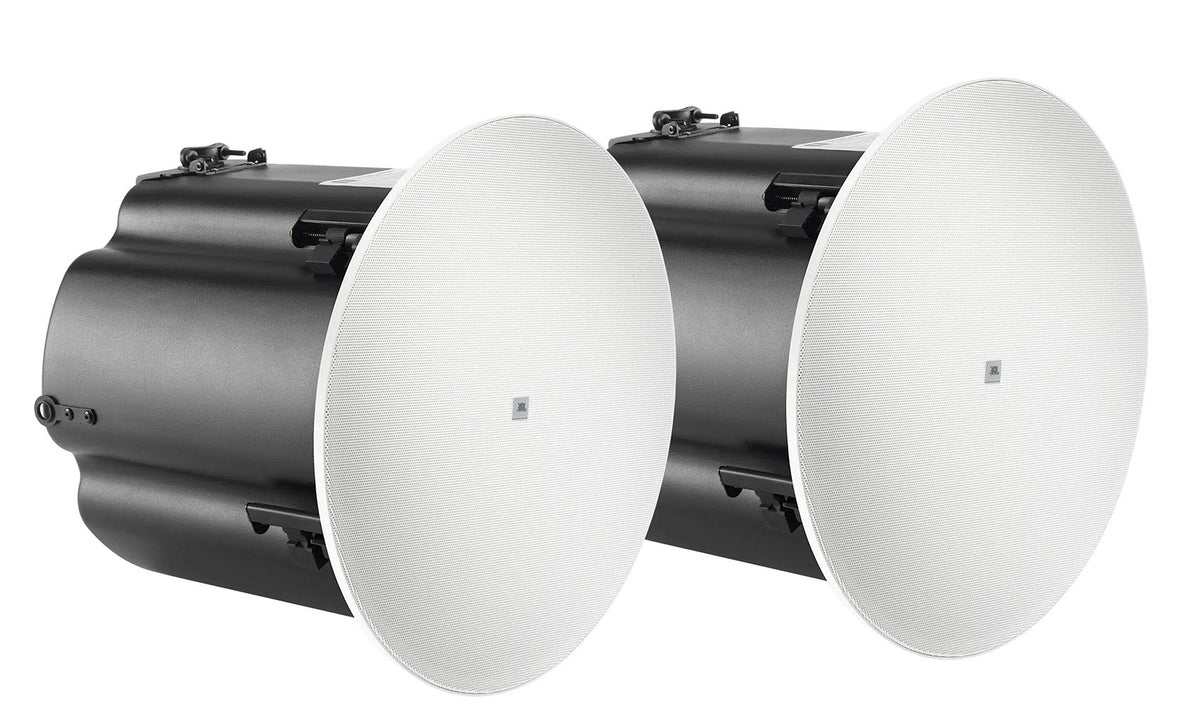

The full-face magnetic grille sits flush and accepts paint, with a safety tether anchored into the baffle to hold the grille overhead.
Technical Specifications
- Product Type 8" In-Ceiling Subwoofer (Pair)
- Frequency Range (-10 dB) 47 Hz - 320 Hz
- Power Capacity 160 W (640 W peak), continuous IEC pink noise (2 hrs)
- Sensitivity (1m/1W) 90 dB
- Coverage Angle 180 degrees conical
- Maximum SPL (1m) 112 dB continuous, 118 dB peak
- Nominal Impedance 8 ohms
- Transformer Taps 70V: 60 W, 30 W, 15 W, 7.5 W; 100V: 60 W, 30 W, 15 W
- Driver 200 mm (8 in) treated paper cone with high-performance magnet
- Ceiling Cutout Size 308 mm (12.2 in)
- Environmental Rating IP33 per EN/IEC 60529
- Operating Temperature 0 C to 45 C
- Safety Agency Rating UL2043, NFPA 90A, NFPA 70, CSA C22.2 no. 205, S7232/UL1480A
- Color White (RAL9003), paintable
- Weight 19.4 lb each
- Dimensions 11.4 in H x 13.6 in dia.
