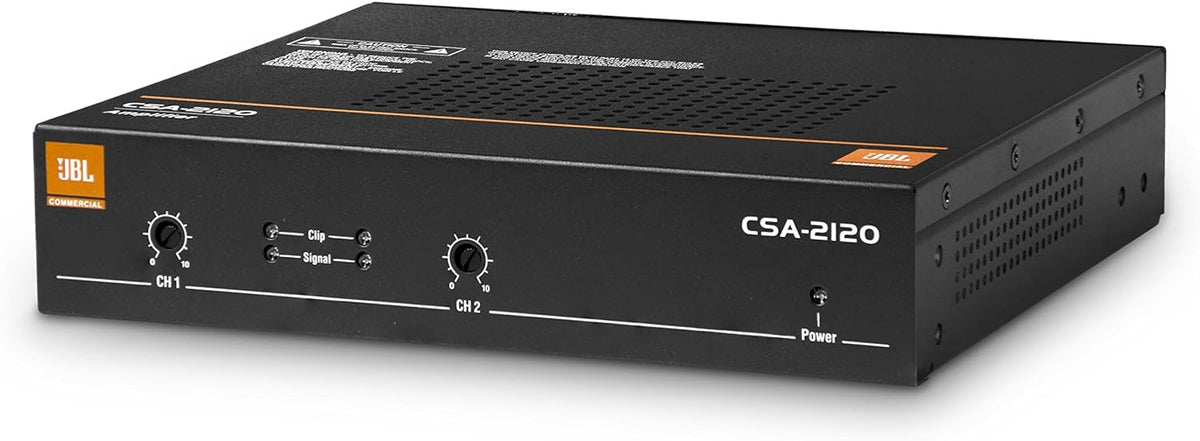

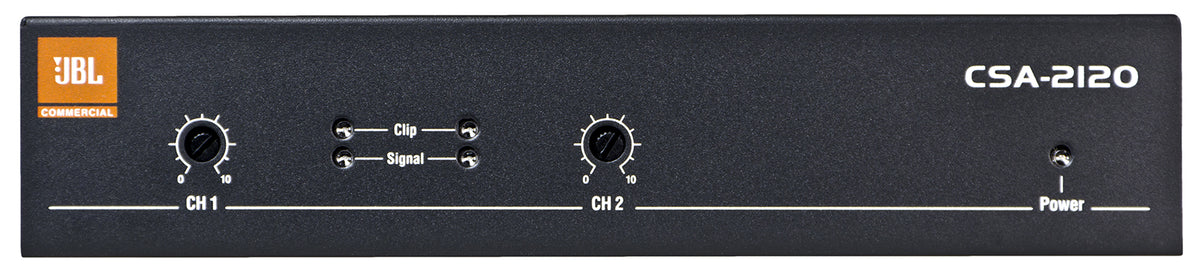

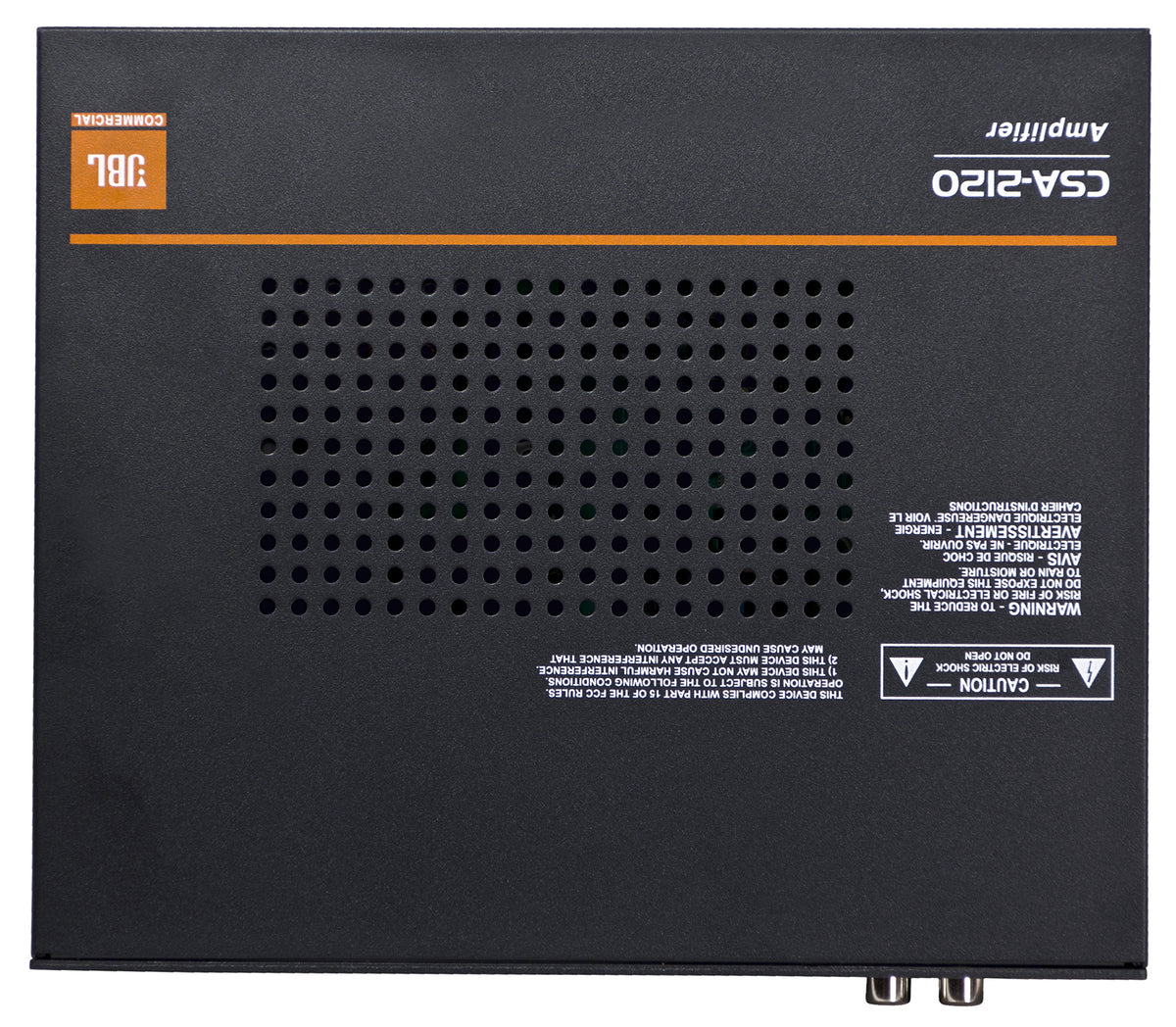

JBL CSA 2120 2 x 120w 2-Channel Power Amplifier Commercial Amp 4 Restaurant/Bar
JBL CSA 2120 2 x 120w 2-Channel Power Amplifier Commercial Amp 4 Restaurant/Bar
JBL
JBL CSA 2120 2 x 120w 2-Channel Power Amplifier Commercial Amp 4 Restaurant/Bar
JBL CSA 2120 2 x 120w 2-Channel Power Amplifier Commercial Amp 4 Restaurant/Bar
Two-Channel Commercial Amplifier, 2 x 120 W at 4/8 Ohms, Plenum Rated, With Rack Mounting Kit
Free Shipping
Features
- Two channels of 120 W into 4 or 8 ohm loads for separate zones
- Plenum rated under UL2043 for installation in air-handling ceiling spaces
- Convection cooled with no fan, keeping the rack silent

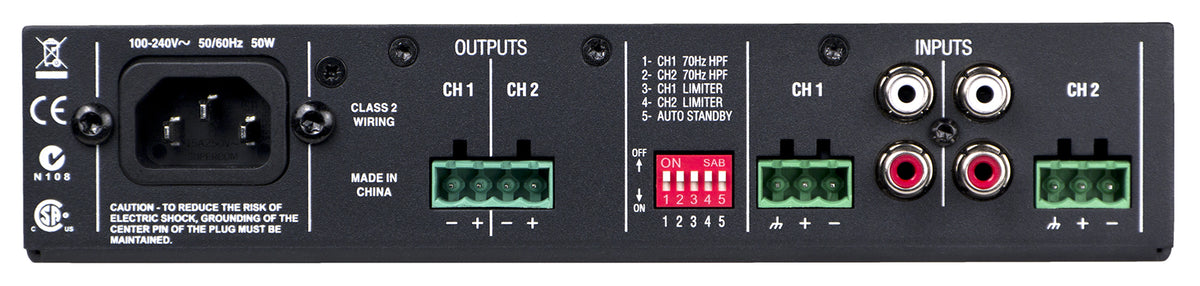

- Summing RCA inputs on each channel accept two sources without a mixer
- Auto-standby mode reduces power draw when no signal is present
Couldn't load pickup availability

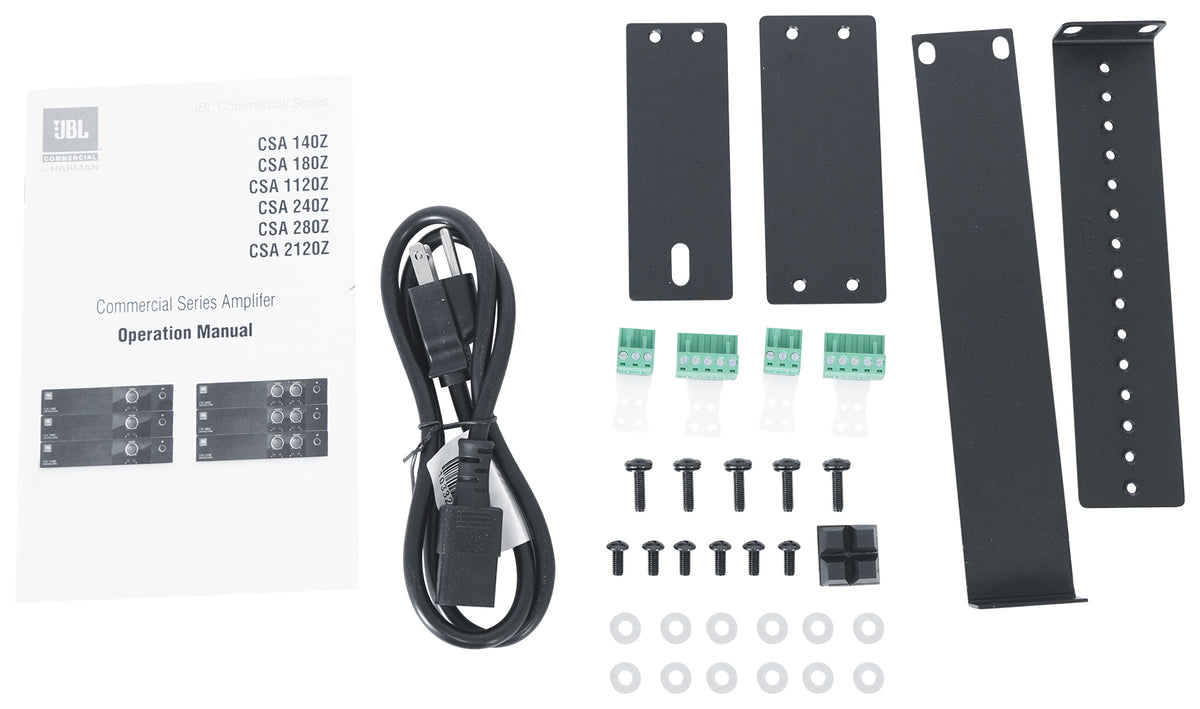

What's Included in the box
- (1) CSA 2120 Two-Channel Amplifier
- (1) Rack Mounting Kit
SKU: SKU: CSA2120
View full details





Product Description
Features
Two Zones From One Box
Each channel produces 120 W into 4 or 8 ohms with its own level control, so a dining room and patio can run at different volumes from one amplifier.
Silent Operation
Convection cooling replaces a fan, keeping the amplifier quiet in racks placed near guests, in offices or inside a ceiling space.
Installs In The Ceiling
UL2043 plenum rating allows mounting in air-handling ceiling spaces, which frees rack room in buildings with no dedicated equipment closet.
Handles Parallel Speakers
Load impedance is stable from 2 to 16 ohms, giving you room to parallel several speakers per channel without stressing the output stage.
Quiet At Low Levels
A signal-to-noise ratio above 100 dB keeps the noise floor inaudible during quiet background music, where hiss would otherwise be noticeable.
Technical Specifications
- Product Type Two-Channel Commercial Power Amplifier
- Output 120 W @ 4/8 ohms (1 kHz, THD+N < 0.5%)
- Output Channels 2
- Frequency Response +/- 1 dB (@1 W into 4 or 8 ohms)
- Load Impedance Stable from 2 - 16 ohms
- Sensitivity 1.4 Vrms
- Signal to Noise Ratio Greater than 100 dB, 1 kHz, A-weighted
- Input Impedance Balanced 20K ohms / unbalanced 10K ohms
- Max Input +20 dBu typical
- Cooling Convection, fanless
- Safety Rating Plenum rated, UL2043
- Weight 2.9 lb (shipping)
- Dimensions 8.2 x 1.7 x 7 in (209 x 44 x 178 mm)
