CSMA1120 [Used]

CSMA1120 [Used]

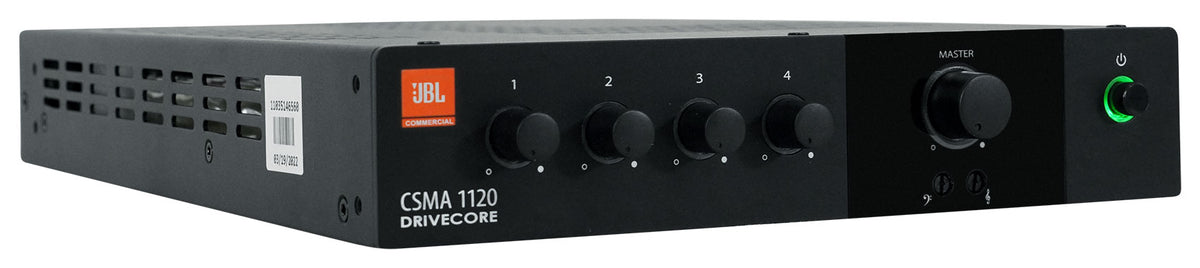

Four-Input Commercial Mixer Amplifier, Fanless 1U Design, for Paging and Background Audio

Free Shipping

$325.29
$325.29 $1,134.50
Save 71%
Shipping calculated at checkout.
Features
    • Four inputs accept balanced mic/line or [Used]nbalanced RCA sources
    • Fanless 1U design fits one rack space without fan noise
    • Supports 4-ohm, 8-ohm, 70V, and 100V speaker systems
    • Front-panel tone and volume controls simplify system adjustments
    • Includes a rack mounting kit for installation
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

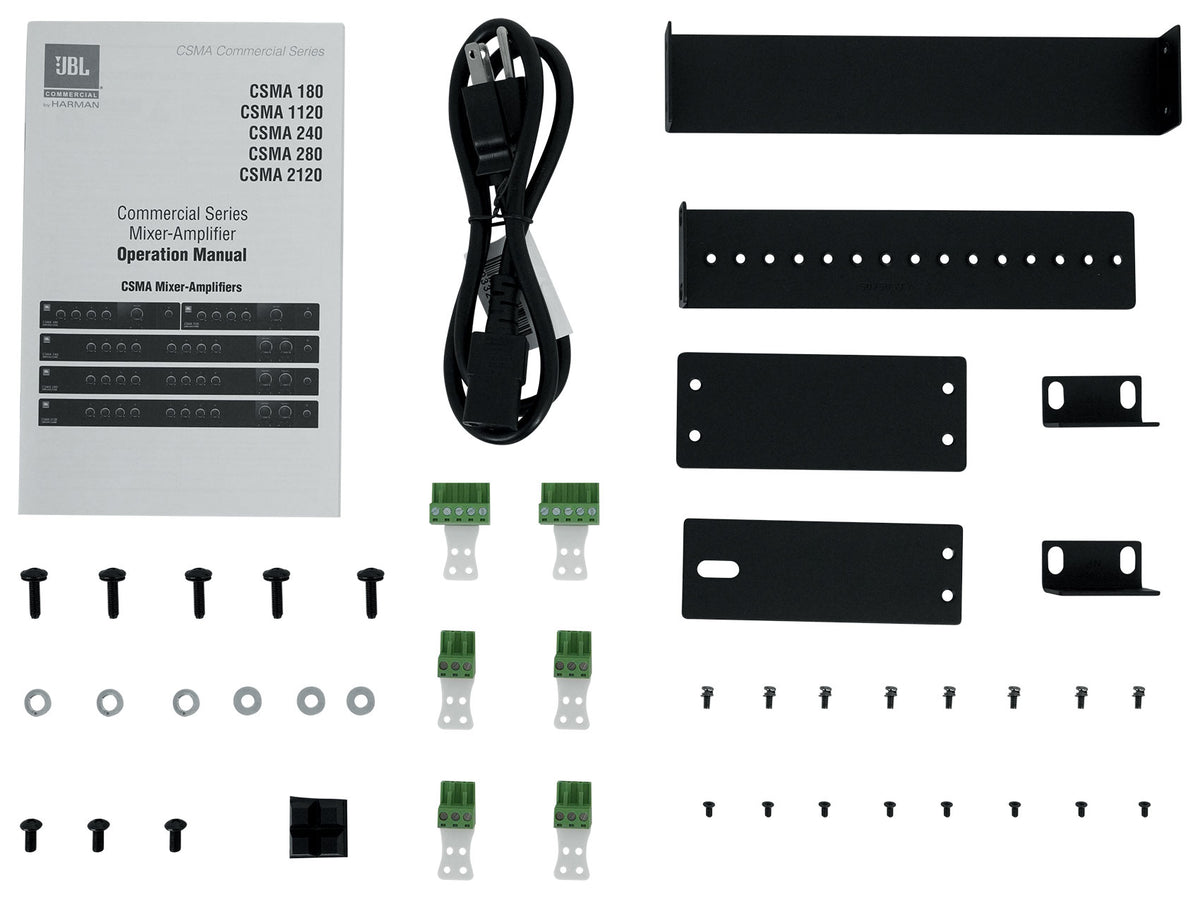

    • (1) JBL CSMA1120-U Mixer Amplifier
    • (1) Rack Mounting Kit

SKU: CSMA1120 U

View full details

Product Description

The JBL CSMA1120-U is a four-input, single-output commercial mixer amplifier with a fanless 1U rack design for installed sound systems. It accepts balanced mic/line and [Used]nbalanced RCA sources, then feeds 4- or 8-ohm speakers or 70V/100V distributed systems without a separate transformer. Front-panel channel and master controls, plus bass and treble adjustment, make it practical to tune paging, background music, or program audio at the rack. Illuminated control rings remain visible in dim equipment rooms and venues. Priority muting, configurable output routing, and RJ45 support for JBL CSR-V wall controls suit offices, retail spaces, schools, and other commercial installations. A rack mounting kit is included.
Audio Savings

Four Inputs for Commercial Audio

The CSMA1120-U combines four inputs with one output in a fanless 1U mixer amplifier. Balanced mic/line connections and unbalanced RCA inputs accommodate microphones and playback sources in installed sound systems.
Audio Savings

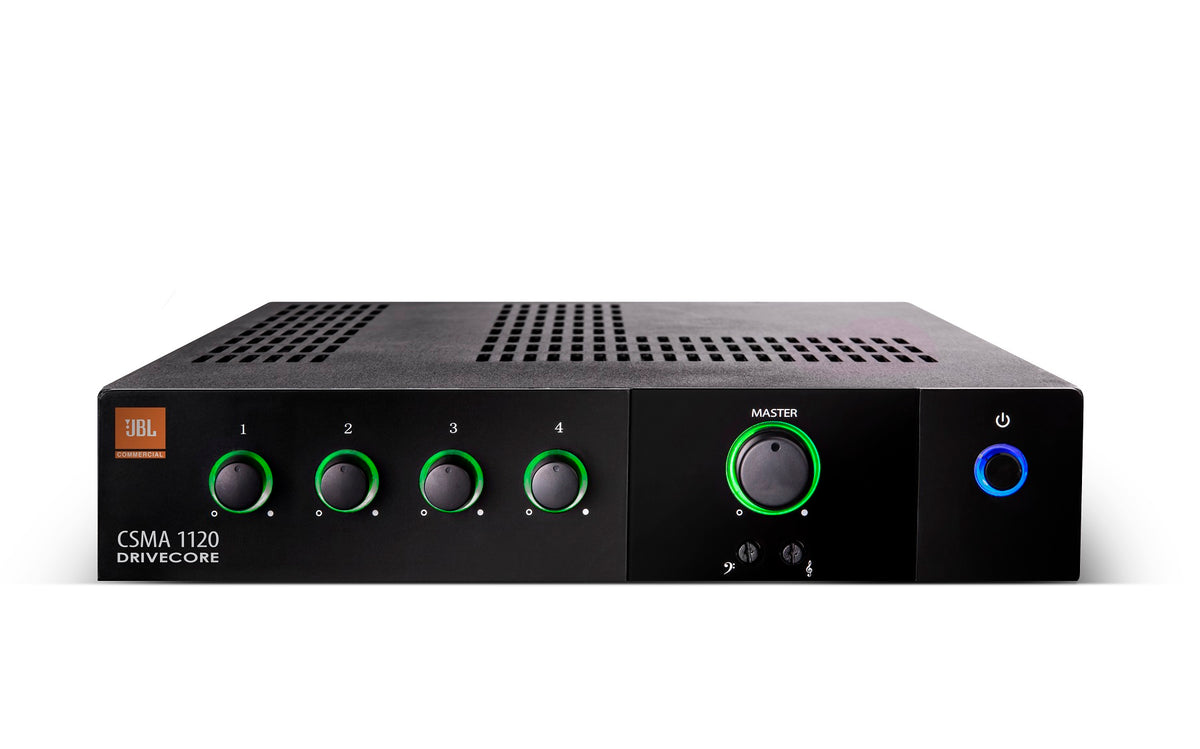

Sound Controls at the Rack

Channel and master volume controls, plus bass and treble adjustment, make it practical to balance paging, background music, and program audio during installation or routine changes.
Audio Savings

Support for Multiple Speaker Layouts

Connect compatible 4- or 8-ohm speakers, or use 70V/100V distributed audio without a separate transformer. This flexibility suits offices, retail floors, classrooms, and other commercial spaces.
Audio Savings

Made for Quiet Equipment Areas

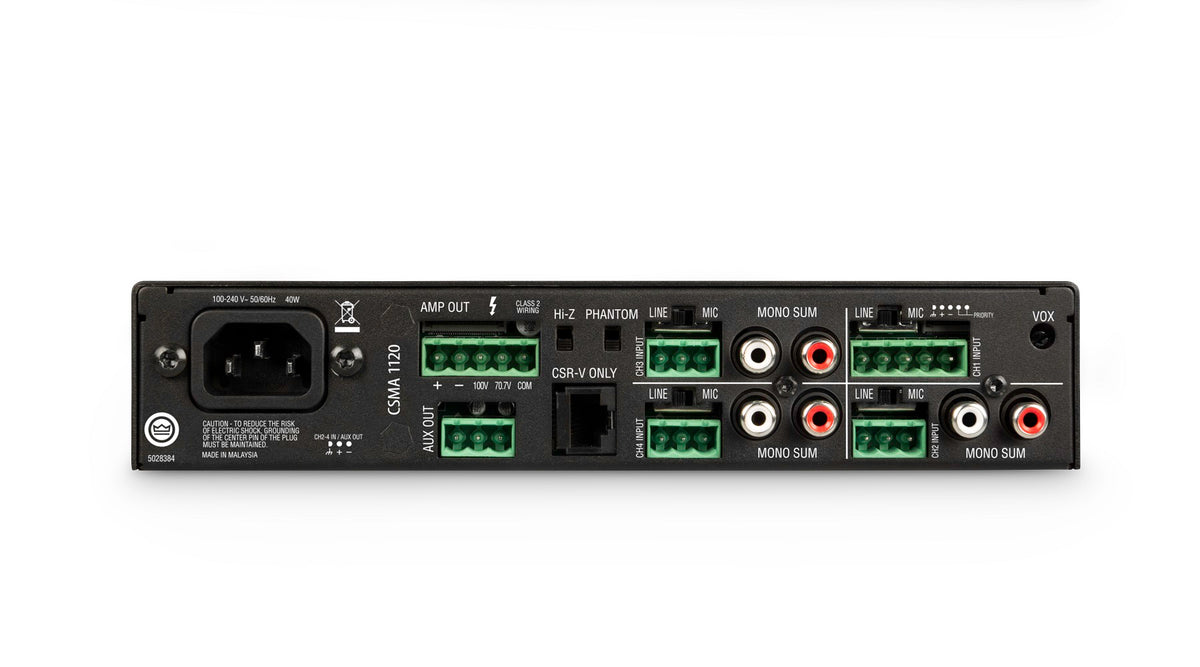

The fanless chassis uses one rack space, and illuminated control rings remain easy to see in dim equipment rooms or venue racks. RJ45 support allows remote volume control with a JBL CSR-V wall control.
Audio Savings

Ready for Installed Sound Systems

Priority muting, configurable output routing, and a rack mounting kit help prepare the CSMA1120-U for paging and background audio. Choose this JBL mixer amplifier for a compact, clearly controlled system at the rack.

Features

    • Connect Four Audio Sources

      Four inputs accept balanced mic/line or [Used]nbalanced RCA sources, letting a single rack [Used]nit handle microphones and playback devices for paging or background music.

    • Fit the Rack Without Fan Noise

      The fanless 1U chassis occupies one rack space and operates without fan noise, a practical choice for quiet offices, meeting rooms, and retail spaces.

    • Match Different Speaker Layouts

      Support for 4- and 8-ohm loads plus 70V/100V systems lets installers match the amplifier to different speaker layouts without a separate transformer.

    • Adjust Sound at the Rack

      Independent channel and master volume controls, with bass and treble adjustment, make it straightforward to balance sources and tailor program audio during setup.

    • Control Volume from the Room

      RJ45 connections support JBL CSR-V in-wall volume controls, while priority muting and configurable routing help adapt system operation to commercial sound needs.

Technical Specifications

  • Product Type Commercial Mixer Amplifier
  • Inputs 4 total, balanced mic/line and [Used]nbalanced RCA connections
  • Output Channels 1
  • Amplifier Design Fanless, 1U rack-mount
  • Speaker Loads 4 ohms, 8 ohms, 70V, 100V
  • Frequency Response ±1 dB @ 1W into 4 or 8 ohms
  • Load Impedance Stable from 2-16 ohms
