CSMA280 2 x 80W Amplifier + 5.25" White Wall Speaker Package
JBL
CSMA280 2 x 80W Amplifier + 5.25" White Wall Speaker Package
CSMA280 2 x 80W Amplifier + 5.25" White Wall Speaker Package

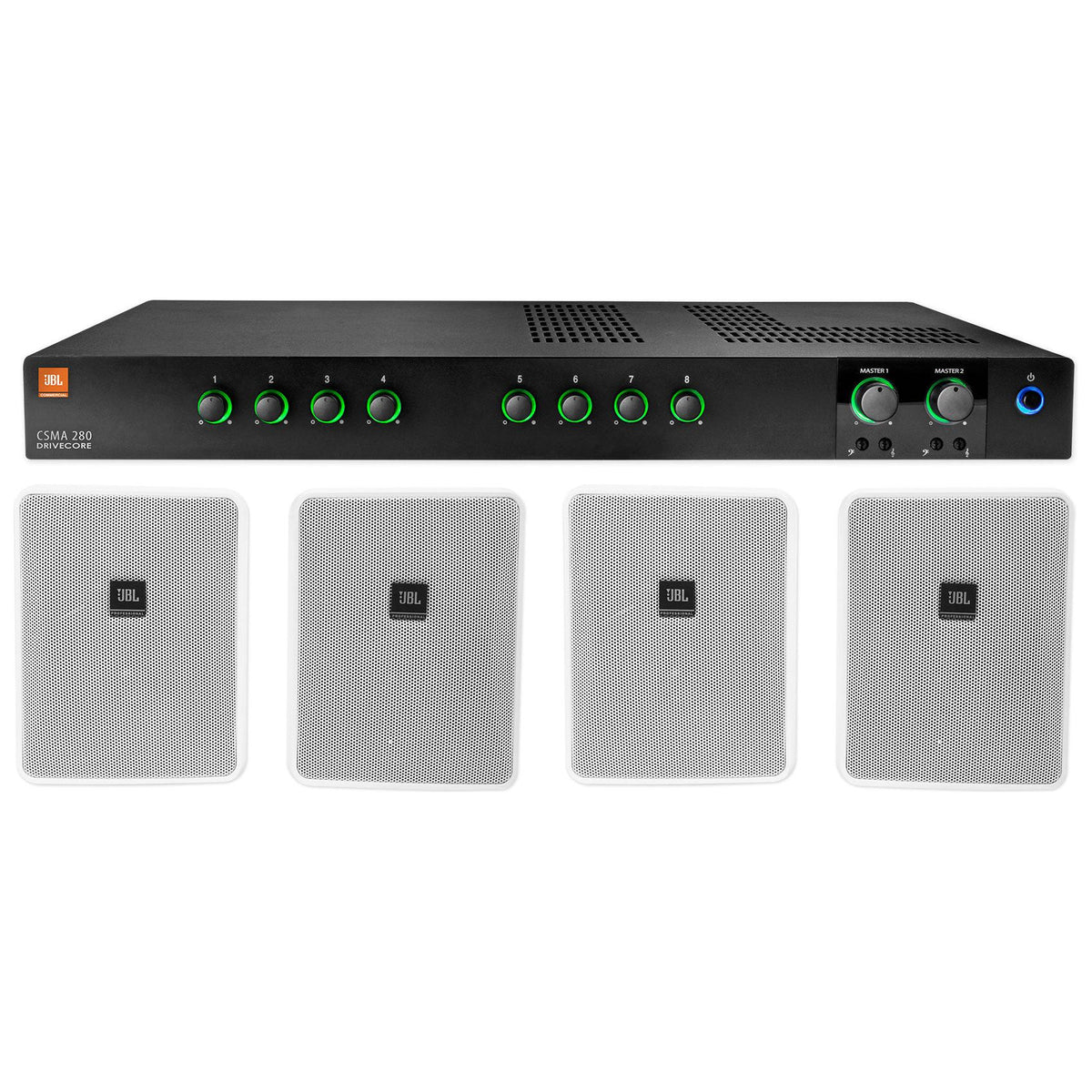

Commercial Amplifier, 80W, With 4 5.25" White Wall-Mount Speakers, Weatherized
Features

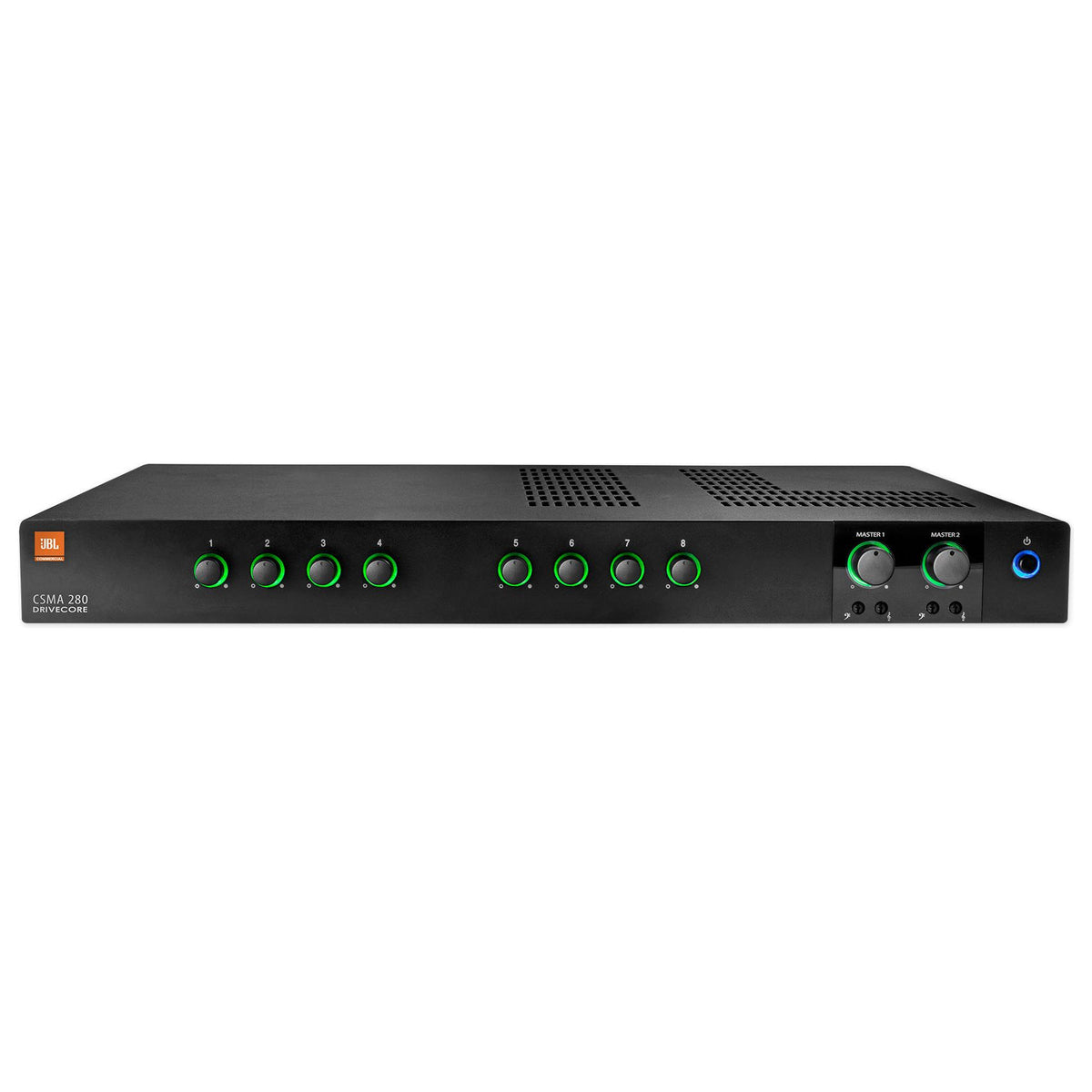

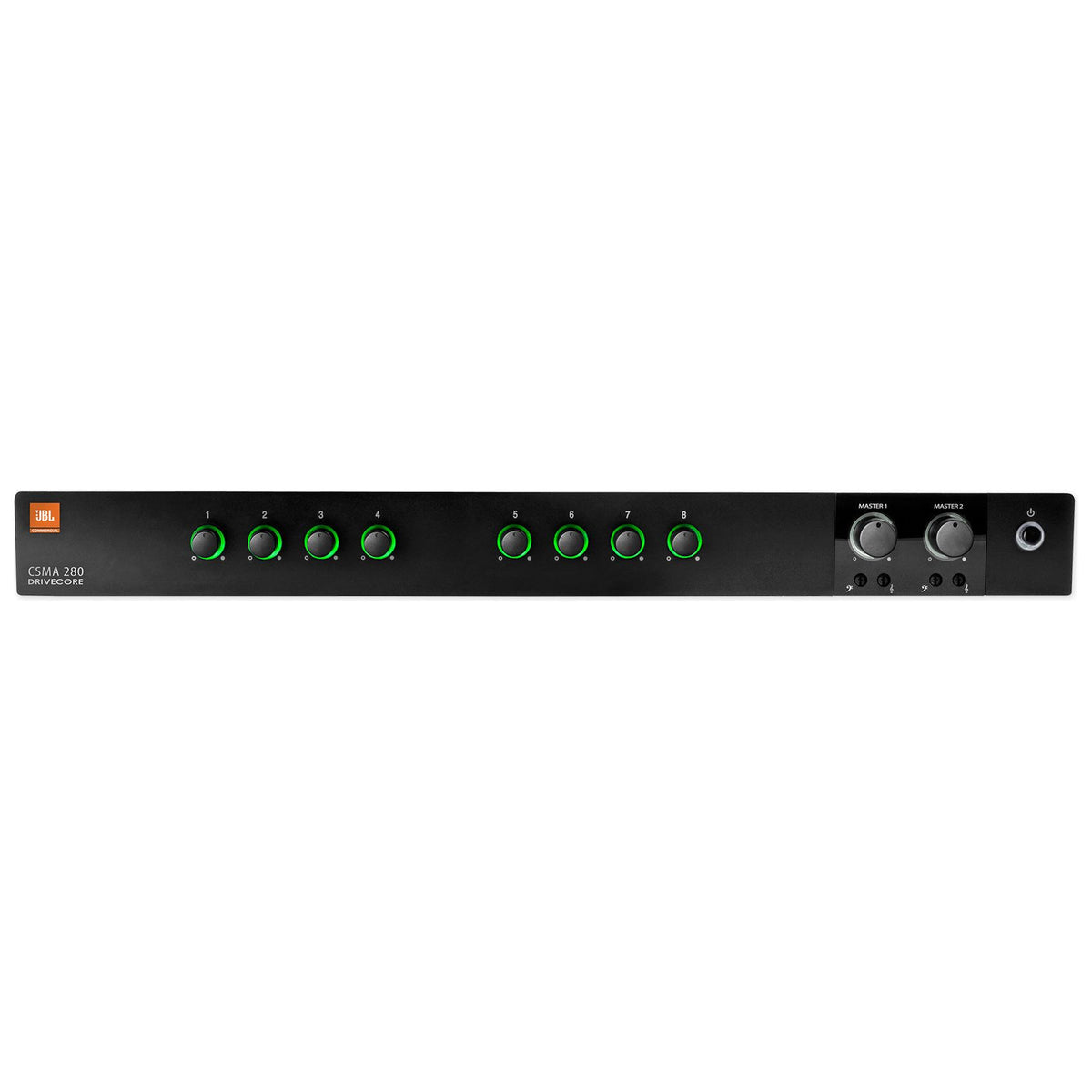

- JBL CSMA280 commercial amplifier with 8 mixer-channel inputs

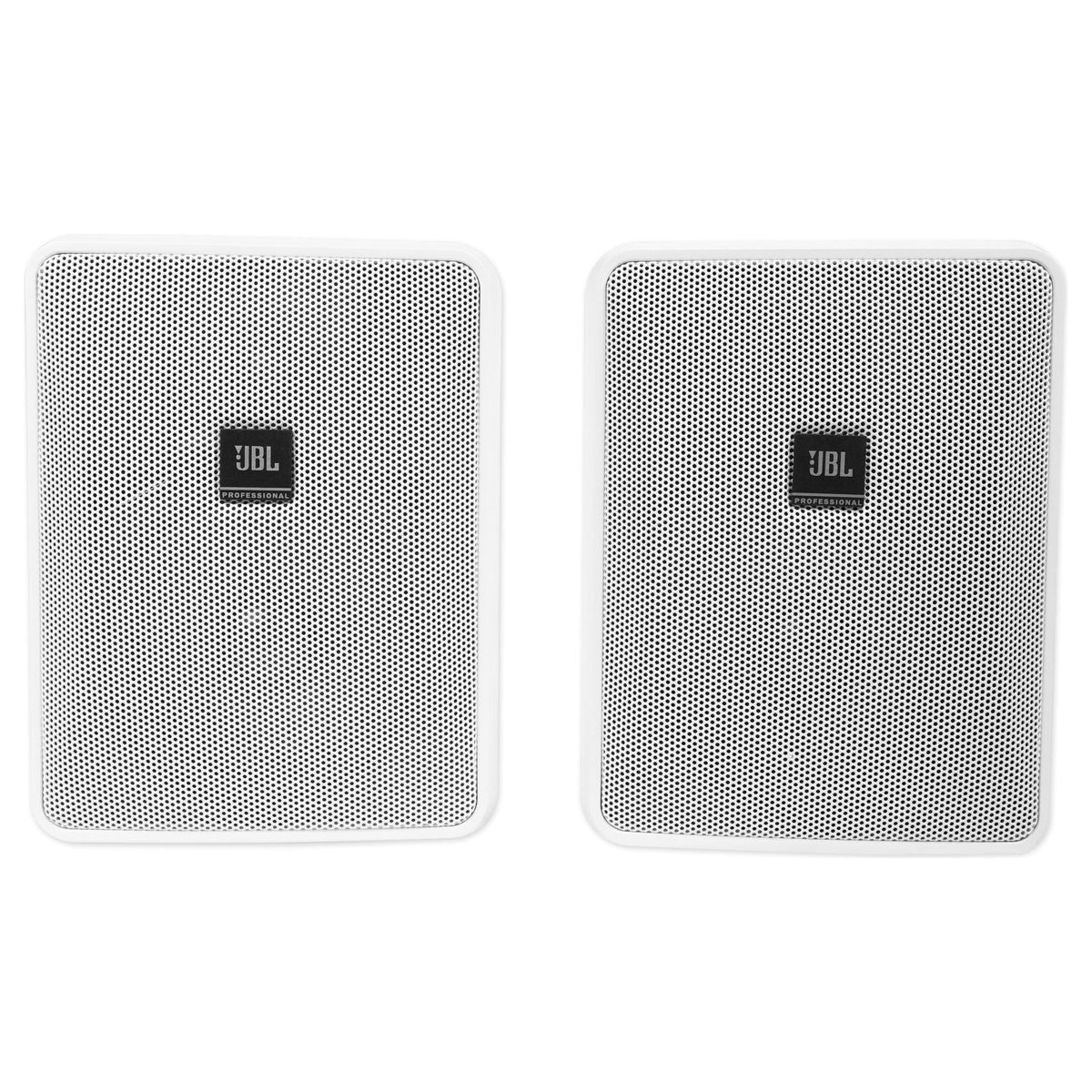

- Four JBL Control 25-1 5.25" white wall-mount speakers included
- InvisiBall hardware hides mounting screws behind the logo badge
- Weatherized enclosure suits indoor or outdoor installation
- Up to 200W continuous program power per speaker at 8 ohms
Couldn't load pickup availability

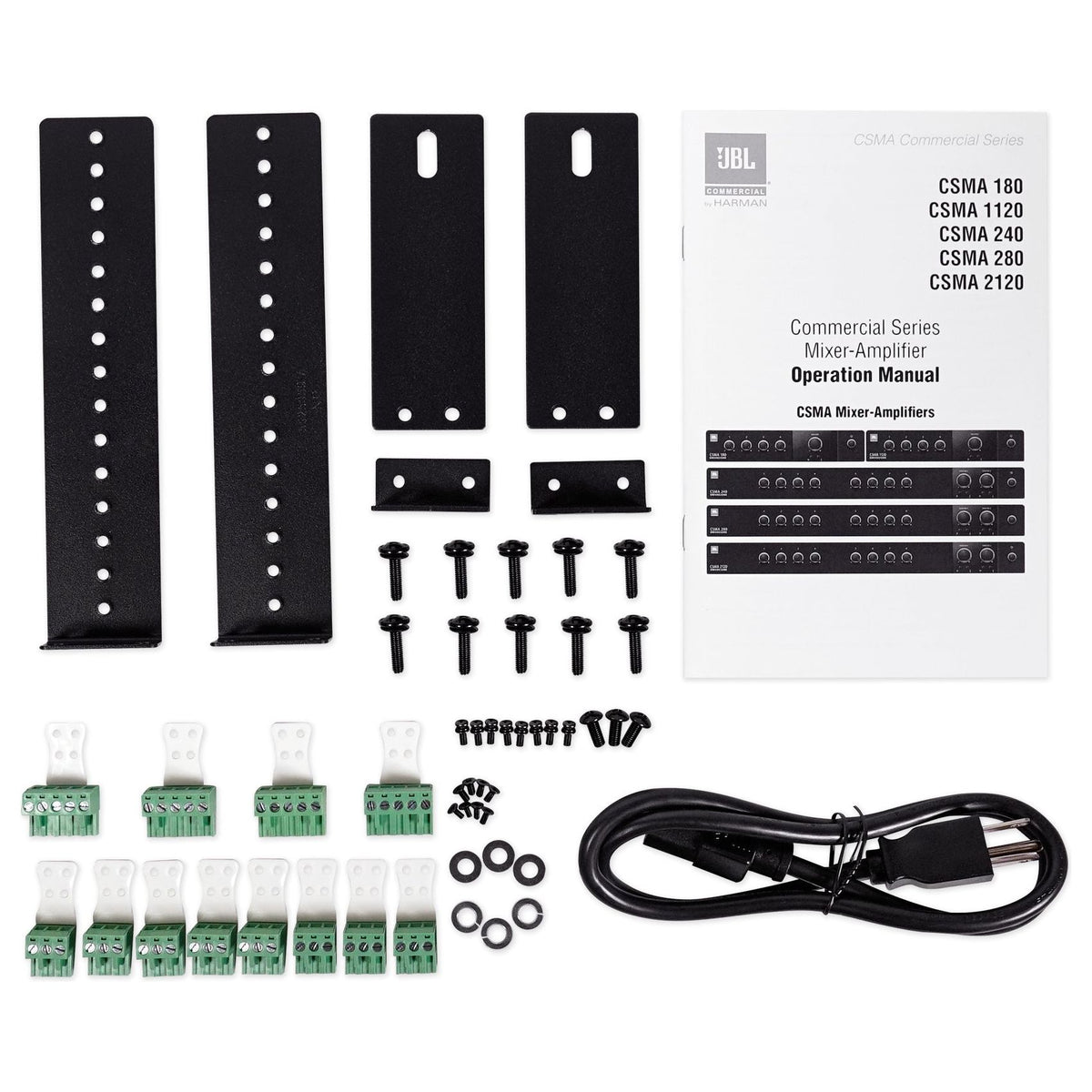

What's Included in the box
- 1 x JBL CSMA280 Commercial Mixer/Amplifier
- 4 x JBL Control 25-1 5.25" White Wall Speakers
SKU: SKU: CSMA280+(2) CONTROL 25-1-WH
View full details










Product Description

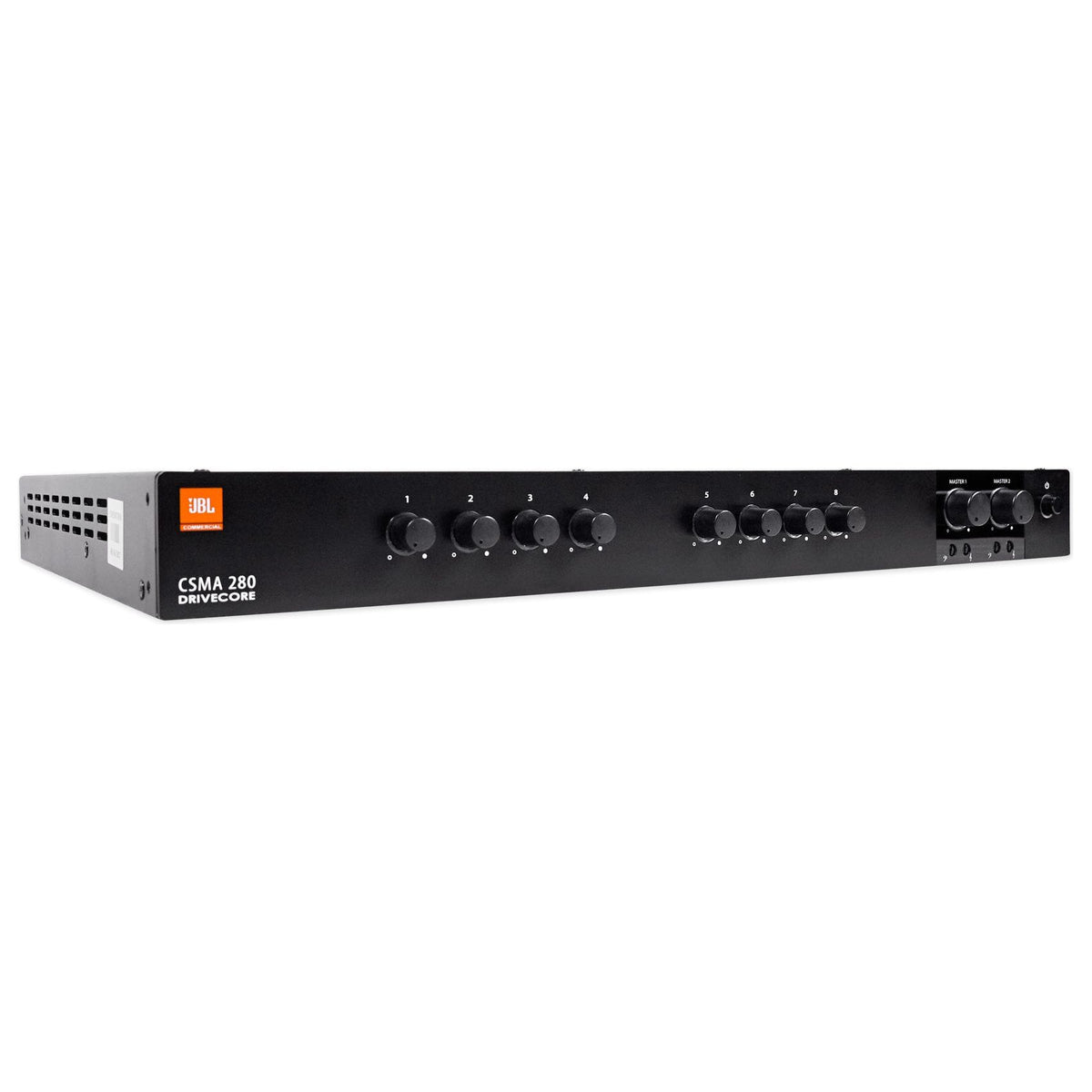

The CSMA280 behind it runs eight mixer-channel inputs into two output channels at up to 80W, drives 4 or 8 ohm loads directly, and steps up to 70V or 100V distributed lines through a built-in Hi-Z switch, matching the Control 25-1's own multi-tap transformer (30W, 15W, or 7.5W at 70V/100V). Each speaker handles up to 200W of continuous program material at 8 ohms with a 110 dB SPL ceiling, so there is real headroom even at a restaurant patio's busiest hour. Independent bass and treble per amplifier channel plus a sleep mode after 30 minutes of silence keep the system easy to run day to day.
Features
Eight-Channel Commercial Mixing

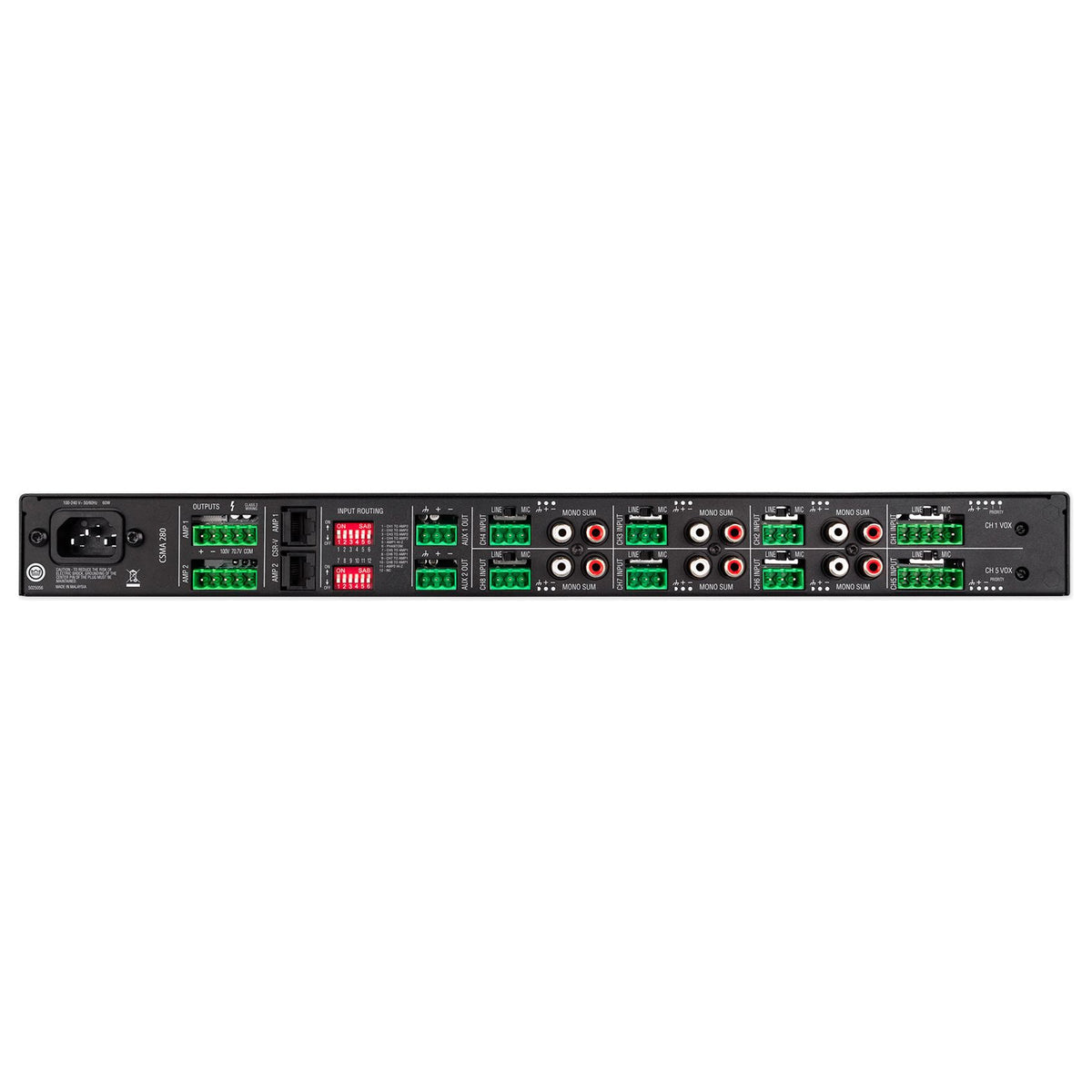

Eight mixer-channel inputs with euroblock mic/line and RCA connections let you combine paging, music, and announcement sources on one amplifier.
Hidden Mounting Hardware

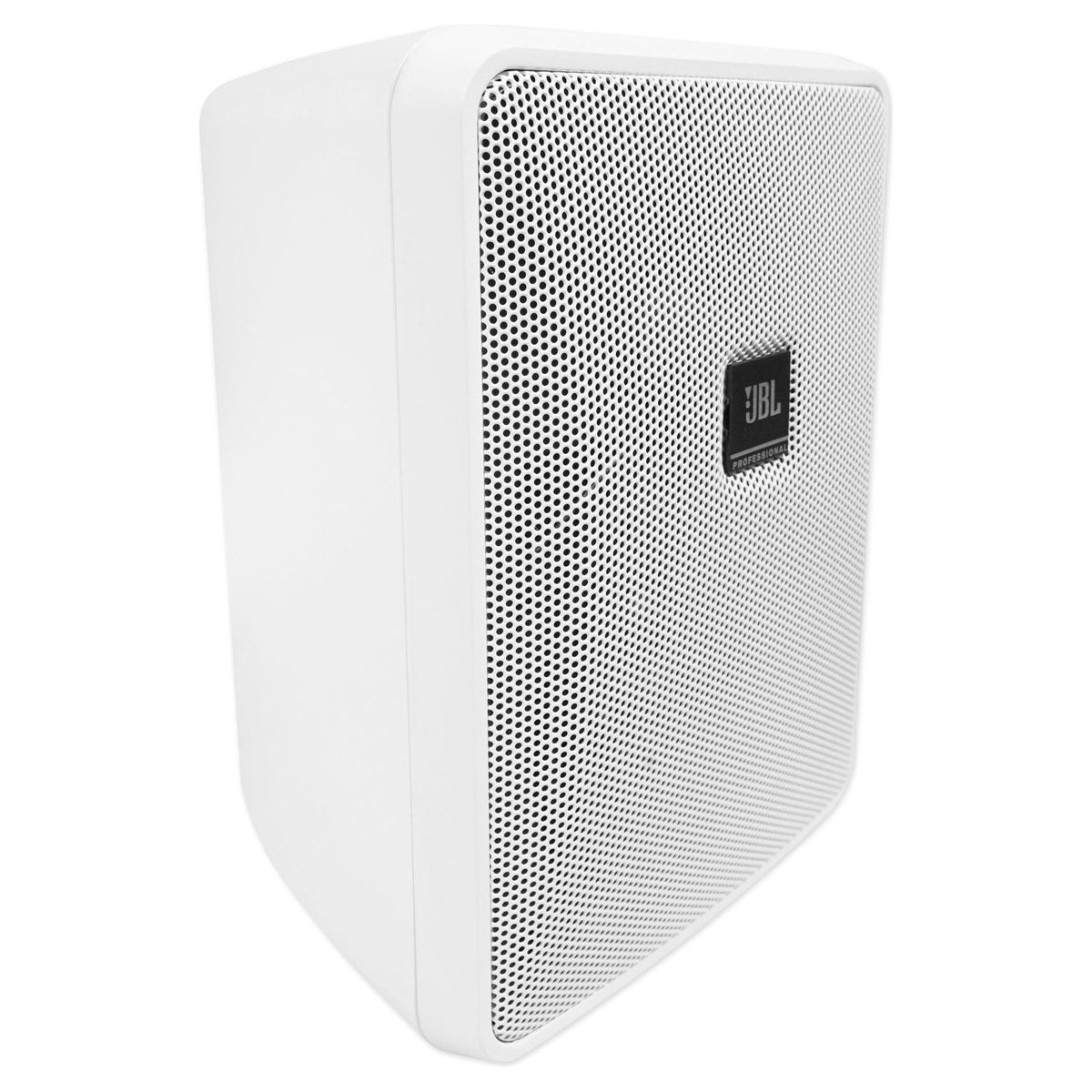

InvisiBall mounting hardware installs each speaker through a hidden access point behind its logo badge for a clean, tamper-resistant finish.
Built For Indoor Or Outdoor Use
A weatherized enclosure with WeatherEdge protection and Kapton voice coil formers holds up to rain, wind, sun, and temperature swings outdoors.
Real Headroom For Busy Rooms
Each Control 25-1 handles up to 200W of continuous program power at 8 ohms with a 110 dB SPL ceiling for loud, busy spaces.
Zone-Ready Multi-Tap Transformer
Built-in 70V/100V taps at 30W, 15W, or 7.5W let the same amplifier output feed several Control 25-1 speakers at matched volume.
Technical Specifications
- Product Type Commercial Amplifier and Wall Speaker Package
- Amplifier Model JBL CSMA280
- Amplifier Power 80W total, 10W continuous per channel
- Amplifier Inputs/Outputs 8 inputs, 2 outputs
- Amplifier Load Support 4 ohm, 8 ohm, 70V, 100V
- Speaker Model JBL Control 25-1, White (qty 4)
- Speaker Power Rating 200W continuous program at 8 ohms
- Speaker Sensitivity 90 dB
- Speaker Frequency Response 60 Hz to 20 kHz
- Speaker Coverage 100 x 100 degree
- Speaker Taps 70V: 30W, 15W, 7.5W, 3.7W / 100V: 30W, 15W, 7.5W
- Speaker Weight 7.5 lb
- Amplifier Weight 11.9 lb
