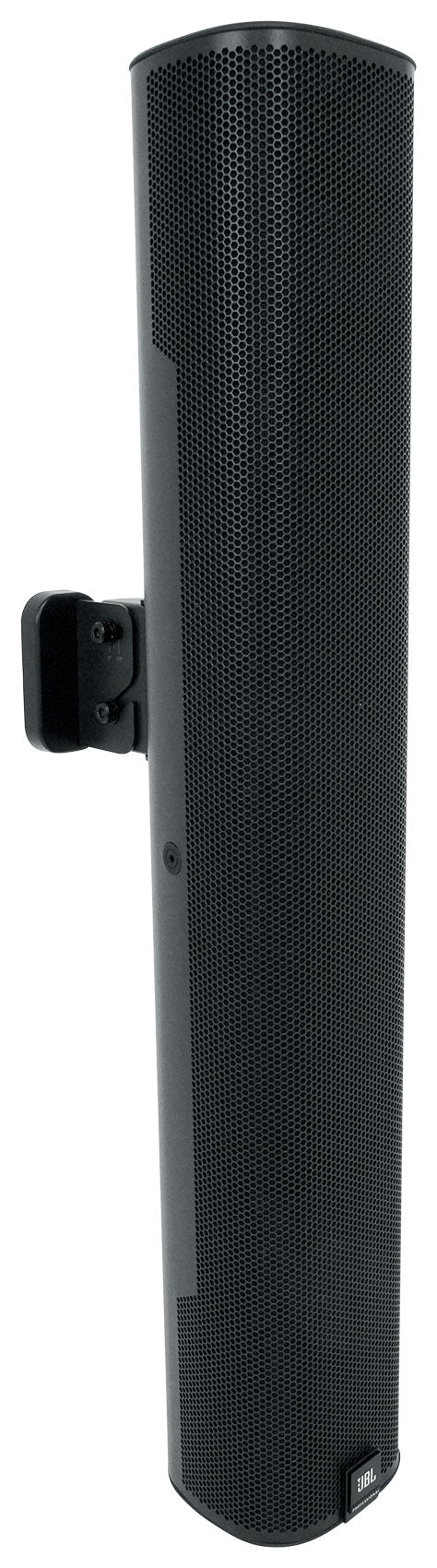

JBL COL600-BK 24" Black 70V Commercial Slim Column Wall Mount Array Speaker

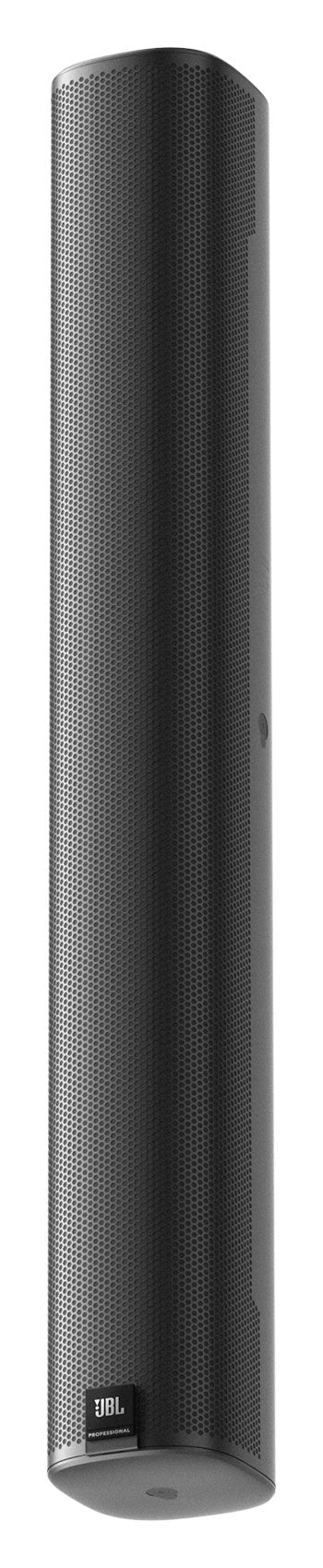

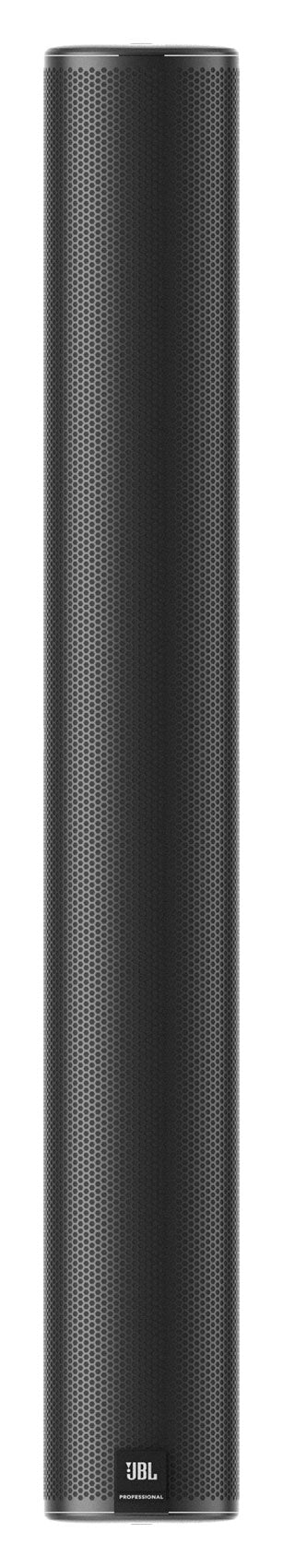

The JBL COL600 is a 24-inch slim column loudspeaker in black, built for rooms where the speaker needs to disappear into the architecture and still cover the space properly. Two 5 x 2.25-inch racetrack woofers and a 1-inch tweeter fill the column form factor with as much radiating area as it will hold.

Coverage is 160 degrees horizontal by 110 degrees vertical, with 10 degrees of down-tilt built into the aim. That built-in tilt means the cabinet mounts flat against the wall and still points at the audience, which keeps the install clean. The tweeter sits at the top of the array for a less obstructed path to listeners.

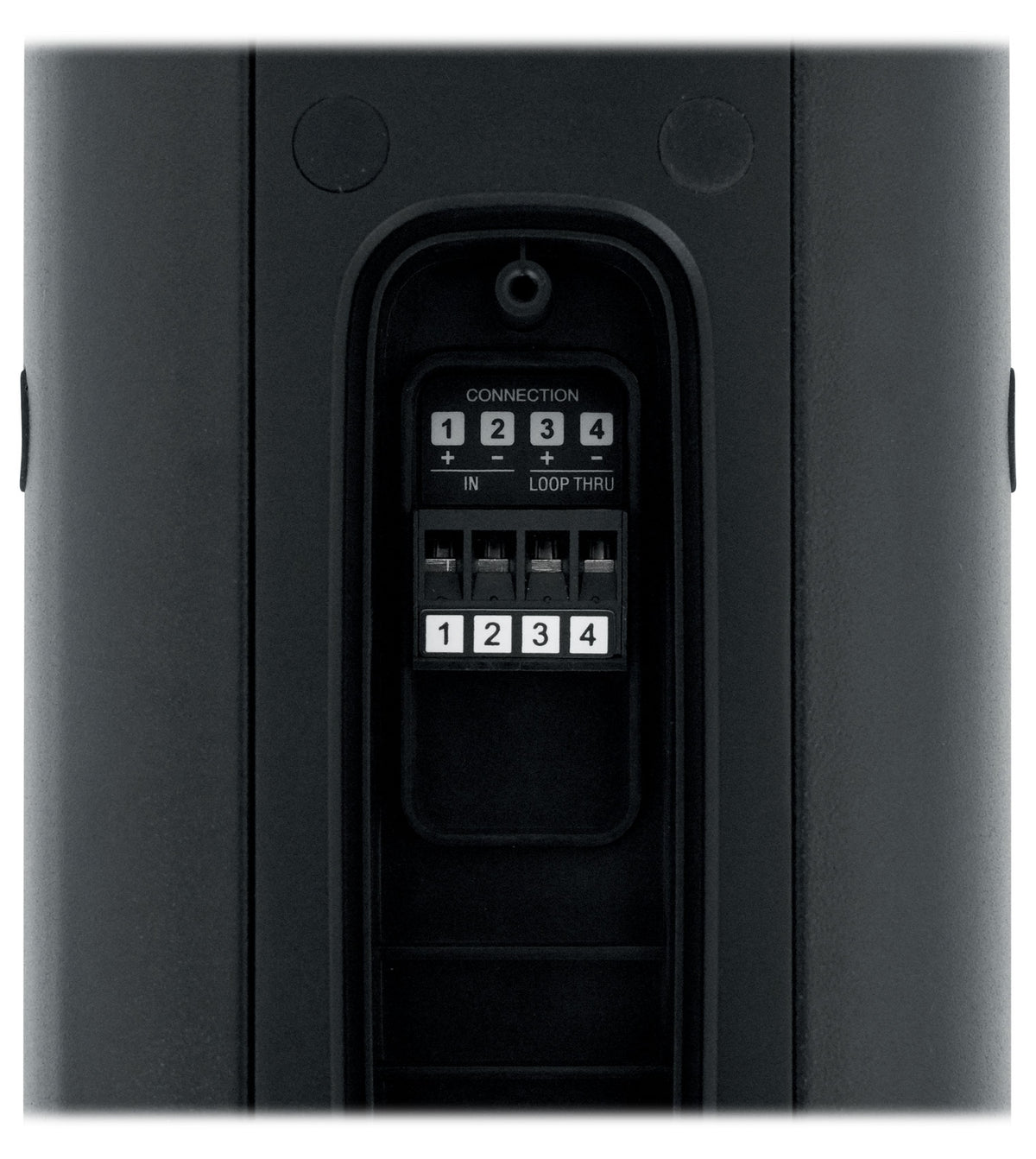

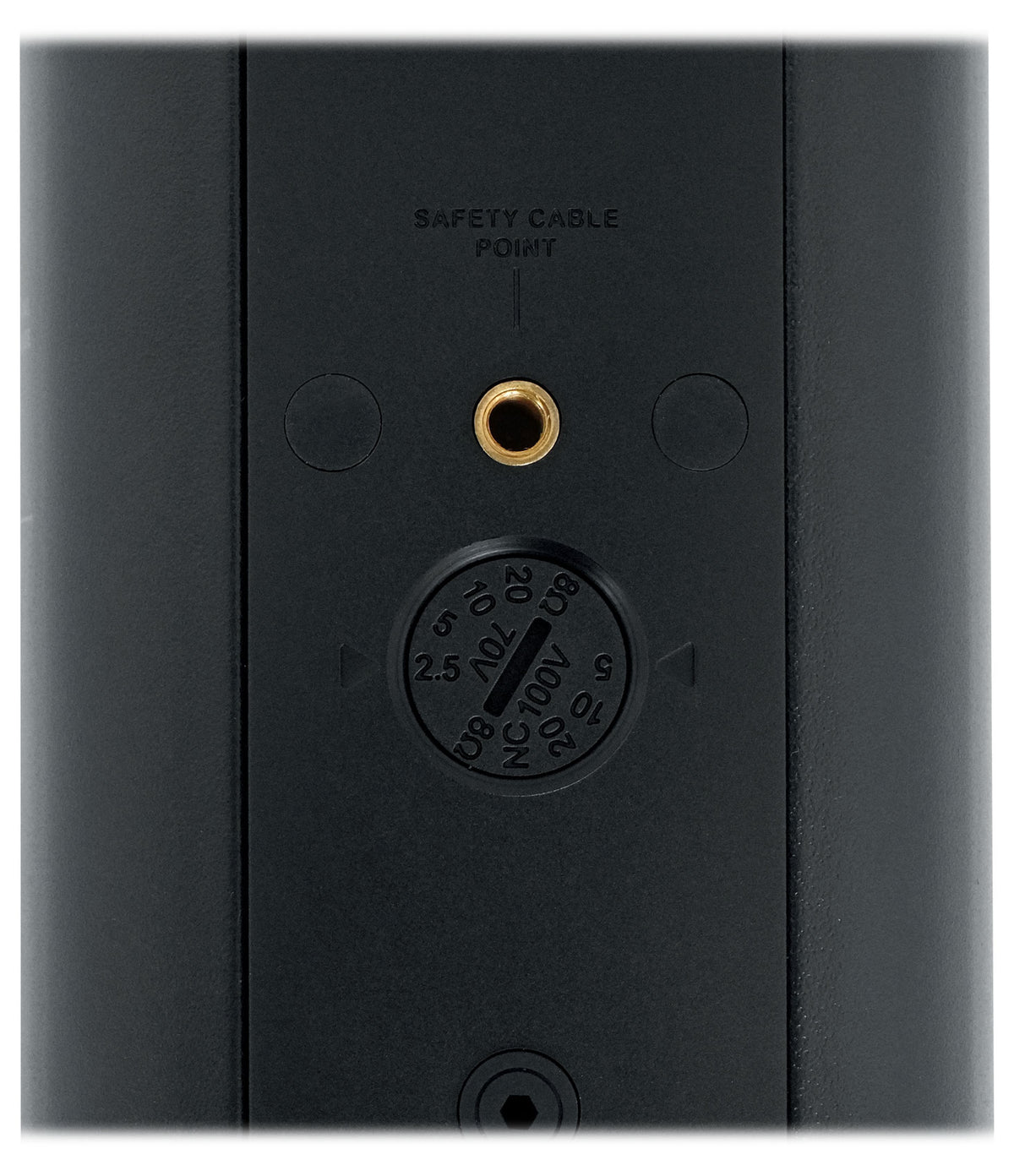

At 3.7 inches deep the cabinet qualifies for ADA projects when mounted flush to the wall. Power handling is 80W continuous pink noise with 320W peak, and frequency range runs 70 Hz to 20 kHz for both music and speech. A 20W multi-tap transformer serves 70V and 100V lines, with a switch for direct 8-ohm operation.

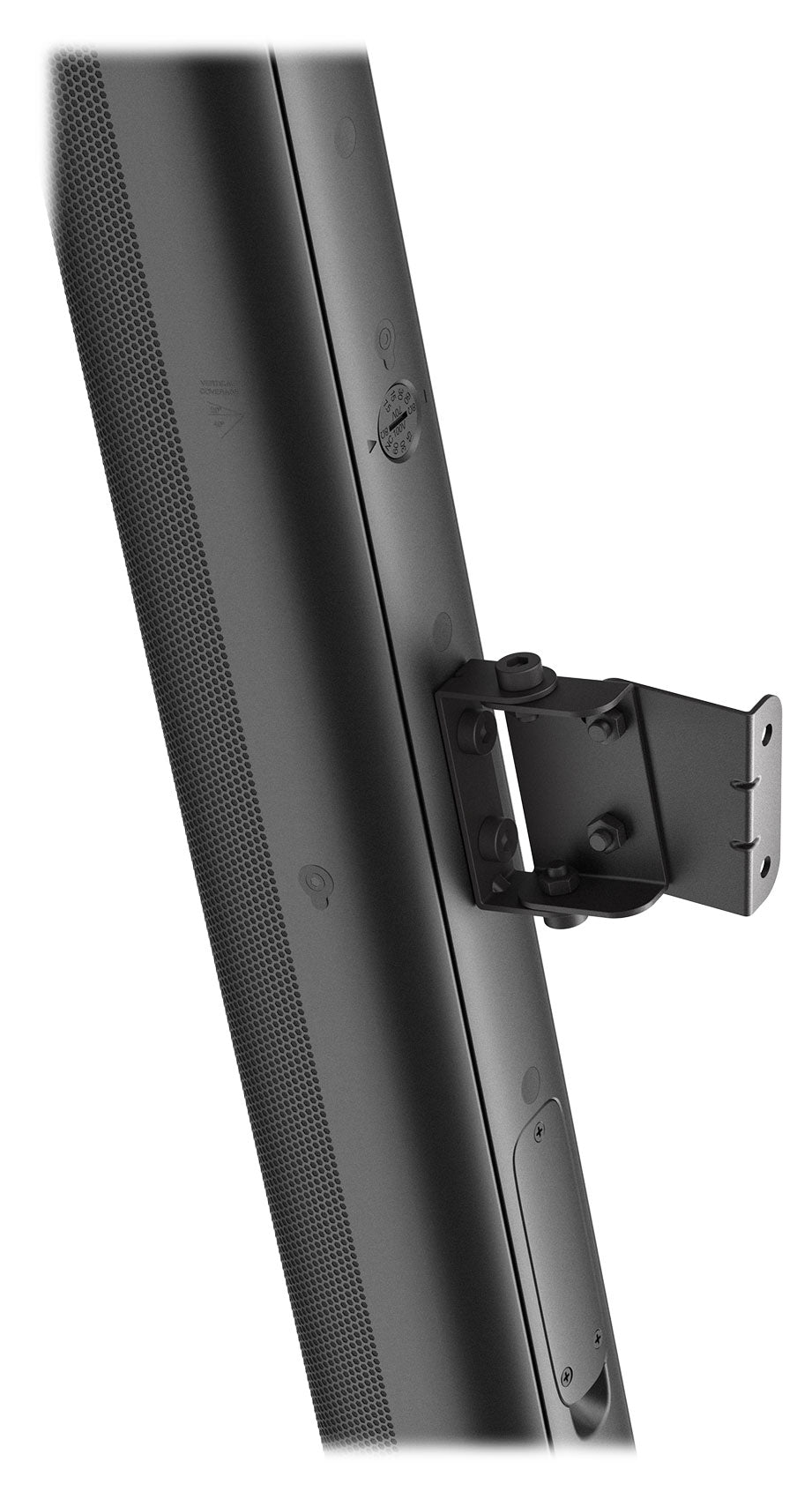

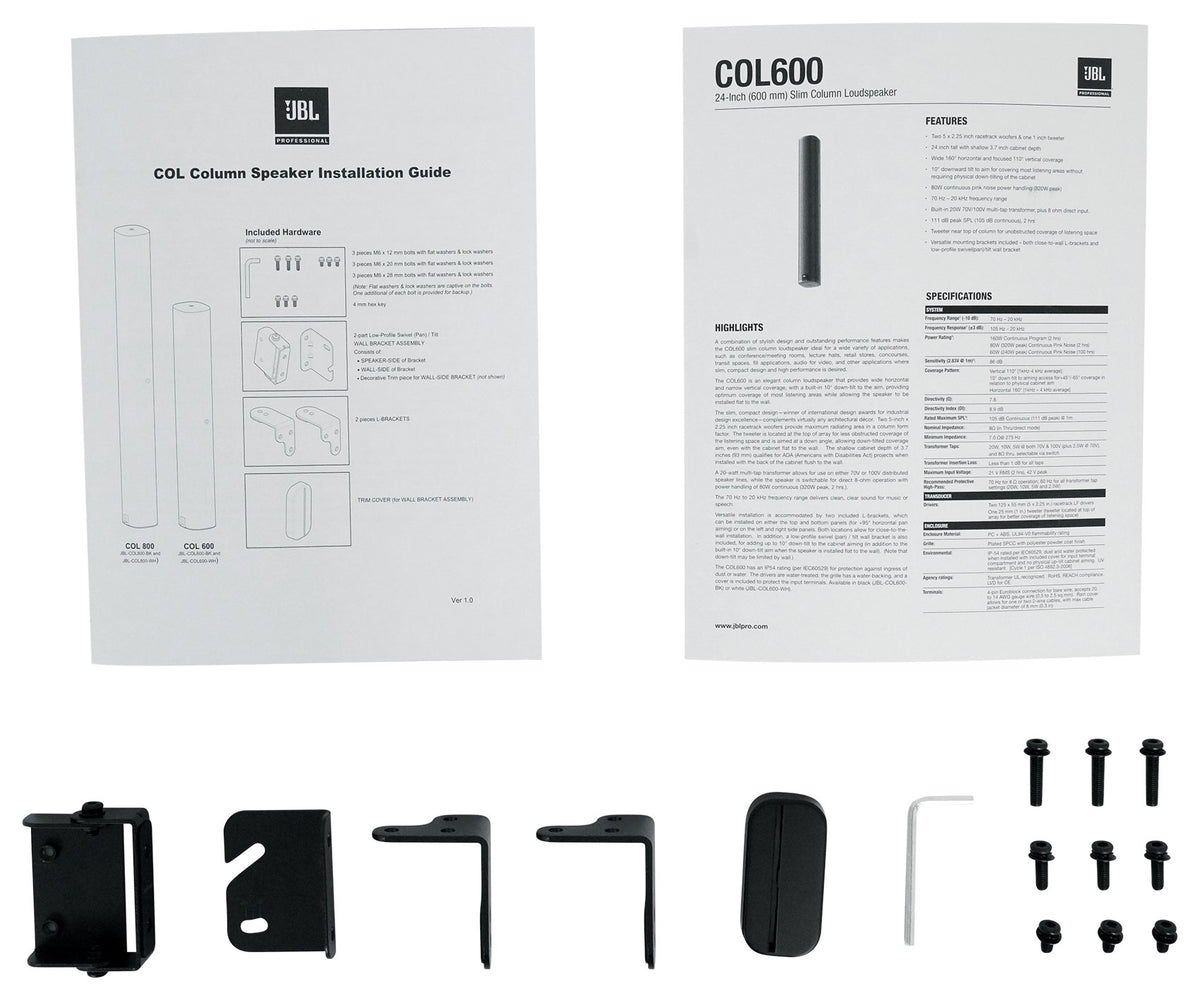

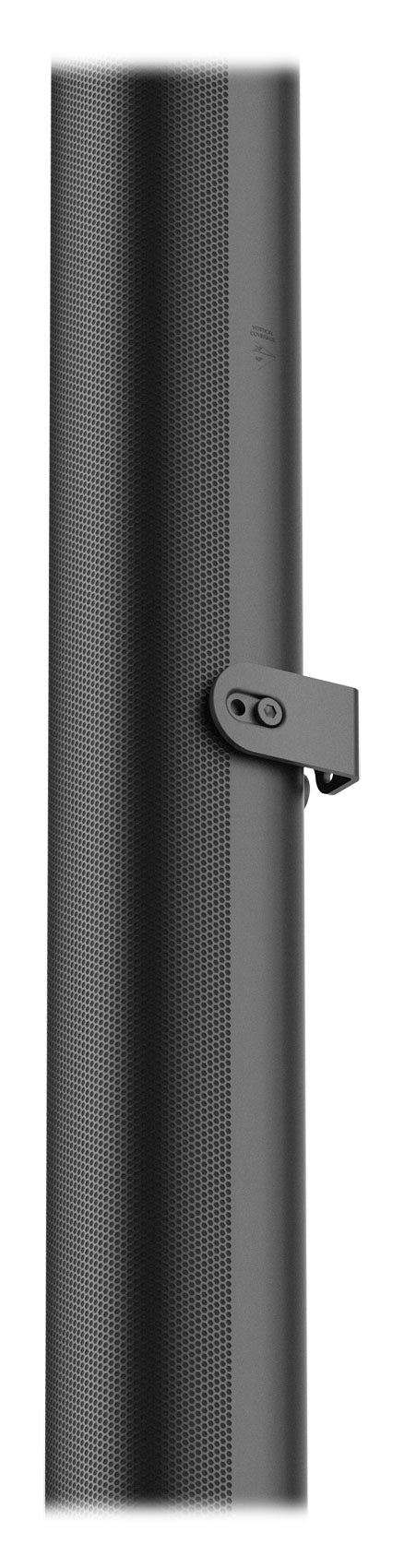

Mounting is flexible. Two L-brackets fit either the top and bottom panels for horizontal pan aiming or the left and right side panels, and a low-profile swivel and tilt wall bracket adds up to 10 degrees of further down-tilt. An IP54 rating with water-treated drivers, water-backed grille and a terminal cover handles dusty or damp locations. Common uses include conference rooms, lecture halls, retail floors, concourses and transit spaces.
