COL600-WH 24" White 70V Commercial Slim Column Wall Mount Array Speaker
JBL
COL600-WH 24" White 70V Commercial Slim Column Wall Mount Array Speaker
COL600-WH 24" White 70V Commercial Slim Column Wall Mount Array Speaker

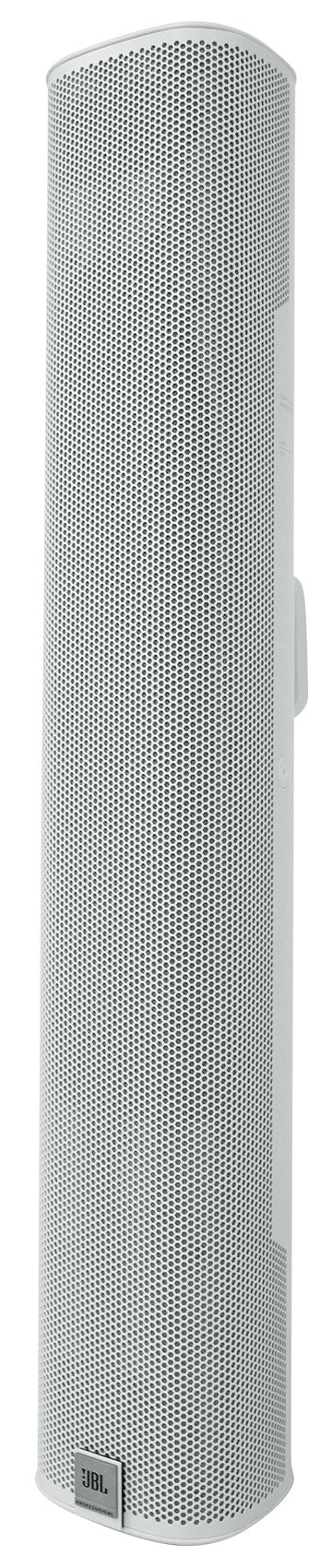

24" Slim Column Speaker, 70V/100V, Wide 160° Coverage, IP54 Rated, White
Free Shipping
Features
- Two 5" racetrack woofers deliver 160° horizontal coverage
- Built-in 10° down-tilt aims sound without angling the cabinet
- 20W multi-tap transformer works on 70V, 100V, or 8-ohm lines
- Shallow 3.7" cabinet depth qualifies for ADA installations
- IP54 rated for protection against dust and water
Couldn't load pickup availability

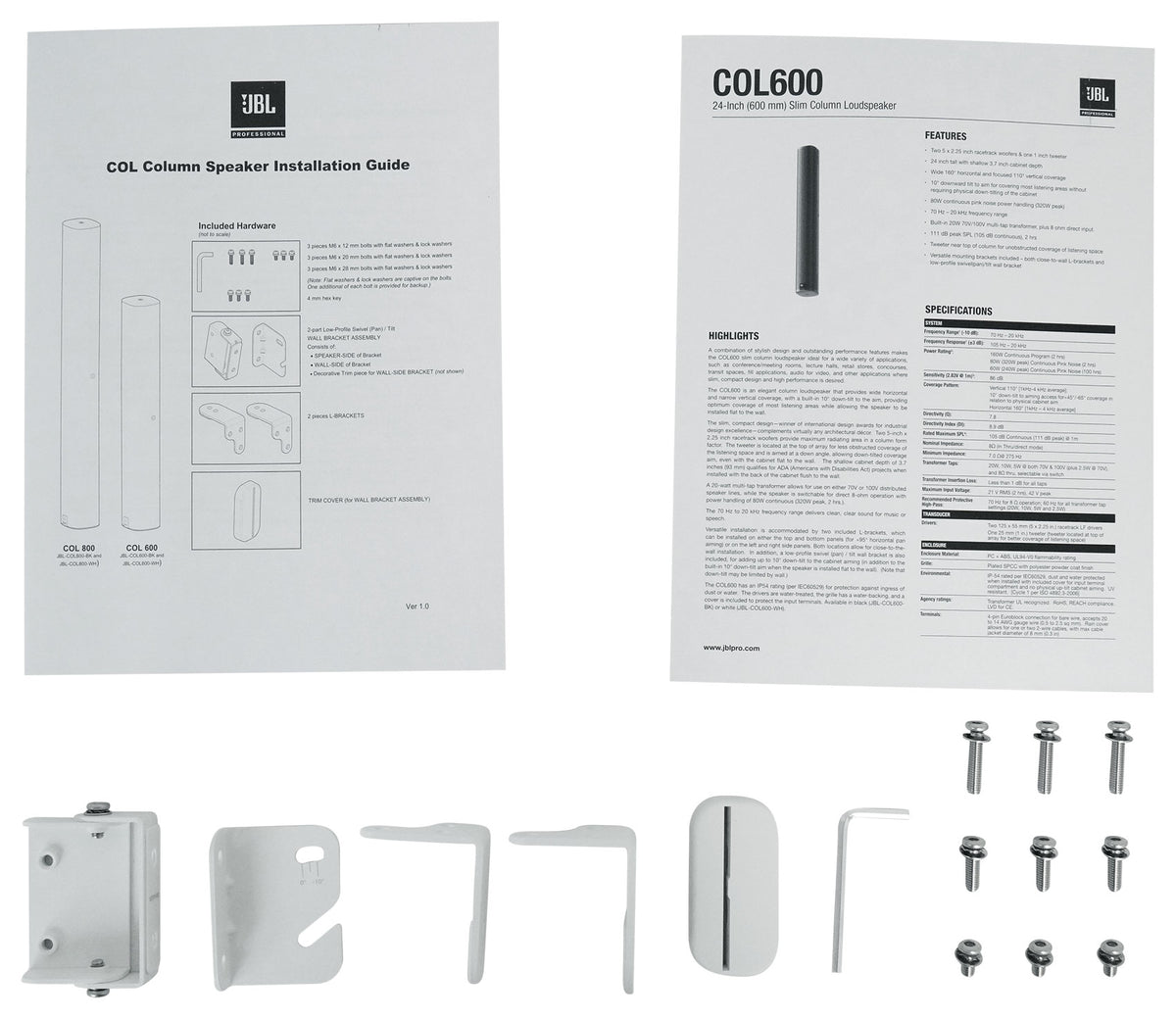

What's Included in the box
- 1x JBL COL600-WH Column Speaker
- 1x Swivel (Pan) / Tilt Wall Bracket
- 2x L-Brackets
- 1x Input Terminal Rain Cover
SKU: SKU: JBL-COL600-WH*
View full details










Product Description
A 20-watt multi-tap transformer switches between 70V, 100V, or direct 8-ohm operation, handling 80W continuous (320W peak) across a 70 Hz to 20 kHz frequency range for clear speech and music alike. Two included L-brackets mount to the top, bottom, or side panels for flexible placement, and a low-profile swivel and tilt wall bracket adds up to 10 degrees of additional down-tilt on top of the cabinet's built-in aim.

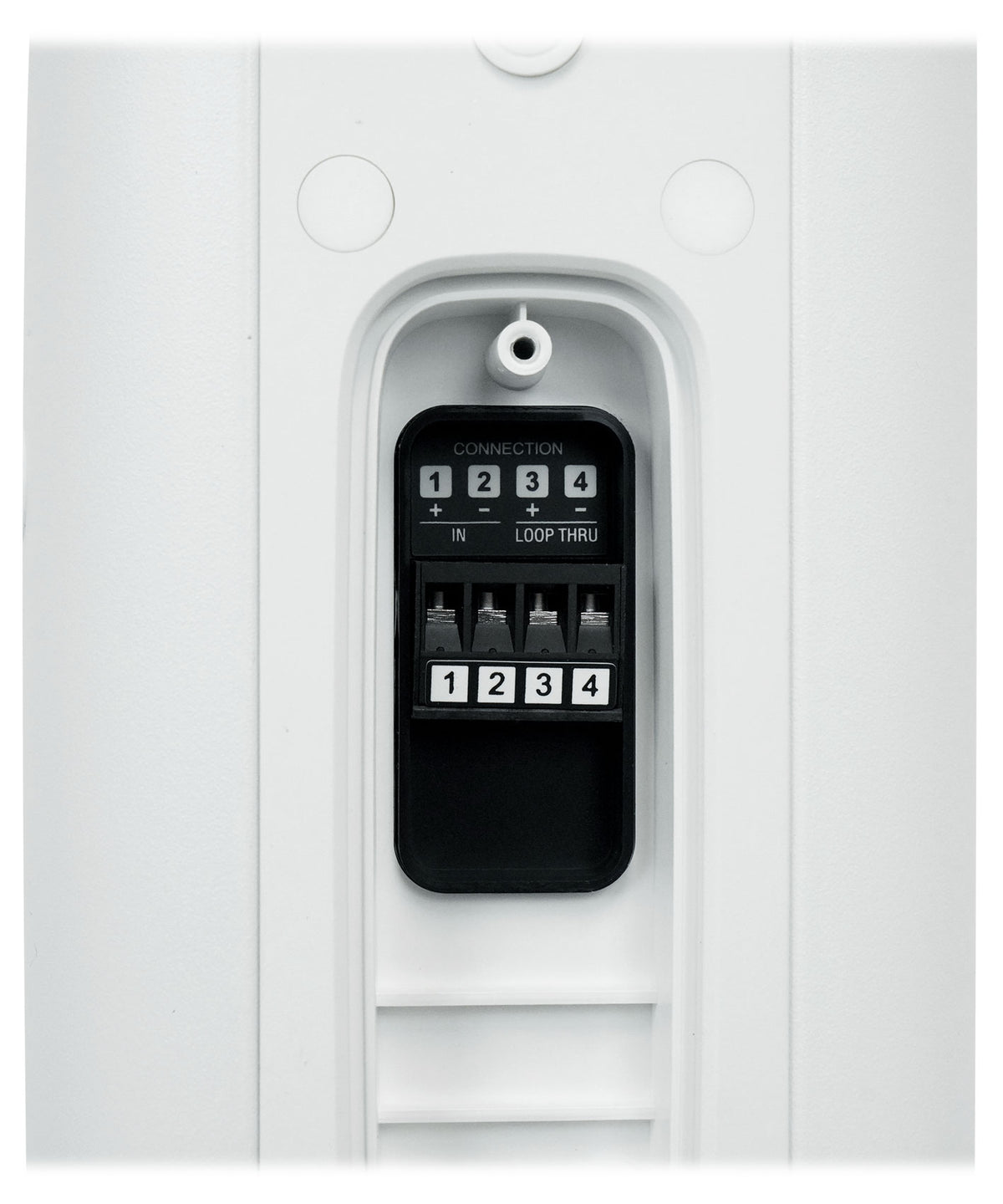

An IP54 rating protects the drivers and grille against dust and water ingress, with a included rain cover shielding the input terminals, making the COL600 suitable for covered outdoor areas as well as conference rooms, lecture halls, retail stores, and transit spaces indoors.
Features
Wide, Even Coverage
Two 5-inch racetrack woofers and a top-mounted tweeter deliver 160° horizontal coverage across meeting rooms, lecture halls, and retail floors.
Flush Wall Mounting
A shallow 3.7-inch cabinet depth and built-in 10° down-tilt let the speaker sit flat against a wall while still aiming sound correctly.
Flexible Line Voltage

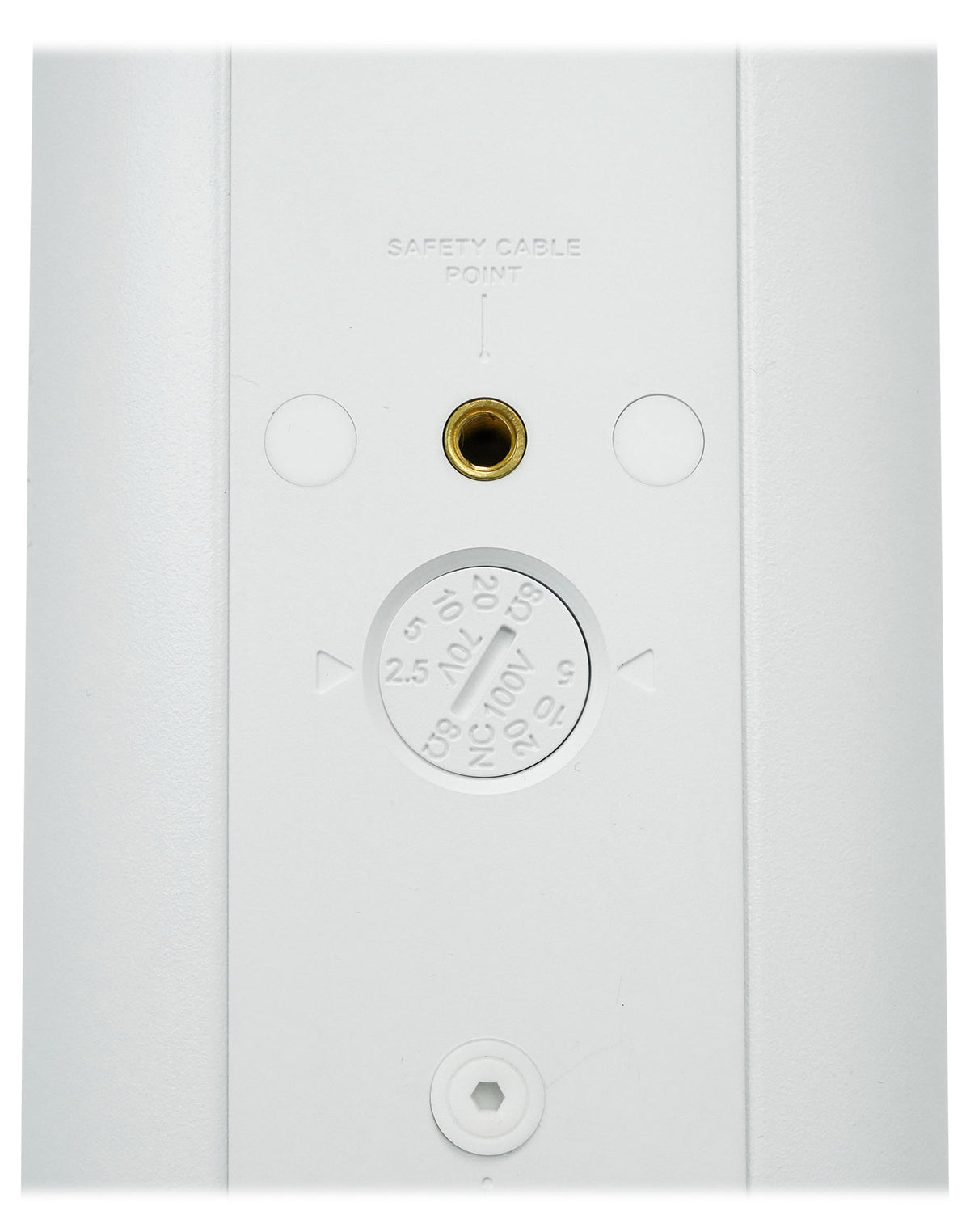

A 20W multi-tap transformer switches between 70V, 100V, and direct 8-ohm operation to fit most distributed audio systems.
Weather-Resistant Build
An IP54 rating and included rain cover protect the drivers and terminals from dust and water in covered outdoor installs.
Adjustable Aiming

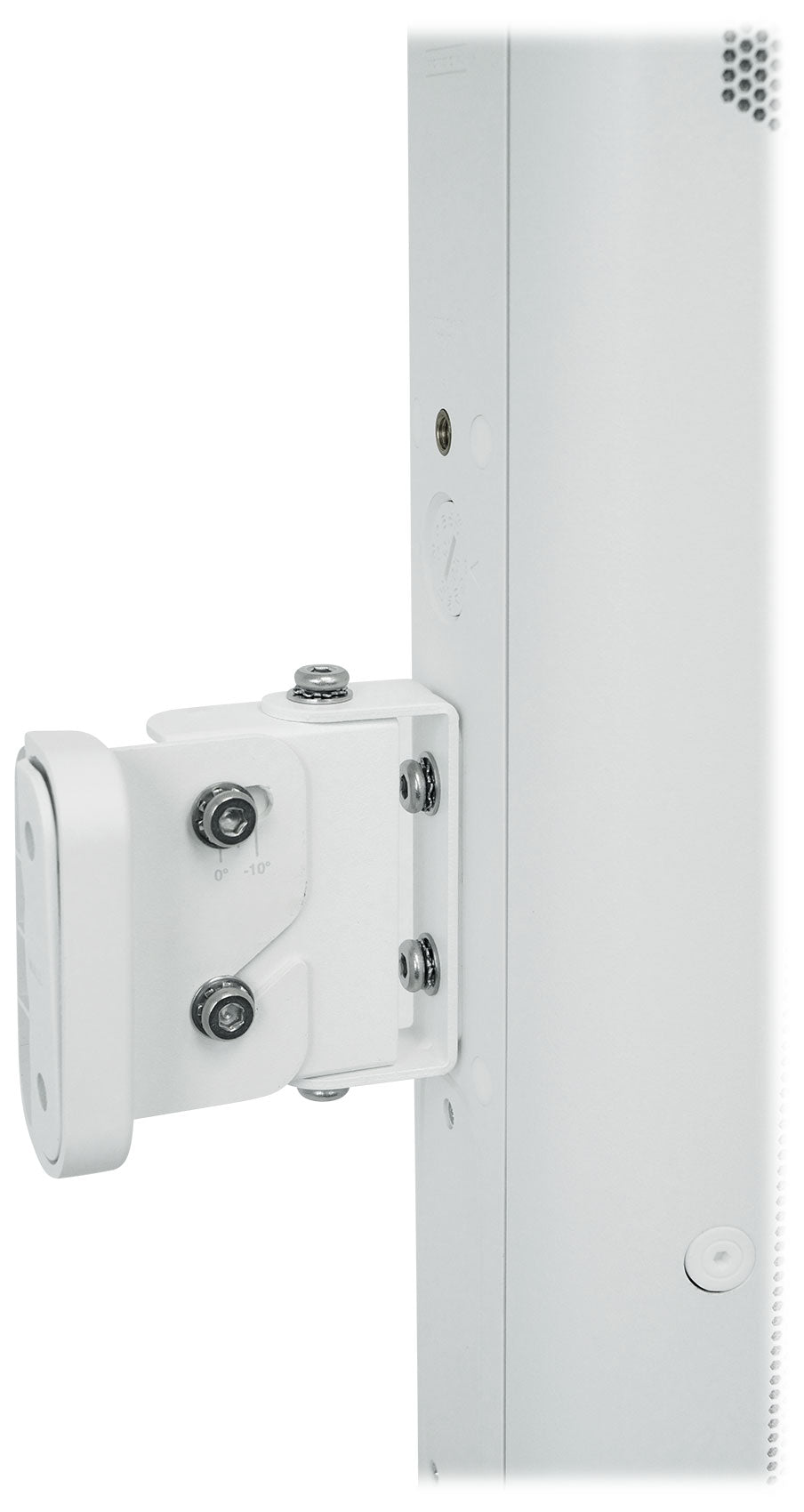

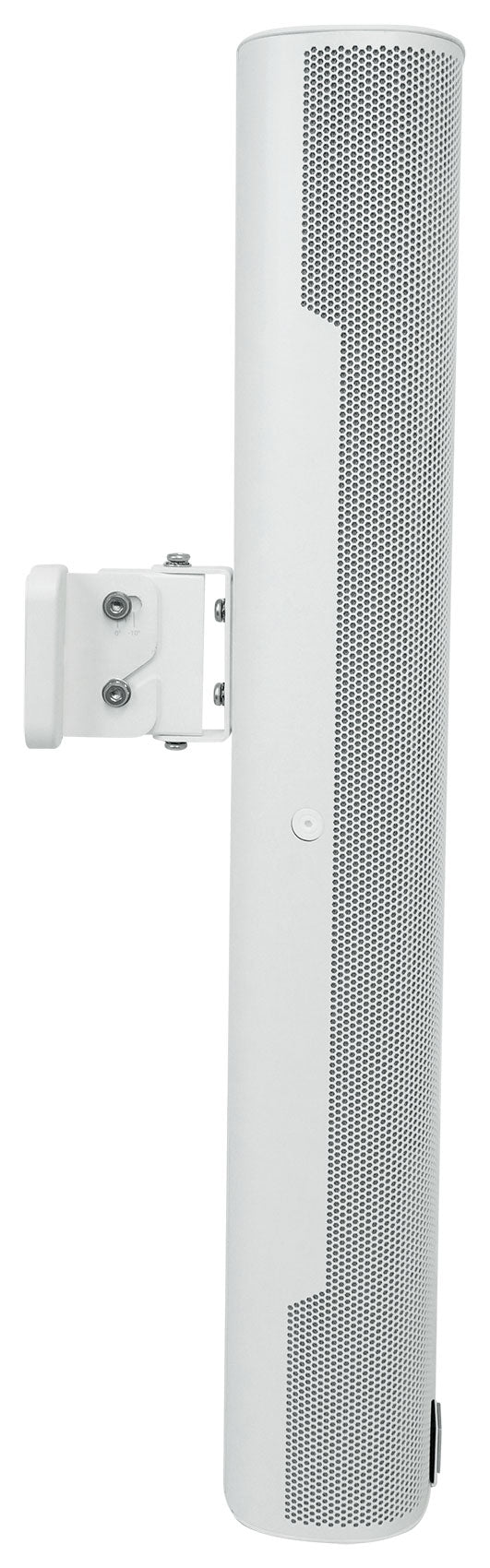

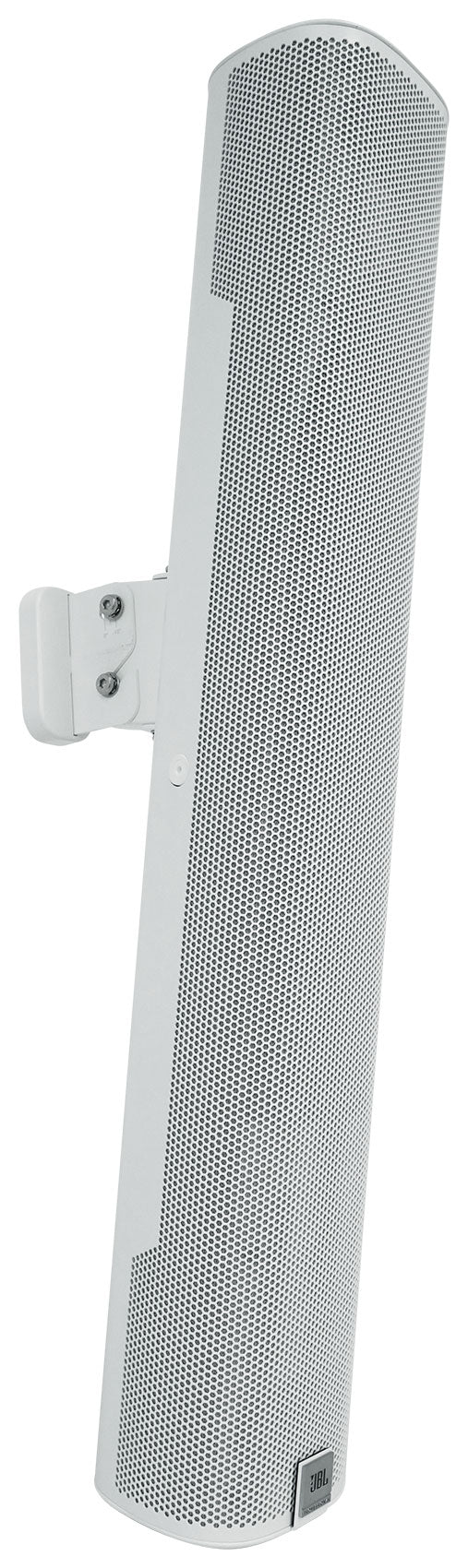

The included swivel and tilt wall bracket adds up to 10° of extra down-tilt beyond the cabinet's built-in aim.
Technical Specifications
- Product Type 70V Commercial Slim Column Speaker
- Drivers Two 5" x 2.25" Racetrack Woofers, One 1" Tweeter
- Power Handling 80W Continuous / 320W Peak
- Maximum SPL 105 dB Continuous / 111 dB Peak
- Frequency Range 70 Hz - 20 kHz (-10 dB)
- Coverage Pattern 160° Horizontal x 110° Vertical

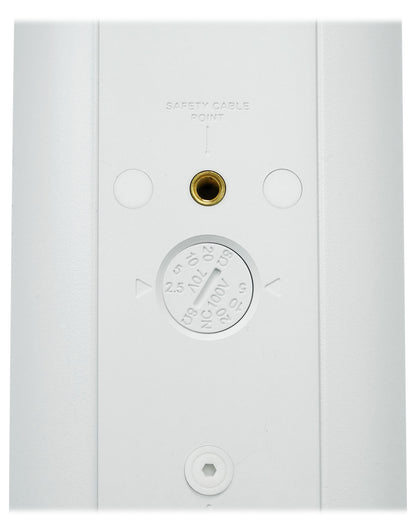

- Transformer Taps 20W, 10W, 5W, 2.5W (70V); 20W, 10W, 5W (100V)
- Environmental Rating IP54 (dust and water protected)
- Color White
- Weight 7.8 lb each
- Dimensions 23.6 x 4.1 x 3.7" (H x W x D)
