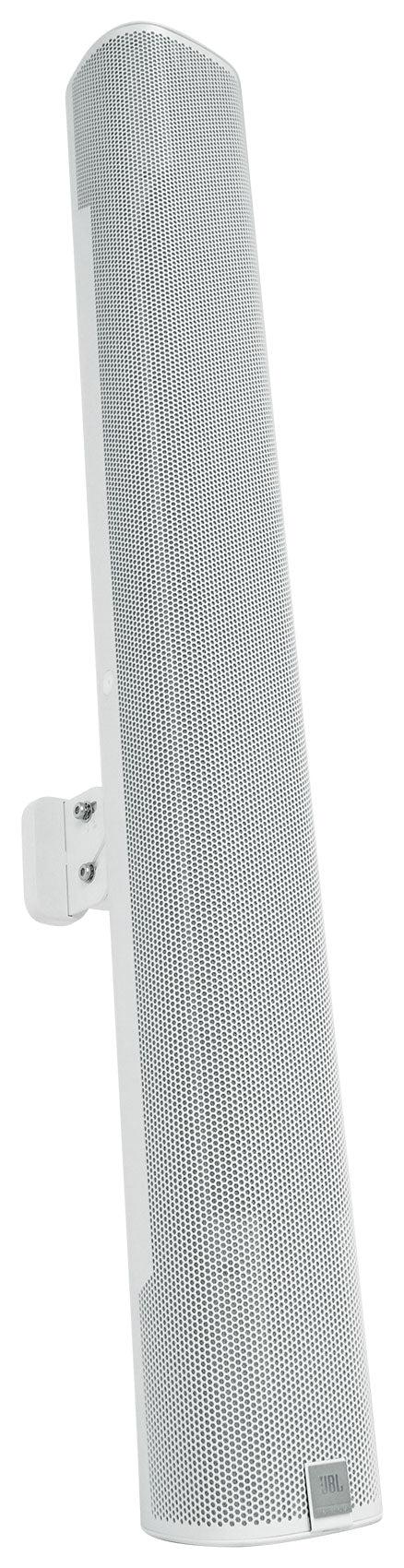

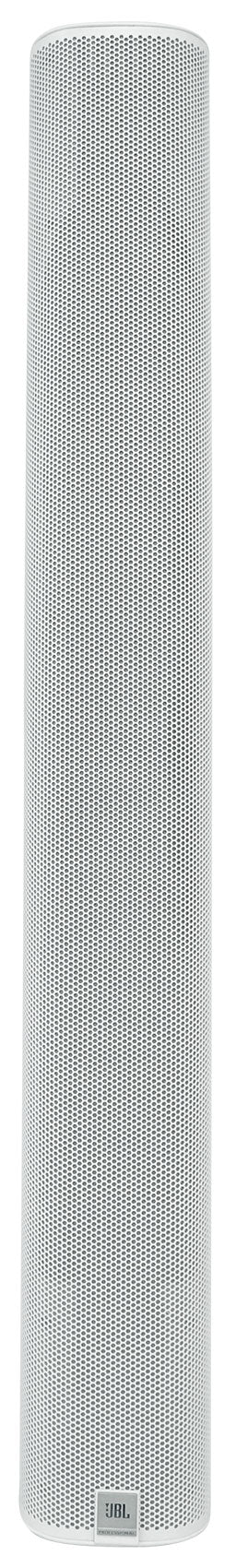

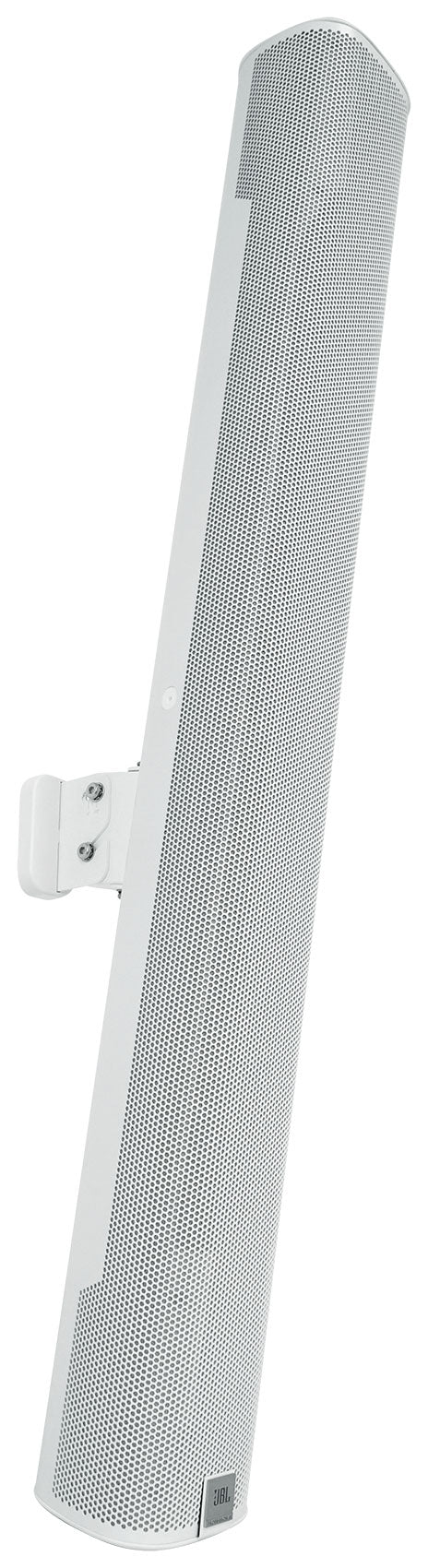

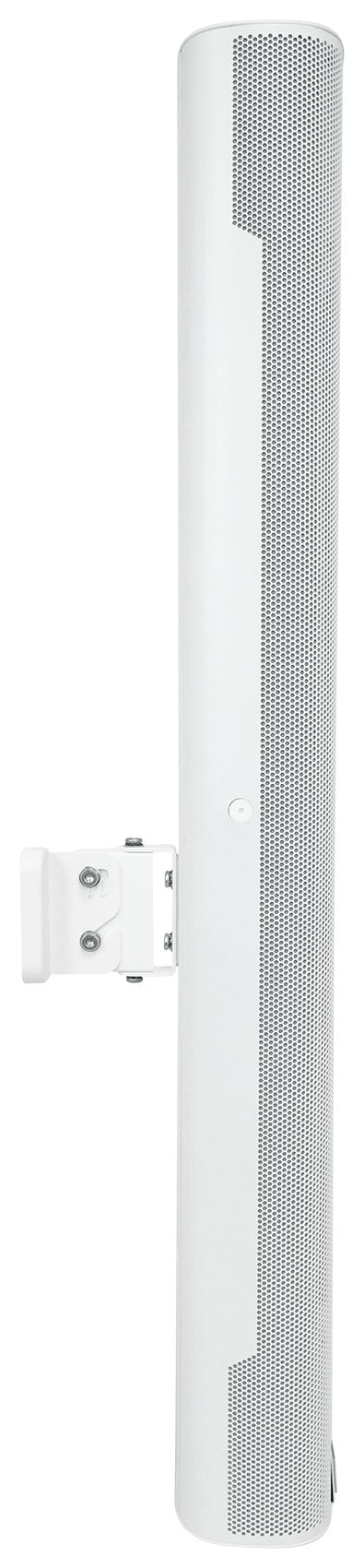

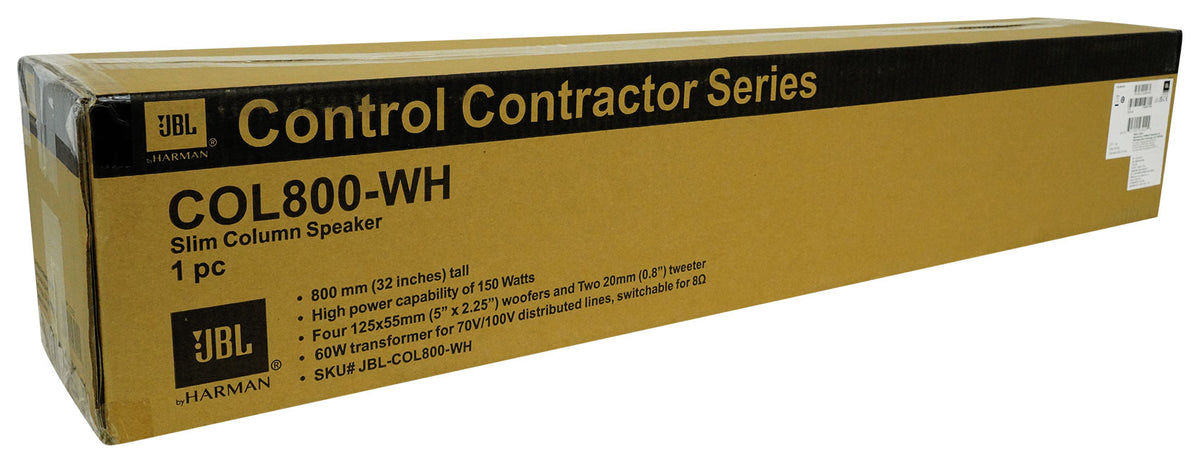

COL800-WH 32" White 70V Commercial Slim Column Wall Mount Array Speaker
JBL
COL800-WH 32" White 70V Commercial Slim Column Wall Mount Array Speaker
COL800-WH 32" White 70V Commercial Slim Column Wall Mount Array Speaker
32" Slim Column Speaker, 70V/100V, Wide 160° Coverage, IP54 Rated, White
Free Shipping
Features
- Four 5" racetrack woofers and dual tweeters deliver 160° coverage
- Built-in 10° down-tilt aims sound without angling the cabinet
- 60W multi-tap transformer works on 70V, 100V, or 8-ohm lines
- Shallow 3.7" cabinet depth qualifies for ADA installations
- IP54 rated for protection against dust and water
Couldn't load pickup availability

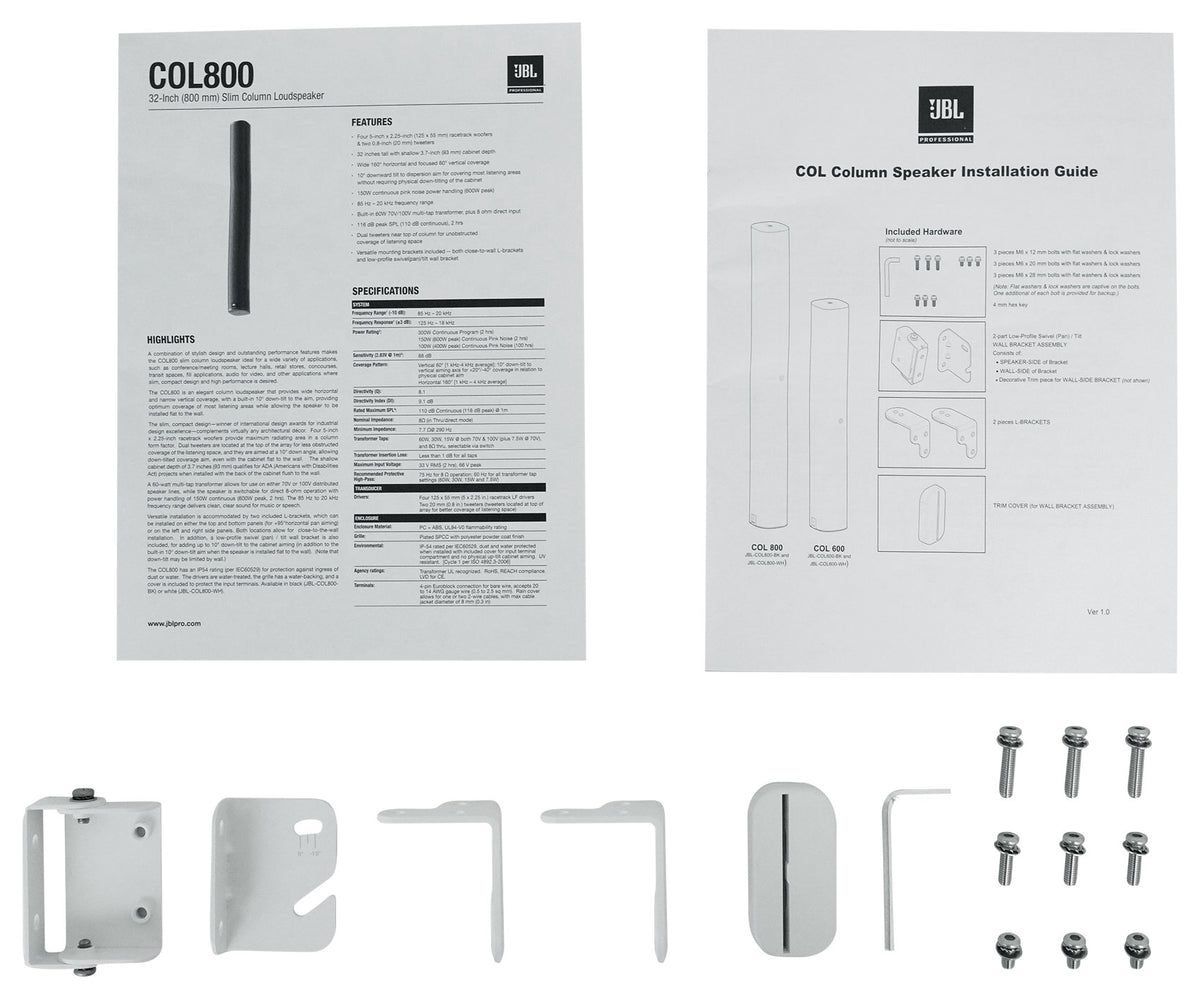

What's Included in the box
- 1x JBL COL800-WH Column Speaker
- 1x Swivel (Pan) / Tilt Wall Bracket
- 2x L-Brackets

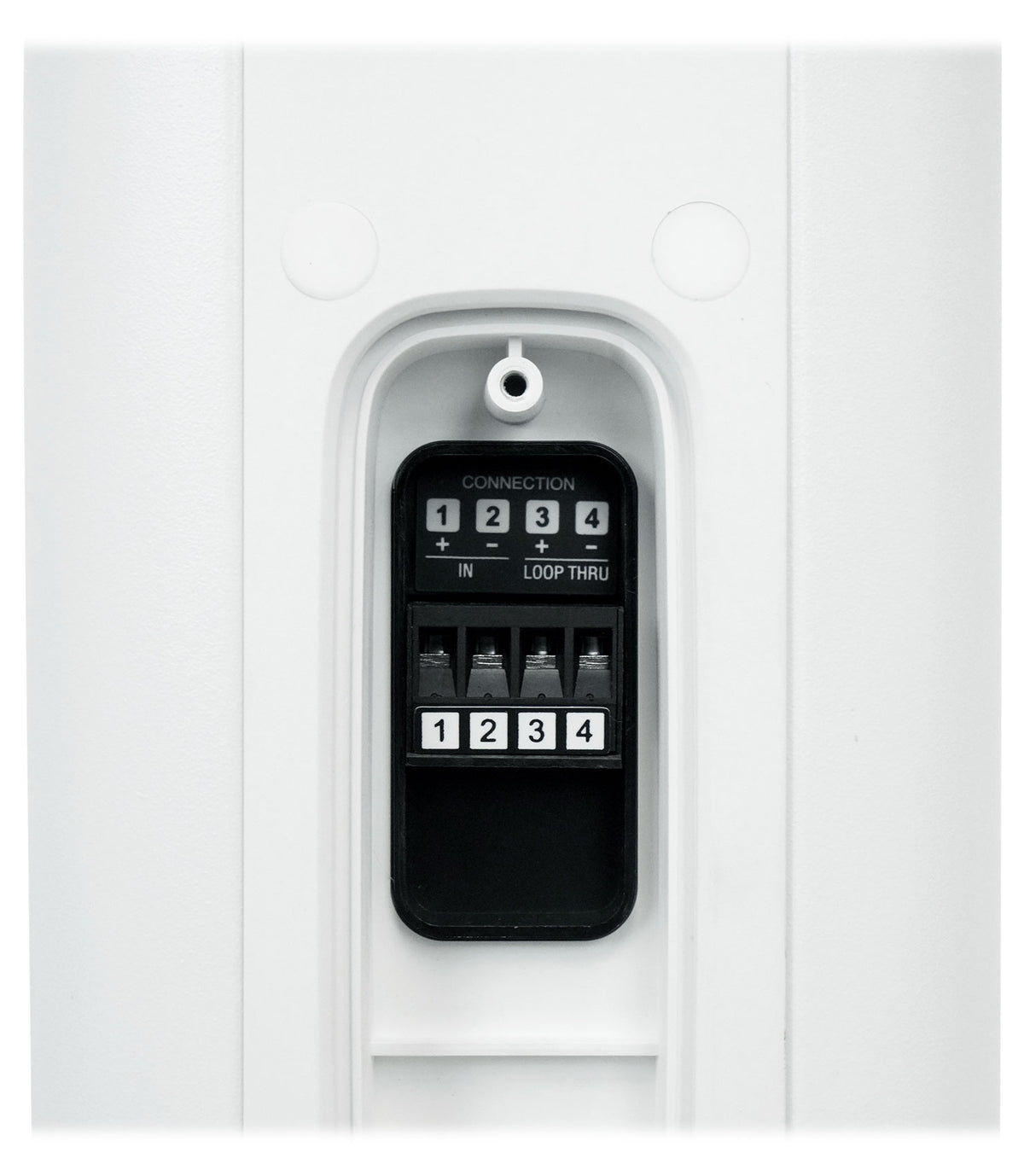

- 1x Input Terminal Rain Cover
SKU: SKU: JBL-COL800-WH*
View full details








Product Description

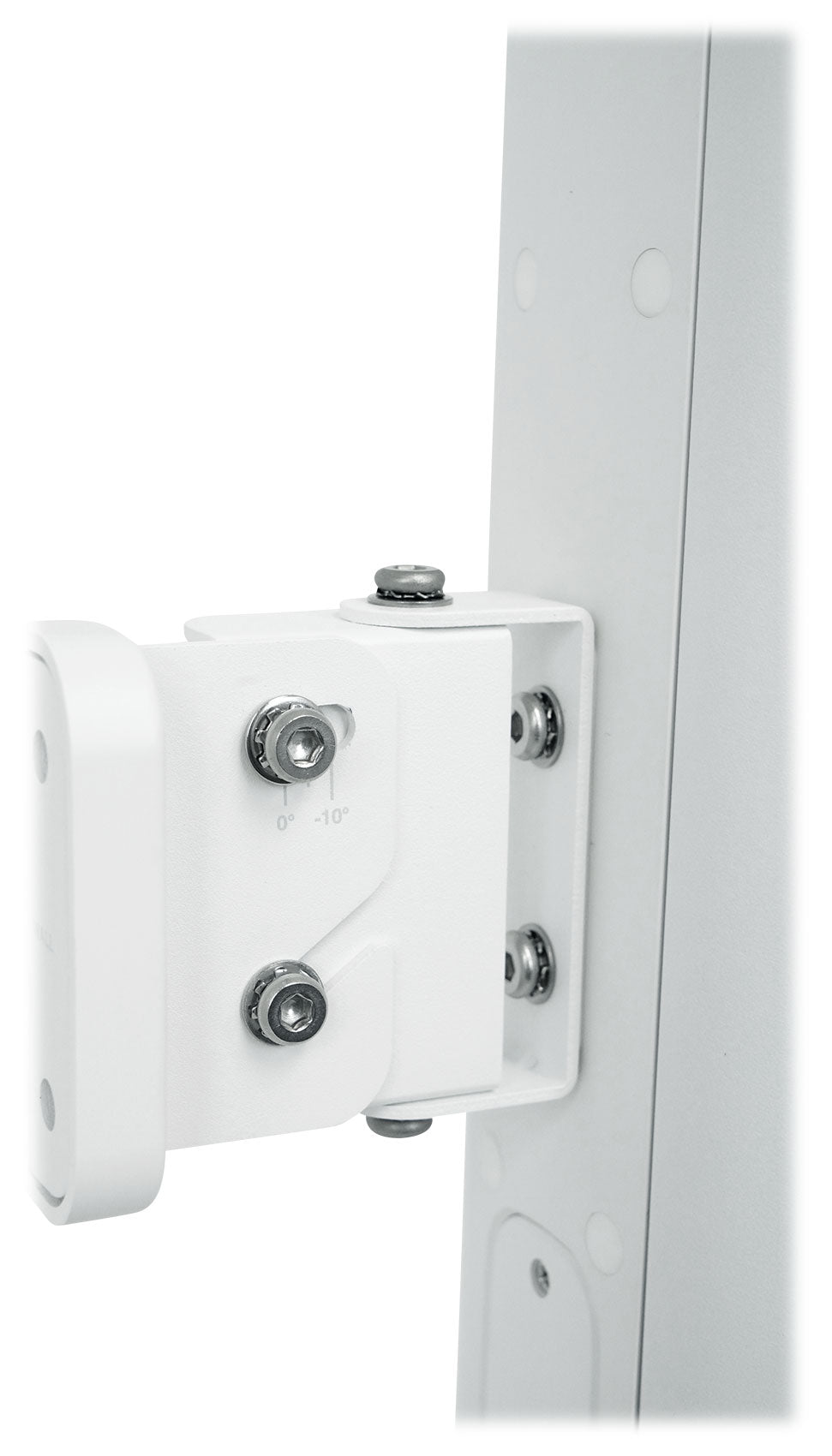

A 60-watt multi-tap transformer switches between 70V, 100V, or direct 8-ohm operation, handling 150W continuous (600W peak) across an 85 Hz to 20 kHz frequency range for clear speech and music. Two included L-brackets mount to the top, bottom, or side panels for flexible placement, and a low-profile swivel and tilt wall bracket adds up to 10 degrees of additional down-tilt on top of the cabinet's built-in aim.
An IP54 rating protects the drivers and grille against dust and water ingress, with an included rain cover shielding the input terminals, making the COL800 suitable for conference rooms, lecture halls, retail stores, transit spaces, and covered outdoor areas alike.
Features
Wide, Even Coverage
Four 5-inch racetrack woofers and dual top-mounted tweeters deliver 160° horizontal coverage across meeting rooms and retail floors.
Flush Wall Mounting
A shallow 3.7-inch cabinet depth and built-in 10° down-tilt let the speaker sit flat against a wall while still aiming correctly.
Flexible Line Voltage
A 60W multi-tap transformer switches between 70V, 100V, and direct 8-ohm operation to fit most distributed audio systems.
Weather-Resistant Build
An IP54 rating and included rain cover protect the drivers and terminals from dust and water in covered outdoor installs.
Discreet White Finish
A white enclosure blends into bright ceilings and walls where a dark speaker would stand out.
Technical Specifications
- Product Type 70V Commercial Slim Column Speaker
- Drivers Four 5" x 2.25" Racetrack Woofers, Two 0.8" Tweeters
- Power Handling 150W Continuous / 600W Peak
- Maximum SPL 110 dB Continuous / 116 dB Peak
- Frequency Range 85 Hz - 20 kHz (-10 dB)
- Coverage Pattern 160° Horizontal x 60° Vertical

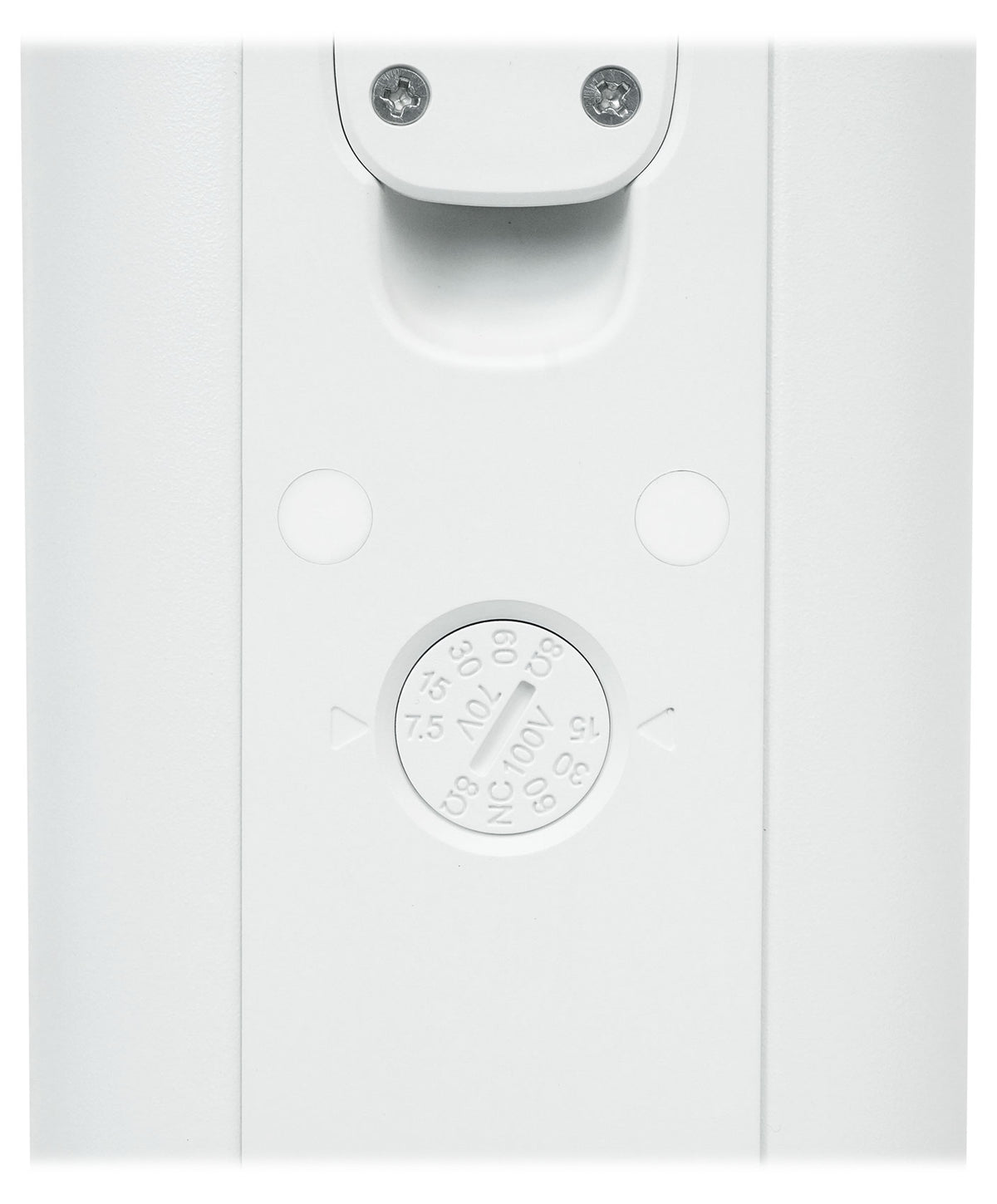

- Transformer Taps 60W, 30W, 15W, 7.5W (70V); 60W, 30W, 15W (100V)
- Environmental Rating IP54 (dust and water protected)
- Color White
- Weight 11.5 lb each
- Dimensions 31.5 x 4.1 x 3.7" (H x W x D)
