LCT 81C/T [Used]

Product Description Specifications

LCT 81C/T [Used]

  • LCT 81C/T [Used]
  • LCT 81C/T [Used]
  • LCT 81C/T [Used]
  • LCT 81C/T [Used]
  • LCT 81C/T [Used]
  • LCT 81C/T [Used]
  • LCT 81C/T [Used]
  • LCT 81C/T [Used]
  • LCT 81C/T [Used]
1 9
Used

JBL

LCT 81C/T [Used]

LCT 81C/T [Used]

Low-Profile 2x2 Lay-In Ceiling Loudspeaker, 8-Inch Driver, 70V/100V or 8 Ohm

Free Shipping

$167.35
$167.35 $260.00
Save 35%
Shipping calculated at checkout.
Features
    • Lays into 2 ft x 2 ft [Used]S-style grids with no ceiling-tile cutting
    • Low-profile depth of about 4.1 in for shallow ceilings
    • 200 mm (8 in) dual-cone driver with 96 dB sensitivity
    • 70V/100V multi-tap transformer plus 8-ohm direct setting
    • UL1480A and [Used]L2043 rated for ceiling plenum spaces
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

SKU: LCT 81C/T U

View full details

Product Description

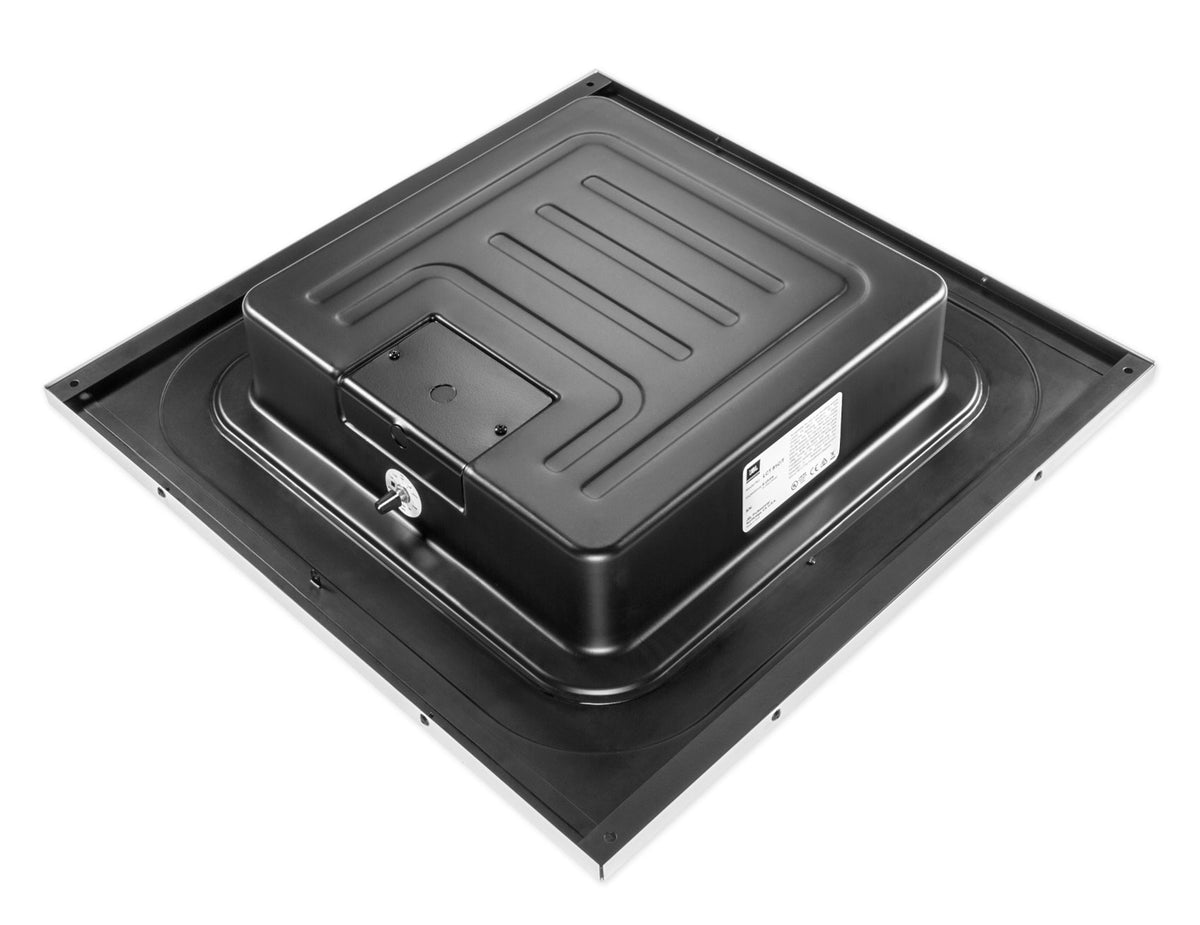

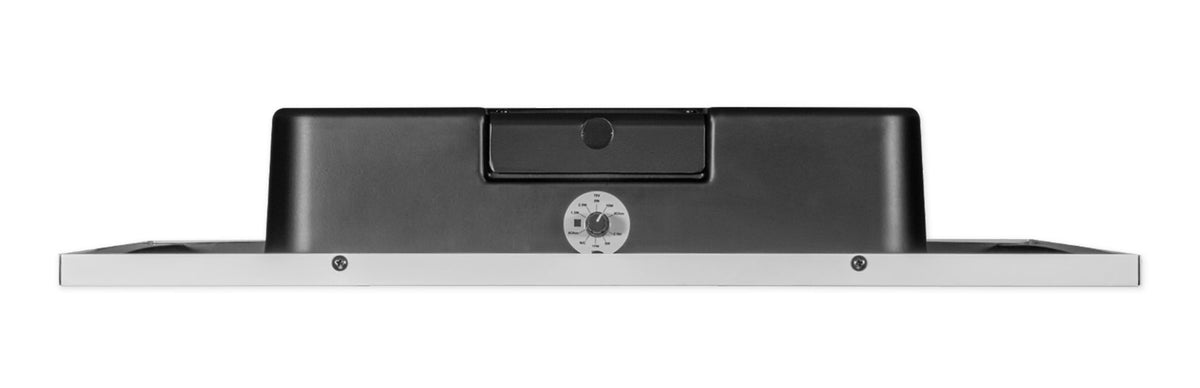

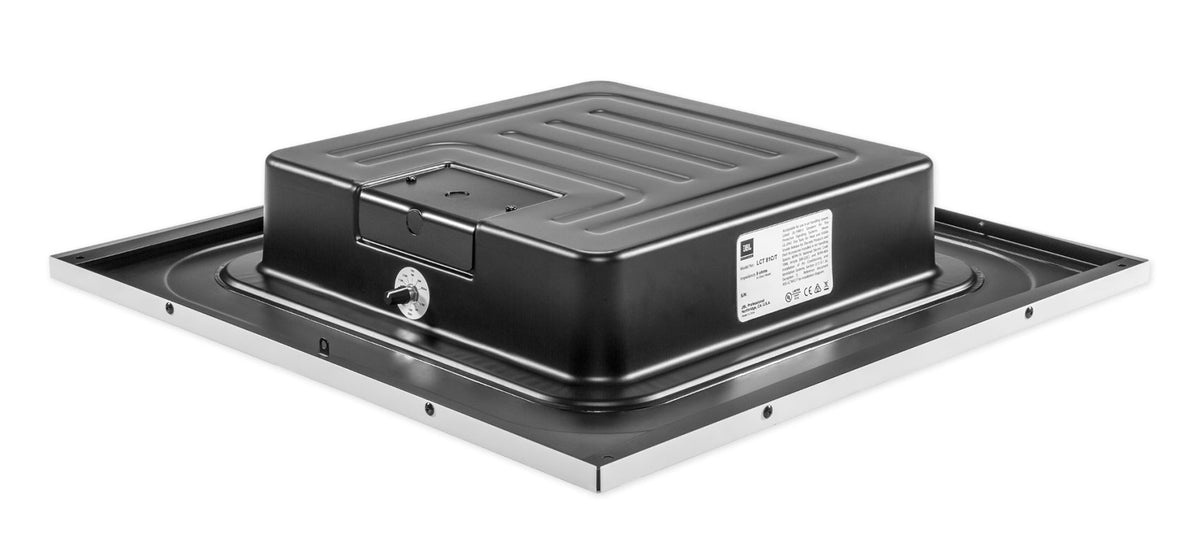

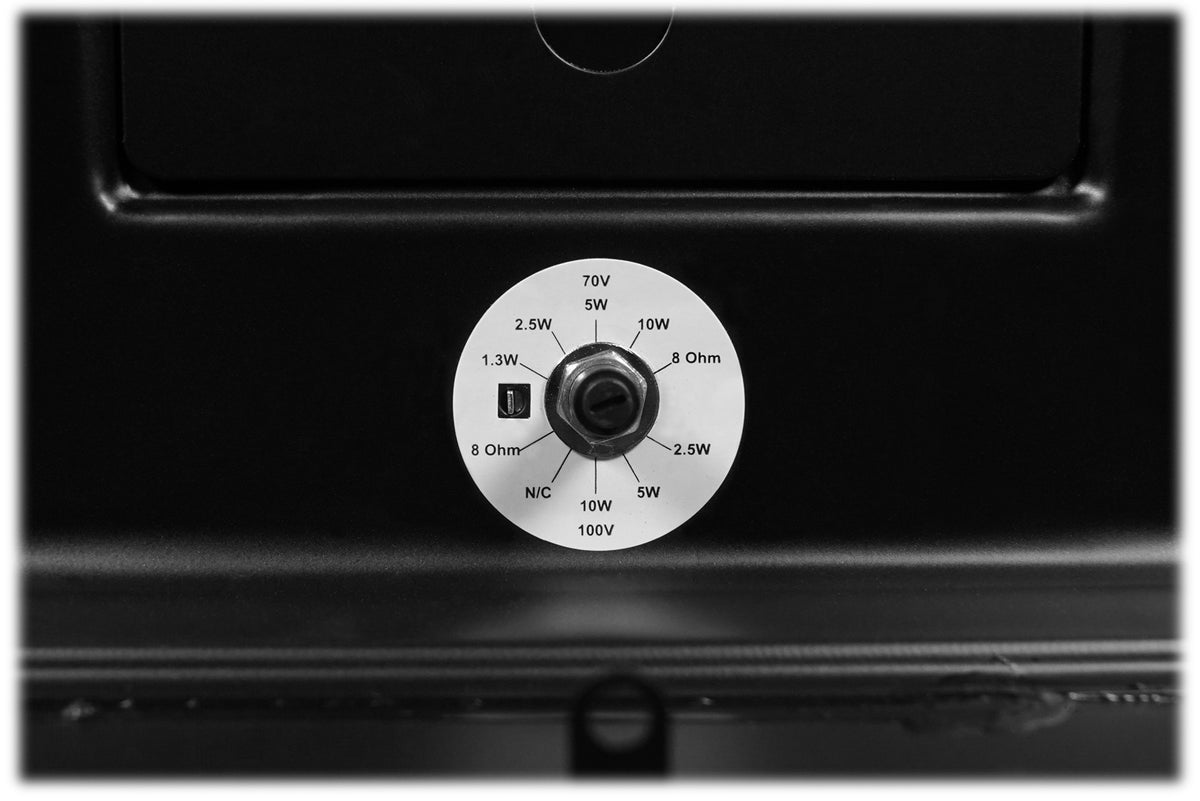

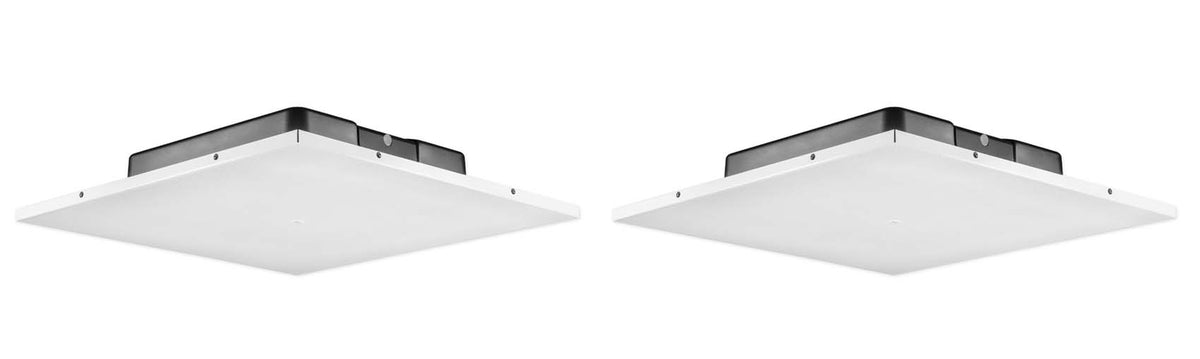

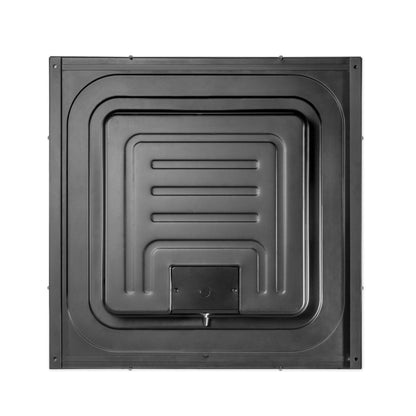

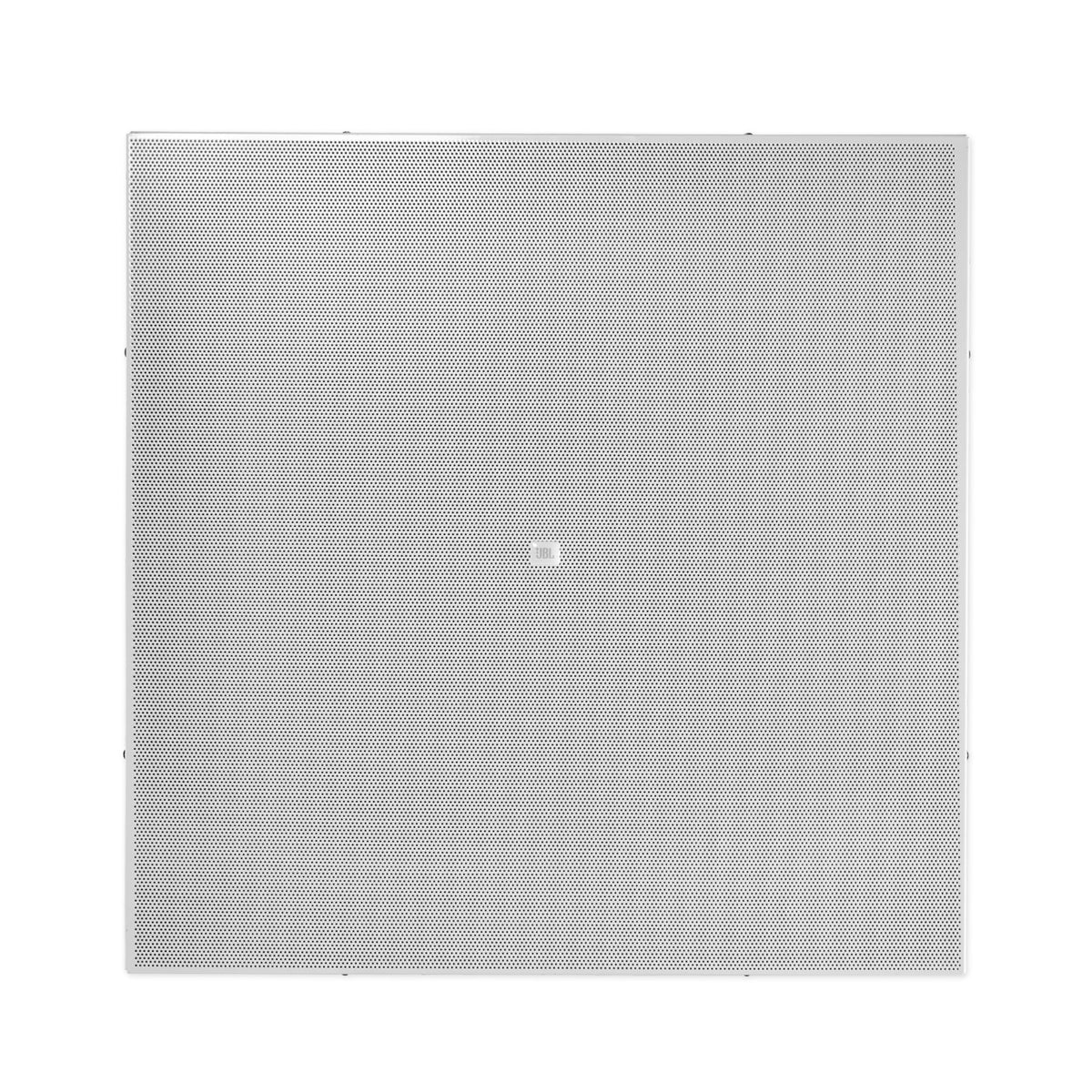

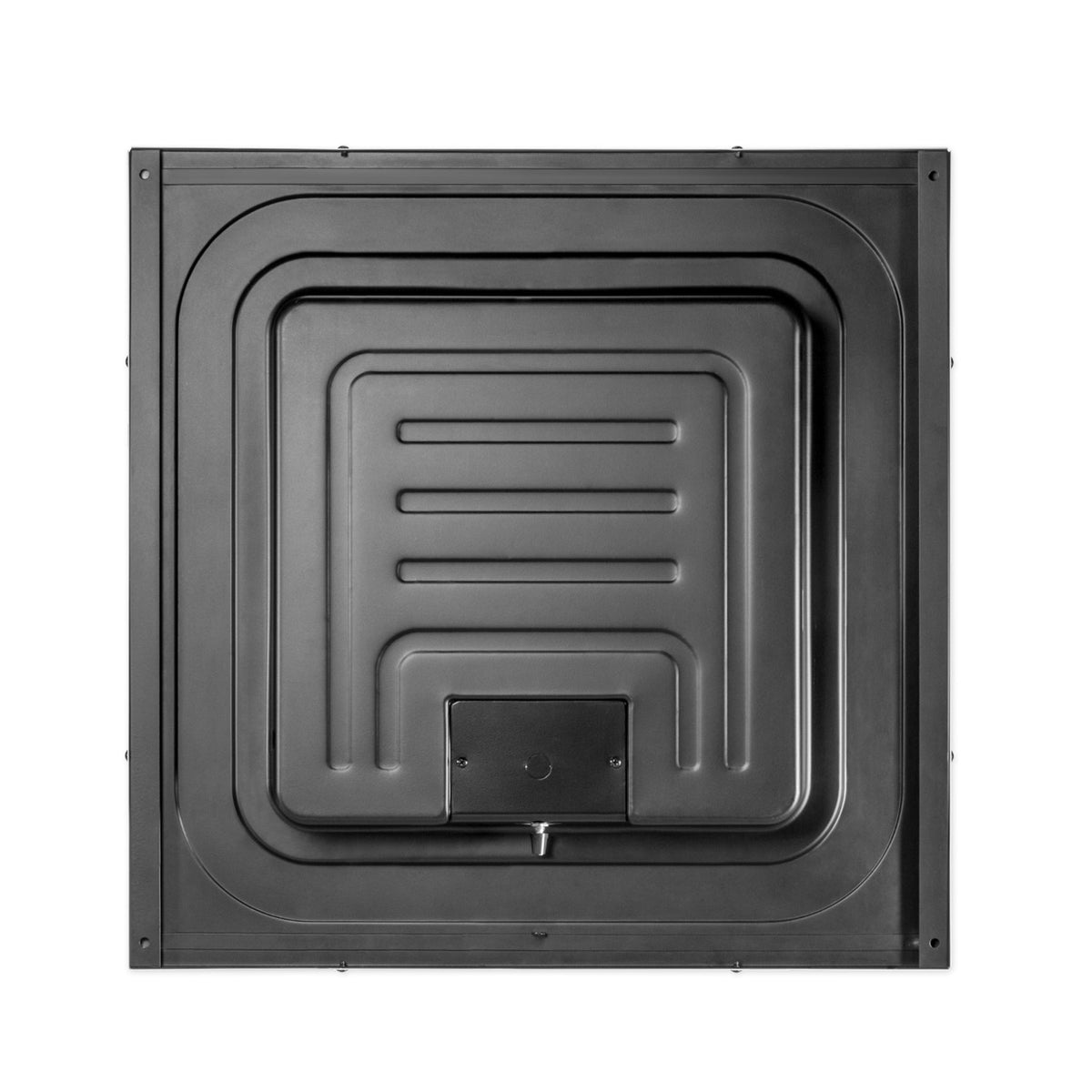

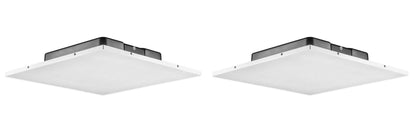

The JBL LCT 81C/T is a full-range ceiling loudspeaker that lays into a 2 ft x 2 ft [Used]S-style suspended grid with no ceiling-tile cutting required. A low-profile depth of about 4.1 in helps it fit shallow plenums or ceilings with obstructions. A 200 mm (8 in) dual-cone driver with 96 dB sensitivity supports paging and light-to-medium music in classrooms, retail, airports, meeting rooms, and waiting areas. A built-in 10 W transformer allows 70V/100V distributed lines or 8-ohm direct drive, with taps selected by a side rotary switch. Bare-wire connections, seismic tabs, [Used]L1480A and [Used]L2043 ratings, and a white perforated grille support commercial ceiling installs.

Features

    • Install Without Cutting Tiles

      The speaker lays into a 2 ft x 2 ft suspended grid, helping reduce install time and mess compared with cut-in ceiling speakers.

    • Work in Shallow Plenums

      A depth of about 4.1 in helps fit locations where deeper loudspeakers cannot clear ducts or limited plenum space.

    • High Sensitivity for Clear Coverage

      96 dB sensitivity helps produce [Used]seful sound levels even at lower tap settings for paging and light music.

    • Choose Distributed or Low-Z Drive

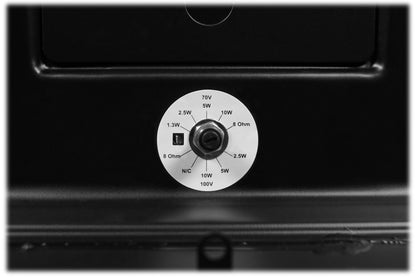

      A 10 W multi-tap transformer supports 70V/100V systems, while the 8-ohm setting drives the speaker from a low-impedance amplifier.

    • Built for Plenum Safety

      UL1480A and [Used]L2043 certifications, seismic tabs, and protected bare-wire connections support commercial ceiling installs.

Technical Specifications

  • Product Type Low-Profile Lay-In Ceiling Loudspeaker
  • Driver 200 mm (8 in) dual-cone with 25 mm (1 in) voice coil
  • Frequency Range (-10 dB) 100 Hz - 16 kHz
  • Nominal Sensitivity 96 dB
  • Coverage 100° conical
  • Max SPL 108 dB average / 108 dB peak at 8 ohm setting
  • Nominal Impedance 8 ohms (direct)
