JBL-SLP12/T-BK
JBL
JBL-SLP12/T-BK
JBL-SLP12/T-BK

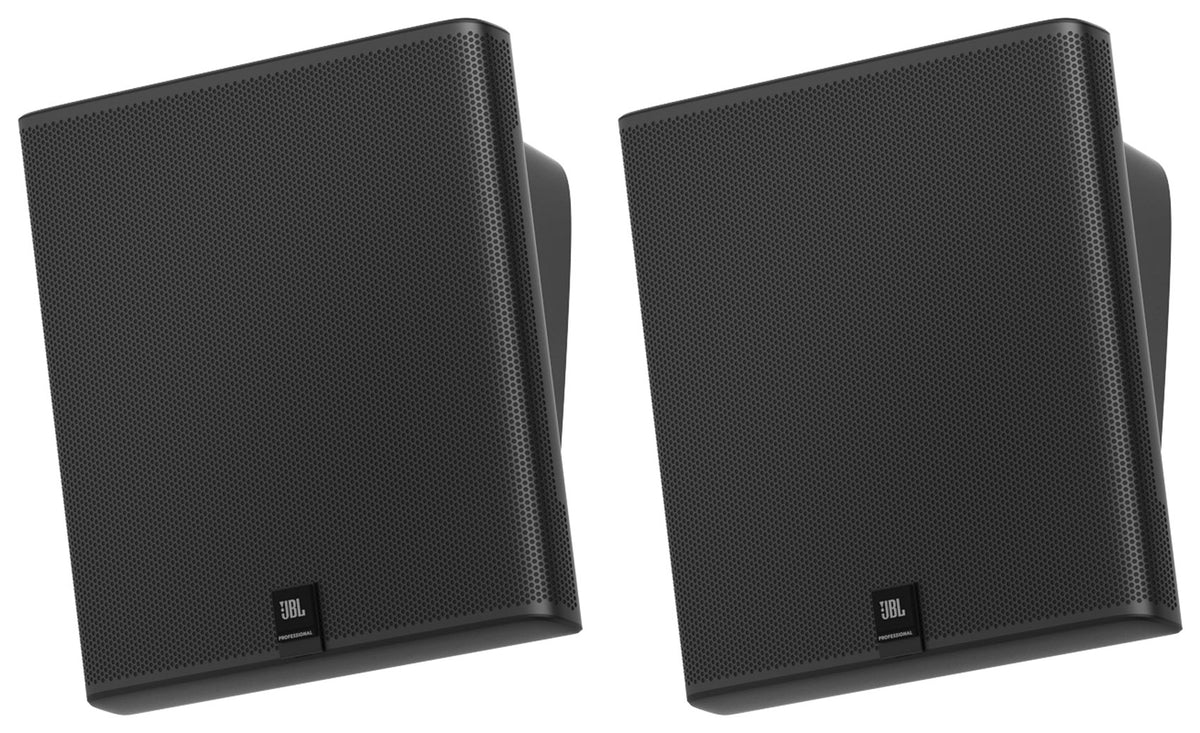

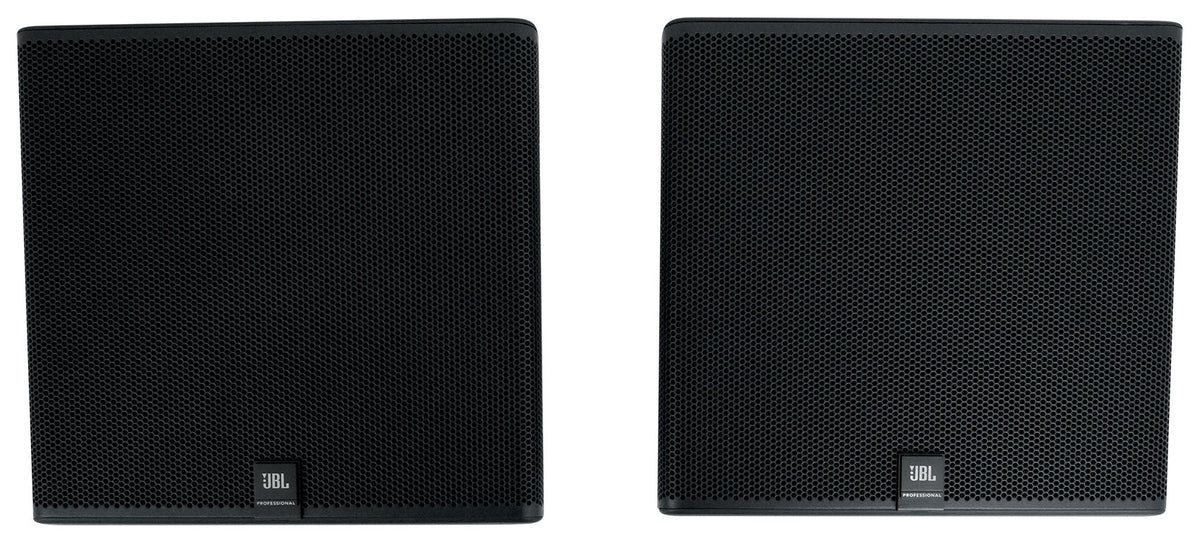

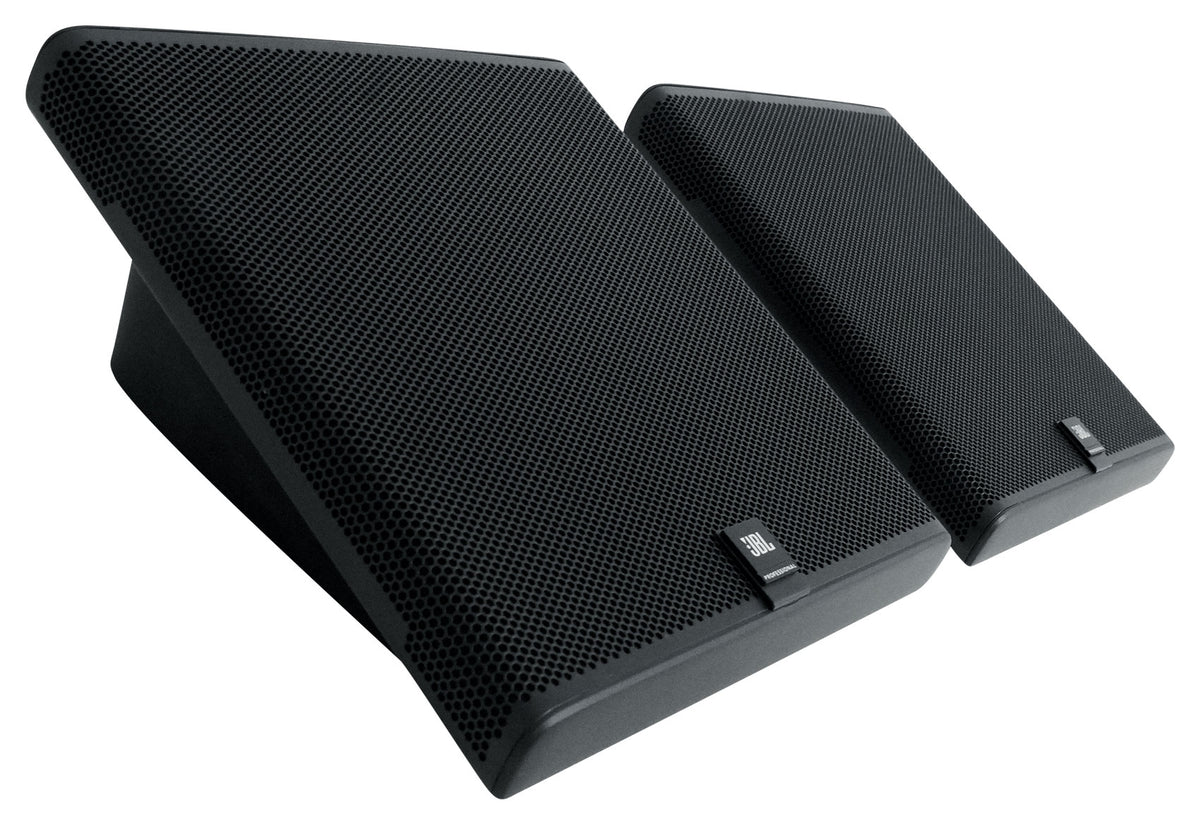

3" On-Wall Speaker, 70V/100V or 8 Ohm, 40W, Slide-On Wall Bracket, Terminal Cover, Black, for Restaurants, Hotels, Retail
Free Shipping
Features
- 3" full-range polypropylene driver covers 74 Hz to 20 kHz
- 15W multi-tap transformer runs on 70V/100V lines or switches to 8 ohm direct
- 120° x 120° coverage with 15° down-tilt for flush on-wall mounting
- ADA-compliant cabinet at less than 4 inches deep
- Includes slide-on wall bracket and terminal cover for covered outdoor use
Couldn't load pickup availability

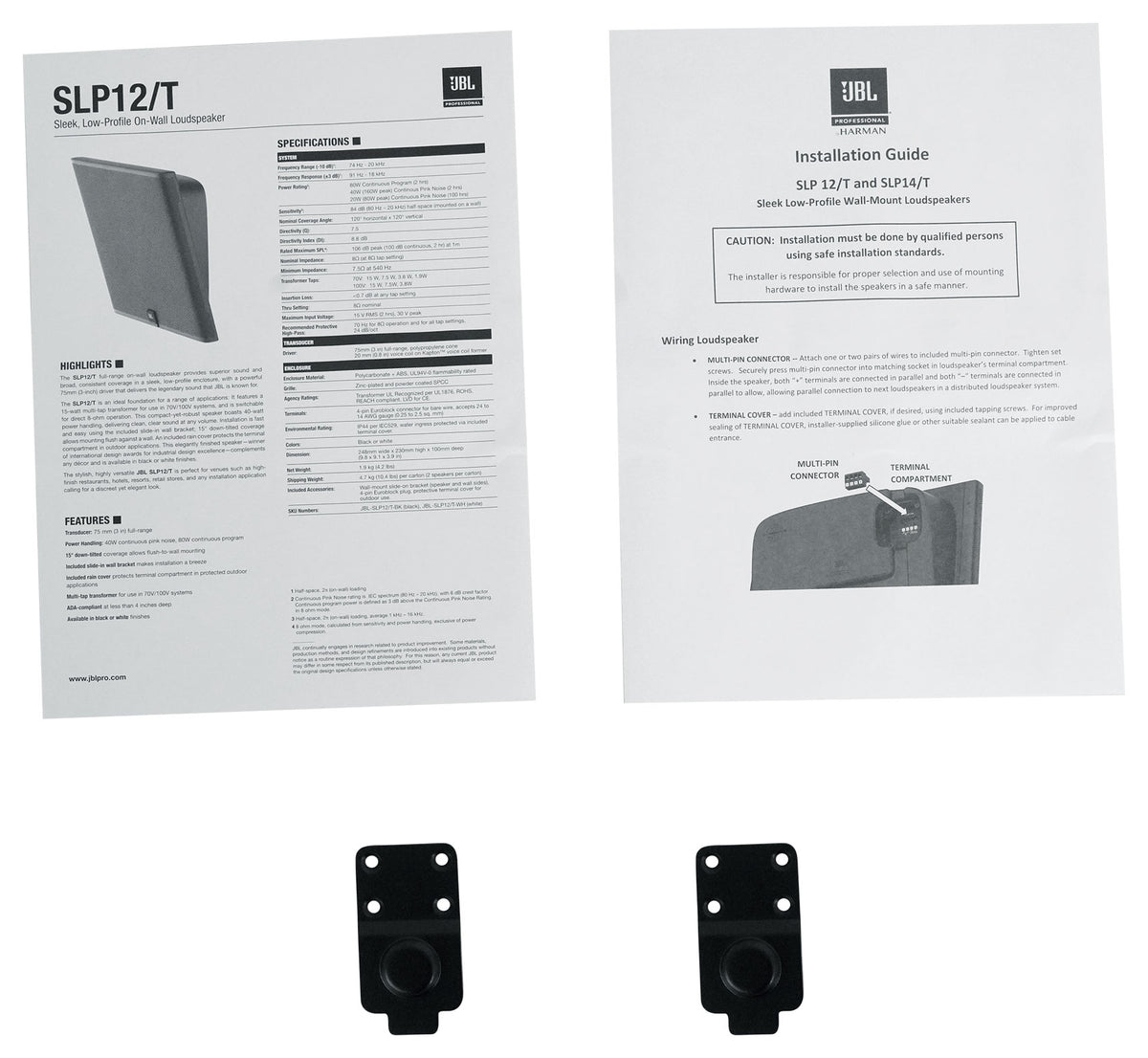

What's Included in the box
- (1) SLP12/T-BK 3" On-Wall Speaker, Black
- (1) Slide-On Wall Bracket (Speaker and Wall Sides)
- (1) 4-Pin Euroblock Plug
- (1) Protective Terminal Cover
SKU: SKU: JBL-SLP12/T-BK*
View full details










Product Description
It fits the system you already run. A 15W multi-tap transformer works on 70V lines at 15W, 7.5W, 3.8W, or 1.9W and on 100V lines at 15W, 7.5W, or 3.8W, or you can switch to 8 ohm direct operation for 40W continuous pink noise and 80W continuous program handling. Installation goes quickly with the included slide-on wall bracket: fix the wall side, then slide the speaker into place. A 4-pin Euroblock plug accepts 24 to 14 AWG bare wire, and the included terminal cover protects connections in covered outdoor spots like patios and walkways. The black polycarbonate and ABS enclosure carries a UL94V-0 flammability rating and blends into finished interiors without drawing attention.
Features
Wide, Even Coverage
A 120° x 120° coverage pattern and 3" full-range driver spread clear music and announcements across dining rooms, lobbies, and sales floors from 74 Hz to 20 kHz.
Mounts Flat to the Wall

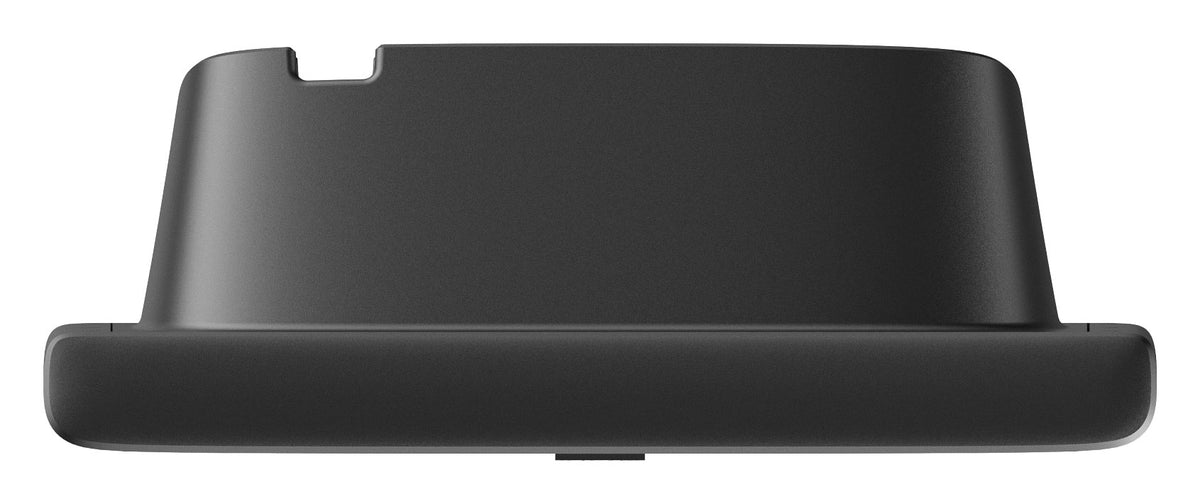

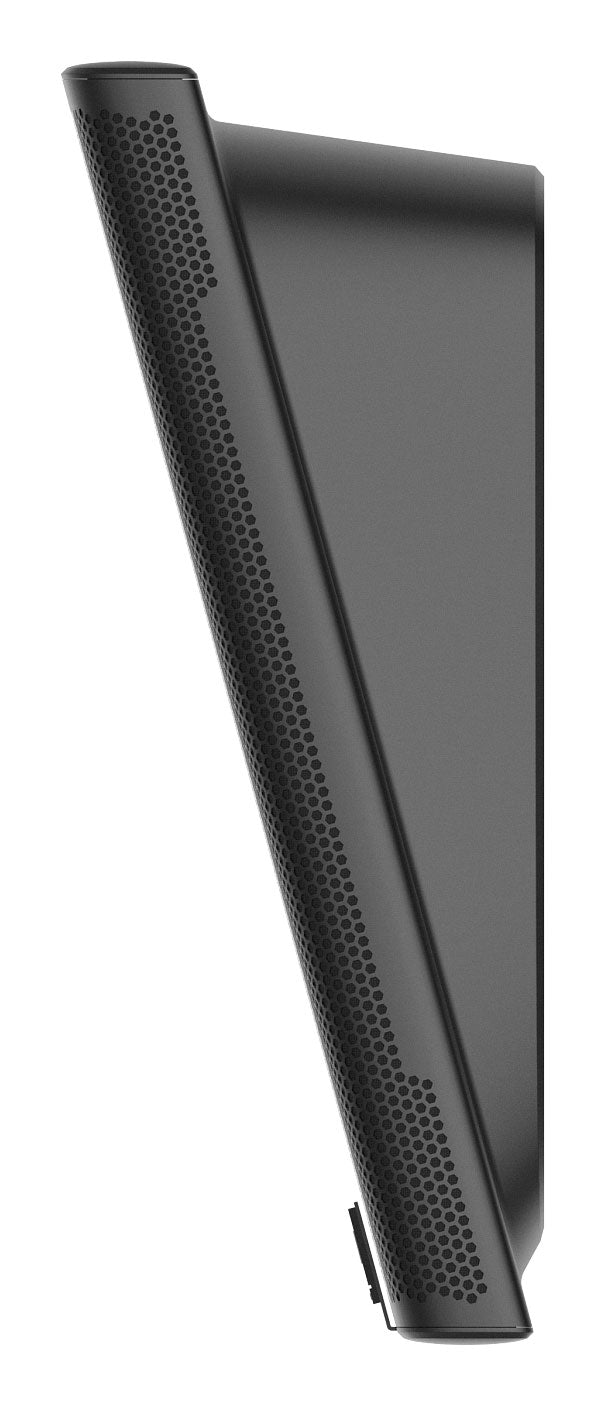

Coverage is angled 15° downward, so the speaker sits flush against the wall and still aims sound at listeners, with a cabinet under 4 inches deep for ADA compliance.
Fits Distributed or Direct Systems
A 15W multi-tap transformer runs on 70V or 100V lines, or switches to 8 ohm direct for 40W continuous handling, so it drops into most commercial installs.

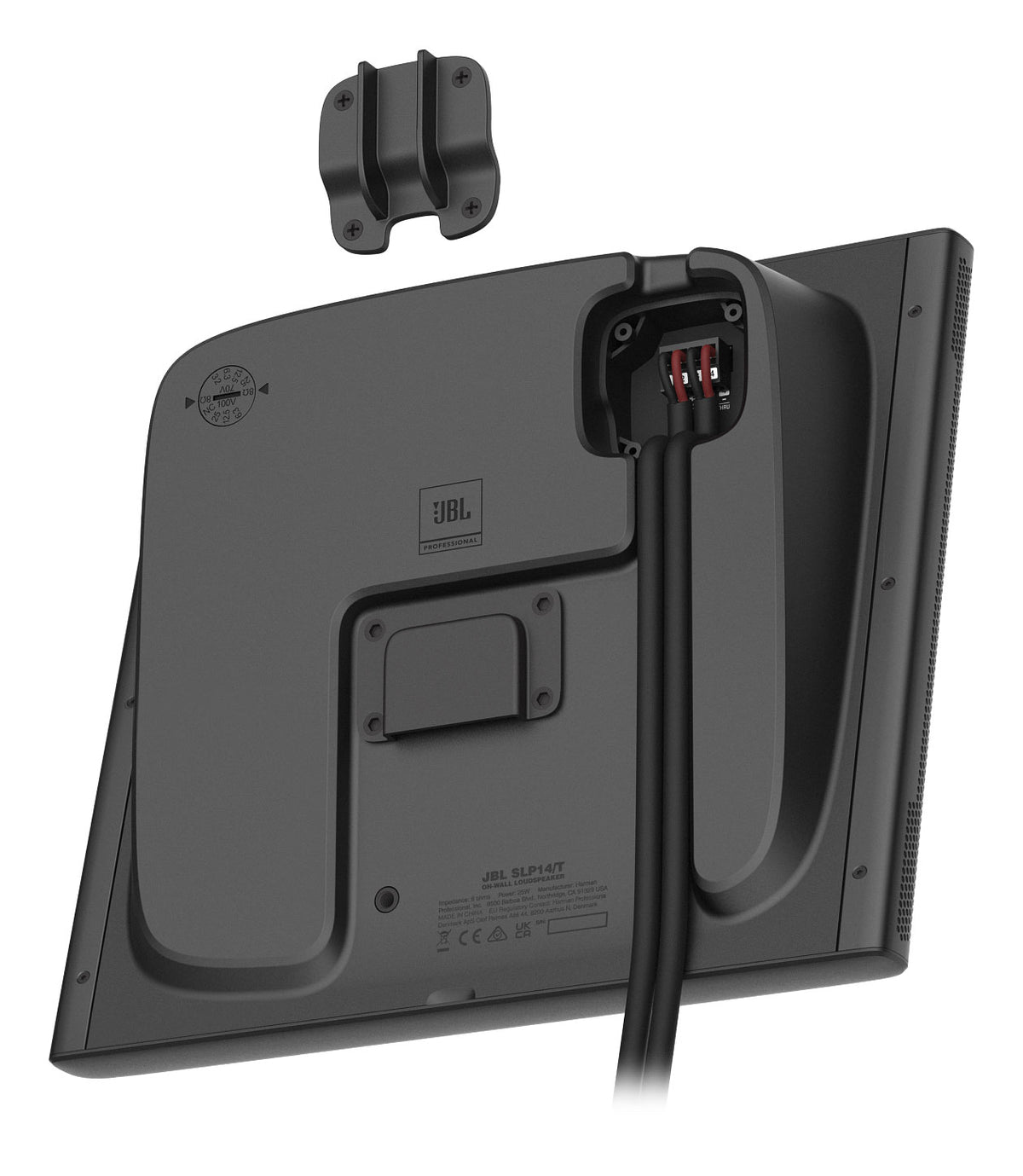

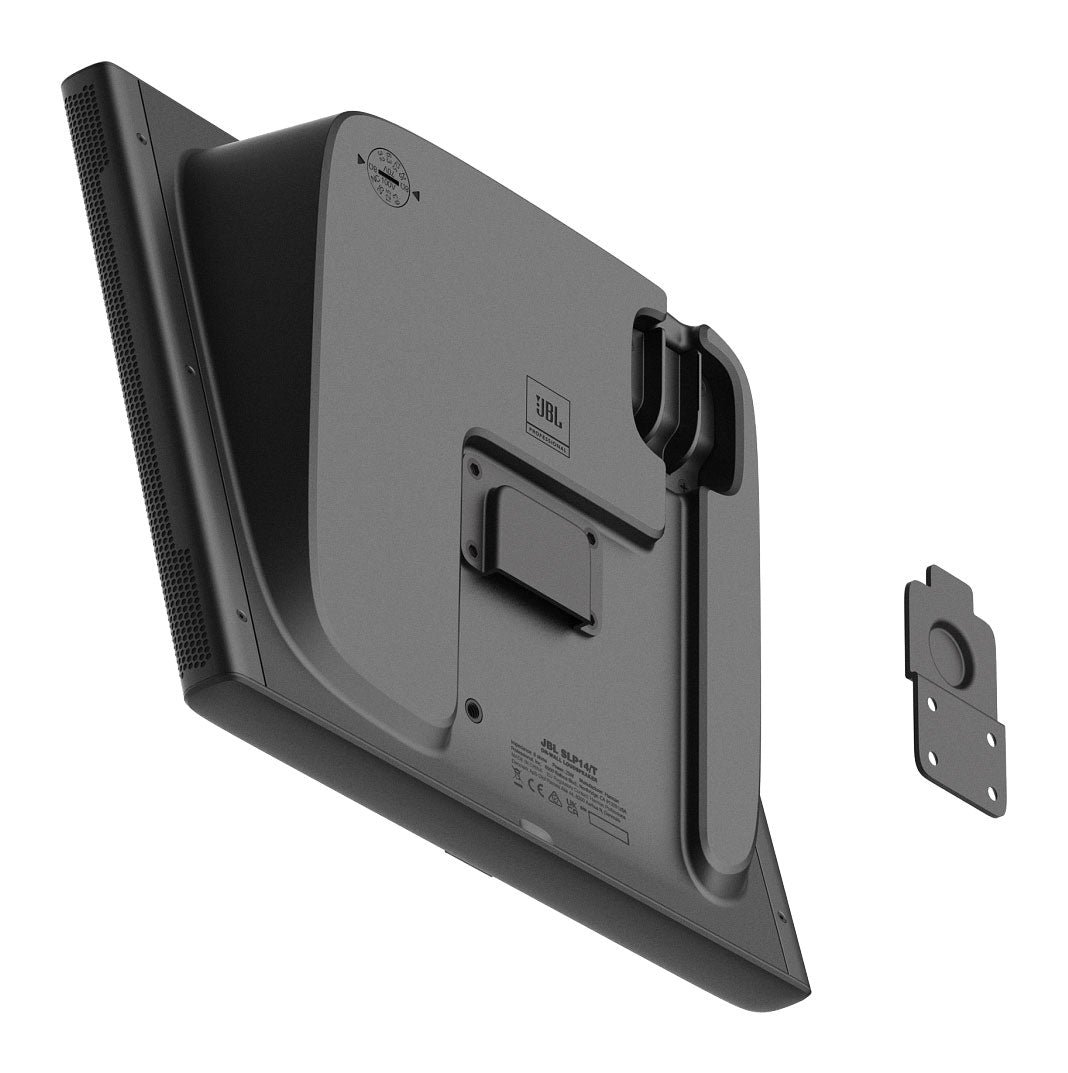

Quick Slide-On Installation
Attach the wall side of the included bracket, slide the speaker into place, and wire it through a 4-pin Euroblock plug that accepts 24 to 14 AWG bare wire.
Ready for Covered Outdoor Spots
The included terminal cover protects connections on patios and covered walkways, and the black polycarbonate and ABS enclosure carries a UL94V-0 flammability rating.
Technical Specifications
- Product Type On-Wall Loudspeaker
- Driver 3 in (75 mm) Full-Range, Polypropylene Cone, 0.8 in Voice Coil
- Frequency Range (-10 dB) 74 Hz - 20 kHz
- Frequency Response (+/-3 dB) 91 Hz - 18 kHz
- Power Rating (8 Ohm) 40W Continuous Pink Noise (160W Peak), 80W Continuous Program
- Sensitivity 84 dB (Half-Space, Wall Mounted)
- Maximum SPL 100 dB Continuous, 106 dB Peak @ 1m
- Coverage 120° H x 120° V, 15° Down-Tilt
- Directivity Factor (Q) 7.5
- Directivity Index 8.8 dB
- Nominal Impedance 8 Ohms (8 Ohm Tap)

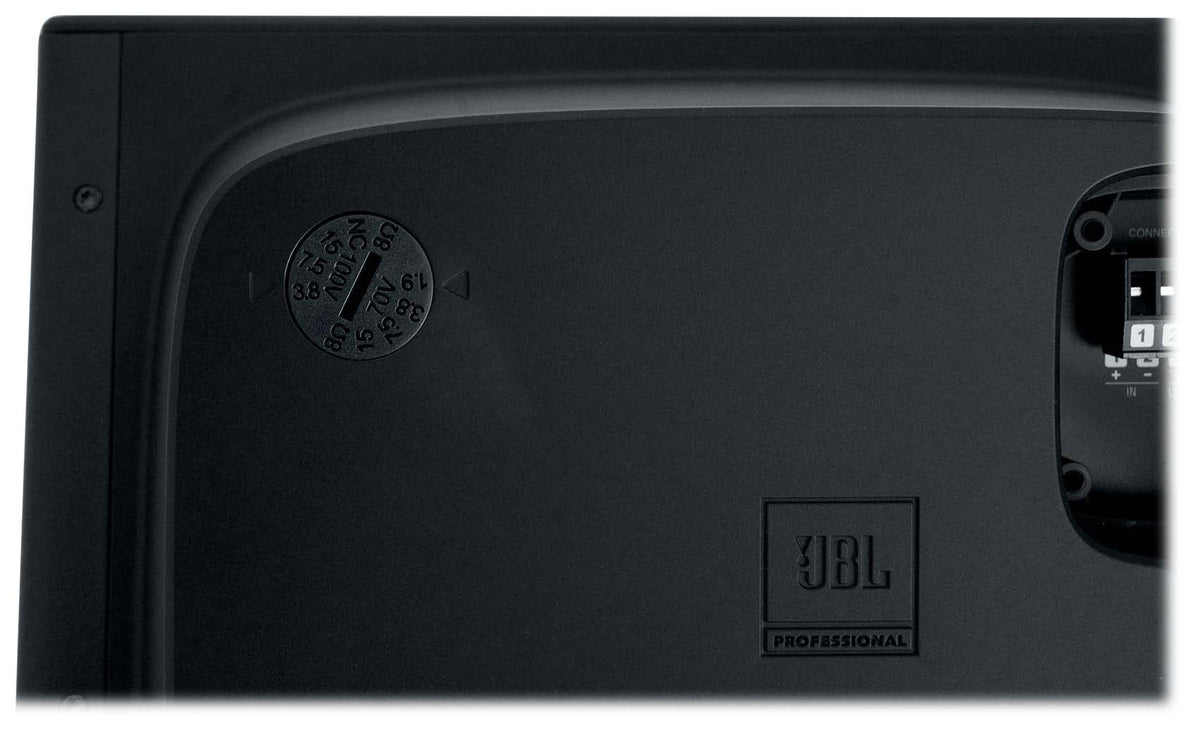

- Transformer Taps 15W, 7.5W, 3.8W, 1.9W at 70V; 15W, 7.5W, 3.8W at 100V

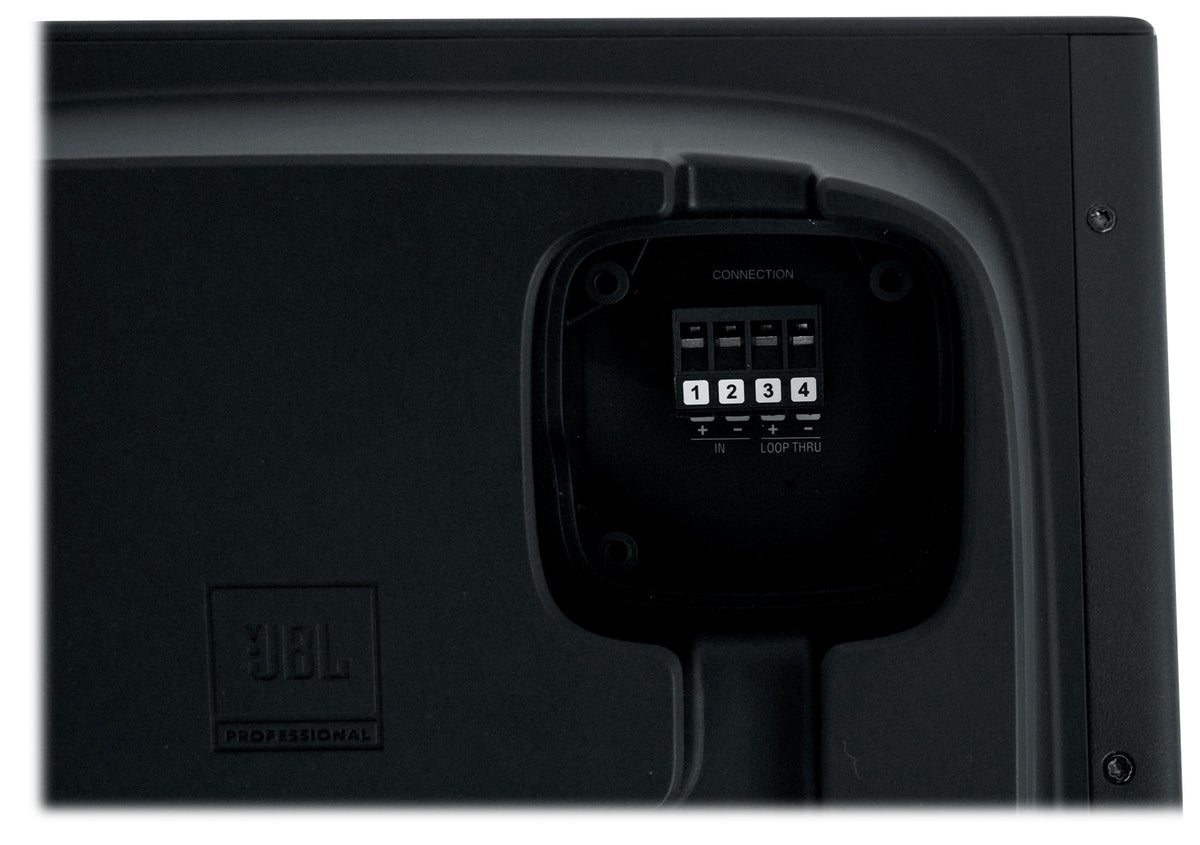

- Terminals 4-Pin Euroblock, 24-14 AWG
- Enclosure Polycarbonate + ABS, UL94V-0
- Color Black
- Mounting Slide-On Wall Bracket
- Weight 4.2 lb (1.9 kg)
- Dimensions 9.8 in W x 9.1 in H x 3.9 in D
