JBL SRX910LA AF Array Frame For SRX910LA Speaker to Support Up to (16) Cabinets

The JBL SRX910LA AF is the array frame for suspending SRX910LA line arrays. It works with both single-point and front-back suspension methods, so the same frame covers a quick club hang and a full production rig with two motors.

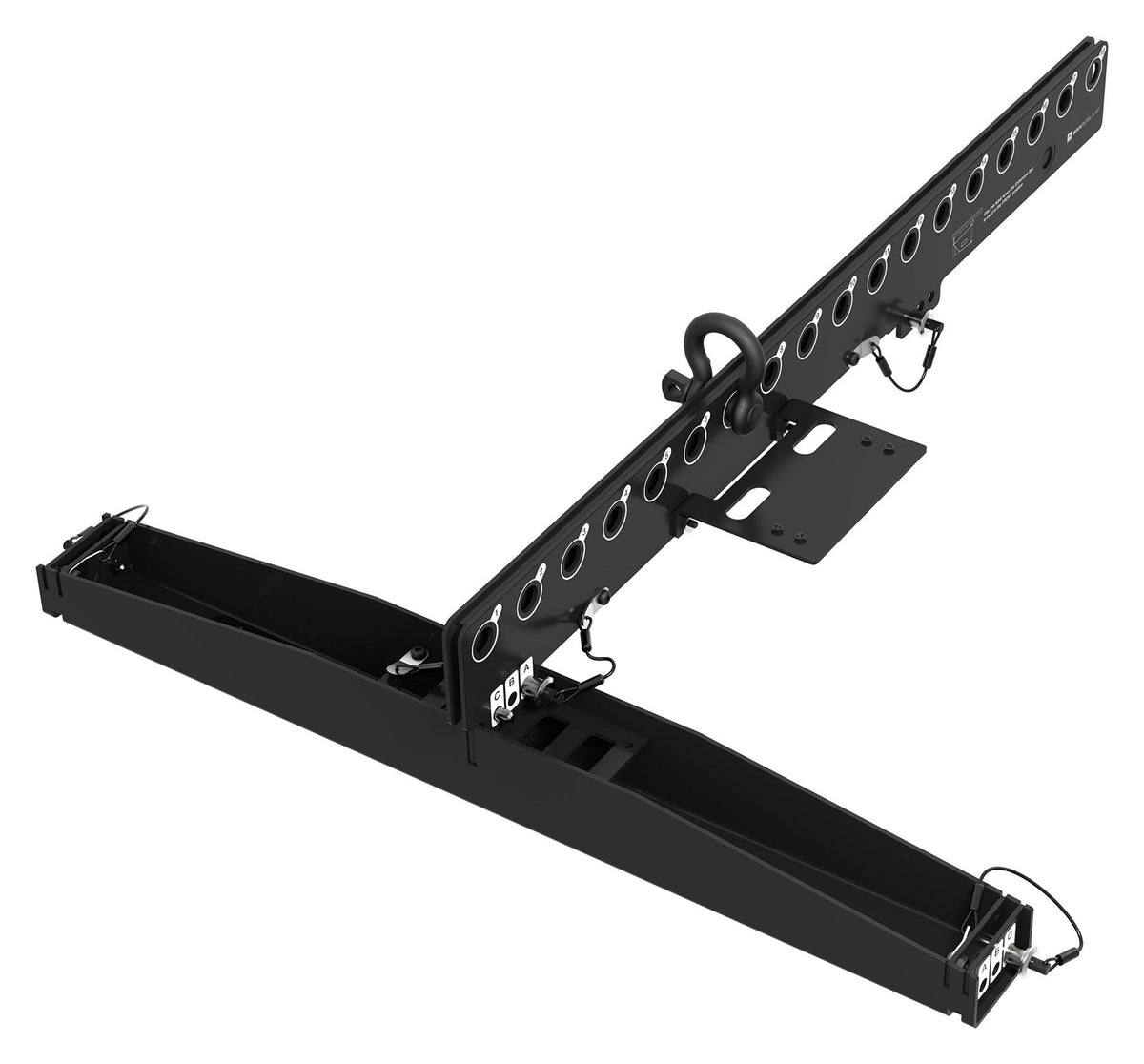

The two-piece design uses one extension bar and one spreader bar. The extension bar reaches forward or backward across three connection points on the spreader bar, giving precise shackle positioning for single-point work and both uptilt and downtilt aiming. For single-point applications, pairing the frame with a VTX RC500 rotating clamp lets smaller SRX910LA arrays hang from standard trusses or pipes.

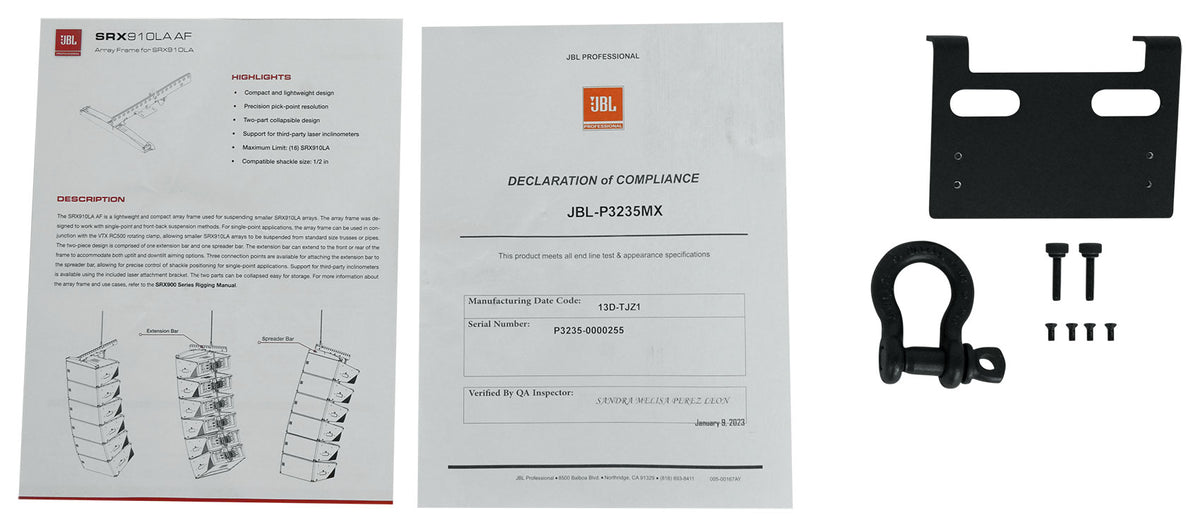

An included laser attachment bracket accepts third-party inclinometers such as TEQ-SAS and RECLINE, so the hang angle is measured rather than estimated from the ground. Mechanical limits allow up to 16 SRX910LA cabinets, with a published safe limit of 14.

Construction is high-grade steel with an anti-corrosion coating and black powder coat finish. Net weight is 9 lb and the two parts collapse flat for storage, which keeps hardware cases manageable across a touring inventory. Rigging details are covered in the SRX900 Series Rigging Manual.
