JBL VMA2120 2-Ch. Commercial/Restaurant 120W 70V Bluetooth Amplifier, 8 Inputs
JBL VMA2120 2-Ch. Commercial/Restaurant 120W 70V Bluetooth Amplifier, 8 Inputs
120W Two-Channel Commercial Mixer/Amplifier, 8 Inputs, 2 Outputs, 70V/100V Taps, Bluetooth, Rack Hardware
Features
- Eight inputs and two output channels for multi-zone commercial audio
- 120W output with 4/8 ohm plus 70V and 100V distributed taps
- Independent bass and treble controls on each output channel
- Built-in Bluetooth for playback from a phone or tablet
- Paging chime and priority muting for automatic announcements
Couldn't load pickup availability

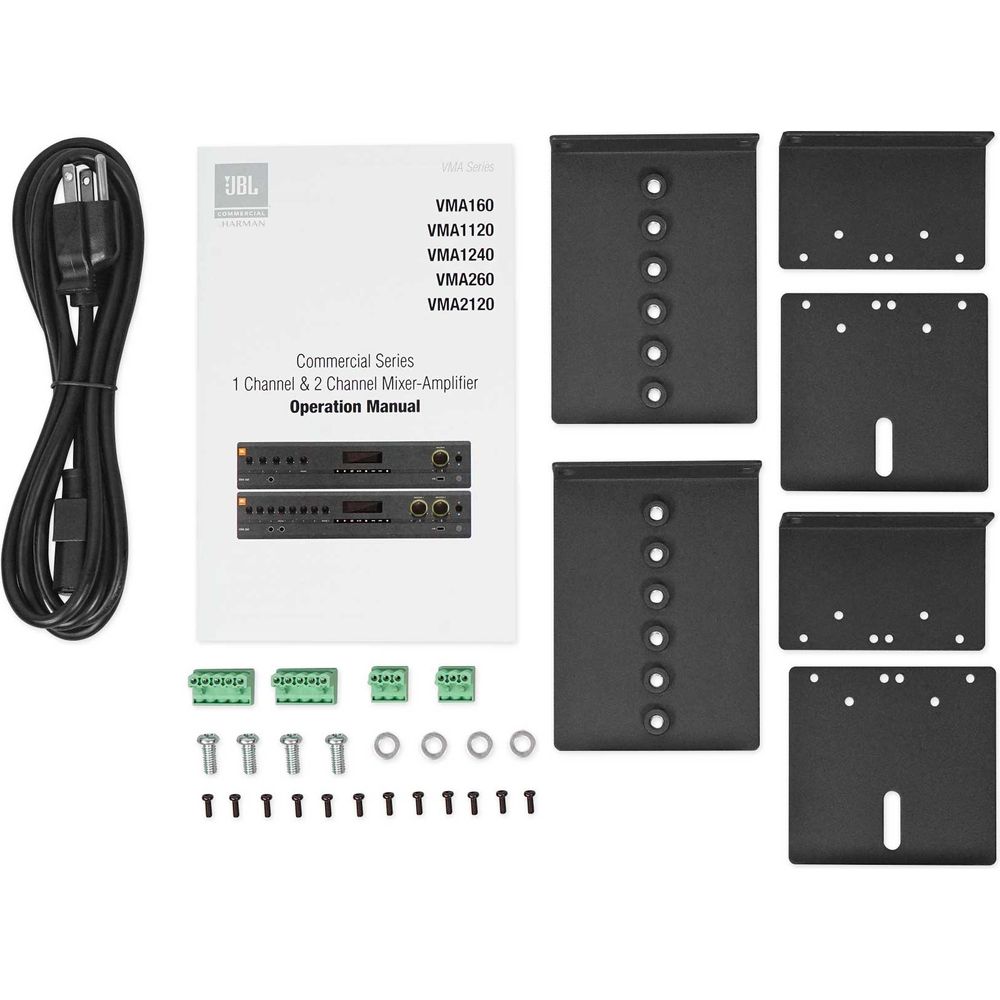

What's Included in the box
- VMA2120 mixer/amplifier
- Rack mounting hardware
SKU: SKU: VMA2120
View full details



Product Description
Features
-
Two Zones From One Rack Unit
Two output channels let a dining room and a patio run different levels and tone from a single amplifier instead of two separate units.
-
Eight Inputs Of Headroom
Paging mics, wireless receivers, a media player, and a house feed all get their own channel, so an install does not run out of inputs.
-
Shape Each Zone
Independent bass and treble on every output, adjustable 14 dB at 50 Hz and 10 kHz, tune one zone for speech and the other for music.
-
Announcements Without An Operator
A paging chime and priority muting drop program audio when the paging channel opens and bring it back after the announcement ends.
-
Local And Distributed Speakers
Low-impedance 4 and 8 ohm operation plus 70V and 100V taps covers short speaker runs and long distributed ceiling lines in the same install.
Technical Specifications
- Product Type Commercial Mixer/Amplifier
- Max Output Power 120W
- Input Channels 8
- Output Channels 2
- Output Types Low impedance 4 and 8 ohms, 70V and 100V
- Wireless Bluetooth
- Frequency Response 20 Hz - 20 kHz
- Total Harmonic Distortion Less than 0.5%
- Signal to Noise Ratio Greater than 76 dB
- Tone Control Bass +/-14 dB at 50 Hz, Treble +/-14 dB at 10 kHz, per output channel
- Input Sensitivity Mic 5.5 mVrms, Line 1.3 Vrms, RCA 130 mVrms
- Input Impedance Mic 400 ohms, Line 20k ohms balanced, RCA 50k ohms
- Phantom Power 27 VDC
- Crosstalk -70 dB
- Insertion Loss 1 dB maximum
- Minimum Load Impedance 4 ohms, 40 ohms, 80 ohms
- AC Line Voltages 100V, 120V, 220V, 220-240V, 50/60 Hz
- Paging Paging chime and priority muting
- Mounting Rack mounting hardware included
- Weight 29.3 lb
- Dimensions (W x D x H) 17 in x 16.3 in x 3.5 in
