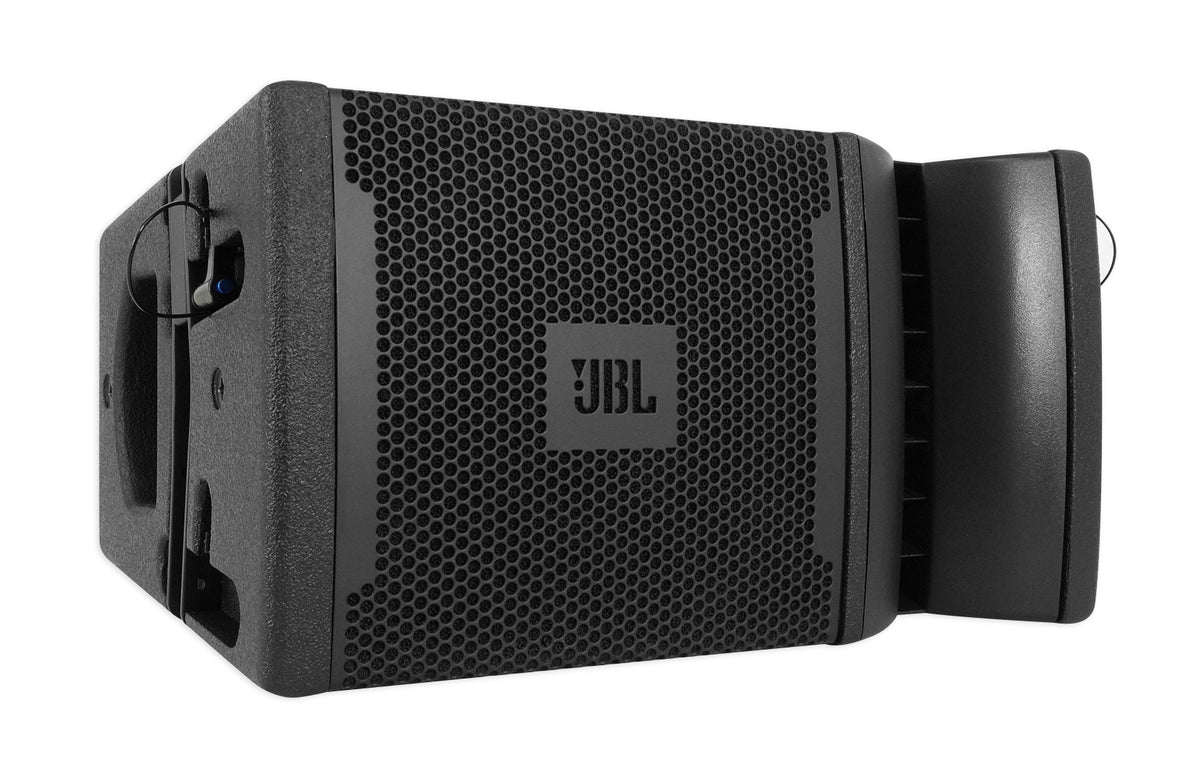

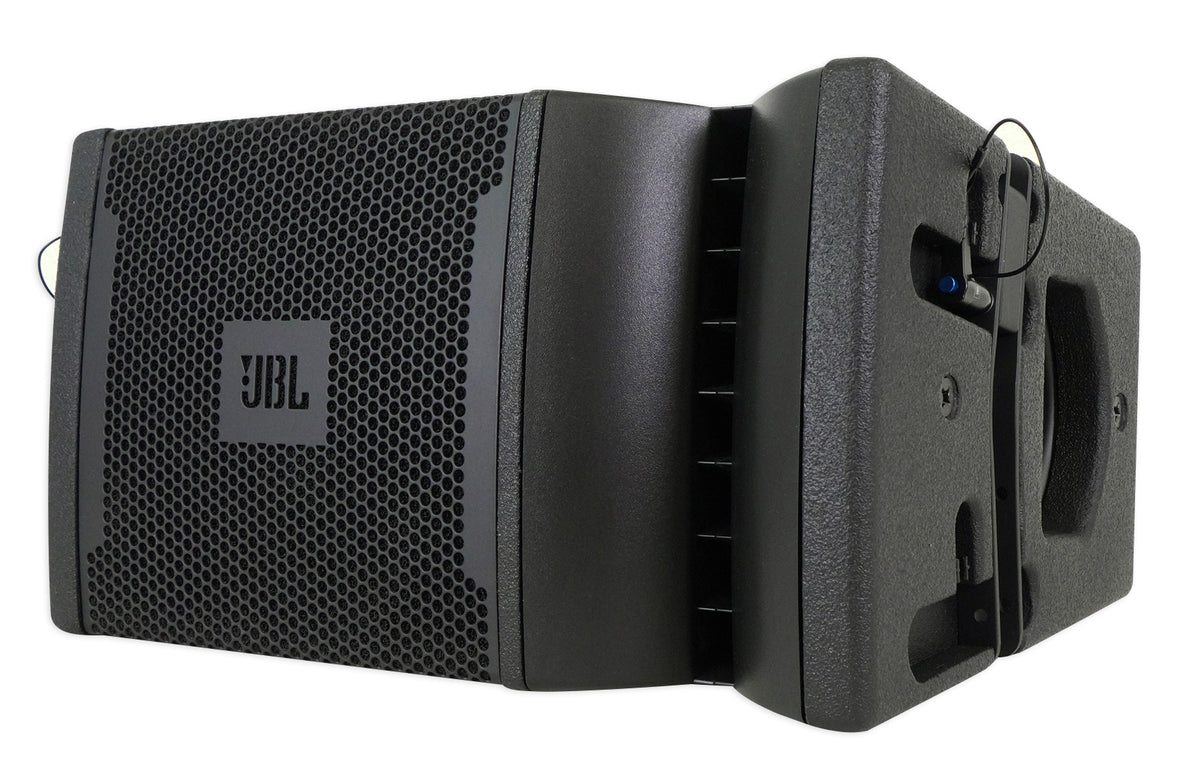

JBL VRX928LA 8" 400 Watt 2-Way Passive Line-Array Speaker in Black
JBL
JBL VRX928LA 8" 400 Watt 2-Way Passive Line-Array Speaker in Black
JBL VRX928LA 8" 400 Watt 2-Way Passive Line-Array Speaker in Black
8" Two-Way Passive Line Array Speaker, 400W, Constant Curvature Waveguide, Arrays Of Up To Six Units
Features
- 8-inch two-way passive line array cabinet weighing just 28 lb
- Constant Curvature waveguide keeps coverage coherent across the array
- Amplitude shading switches balance level from front rows to back wall
- Integral rigging hardware for arrays of up to six enclosures
- Dual-angle pole socket allows stand mounting for smaller setups
Couldn't load pickup availability
What's Included in the box
- VRX928LA 8" passive line array speaker
SKU: SKU: VRX928LA
View full details








Product Description
Features
-
Line Array Behavior, Small Footprint
A 28 lb 8-inch cabinet brings array coverage to rooms that cannot take the size, weight, or throw of a large-format touring system.
-
One Continuous Arc

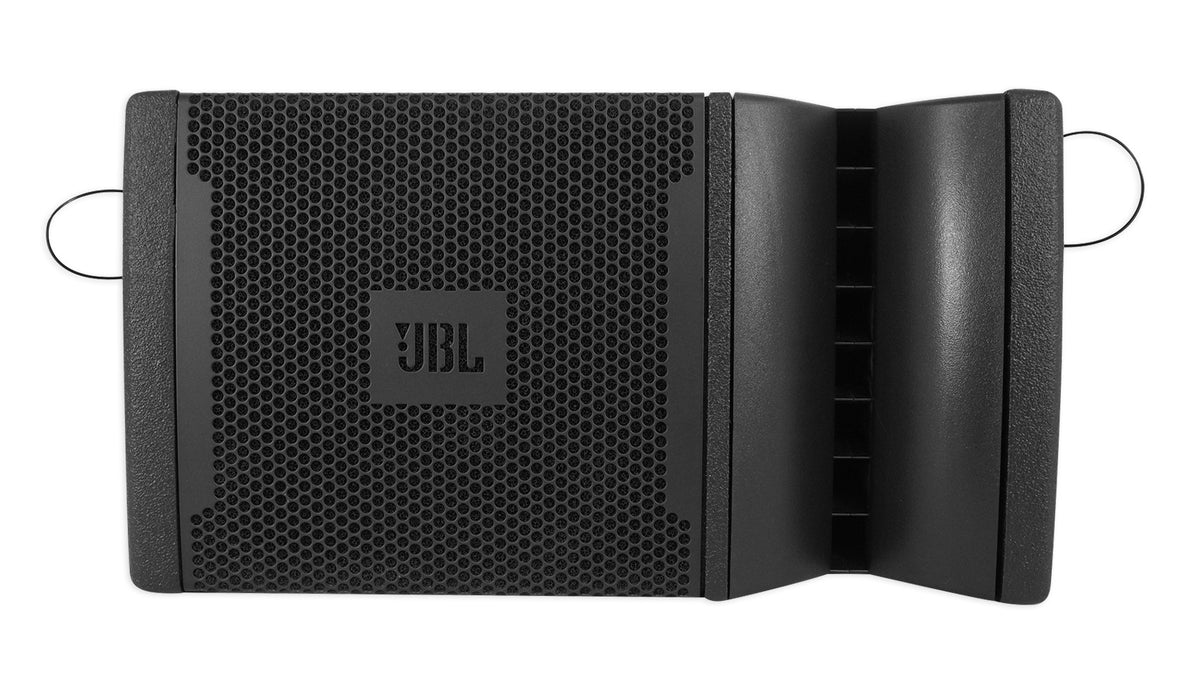

The Constant Curvature waveguide mounts two compression drivers on an arc that continues as boxes are added, so the array behaves like one long driver.
-
Shape The Room
Amplitude shading switches on each enclosure set that box's high-frequency output, covering the back wall without punishing the first few rows.
-
Light Enough To Fly Fast
A neodymium Differential Drive woofer holds power capacity while keeping cabinet weight at 28 lb, which speeds up rigging and reduces point load.
-
Flexible Deployment

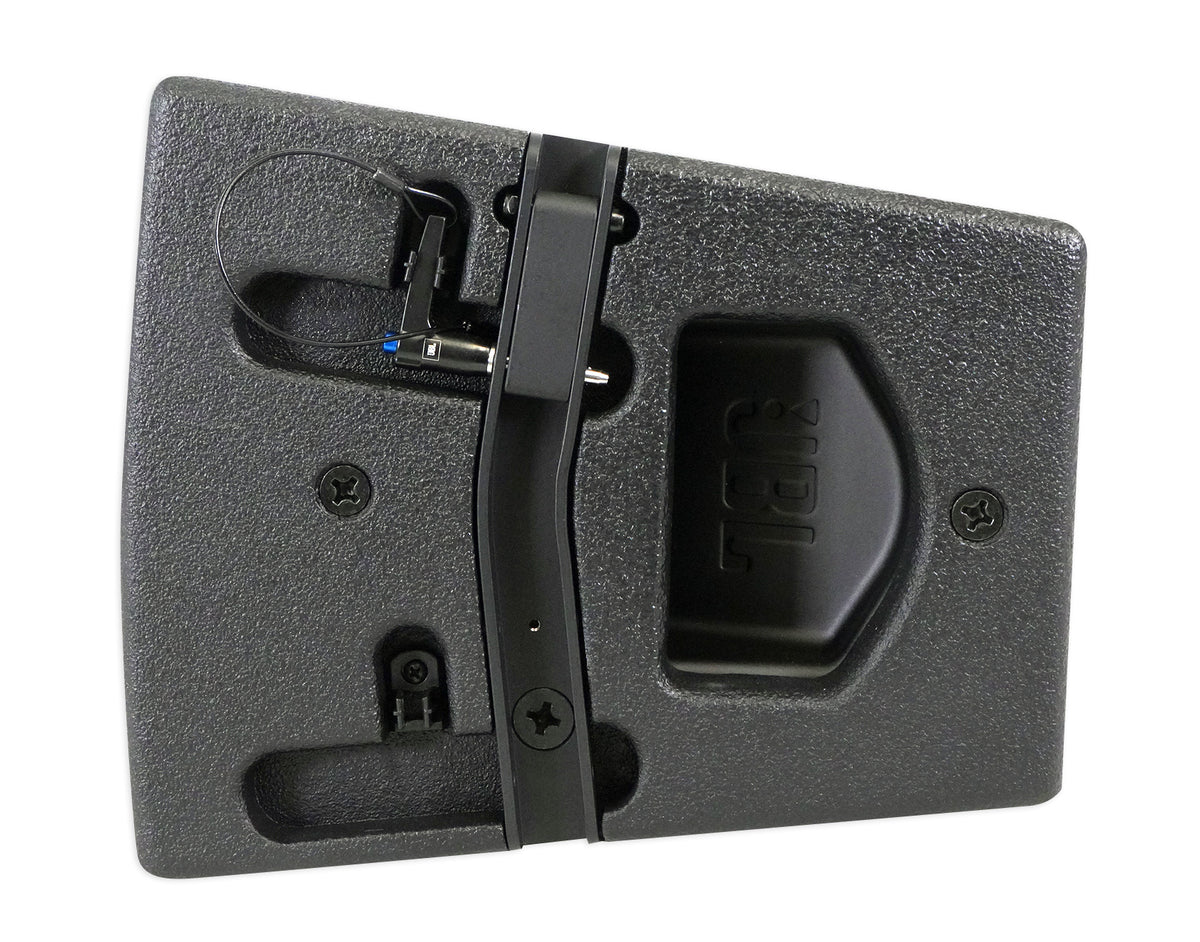

Integral rigging hardware locks arrays of up to six enclosures together, and a dual-angle pole socket covers stand-mounted use for smaller shows.
Technical Specifications
- Product Type 8" Two-Way Passive Line Array Speaker
- System Type Constant Curvature 8 in two-way line array system
- Power Rating 400W continuous / 800W program / 1,600W peak
- Frequency Range (-10 dB) 70 Hz - 20 kHz
- Frequency Response (+/-3 dB) 85 Hz - 19 kHz
- Coverage Pattern 100 x 15 degrees nominal
- Maximum SPL (1 m) 122 dB peak passive, LF 122 dB and HF 128 dB in bi-amp mode

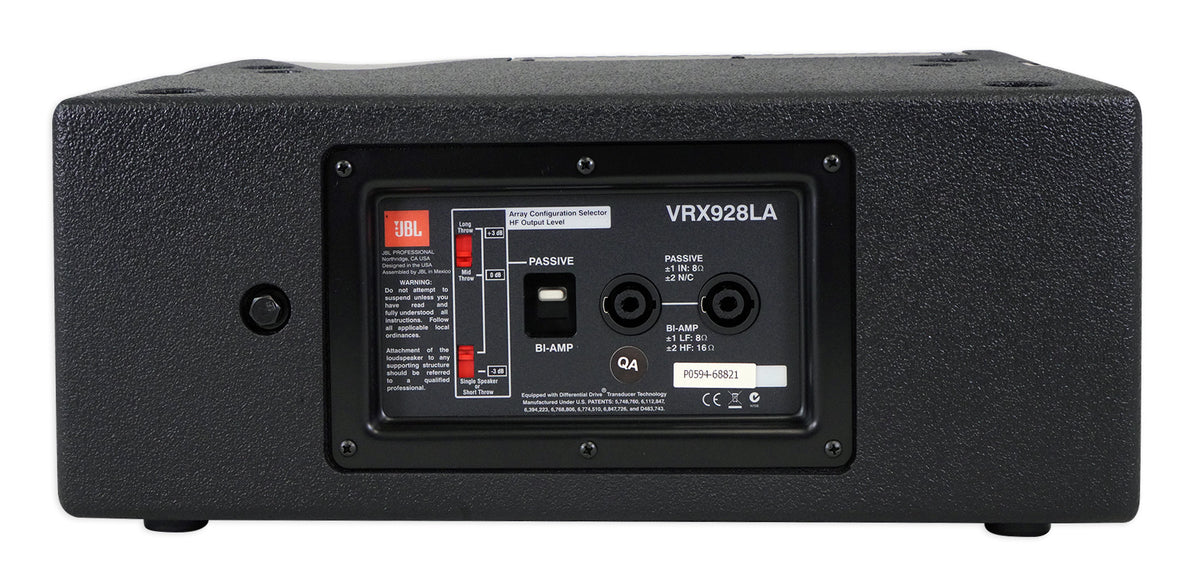

- Crossover Modes Bi-amp or passive, switchable
- Crossover Frequency 2.0 kHz
- LF Driver (1) 200 mm (8 in) Differential Drive woofer
- HF Drivers (2) 25 mm (1.0 in) neodymium compression drivers
- Nominal Impedance Passive 8 ohms, bi-amp LF 8 ohms, bi-amp HF 16 ohms
- Inputs Speakon NL-4 (x2)
- Enclosure DuraFlex coated plywood

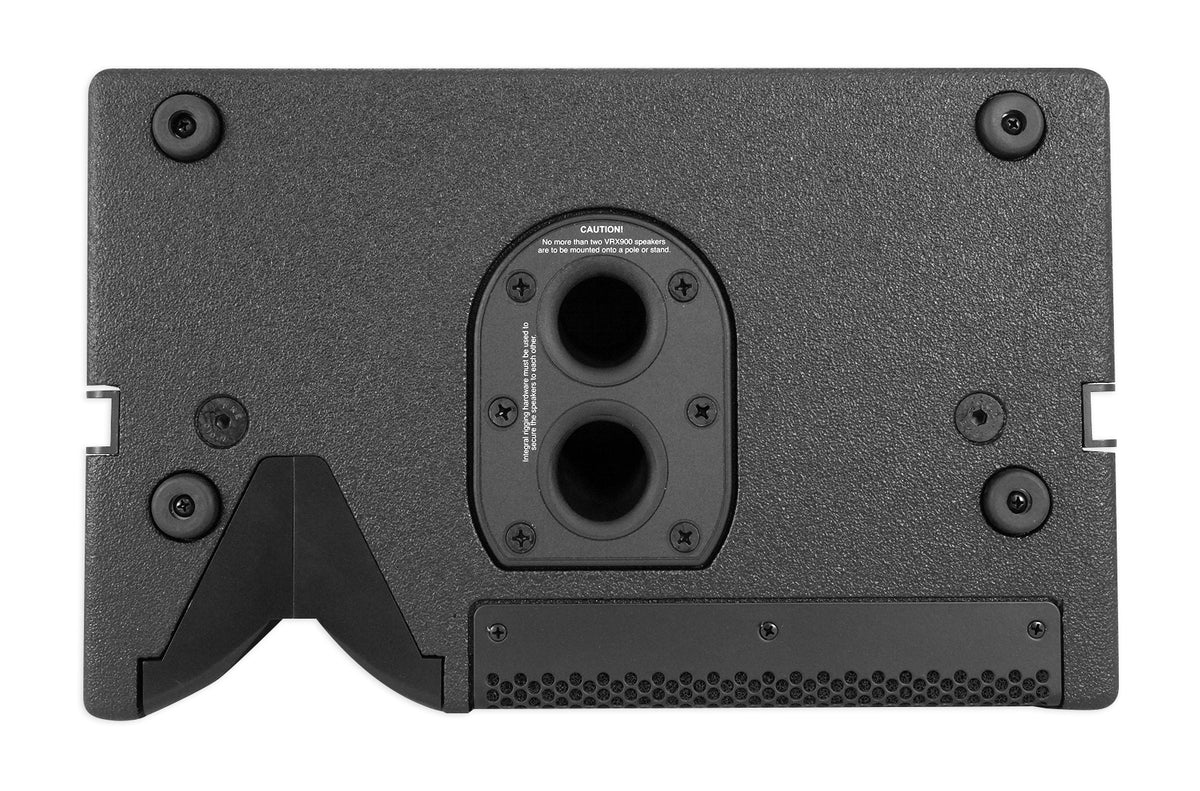

- Suspension / Mounting Dual 36 mm pole socket included, optional VRX-SMAF array frame kit or M10 eyebolts
- Array Capacity Up to six enclosures
- Weight 28 lb
- Dimensions (H x W x D) 9.0 in x 16.5 in x 10.5 in
