KW-M690BW

Product Description Specifications

KW-M690BW

  • KW-M690BW
  • KW-M690BW
  • KW-M690BW
  • KW-M690BW
  • KW-M690BW
  • KW-M690BW
  • KW-M690BW
  • KW-M690BW
1 8

JVC

KW-M690BW

KW-M690BW

Double-DIN Receiver, 6.8" WSVGA Touchscreen, Wireless CarPlay And Android Auto, Built-In Wi-Fi

Free Shipping

$399.00
$399.00 $399.00
Shipping calculated at checkout.
Features
    • Wireless Apple CarPlay and Android Auto over built-in Wi-Fi
    • 6.8 inch WSVGA capacitive screen with gesture touch control
    • 50W x 4 maximum output with a 13-band graphic EQ for tuning
    • Two pairs of 2.5V preouts plus a mono subwoofer output
    • 2.1A USB charging keeps a phone gaining charge while it streams
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

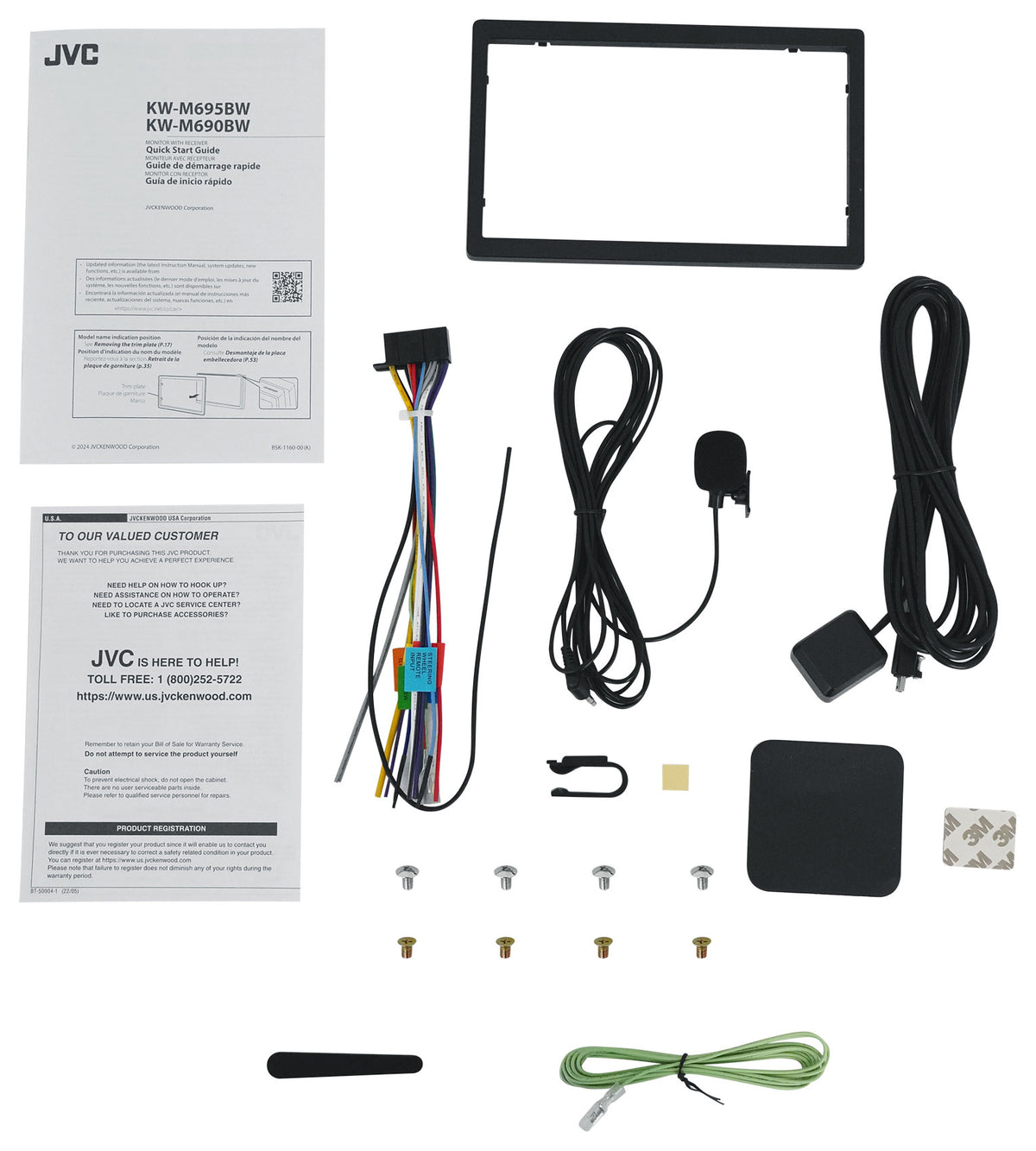

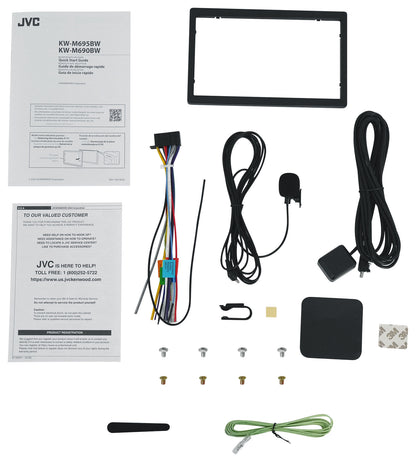

    • KW-M690BW digital media receiver
    • Trim plate
    • Wiring harness
    • Mounting hardware

SKU: KW-M690BW

View full details

Product Description

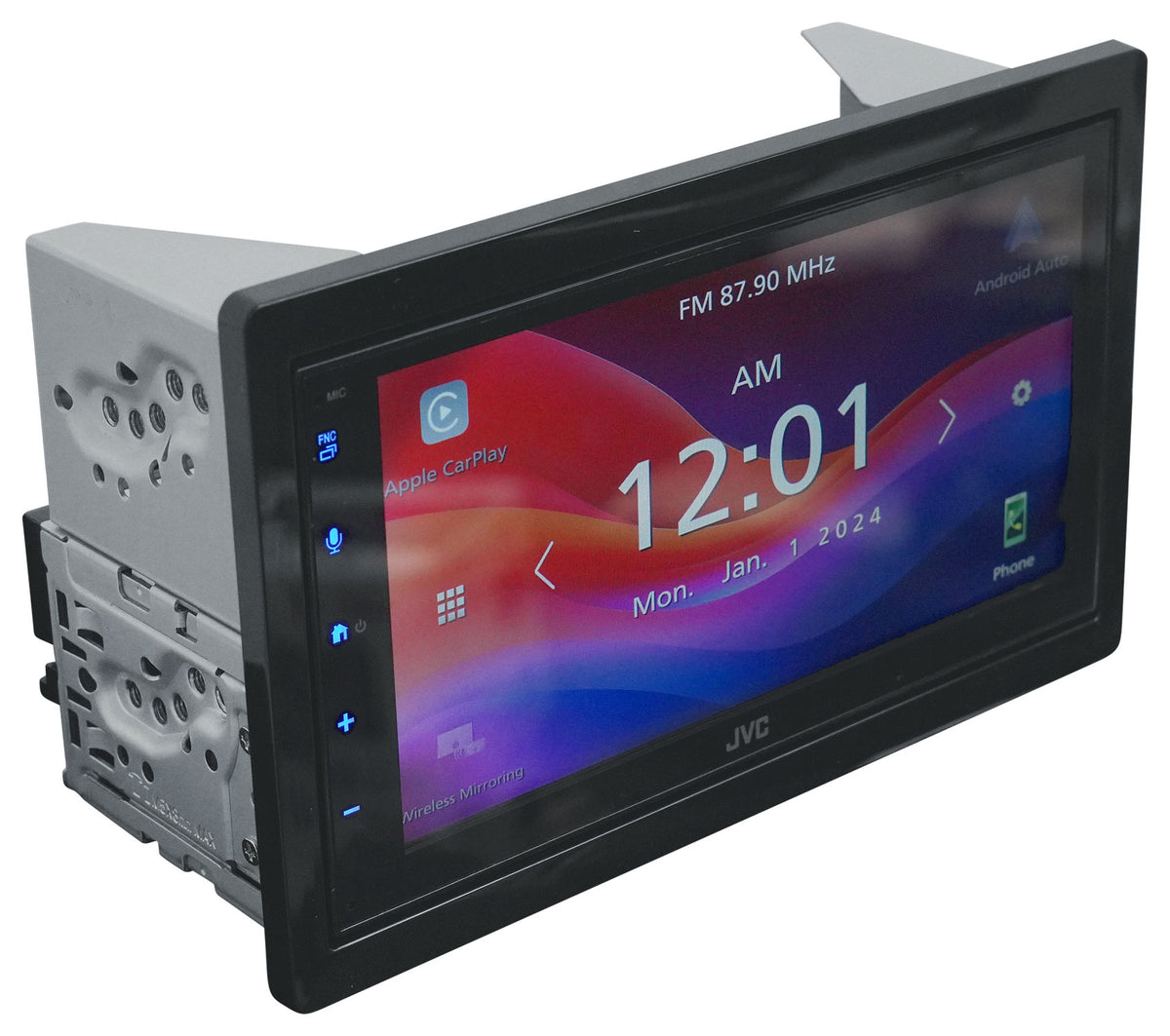

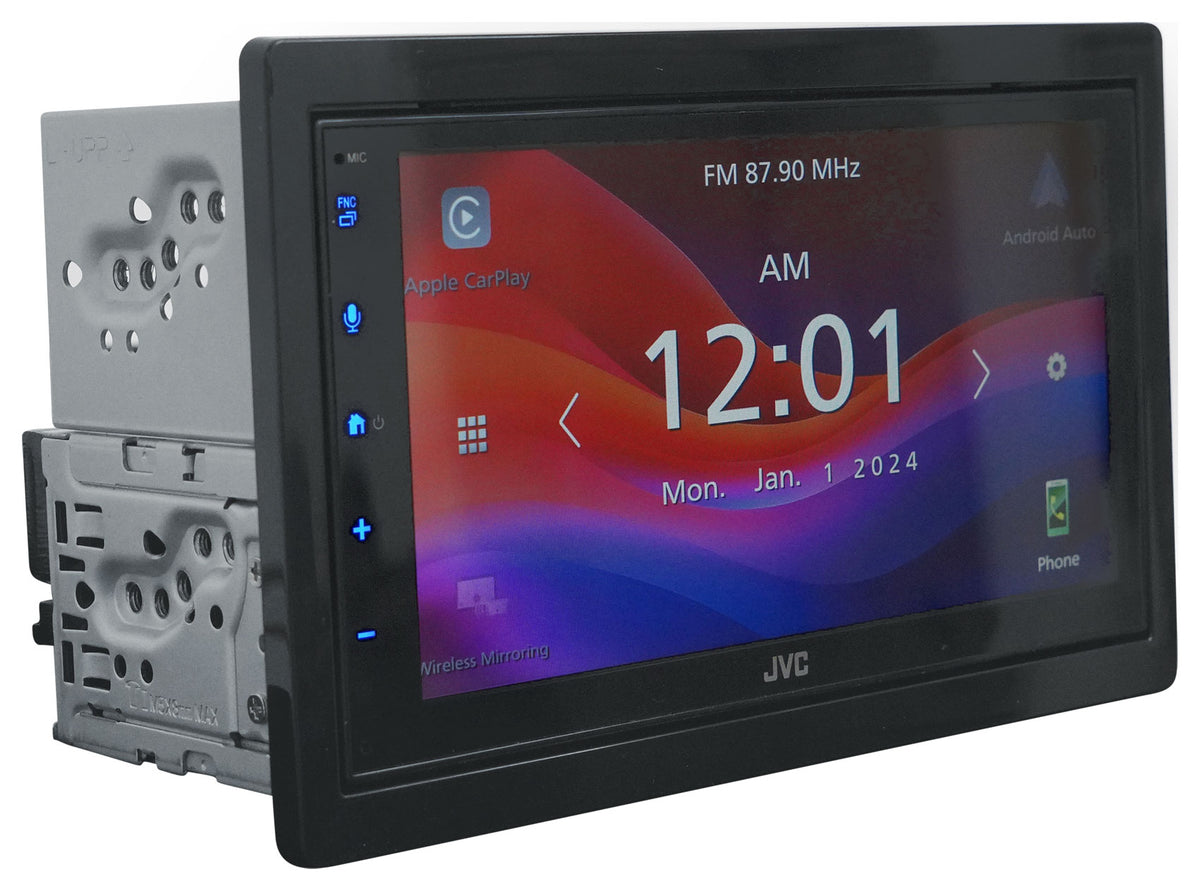

The KW-M690BW is a double-DIN receiver that runs Apple CarPlay and Android Auto without a cable. Built-in Wi-Fi carries the connection, so your phone can stay in a pocket or a bag and still put maps, messages, and music on the 6.8-inch screen. USB remains available when you want a wired session or the faster charge.

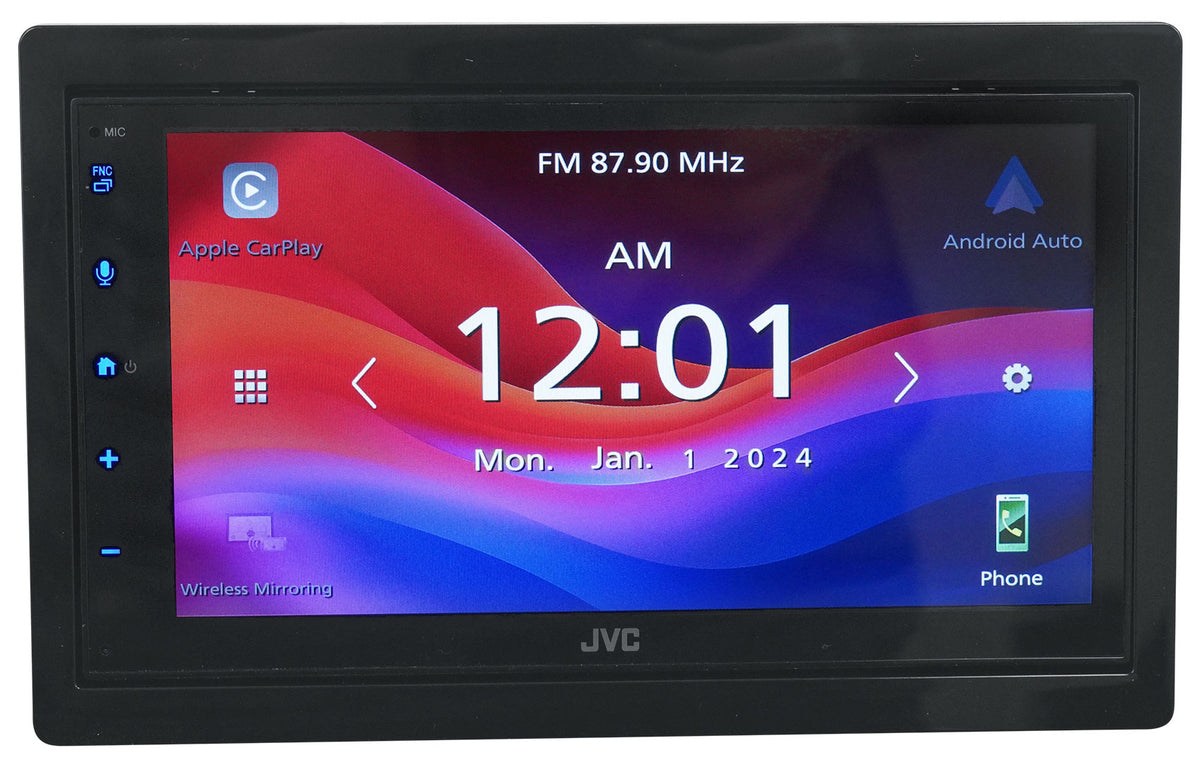

The WSVGA display resolves about 1.6 times the detail of a conventional WVGA panel. It is a capacitive touchscreen with gesture control, so a swipe across the glass moves through tracks and menus. Wireless mirroring through the MirrorApp+ app covers apps outside CarPlay and Android Auto, including Waze, YouTube, and Instagram.

Audio output is 50W x 4 maximum and 22W x 4 full bandwidth. Tuning tools include a 13-band graphic EQ, 7 presets plus 3 user slots, bass boost, speaker size control, high- and low-pass filters, and time alignment. Two pairs of 2.5V preouts plus a mono subwoofer output feed external amplifiers.

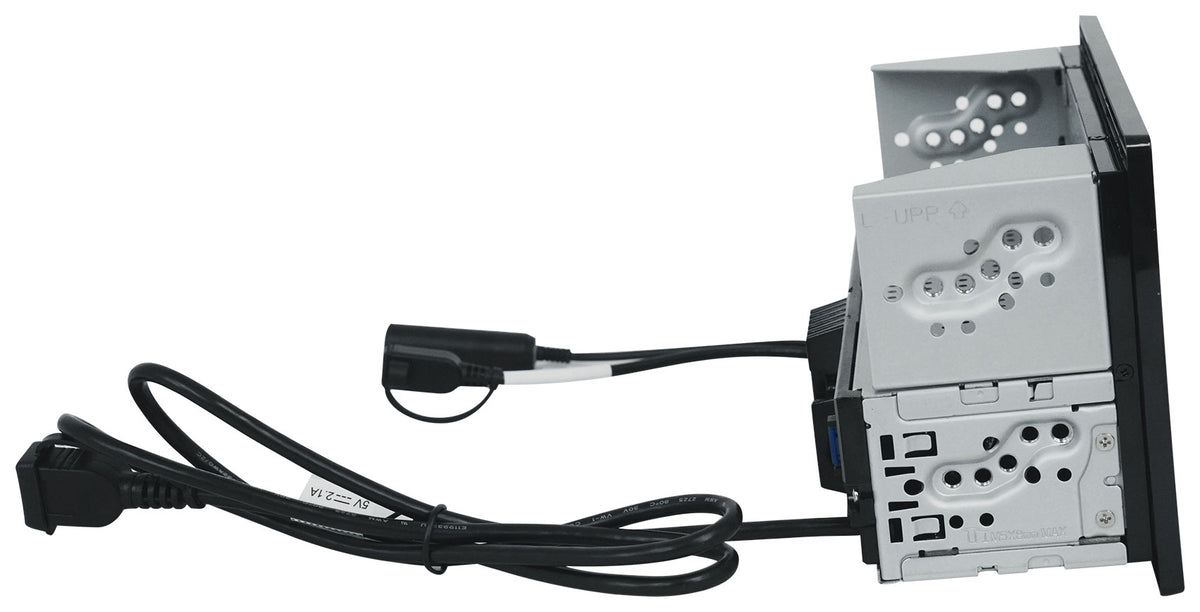

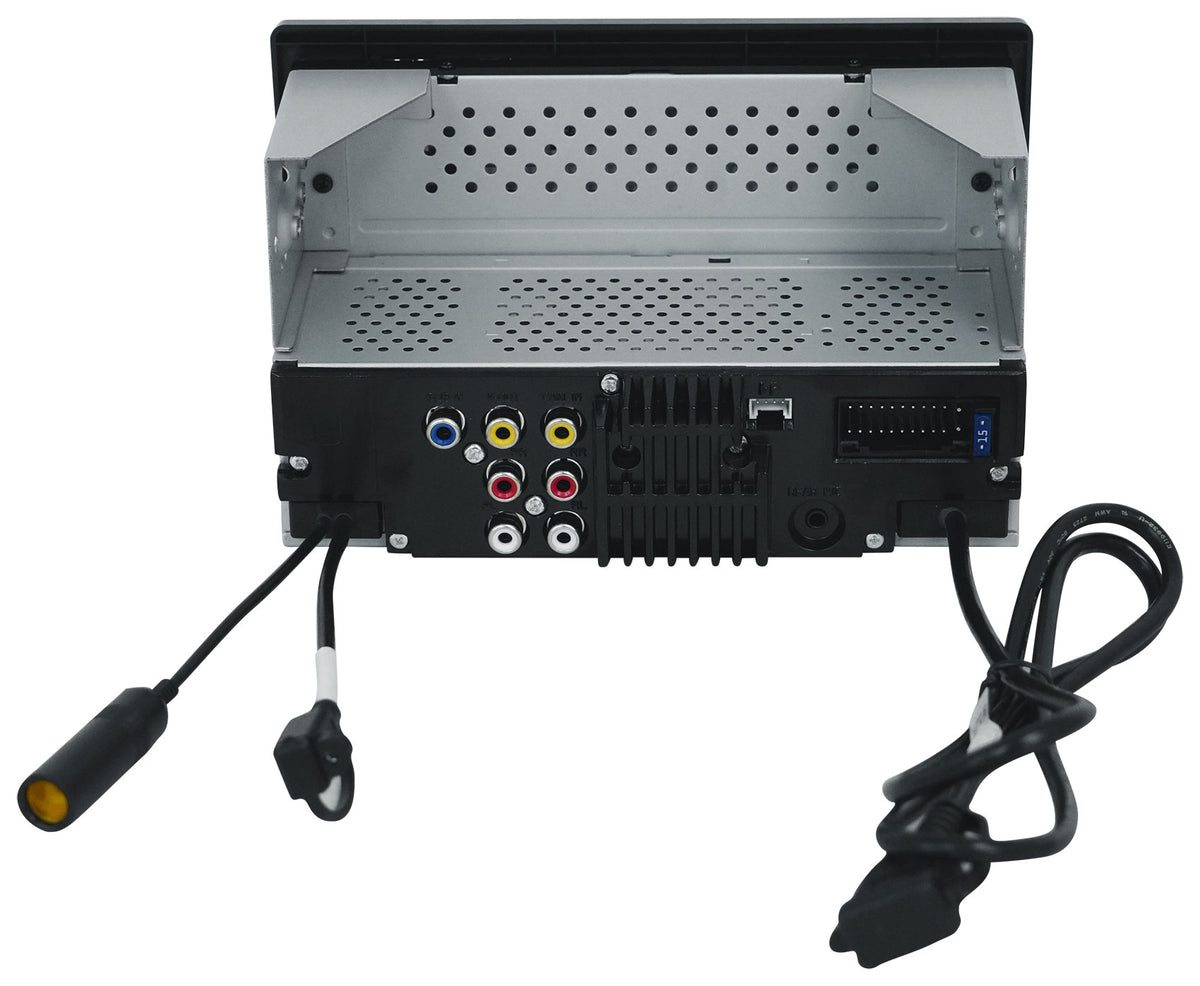

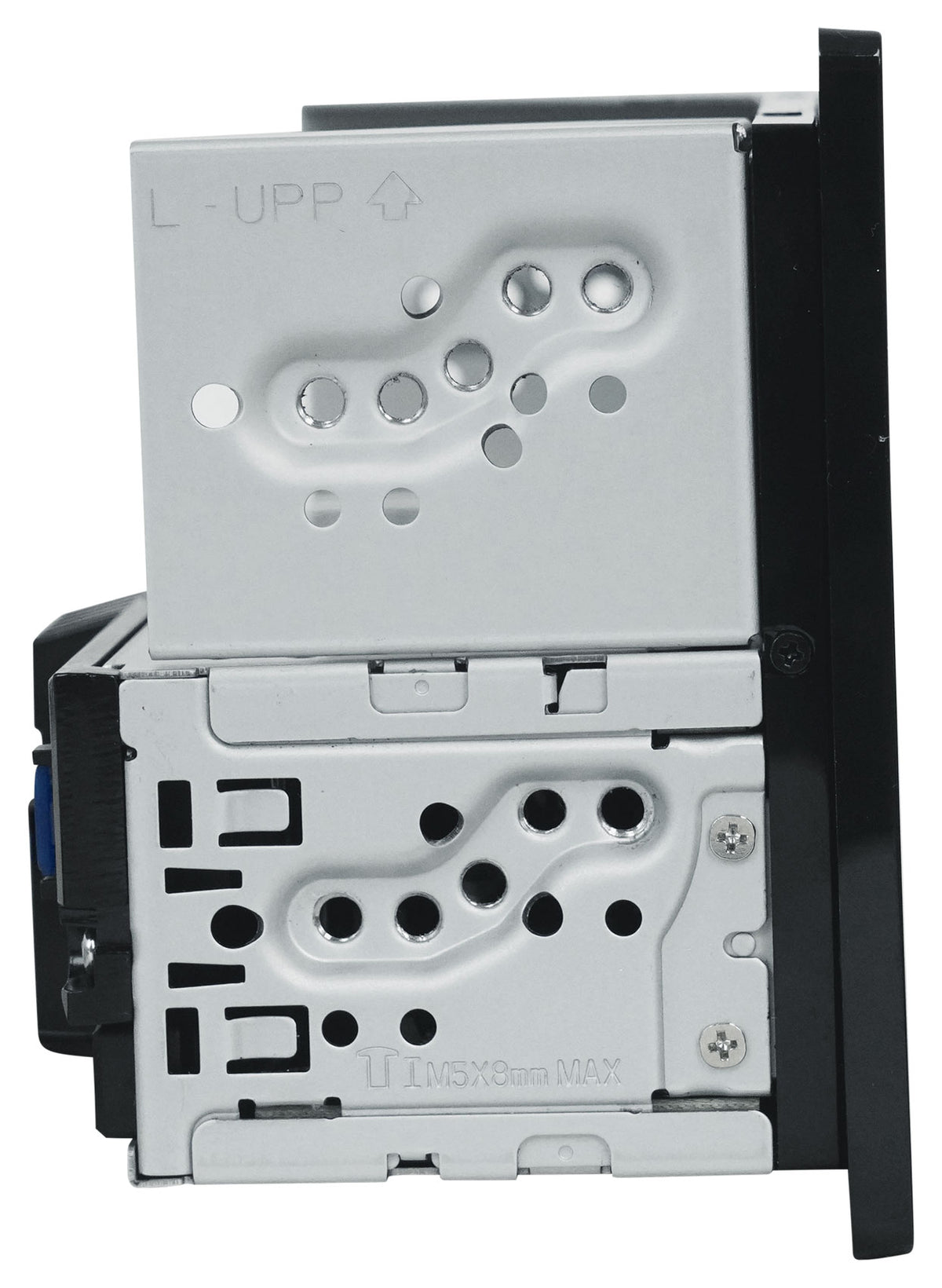

Bluetooth handles calls through the built-in microphone with HFP wideband speech, AVRCP 1.6 song browsing, and automatic pairing for iPhone and Android. USB charging supplies up to 2.1A. A rear view camera input and RCA video output are on board, factory steering wheel controls carry over with a third-party adapter (sold separately), and the RM-RK259 remote is optional. Despite the double-DIN display, the rear chassis is short, which keeps cable routing manageable behind the dash.

Features

    • Connect Without A Cable

      Built-in Wi-Fi runs Apple CarPlay and Android Auto wirelessly, so your phone stays in a pocket or bag while maps and music appear on screen.

    • Detail You Can Read At A Glance

      The WSVGA panel resolves about 1.6 times the detail of a conventional WVGA display, keeping street names and album art sharp in daylight.

    • Control By Feel

      Gesture touch control responds to finger movement across the capacitive glass, so changing tracks takes a swipe instead of hunting for a small button.

    • Power And Tuning Together

      50W x 4 maximum output pairs with a 13-band graphic EQ, speaker size control, and time alignment to match the sound to your cabin.

    • Grow Into An Amplified System

      Two pairs of 2.5V preamp outputs plus a mono subwoofer output let you add amplifiers later without replacing the head unit.

Technical Specifications

  • Product Type Double-DIN Digital Media Receiver
  • Screen 6.8" WSVGA Capacitive Touchscreen
  • Smartphone Integration Apple CarPlay and Android Auto (Wi-Fi or USB), Wireless Mirroring
  • Wi-Fi Built-in
  • Maximum Power Output 50W x 4
  • Full Bandwidth Power 22W x 4
  • Equalizer 13-Band Graphic EQ, 7 Presets + 3 User
