KW-V660BT
JVC
KW-V660BT
KW-V660BT
Double-DIN CD/DVD Receiver, 6.8" Capacitive Touchscreen, Wired CarPlay And Android Auto, Wired Microphone Included
Free Shipping
Features
- Plays CDs and DVDs alongside USB audio and video files
- Apple CarPlay and Android Auto connect through the rear USB port
- 6.8 inch WVGA capacitive touchscreen with gesture touch control
- 50W x 4 maximum output with a 13-band graphic EQ for tuning
- Rear view camera input and switchable AV input for extra sources
Couldn't load pickup availability

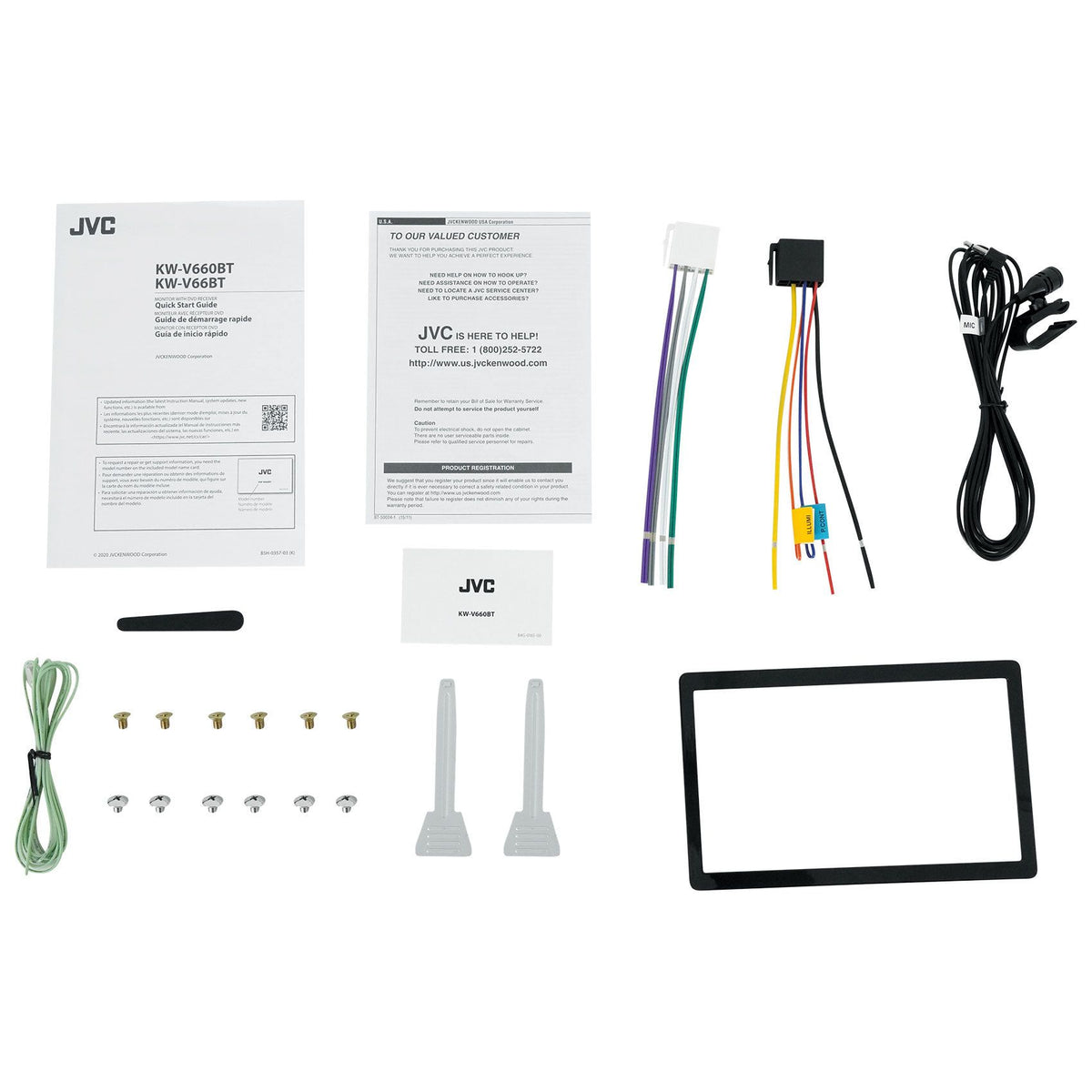

What's Included in the box
- KW-V660BT CD/DVD receiver
- Mounting sleeve
- Trim plate
- Wired external microphone
- Wiring harness
- Mounting hardware
SKU: SKU: KW-V660BT
View full details





Product Description
Disc and USB playback cover MP3, WMA, WAV, AAC, and FLAC audio plus H.264, WMV, MPEG 1/2, MPEG-4, AVI, and MKV video. CD-R/RW and DVD-R/-RW, +R/+RW discs are supported, along with Video CD.
CarPlay and Android Auto connect through the rear USB port for maps, calls, and music with voice control. The Mirroring OA for JVC app puts an Android screen on the display over USB for apps outside those systems. Bluetooth adds hands-free calling with HFP 1.6 wideband speech, phonebook access with alphabetical search, and automatic pairing for Android.
Power is 50W x 4 maximum and 22W x 4 full bandwidth, with a 13-band graphic EQ, 7 presets plus 3 user slots, bass boost, filters, and time alignment. Two pairs of 2.0V preamp outputs plus a subwoofer cable output handle external amplifiers. A rear view camera input and a switchable AV input cover cameras and extra sources.
The capacitive panel supports gesture touch control, USB charging runs at 1.5A, and it is SiriusXM Ready with the separate tuner. Factory steering wheel controls carry over with a third-party adapter (sold separately), and the RM-RK258 remote is optional. Installed size is 7 x 3-15/16 x 6 inches at 4.4 lb with sleeve and trim plate.
Features
-
Discs And Phones In One Dash
A CD/DVD mechanism sits alongside wired Apple CarPlay and Android Auto, so a disc collection stays usable next to modern phone integration.
-
Video For The Long Haul
Playback covers H.264, WMV, MPEG 1/2, MPEG-4, AVI, and MKV from disc or USB, which keeps passengers occupied on longer trips.
-
Touch That Reads Light Contact
The capacitive panel supports gesture control, so a swipe across the glass changes tracks without pressing hard or looking away from the road.
-
Tune For Your Cabin
A 13-band graphic EQ, 7 presets, three user slots, and time alignment shape 50W x 4 of output around your speakers and seating position.
-
Backing Up Made Clearer
A rear view camera input accepts an optional camera, and the switchable AV input handles a second source when no camera is connected.
Technical Specifications
- Product Type Double-DIN CD/DVD Receiver
- Screen 6.8" WVGA Capacitive Touchscreen
- Smartphone Integration Apple CarPlay (USB), Android Auto (USB), Android Mirroring
- Maximum Power Output 50W x 4
- Full Bandwidth Power 22W x 4 (less than 1% THD)
- Equalizer 13-Band Graphic EQ, 7 Presets + 3 User
- Bluetooth HFP 1.6 Wideband Speech, A2DP, AVRCP, PBAP
- Disc Playback CD-R/RW, DVD-R/-RW, +R/+RW, Video CD
- Media Playback MP3, WMA, WAV, AAC, FLAC, H.264, WMV, MPEG 1/2, MPEG-4, AVI, MKV
- USB 1 Rear Port, 1.5A Charging
- Preamp Outputs 2 Pairs, 2.0V / 10k ohms Plus Subwoofer
- Camera Input Rear View Camera Ready
- AV Input Mini Jack (AV-IN or Camera Switchable)
- Tuner 20 Presets (15 FM, 5 AM), RBDS, SiriusXM Ready
- Remote Steering Wheel Control Ready, RM-RK258 Optional
- Weight 4.4 lb (including sleeve and trim plate)
- Dimensions (W x H x D) 7" x 3-15/16" x 6"
