46CK8

Product Description Specifications

46CK8

  • 46CK8
  • 46CK8
1 2

Kicker

46CK8

46CK8

8 AWG Amp Wiring Kit, 1000 W, 17' OFC Power Cable, 60A Fuse Holder, RCA, Speaker Wire

Free Shipping

$79.99
$79.99 $139.95
Save 42%
Shipping calculated at checkout.
Features
    • Designed for car audio systems up to 1000 W of power
    • 17 ft of 8 gauge OFC power wire plus matching ground wire
    • Braided 3-conductor RCA with gold-plated ends rejects noise
    • 40 ft of two-color 16 gauge speaker wire keeps polarity clear
    • Compact brass AFS fuse holder with 60 amp fuse protects the run
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

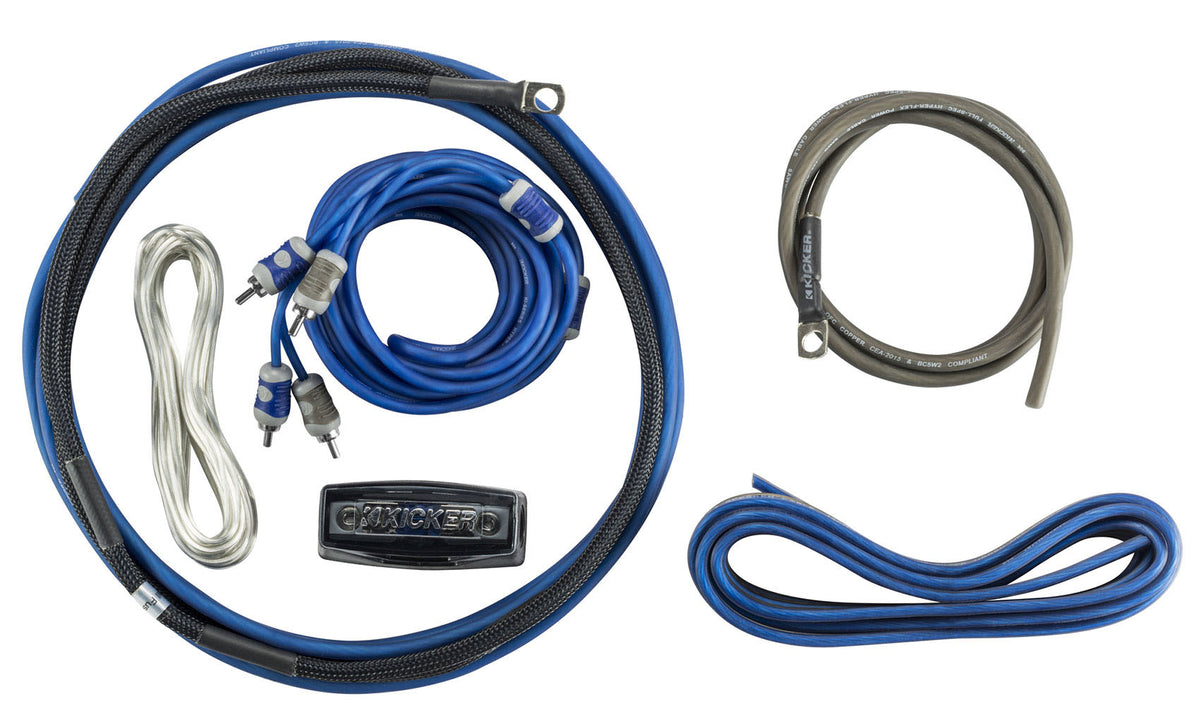

    • 17 ft CK-Series 8 gauge OFC matte blue power wire
    • 2 ft CK-Series 8 gauge OFC matte smoked ground wire
    • 17 ft 16 gauge OFC clear remote turn-on wire
    • 40 ft 16 gauge OFC two-color speaker wire
    • 17 ft CK-Series braided three-conductor RCA cable
    • CK-Series compact brass AFS fuse holder with 60 A fuse
    • 8 gauge spade terminals with red and black boots
    • Assorted connectors, terminals, and wire ties

SKU: 46CK8

View full details

Product Description

The 46CK8 is a complete 8 gauge wiring kit for car audio systems up to 1000 W. It carries power, ground, turn-on, signal, and speaker connections in one package, all built from 100 percent oxygen-free copper for uninterrupted current flow from battery to amplifier.

The run starts with 17 feet of CK-Series 8 gauge matte blue multi-strand power wire and 2 feet of matte smoked 8 gauge ground wire. A compact brass AFS fuse holder with a 60 amp fuse protects the circuit, and 8 gauge spade terminals with red and black boots finish the amplifier end cleanly. Seventeen feet of 16 gauge clear remote turn-on wire triggers the amp from the head unit.

On the signal side, a 17-foot CK-Series braided three-conductor RCA cable with precision machined, gold-plated ends uses twisted-pair construction to reject noise picked up next to power cable. Forty feet of 16 gauge two-color OFC speaker wire covers the output side, with polarity marked so you are not guessing at the door panel.

Assorted connectors, terminals, and wire ties are included for routing and termination. At 5 lb of copper and hardware, this kit is the practical choice for a mid-power four-channel or mono amplifier where 4 gauge is more than the system needs but thin cable would choke it.

Features

    • Sized For Mid-Power Systems

      Eight gauge OFC cable is matched to systems up to 1000 W, giving the current headroom a four-channel or mono amp needs without oversized cable.

    • Pure Copper Throughout

      Every conductor is 100 percent oxygen-free copper, so power transfer stays consistent across a 17-foot run from battery to trunk.

    • Noise-Rejecting Signal

      The braided three-conductor RCA uses twisted-pair construction and gold-plated machined ends to keep engine noise out of the signal path.

    • Protected And Terminated

      A compact brass AFS fuse holder with a 60 amp fuse guards the power run, and booted 8 gauge spade terminals finish the amplifier connection.

    • Wired To The Doors

      Forty feet of two-color 16 gauge speaker wire covers a full set of door speakers with polarity marked, so phasing stays correct.

Technical Specifications

  • Product Type Amplifier Wiring Kit
  • Wire Gauge 8 AWG
  • System Power Rating Up To 1000 W
  • Conductor Material 100% Oxygen-Free Copper
  • Power Wire 17 ft, 8 Gauge
  • Ground Wire 2 ft, 8 Gauge
  • Remote Turn-On Wire 17 ft, 16 Gauge
