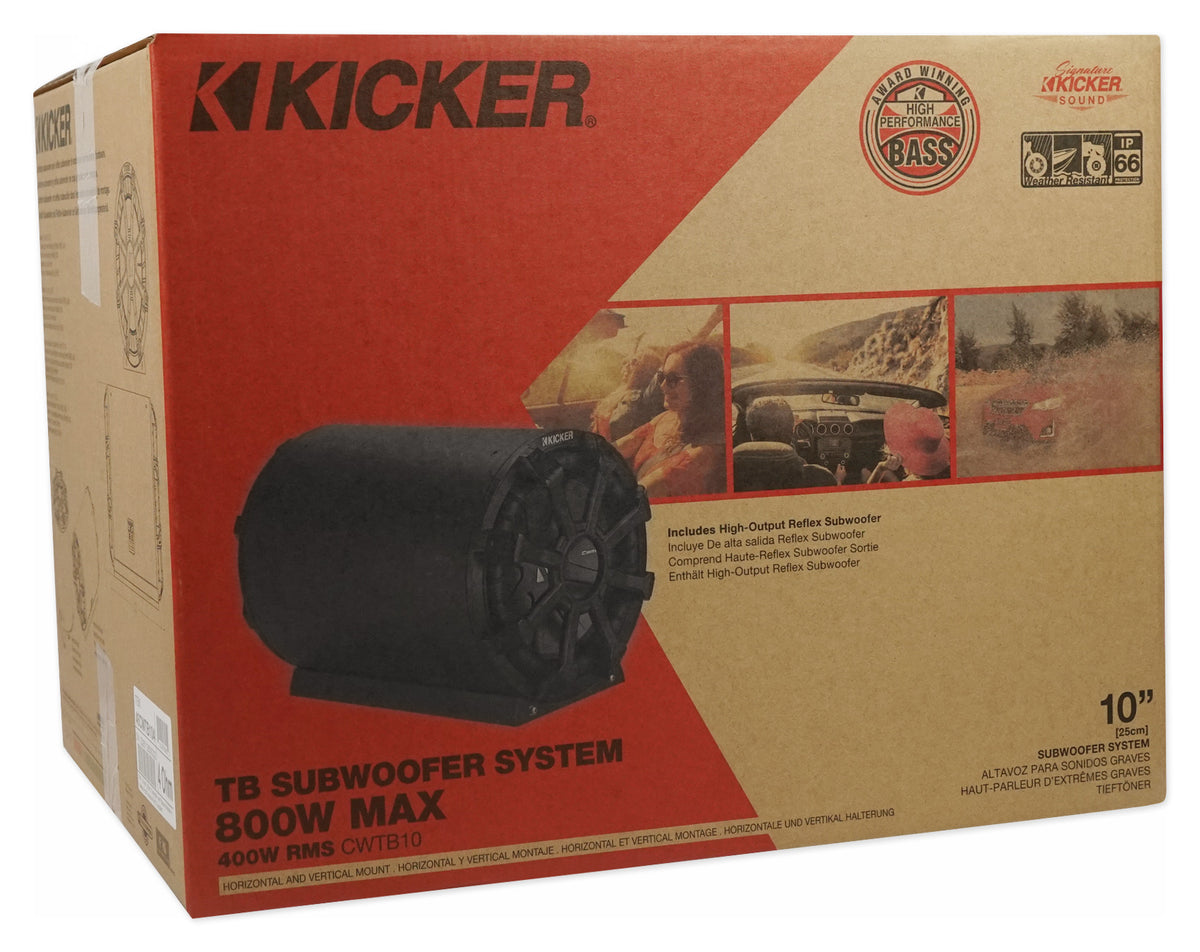

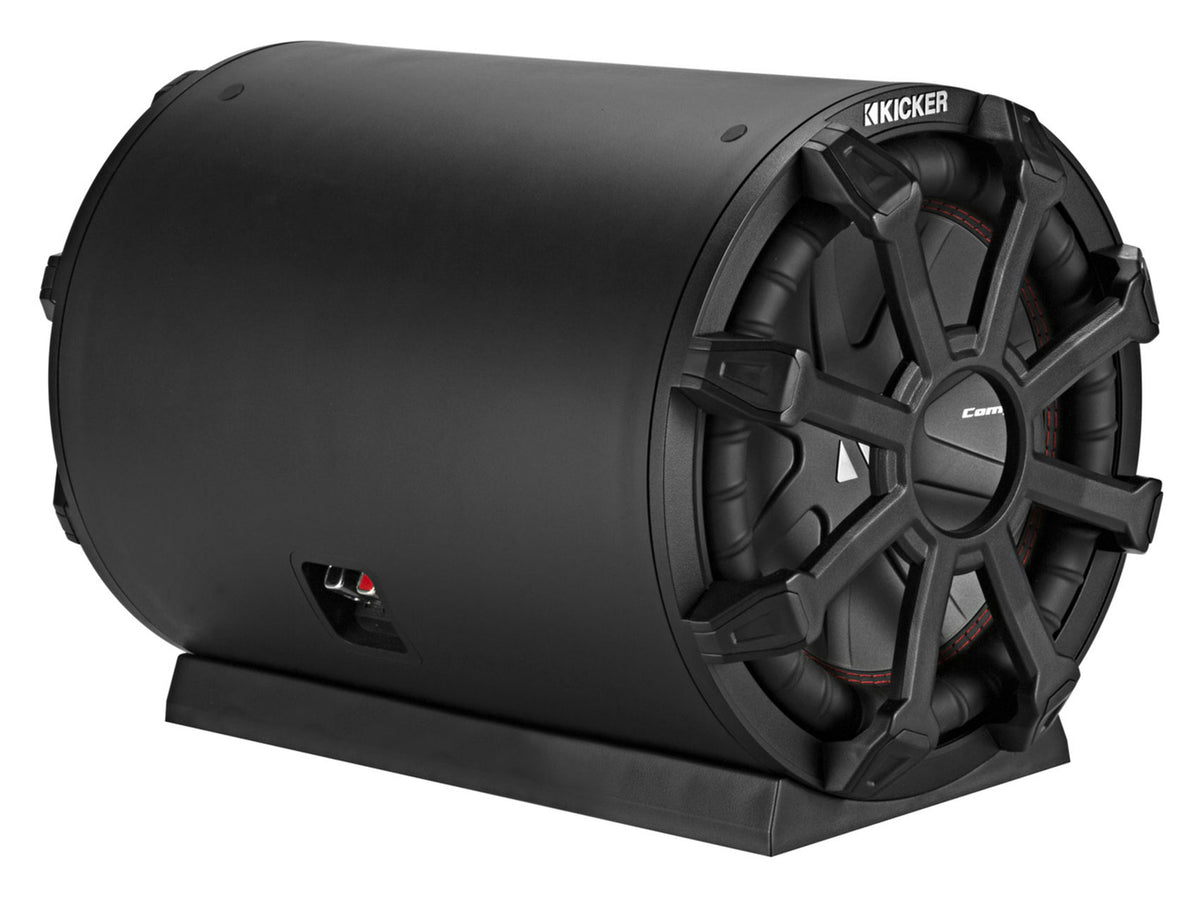

KICKER 46CWTB104 TB 10" 800w Marine Loaded Subwoofer Enclosure+Passive Radiator

The 46CWTB104 is a loaded 10-inch tube subwoofer enclosure with a 4-ohm final load, built for installs where floor space is the limiting factor. It is the 4-ohm version of the TB 10-inch tube, matched to amplifiers that make their rated power into 4 ohms or to systems where two enclosures will be wired together.

Inside the thick ABS tube, a CompR woofer works with a passive radiator in a reflex configuration. That layout produces deep output from a cabinet just 10-5/8 inches wide, where a ported MDF box of similar capability would take up several times the floor area. Power handling is 400 W RMS and 800 W peak.

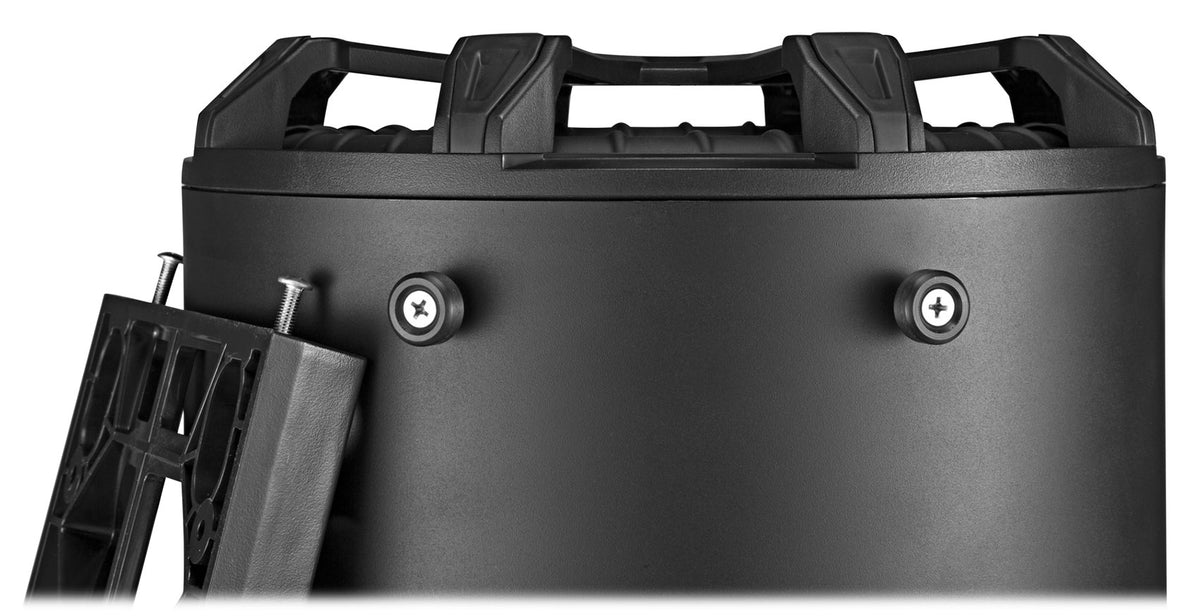

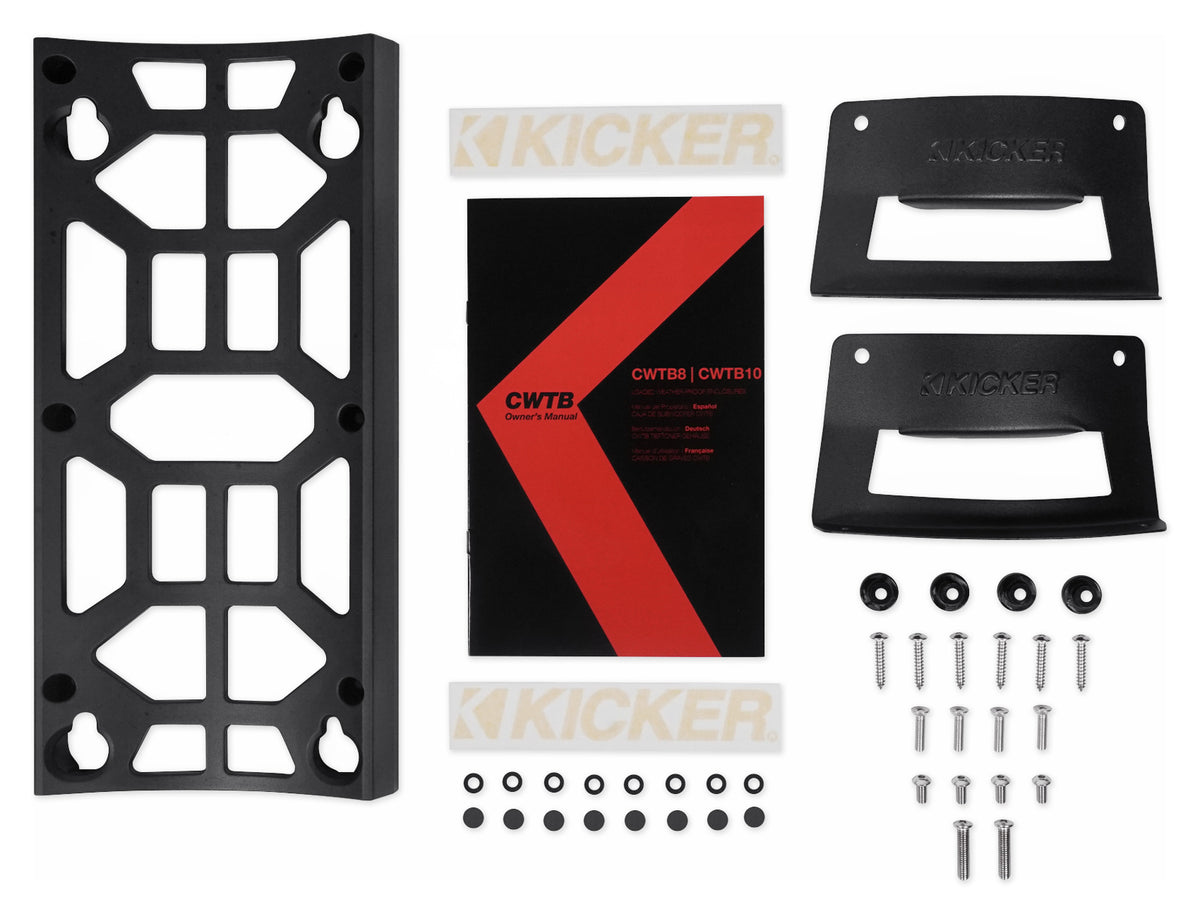

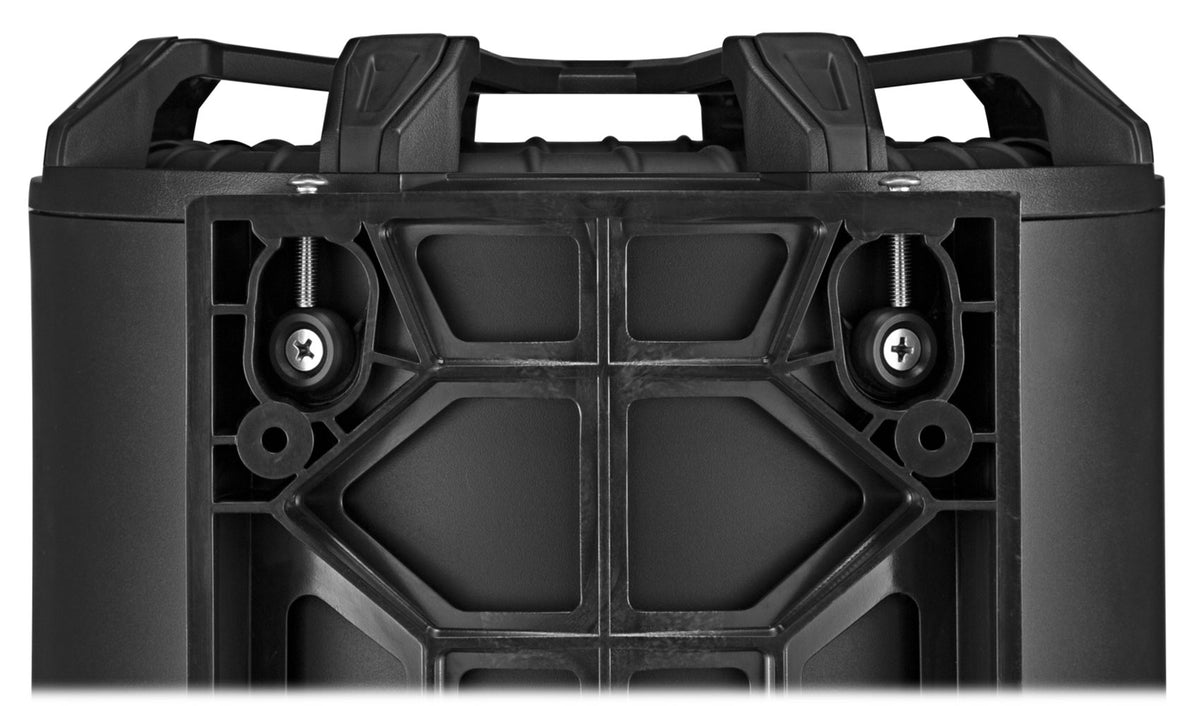

Mounting is handled both ways. Stainless steel vertical brackets and a horizontal mount base with retainer and clamp ship in the box, so the tube can stand in a trunk corner, lie flat behind a seat, or bolt into a boat or side-by-side cabin. Spring-loaded speaker terminals make the electrical connection quick.

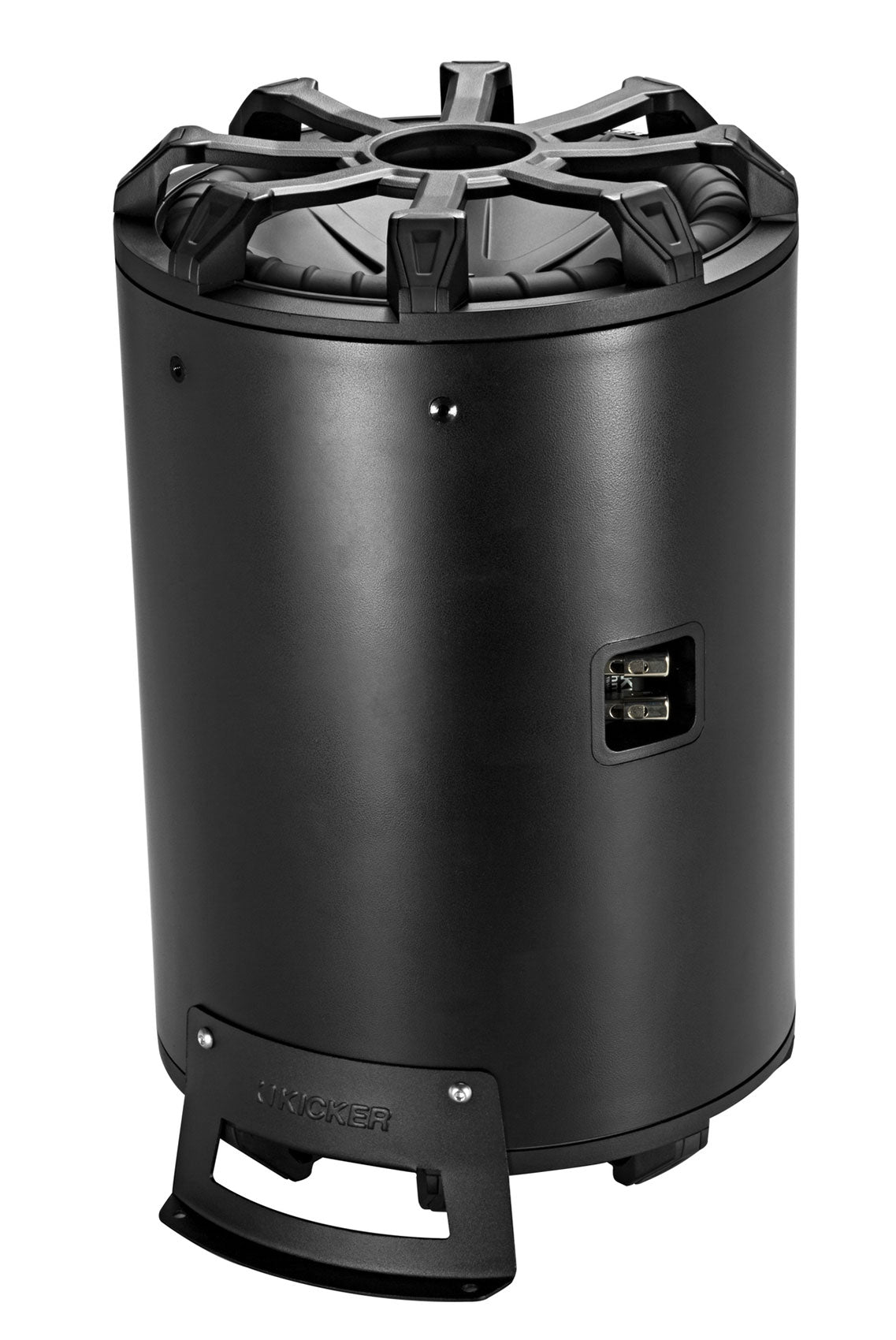

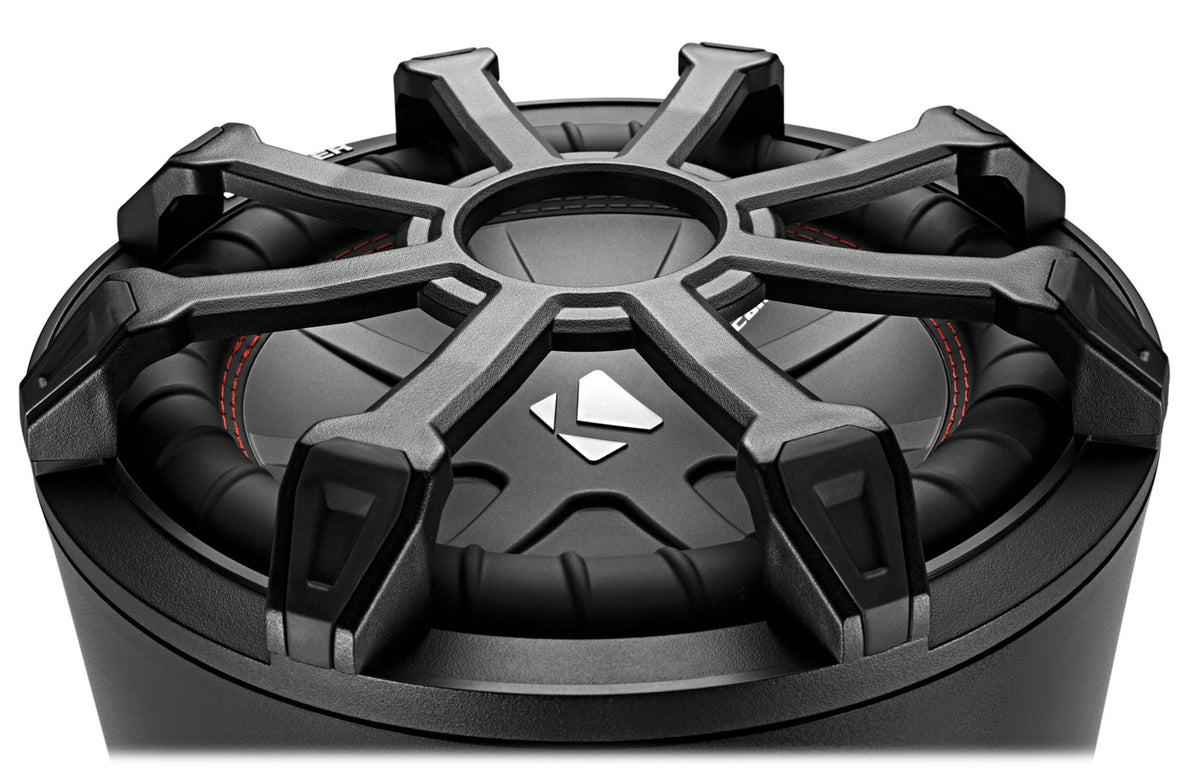

An advanced heat management system keeps the voice coil cool through long listening sessions, and a ceramic magnet with signature double red stitching on the cover completes the build. Grilles are included. Standing height is 17-1/16 inches, or 10-3/4 inches lying horizontal, with a 16-9/16 inch bottom depth.
