KICKER 46CWTB84 8" 600w Marine Loaded Subwoofer Enclosure+Passive Radiator TB8
Kicker
KICKER 46CWTB84 8" 600w Marine Loaded Subwoofer Enclosure+Passive Radiator TB8
KICKER 46CWTB84 8" 600w Marine Loaded Subwoofer Enclosure+Passive Radiator TB8
Loaded Tube Subwoofer Enclosure, 8" Sub, 4-Ohm, 300 W RMS, Passive Radiator, Vertical And Horizontal Mounts
Free Shipping
Features
- Loaded 8" tube enclosure rated 300 W RMS, 600 W peak
- 4-ohm final load suits amps rated for 4-ohm mono operation
- Just 8-1/2" wide, fits behind seats and in tight cabins
- Passive radiator reflex design produces deep bass from a small tube
- Stainless vertical and horizontal mounting hardware included
Couldn't load pickup availability

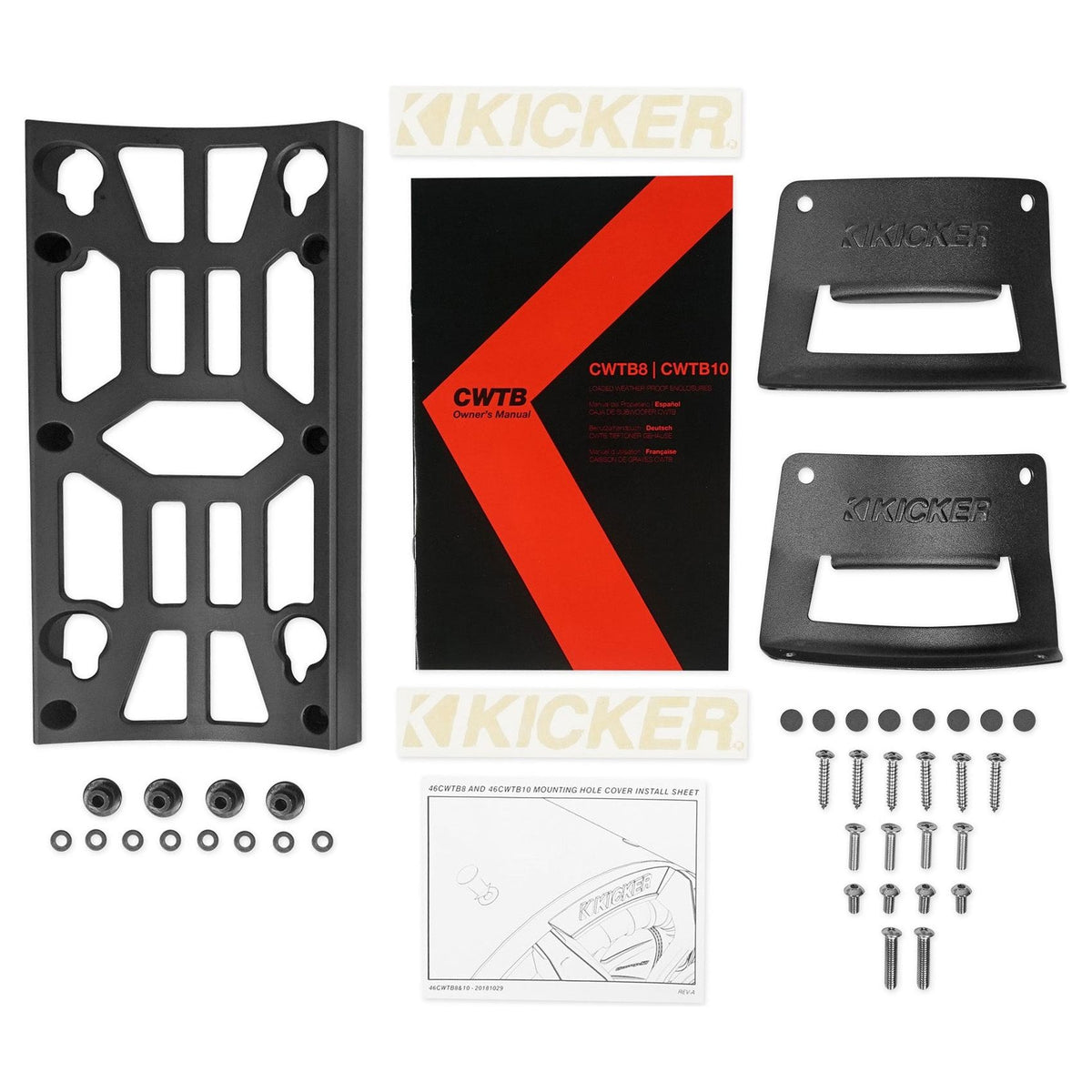

What's Included in the box
- One loaded 8-inch tube enclosure assembly
- Two vertical mounting brackets
- One horizontal mount base
- One horizontal mount hook (retainer)
- One horizontal mount plate (retaining clamp)
- Seven stainless steel M5 x 12mm button head screws
- Eleven nylon flat washers
- Four stainless steel M4 x 25mm pan head Phillips screws
- Two KICKER stickers
SKU: SKU: 46CWTB84
View full details






Product Description

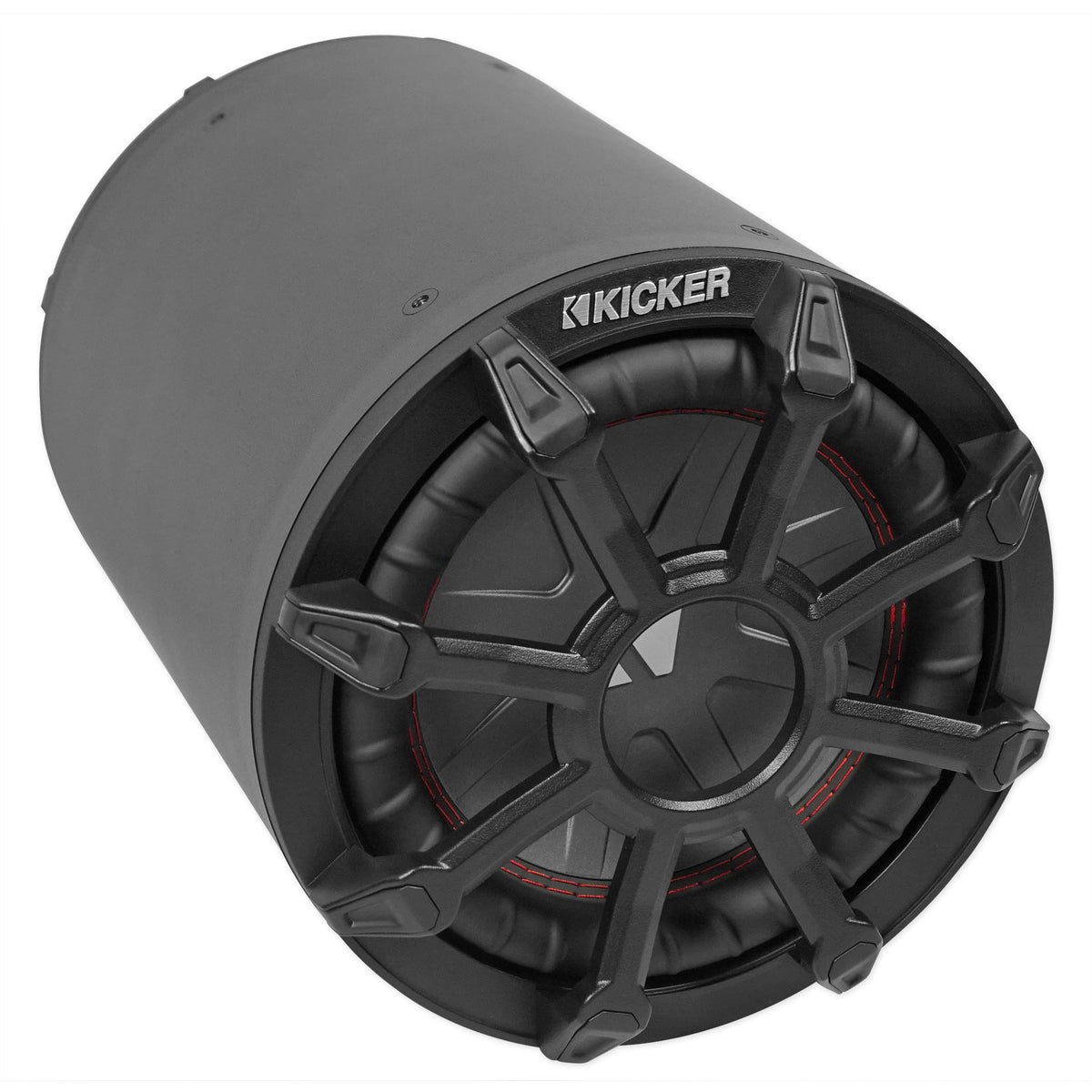

A CompR woofer and a passive radiator work together in a reflex enclosure, producing low output that an 8-inch sealed box of this size could not reach. Power handling is 300 W RMS and 600 W peak. The whole enclosure measures 8-1/2 inches wide by 12-7/8 inches deep, standing 13-7/16 inches tall or 8-5/8 inches when laid flat.

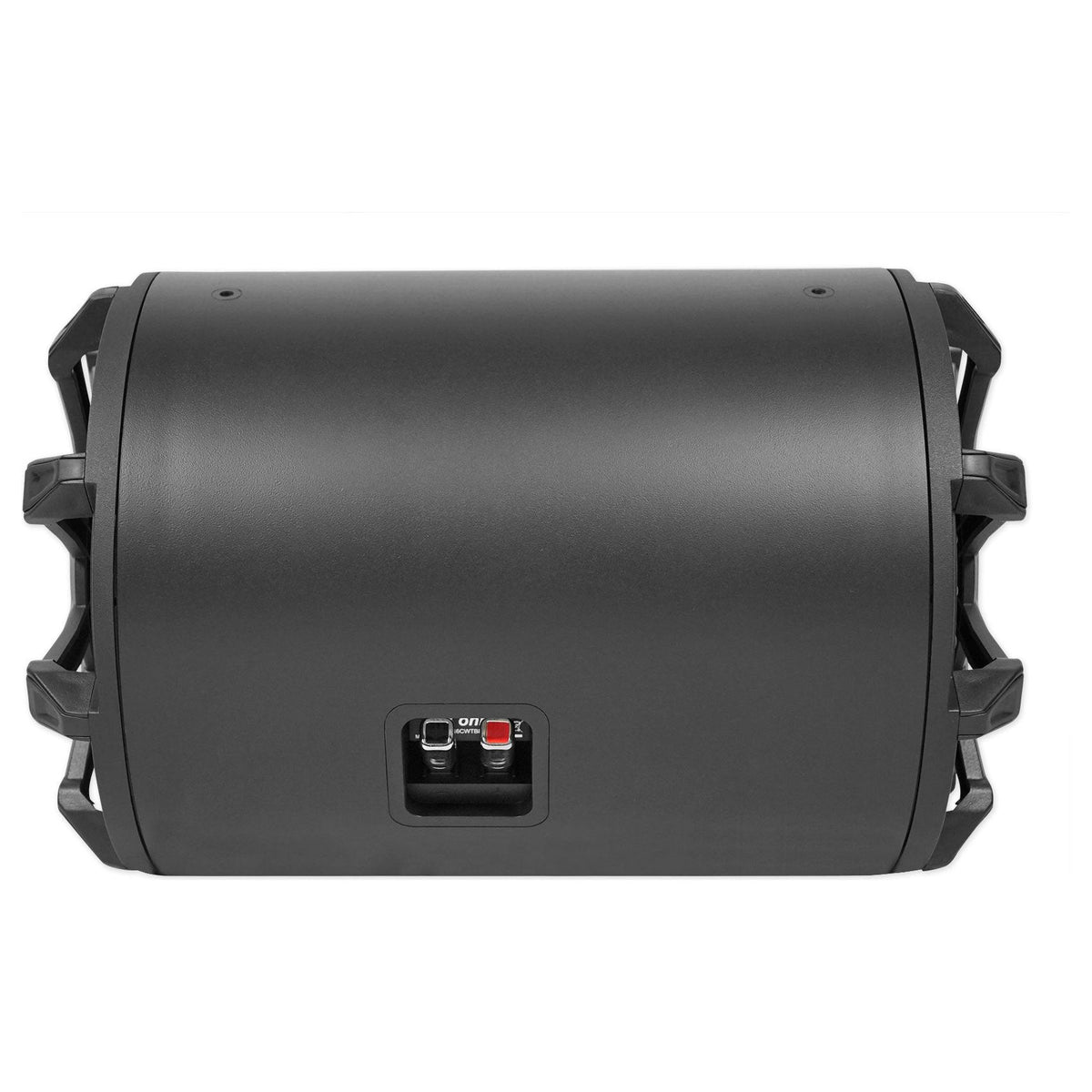

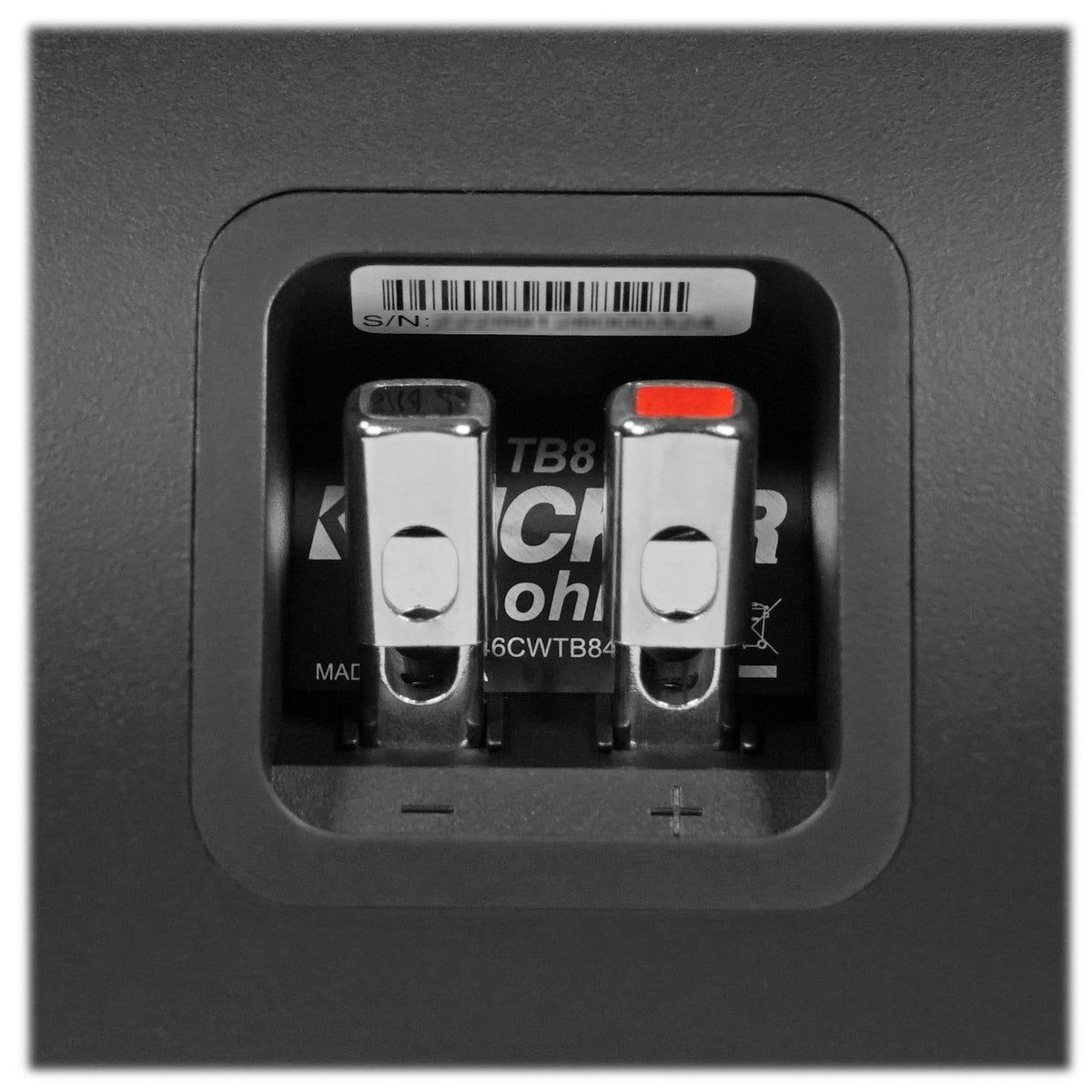

Thick ABS tube construction handles the moisture, cargo, and vibration that come with truck beds, boat cabins, and side-by-sides. Stainless steel hardware for both vertical brackets and a horizontal mount base is included, so the tube can be secured in whatever orientation the space allows, and spring-loaded terminals make wiring quick.

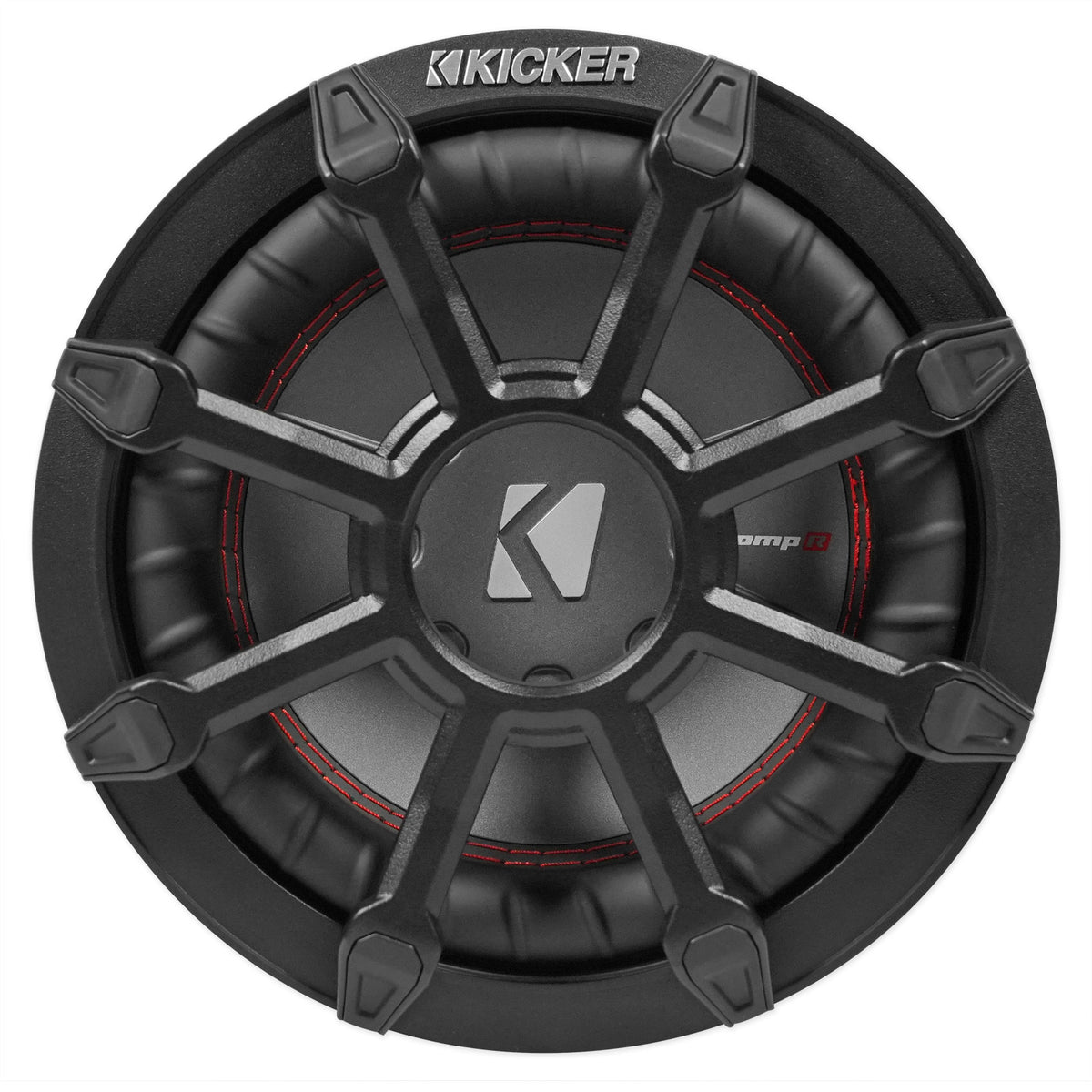

An advanced heat management system keeps the voice coil in range under sustained power, and the ceramic magnet motor with signature double red stitching gives it a finished look. Grilles are included. When the goal is real bass without giving up usable space, this is the smallest package that gets there.
Features
Built For 4-Ohm Amps
The 4-ohm final load matches amplifiers rated for 4-ohm mono duty, and lets a pair of tubes be combined on one channel.
Takes Almost No Space
An 8-1/2 inch width and 12-7/8 inch depth let the tube live behind a seat or in a cabin corner without cutting into cargo room.
Small Box, Low Notes
The passive radiator extends output below what a sealed 8-inch enclosure of the same volume can produce, with 300 W RMS behind it.
Secure In Any Orientation
Stainless vertical brackets, a horizontal base, and a retaining clamp are all included, so the tube stays put standing or lying flat.
Made For Rough Duty
Thick ABS construction and stainless hardware handle damp, vibration, and impacts in trucks, boats, and side-by-sides, where a carpeted wood box would not last.
Technical Specifications
- Product Type Loaded Tube Subwoofer Enclosure
- Enclosure Type Reflex With Passive Radiator
- Subwoofer Size 8 in.
- Impedance 4 Ohm Final
- RMS Power Handling 300 W
- Peak Power Handling 600 W
- Sensitivity 84.4 dB
- Grilles Included
- Weight 25 lb
- Dimensions 8-1/2" W x 12-7/8" Deep, 13-7/16" H Vertical Mount, 8-5/8" H Horizontal Mount
