DSP-Controlled Line-Output Converter that Auto-Detects and Corrects Factory Sound
Free Shipping
Features
- DSP algorithm auto-detects and corrects factory sound filters
- Single-button toggle compares corrected and uncorrected sound
- Onboard LEDs read available frequency range from any speaker wire
- FIT 2+ technology offers wide input sensitivity range
- Compact housing at 5-1/2 inches long
Couldn't load pickup availability
What's Included in the box
- Kicker KEYLOC line-out converter
- Installation hardware
SKU: SKU: 47KEYLOC*
View full details![47KEYLOC [Used]](http://audiosavings.com/cdn/shop/files/2802437.jpg?v=1754061282&width=1445)
![47KEYLOC [Used]](http://audiosavings.com/cdn/shop/files/2802436.jpg?v=1754061283&width=1445)
![47KEYLOC [Used]](http://audiosavings.com/cdn/shop/files/2802435.jpg?v=1754061283&width=1445)
![47KEYLOC [Used]](http://audiosavings.com/cdn/shop/files/2802434.jpg?v=1754061283&width=1445)
![47KEYLOC [Used]](http://audiosavings.com/cdn/shop/files/2802433.jpg?v=1754061283&width=1445)
![47KEYLOC [Used]](http://audiosavings.com/cdn/shop/files/2802432.jpg?v=1754061282&width=1445)
![47KEYLOC [Used]](http://audiosavings.com/cdn/shop/files/2802431.jpg?v=1754061283&width=1445)
![47KEYLOC [Used]](http://audiosavings.com/cdn/shop/files/2802430.jpg?v=1754061282&width=1445)
Product Description
Features
Signal Correction, Automatically
The KEY algorithm detects crossovers, EQ, and time delay already present in a factory system, then corrects them for a clean, uncolored signal to aftermarket gear.
Hear the Difference Yourself

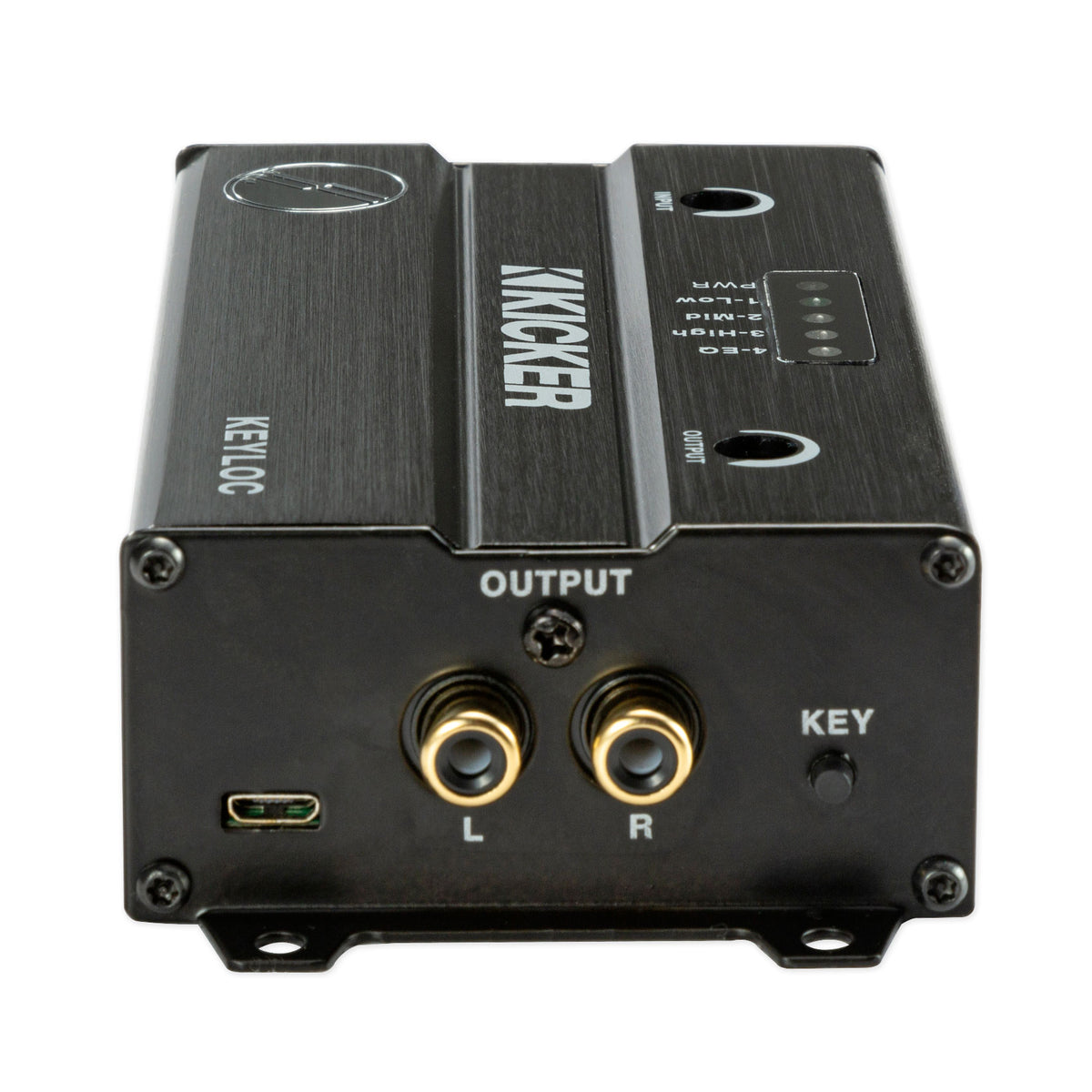

A single button toggles the correction on and off, letting an installer compare the before and after sound in real time.
Know What Each Wire Carries

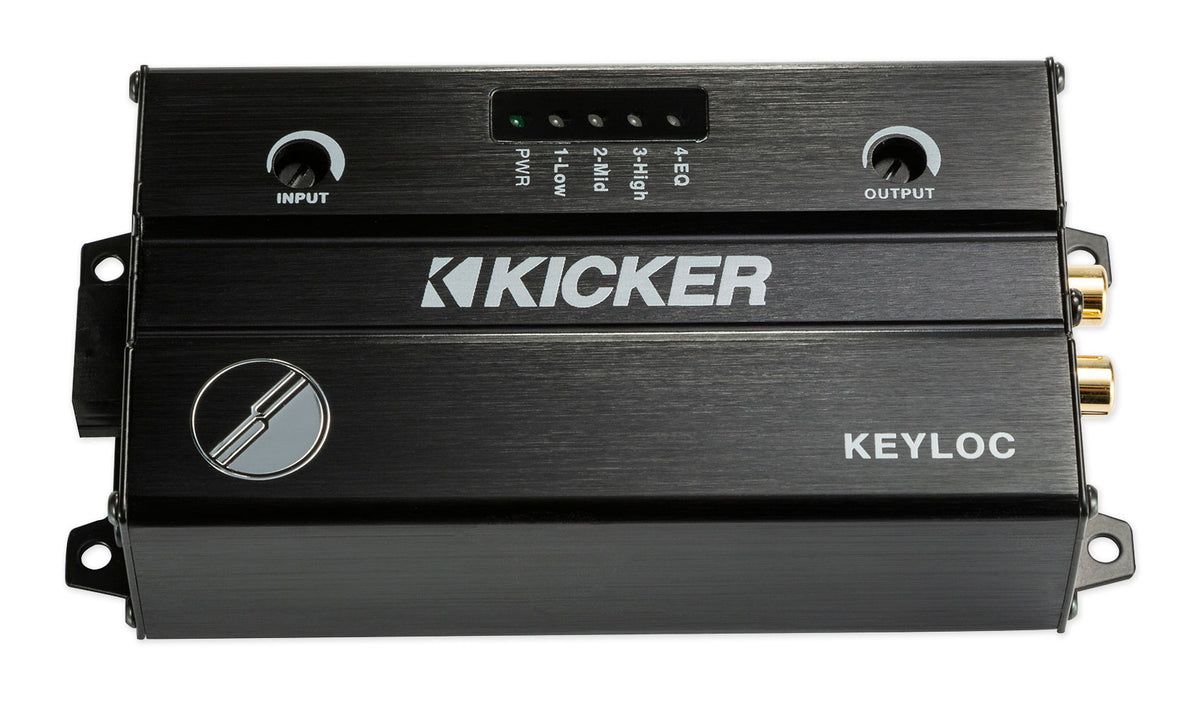

Onboard LEDs show whether a given speaker wire carries low, mid, or high frequency content, removing the guesswork from tapping into a factory harness.
Fits Nearly Any System
FIT 2+ technology gives the KEYLOC an input range from 125 millivolts to 40 volts, covering both low-level and high-level factory signals.
Small Enough to Tuck Away
At 5-1/2 inches long, 1-3/8 inches tall, and 2-3/4 inches wide, the converter mounts out of sight behind a dash or under a seat.
Technical Specifications
- Product Type Line-Output Converter
- Frequency Response 20 Hz - 20 kHz
- Signal-to-Noise Ratio Greater than 100 dB
- Input Sensitivity (Low) 125 mV - 10V
- Input Sensitivity (High) 1V - 40V
- Length 5-1/2 in
- Height 1-3/8 in
- Width 2-3/4 in
