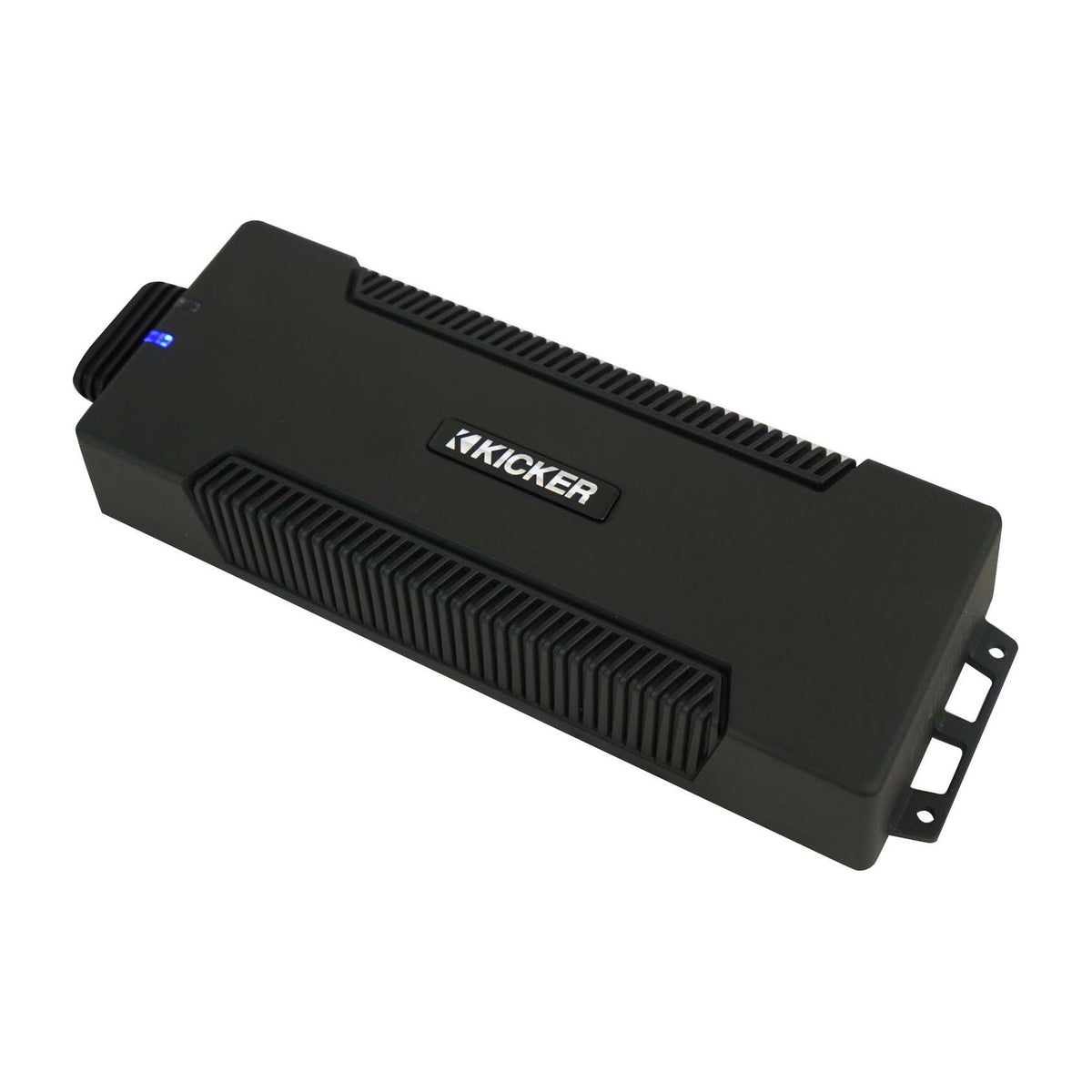

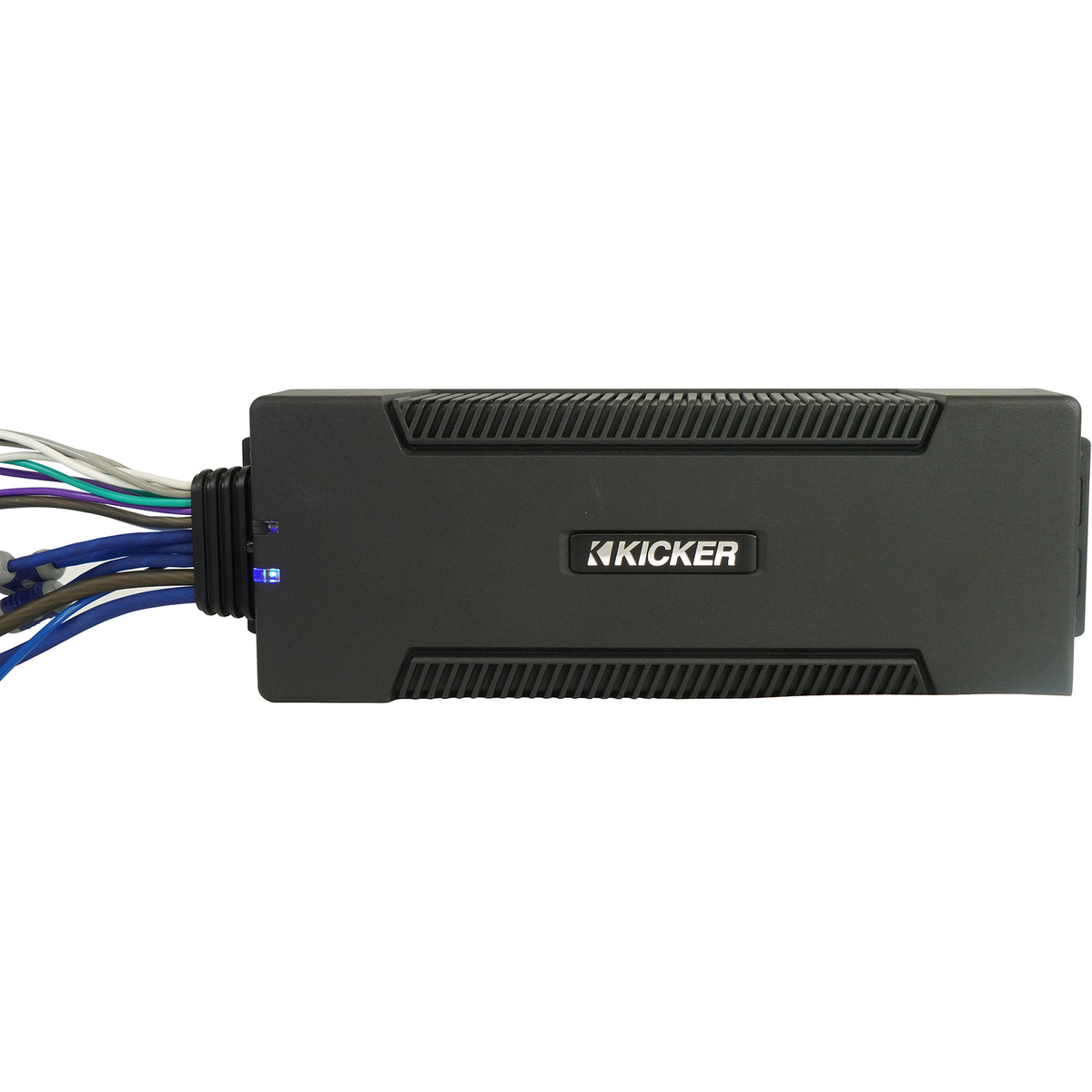

KICKER 48PXA10005 1000 Watt 5-Channel Amplifier Amp For ATV/UTV/RZR PXA10005

Name: KICKER 48PXA10005 1000 Watt 5-Channel Amplifier Amp For ATV/UTV/RZR PXA10005
Brand: Kicker
SKU: 48PXA10005
Price: 779.99 USD
Availability: InStock

Waterproof 5-Channel Powersports Amplifier, 1400W Dynamic, IP66/IP67, DC Power Couplers, Stainless Hardware

Free Shipping

$779.99

$779.99 ~~$1,099.99~~

Save 29%

Shipping calculated at checkout.

Features

Waterproof design with IP66 and IP67 certifications
Four full-range channels at 100W each plus a 1-ohm-stable sub channel
1400W of dynamic power from a 12-7/8" chassis
Inline power and ground couplers need no soldering or crimping
Dual turn-on modes work with DC offset or a 12v trigger

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

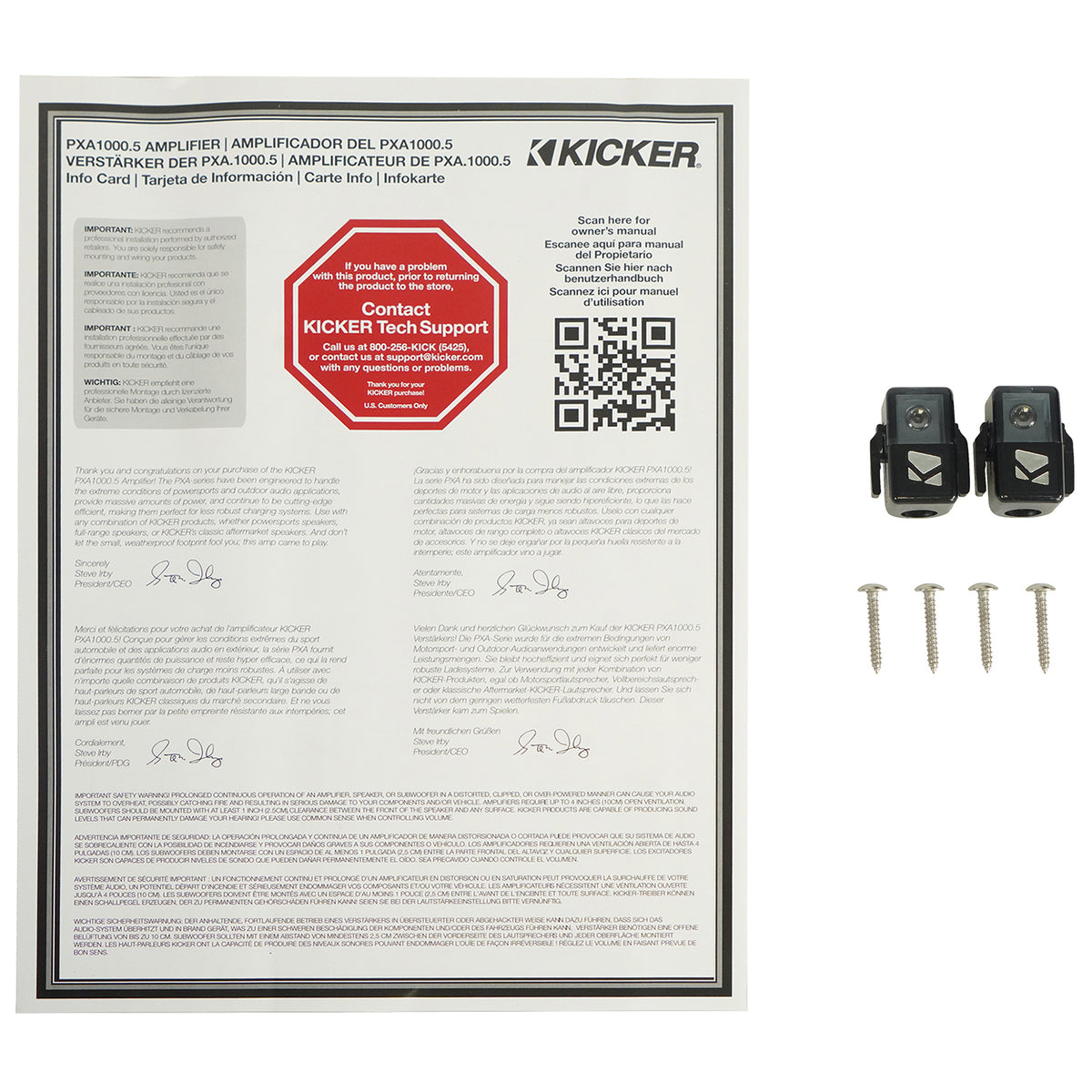

What's Included in the box

PXA1000.5 waterproof powersports amplifier
2 DC power couplers
Stainless-steel mounting hardware

SKU: SKU: 48PXA10005

View full details

Product Description

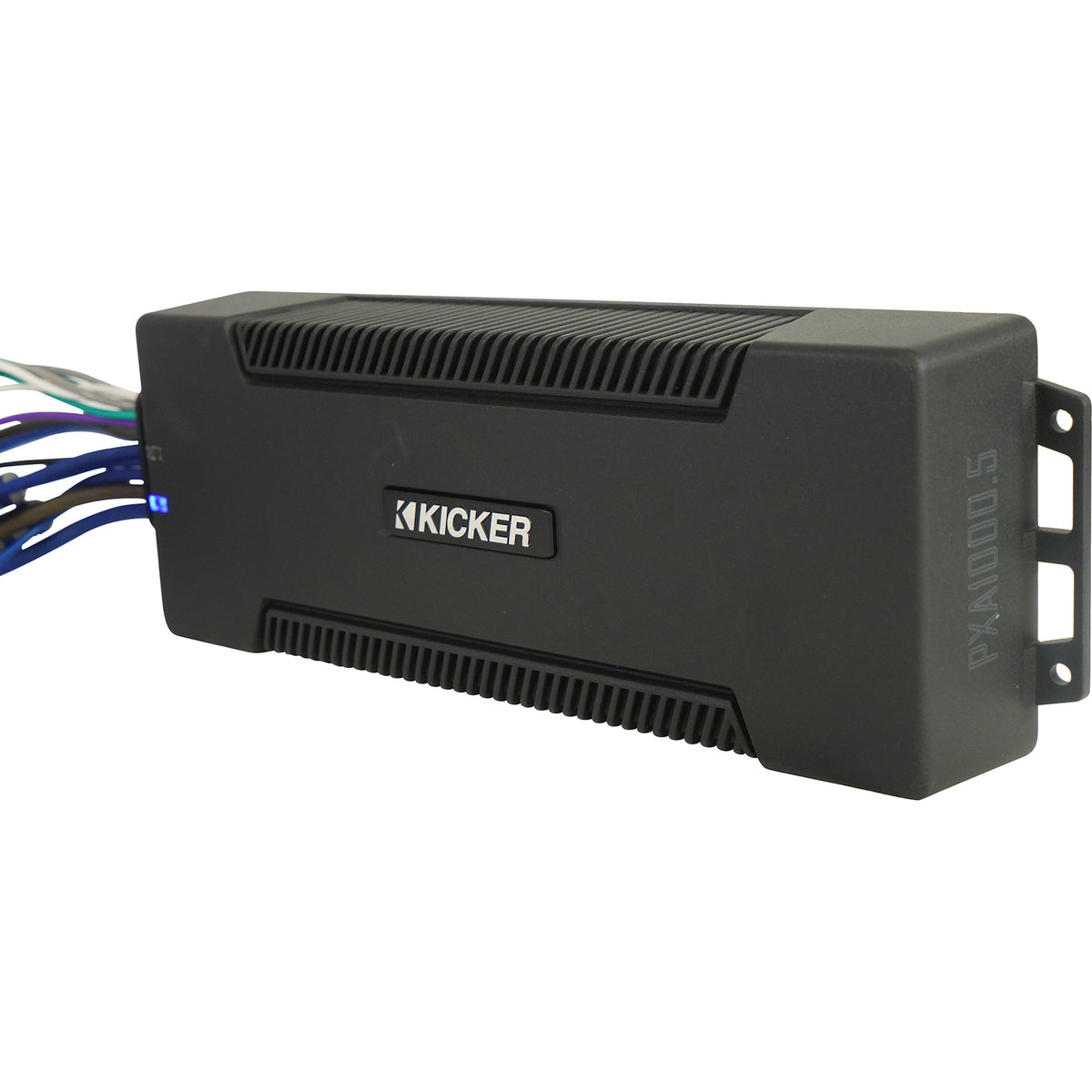

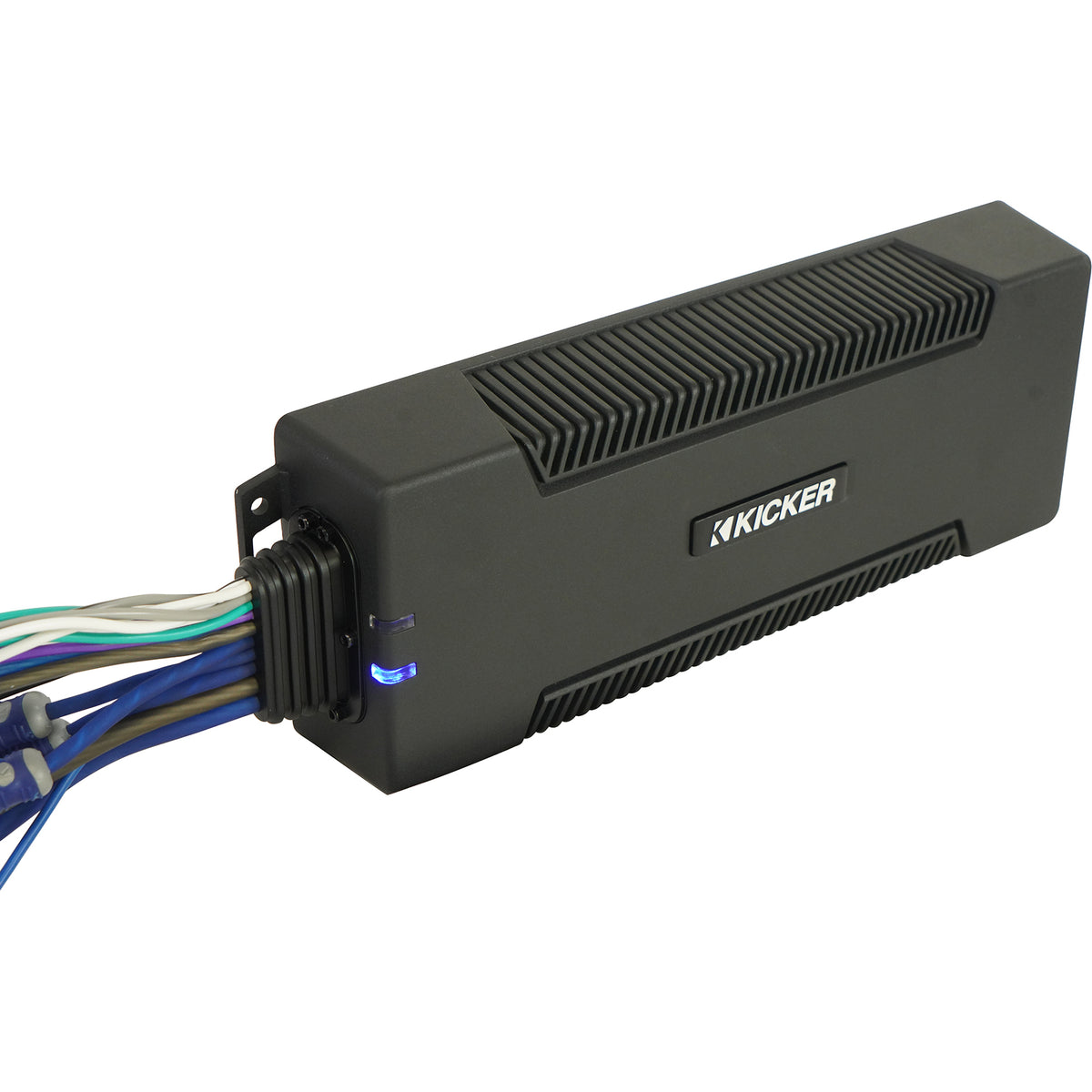

The PXA1000.5 is a single-amp solution for a complete powersports system. Four full-range channels deliver 100W each at 2 or 4 ohms, and the subwoofer channel is stable down to 1 ohm at 600W, with 1400W of dynamic power available.

What sets it apart is the waterproof design. IP66 and IP67 certifications mean it handles dust, water jets and temporary immersion, so mounting it under a UTV seat, behind a roll cage panel or on an open frame rail is a reasonable plan rather than a gamble.

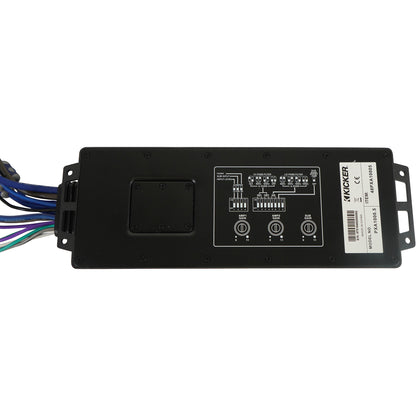

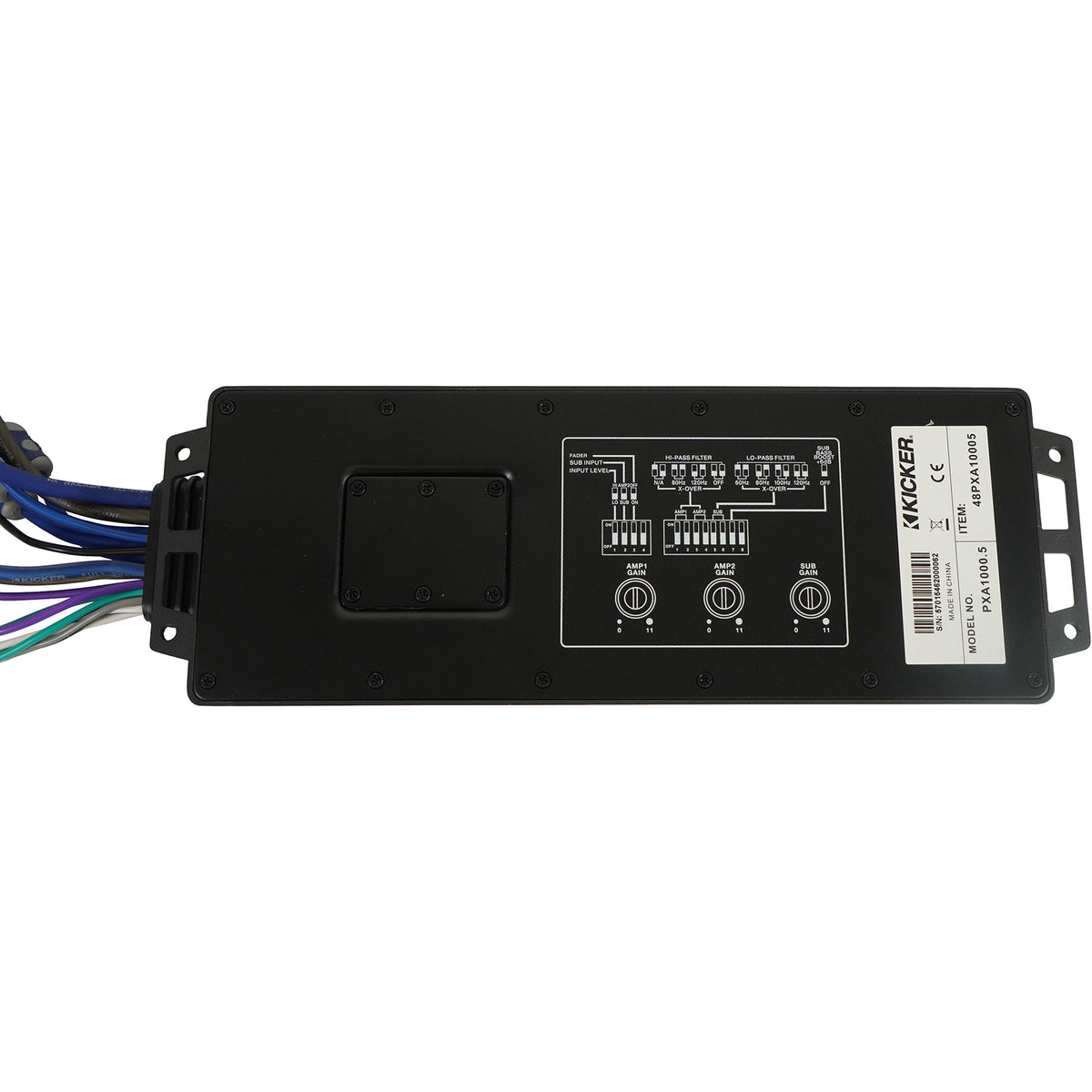

Class D efficiency keeps the footprint small at 4-1/2" wide, 1-15/16" tall and 12-7/8" long, which is how a five-channel amp fits in a machine with no trunk. Crossovers are set with switches rather than knobs: 24dB/octave high pass at 80 or 120Hz for amps 1 and 2, low pass at 60, 80, 100 or 120Hz for the sub, and a fixed 25Hz subsonic filter. Bass boost is selectable at 0 or +6dB centered at 40Hz on the sub channel, and the CXARC remote is supported for sub level.

Inline power and ground couplers are included, so no soldering or crimping is required. Dual turn-on modes cover DC offset and 12v trigger sources.

Features

Mount It In The Weather

IP66 and IP67 certifications cover dust, water jets and temporary immersion, so an open frame rail or under-seat location is a workable mounting spot.
A Whole System, One Chassis

Four full-range channels at 100W each plus a 600W subwoofer channel means speakers and bass share one power run and one fuse.
Fits Where Nothing Else Does

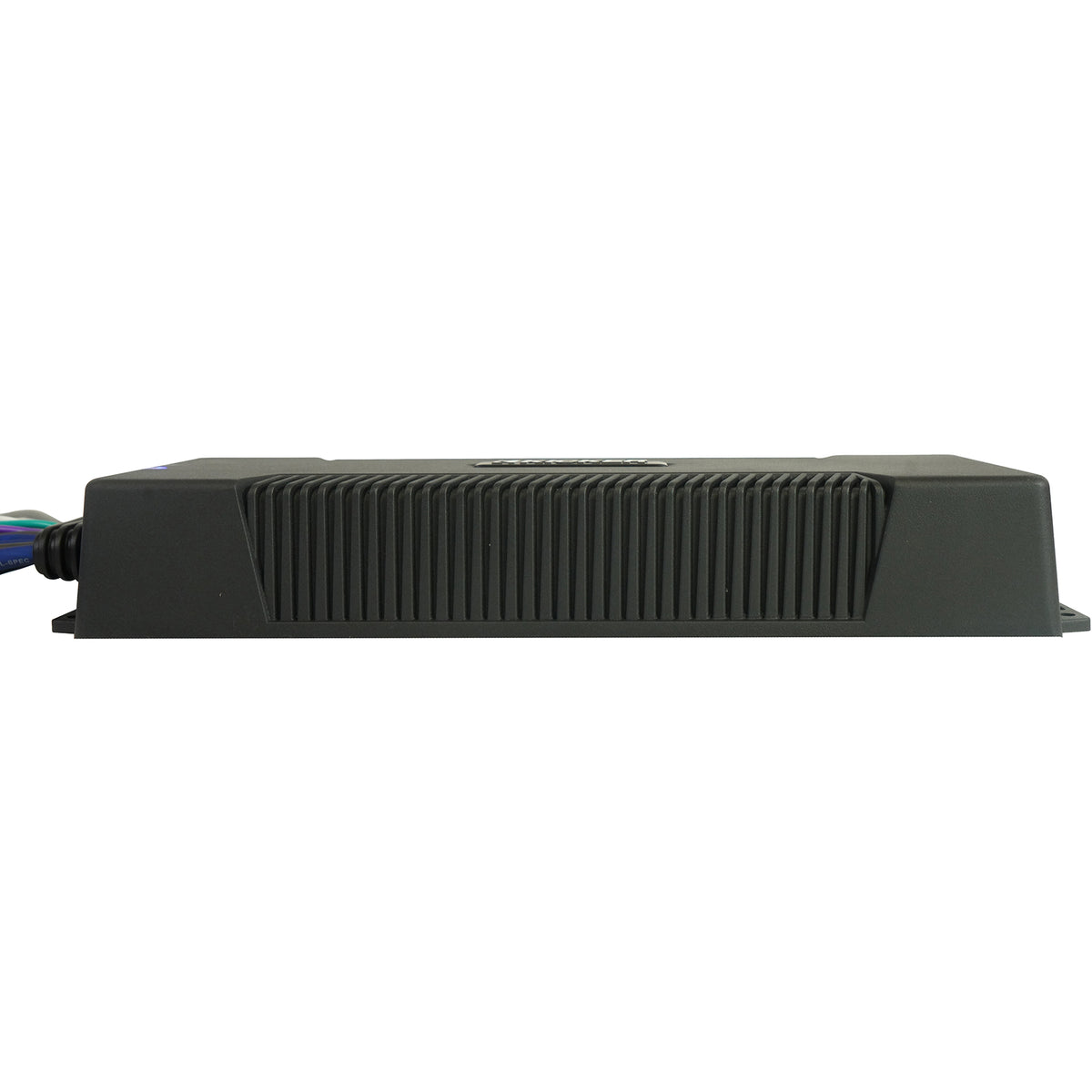

Class D efficiency keeps the amp under two inches tall and 4-1/2" wide, which is how five channels fit in a machine with no trunk.
Wiring Without Tools

Included inline power and ground couplers join cable with no soldering or crimping, cutting the hardest part out of a tight UTV install.
Set It And Forget It

Switched crossovers, a fixed 25Hz subsonic filter and selectable +6dB bass boost lock in your tune where vibration cannot shift a knob.

Technical Specifications

Product Type Waterproof 5-Channel Powersports Amplifier
Amplifier Class D
Ingress Protection IP66 and IP67
Power, 1 Ohm Mono 600 W x 1
Power, 2 Ohm Mono 500 W x 1
Power, 4 Ohm Mono Amps 1 and 2: 200 W x 2; Sub: 300 W x 1
Power, 2 Ohm Stereo 100 W x 4
Power, 4 Ohm Stereo 100 W x 4
Dynamic Power 1400 W
Frequency Response Full range: 10 Hz - 20 kHz; Sub: 25-200 Hz (+0/-3dB)
Crossovers 24dB/octave high pass 80/120Hz (amps 1 and 2); low pass 60/80/100/120Hz (sub only); subsonic 25Hz, 24dB/octave (sub only)
Bass Boost Selectable 0/+6dB, centered at 40Hz (sub channel only)
CXARC Remote Capable Yes (sub only, sold separately)
Dimensions 4-1/2 in W x 1-15/16 in H x 12-7/8 in L
