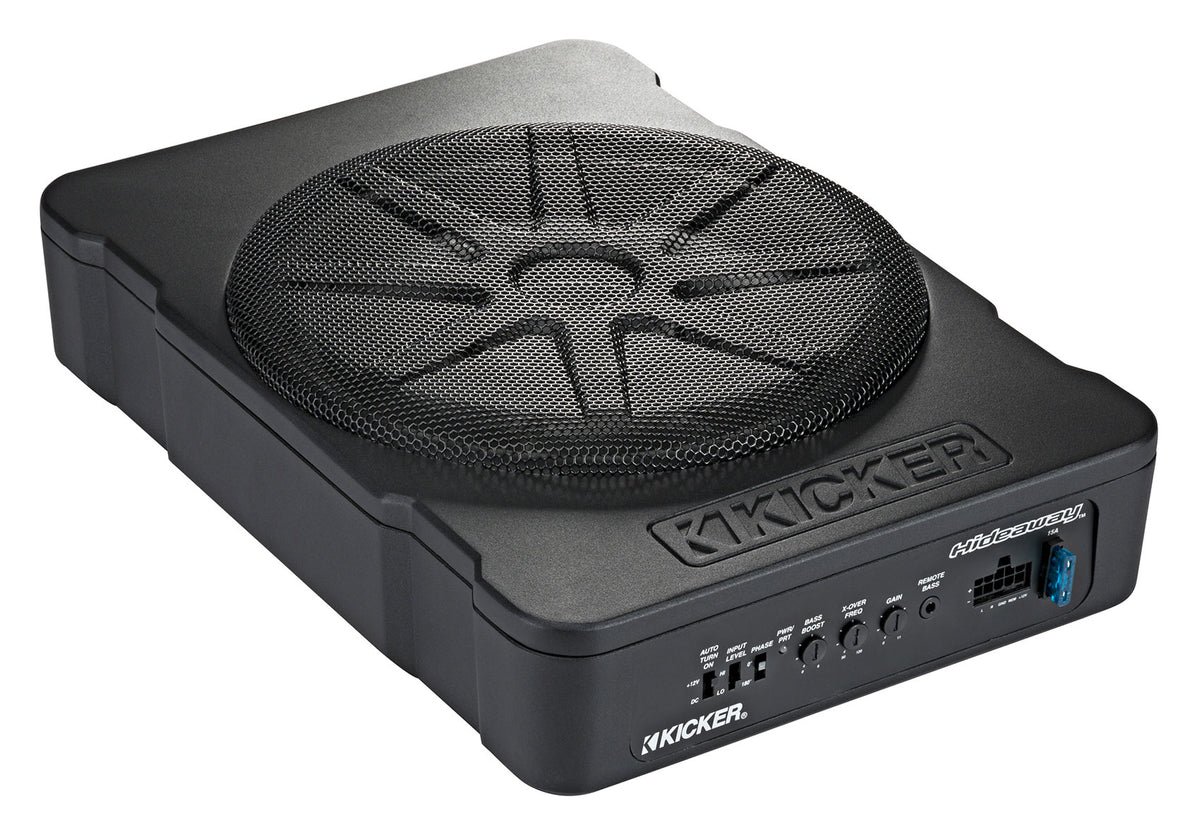

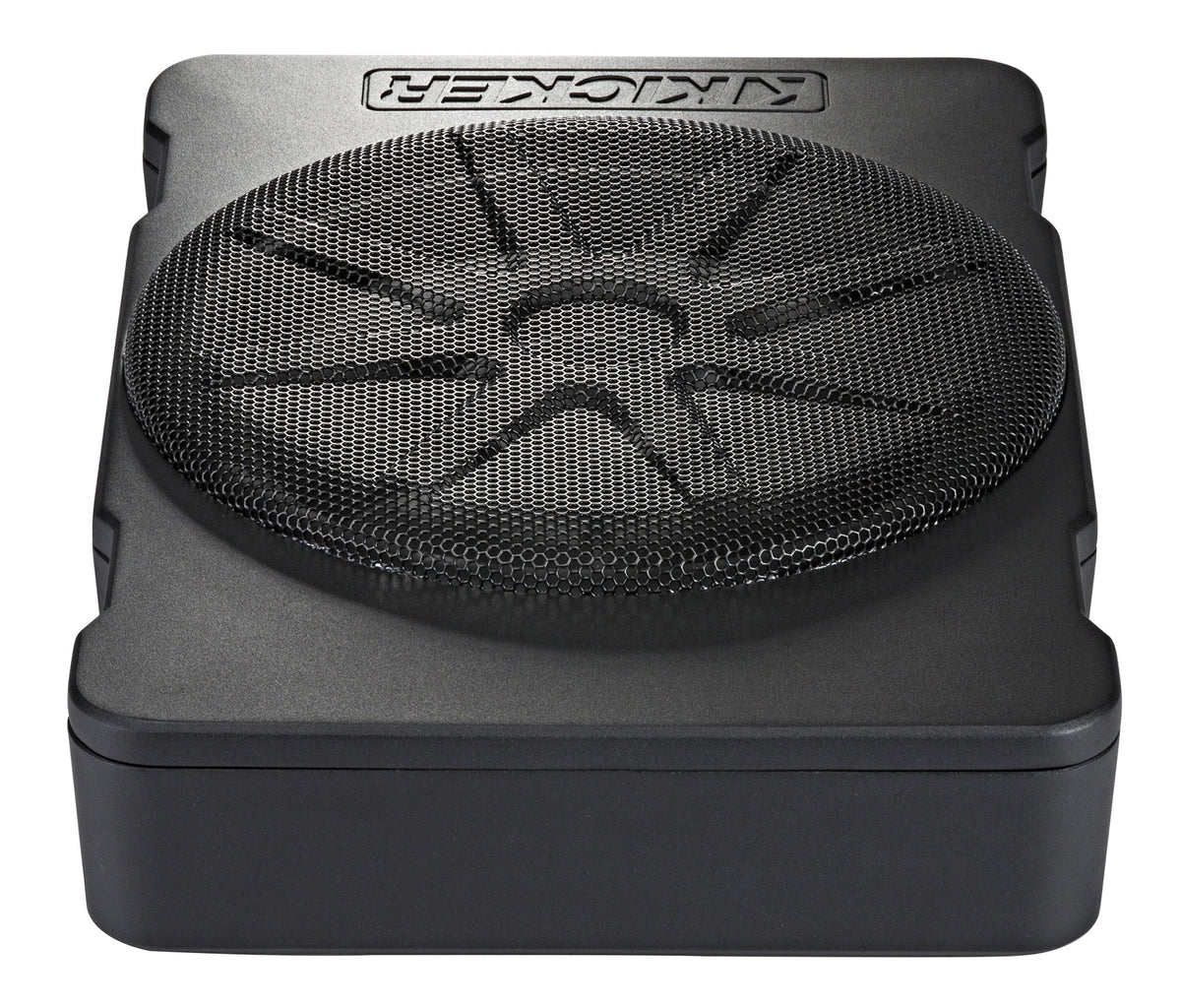

10" Powered Under-Seat Subwoofer, 180W RMS, Aluminum Enclosure, Remote Bass Control And Wiring Harness
Free Shipping
Features
- 10-inch subwoofer and 180 W RMS amplifier in one aluminum enclosure

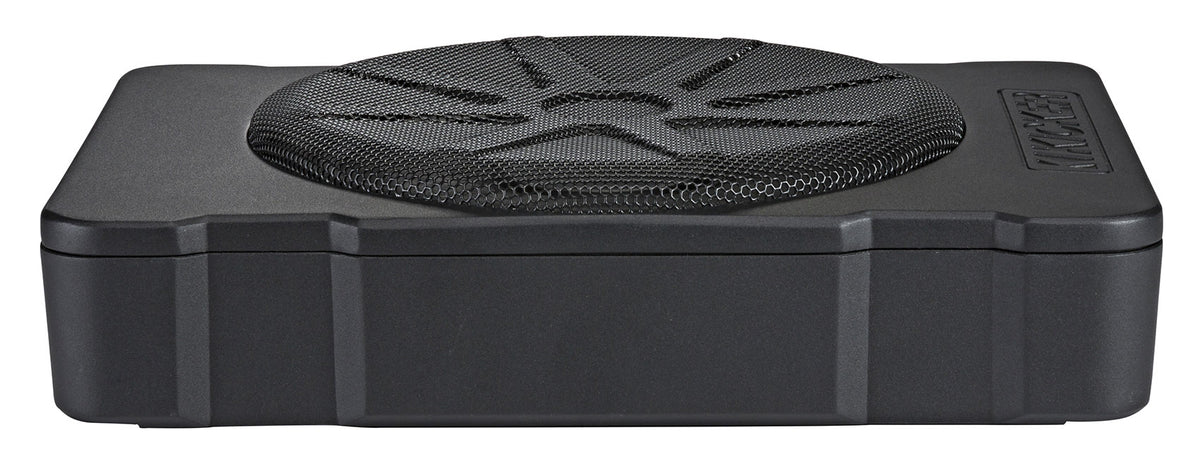

- Just 3-1/8 inches tall to fit under a vehicle seat
- FIT+ accepts 0.25V to 40V inputs, no line output converter needed
- Remote bass control adjusts low end without changing radio volume

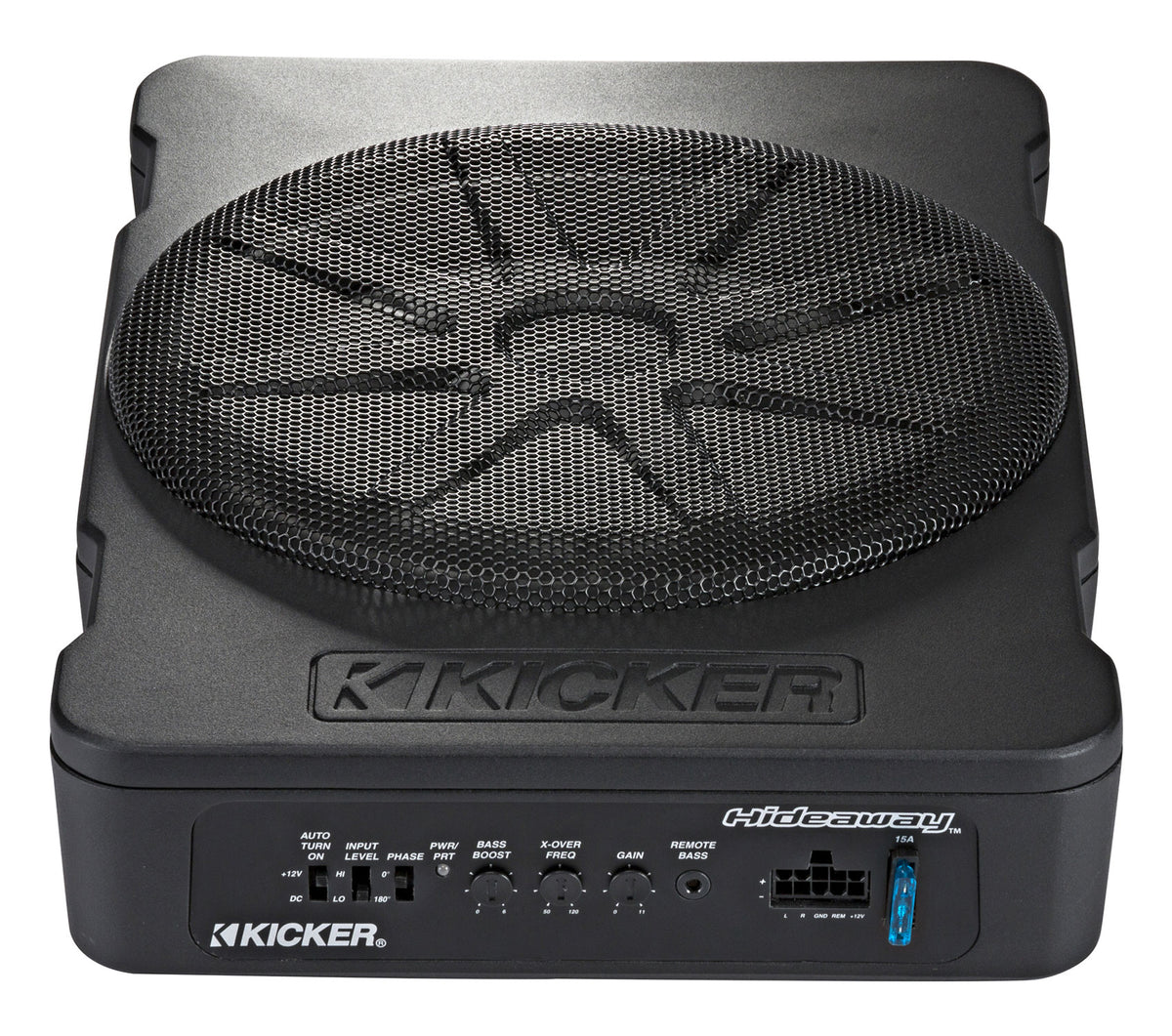

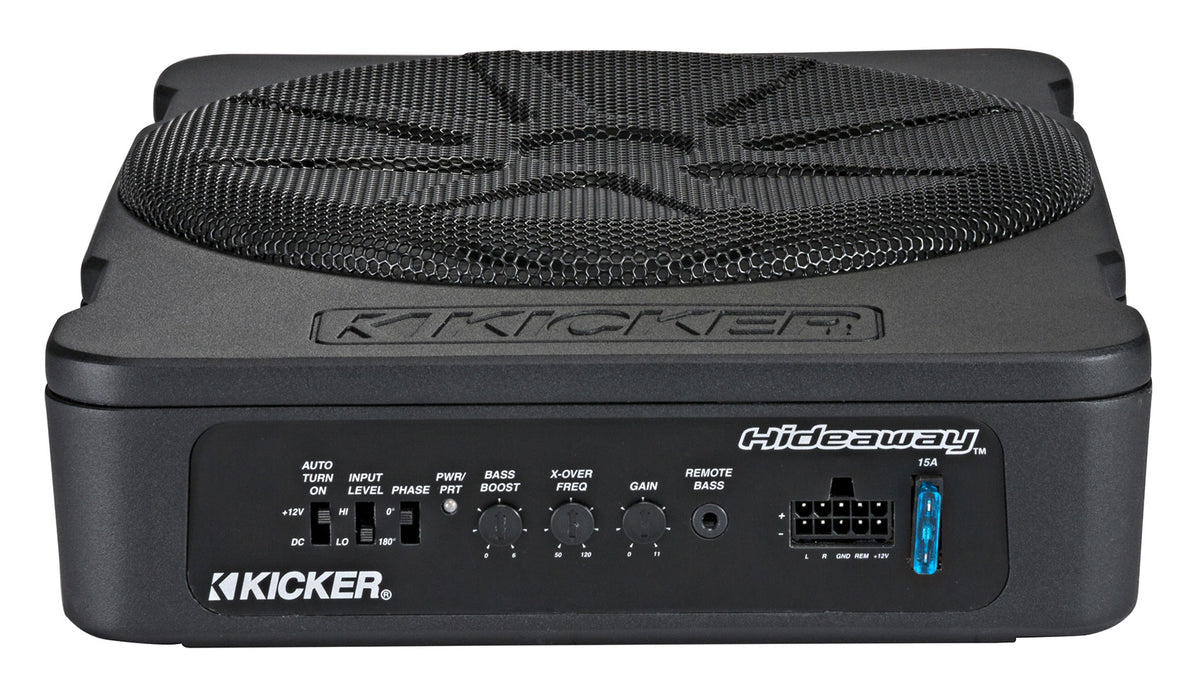

- Adjustable low-pass crossover, phase switch, and +6 dB KickEQ boost
Couldn't load pickup availability

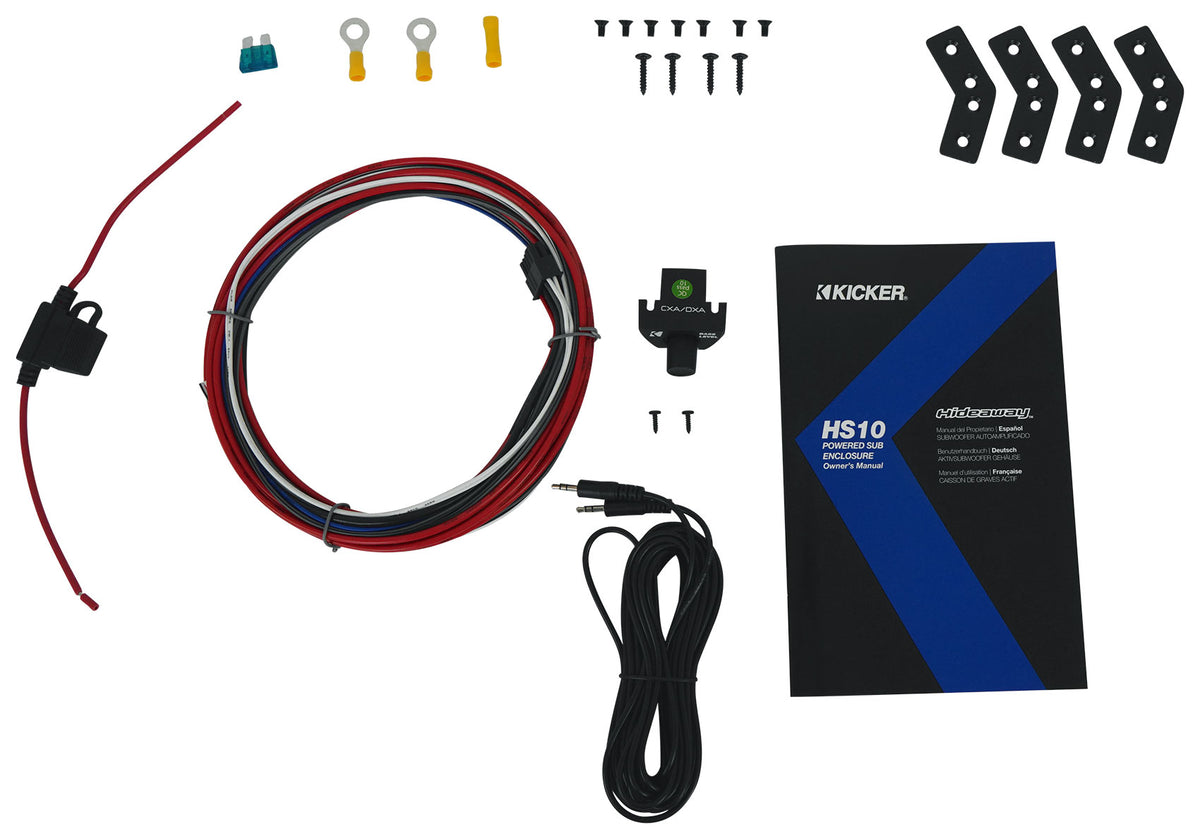

What's Included in the box
- Kicker 51HS10 Hideaway 10" Powered Subwoofer Enclosure
- Remote bass control
- Molex quick-connect wiring harness (17' power input, 8' speaker-level input, 2' ground, 2' remote turn-on)
SKU: SKU: 51HS10
View full details








Product Description
FIT+ (Fail-safe Integration Technology PLUS) is the part that makes factory integration realistic. It accepts input signals from 0.25 volt up to 40 volts, so it works off a factory head unit, an aftermarket deck, or the speaker-level output of an amplified factory system, and it is compatible with newer vehicles running start/stop systems. No line output converter needed.
The included remote lets you change bass level without touching radio volume, which matters when you move between a podcast and a bass-heavy playlist. Tuning covers an adjustable low-pass crossover (12 dB/octave, 50-120 Hz), a 24 dB/octave high-pass at 25 Hz, variable KickEQ boost to +6 dB at 40 Hz, and a 0/180-degree phase switch to time the sub with your front speakers.
Installation uses a quick-connect Molex plug and harness carrying power, signal, and remote turn-on, with high- and low-level inputs and two automatic turn-on options: DC-offset or signal sensing. The harness includes 17 feet of power input, 8 feet of speaker-level input, and 2-foot ground and remote turn-on leads. Total weight is 11.4 lb.
Features
-
Hides Under The Seat
At 3-1/8 inches tall in an all-aluminum frame, the HS10 fits in space most vehicles already waste and leaves the trunk untouched.
-
Works With Factory Stereos
FIT+ accepts input from 0.25 to 40 volts and supports start/stop vehicles, so factory systems integrate without a separate line output converter.
-
Bass Control From Your Seat
The included remote adjusts subwoofer level independently of radio volume, so you can dial bass down for podcasts and back up for music.
-
Tuned To Your Vehicle
An adjustable 50-120 Hz low-pass crossover, 0/180-degree phase switch, and variable KickEQ boost to +6 dB blend the sub with existing speakers.
-
Wiring Done In One Plug
A quick-connect Molex harness carries power, signal, and remote turn-on, with high and low level inputs and two automatic turn-on options.
Technical Specifications
- Product Type 10" Powered Under-Seat Subwoofer Enclosure
- Subwoofer 10 in, 25 cm
- RMS Power 180 W
- Frequency Response 25-120 Hz
- Crossover 12 dB/octave lowpass 50-120 Hz; 24 dB/octave highpass at 25 Hz
- Phase Switch 0 / 180 degrees
- Input Sensitivity Low level 250mV-10V, High level 1V-40V
- KickEQ Boost Variable to +6 dB at 40 Hz
- Remote Bass Control Included
- Wiring Harness 17' power input / 8' speaker-level input / 2' ground / 2' remote turn-on
- Weight 11.4 lb, 5.17 kg
- Box Dimensions 9-7/8 in W x 3-1/8 in H x 14 in D
