1642VLZ4 Mixer with D5S Vocal Mic
MACKIE
1642VLZ4 Mixer with D5S Vocal Mic
1642VLZ4 Mixer with D5S Vocal Mic
16-Channel Compact Mixer, 10 Mic Preamps, Dynamic Mic, Stand Adapter, Carry Bag
Free Shipping
Features

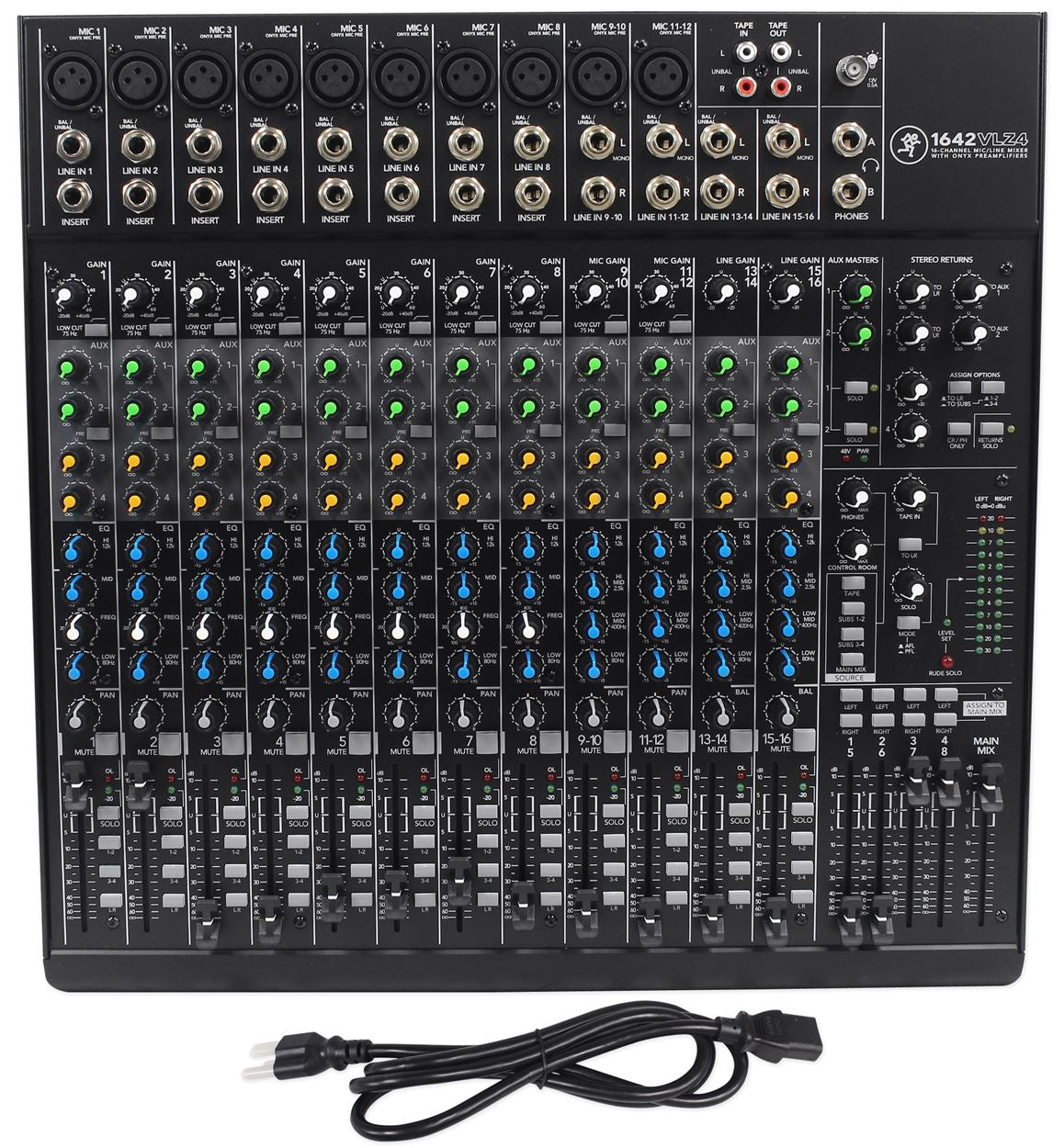

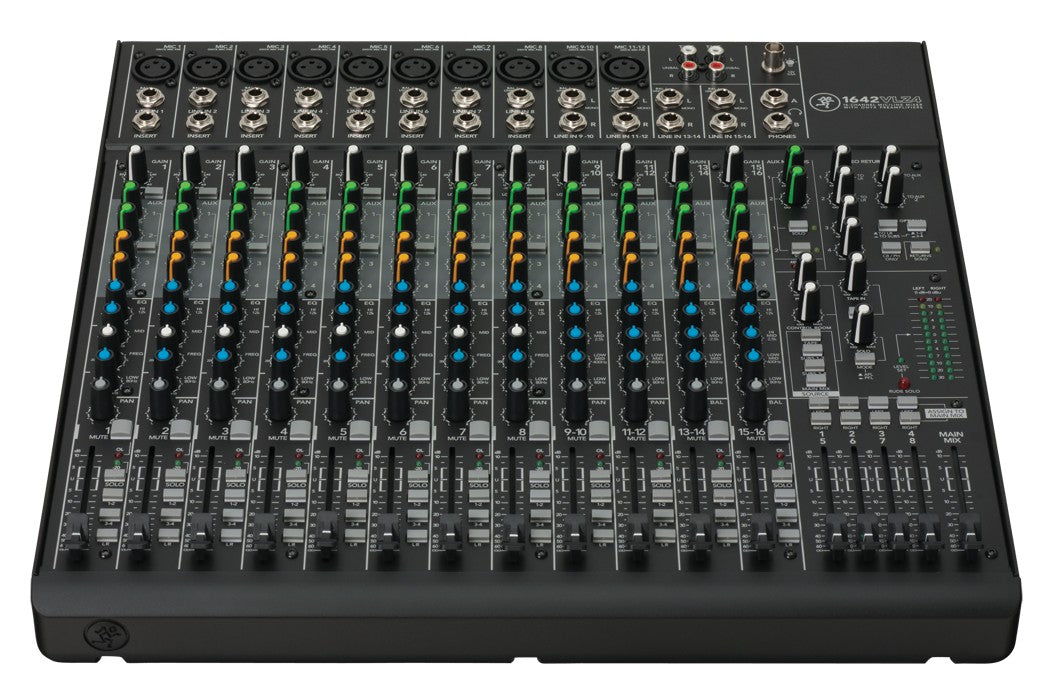

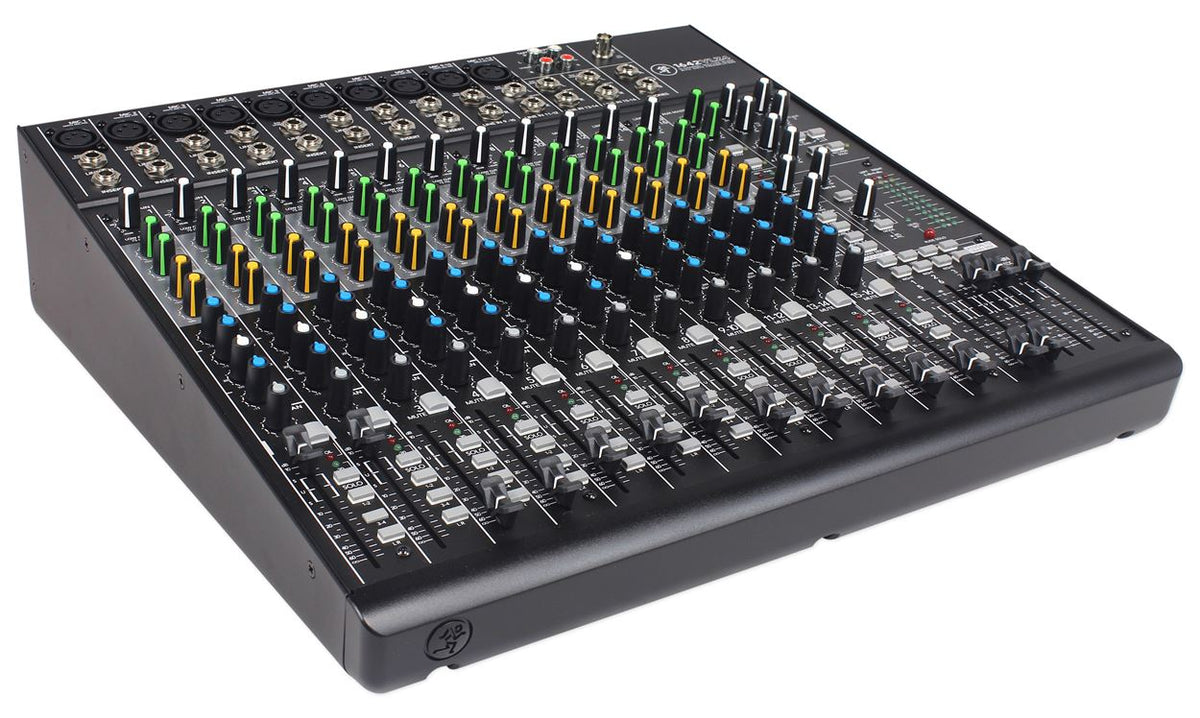

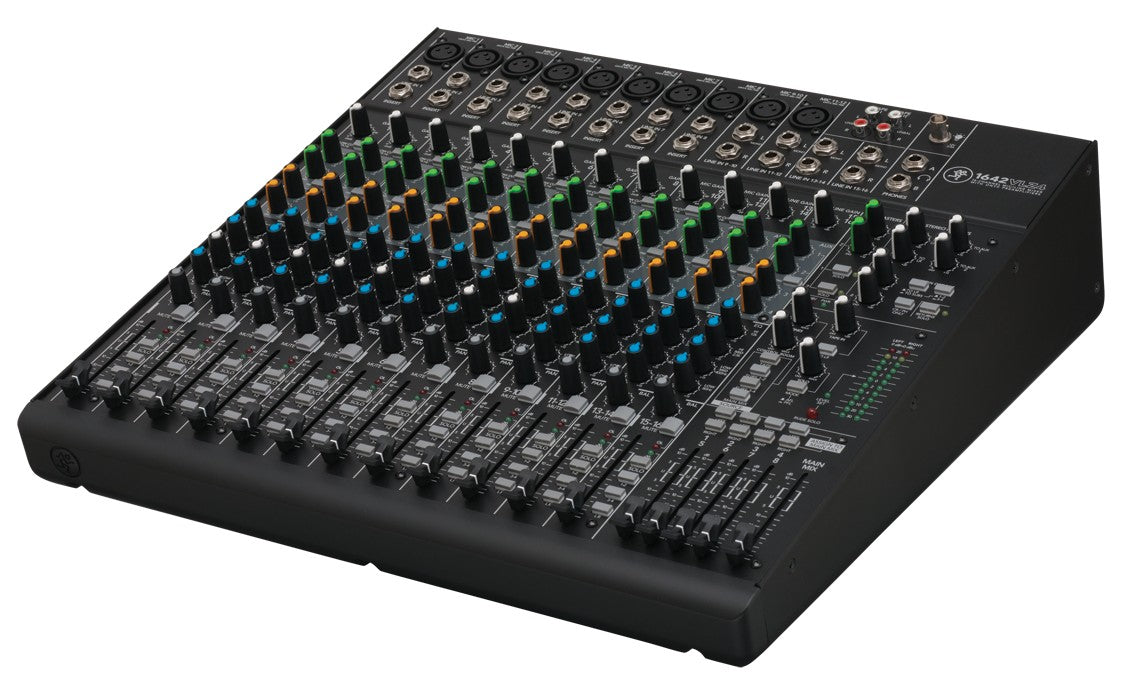

- 16-channel compact analog mixer with 10 mic preamps
- 16 line inputs with +4/-10 operation control
- 60 dB gain range and 128.5 dB dynamic range
- Four aux sends, four stereo returns and ALT 3/4 routing
- D5S vocal microphone with on/off switch, stand adaptor and bag
Couldn't load pickup availability

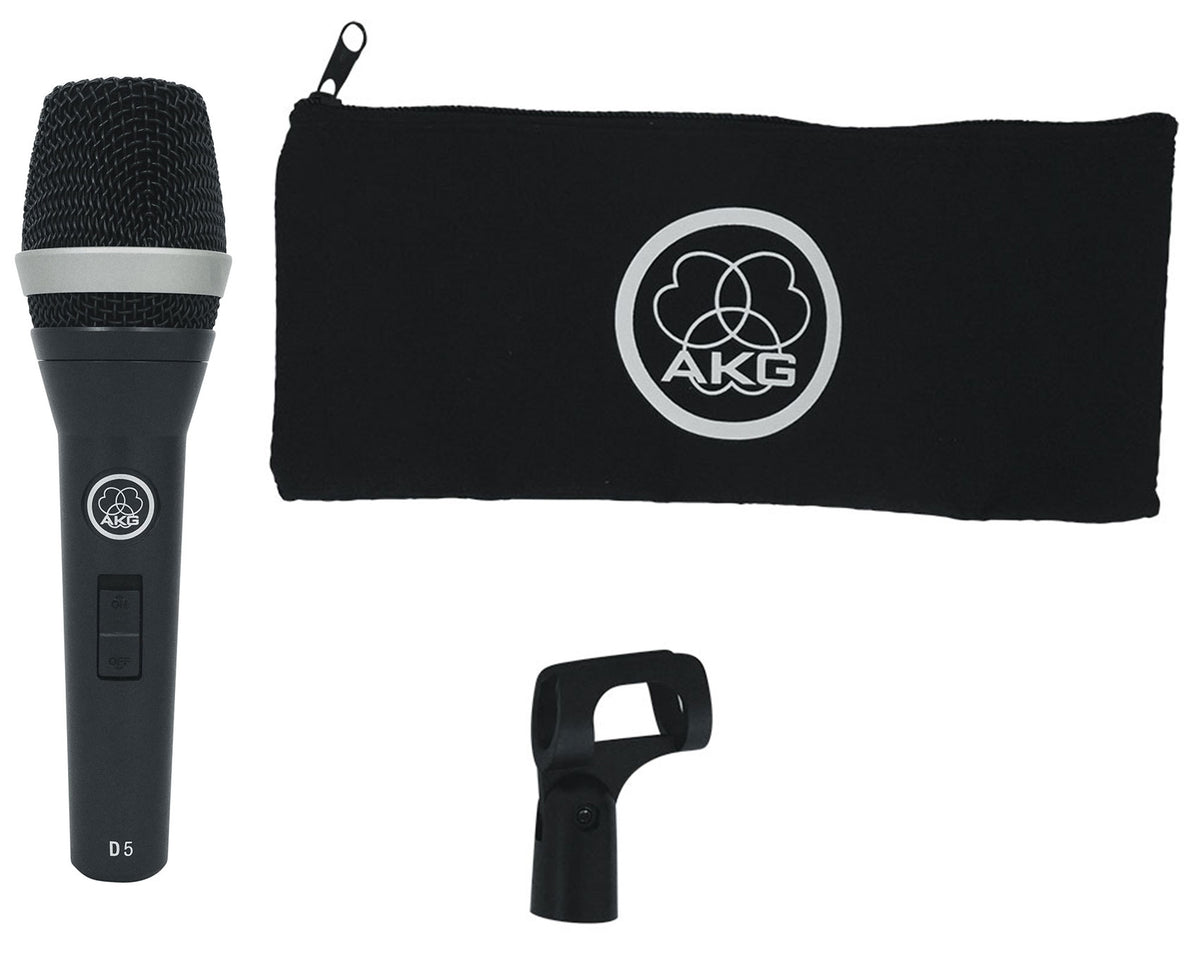

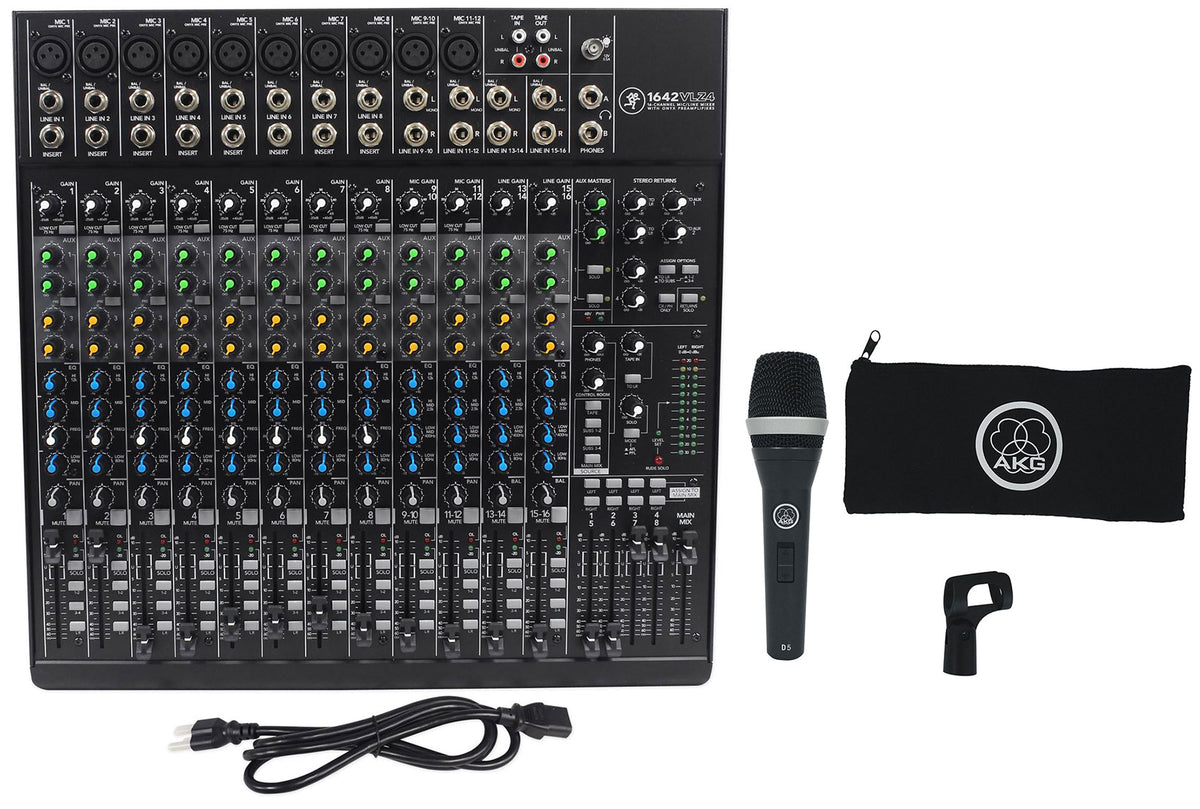

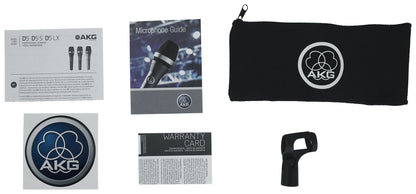

What's Included in the box

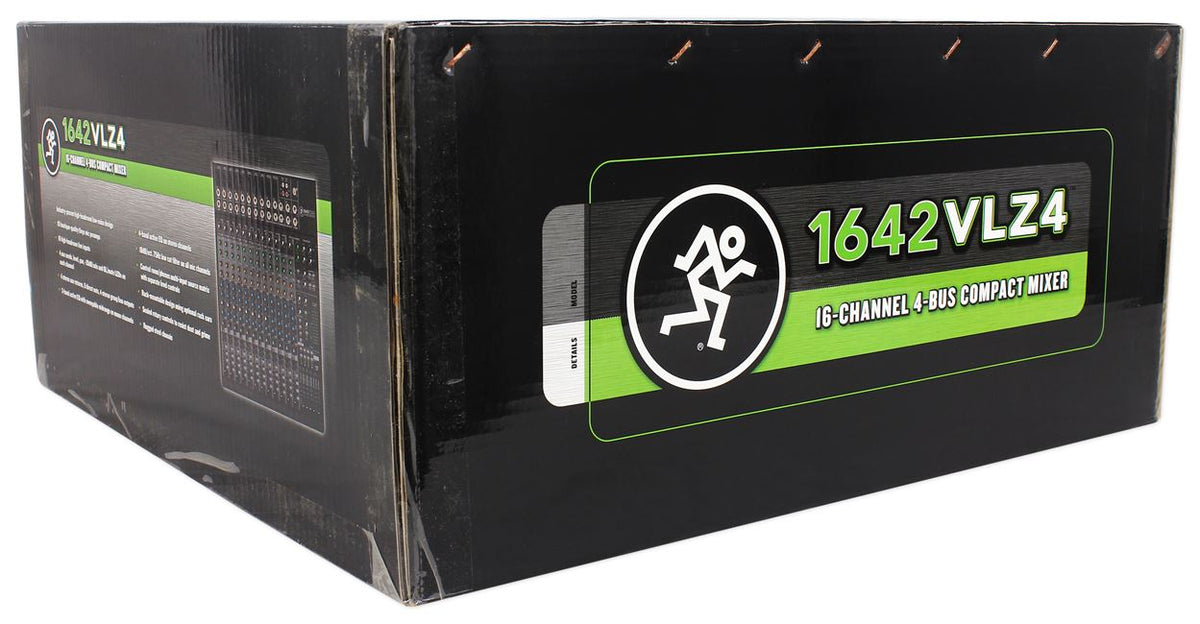

- (1) 1642VLZ4 16-Channel Mixer

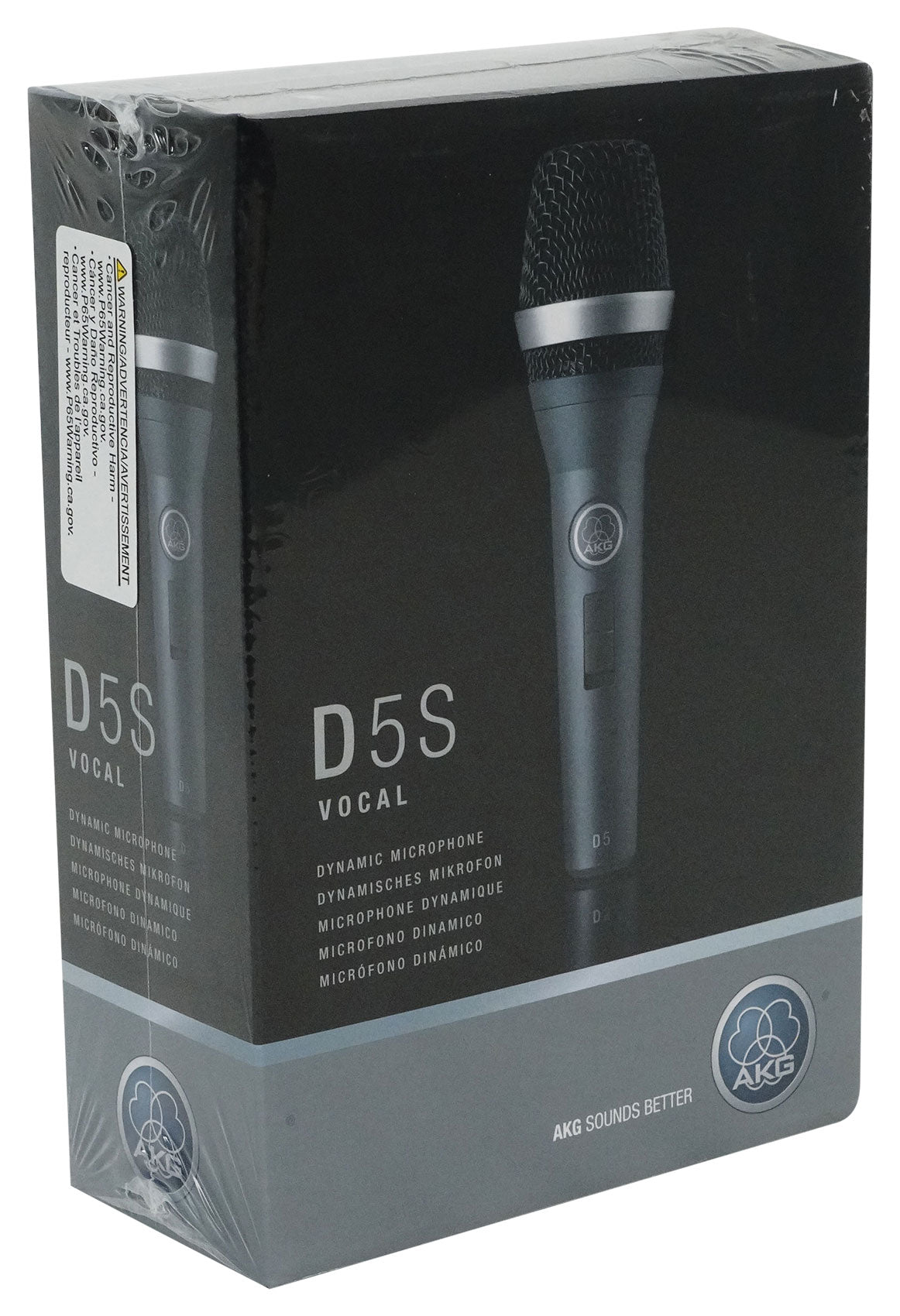

- (1) D5S Dynamic Vocal Microphone
- (1) SA61 Stand Adaptor

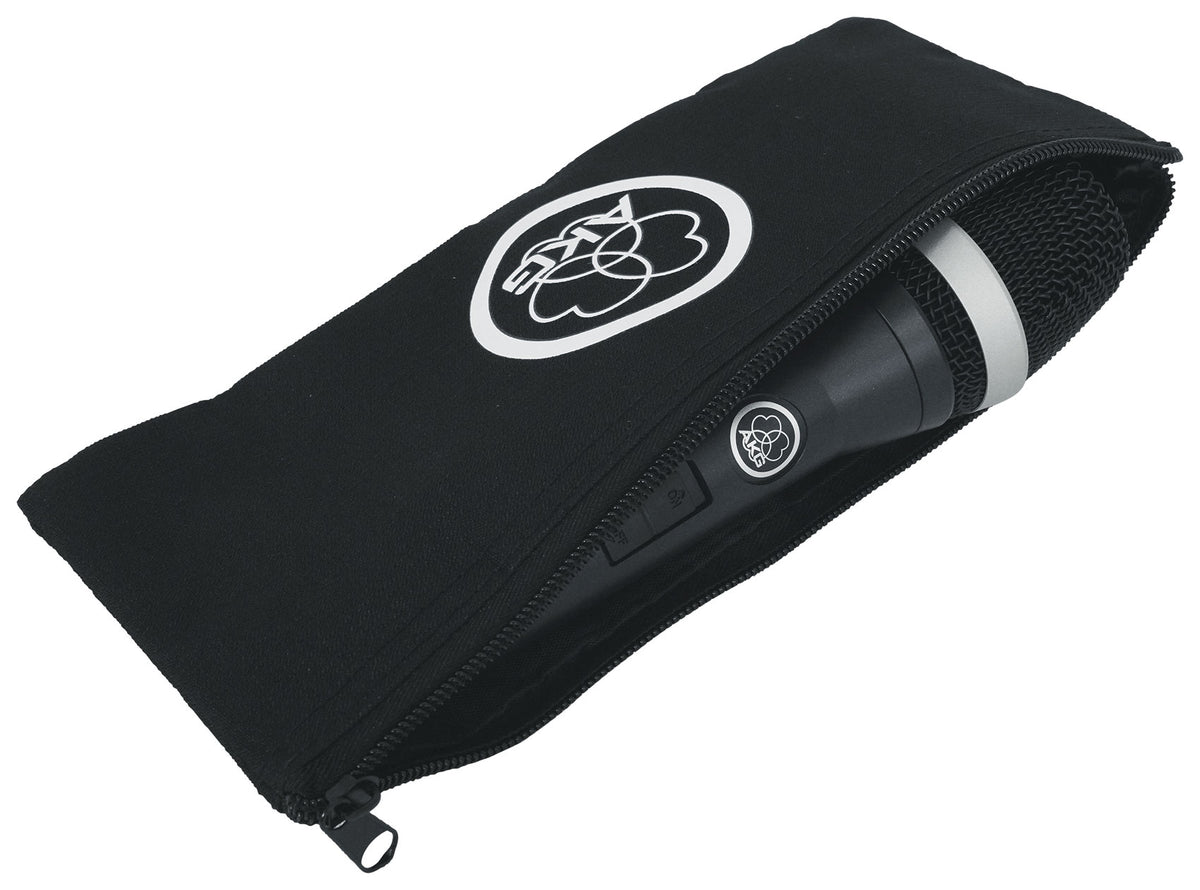

- (1) Microphone Bag
SKU: SKU: 1642VLZ4+D5S
View full details
















Product Description
Features
Input Detail
Ten mic preamps with a 60 dB gain range and 128.5 dB dynamic range give engineers clear control over varied microphones and input sources.
Routing Options

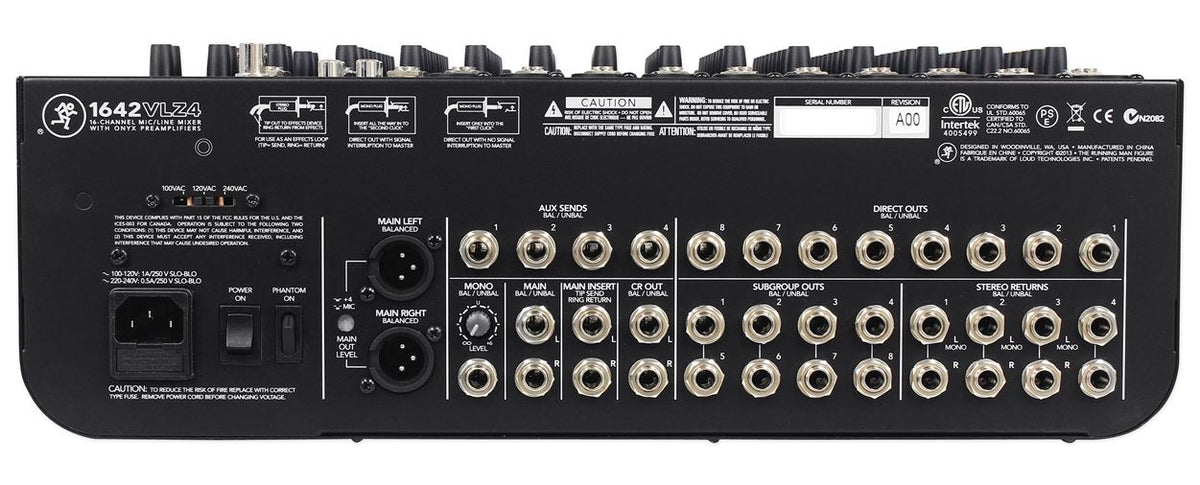

Sixteen line inputs with +4/-10 operation control, four aux sends and four stereo returns support monitor mixes, effects and connected stereo sources.
Hands-On Tone Shaping
Three-band EQ, 75 Hz mic-channel low-cut filters and 60 mm faders give you direct tone and level control while mixing.
Clear Level Checks
Twelve-segment stereo meters and high-contrast knobs make level changes and control positions easier to read in low-light settings during live work.
Stage-Ready Mic

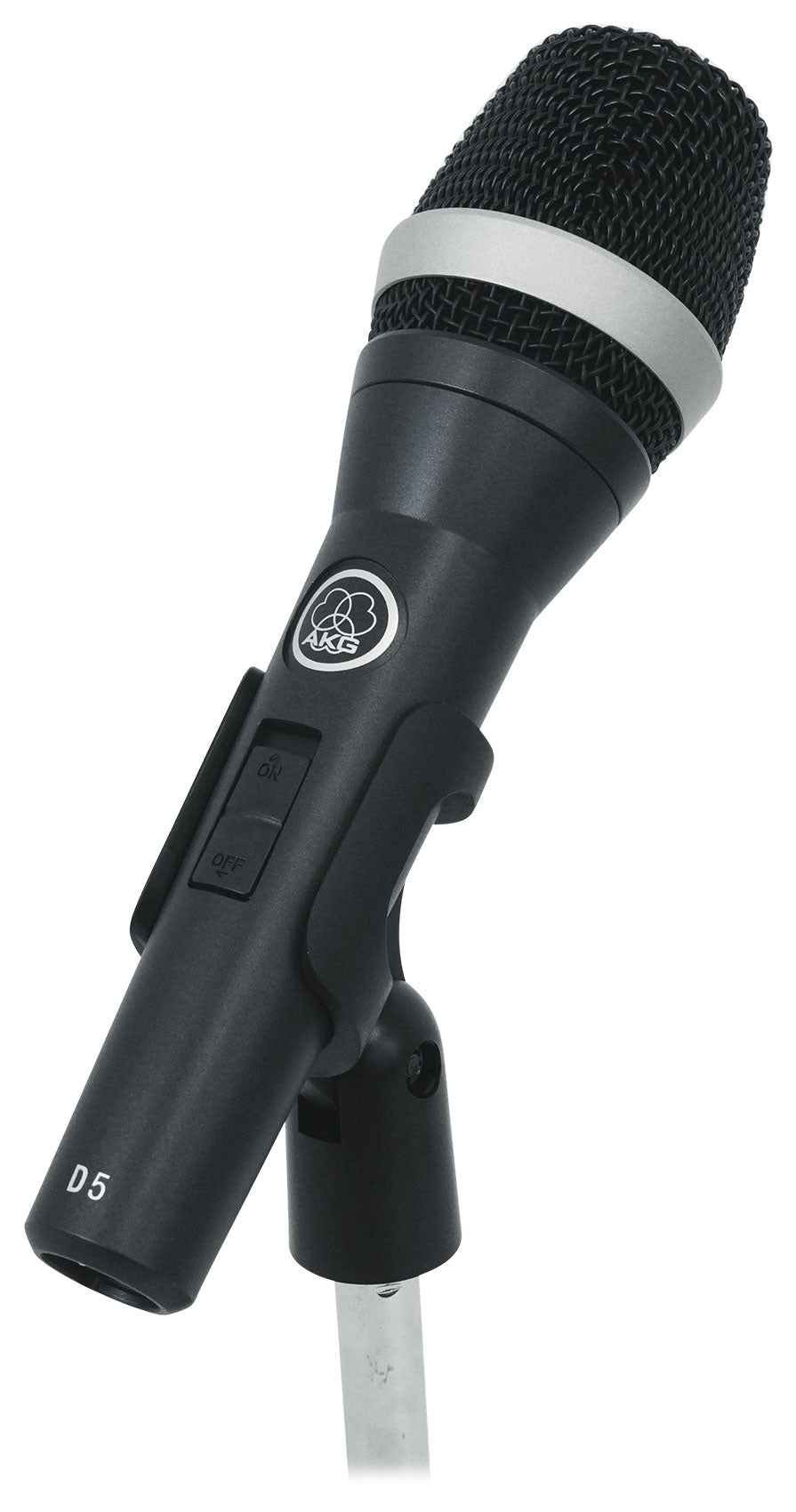

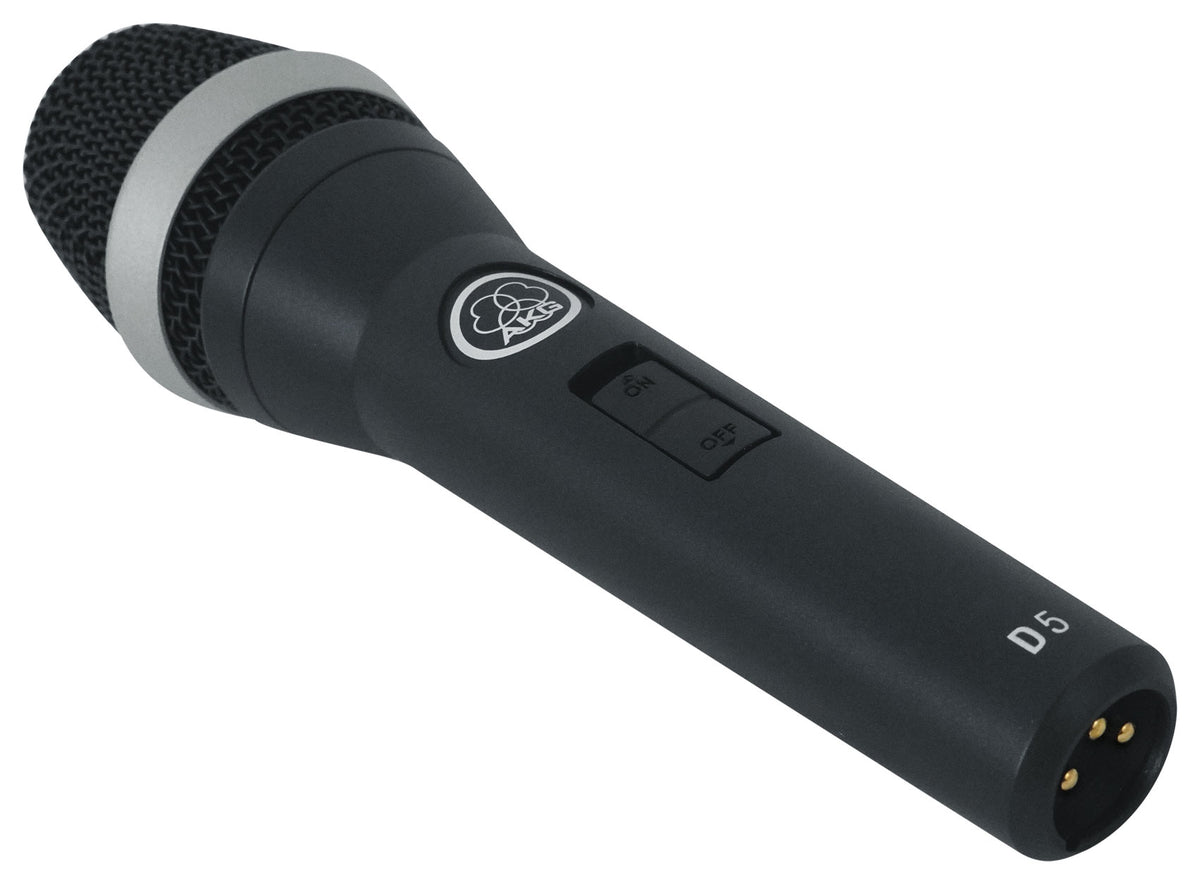

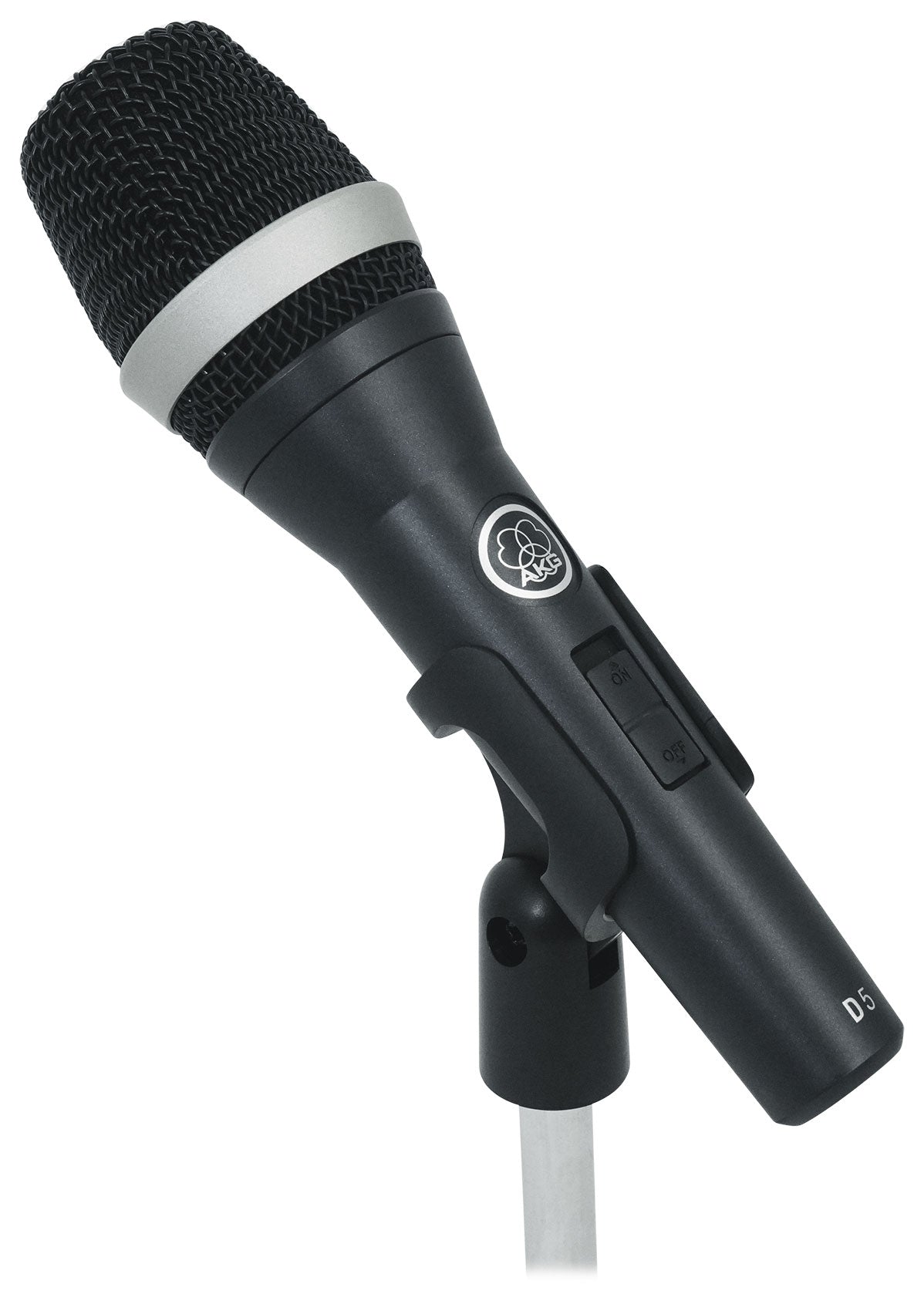

The included D5S dynamic vocal mic pairs a noiseless on/off switch, dual shock mount, integrated pop filter, metal body, stand adaptor and microphone bag for live use.
Technical Specifications
- Product Type 16-channel compact analog mixer and dynamic vocal microphone bundle
- Channel Count 16-channel mixer
- Microphone Preamps 10
- Microphone Gain Range 60 dB
- Dynamic Range 128.5 dB
- Line Inputs 16 high-headroom line inputs with +4/-10 operation control
- Line Input Handling +22 dBu
- Distortion Under 0.0007% (20 Hz to 50 kHz)
- Aux Sends 4
- Stereo Returns 4
- EQ 3-band (80 Hz, 2.5 kHz, 12 kHz)
- Mic Input Low-Cut Filter 75 Hz, 18 dB/oct
- Fader Travel 60 mm
- Stereo Meters 12-segment
- Microphone Audio Frequency Bandwidth 70 Hz to 20,000 Hz
- Microphone Sensitivity 2.6 mV/Pa
- Microphone Electrical Impedance 600 Ohms
- Microphone Recommended Load Impedance 2,000 Ohms

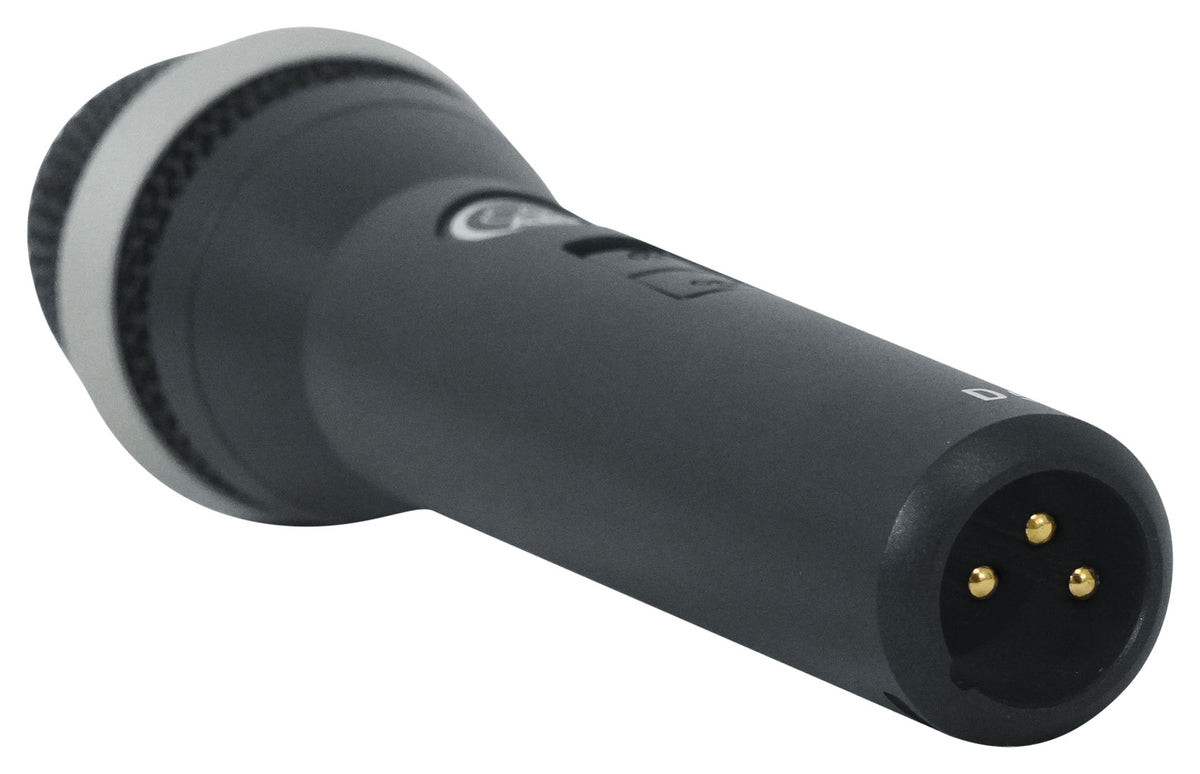

- Microphone Audio Output Balanced XLR, male, 3-pin
- Microphone Body Metal
- Microphone Finish Dark stage blue
- Weight 320 g (microphone)
- Dimensions 185 mm length, 51 mm diameter (microphone)
