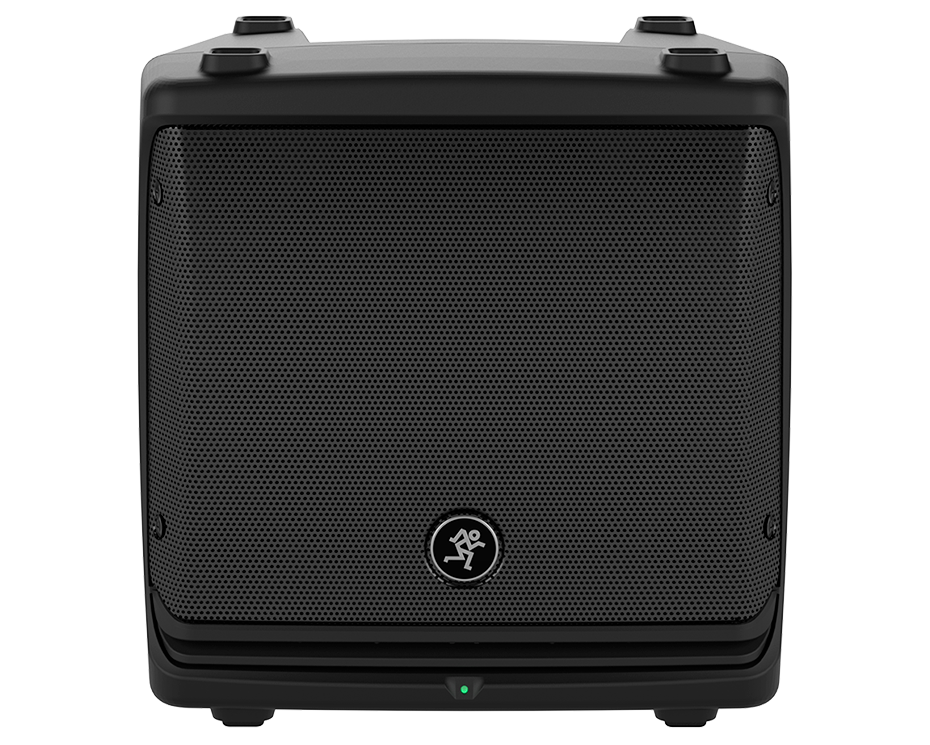

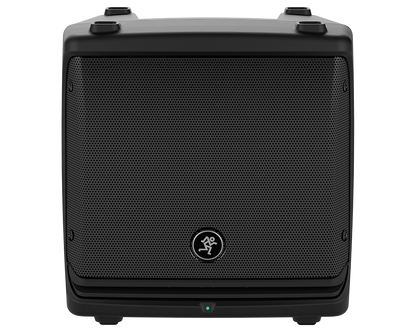

MACKIE
DLM8
DLM8
8" Powered Loudspeaker, 2000W Peak, TruSource Driver, DL2 Digital Mixer, 16 Effects, 22 lb Cabinet
Free Shipping
Features
- 2000W peak Class-D power in a cabinet a third smaller than a typical two-way
- TruSource driver pairs an 8" woofer and 1.75" compression driver on one magnet
- DL2 digital mixer with two input channels, 3-band EQ, and 16 onboard effects
- Multi-band feedback destroyer and six speaker modes for tricky rooms
- 22 lb PC-ABS cabinet with an integrated kickstand for monitor use
Couldn't load pickup availability
What's Included in the box

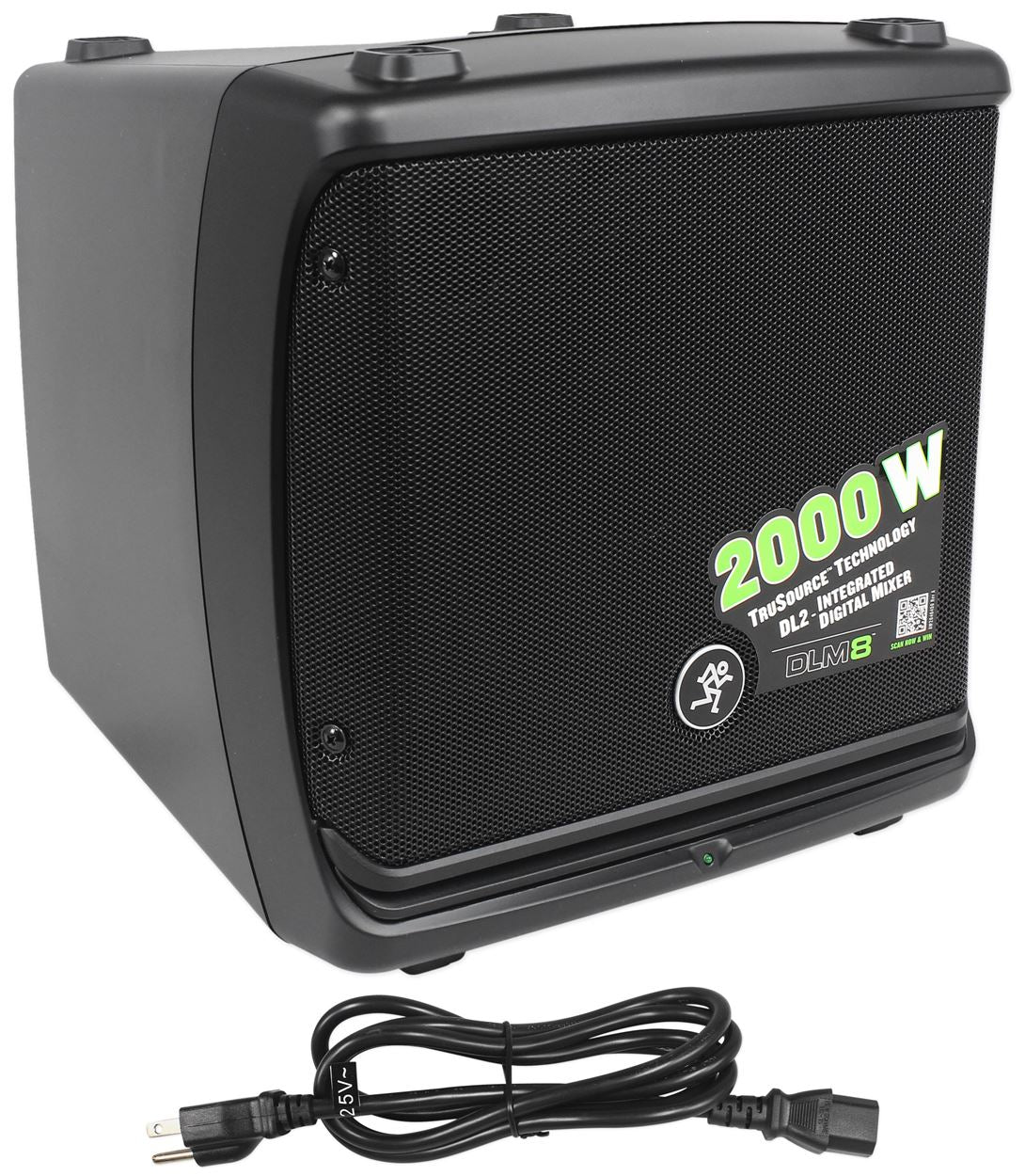

- DLM8 8" Powered Loudspeaker

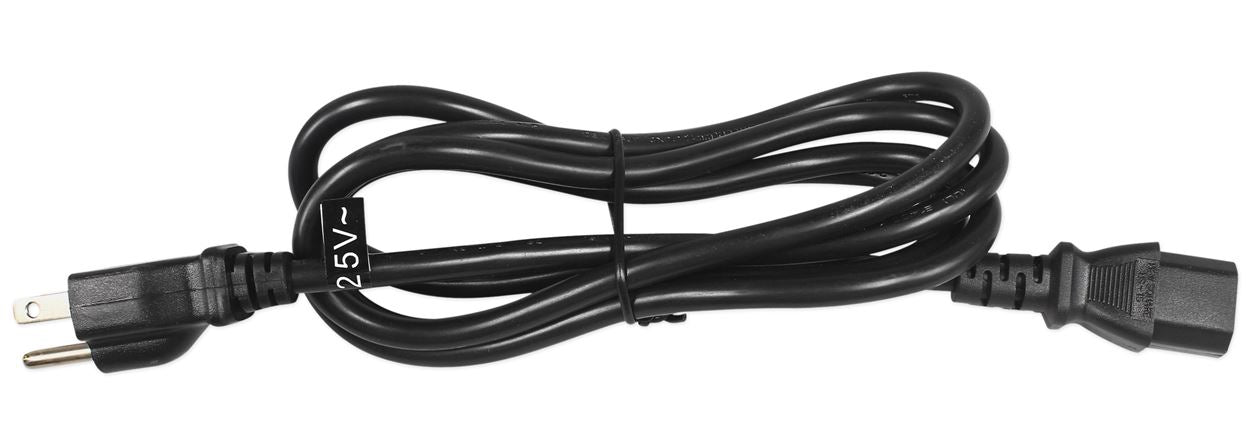

- IEC Power Cable
SKU: SKU: DLM8
View full details



Product Description

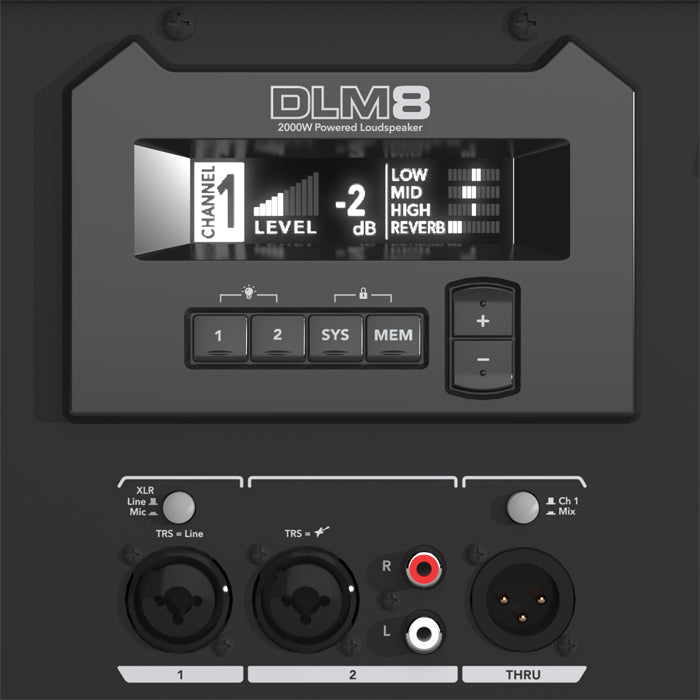

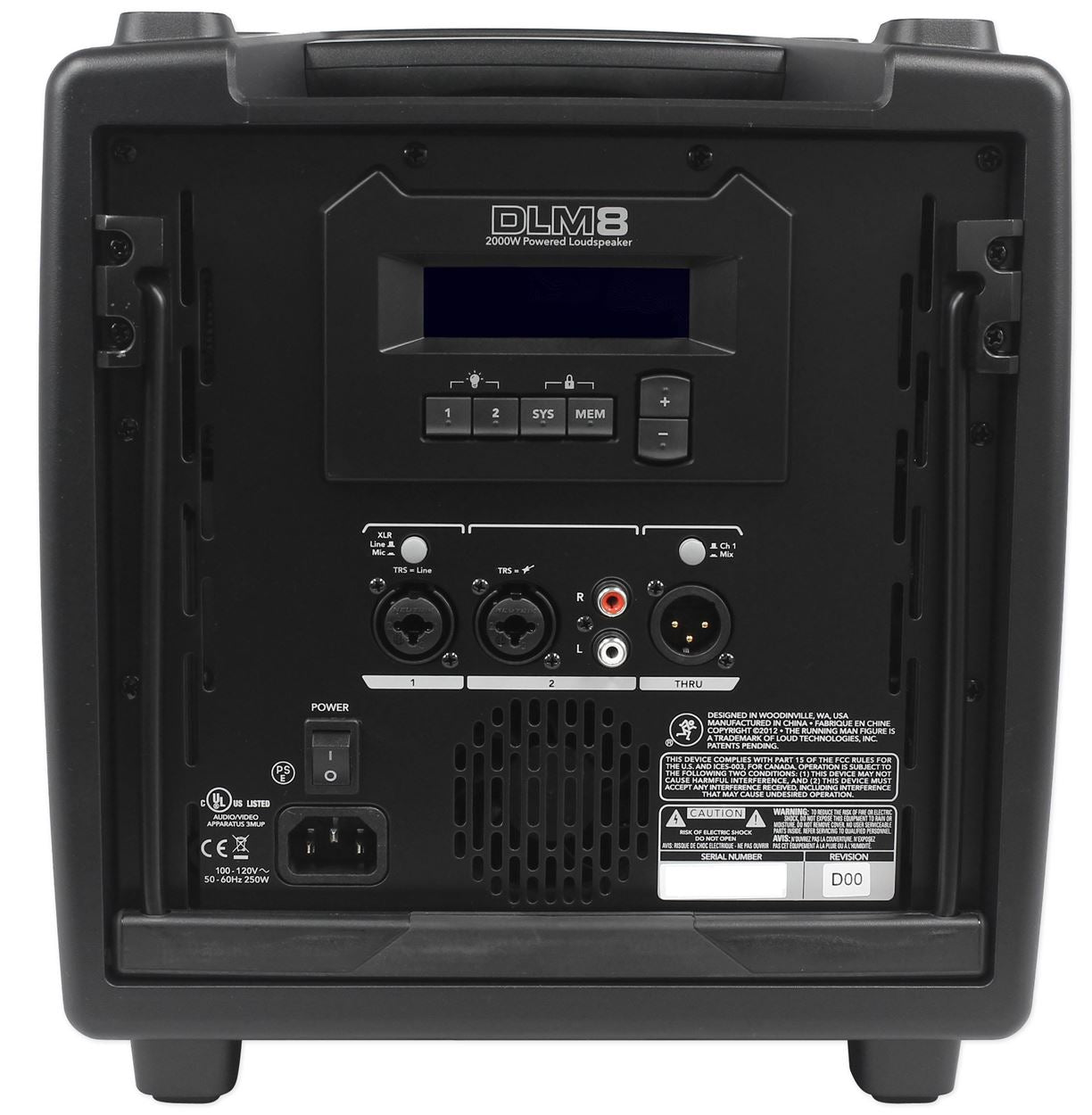

The built-in DL2 digital mixer turns the DLM8 into a two-channel PA on its own. Each channel has XLR/TRS combo and RCA connections, level, 3-band EQ, and a choice of 16 effects including reverb, chorus, and delay, all set from a bright OLED screen. A multi-band feedback destroyer keeps ringing out of the room, six speaker modes match the voicing to the application, alignment delay up to 300 ms lines up a delay stack or balcony fill, and three memory slots recall your settings for rooms you play often. Smart Protect DSP watches the amp and driver so hard nights do not turn into repairs.
At 22 lb in a PC-ABS cabinet with a powder-coated steel grille, one person can load a full DLM system into a compact car. Pole-mount it on a tripod, fly it on M10 hardware, wall-mount it with the SWM300 arm, or stand it up as a personal monitor.
Features
-
Full Range From One Driver
The TruSource common-magnet design aligns the 8" woofer and 1.75" compression driver vertically, so coverage stays consistent as your audience moves around the room.
-
Big Output, Small Footprint
2000W of peak Class-D power comes from a cabinet a third the size of a traditional two-way, so an entire system fits in a compact car.
-
A PA Inside The Speaker
The onboard DL2 mixer takes two inputs with level, 3-band EQ, and 16 effects, running a solo gig or a panel talk without a separate mixer.
-
Control For Real Venues
A multi-band feedback destroyer, six voicing modes, and 300 ms of alignment delay let you tune for the room, then recall it from three memory slots.
-
Set It Up Anywhere
At 22 lb the cabinet pole-mounts, flies on M10 hardware, wall-mounts with the SWM300 arm, or tilts back on its kickstand as a stage monitor.
Technical Specifications
- Product Type 8" Full-Range Powered Loudspeaker
- Amplification Class-D
- Power 2000W Peak / 1000W RMS
- LF Driver 8" Woofer
- HF Driver 1.75" Compression Driver
- Driver Design TruSource Common-Magnet
- Onboard Mixer DL2 Two-Channel Digital Mixer With OLED Screen
- Channel EQ 3-Band
- Effects 16 Channel Effects
- Inputs XLR/TRS Combo, Dual RCA
- Speaker Modes 6
- Alignment Delay Up To 300 ms
- Memory Presets 3
- Cabinet PC-ABS With Powder-Coated 20-Gauge Steel Grille
- Mounting Pole Mount, M10 Rigging, Optional SWM300 Wall Arm, Integrated Kickstand
- Weight 22 lb
