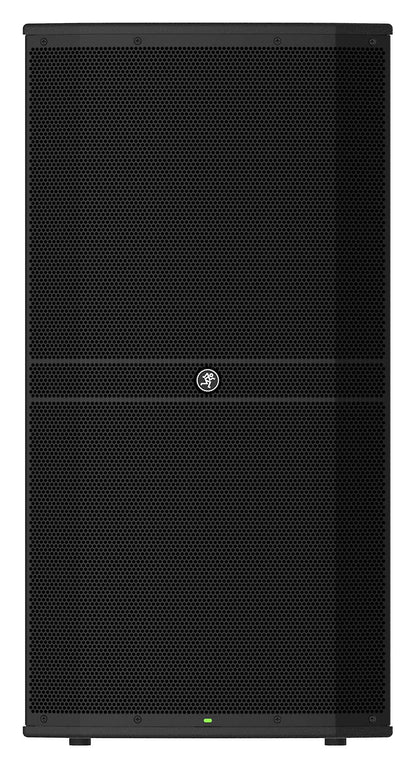

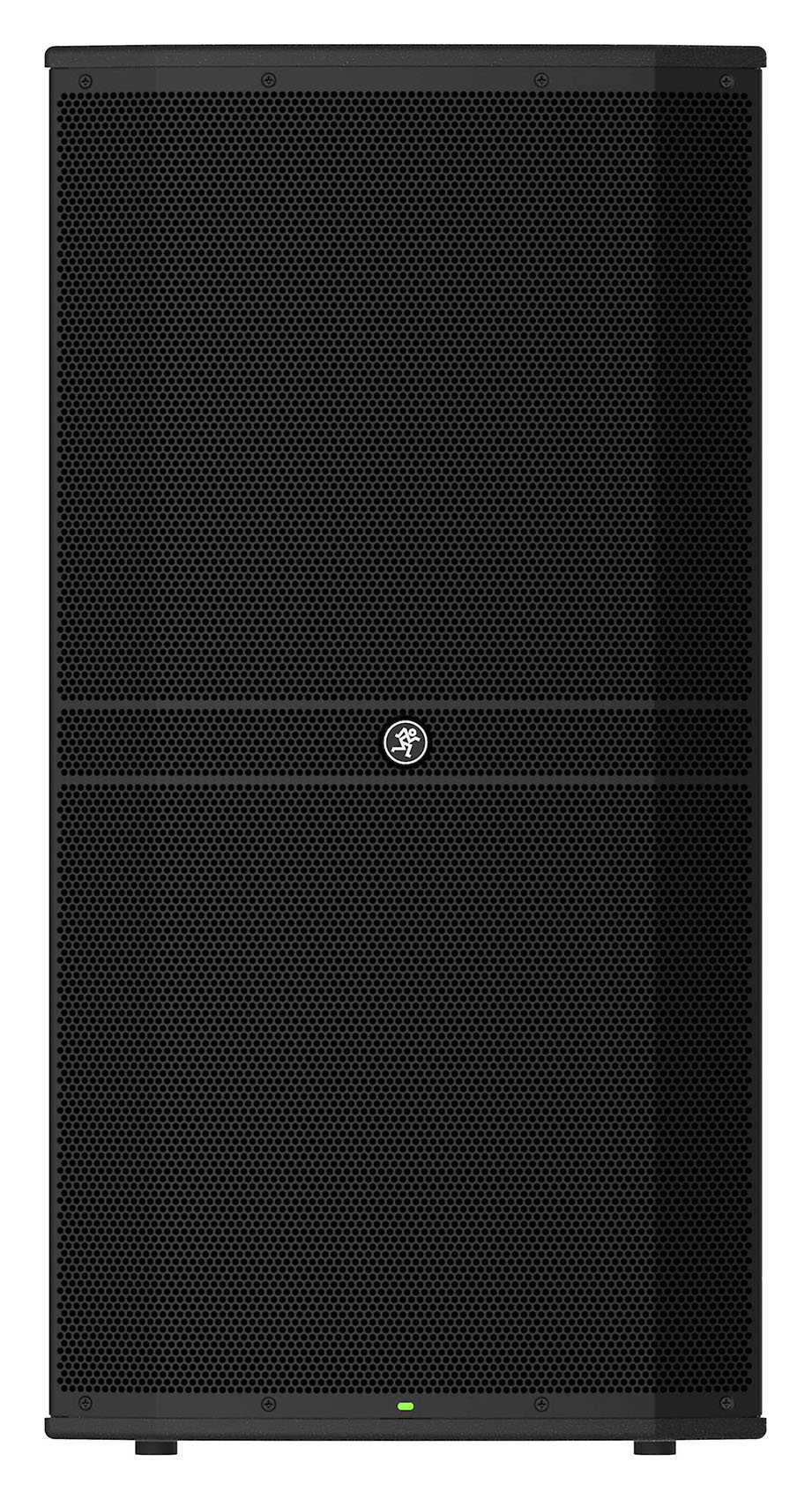

DRM315 Powered PA Speaker with D5 S Vocal Microphone
MACKIE
DRM315 Powered PA Speaker with D5 S Vocal Microphone
DRM315 Powered PA Speaker with D5 S Vocal Microphone
3-Way, 2,300W Speaker, 15-Inch Woofer, Supercardioid Vocal Mic
Free Shipping
Features
- 2,300W 3-way powered PA speaker built for live sound and DJ playback
- 15-inch high-excursion woofer and 1.4-inch titanium compression driver
- Two mic and line inputs plus 1/8-inch stereo aux
- Live, monitor, club, and sub voicings with 3-band EQ and six presets

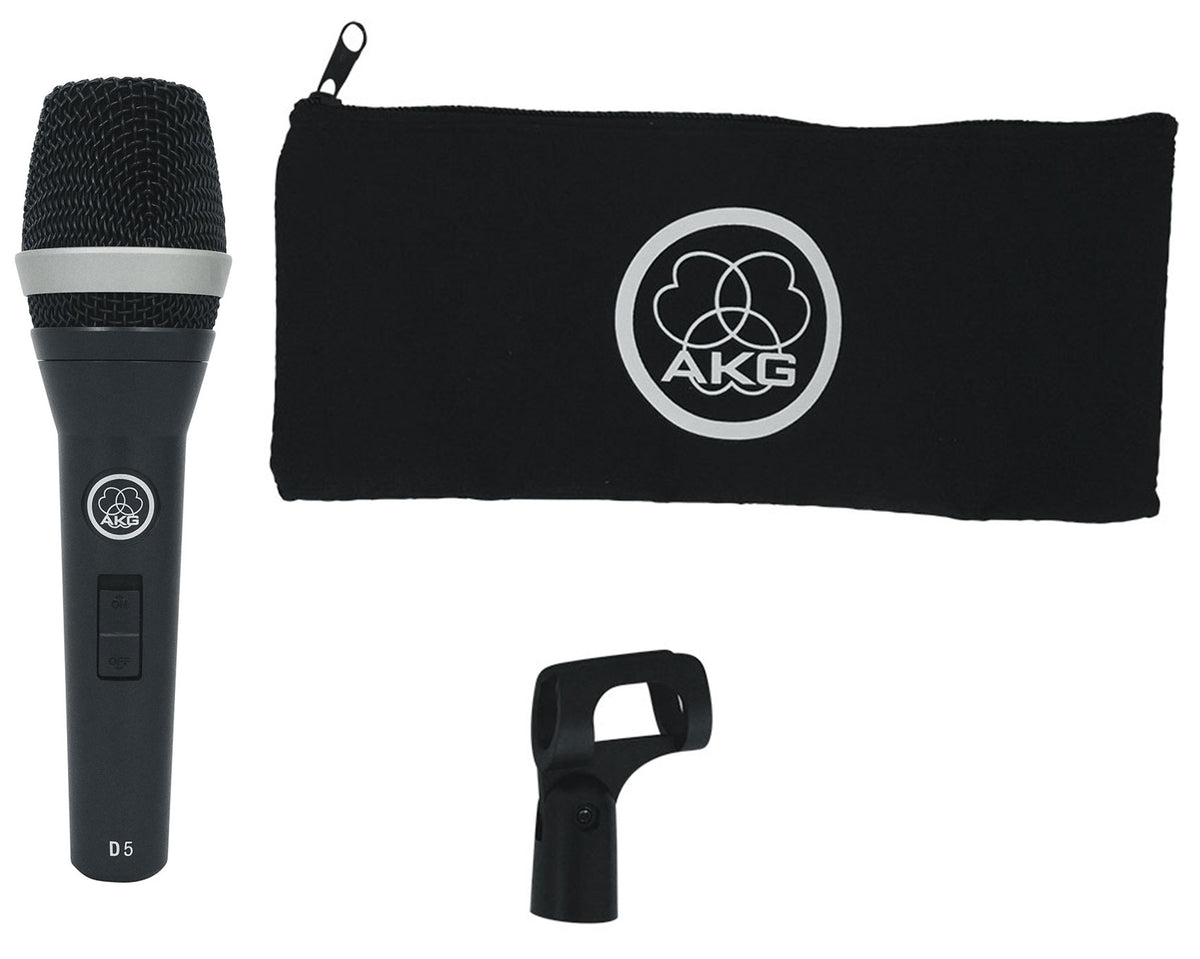

- Bonus D5 S vocal mic, SA61 stand adaptor, and microphone bag
Couldn't load pickup availability

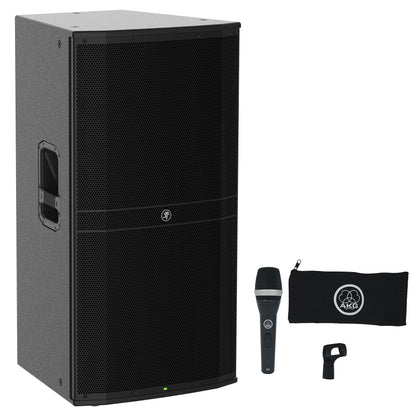

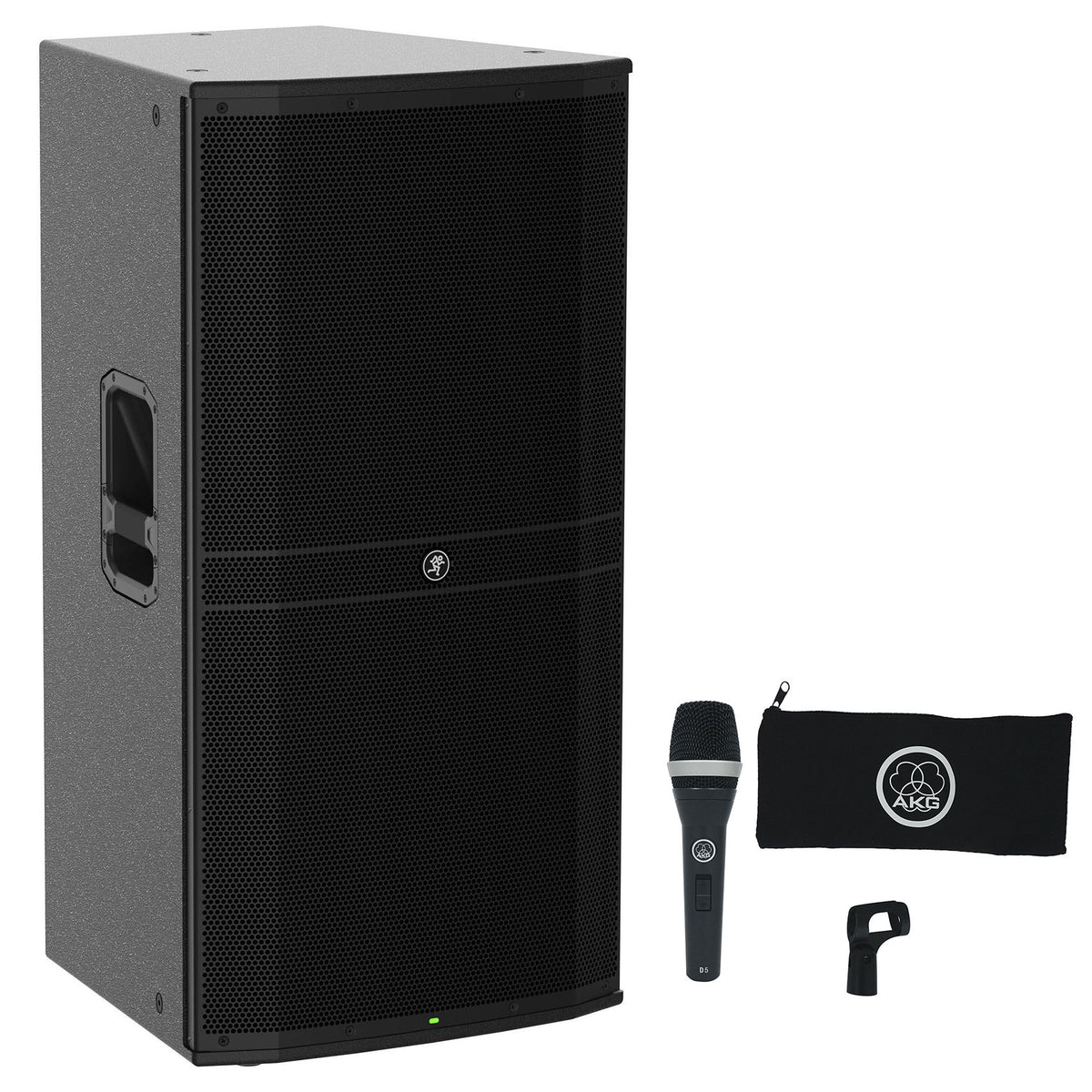

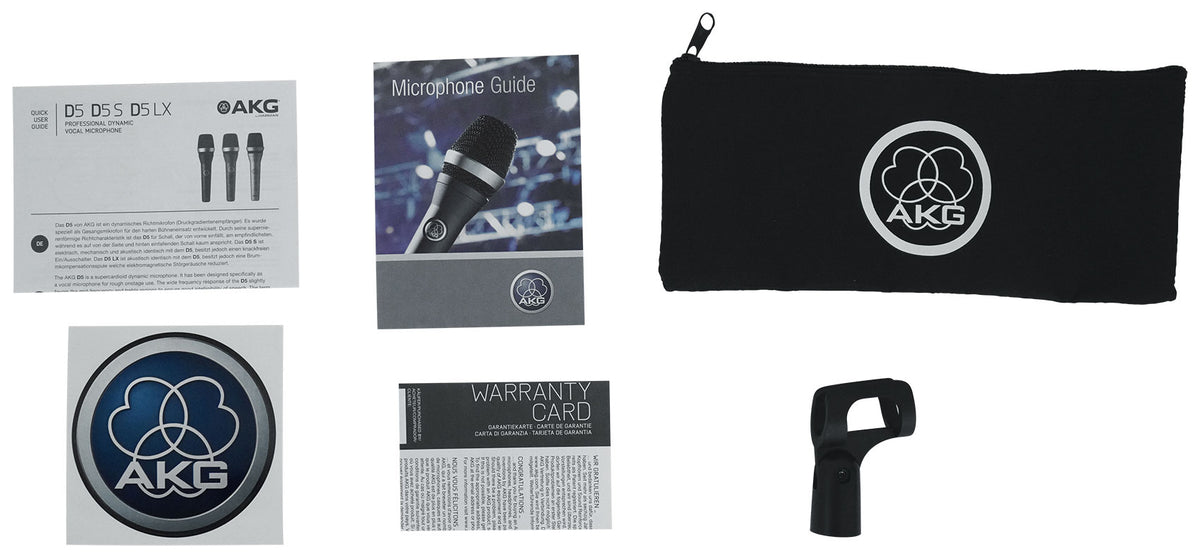

What's Included in the box
- DRM315 powered PA speaker (1)

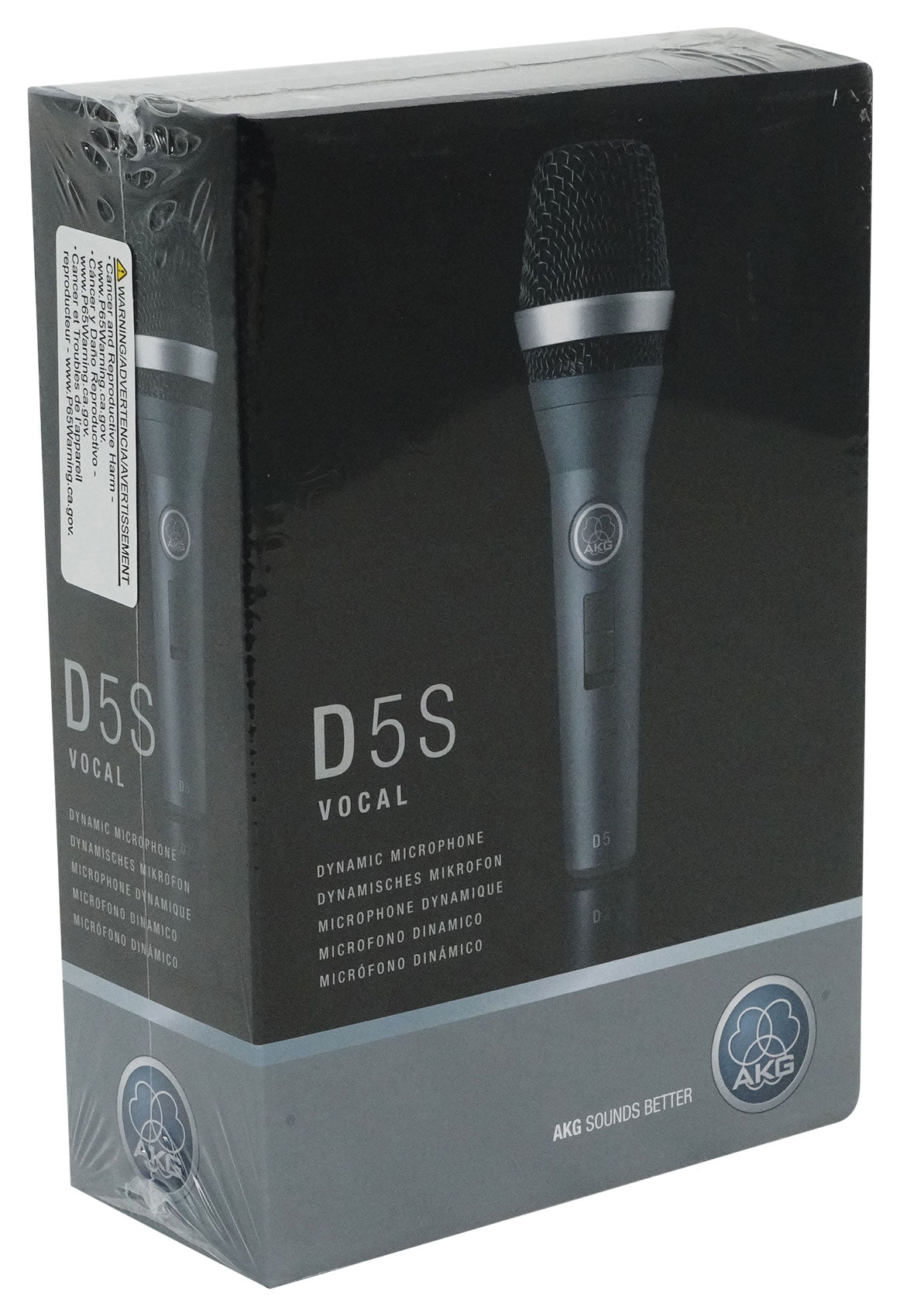

- D5 S vocal microphone (1)
- SA61 stand adaptor (1)

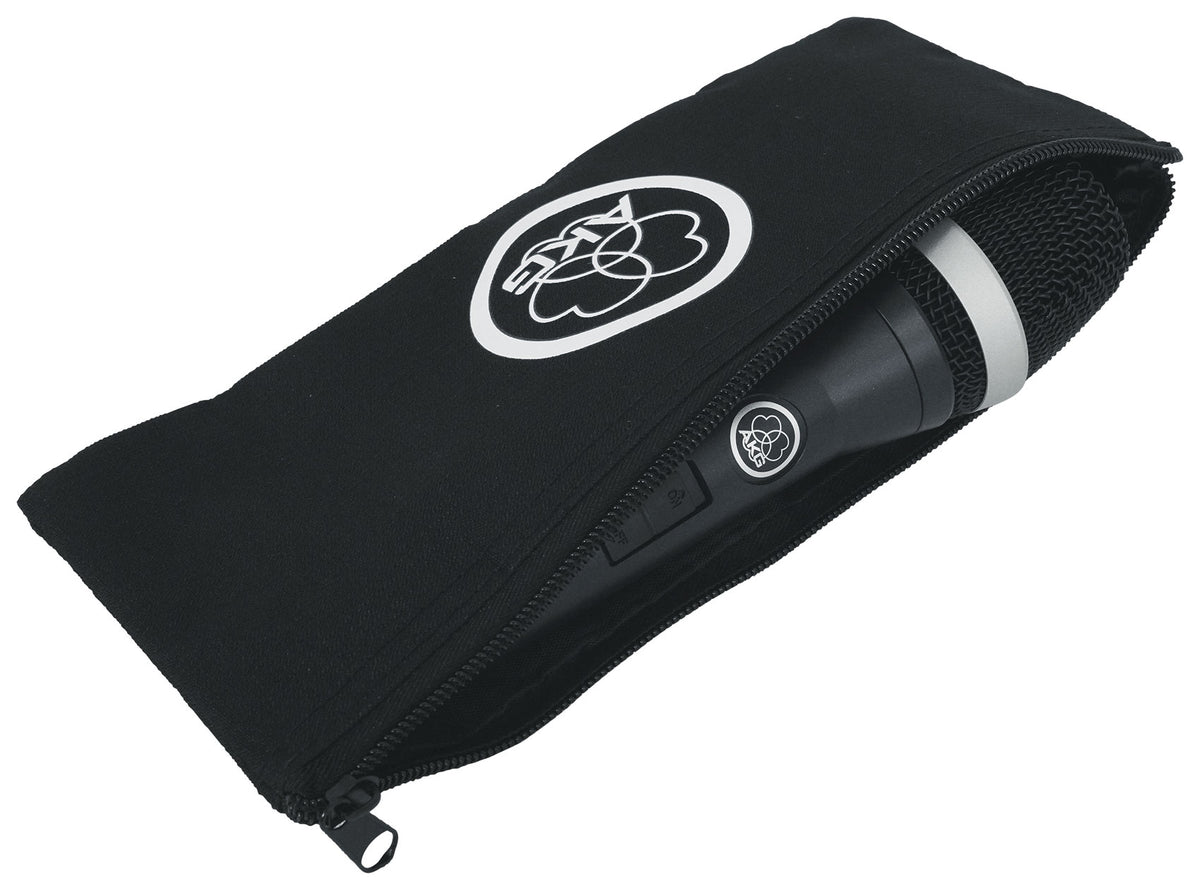

- Microphone bag (1)
SKU: SKU: DRM315+D5S
View full details

















Product Description
Features
Full-Range Live Sound

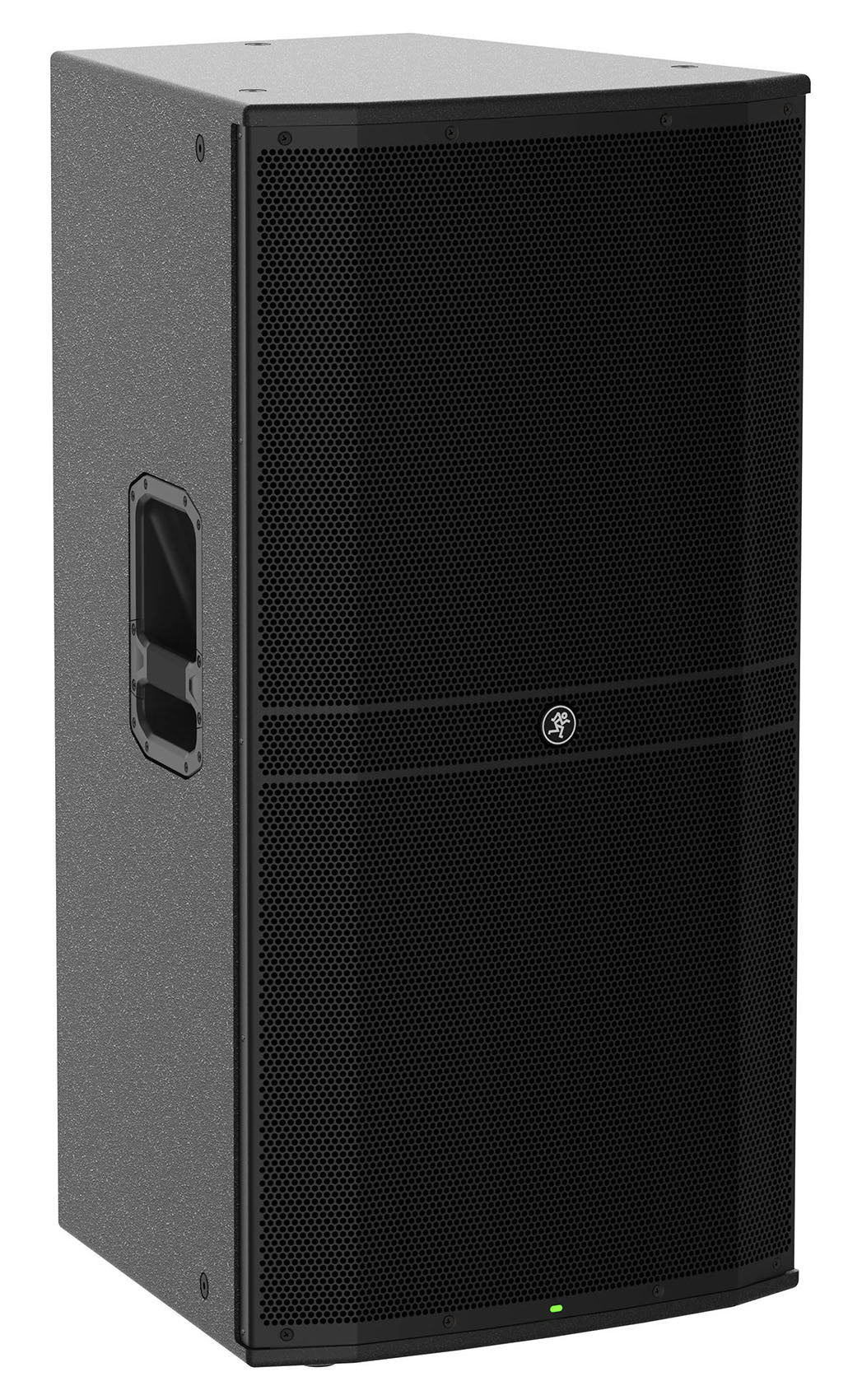

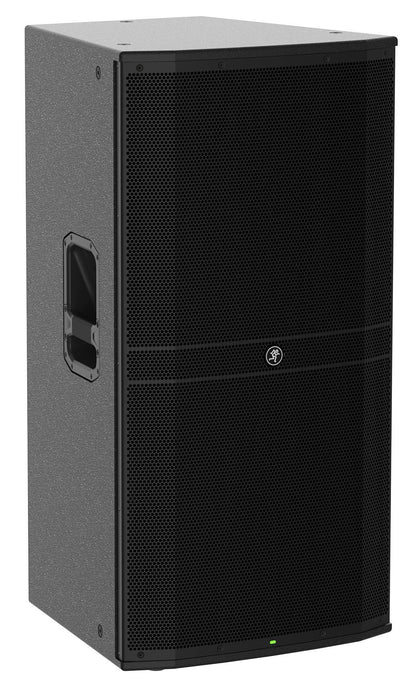

The 2,300W, 3-way powered design pairs a 15-inch woofer with a 1.4-inch titanium compression driver for speech and music coverage at live events.
Clearer Midrange Detail
Linear-phase FIR filtering and precision crossovers help limit phase issues and muddy midrange, keeping vocals and playback sources distinct across the speaker frequency range.
Quick Venue Adjustments
Live, monitor, club, and sub voicings pair with a 3-band parametric EQ, letting operators tailor playback to room, stage, or DJ use.
Flexible Source Connections
Two independent mic and line inputs plus a dedicated 1/8-inch stereo aux input let performers and playback devices connect directly.
Bonus Vocal Mic Included

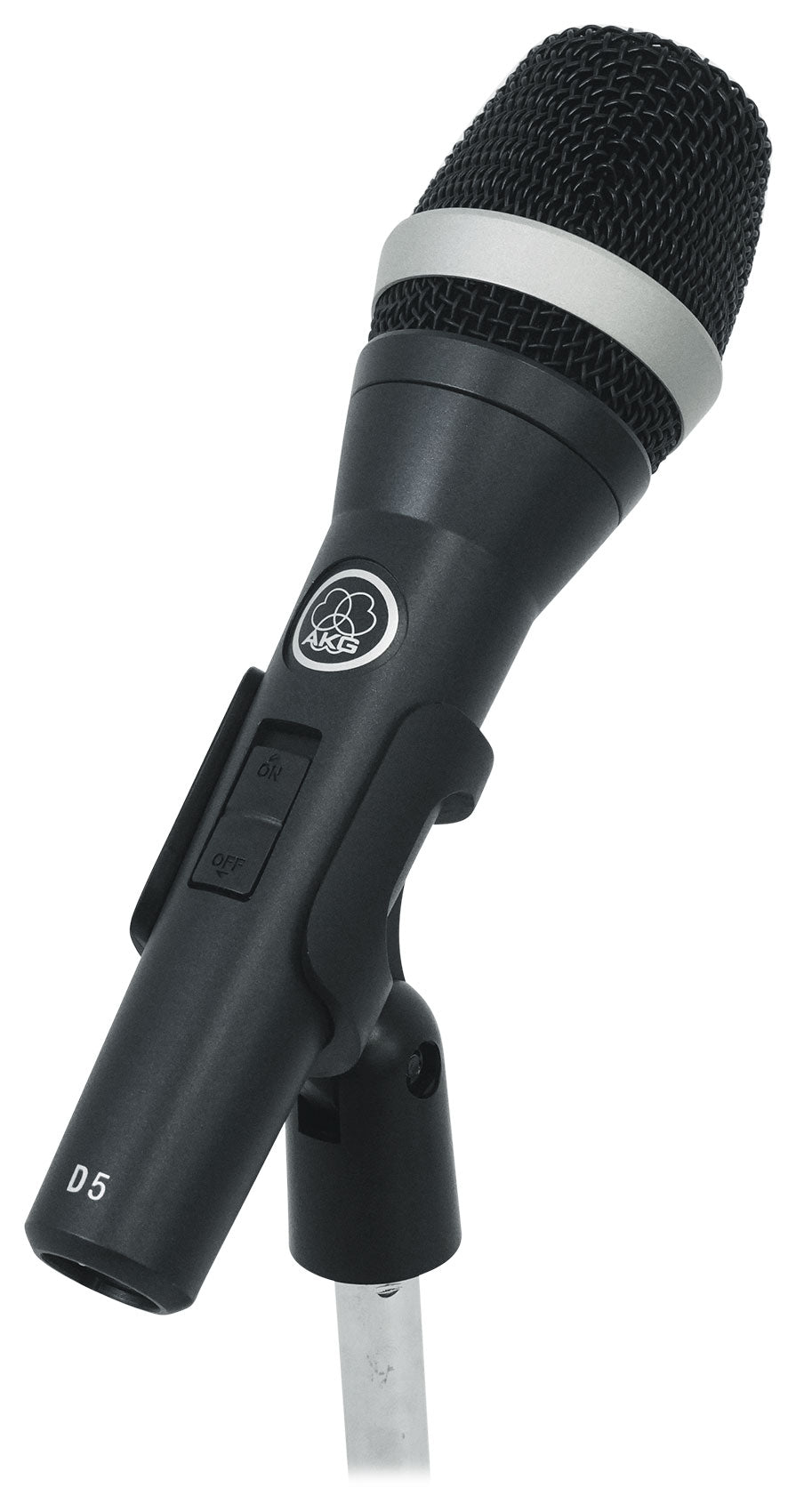

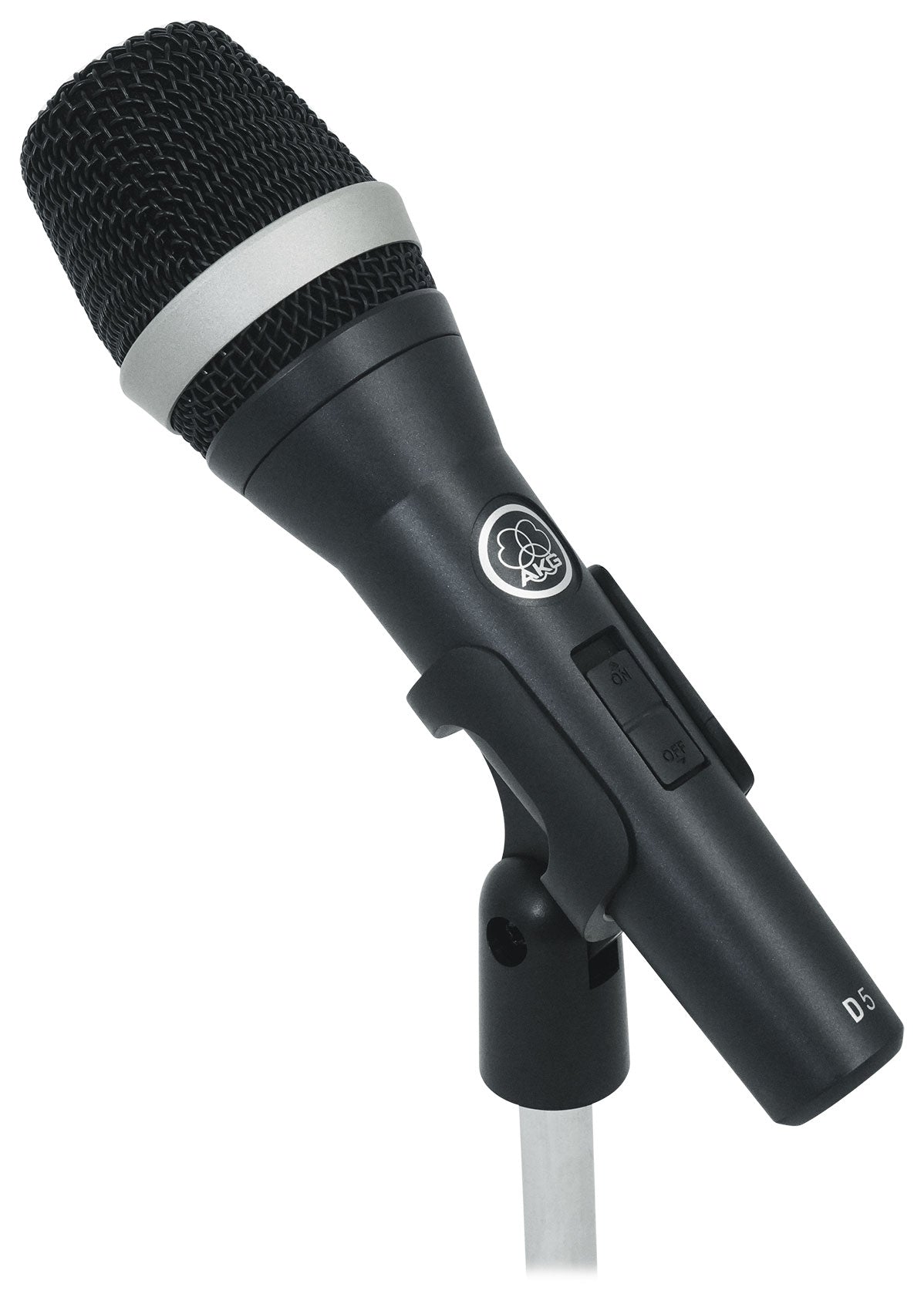

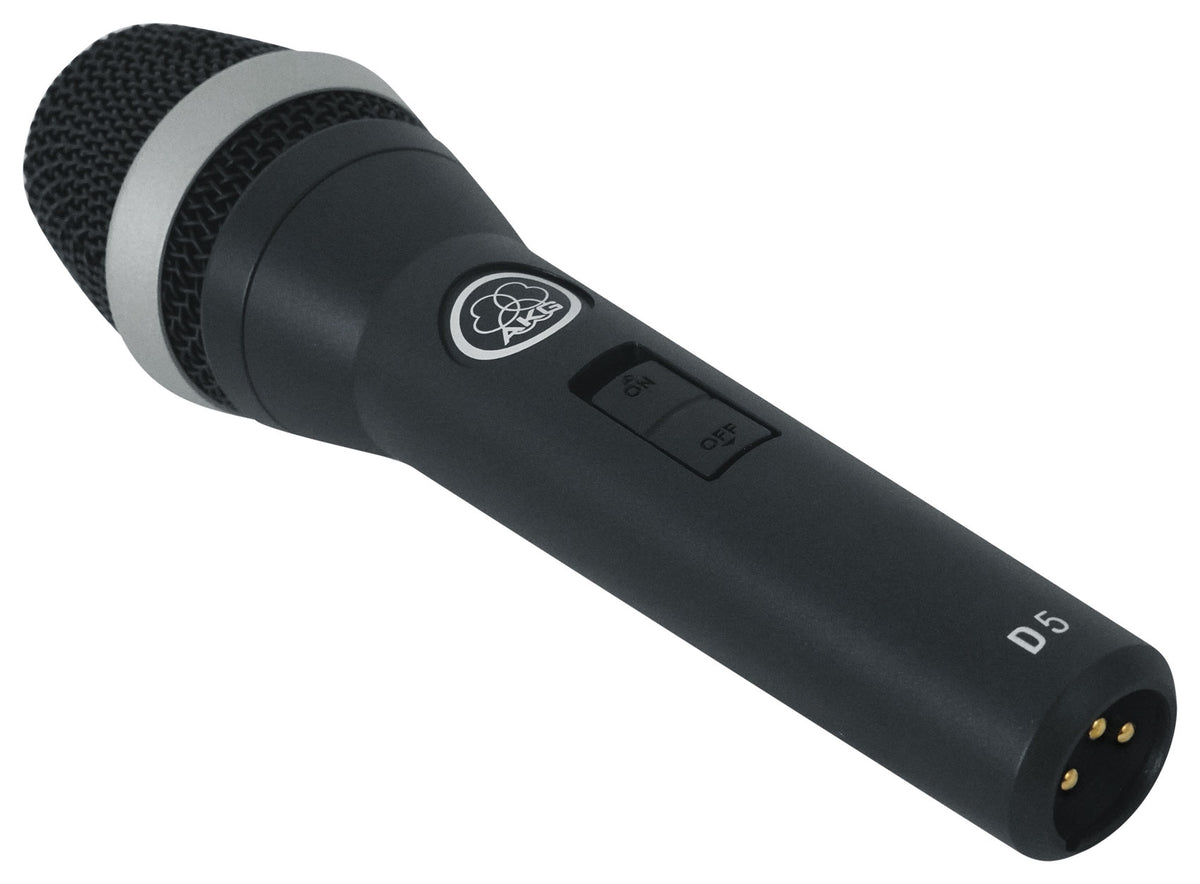

A D5 S dynamic microphone with noiseless on/off switch, stand adaptor, and bag adds a lead-vocal option to the PA bundle.
Technical Specifications
- Product Type 3-way powered PA speaker with vocal microphone
- Power Configuration Single Amp
- LF Driver Size 15" woofer
- Mid Driver Size 6.5" midrange
- HF Driver Size 1.4" titanium compression driver
- LF Driver Power Amp 2300W Class D
- Total Power 2300W

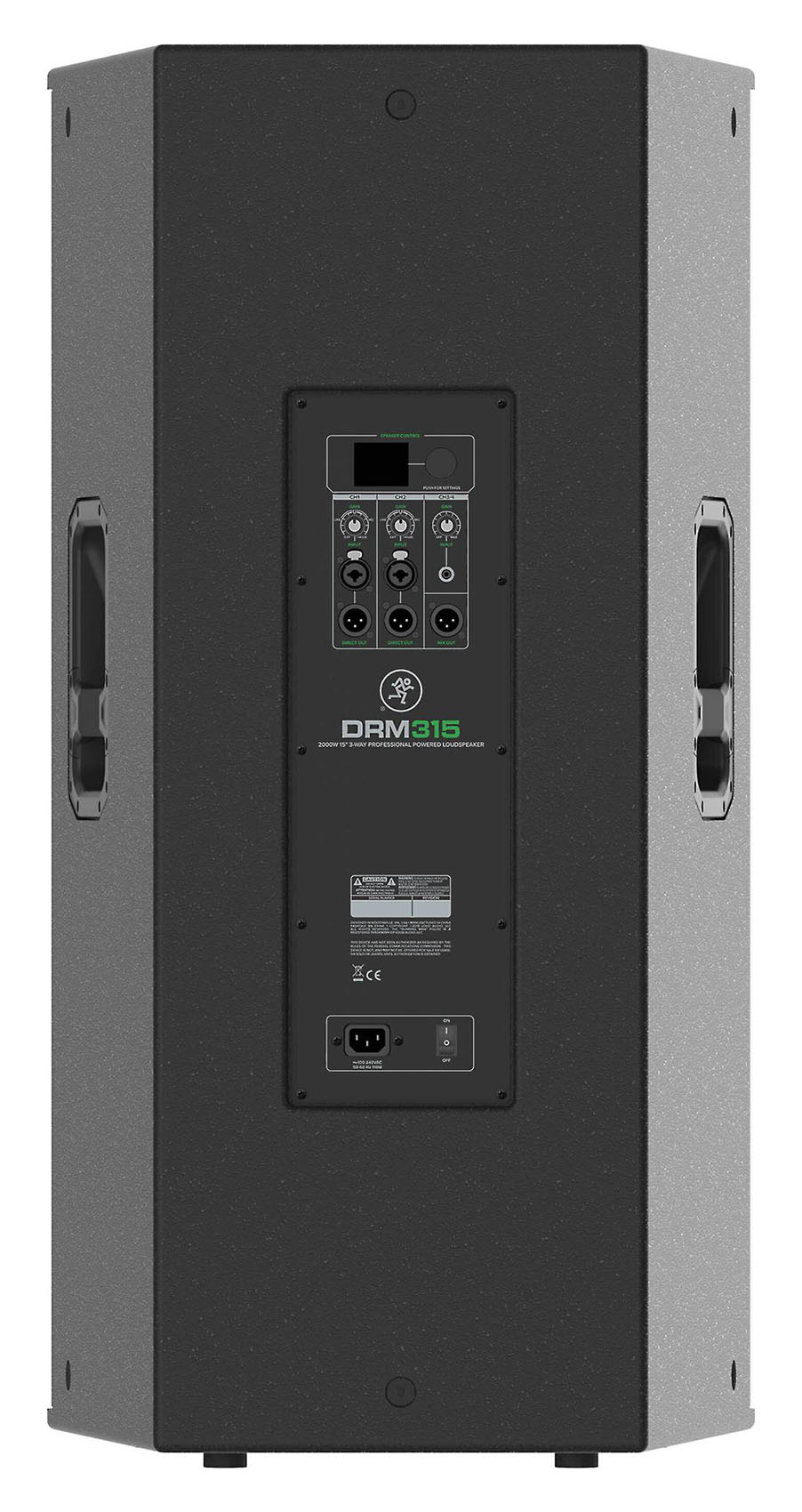

- Inputs 1 x 1/8" stereo aux, 2 x mic/line
- Outputs 3 x 3-pin XLR
- Frequency Range 35Hz-20khz (-10 dB)
- Maximum Peak SPL 137dB
- Signal Processing DSP Presets, 3-band EQ, delay
- Enclosure Material 15mm plywood cabinet with textured coating, powder-coated heavy gauge steel grille

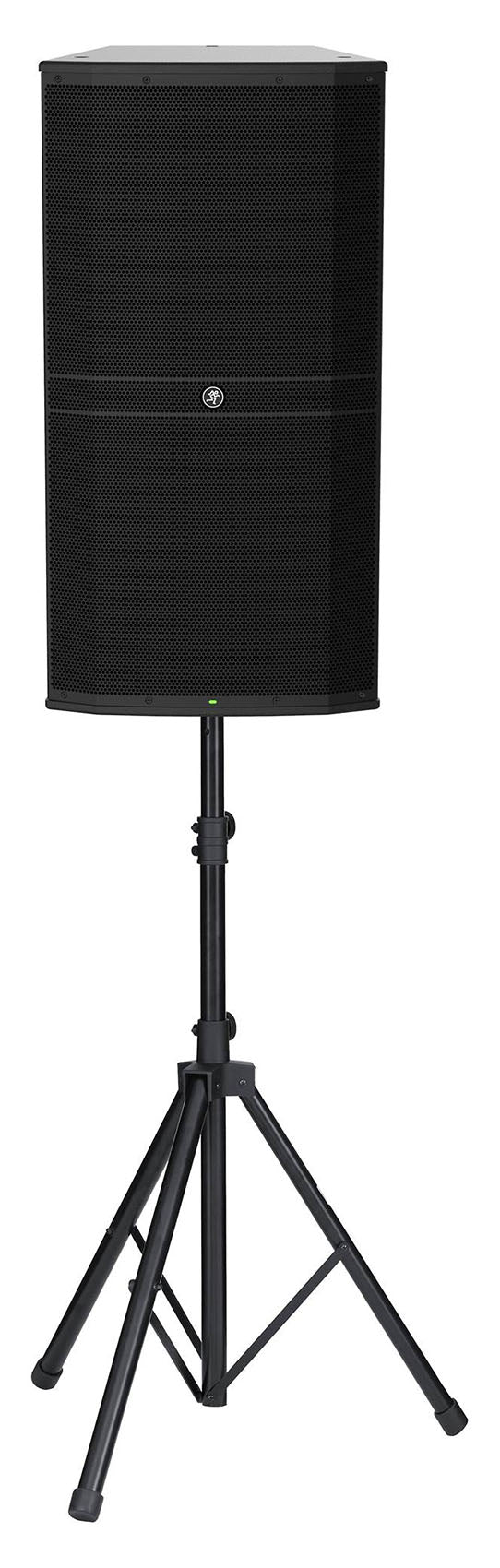

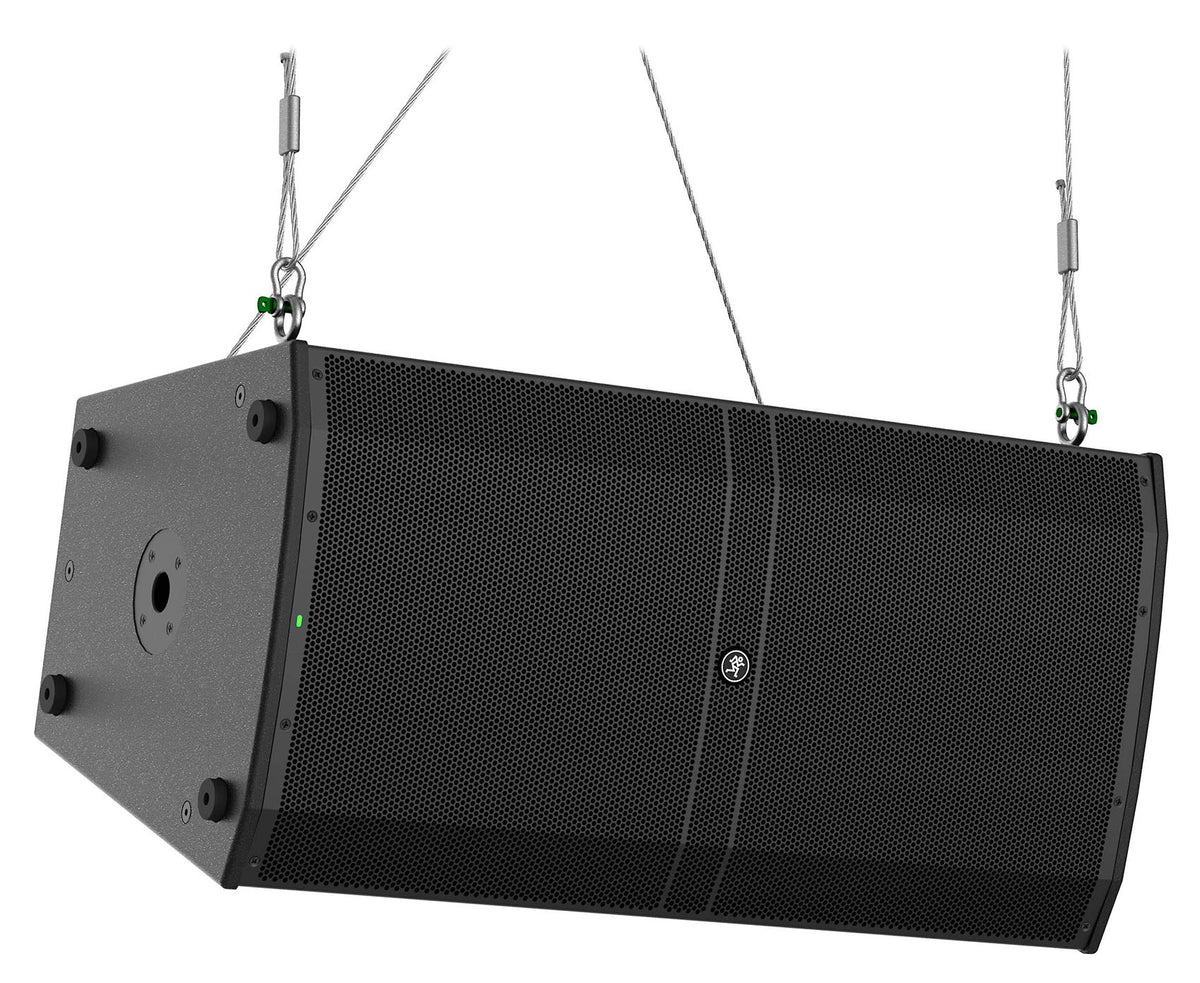

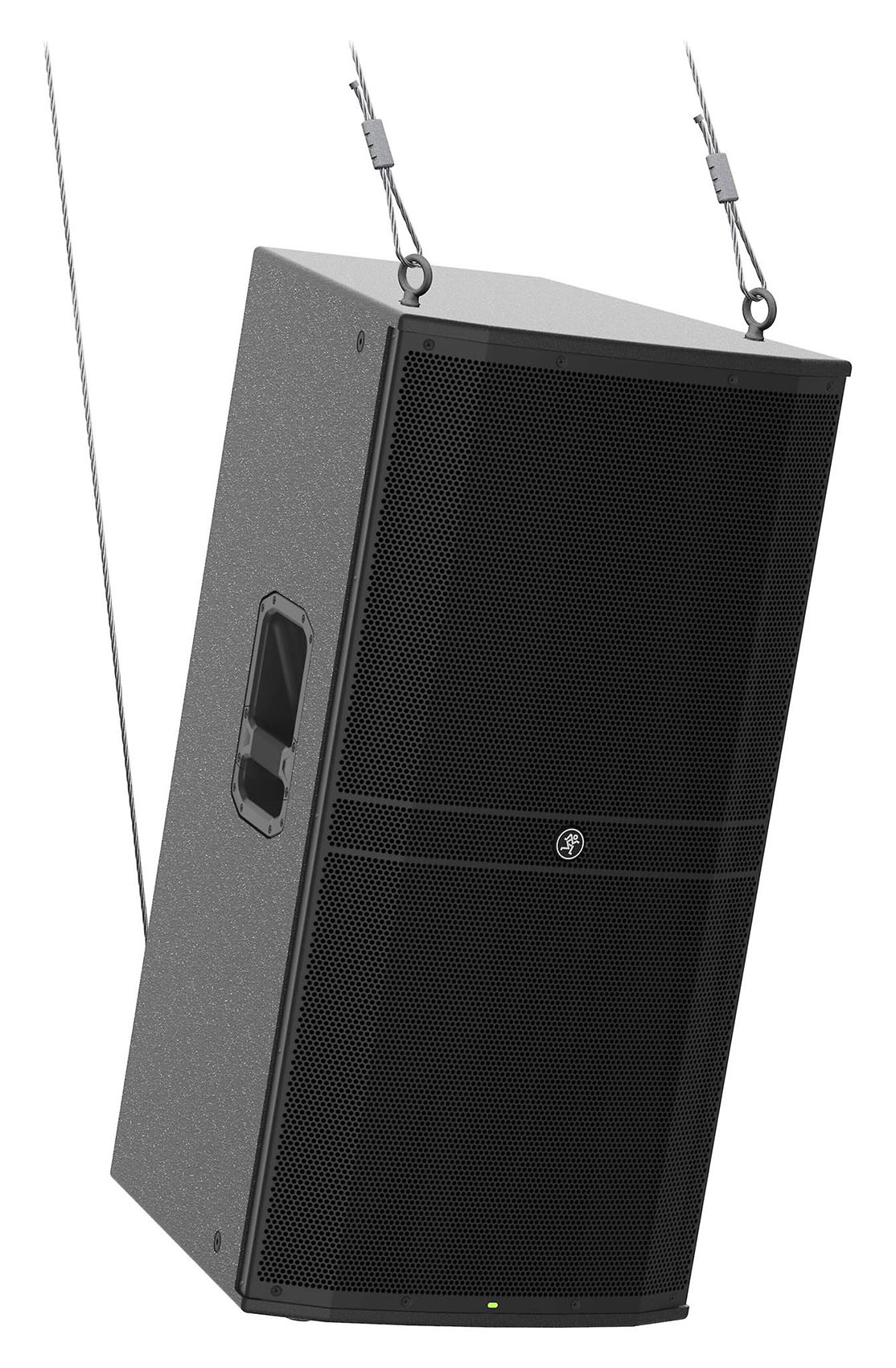

- Mounting Options Dual angle pole-mount, 12 x M10 flypoints
- Power Source Standard IEC AC cable
- Manufacturer Part Number 2050071-00
- Microphone Type Dynamic vocal microphone
- Audio frequency bandwidth 70 - 20000 Hz
- Sensitivity 2.6 mV/Pa
- Electrical impedance 600 Ohms
- Recommended load impedance 2000 Ohms
- Polar Pattern Supercardioid

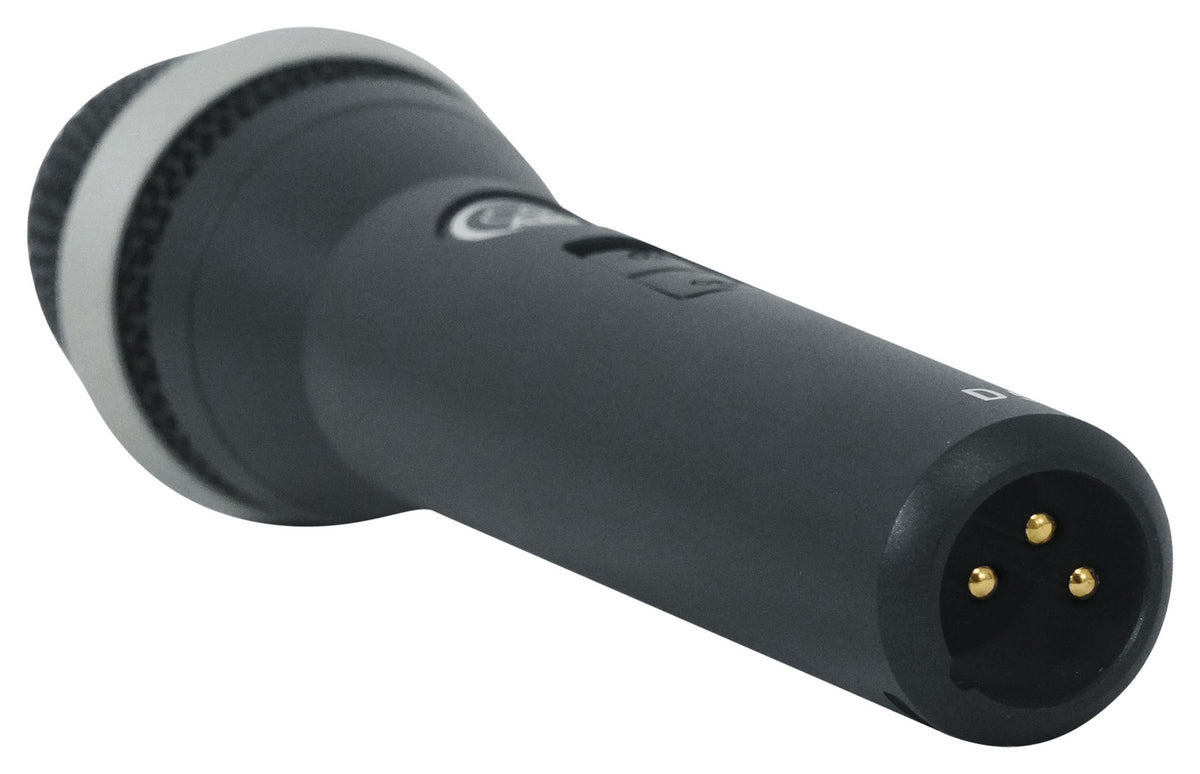

- Audio Output Balanced XLR, male, 3-pin
- Body Metal
- Finish Dark stage blue
- Application Live vocal, live performance
- Use Cases Vocals, piano / strings, horns / woodwinds
- Weight Speaker: 81.2 lb; microphone: 320 g
- Dimensions Speaker: 36.5" H x 18.8" W x 19" D; microphone: 185 mm length x 51 mm diameter
