MDB-1P [Used]

MDB-1P [Used]

Passive Direct Box, XLR/1/4in I/O, -15dB Pad, Steel Chassis

Free Shipping

$74.95
$74.95 $69.99
Shipping calculated at checkout.
Features
    • Passive circuitry keeps noise and coloration to a minimum
    • High-impedance quarter inch input with thru output for amps
    • Balanced male XLR output connector with ground lift
    • -15dB pad prevents distortion on high-level sources
    • Thick steel chassis with impact-resistant corners for daily use
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • Mackie MDB-1P passive direct box

SKU: MDB-1P*

View full details

Product Description

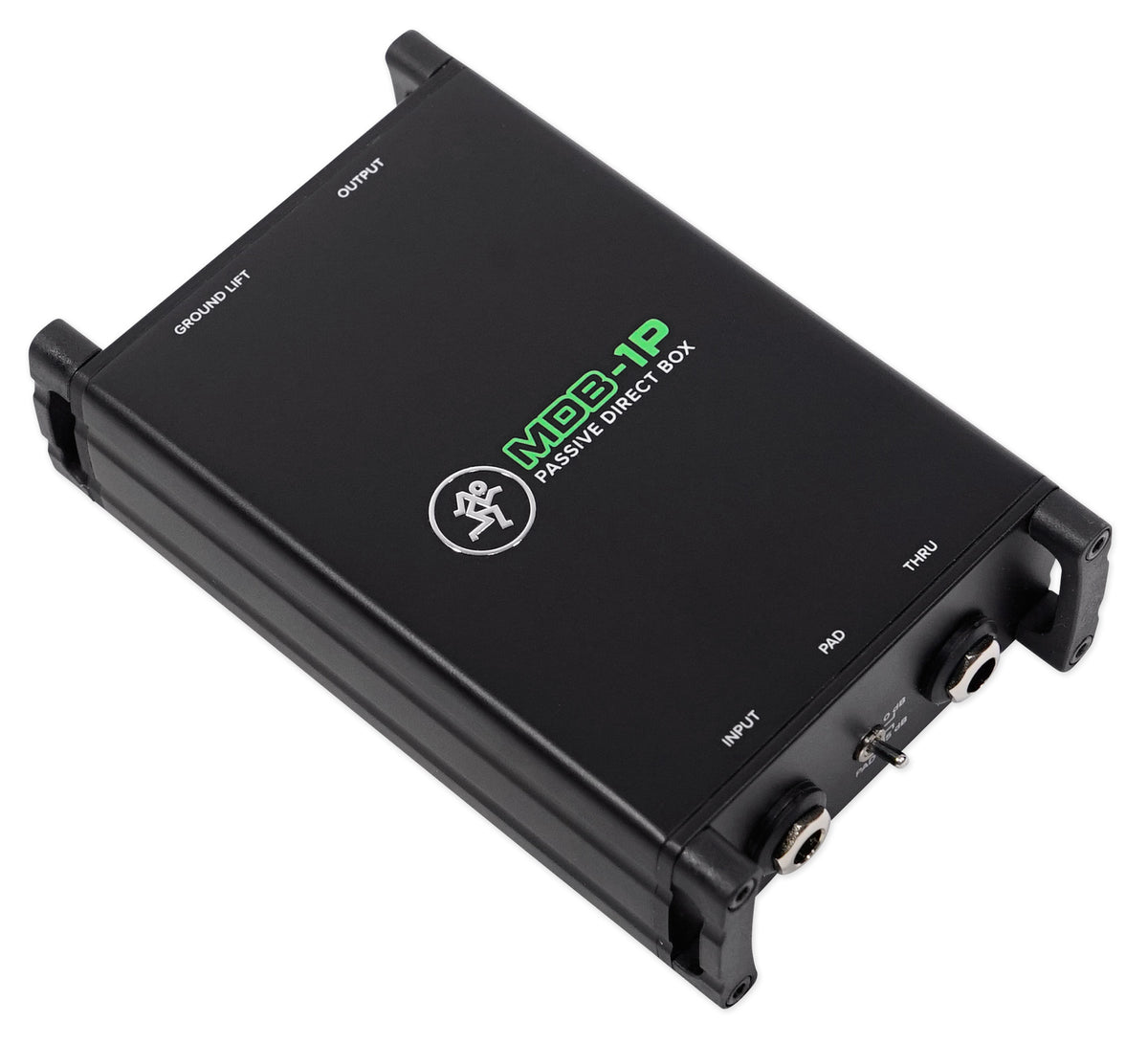

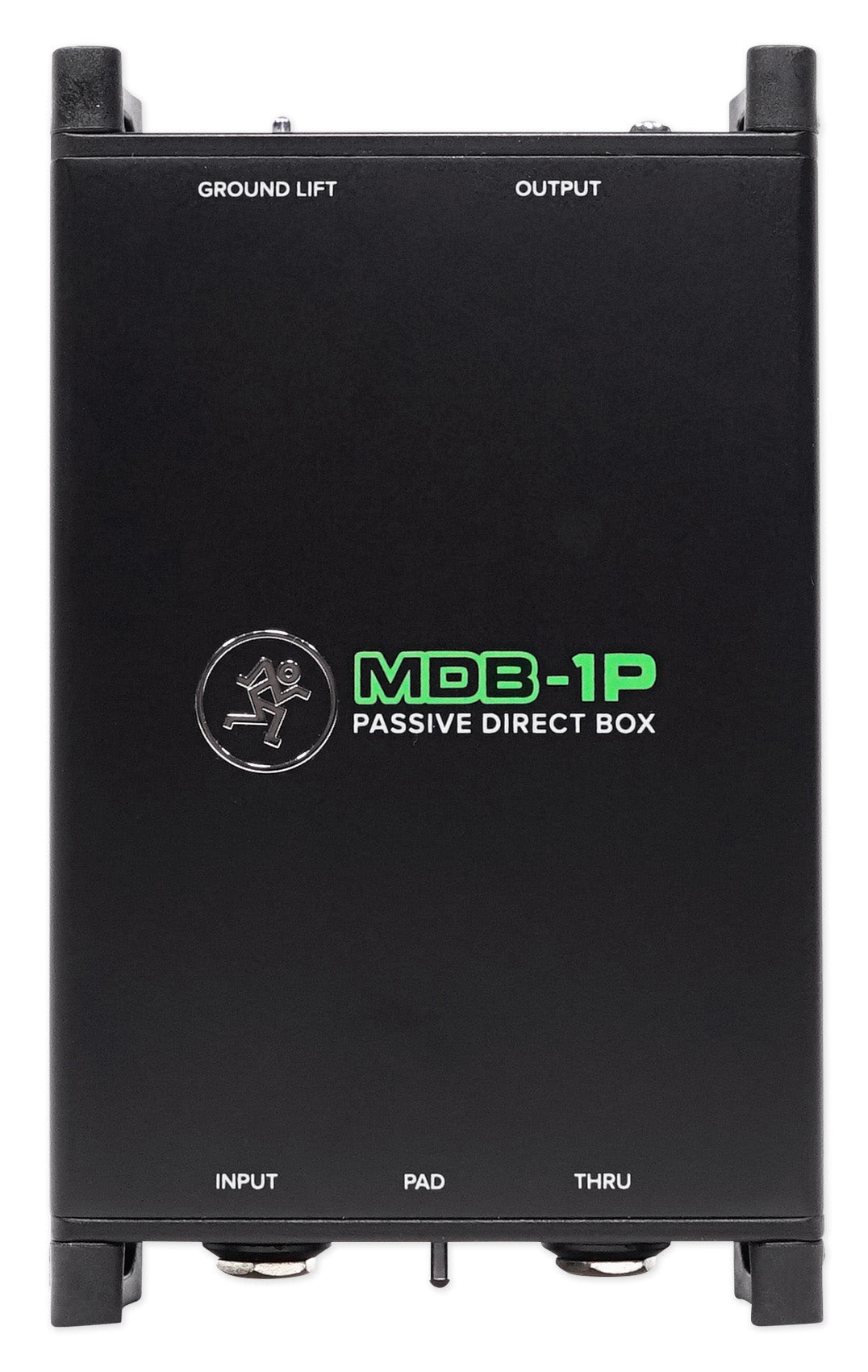

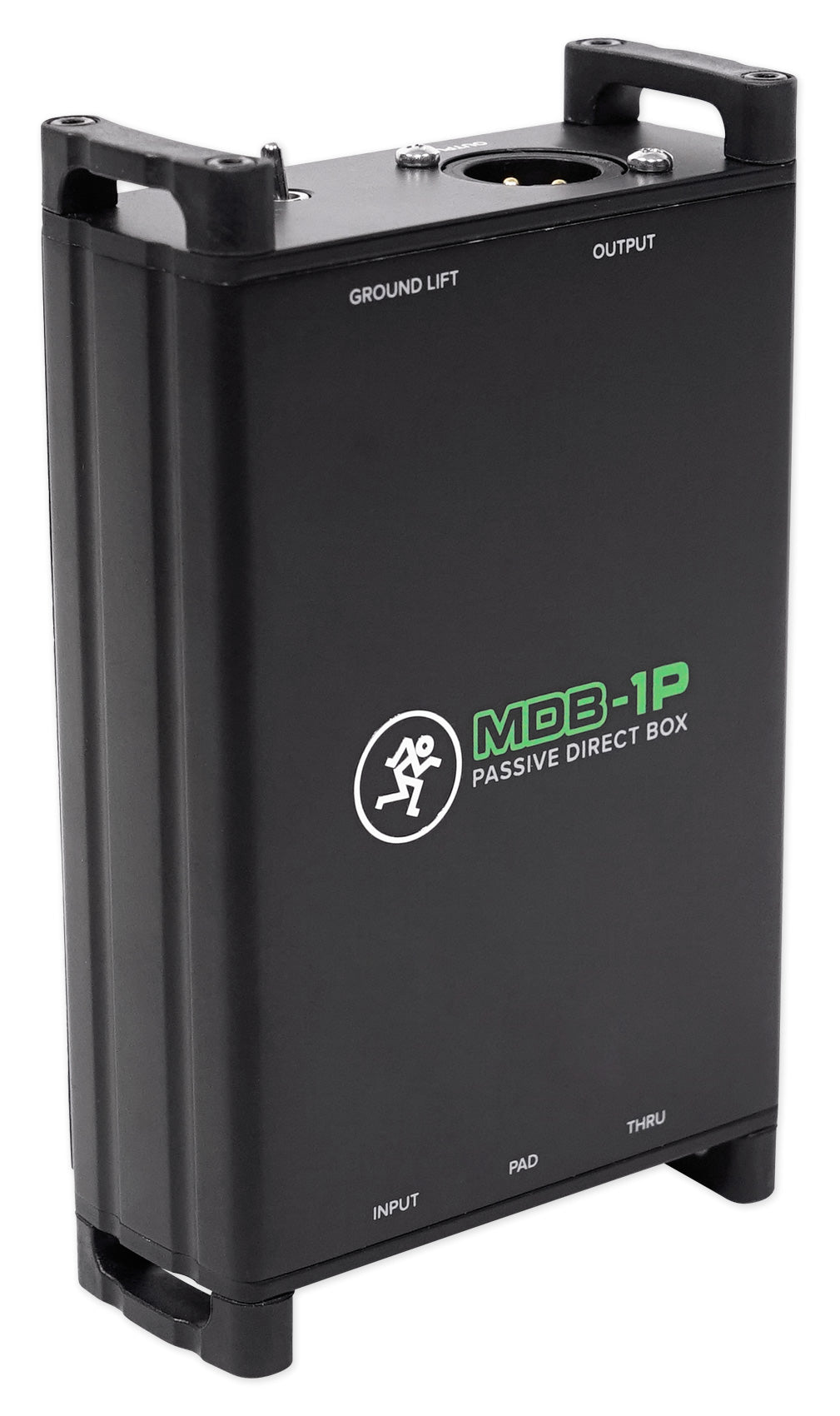

The Mackie MDB-1P passive direct box gives acoustic guitars and keyboards a clean path from stage or studio into a balanced mixer input. A high-impedance quarter inch input with a thru output lets the source still reach an amp while sending a balanced signal out through the male XLR connector. A -15dB pad keeps high-level sources from distorting the input, and the passive design keeps noise and coloration to a minimum so a guitar or keyboard sounds the way it does at the source. Inside, a thick steel chassis and impact-resistant corners are built to survive being tossed in a gig bag night after night. With a 20Hz to 20kHz frequency response, 128dB dynamic range, and 0.002% THD from 1kHz, the MDB-1P stays transparent running front-of-house at a live show or feeding a recording interface in the studio.

Features

    • Clean Signal At The Source

      Passive circuitry keeps noise and coloration to a minimum, so an acoustic guitar or keyboard sounds the way it does unplugged.

    • Balanced Output, Any Mixer

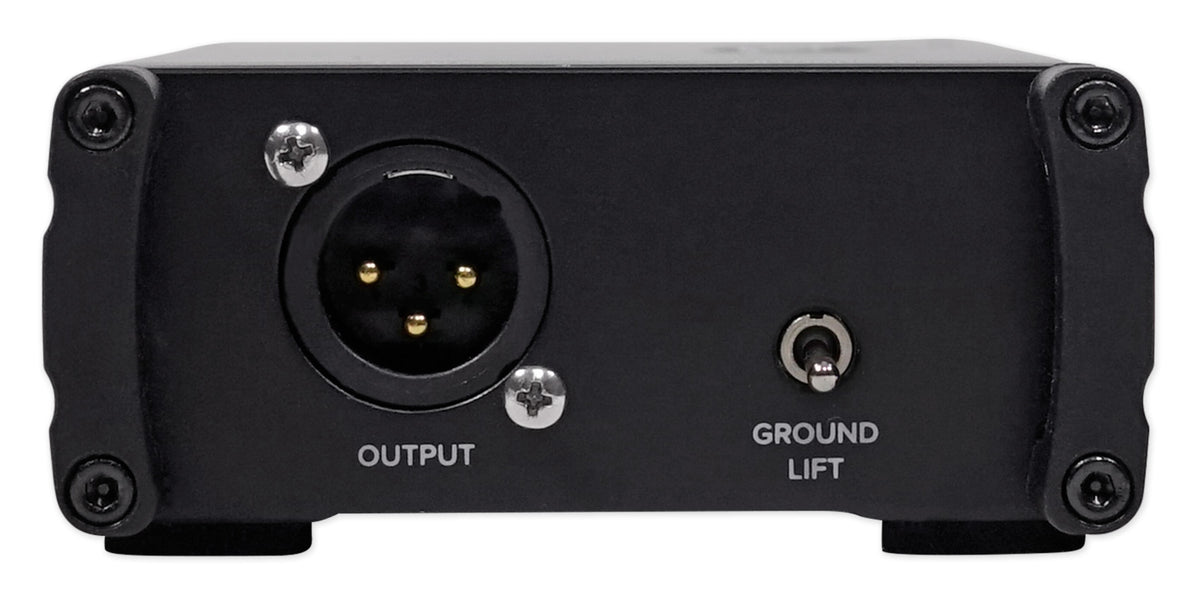

      A balanced male XLR output with ground lift sends a clean signal to any mixer or recording interface without hum.

    • Distortion-Free High Level Input

      A -15dB pad keeps line-level sources like keyboards from clipping the input, so hot signals stay clean going into the mixer.

    • Keep Playing Through The Amp

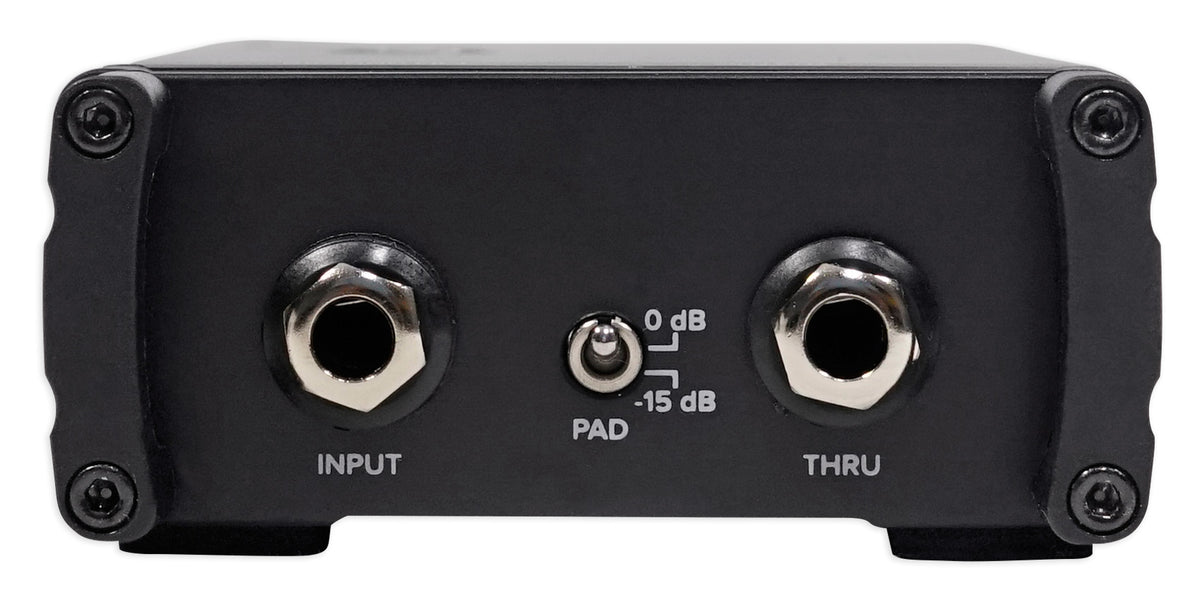

      A quarter inch thru output lets a guitar or keyboard still reach a stage amp while the DI sends a balanced feed to the board.

    • Built-Like-A-Tank Construction

      A thick steel chassis and impact-resistant corners handle years of stage and studio use without breaking down.

Technical Specifications

  • Product Type Passive Direct Box (DI Box)
  • Frequency Response 20Hz - 20kHz
  • Dynamic Range 128dB
  • THD 0.002% from 1000Hz
  • Input Female 1/4" Unbalanced, 140k Ohm
  • Impedance Ratio 350:1 (Input to Output)
  • Output Male XLR Balanced + 1/4" Unbalanced Thru
