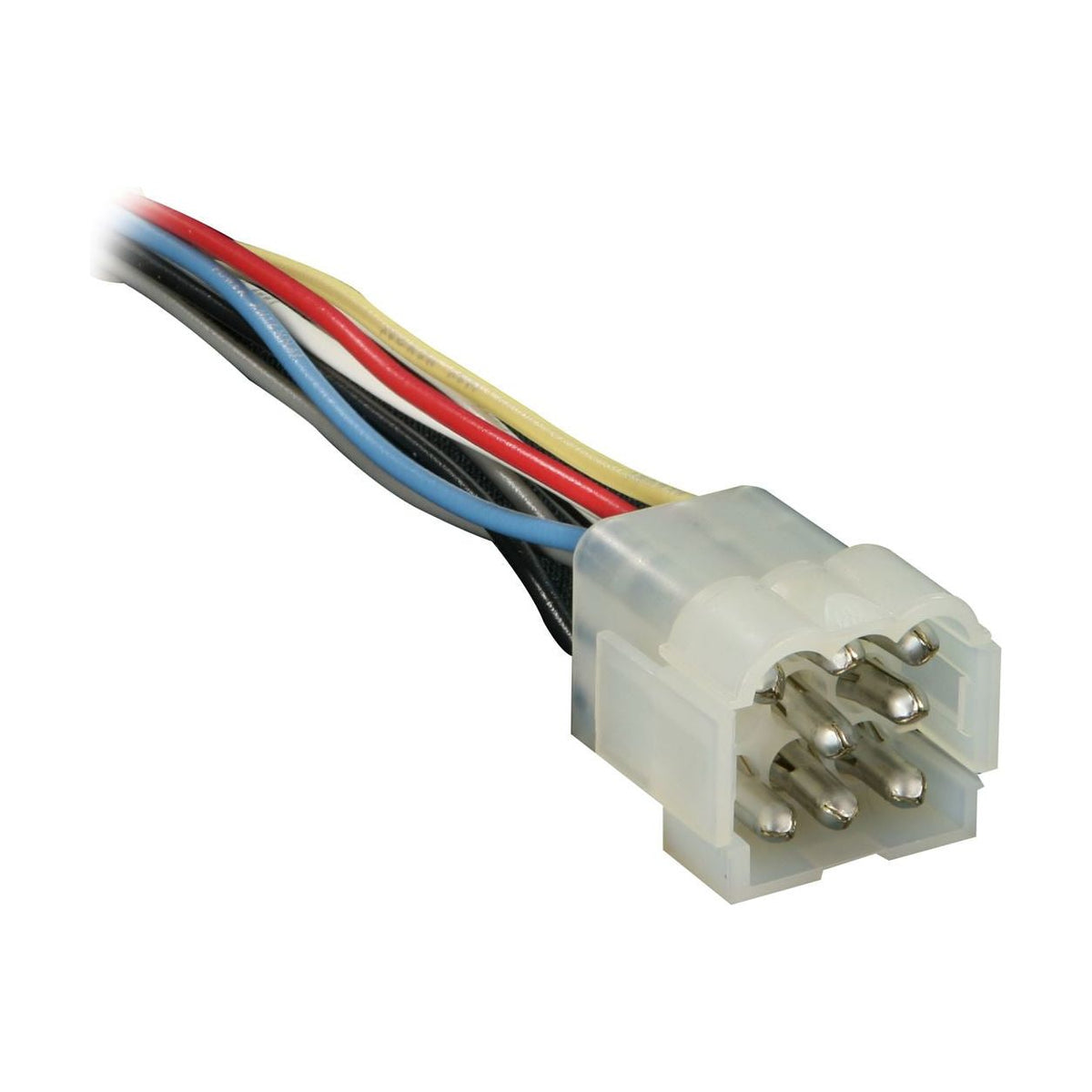

Metra 70-1119 1981-1994 Volvo 200/240/740/760/940/960 In-Dash Wiring Harness

Metra 70-1119 1981-1994 Volvo 200/240/740/760/940/960 In-Dash Wiring Harness

Aftermarket Radio Wiring Harness, 7" Color-Coded Leads, Fits 1981-1994 Volvo 200, 240, 740, 760 and 940/960
Regular price $20.95
Sale price $20.95 Regular price $24.99
Save 16%
Shipping calculated at checkout.
Features
    • Fits 1981-1994 Volvo 200, 240, 740, 760 and 940/960 models
    • Plugs into the factory radio connector with no cutting or splicing
    • Color-coded leads match standard aftermarket radio wiring
    • 7" pre-stripped leads leave room to work behind the dash
    • Flexible GXSL wire carries full power to all four speakers
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • Metra 70-1119 wiring harness with color-coded, pre-stripped leads

SKU: SKU: 70-1119

View full details

Product Description

Classic Volvo interiors are worth keeping intact, and the Metra 70-1119 lets you modernize the audio without touching the original wiring. The harness plugs into the factory radio connector in 200, 240, 740, 760 and 940/960 models and terminates in color-coded leads that match standard aftermarket radio wiring, covering both upper-dash and lower-dash radio positions across the range. Because you connect to a plug rather than splicing into the loom, a 240 wagon that gets a Bluetooth receiver today can be returned to a period-correct radio later with nothing to undo. Seven-inch pre-stripped leads give you enough length to build clean crimped or soldered joints on the bench side of the dash opening and then pack them back in behind the radio. Flexible GXSL wire carries the full output of a modern head unit to four speakers, and hand-assembled pressure-sensitive terminals hold their position in the connector shell instead of backing out. Heat-resistant insulation stands up to decades behind a dash. Lifetime warranty from Metra.

Features

    • No Cutting, No Splicing

      The harness plugs into your vehicle's factory radio connector, so an aftermarket receiver goes in without cutting a single wire in the original loom.

    • Color-Coded Wiring

      Leads follow standard aftermarket radio color codes, so power, ground, illumination and each speaker pair are identified by color instead of guesswork.

    • Seven-Inch Leads

      Longer leads give you slack to crimp or solder connections outside the dash cavity, then fold the bundle back in behind the new radio.

    • GXSL Wire Construction

      Flexible GXSL wire carries the full current a modern head unit sends to four speakers, so none of the receiver output is lost along the way.

    • OEM-Quality Terminals

      Hand-assembled, pressure-sensitive terminals seat firmly in the connector housings and hold that connection through the vibration and heat found behind a dash.

Technical Specifications

  • Product Type Aftermarket Radio Wiring Harness
  • Brand Metra
  • Model Number 70-1119
  • Vehicle Compatibility Volvo 200 Series (1981-1985, Upper and Lower Dash), Volvo 240 Series (1986-1989, Upper and Lower Dash), Volvo 740 and 760 Series (1985-1992), Volvo 940/960 (1994)
  • Connection Plugs Into Factory Radio Connector, Color-Coded Leads to Aftermarket Radio
  • Wiring Configuration Power and 4 Speakers
  • Wire Type GXSL
