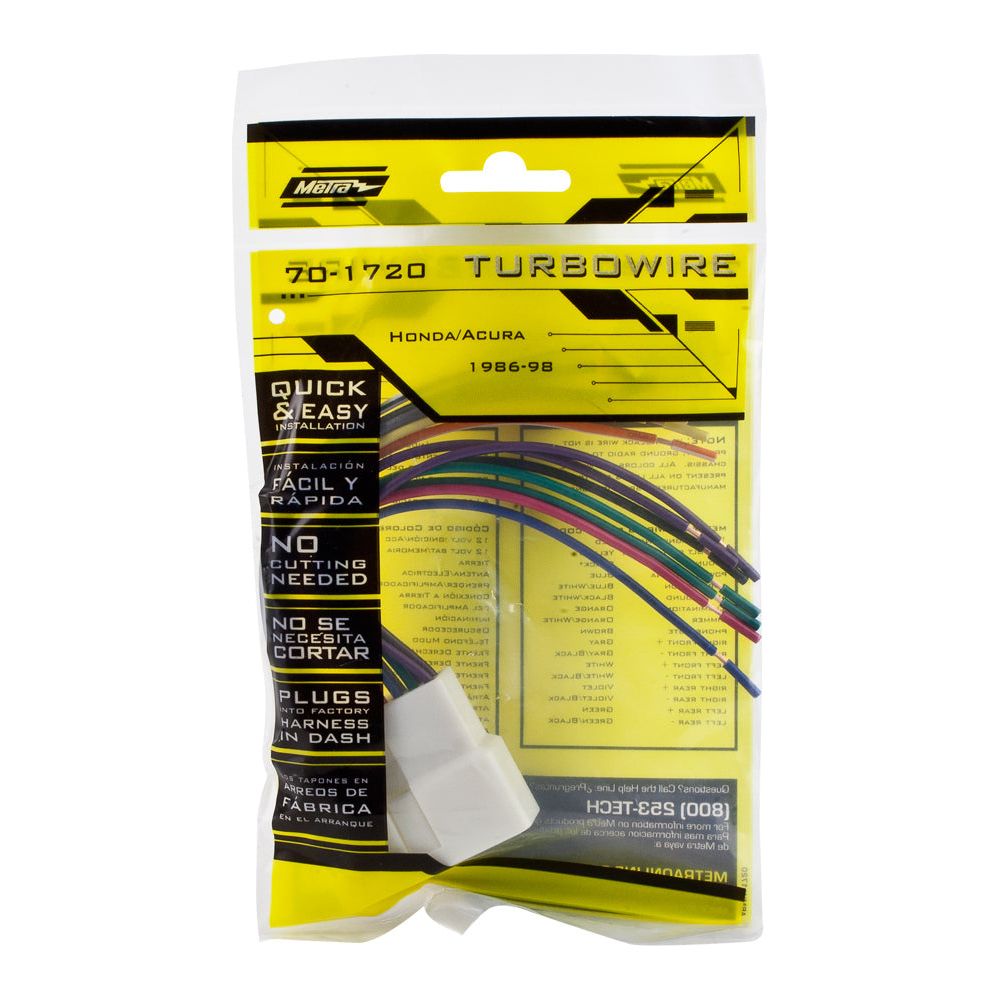

Metra 70-1720 In-Dash Radio Wiring Harness for 1986-1997 Honda/Acura

Metra 70-1720 In-Dash Radio Wiring Harness for 1986-1997 Honda/Acura

Aftermarket Radio Wiring Harness, 7" Color-Coded Leads, Fits Select 1986-1998 Honda, Acura and Isuzu Oasis
Regular price $12.07
Sale price $12.07 Regular price $6.99
Shipping calculated at checkout.
Features
    • Fits select 1986-1998 Honda, Acura and Isuzu Oasis models
    • Plugs into the factory radio connector with no cutting or splicing
    • Color-coded leads match standard aftermarket radio wiring
    • 7" pre-stripped leads leave room to work behind the dash
    • Flexible GXSL wire carries full power to all four speakers
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • Metra 70-1720 wiring harness with color-coded, pre-stripped leads

SKU: SKU: 70-1720

View full details

Product Description

The Metra 70-1720 covers a huge slice of the 1986-1998 Honda and Acura lineup, from EF and EG Civics and CRXs to Accords, Preludes, Integras, Legends and first-generation CR-Vs and Odysseys. It plugs into the factory radio connector and gives you color-coded leads that match standard aftermarket radio wiring, so replacing a tired factory cassette deck with a Bluetooth receiver comes down to matching colors rather than tracing a diagram with a multimeter. The vehicle harness stays whole, which keeps the swap reversible on a car that is now a collectible in its own right. Seven-inch pre-stripped leads leave slack for solid crimped or soldered joints made outside the dash cavity, then tuck away behind the radio. Flexible GXSL wire handles the power a modern head unit sends to four speakers, and hand-assembled pressure-sensitive terminals hold their seat in the connector shell rather than working loose. Heat-resistant insulation handles the temperature swings behind a dash. Lifetime warranty from Metra.

Features

    • No Cutting, No Splicing

      The harness plugs into your vehicle's factory radio connector, so an aftermarket receiver goes in without cutting a single wire in the original loom.

    • Color-Coded Wiring

      Leads follow standard aftermarket radio color codes, so power, ground, illumination and each speaker pair are identified by color instead of guesswork.

    • Seven-Inch Leads

      Longer leads give you slack to crimp or solder connections outside the dash cavity, then fold the bundle back in behind the new radio.

    • GXSL Wire Construction

      Flexible GXSL wire carries the full current a modern head unit sends to four speakers, so none of the receiver output is lost along the way.

    • OEM-Quality Terminals

      Hand-assembled, pressure-sensitive terminals seat firmly in the connector housings and hold that connection through the vibration and heat found behind a dash.

Technical Specifications

  • Product Type Aftermarket Radio Wiring Harness
  • Brand Metra
  • Model Number 70-1720
  • Vehicle Compatibility Honda Accord, Civic, Civic Del Sol, CR-V, CRX, Odyssey and Prelude (1986-1998), Acura CL, Integra, Legend, RL, TL and Vigor (1986-1998), Isuzu Oasis (1996-1998)
  • Connection Plugs Into Factory Radio Connector, Color-Coded Leads to Aftermarket Radio
  • Wiring Configuration Power and 4 Speakers
  • Wire Type GXSL
