METRA 95-6528B Double-Din Dash Stereo Installation Kit for 2006-2010 RAM Trucks

Product Description Specifications

METRA 95-6528B Double-Din Dash Stereo Installation Kit for 2006-2010 RAM Trucks

  • METRA 95-6528B Double-Din Dash Stereo Installation Kit for 2006-2010 RAM Trucks
1 1

METRA

METRA 95-6528B Double-Din Dash Stereo Installation Kit for 2006-2010 RAM Trucks

METRA 95-6528B Double-Din Dash Stereo Installation Kit for 2006-2010 RAM Trucks

Double-DIN Dash Installation Kit For 2006-2010 Dodge Ram Trucks, Matte Black Finish With Mounting Hardware
$34.95
$34.95 $43.99
Save 20%
Shipping calculated at checkout.
Features
    • Provides a full double-DIN opening for a 4-inch-tall receiver
    • Painted matte black to match the dark factory interior trim
    • Fits Ram 1500 2006-2008 and Ram 2500/3500 2006-2009
    • Also covers Ram 2500/3500 chassis cab models through 2010
    • Compatible harnesses XSVI-6502-NAV and CHTO-01 sold separately
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

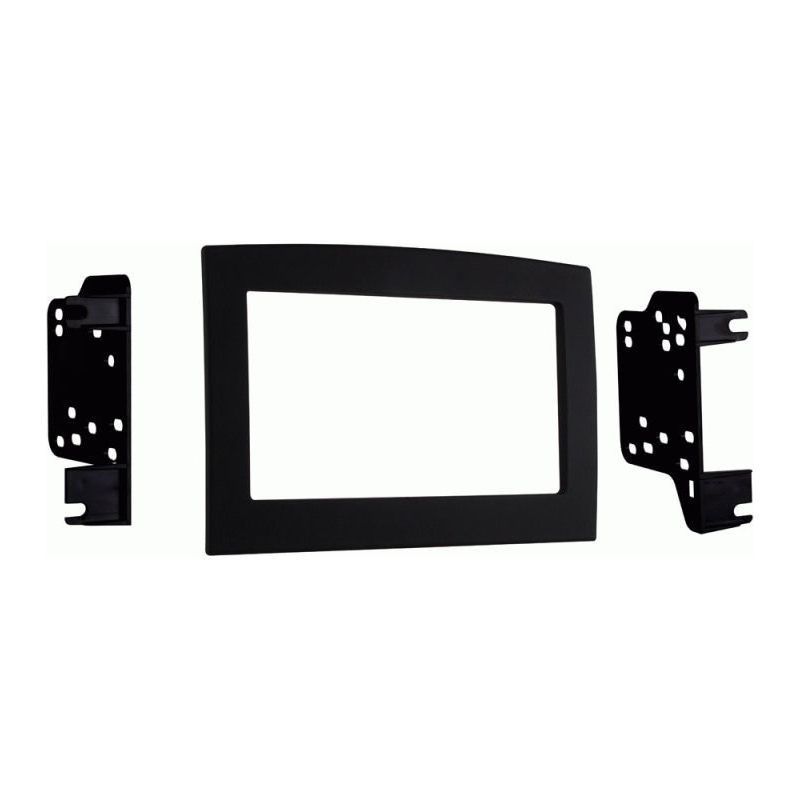

    • Double-DIN dash installation panel
    • Radio mounting brackets
    • Installation hardware

SKU: 95-6528B

View full details

Product Description

The Metra 95-6528B mounts a double-DIN receiver in the dash of 2006-2010 Dodge Ram trucks, replacing the factory radio trim with a panel built for a 4-inch-tall head unit.

The kit is painted matte black, which lines up with the darker interior plastics in these trucks and keeps glare off the panel in direct sun. Applications cover Ram 1500 2006-2008, Ram 2500 and 3500 2006-2009, and Ram 2500/3500 chassis cab 2006-2010, making it a straightforward path for work trucks and daily haulers still running the original radio.

This is a dash kit, so the wiring side is handled separately. The matching harnesses are the XSVI-6502-NAV or CHTO-01, and the antenna adapter is the 40-CR10, all sold separately. Plan on picking those up with the kit if the truck has not already had a radio swap. With the right harness and adapter, the install becomes a plug-in job rather than a cut-and-splice project, and the finished dash keeps the clean lines of the original panel.

Features

    • Built For A Double-DIN Head Unit

      The opening is sized for a 4-inch-tall receiver, so current touchscreen units with camera inputs and phone mirroring bolt straight into the dash.

    • Matte Black That Belongs

      The matte finish matches the dark plastics in the Ram cabin and cuts reflections, keeping the screen readable with sun coming through the windshield.

    • Wide Ram Coverage

      One kit spans Ram 1500 2006-2008, Ram 2500 and 3500 2006-2009, and Ram 2500/3500 chassis cab trucks through 2010, covering nearly the whole model run.

    • Known Wiring Path

      Metra lists the XSVI-6502-NAV and CHTO-01 harnesses and the 40-CR10 antenna adapter for these trucks, so the electrical side is documented, not guesswork.

    • Solid Mounting Structure

      Brackets and hardware hold the receiver square in the dash, which keeps panel gaps even and stops the unit from rattling loose on rough roads.

Technical Specifications

  • Product Type Double-DIN Dash Installation Kit
  • Radio Provision Double-DIN
  • Finish Painted matte black
  • Vehicle Compatibility Dodge Ram 1500 2006-2008, Ram 2500/3500 2006-2009, Ram 2500/3500 chassis cab 2006-2010
  • Compatible Wiring Harness XSVI-6502-NAV or CHTO-01 (sold separately)
  • Compatible Antenna Adapter 40-CR10 (sold separately)
