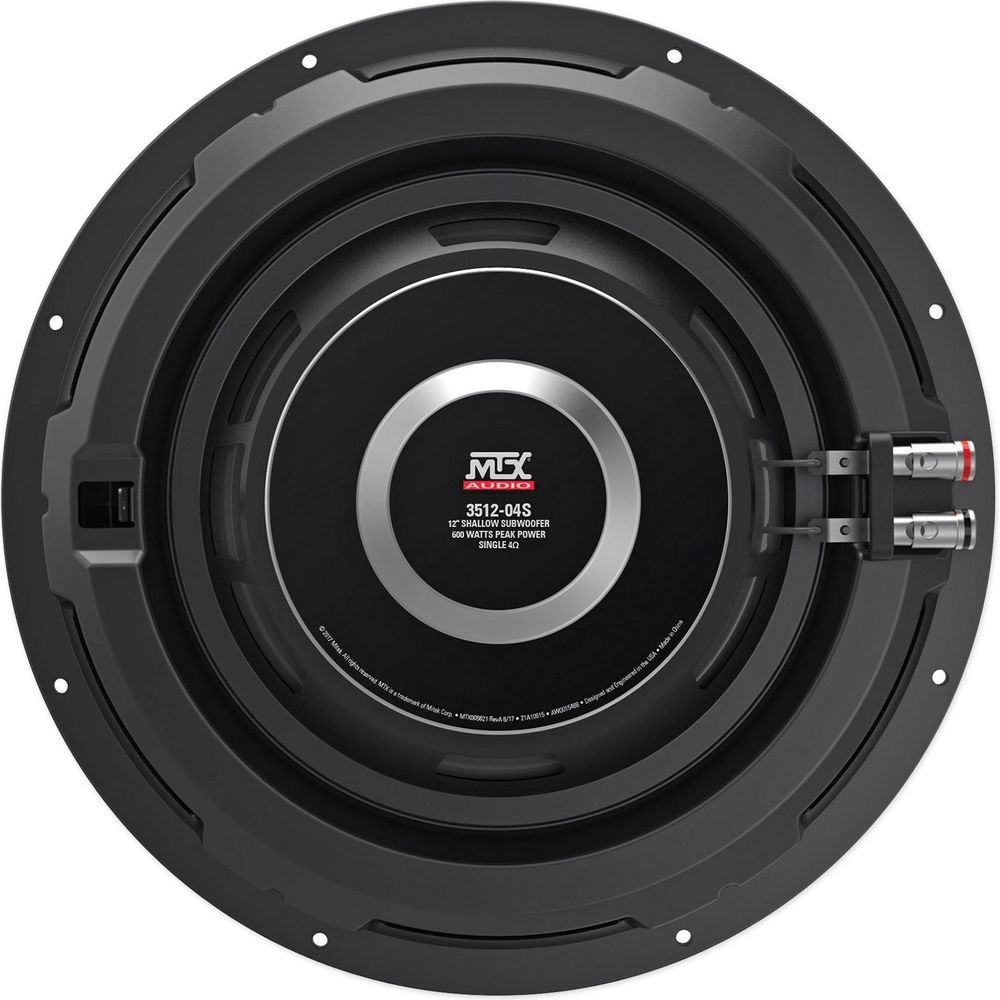

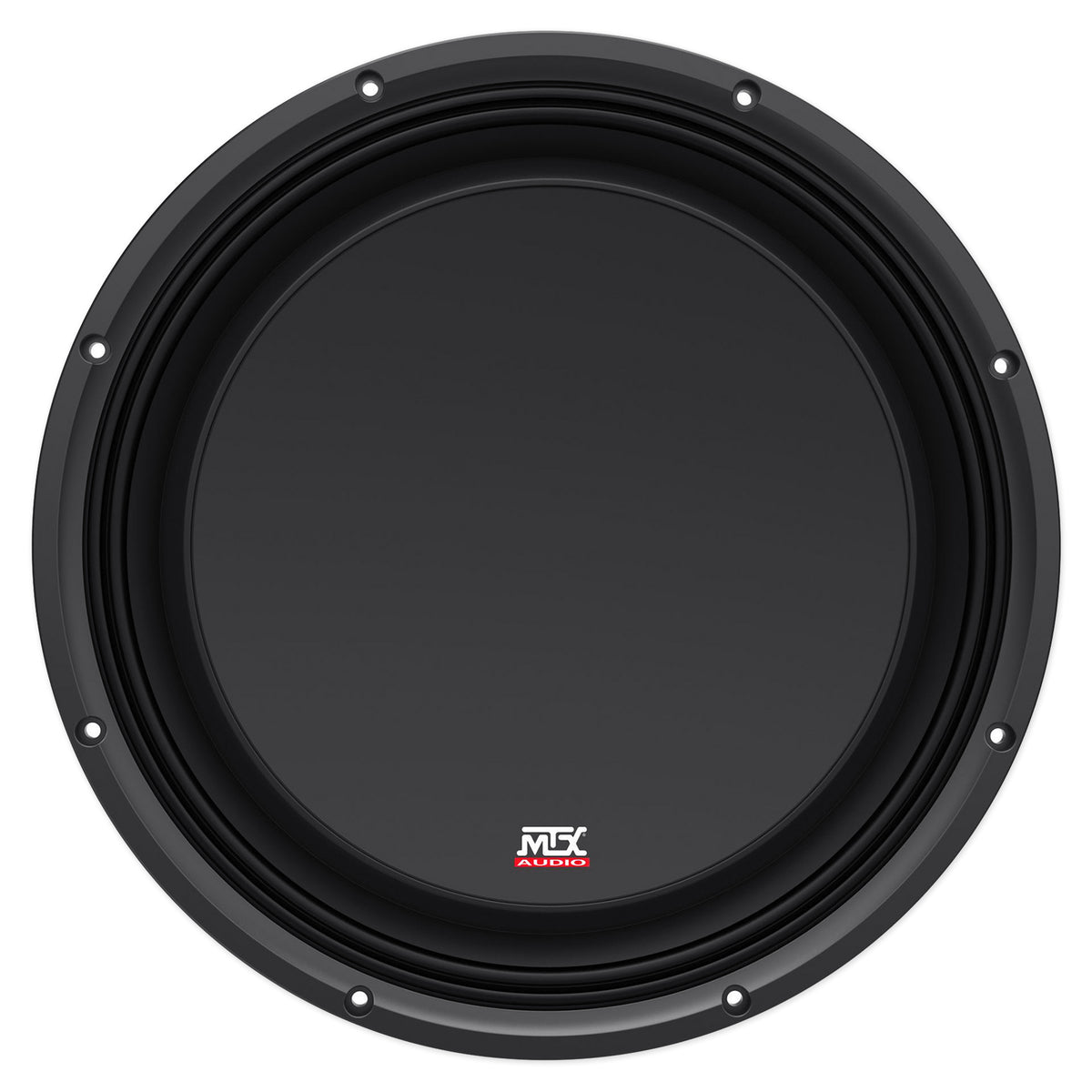

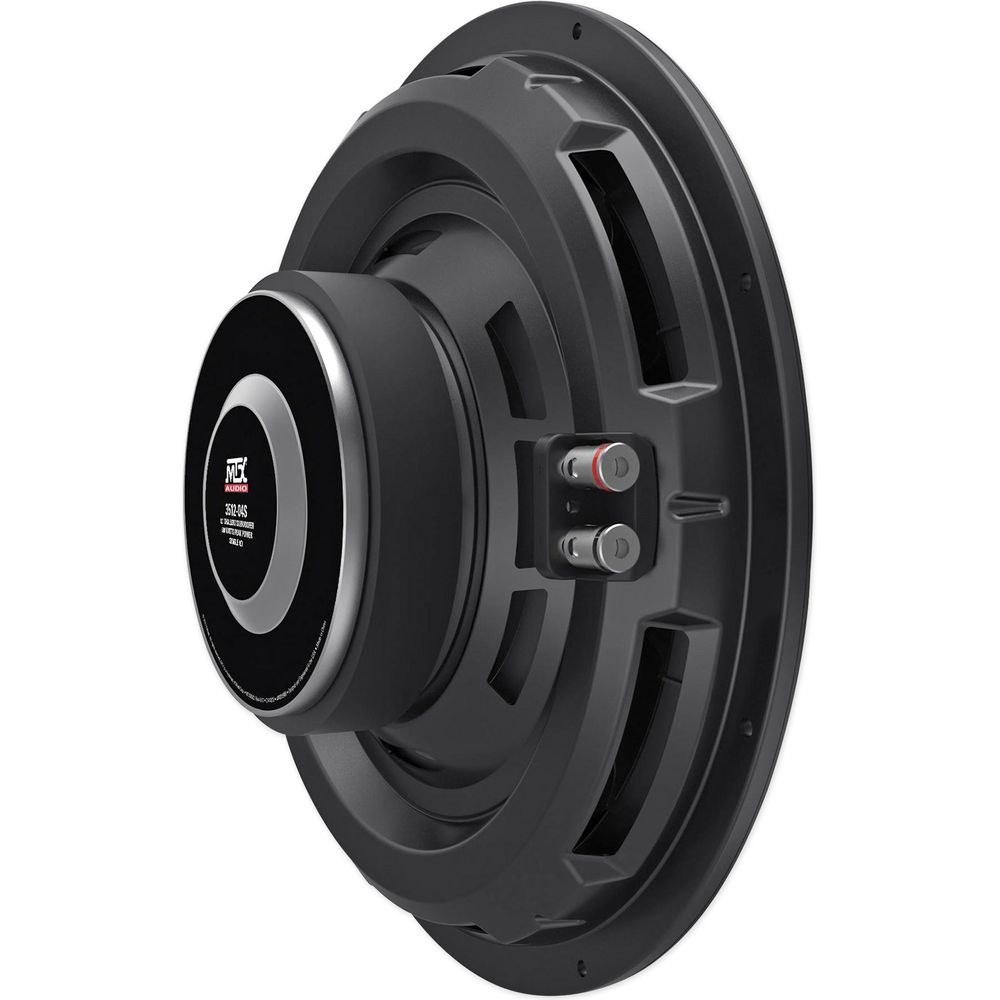

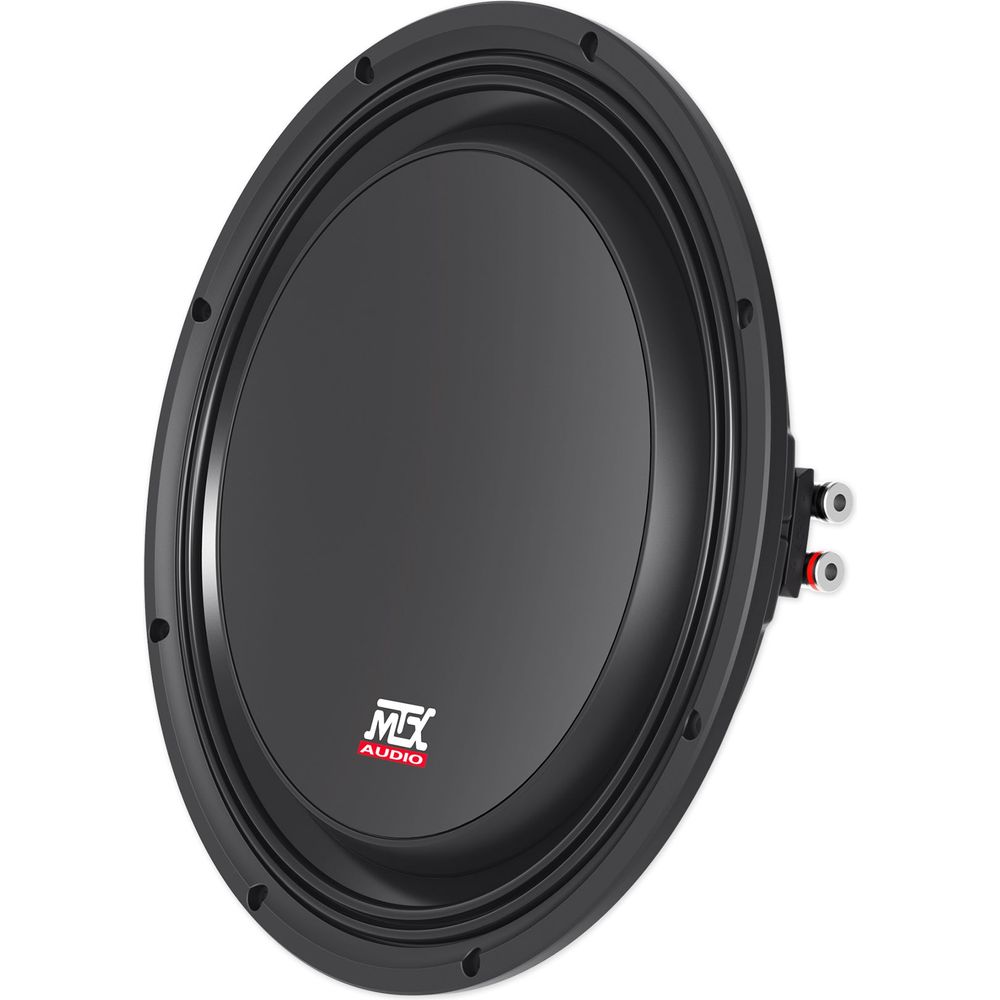

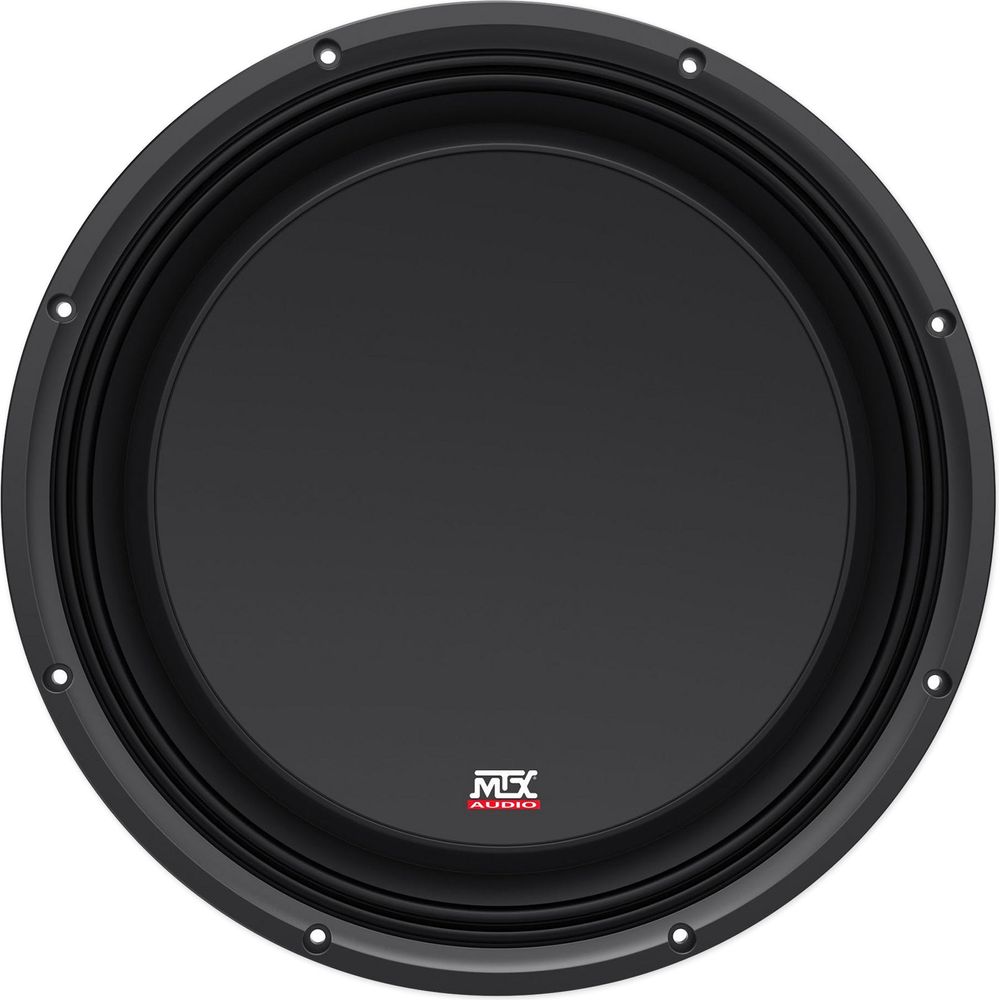

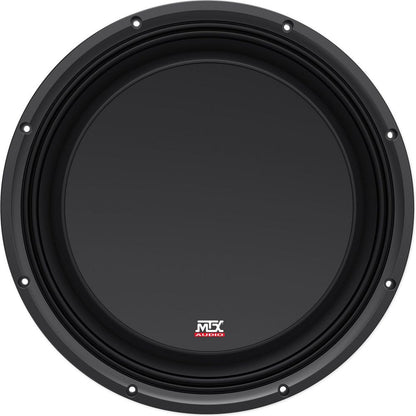

3512-04S 12" Shallow-Mount Subwoofer Pair, SVC 4-Ohm
MTX
3512-04S 12" Shallow-Mount Subwoofer Pair, SVC 4-Ohm
3512-04S 12" Shallow-Mount Subwoofer Pair, SVC 4-Ohm
12" Shallow-Mount Subwoofer Pair, SVC 4-Ohm, 1200W Peak / 600W RMS Total
Free Shipping
Features
- Pair totals 1200 W peak and 600 W RMS on one mono channel
- Inverted Apex surround increases cone area for higher SPL
- Spider Plateau Venting targets cool air at the voice coil
- 23Hz-130Hz frequency response at 84.4 dB sensitivity
- 3.375" mounting depth, 11.125" cutout diameter
Couldn't load pickup availability
What's Included in the box

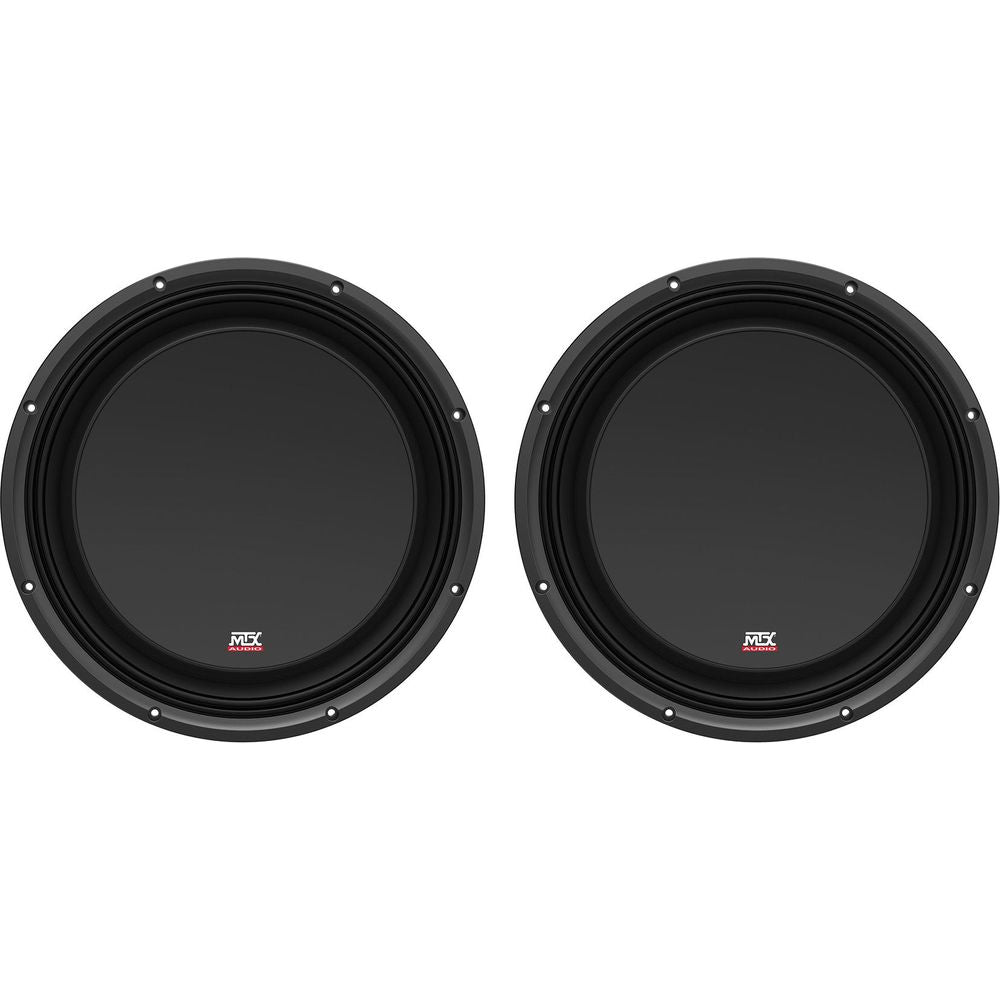

- (2) MTX Subwoofers
- Mounting Hardware
SKU: SKU: (2) 3512-04S
View full details








Product Description
Features
Matched Subwoofer Pair
Two 12" SVC 4-ohm subs combine for 1200 W peak and 600 W RMS, enough headroom for one mono amplifier to power both cleanly.
Inverted Apex Surround
A narrower surround profile adds cone surface area over a standard half-roll design, moving more air per stroke for higher SPL at the same excursion.

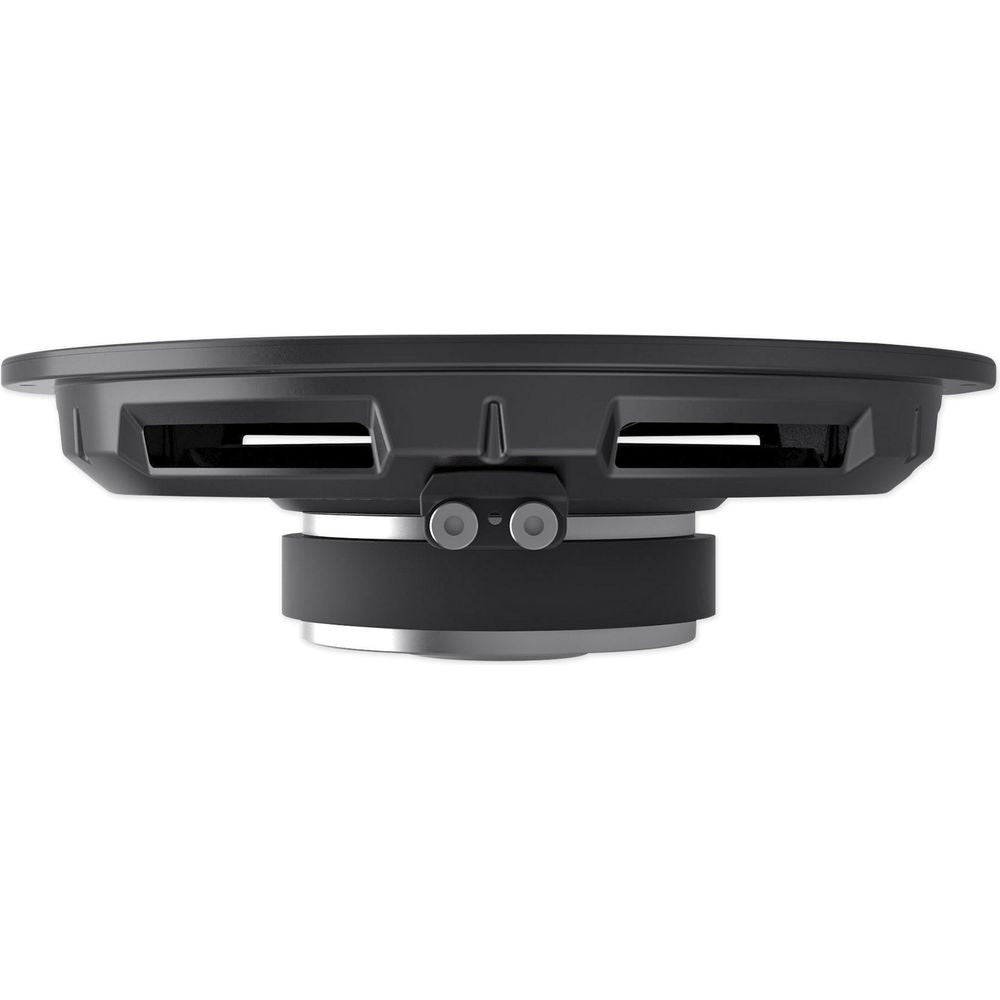

Spider Plateau Venting
A mechanical cooling path aims airflow straight at the voice coil, holding output steady through long sessions instead of tapering off as the coil heats up.
Progressive Suspension
The suspension tightens up at high excursion, controlling cone movement at full power so the sound stays defined instead of turning to mush.
Compact Mounting Footprint
A 3.375" mounting depth and 11.125" cutout fit shallow 12-inch installs, so the pair drops into a standard enclosure without custom cutting.
Technical Specifications
- Product Type Car Subwoofer (Pair)
- Size 12"
- Impedance SVC 4-ohm
- Peak Power (per unit) 600 W
- RMS Power (per unit) 300 W
- Frequency Response 23Hz-130Hz
- Sensitivity 84.4 dB
- Voice Coil 2" (single)
- Mounting Depth 3.375"
- Cutout Diameter 11.125"
- Volume Displacement 35.74 cu in
- Sealed Enclosure Volume (per unit) 0.8 cu ft
- Magnet Weight 44 oz
