NOVATION
Peak
Peak
Eight-Voice Desktop Polyphonic Synthesizer, 3 Oscillators Per Voice, 512 Patch Slots, MIDI I/O And CV In
Features
- Eight-voice polyphony with three oscillators per voice
- Analog state variable filter per voice with 12dB and 24dB slopes
- Three distortion points: pre-filter, post-filter, and global
- 16-slot modulation matrix plus 16 front-panel assignments
- MIDI In, Out, and Thru with 3.5mm CV modulation input
Couldn't load pickup availability

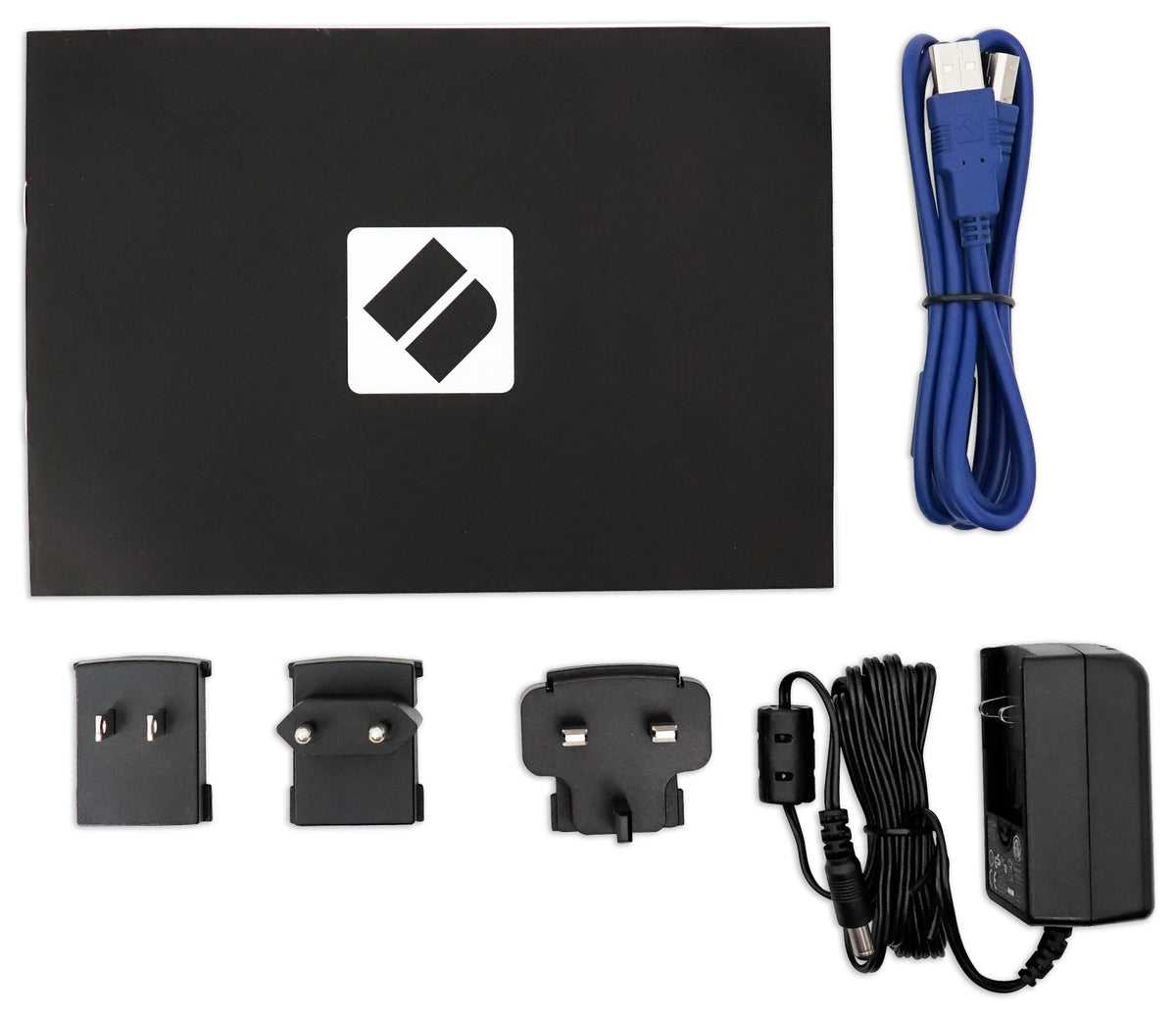

What's Included in the box
- Peak Desktop Synthesizer
- Ableton Live Lite 9
- Novation Components Software (download)
SKU: SKU: PEAK
View full details





Product Description
Design consultant Chris Huggett, the engineer behind Bass Station, Supernova, and OSCar, shaped the voice architecture, and Peak traces its filter lineage back to Bass Station II. Each voice carries a state variable OTA filter with 12dB or 24dB slopes, low, band, or high pass response, pre-filter overdrive, and post-filter distortion.
Modulation runs deep without burying you in menus: a 16-slot matrix with two sources per destination sits behind 16 direct front-panel assignments, plus three envelopes and two LFOs per voice. Oscillators can cross-modulate in a recursive loop or act as linear FM sources. Two Animate buttons transform a patch with one touch during a performance, and the arpeggiator offers 33 patterns with key latch. Onboard reverb, delay, and chorus finish sounds without outboard gear.
Firmware v2.0 added per-voice panning and new spread modes for wider stereo work, extra modulation destinations with noise as a source, additional LFO 3 and 4 parameters, Animate Envelopes, Arpeggiator Chance, and new effects including Chorus Modes, Flanger, Phlanger, and a Lo-Fi delay mode.
Patch storage covers up to 512 sounds on the hardware, shipping with 256 factory patches, and Components keeps unlimited patches on a Mac or PC. Connections include USB, MIDI In, Out, and Thru, a 3.5mm CV modulation input for modular rigs, two pedal inputs, stereo 1/4 in. outputs, and a headphone output. Ableton Live Lite 9 is included.
Features
-
Eight Voices Of Analog Character
Three New Oxford Oscillators per voice feed an analog filter and three distortion stages, so chords stay thick while single lines can turn aggressive.
-
Two Ways To Make Waves
Numerically controlled oscillators cover analog-style tones while 17 digital wavetables add harmonic movement that traditional analog circuits cannot produce.
-
Modulation Without Menu Diving
A 16-slot matrix with two sources per destination sits behind 16 direct panel assignments, plus three envelopes and two LFOs for every voice.
-
Transform Patches Live
Two Animate buttons reshape a sound with a single touch, and the arpeggiator offers 33 patterns with key latch for performance work.
-
Connects To Modular And More
USB, MIDI In, Out, and Thru, a 3.5mm CV modulation input, two pedal inputs, and stereo 1/4 in. outputs tie Peak into any rig.
Technical Specifications
- Product Type Desktop Polyphonic Synthesizer
- Polyphony 8 notes, mono-timbral
- Oscillators 3 per voice, plus noise generator and ring modulator
- Waveforms Sine, triangle, sawtooth, square/pulse, plus 17 wavetables of 5 waveforms per row
- Filter 1 state variable OTA filter per voice, 12dB/24dB slope, low/band/high pass, pre-filter overdrive and post-filter distortion
- Envelopes 1 amp and 2 mod envelopes per voice
- LFOs 2 per voice
- Modulation 16 slots per patch, 2 sources to 1 destination, 17 sources and 37 destinations
- Effects Analog distortion, chorus (3 types), delay with sync, reverb (3 types)
- Arpeggiator 33 patterns with key latch
- Patch Storage Up to 512 on hardware, ships with 256 factory patches

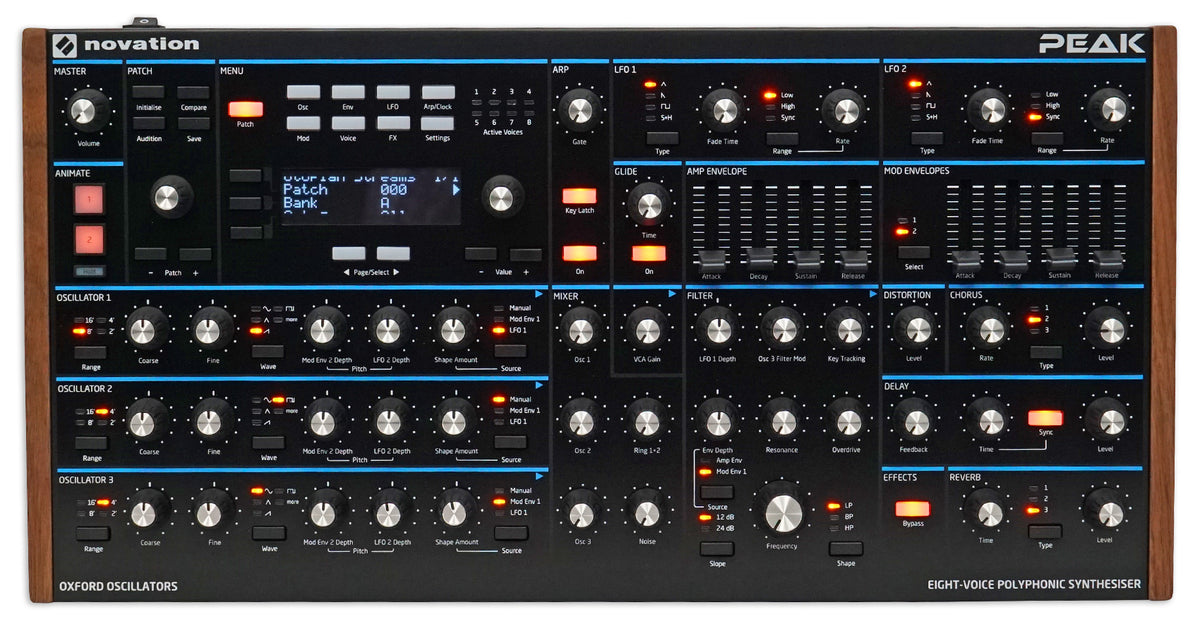

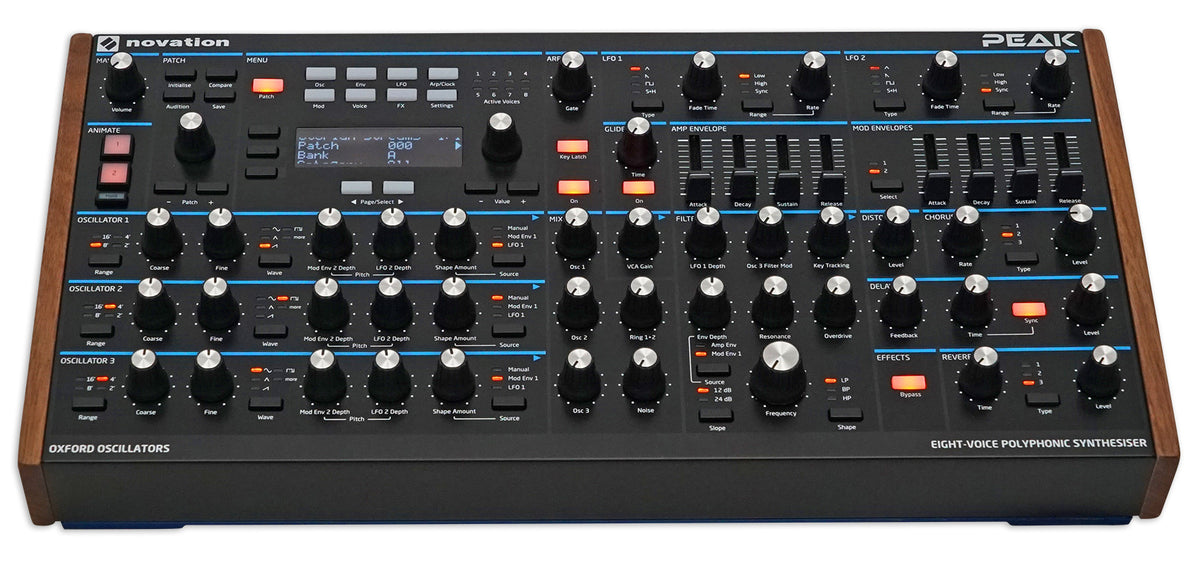

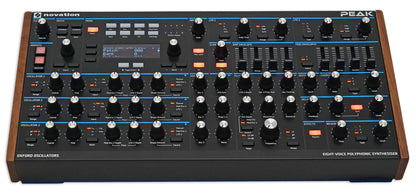

- Controls 42 knobs, 8 x 35mm sliders, volume knob, 2 data encoders, 46 function buttons, 2 Animate buttons plus hold, OLED display

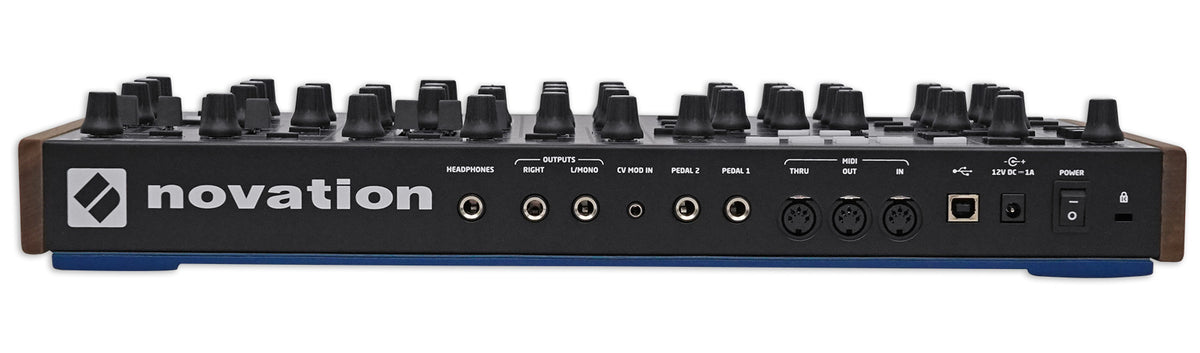

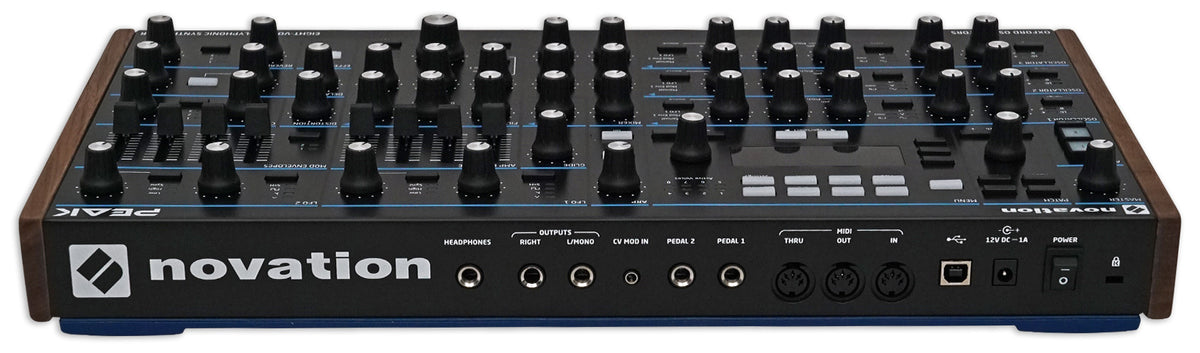

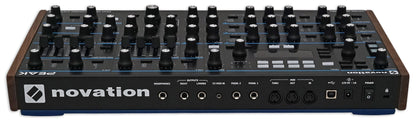

- Connectivity USB, MIDI In/Out/Thru, 3.5mm CV input, 2 x 1/4 in. pedal sockets, 1/4 in. left and right outputs, 1/4 in. headphone output
- Power 12V DC, 1A maximum consumption
- Dimensions 9.17 in. width x 18.27 in. depth x 2.78 in. height
