XC-SB244XLR100

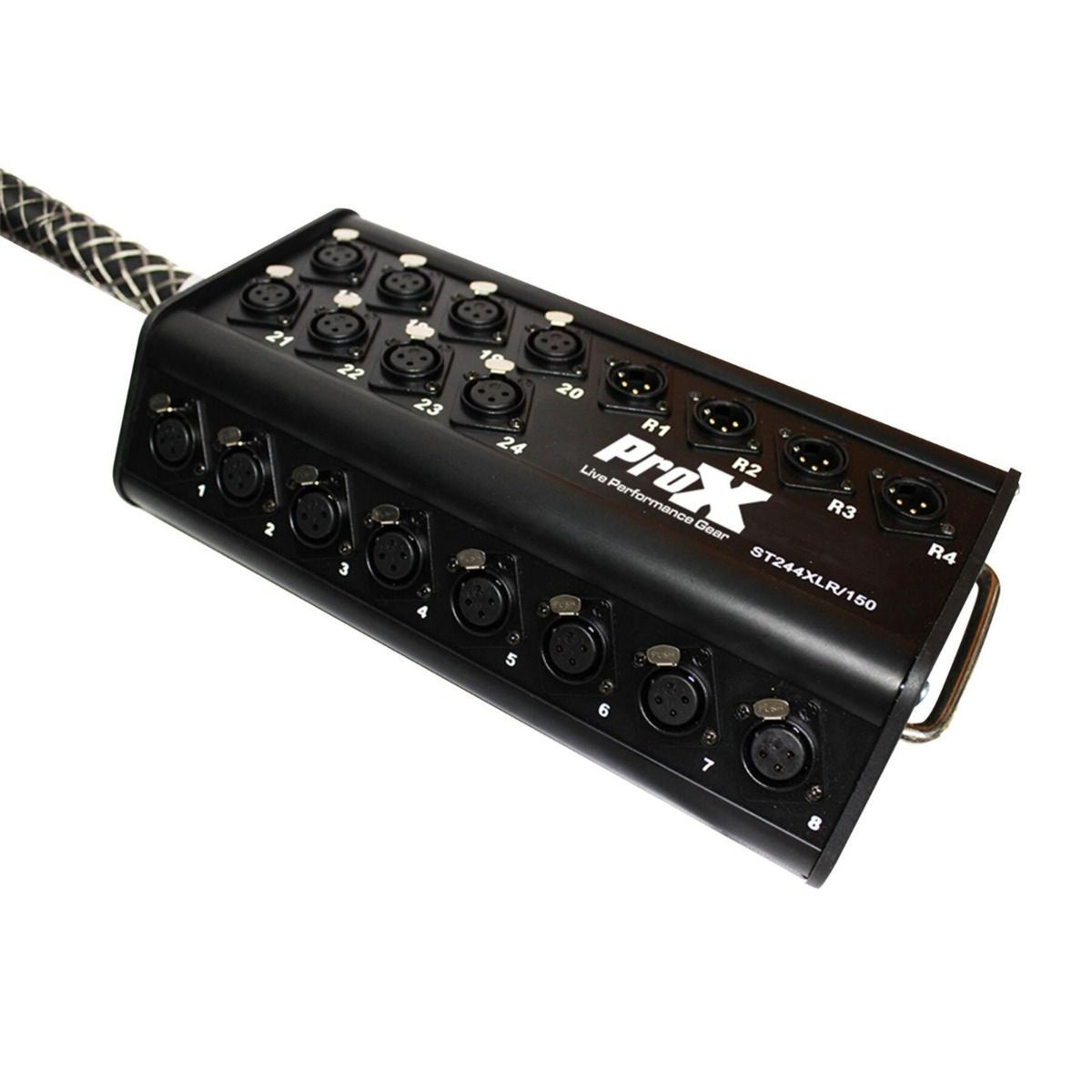

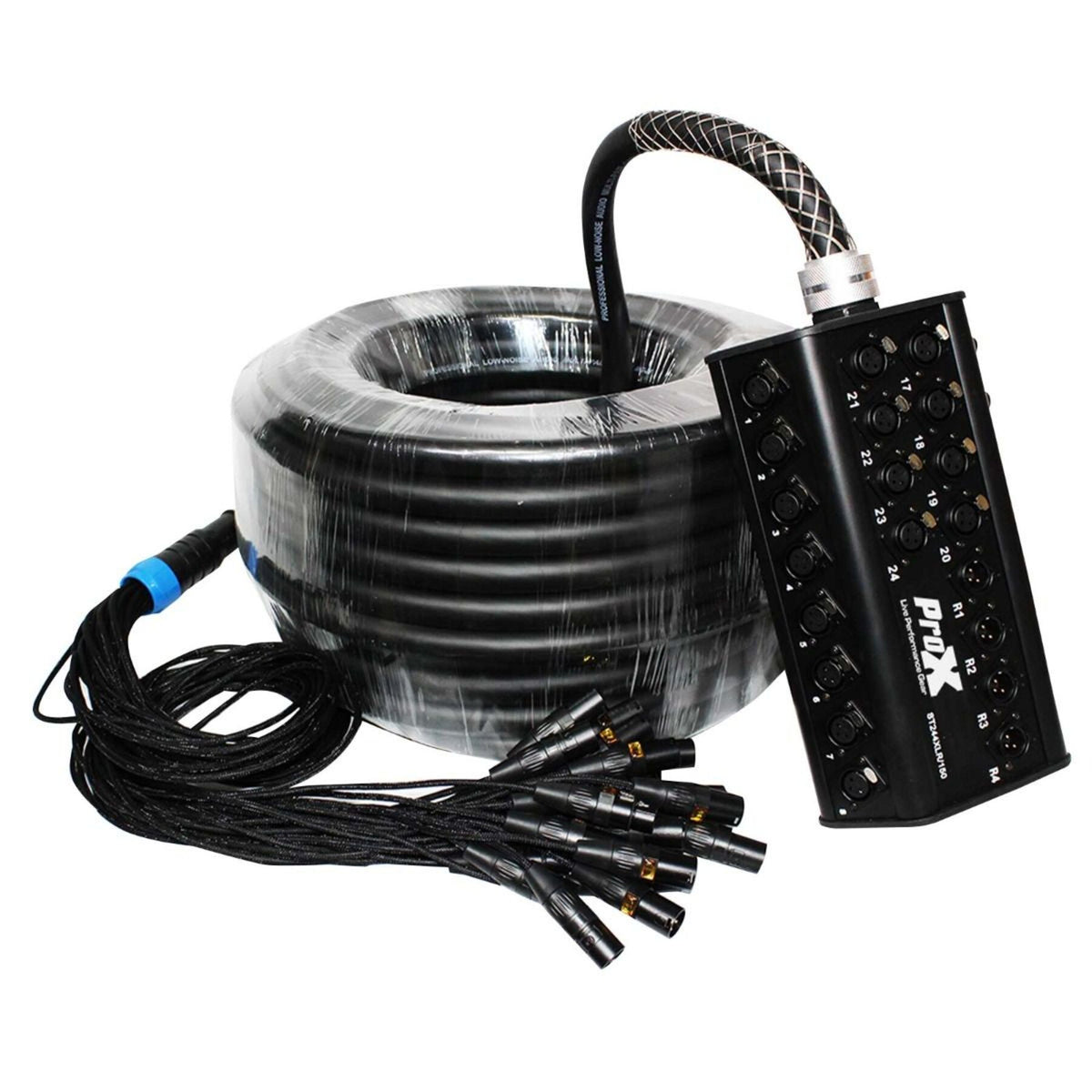

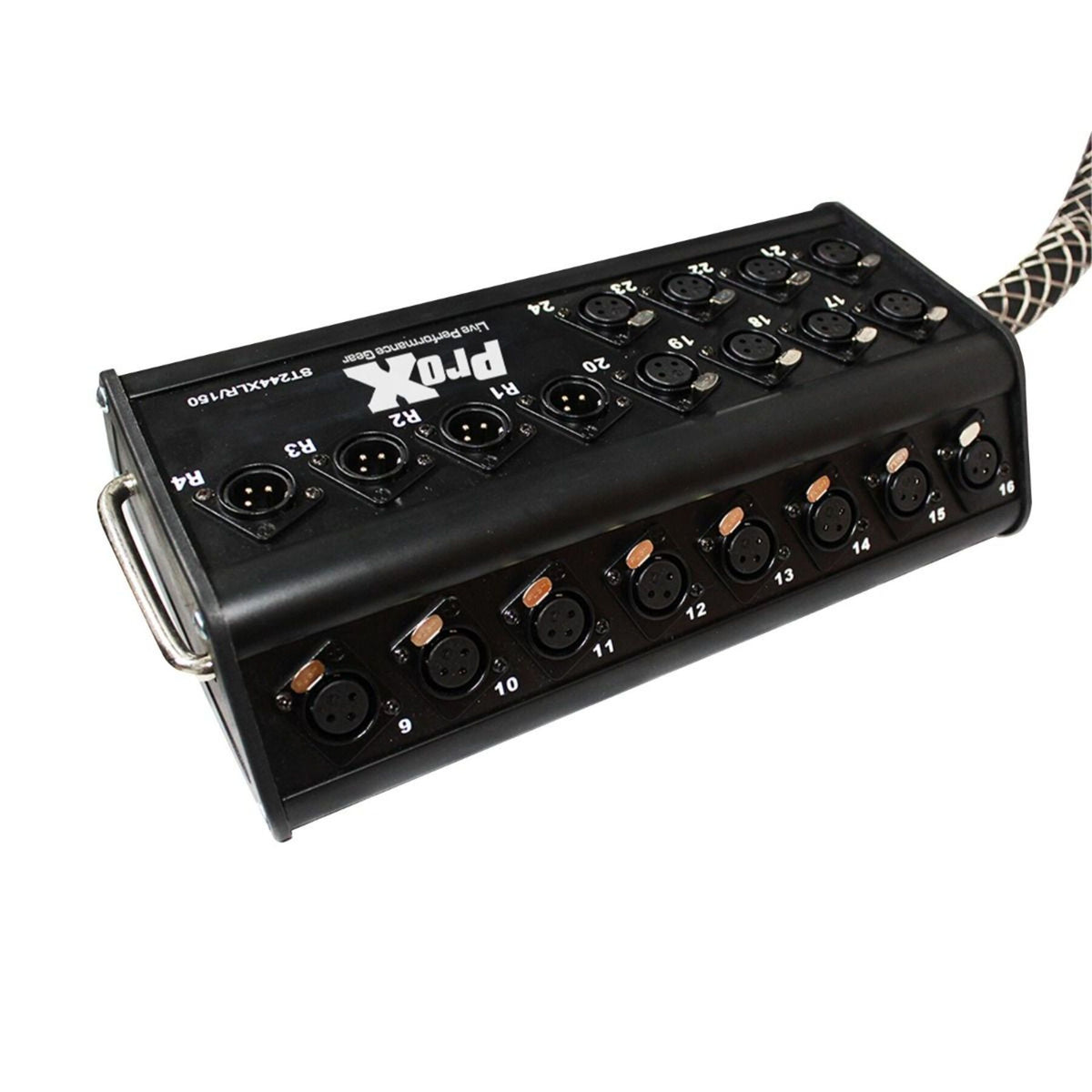

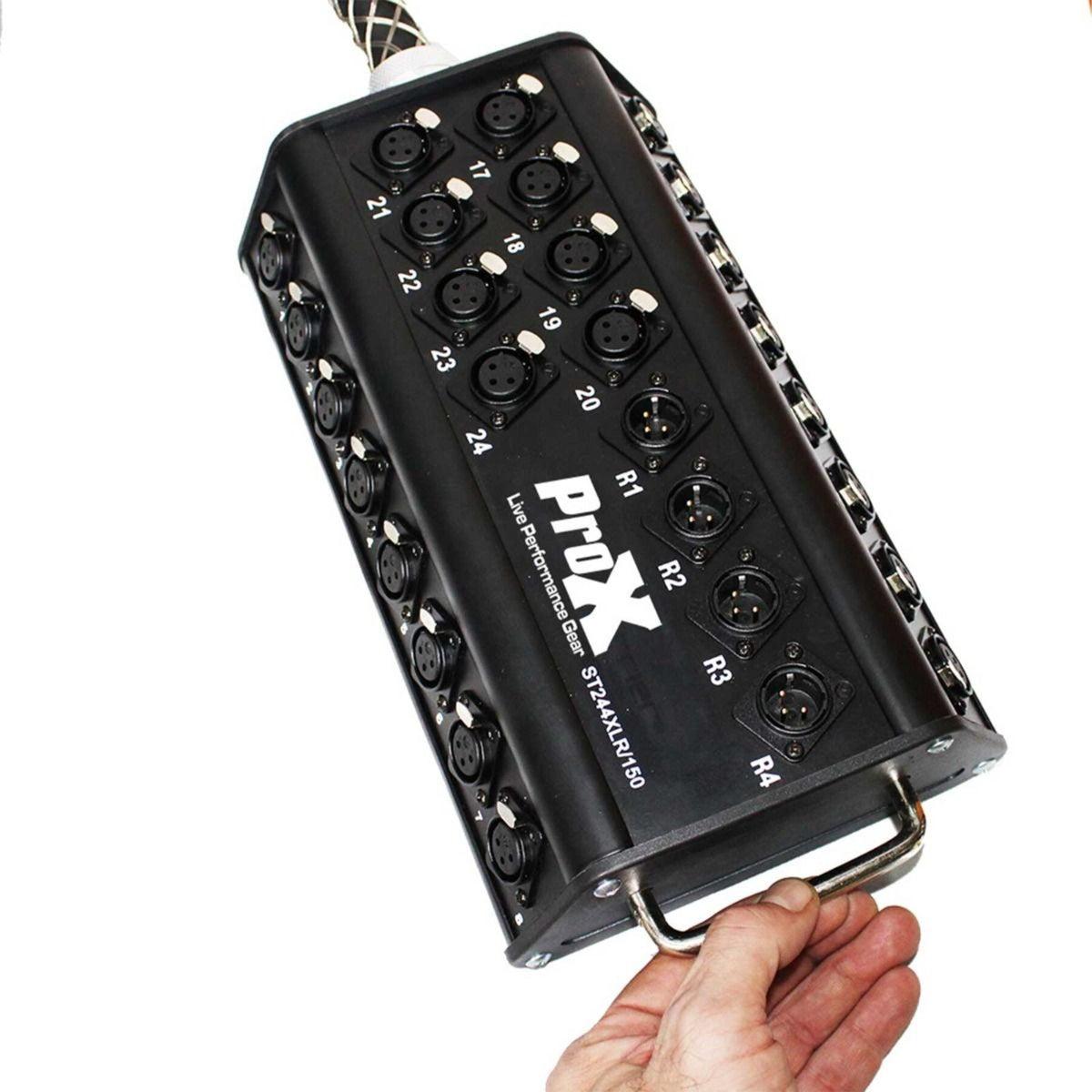

The XC-SB244XLR100 is a 100' XLR stage snake that carries 24 microphone-level signals from the stage to the mixing position in one run. The stage box end groups 24 female XLR send inputs in a single housing, so vocal mics, drum mics, amp mics, and direct boxes all land in one spot instead of a floor full of individual cables. Four male XLR returns travel the other direction for effect returns or on-stage monitor mixes.

One hundred feet of run covers a medium club, ballroom, or studio live room with the console placed well away from the performance area. Twenty-four sends handle a full drum kit, multiple vocalists, horns, and direct boxes on one snake.

Each line uses 20 AWG x 2 oxygen-free copper conductors under a braided OFC compact shield, which keeps mic-level signal quiet when the snake runs past lighting circuits and power drops. The compact overall cable diameter reduces eddy currents and keeps the bundle easy to coil and store between shows.

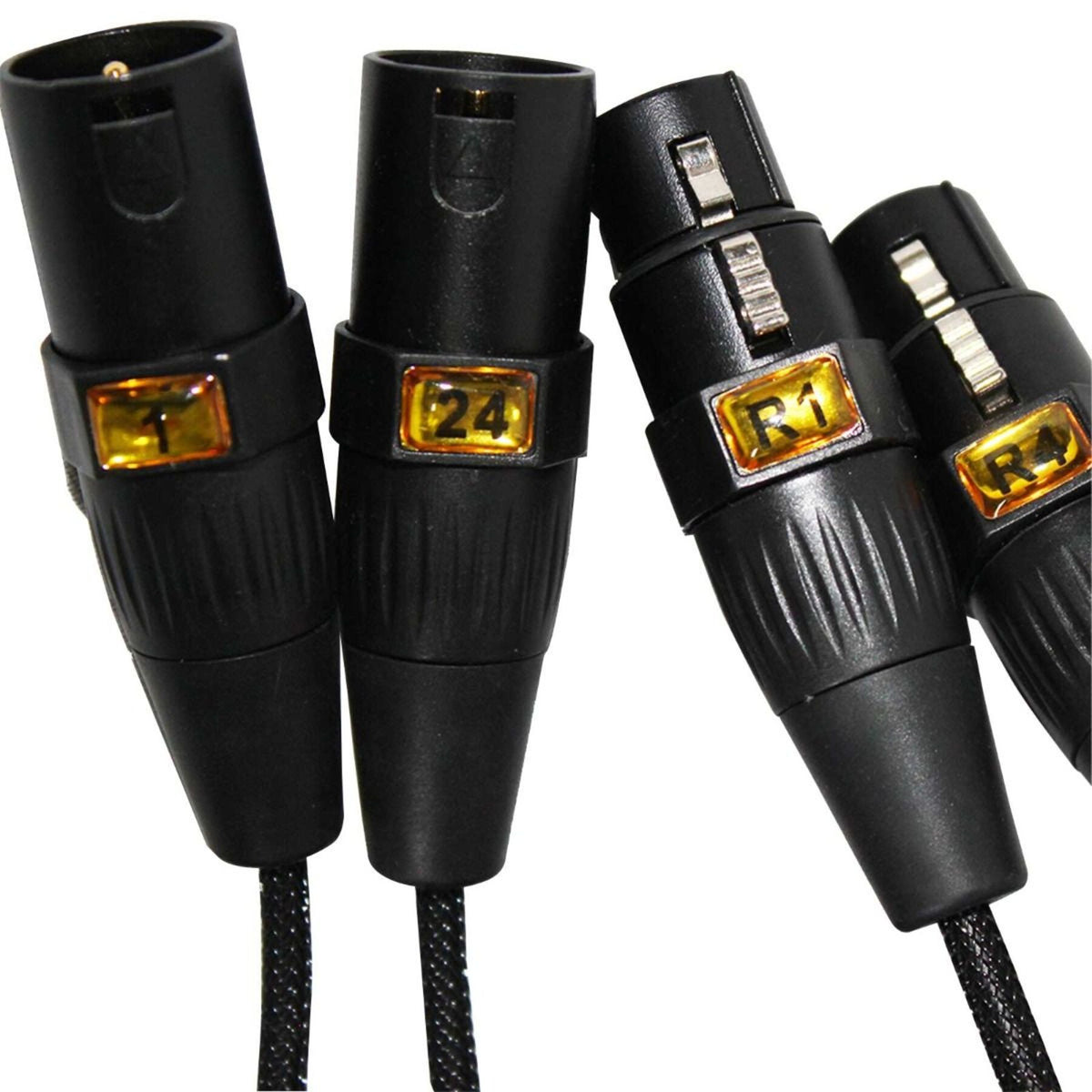

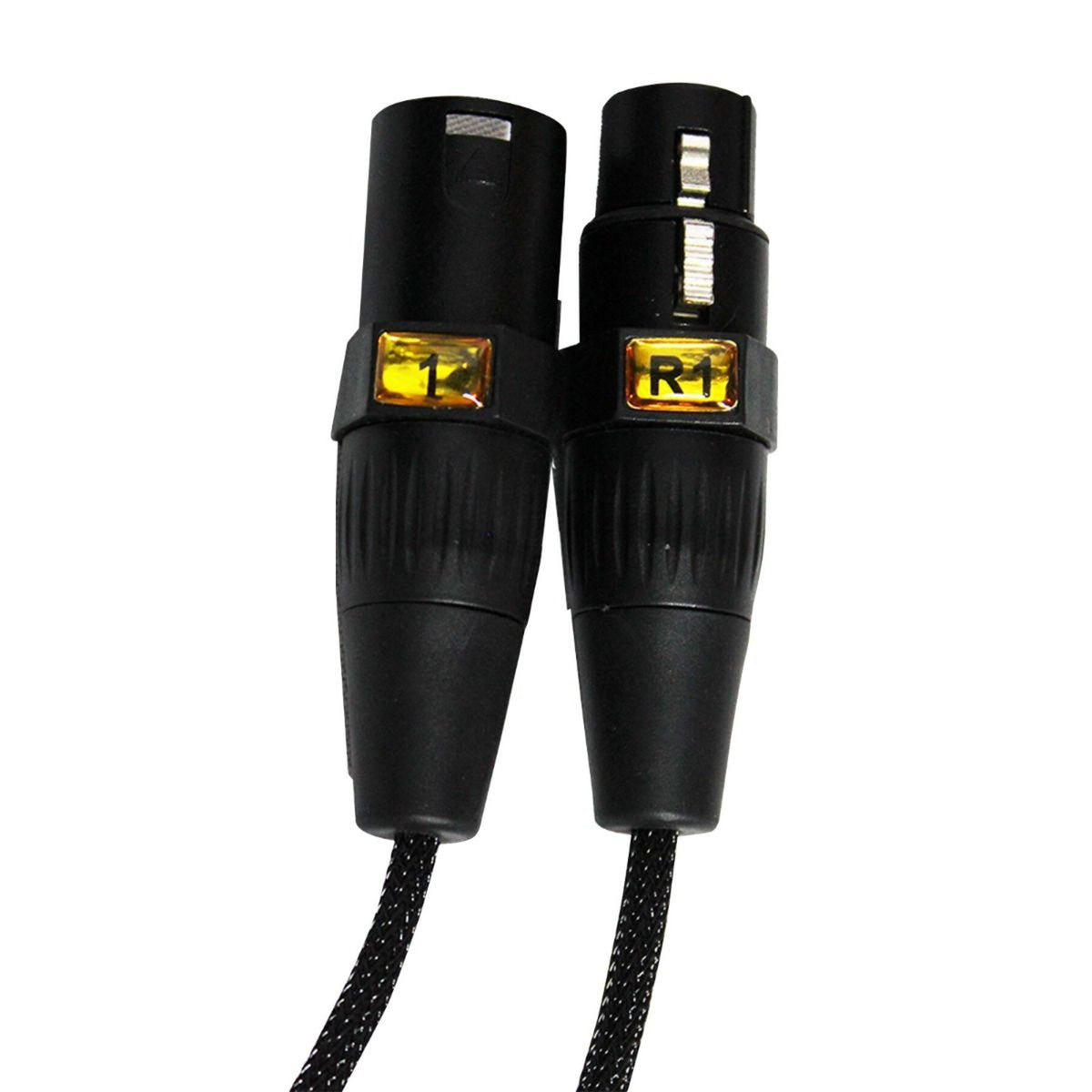

Connectors are all-metal with silver-plated contacts for low-resistance transfer and repeated plug cycles. ProX Complete Coil construction holds consistent weave tolerances down the length of the run, so channel-to-channel behavior stays predictable. The jacket and connectors are built for real load-ins: coiling, twisting, foot traffic, and cases rolled across the cable.

With 24 sends and 4 returns, one snake covers a full band with inputs to spare, plus playback and wireless receivers on a corporate or worship rig. Covered by the ProX Limited Lifetime Warranty.
