XT-BP3636A

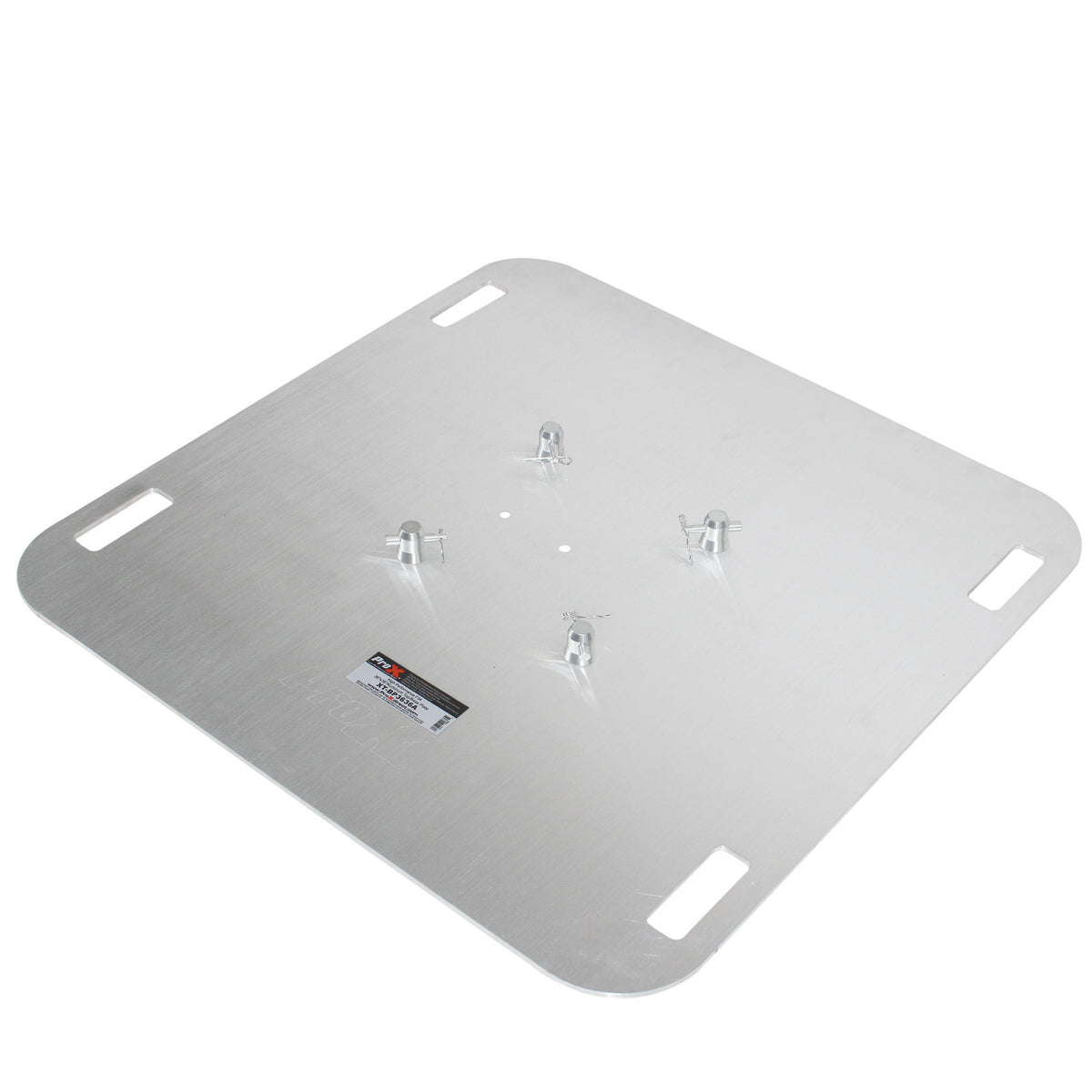

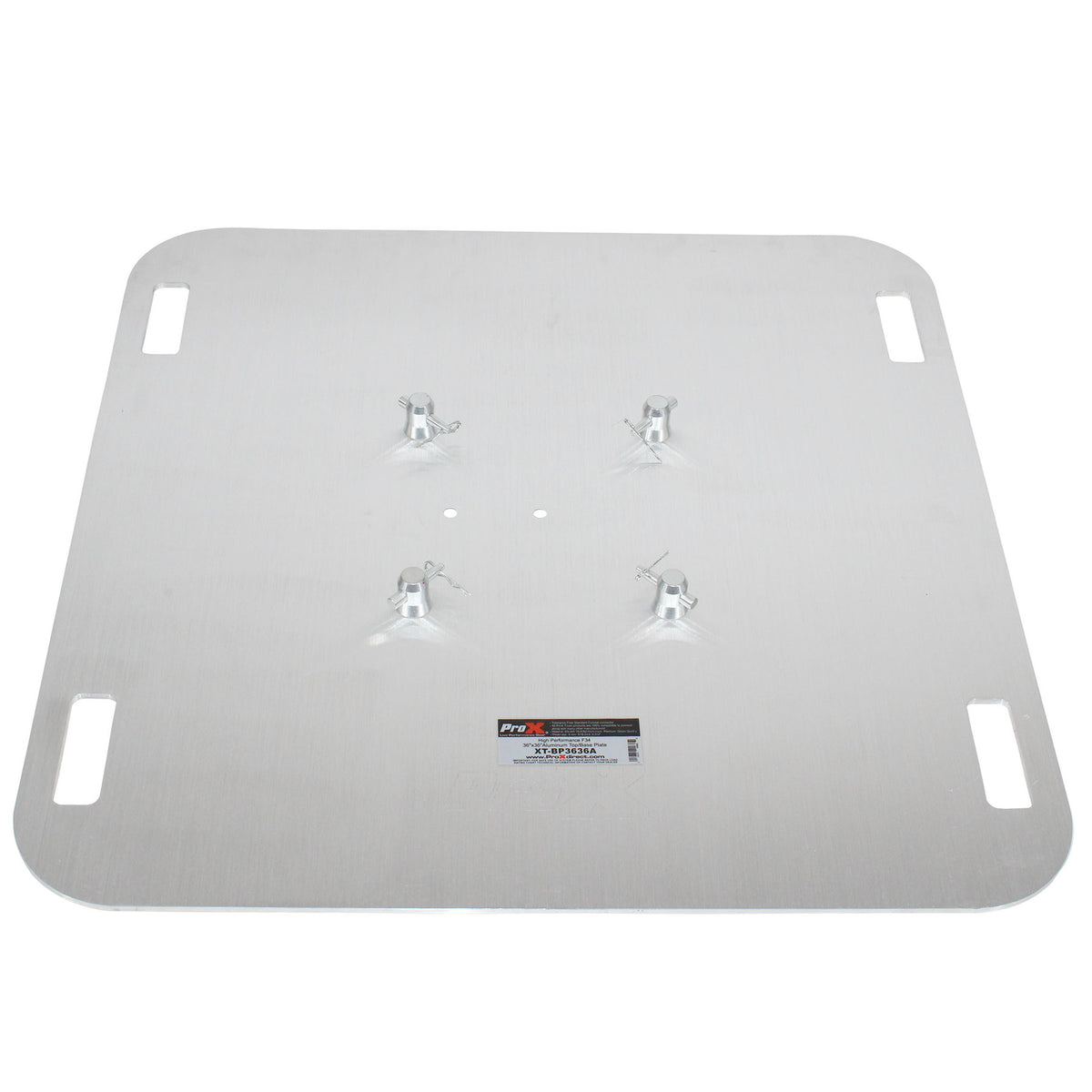

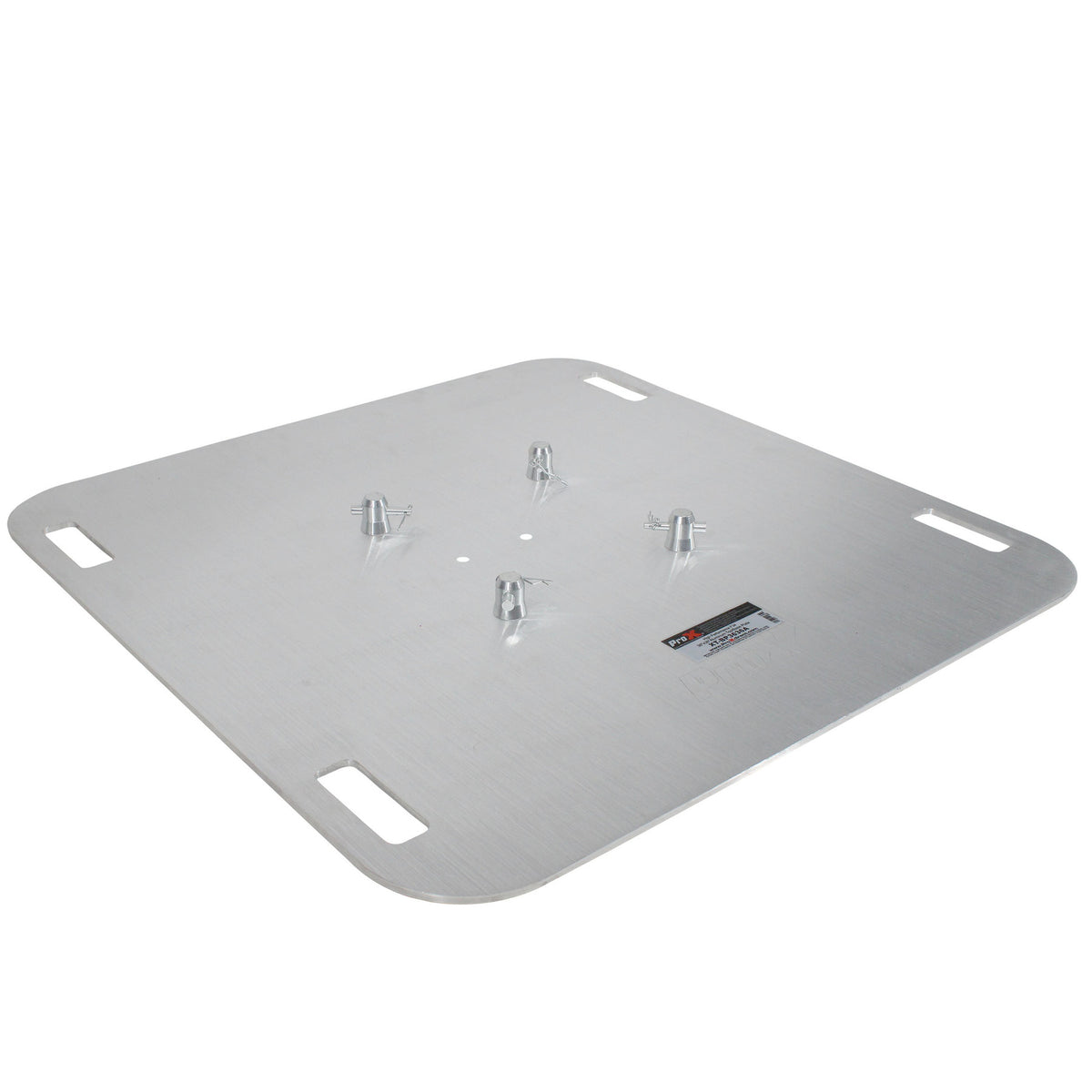

The ProX XT-BP3636A is a 36" x 36" aluminum base plate for F34, F32, and F31 conical square truss, supplied with a connecting hardware set. Forged from EN-AWT 5052 aluminum at 8mm thick and weighing 39 lb, it is the widest plate in the standard lineup and the one to reach for when a build is tall.

Three feet square spreads the load and gives the largest resistance to tipping, which is what taller towers and heavier hangs need at the floor. Edges are rounded for easier handling despite the size.

ProX truss segments are welded and manufactured in the ProX factory in line with TUV certified engineering. TUV is a third-party certification body and a Nationally Recognized Testing Laboratory that provides inspection, testing, certification, and training focused on reliability, safety, and quality.

Use it under tall lighting towers, LED wall supports, line array uprights on level flooring, large goal post entrances, exhibit structures, and permanent installations. Always use a base plate large enough for the load placed on it, and add ballast or bracing when working outdoors or building higher.
