ATV300 Mono IP65 Micro UTV/Motorcycle/ATV Powersports Amplifier+Wires
Rockville
ATV300 Mono IP65 Micro UTV/Motorcycle/ATV Powersports Amplifier+Wires
ATV300 Mono IP65 Micro UTV/Motorcycle/ATV Powersports Amplifier+Wires
Mono 1200W Peak IP65 Powersport Amplifier with 8 AWG OFC Install Wire Kit
Free Shipping
Features
- Mono Class D amp with 300W RMS at 2 ohms and IP65 waterproof rating
- RWK8ATV 8 AWG 100% OFC wire kit with waterproof AGU fuse holder

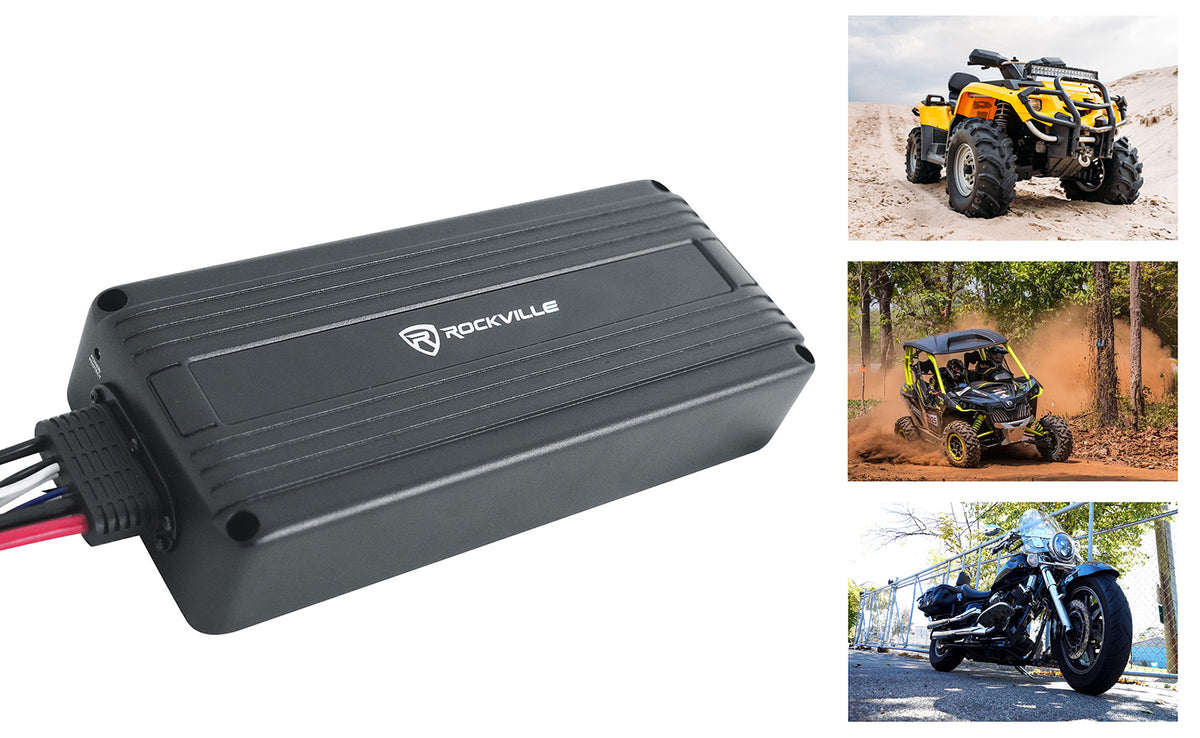

- Micro chassis fits tight powersport mounting spaces
- Configurable LP/HP/full crossover plus subsonic filter for subs
- High-level speaker inputs connect to factory head units directly
Couldn't load pickup availability

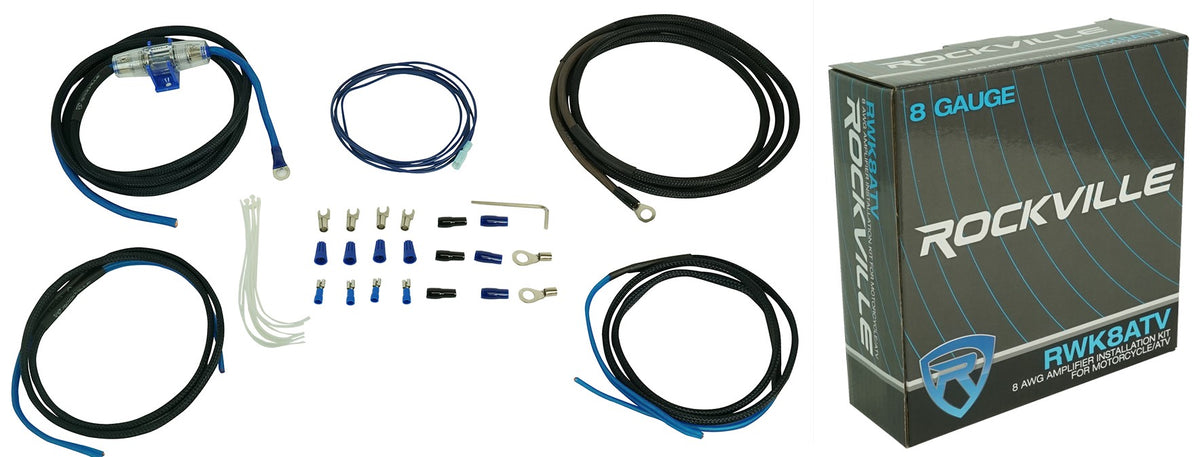

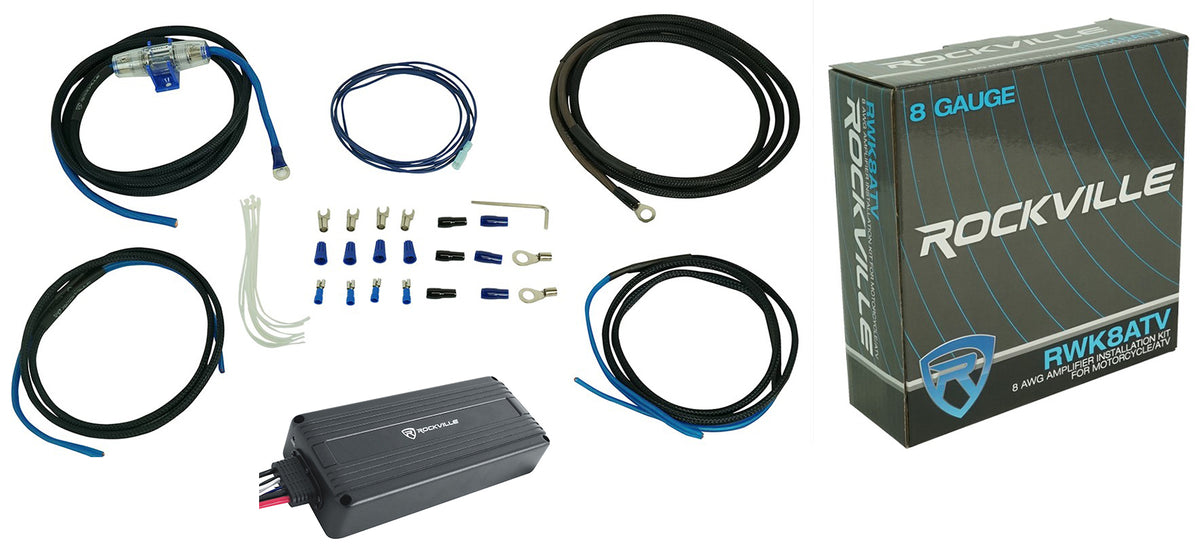

What's Included in the box
- (1) Rockville ATV300 Mono Powersport Amplifier
- (1) Rockville RWK8ATV 8 AWG OFC Amp Wire Kit
- (1) 6' 8-Gauge OFC Red Power Cable with Poly Woven Mesh

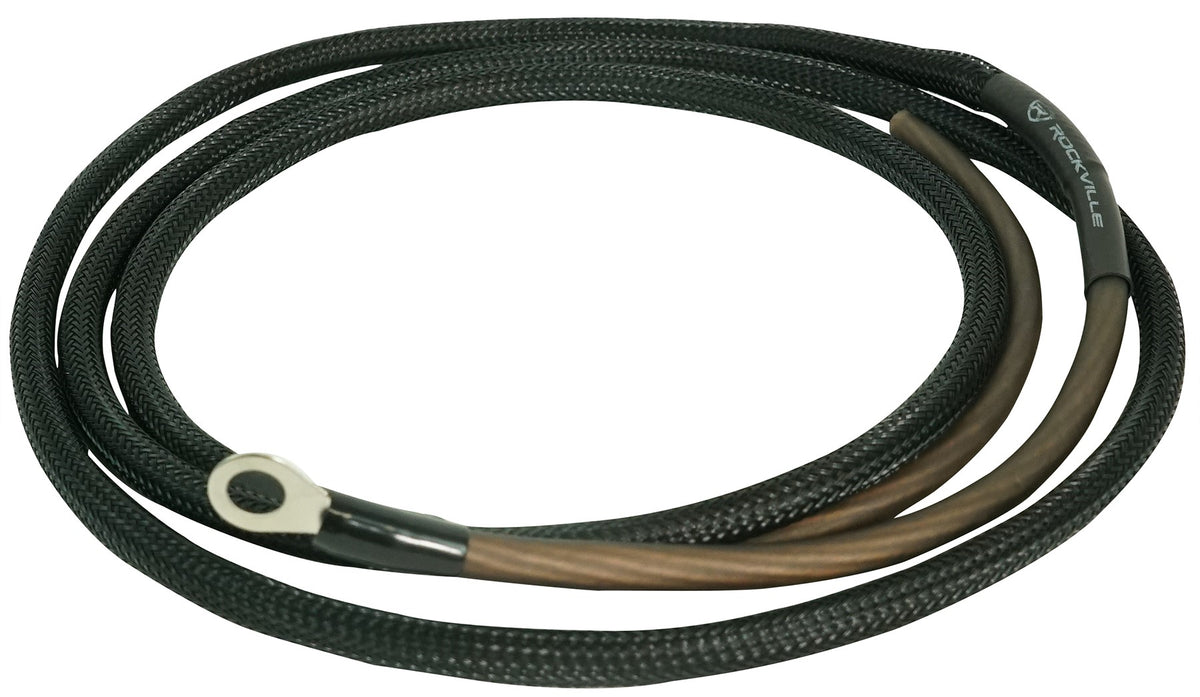

- (1) 6' 8-Gauge OFC Black Ground Cable

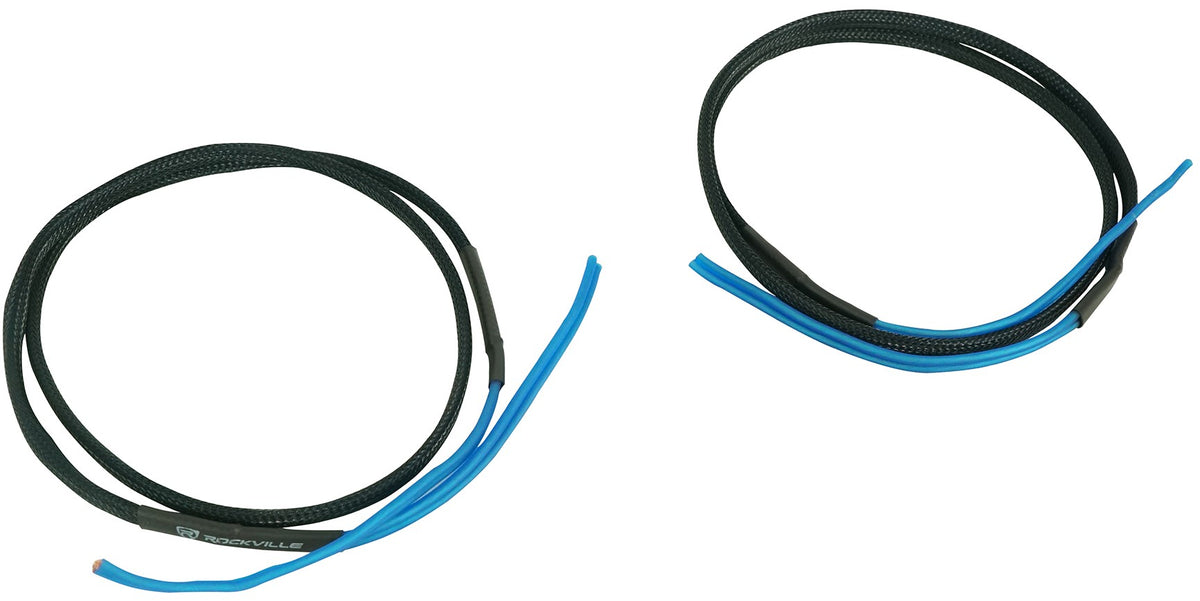

- (2) 4' 16-Gauge OFC Speaker Cables with Nylon Mesh
- (1) 6' Pre-Terminated Remote Wire

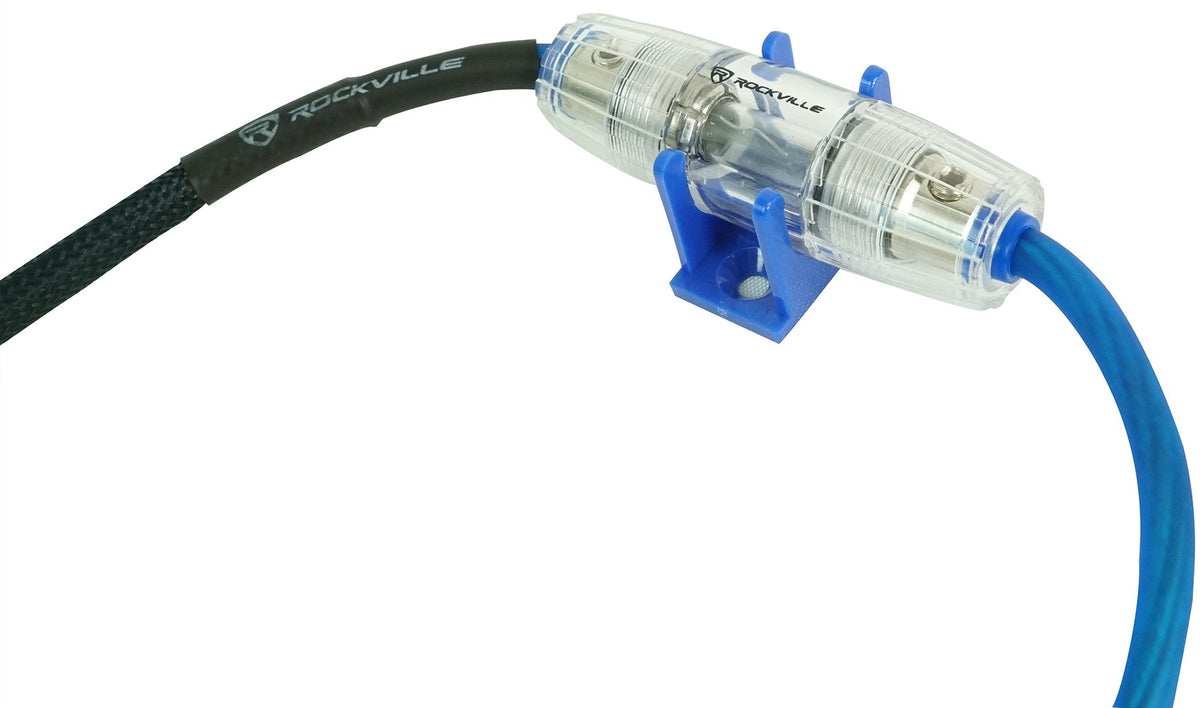

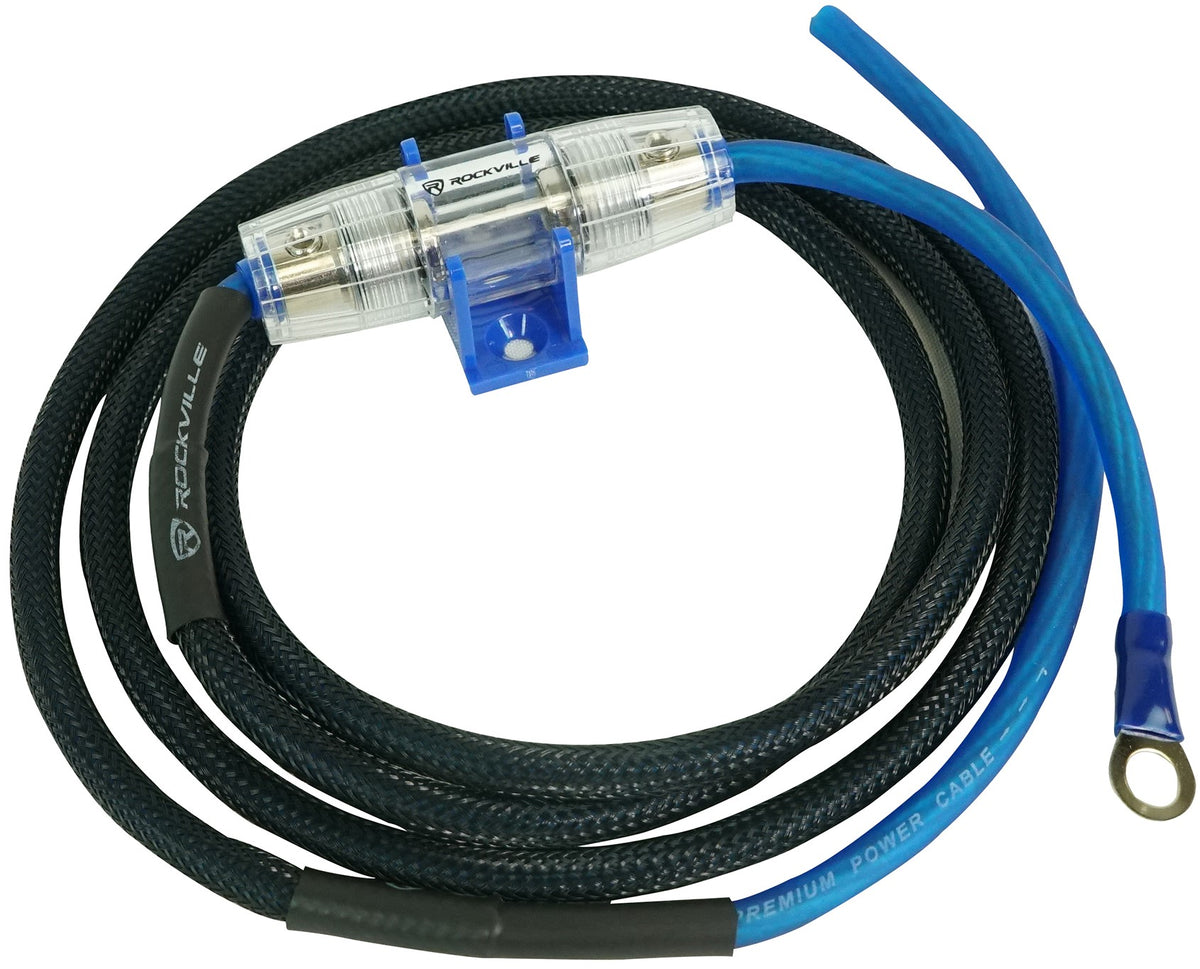

- (1) Waterproof AGU Fuse Holder with 60A Fuse
- Ring Terminals, Spade Terminals, Speaker Terminals, Cable Ties, Hexagon Spanner
SKU: SKU: ATV300+RWK8ATV
View full details











Product Description
A configurable crossover with LP, HP, and full-range modes (32Hz to 320Hz) and a subsonic filter (20Hz to 60Hz) let you tune the amp specifically for sealed or ported subwoofer enclosures. High-level speaker inputs mean you can wire it to a factory head unit without an adapter. The RWK8ATV kit is built for powersport vehicles: 6' of 8-gauge 100% OFC red power cable with a poly-woven mesh battery section, matching OFC ground cable, two 4' nylon-mesh-protected OFC speaker cables, a pre-terminated remote wire, a waterproof AGU fuse holder with a 60A fuse, and all the terminals and ties you need. This package covers the amp, the fusing, and every wire between battery, head unit, and subwoofer.
Features

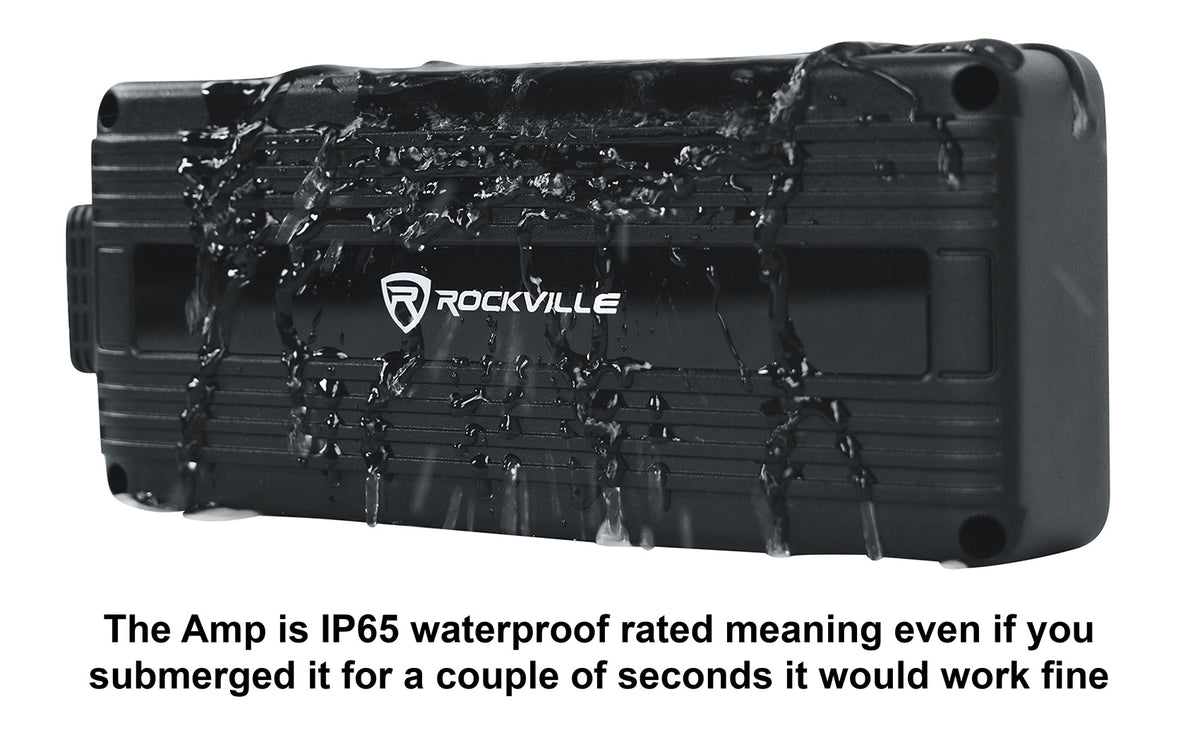

IP65 Waterproof Protection

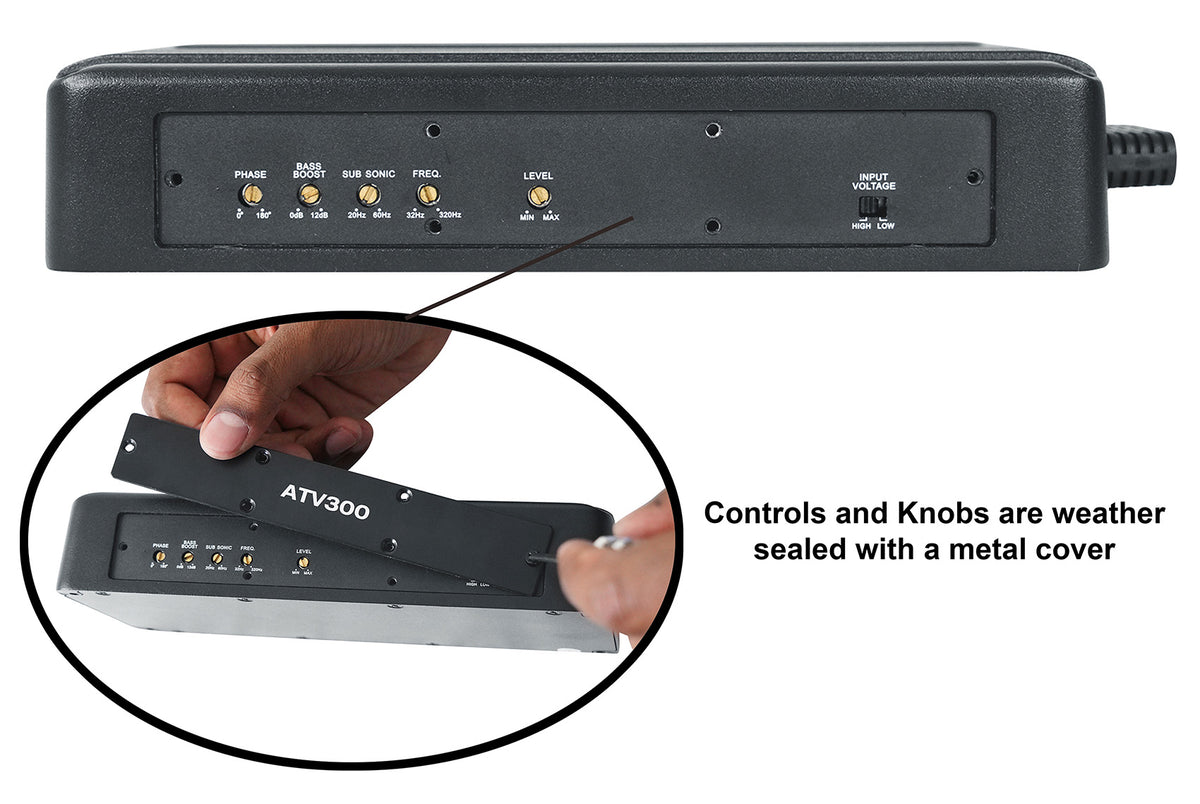

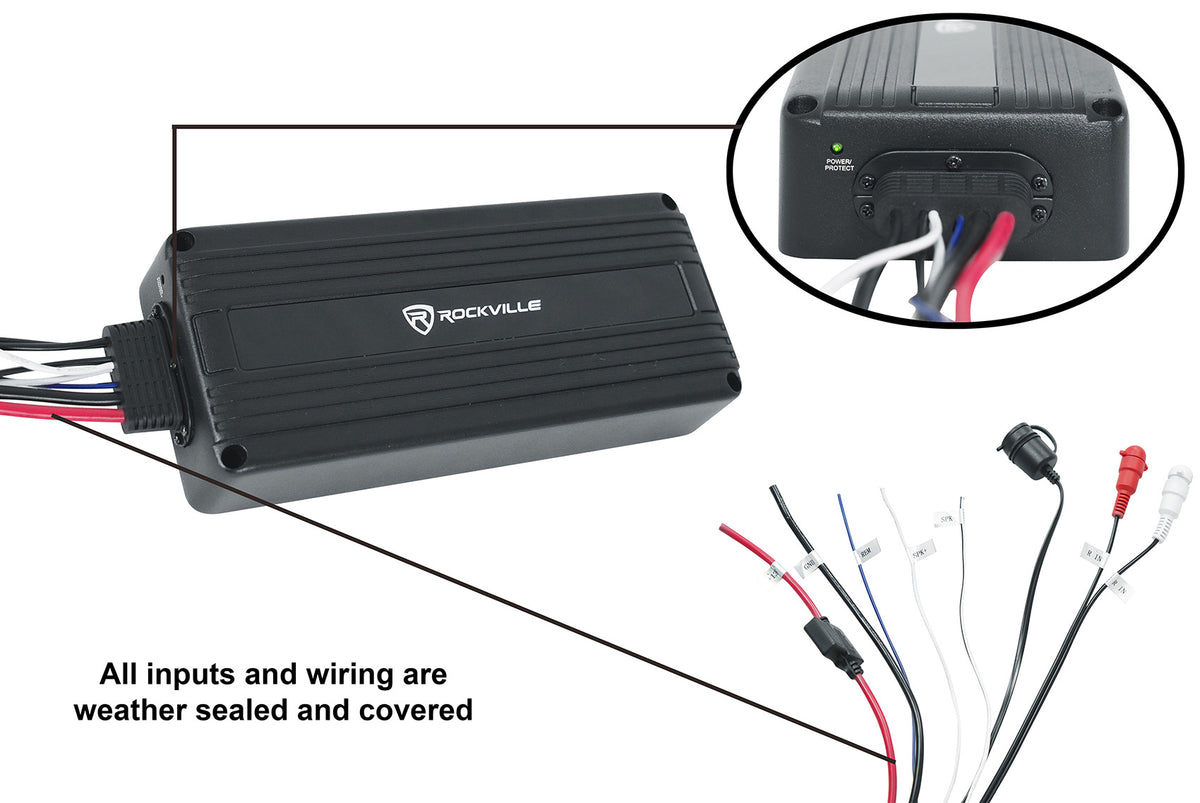

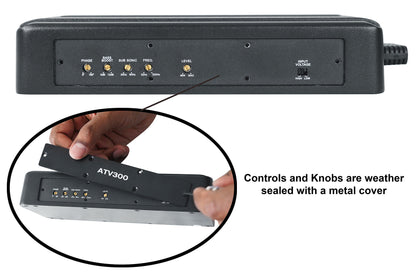

Sealed inputs, conformal-coated boards, and anti-rust materials let the ATV300 survive direct water spray, mud, and post-ride washdowns without damage.
OFC Powersport Wiring
The RWK8ATV kit uses 100% OFC copper cables with nylon mesh protection and a waterproof fuse holder sized for tight powersport battery compartments.

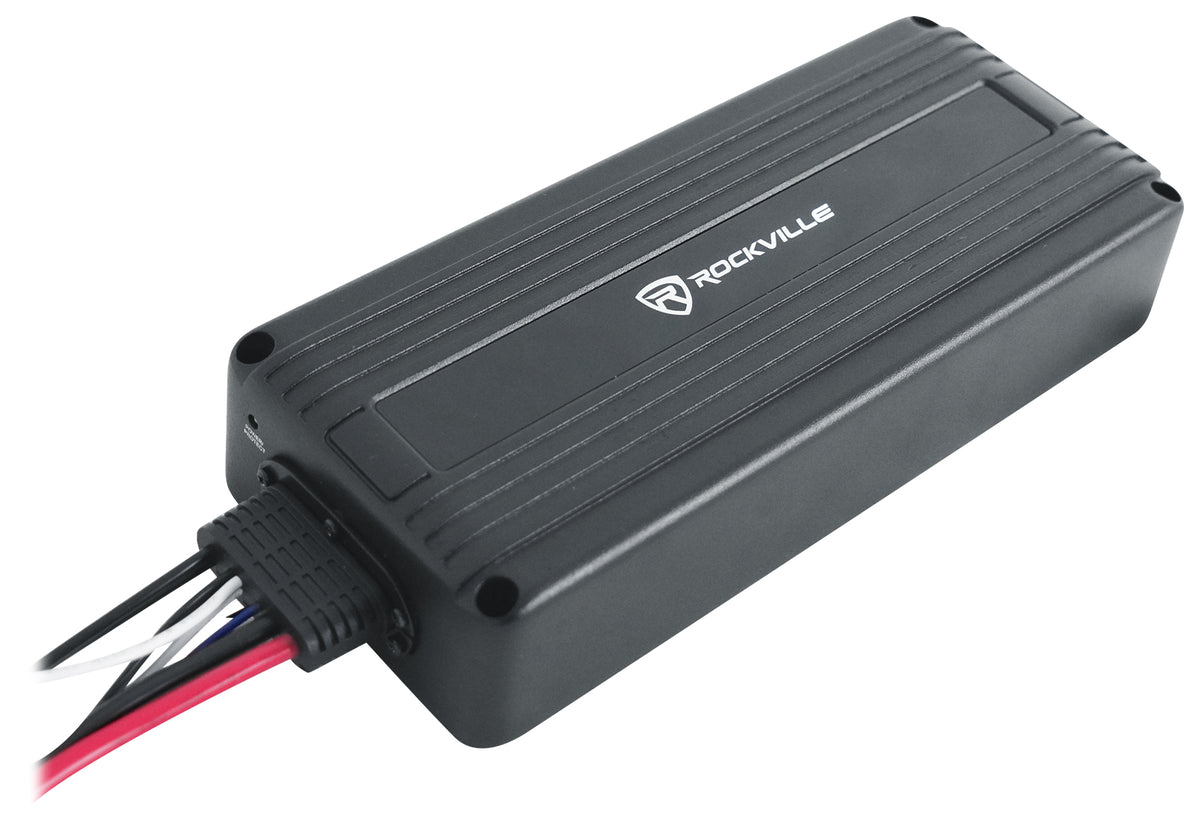

Micro Chassis, Full Power

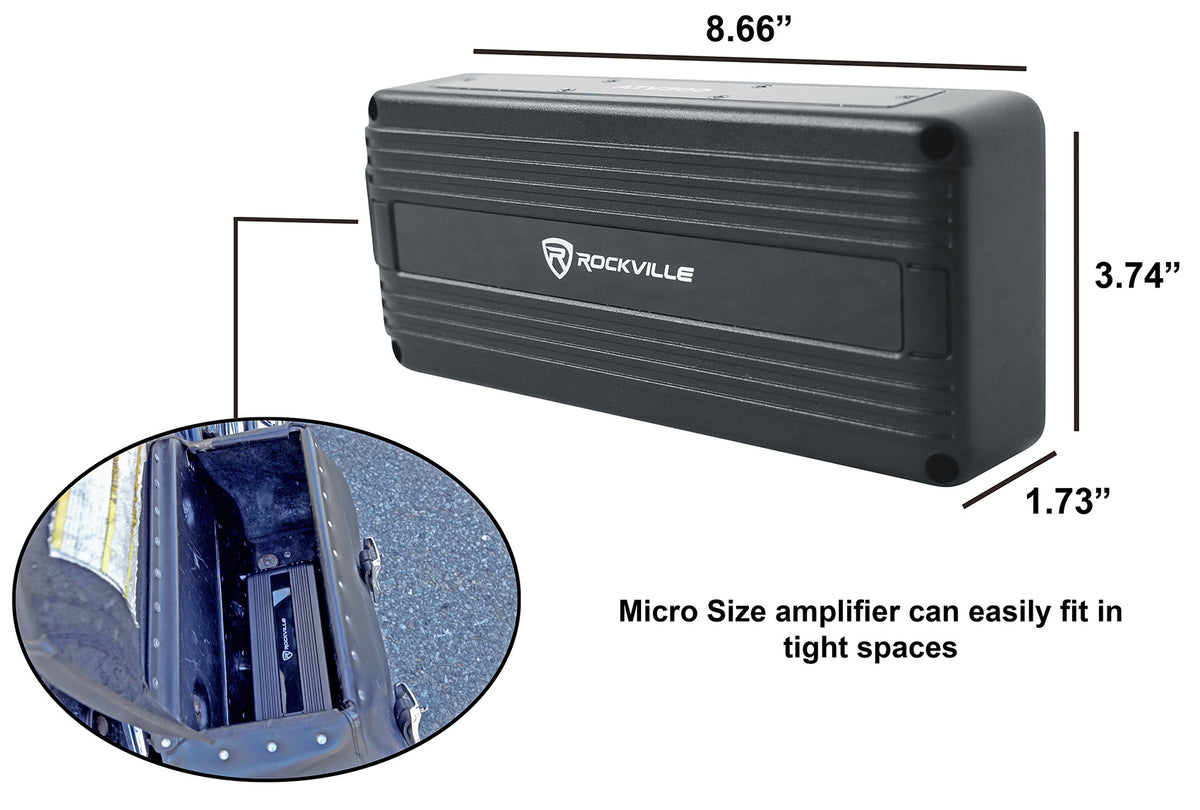

At just 8.66" x 3.74" x 1.73", the ATV300 mounts in tight UTV, ATV, or motorcycle spaces while still delivering 300W RMS to your subwoofer.
Tunable Subwoofer Crossover
LP, HP, and full-range modes with a 32Hz to 320Hz range plus a 20Hz to 60Hz subsonic filter let you match the amp to sealed or ported enclosures.
Direct Head Unit Connection
High-level speaker inputs accept signal from a factory head unit without a line-output converter, keeping the install simple and the parts list short.
Technical Specifications
- Product Type Powersport Amplifier and Wiring Kit Bundle
- Amplifier ATV300 Mono Class D Amplifier
- Peak Power at 2 Ohm 1,200W
- RMS Power at 2 Ohm 300W
- RMS Power at 4 Ohm 160W
- Waterproof Rating IP65
- Crossover LP/HP/Full, 32Hz - 320Hz
- Subsonic Filter 20Hz - 60Hz
- Frequency Response 20Hz - 22kHz
- S/N Ratio >80dB
- Fuse Rating 35A
- Wire Kit RWK8ATV 8 AWG 100% OFC Powersport Install Kit
- Amplifier Dimensions 8.66" L x 3.74" W x 1.73" H
