180W 6-Zone 70V Amp With Bluetooth, 18 Drop-In 8" Ceiling Tile Speakers
Features
- 18 drop-in tile speakers fit standard 2'x2' ceiling grids with no cutting
- 180W 6-zone 70V amp with separate volume controls per zone
- 91 dB sensitivity with 105-degree dispersion for even room coverage
- Bluetooth, USB, SD, FM, optical, and RCA inputs on the amplifier

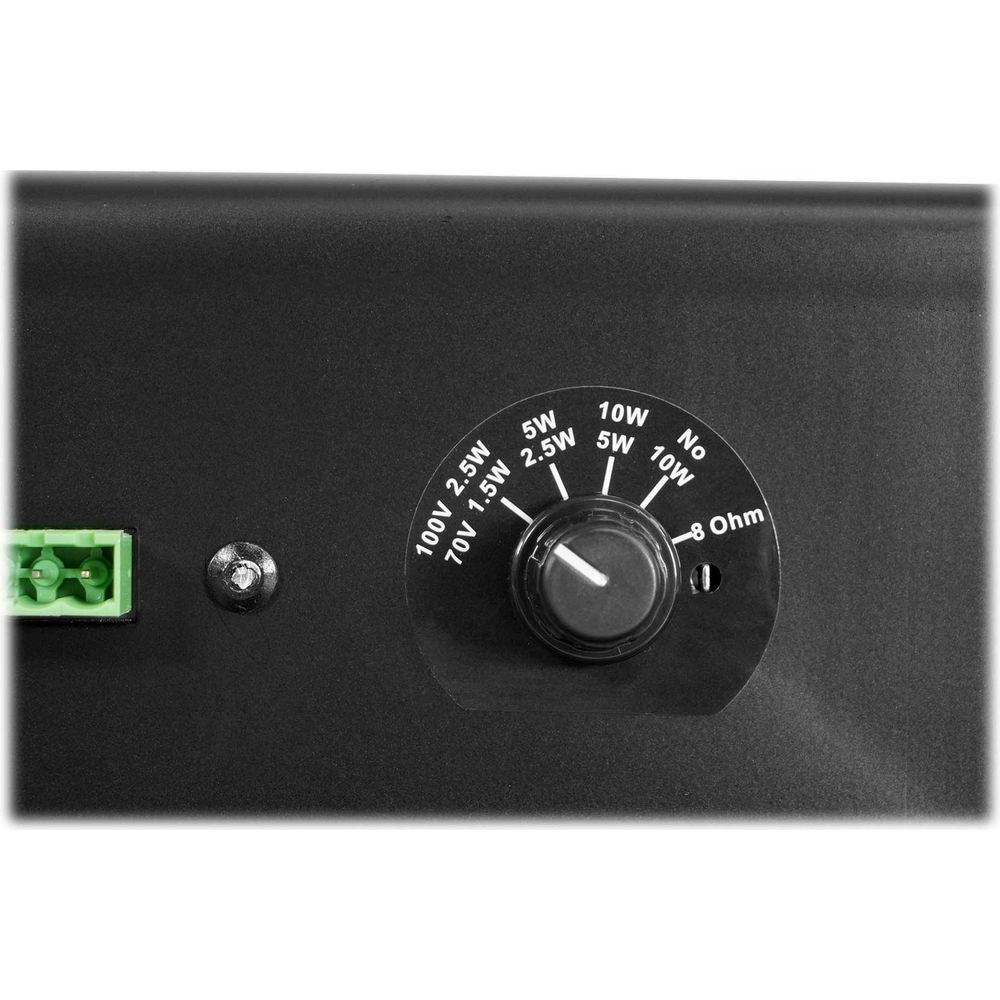

- 70V taps at 10W, 5W, and 2.5W plus 30W RMS at 8 ohms
Couldn't load pickup availability

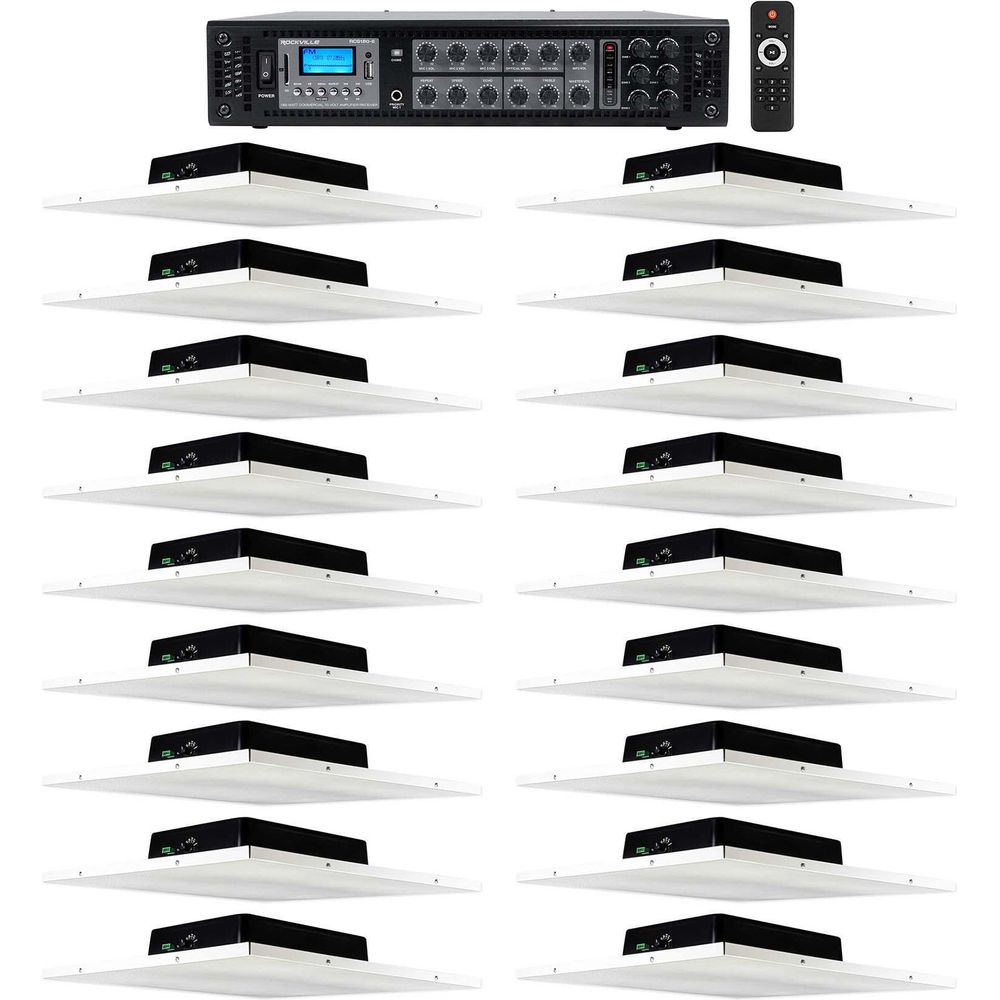

What's Included in the box

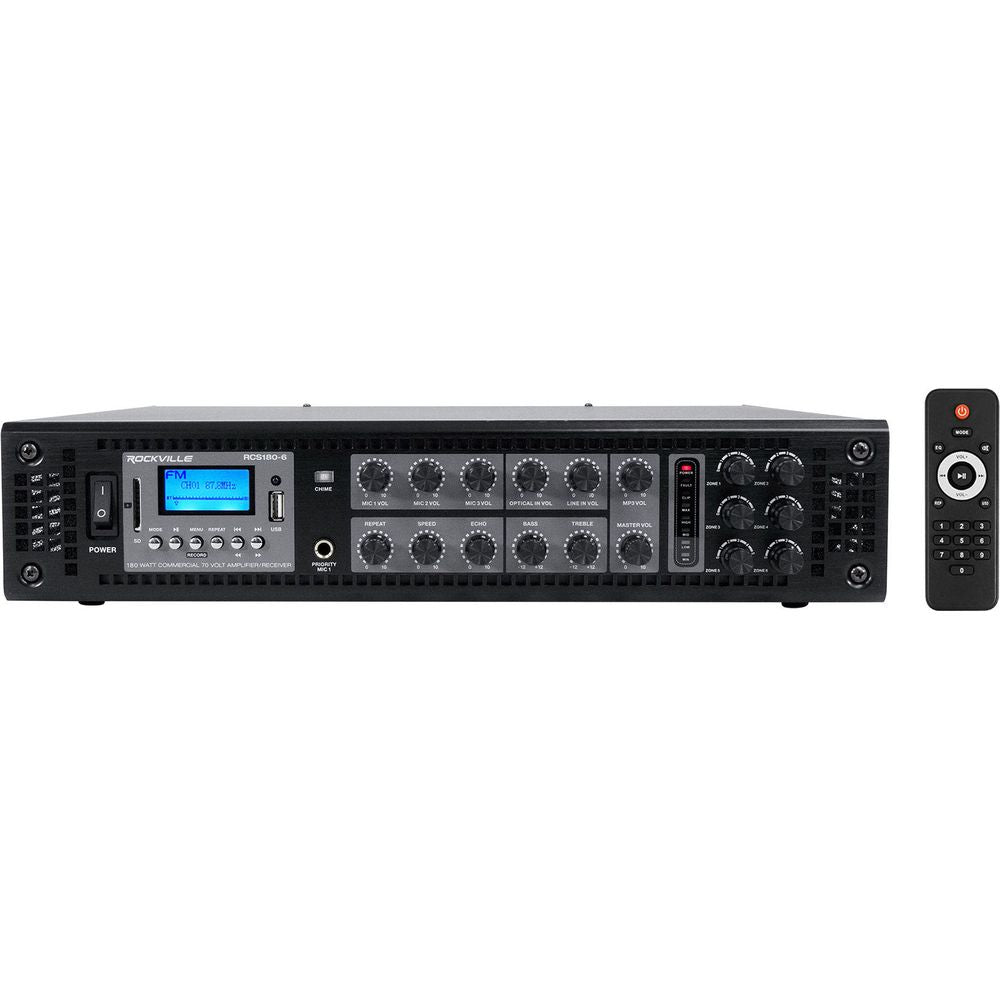

- Rockville RCS180-6 180W 6-zone amplifier
- Remote control
- Rack mount ears
- Power cable
- FM radio antenna

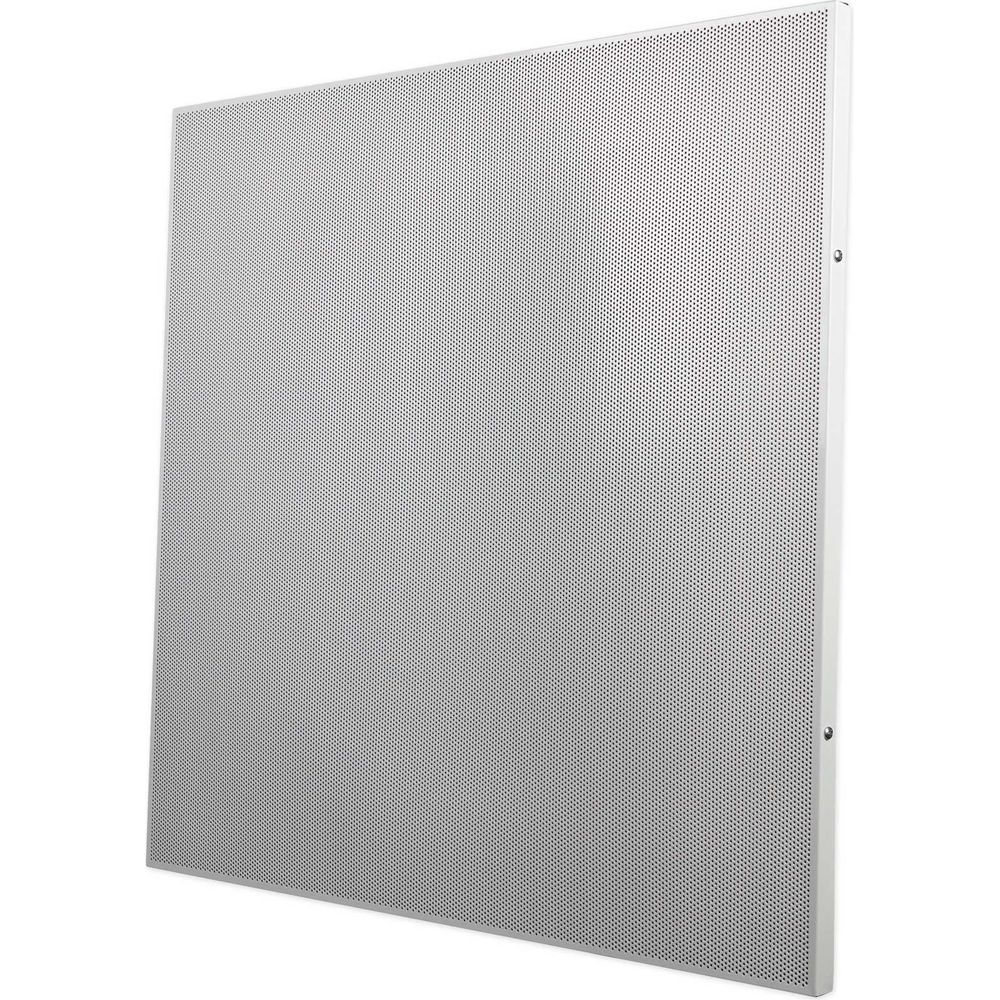

- 18 Rockville DCS8T 8" drop ceiling tile speakers
SKU: SKU: RCS180-6+(18) DCS8T
View full details














Product Description

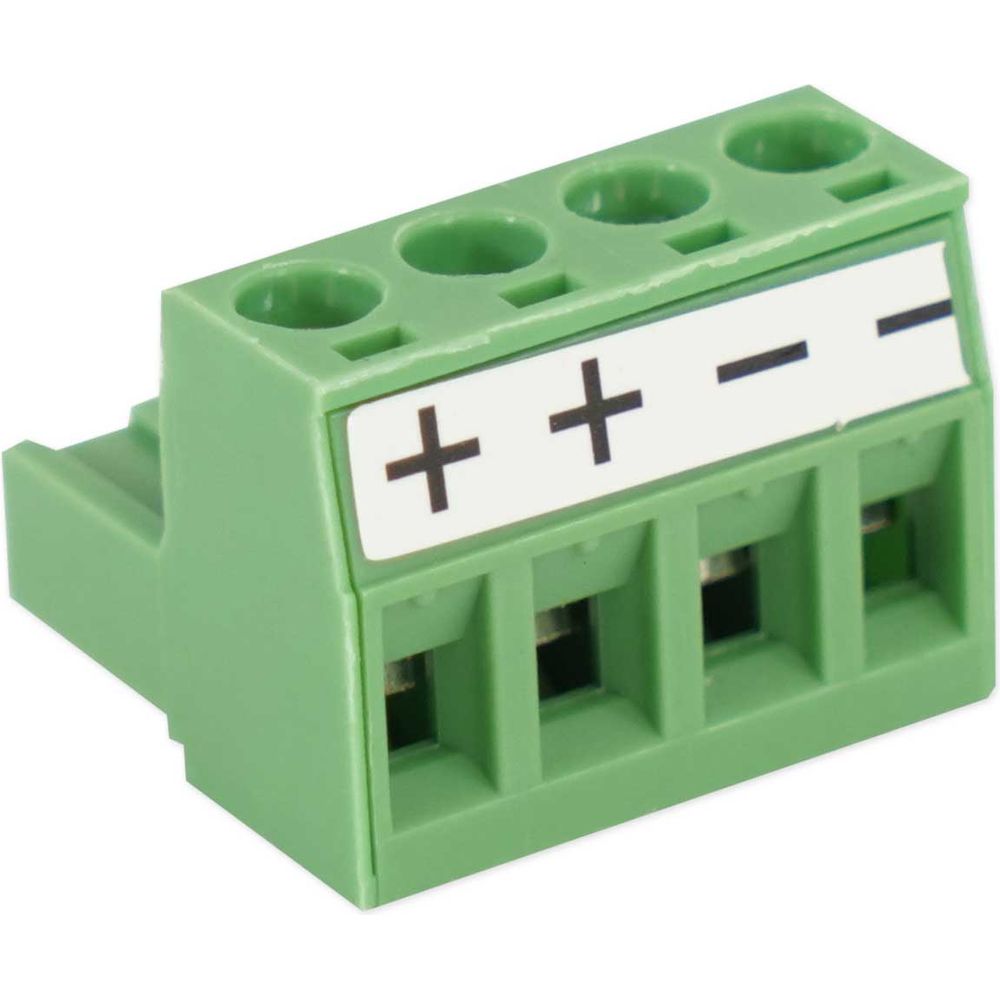

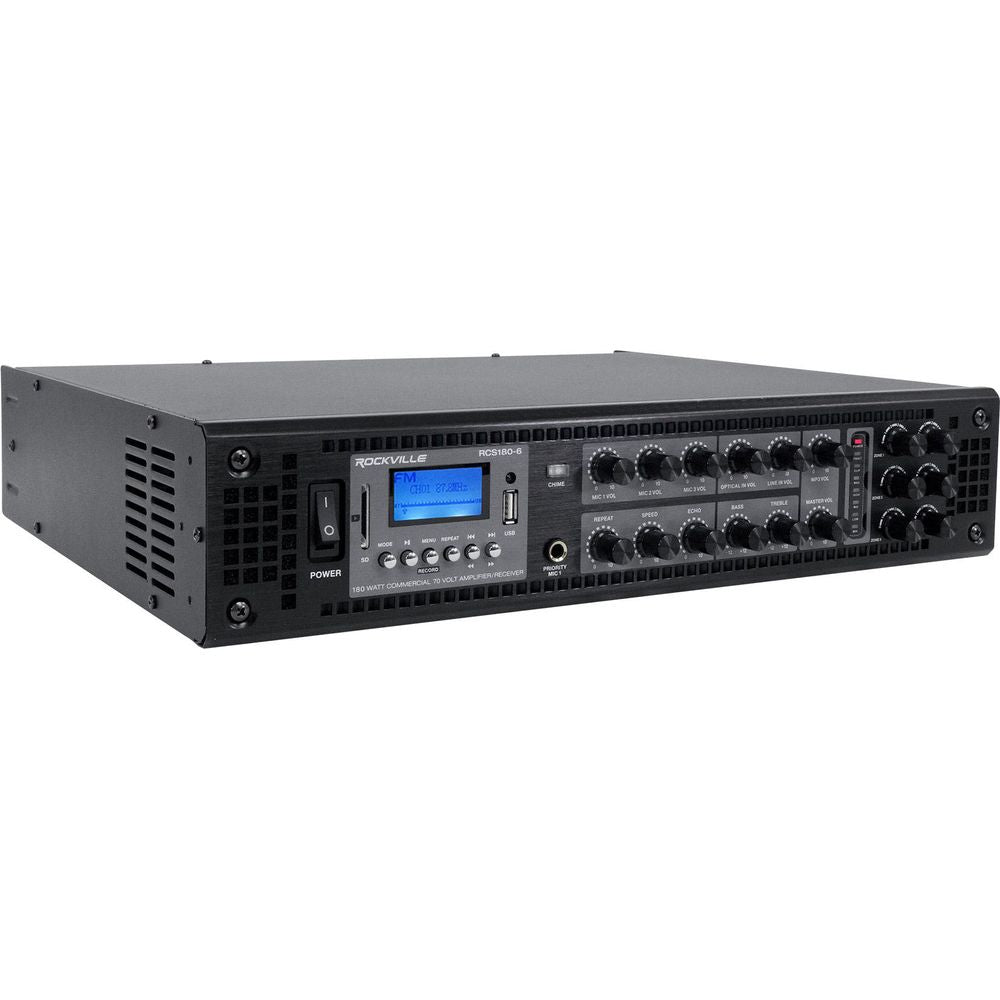

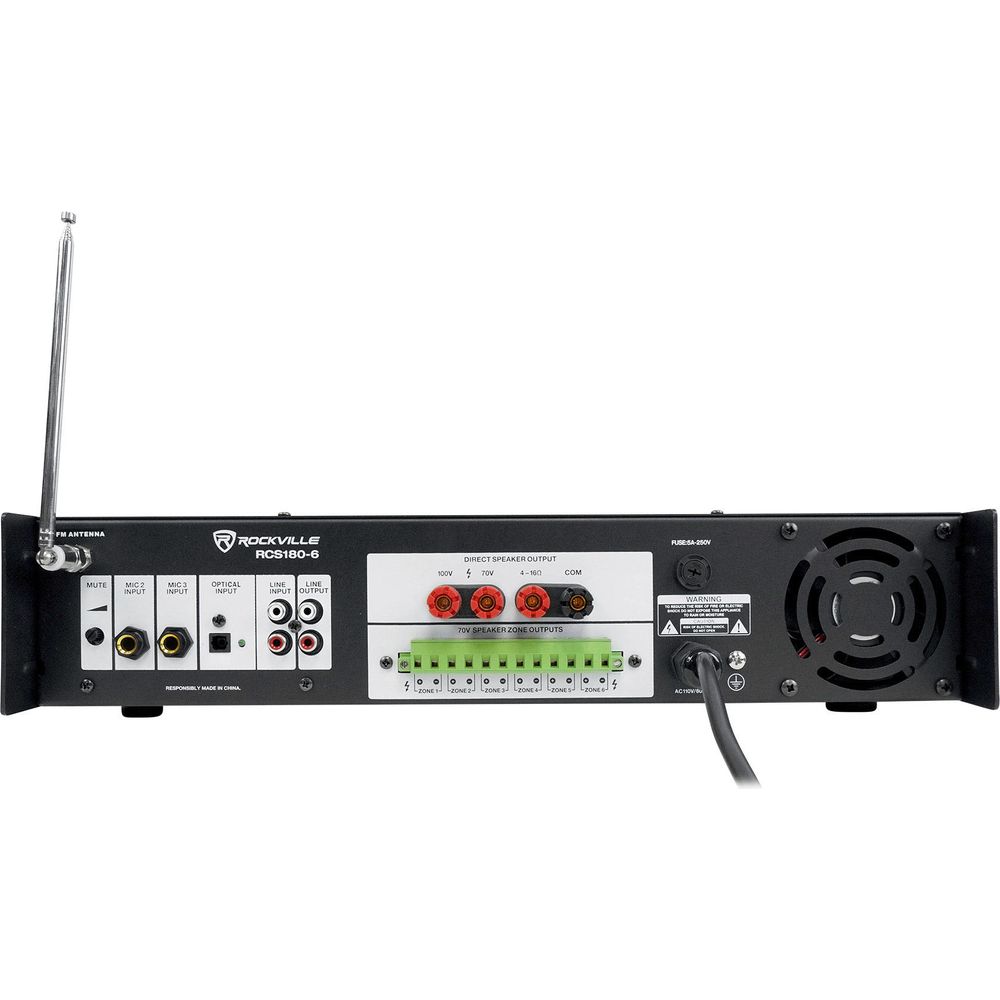

The RCS180-6 gives you six independently controlled zones with 180 watts of total power across 70V, 100V, 8-ohm, or 4-ohm configurations. Built-in Bluetooth streaming, USB and SD playback, FM tuner, optical input, and dual RCA inputs handle your music sources. Three mic inputs with individual echo controls plus a chime button take care of PA announcements. Detachable euro-block terminals make speaker wiring fast and clean, and the built-in clipping limiter with cooling system keeps the amp running reliably through full business days. With 18 speakers across up to 6 zones, this system covers large office floors, multi-room restaurants, or retail spaces where drop ceiling tiles are already in place.
Features
True Drop-In Installation

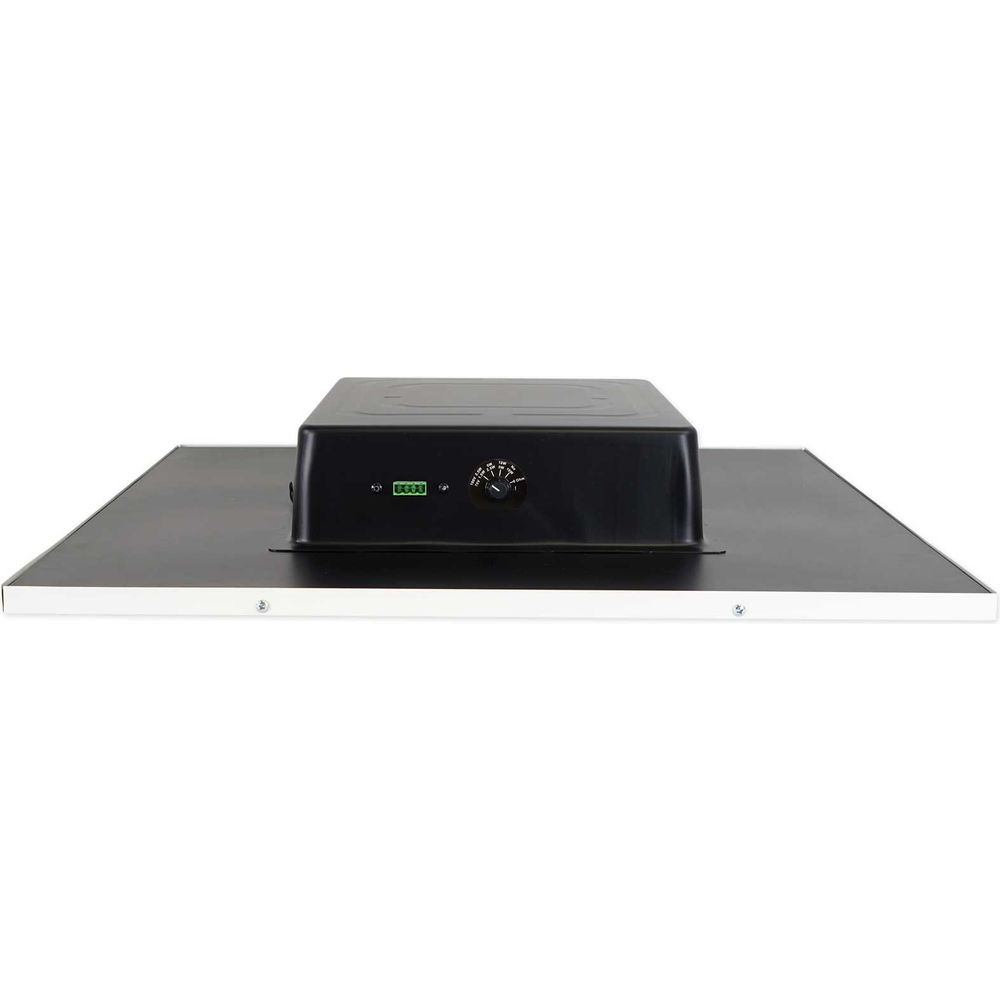

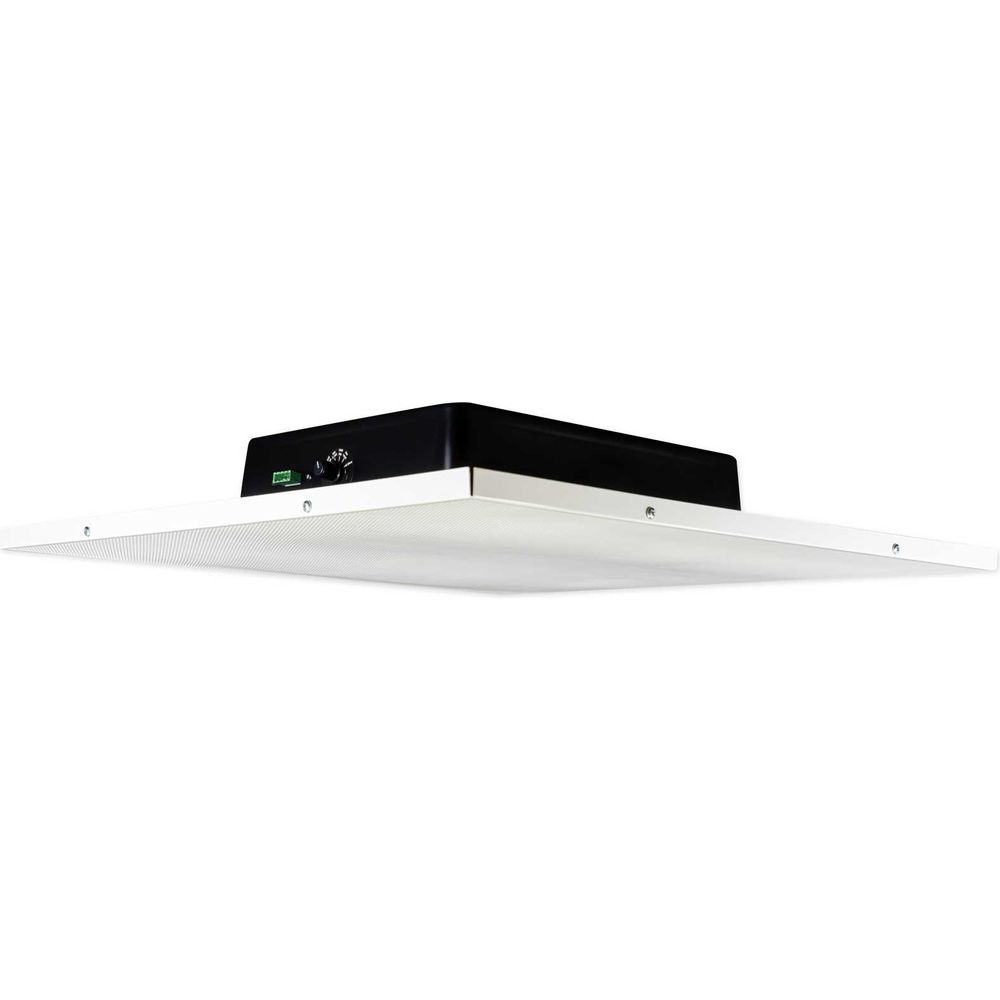

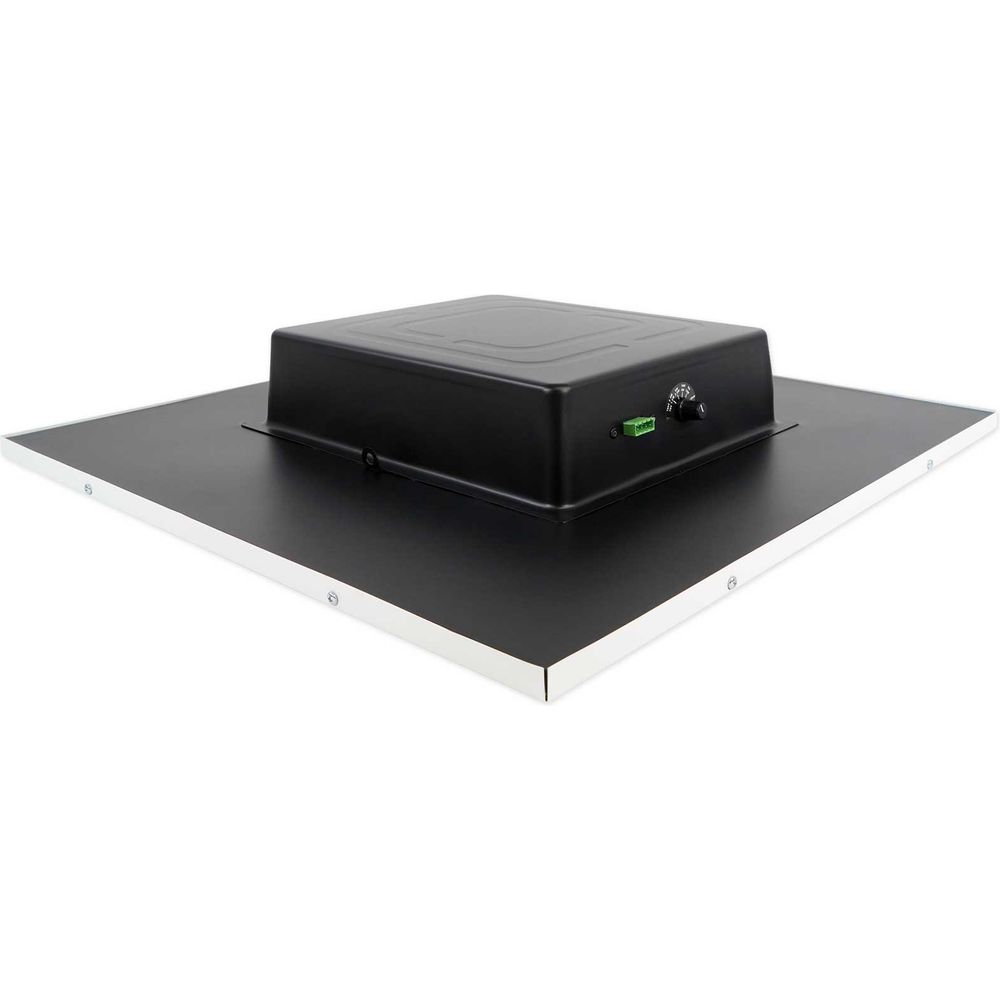

Each DCS8T replaces a standard 2x2-foot ceiling tile directly: remove the old tile, set the speaker in place, and connect speaker wire.
Wide Dispersion Coverage
A 105-degree conical dispersion pattern at 91 dB sensitivity fills rooms evenly so you avoid hot spots and dead zones.
Six Zone Control
The RCS180-6 splits 180 watts across up to six areas with independent volume knobs, letting you set different levels for offices, lobbies, and conference rooms.
Flexible Source Options
Bluetooth streaming, USB/SD playback, FM radio, optical, and RCA inputs give you multiple ways to feed background music or connect to a TV.
Low-Profile Fit

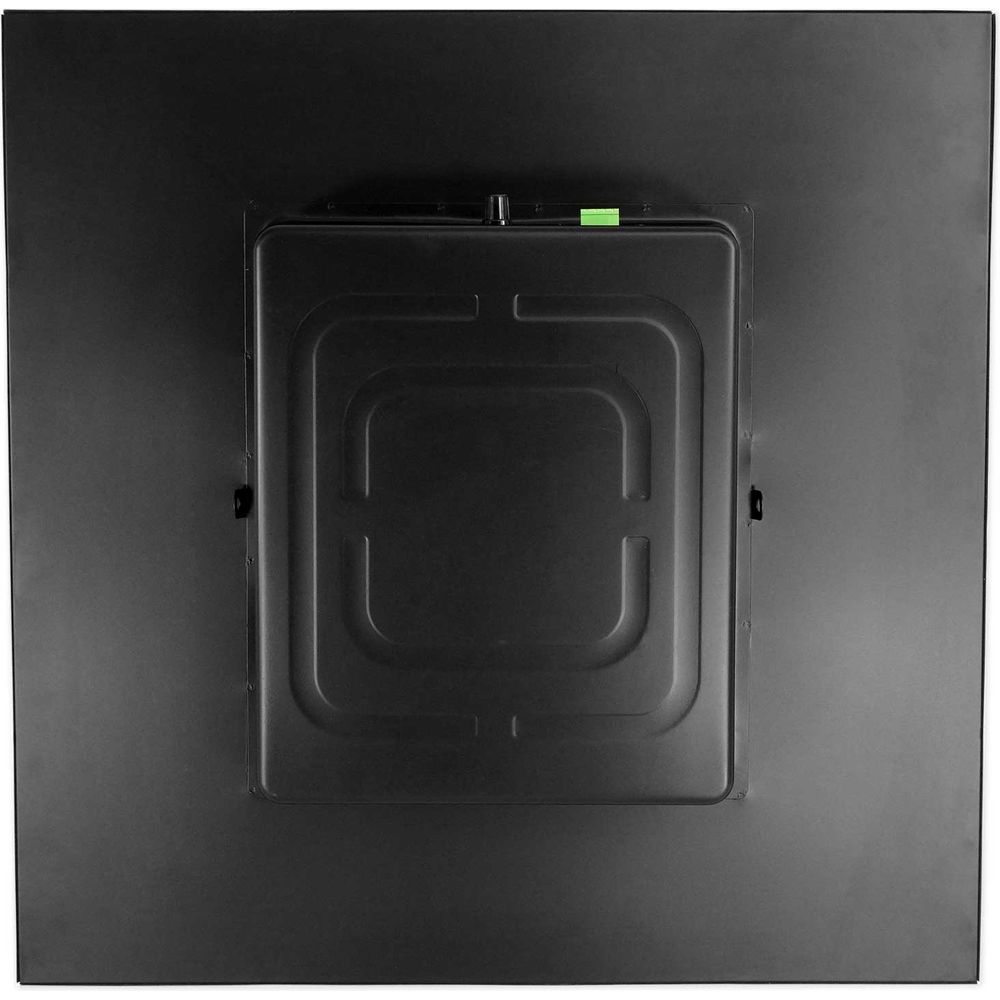

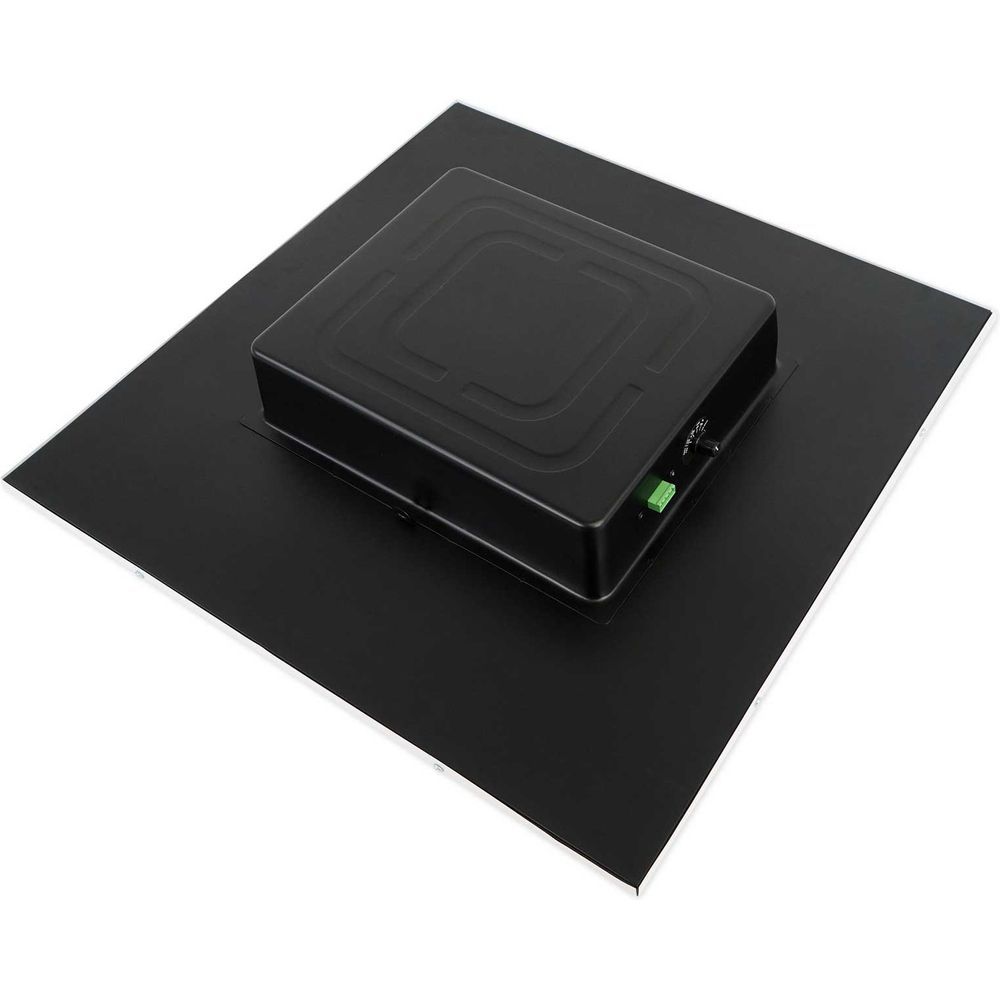

At just 3.9 inches of mounting depth, the DCS8T sits in the ceiling grid without interfering with ductwork or other above-ceiling infrastructure.
Technical Specifications
- Product Type 70V Drop Ceiling Tile Speaker + Amplifier System
- Amp RMS Power (70V/100V) 184W
- Amp Zones 6 (independent volume per zone)
- Amp Inputs Bluetooth, USB, SD, FM, Optical, 2x RCA, 3x Mic
- Amp Weight 22.7 lb
- Amp Dimensions 19" x 16" x 4"
- Speaker Driver 8" Paper Cone
- Speaker Sensitivity 91 dB
- Speaker Dispersion 105 degrees
- Speaker 70V Taps 10W, 5W, 2.5W
- Speaker 8-Ohm Power 30W RMS
- Speaker Tile Dimensions 23.8" x 23.8" x 3.9"
- Speaker Weight 13.7 lb each
- Number of Speakers 18
