(4) JBL Control 23-1 Black 3" Indoor/Outdoor 70V Wall Speakers + Amplifier

(4) JBL Control 23-1 Black 3" Indoor/Outdoor 70V Wall Speakers + Amplifier

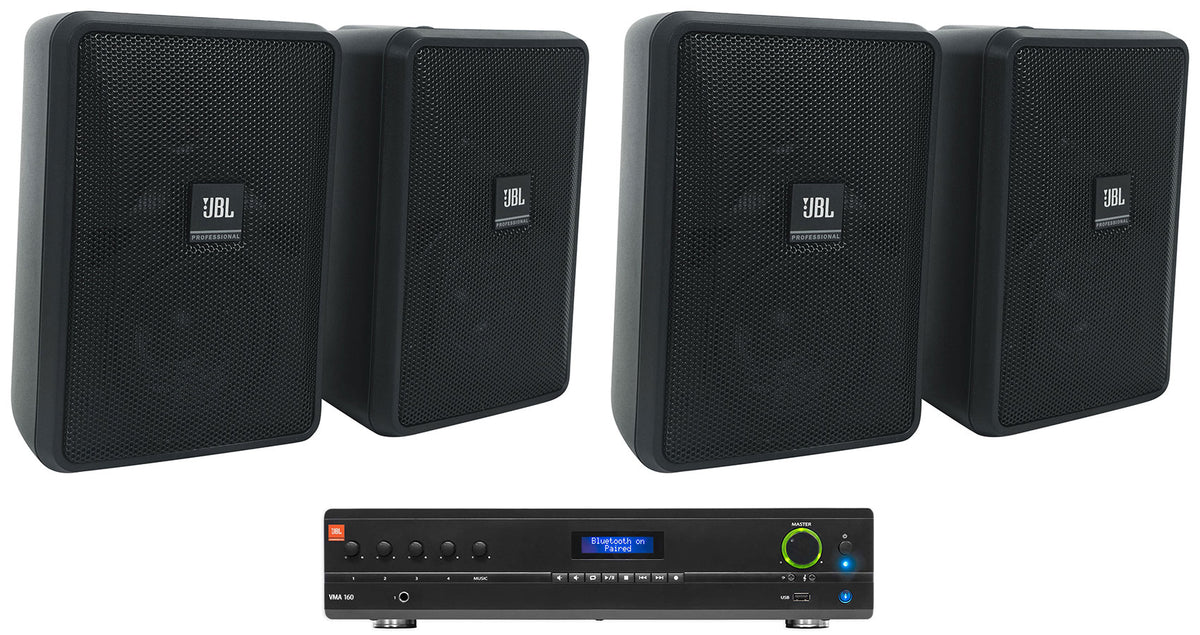

JBL VMA160 60W 70V Amplifier, Four 3" Indoor/Outdoor Wall Speakers, Black

Free Shipping

Regular price $964.85
Sale price $964.85 Regular price $979.76
Save $14.91
Shipping calculated at checkout.
Features
    • JBL VMA160 60W mixer/amplifier with Bluetooth and five input channels
    • Four JBL Control 23-1 3" two-way speakers with 100-degree dispersion
    • IP-44 rated enclosures handle outdoor patios and humid environments

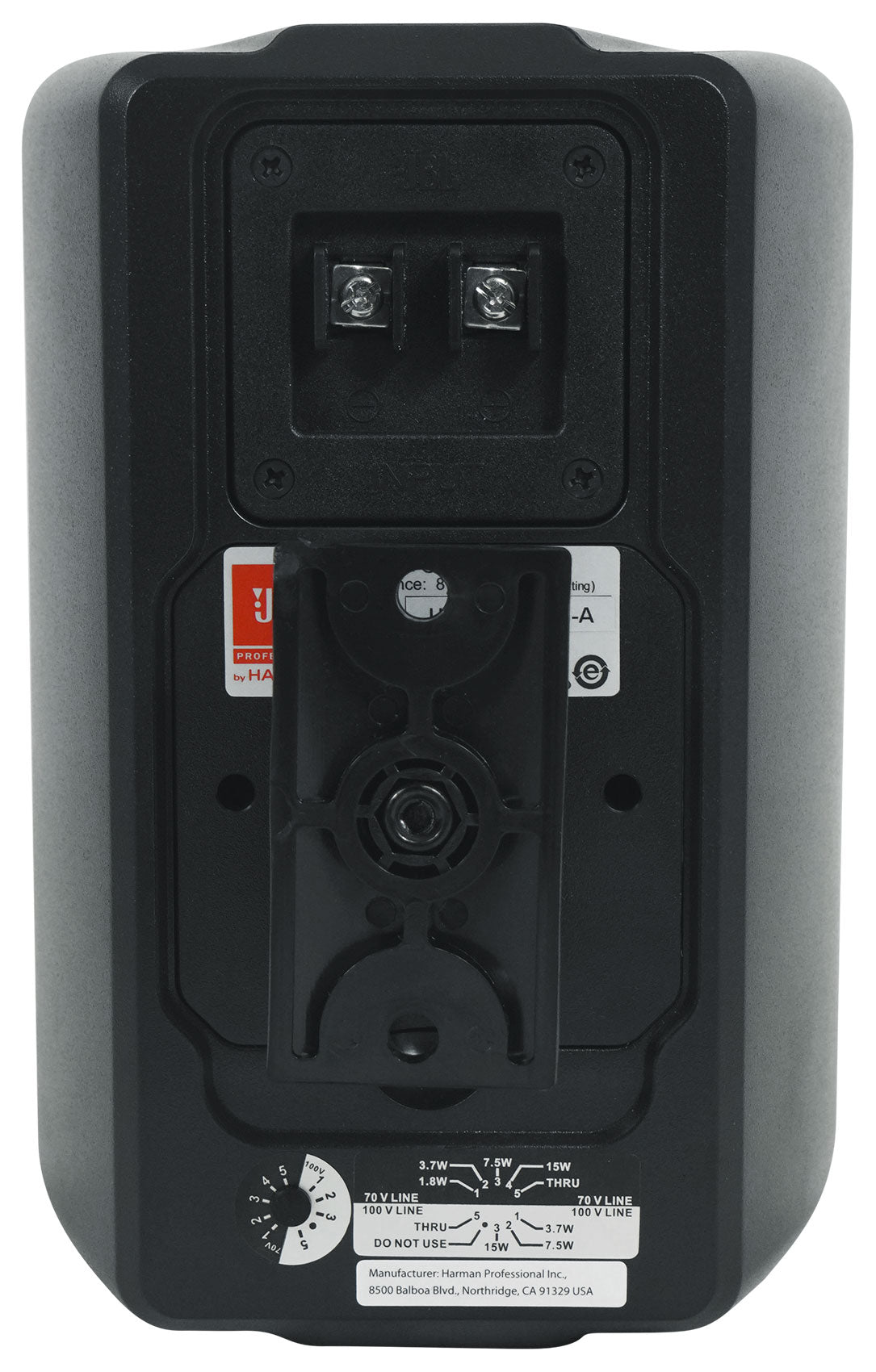

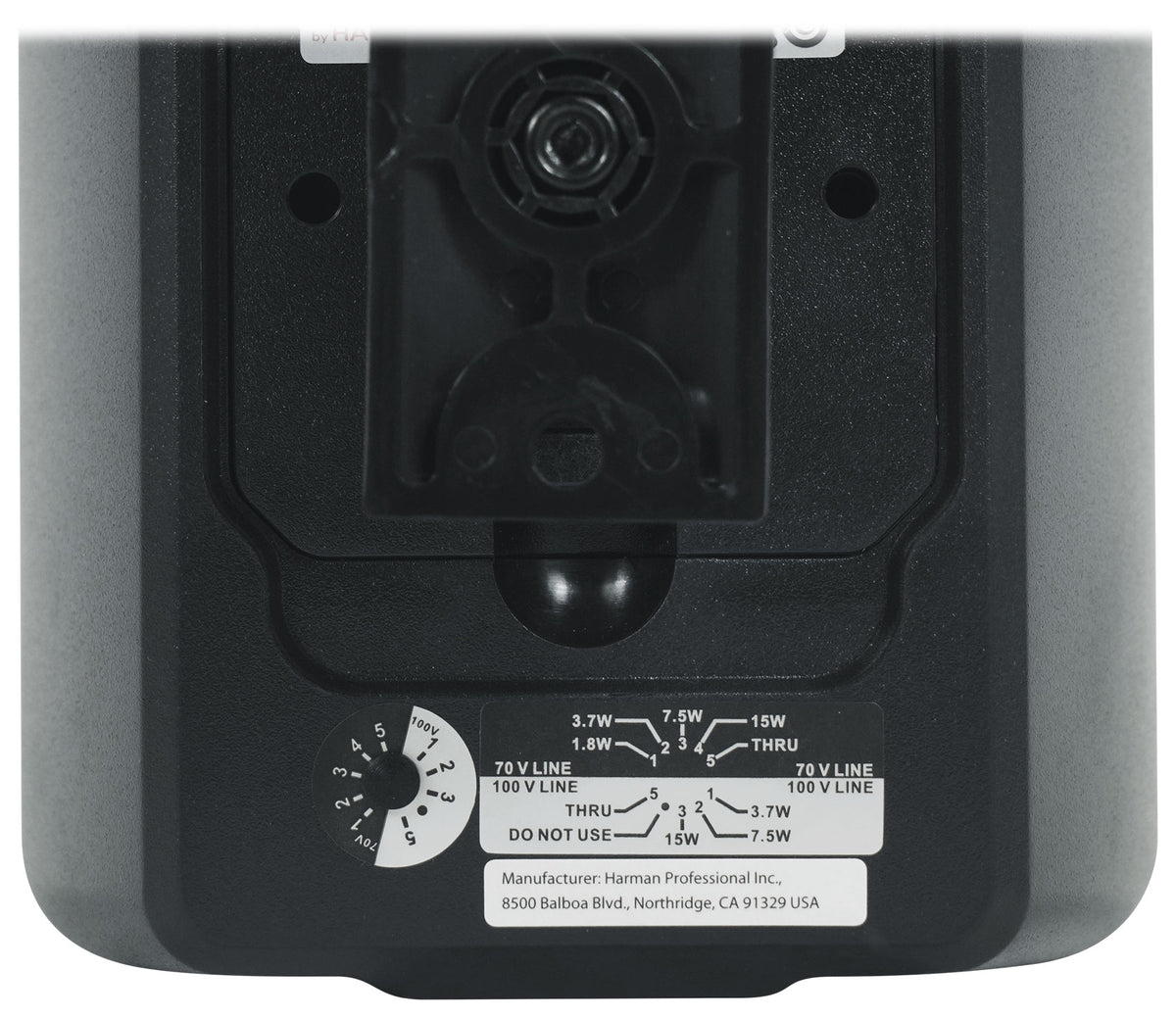

    • 15W multi-tap 70V/100V transformer per speaker: 15W, 7.5W, 3.7W, 1.8W
    • InvisiBall mounting system for precise speaker aiming
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • JBL VMA160 60W 70V Mixer/Amplifier
    • (4) JBL Control 23-1 Black 3" Indoor/Outdoor Wall Speakers

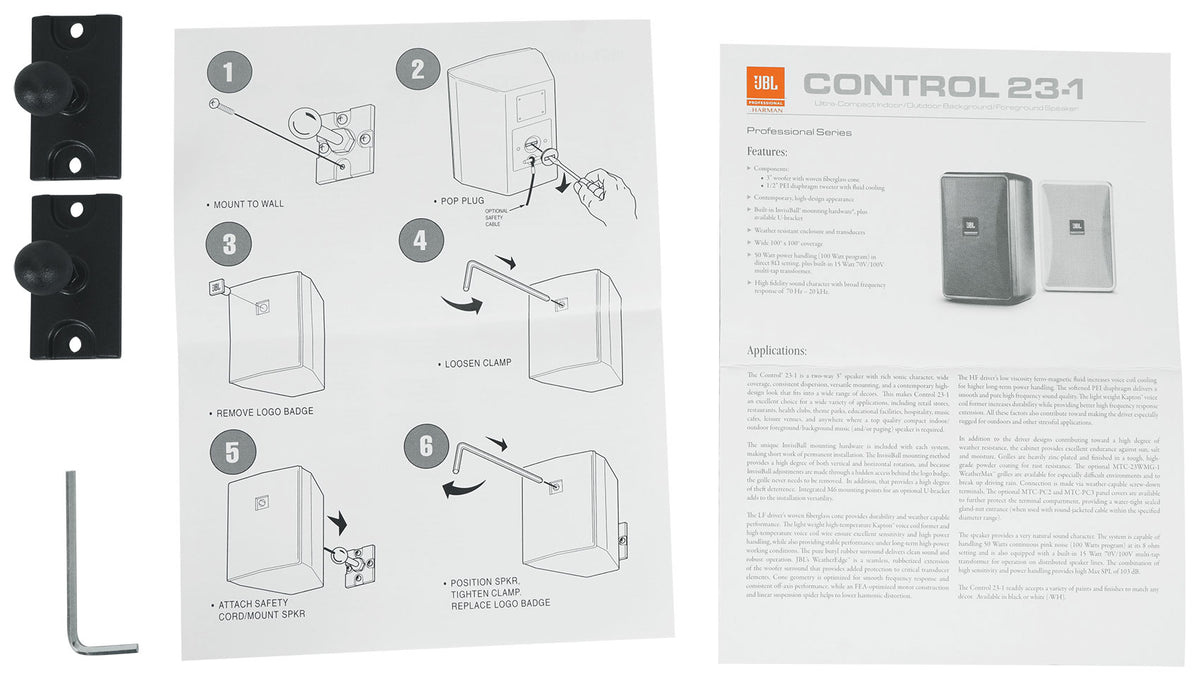

    • (4) InvisiBall Mounting Systems
    • Rack Mount Hardware

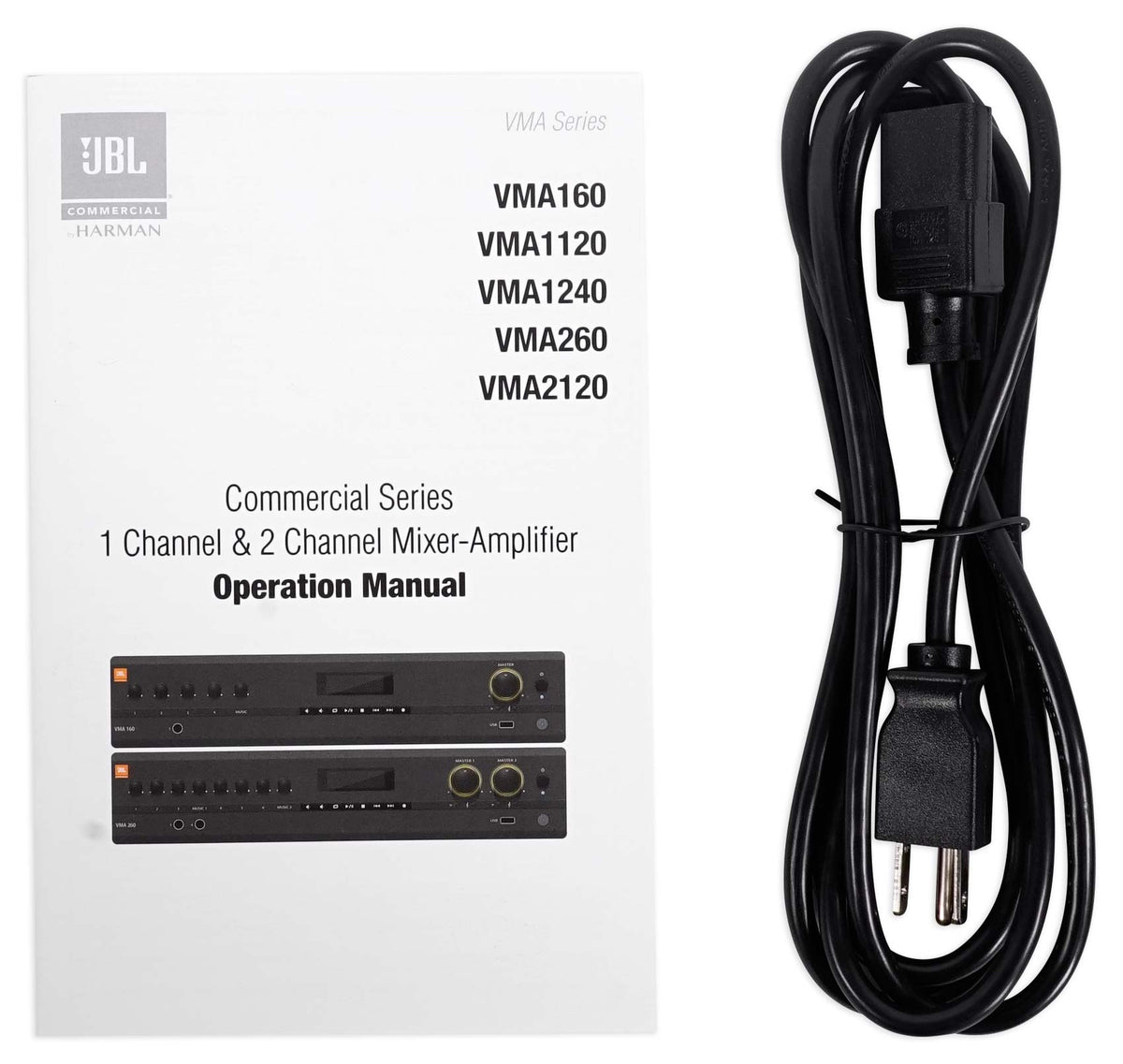

    • Power Cable

SKU: SKU: RCS80-1+(2) Control 23-1

View full details

Product Description

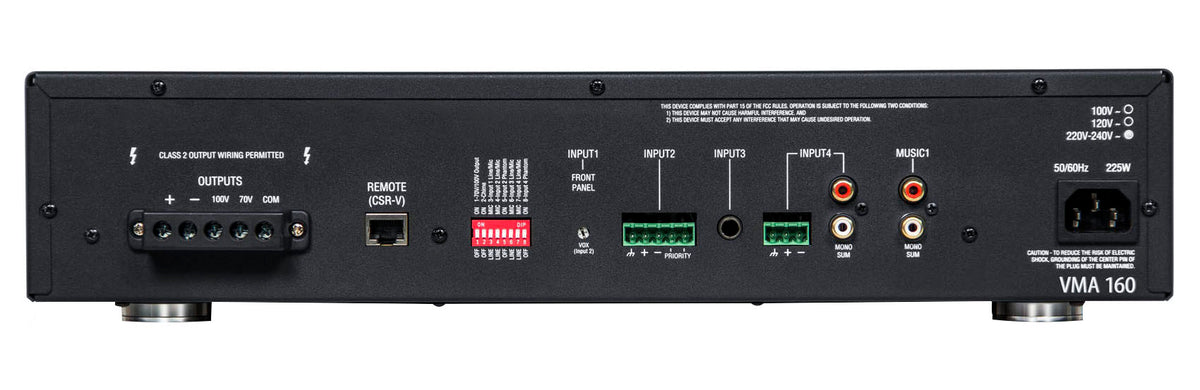

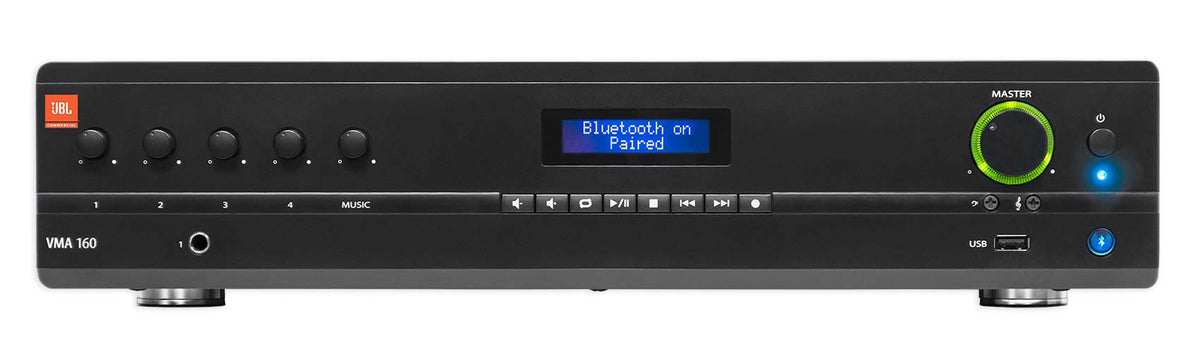

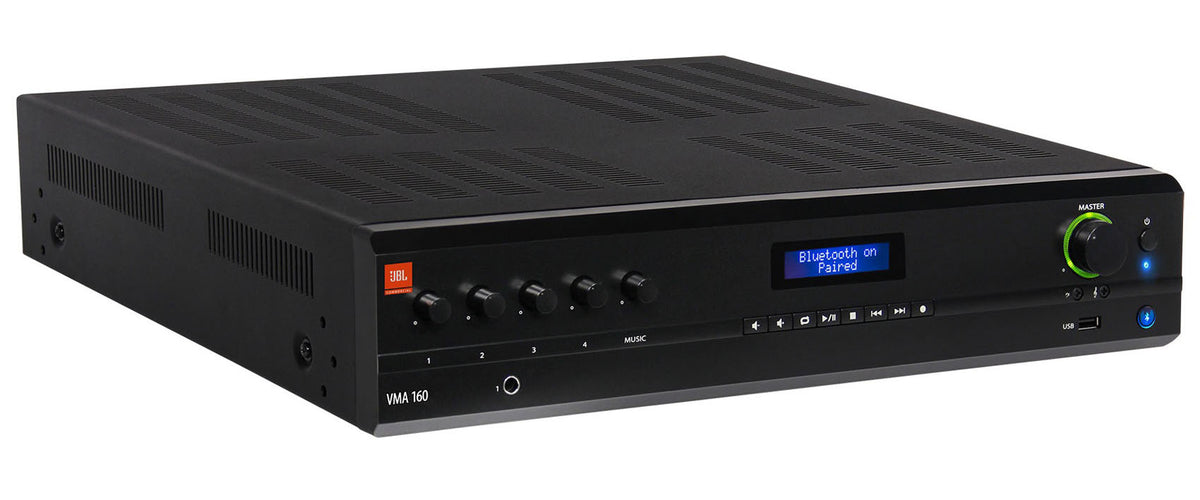

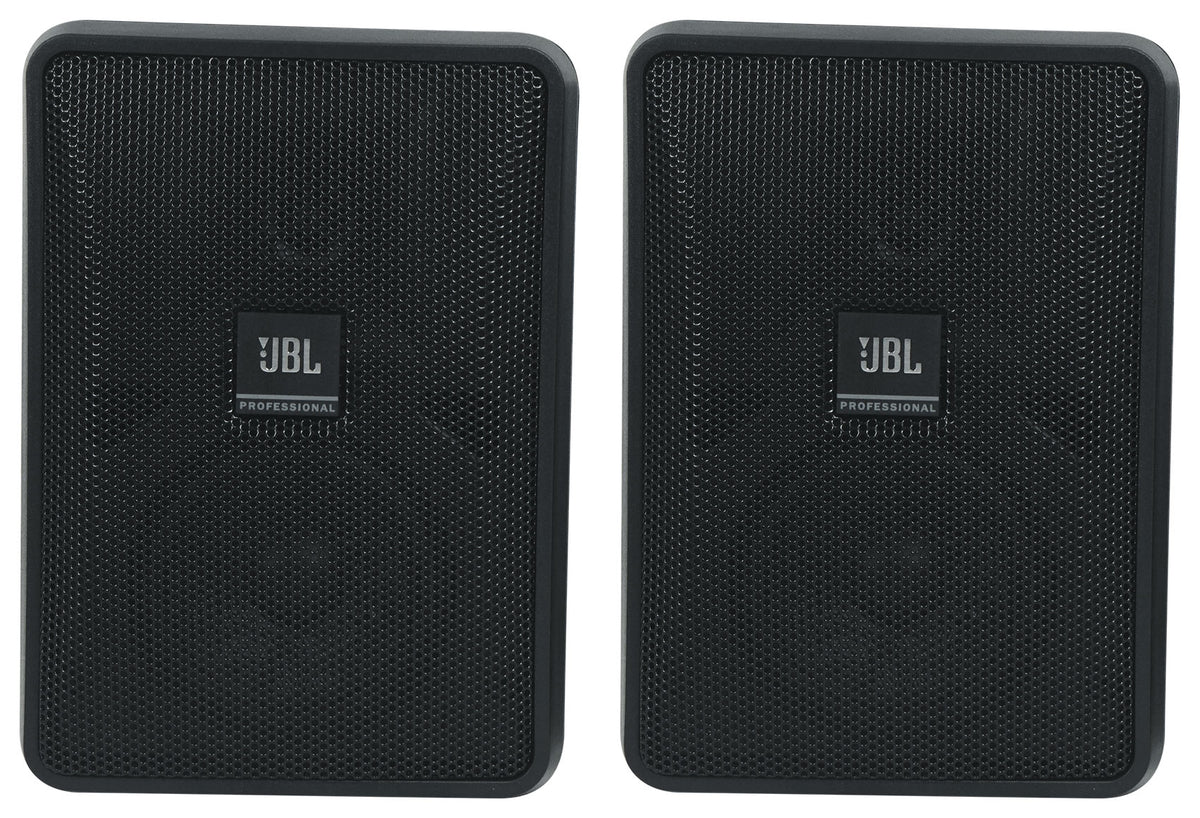

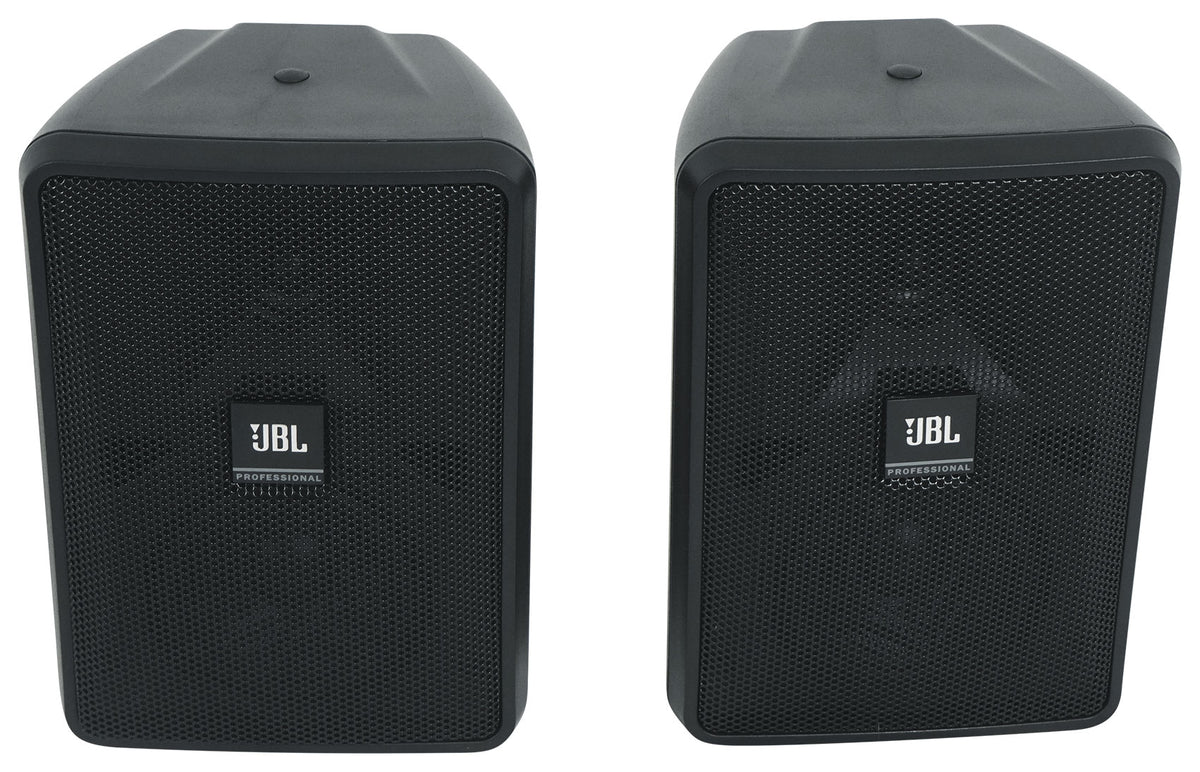

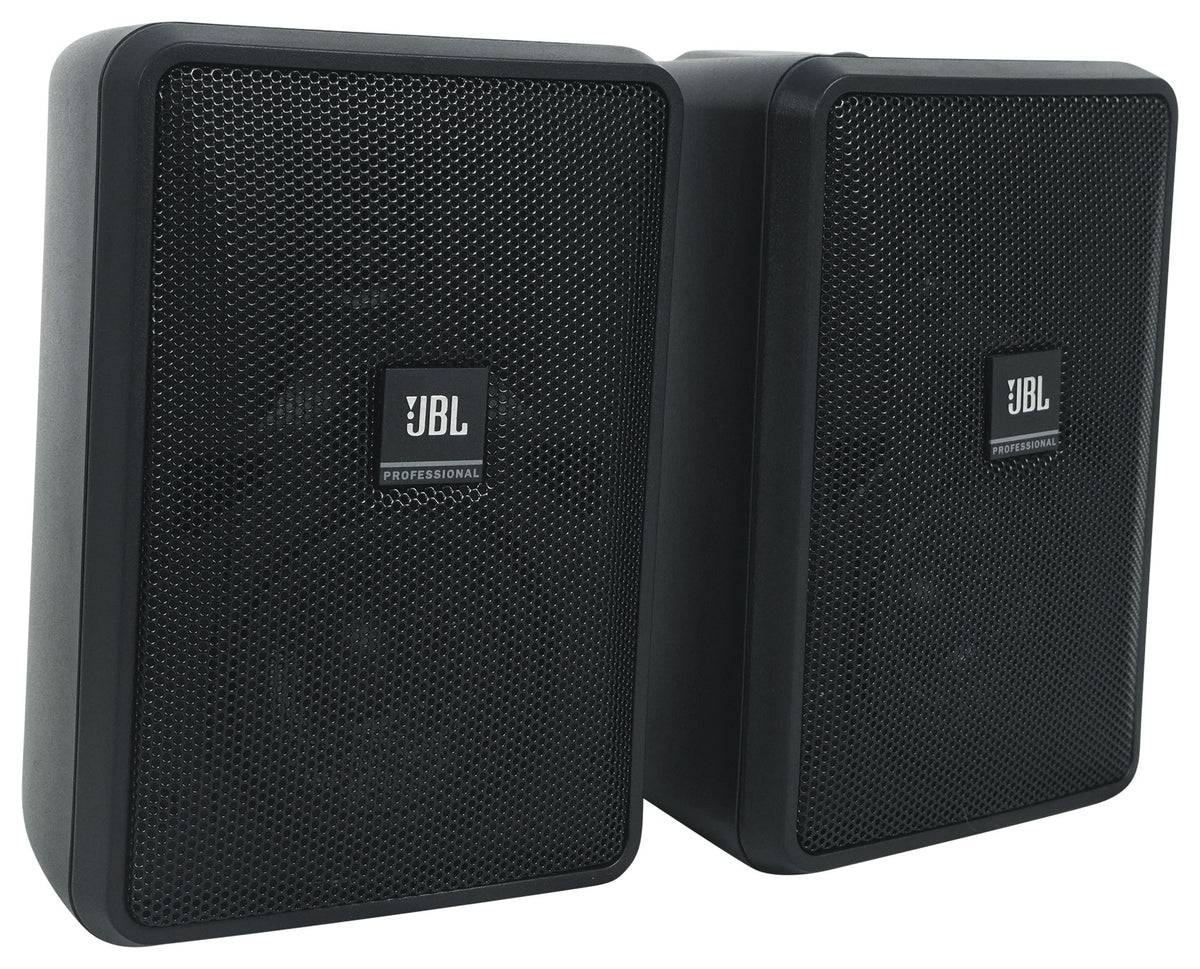

This JBL commercial package pairs a VMA160 60W 70V mixer/amplifier with four Control 23-1 3" indoor/outdoor wall speakers in black, delivering an authorized JBL system for background music and paging. The VMA160 is a five-channel mixer/amplifier supporting 70V, 100V, 4-ohm, and 8-ohm outputs. It includes Bluetooth connectivity, phantom power for condenser mics, independent bass and treble controls, and a priority muting/paging chime function. Five inputs (mic, balanced line, and RCA) give you plenty of source flexibility, and the rack-mountable chassis measures 17" x 16.3" x 3.5". The Control 23-1 is a compact two-way speaker with a 3" woven fiberglass cone woofer and a 1/2" PEI diaphragm tweeter. It covers 100 degrees horizontal by 100 degrees vertical, filling rooms evenly from a single mounting point. A built-in 15W 70V/100V multi-tap transformer offers 15W, 7.5W, 3.7W, and 1.8W settings, plus an 8-ohm bypass for direct low-impedance use. The IP-44 rated enclosure (IP-55 with optional WeatherMax grille) handles outdoor patios, covered walkways, and humid environments. The included InvisiBall mounting system lets you aim each speaker precisely without a visible bracket. Frequency response runs 70 Hz to 20 kHz. Power handling is 50W continuous (100W program) in direct 8-ohm mode. At 4 lb each, the speakers stay manageable for wall mounting. This system fits restaurants with outdoor seating, retail locations, health clubs, and schools that need compact, weather-capable audio.

Features

    • Wide 100-Degree Coverage

      Each Control 23-1 covers 100 degrees horizontal and vertical, filling a room or patio section evenly from a single wall-mount position.

    • Indoor and Outdoor Rated

      IP-44 enclosures with UV-resistant paint and zinc-plated grilles handle rain, humidity, and sun so you can mount them on a covered patio.

    • Five-Channel Mixer Built In

      The VMA160 accepts mic, balanced line, and RCA sources plus Bluetooth, handling music, paging, and announcements from one unit.

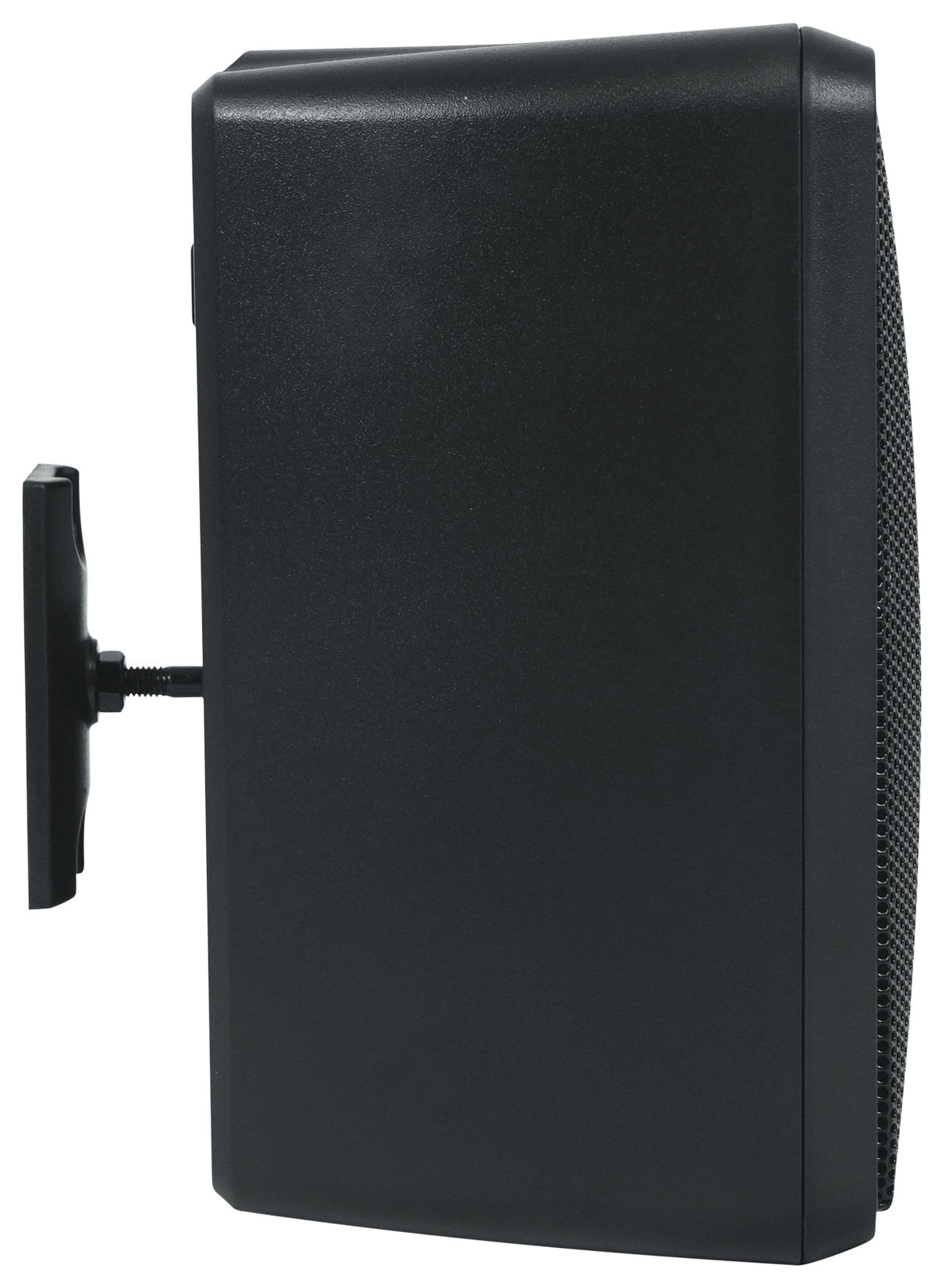

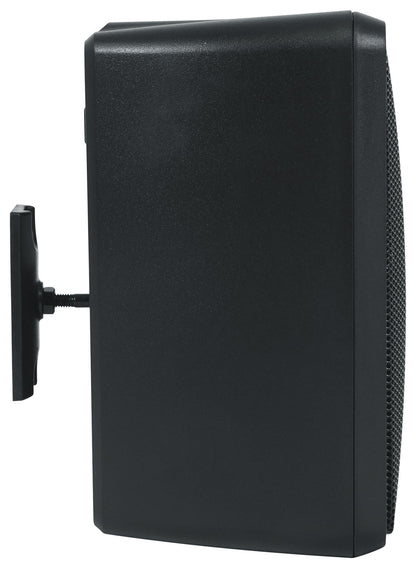

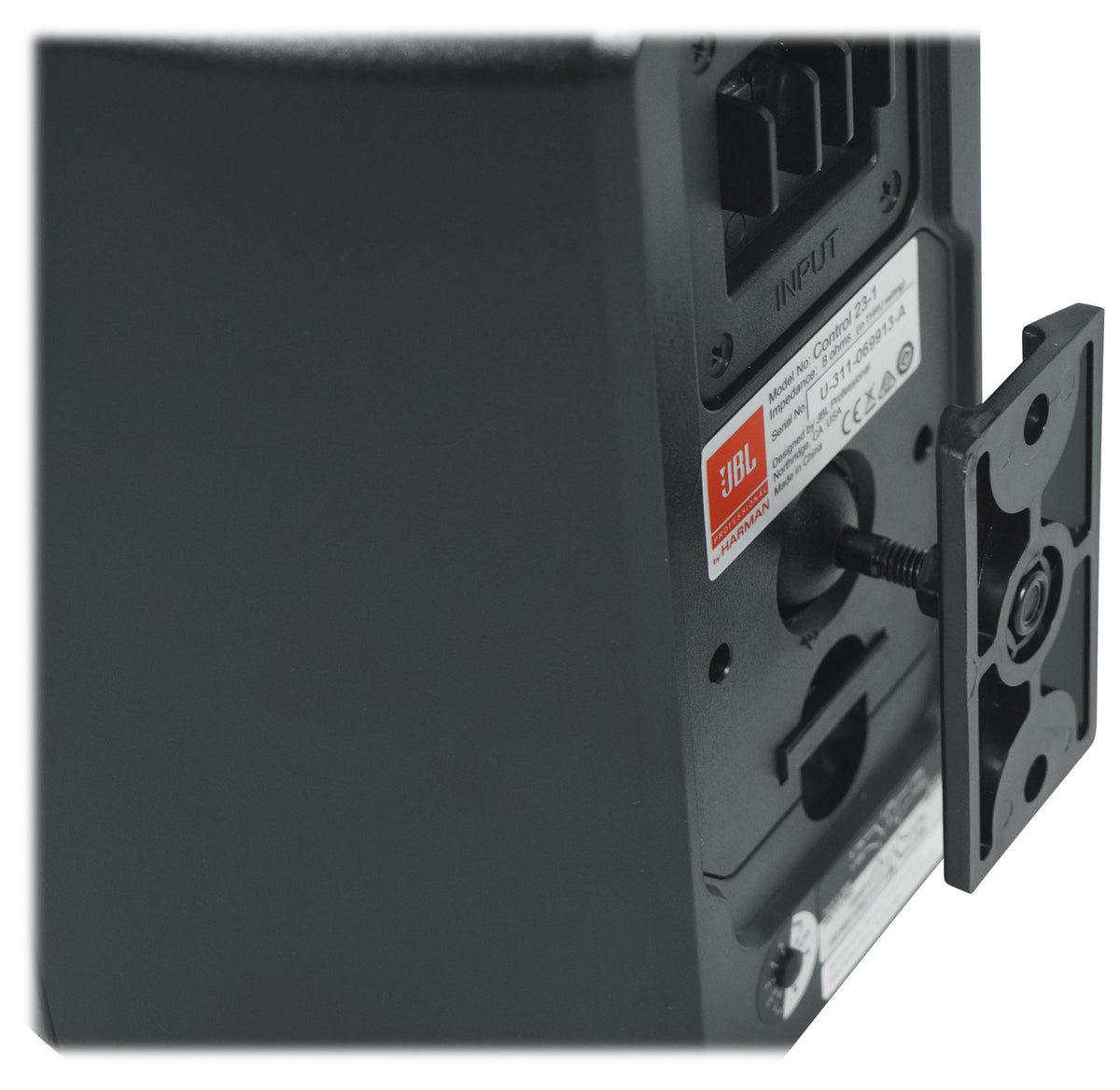

    • Discreet InvisiBall Mount

      The included wall-mount system hides behind the speaker and lets you aim it precisely without a visible bracket or yoke showing.

    • Priority Paging Chime

      The VMA160's built-in paging chime and priority muting automatically lower music when a mic input is active, keeping announcements clear.

Technical Specifications

  • Product Type Commercial 70V Audio System
  • Amplifier JBL VMA160
  • Amplifier Power 60W
  • Amplifier Inputs 5 Channels (Mic, Line, RCA, Bluetooth)
  • Amplifier Frequency Response 20 Hz to 20 kHz
  • Amplifier THD Less than 0.5%
  • Speakers 4x JBL Control 23-1 Black 3" 2-Way
