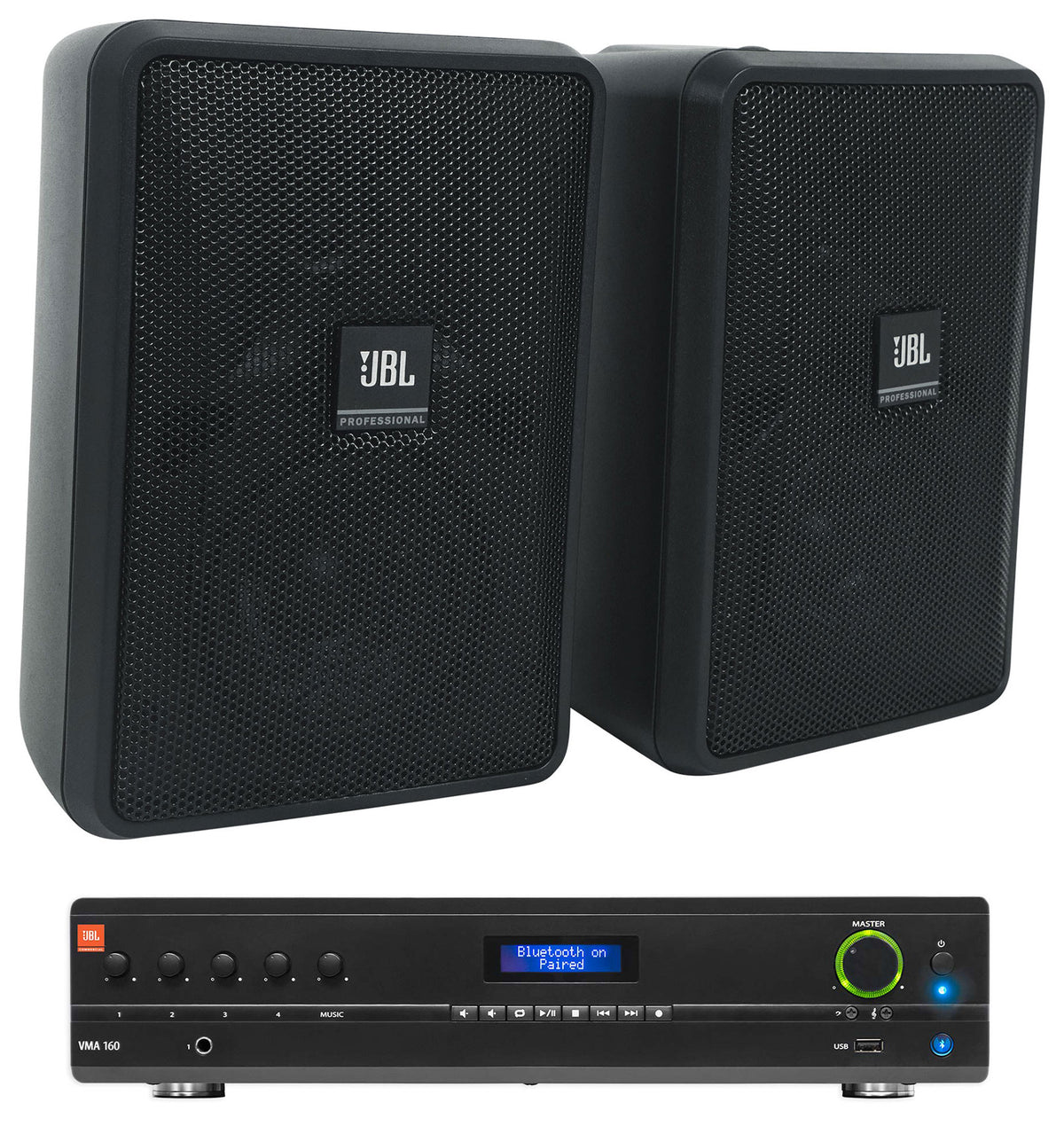

JBL VMA160 60W 70V Bluetooth Amplifier, Two JBL 3" Black Wall-Mount Speakers
Free Shipping
Features
- JBL VMA160 60W mixer/amplifier with Bluetooth and five inputs
- Two JBL Control 23-1 3" indoor/outdoor speakers with IP44 rating
- InvisiBall hidden mounting system for a clean appearance
- 70V taps at 15W, 7.5W, 3.7W, and 1.8W per speaker
- 100 x 100 degree coverage from a compact enclosure
Couldn't load pickup availability
What's Included in the box
- (1) JBL VMA160 60W 70V Mixer/Amplifier
- (1) Rack Mounting Hardware

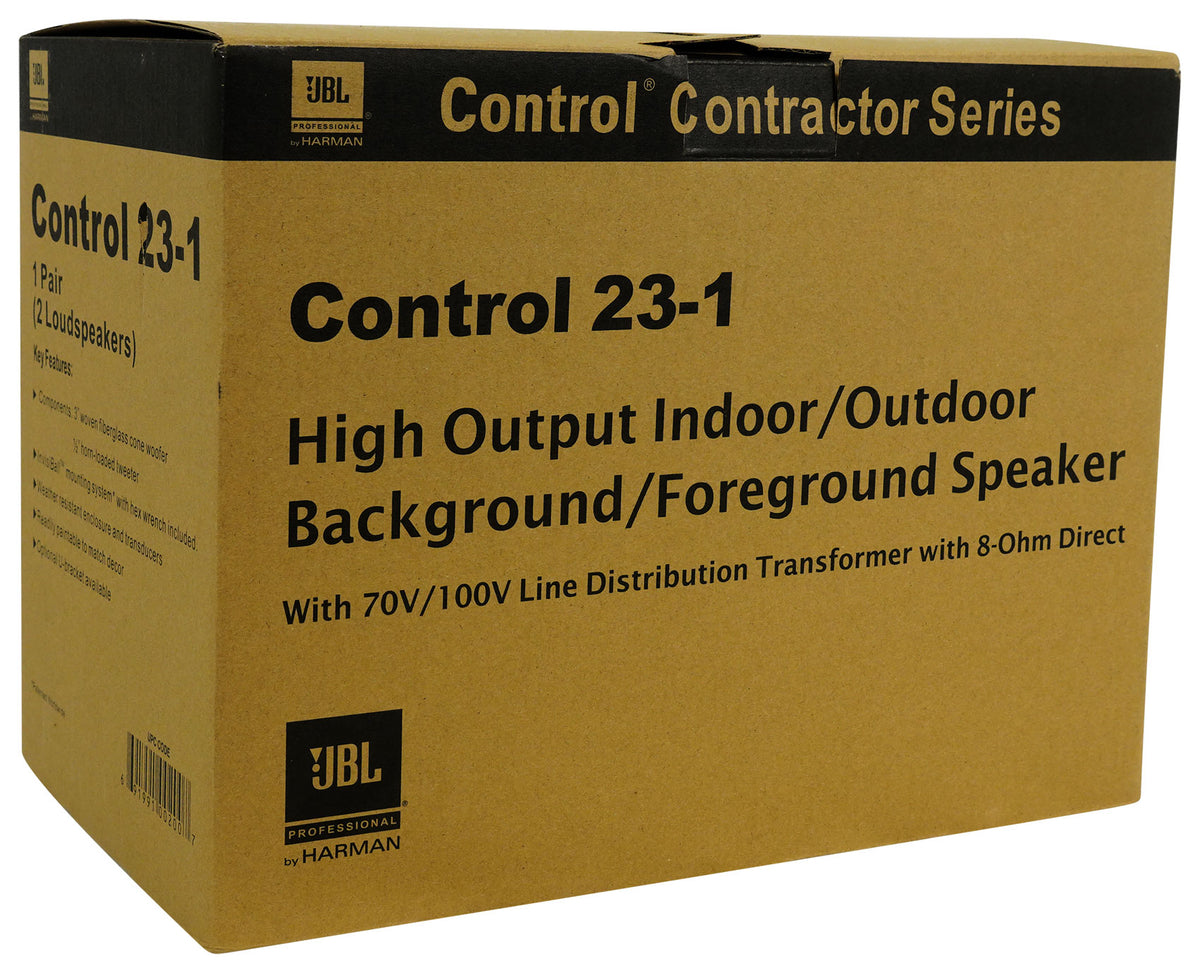

- (2) JBL Control 23-1 Black 3" Indoor/Outdoor 70V Speakers

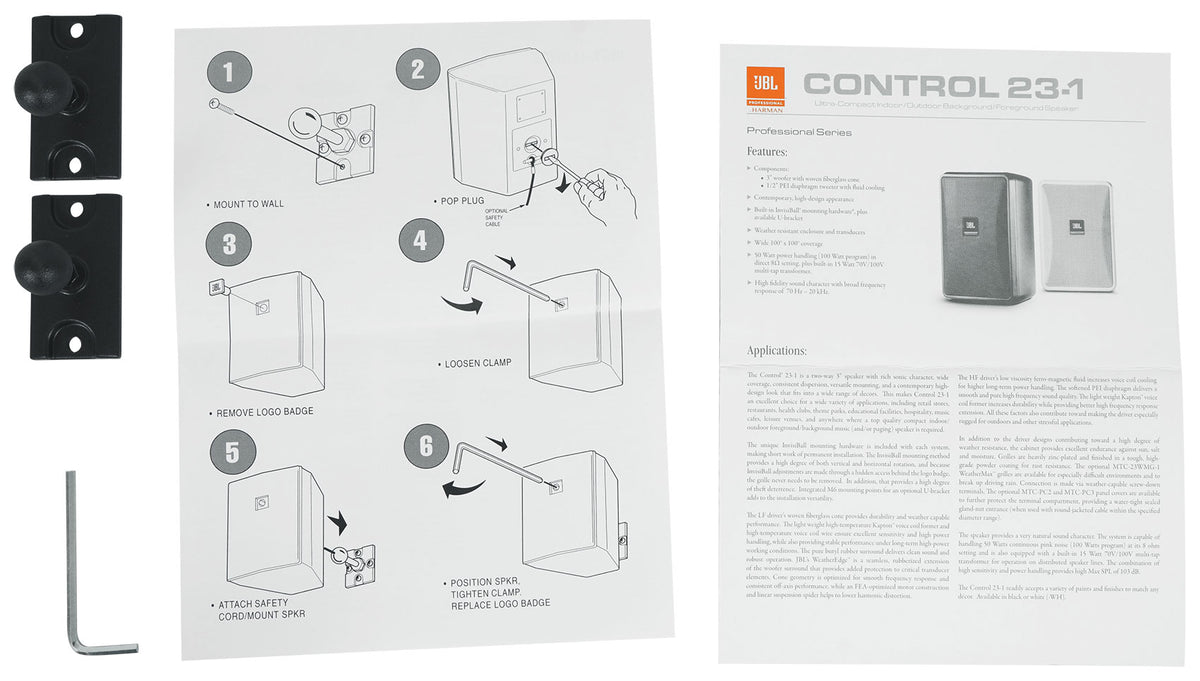

- (2) InvisiBall Mounting Hardware Sets
SKU: SKU: RCS80-1+Control 23-1
View full details














Product Description

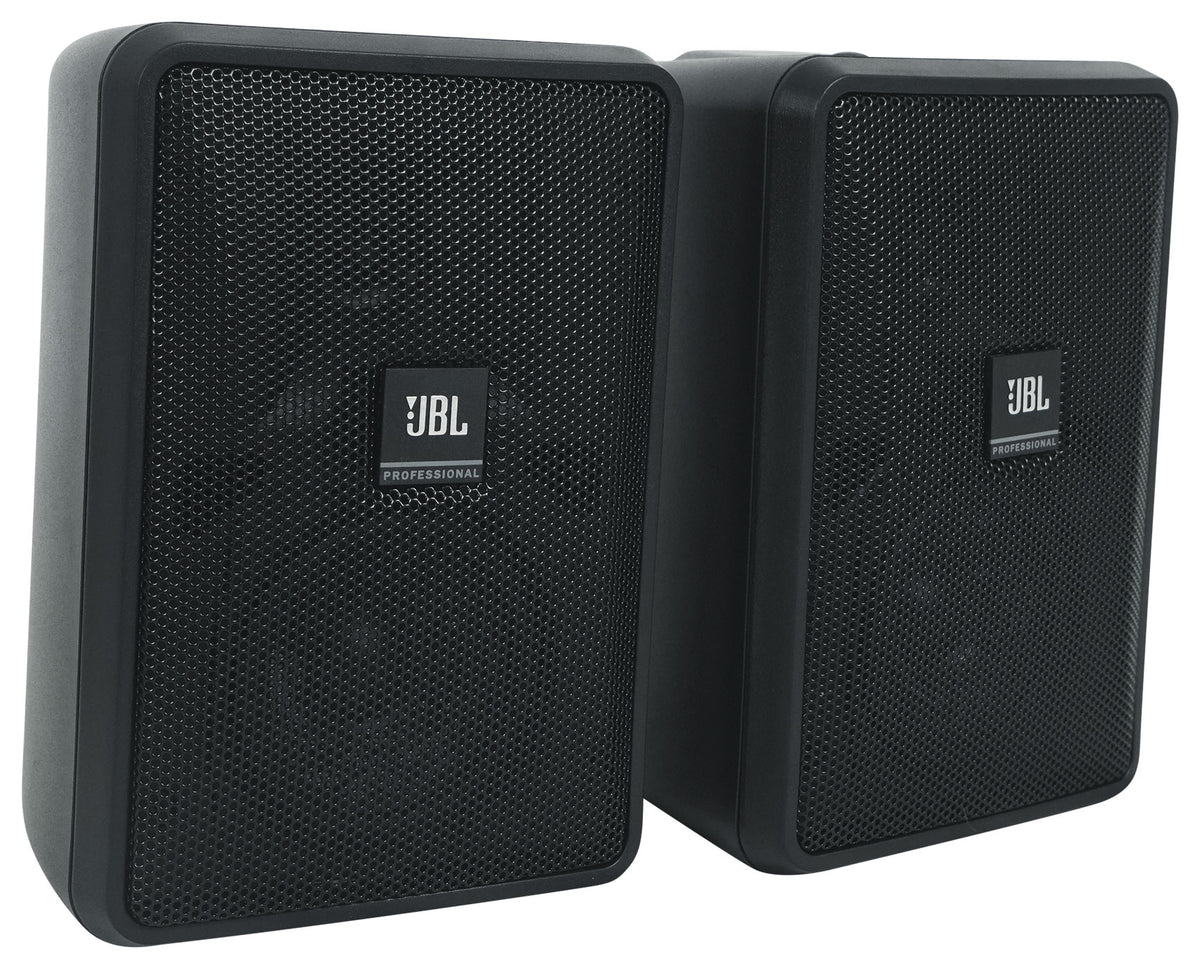

Each Control 23-1 uses a 3" woven fiberglass woofer and 1/2" PEI dome tweeter with 100 x 100 degree coverage. A built-in InvisiBall mounting system lets you install through a hidden access point behind the logo badge, keeping the speaker's clean appearance intact. The weather-resistant enclosure exceeds MIL-SPEC 810 for humidity, salt spray, temperature, and UV, and carries an IP44 rating, making it suitable for covered outdoor areas like patios and entryways.

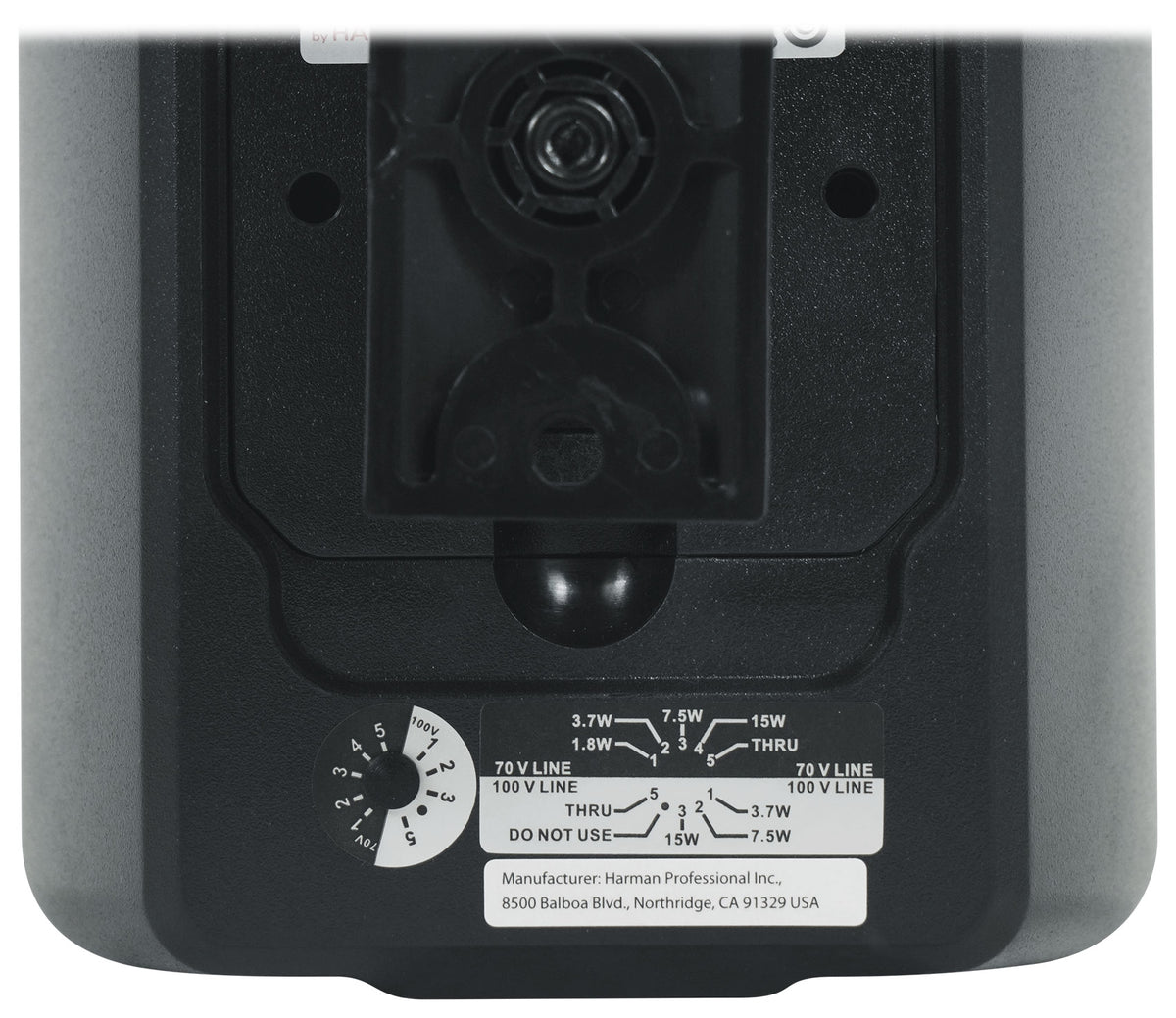

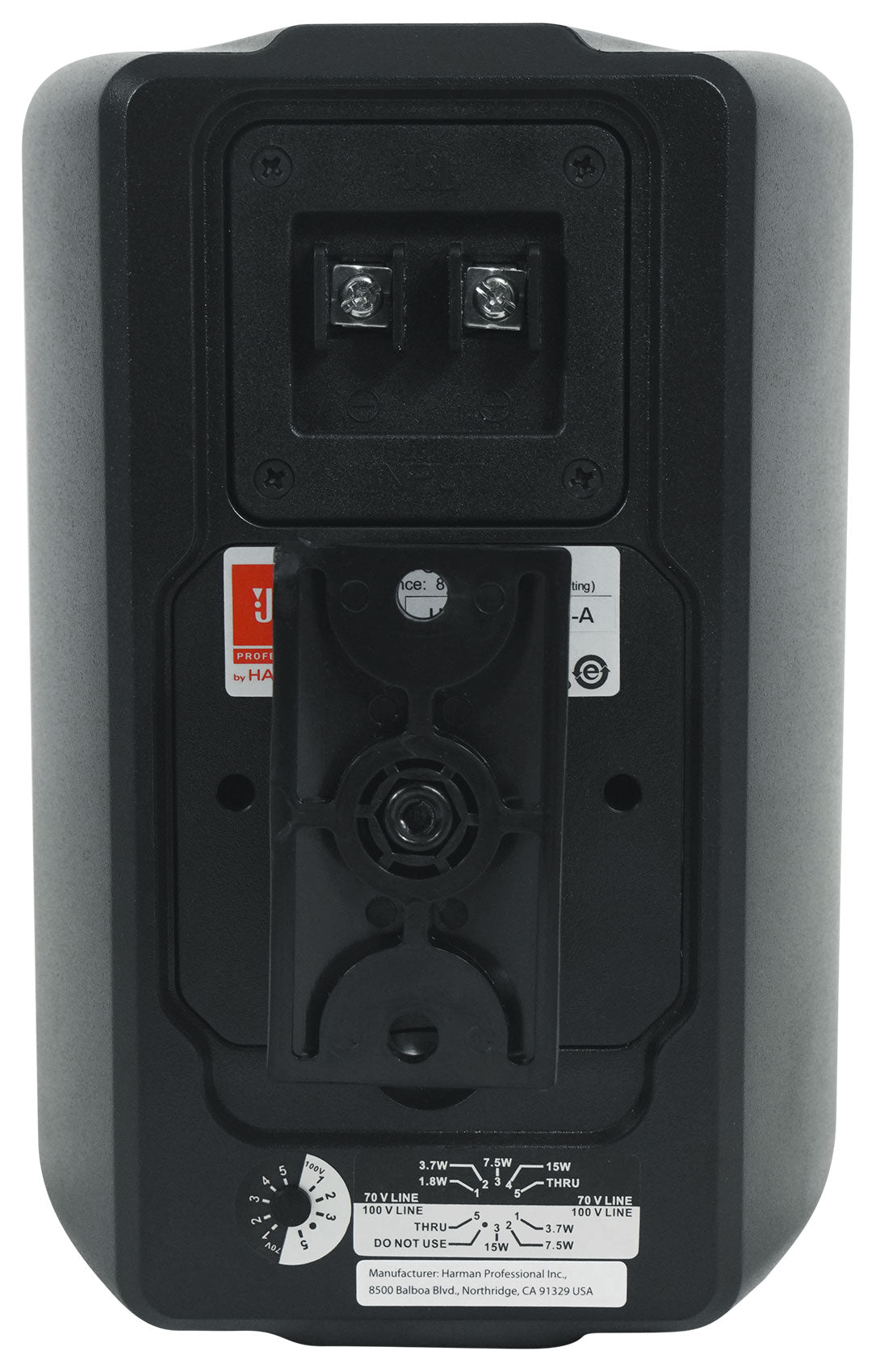

70V transformer taps at 15W, 7.5W, 3.7W, and 1.8W provide flexible output per speaker, and an 8-ohm thru setting handles standard impedance wiring at 50W. The speakers cover 70 Hz to 20 kHz at 86 dB sensitivity, delivering clear music and paging from a remarkably small enclosure. This system fits cafes, theme parks, retail stores, health clubs, and hospitality spaces where compact size and weather resistance are both needed.
Features
Indoor and Outdoor Rated
IP44 protection and MIL-SPEC 810 testing for humidity, salt spray, and UV make these speakers safe for covered patios, entryways, and pool areas.

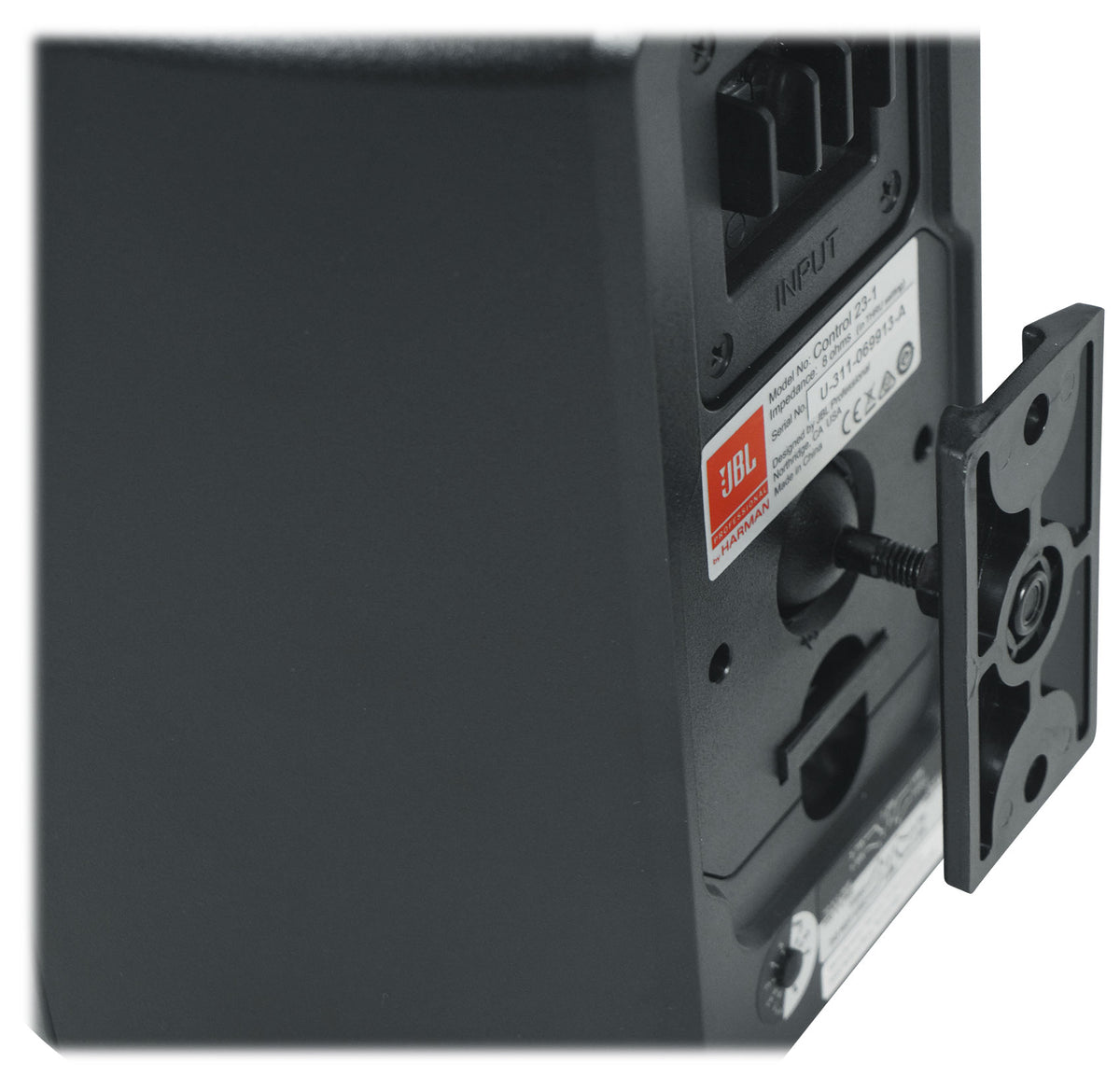

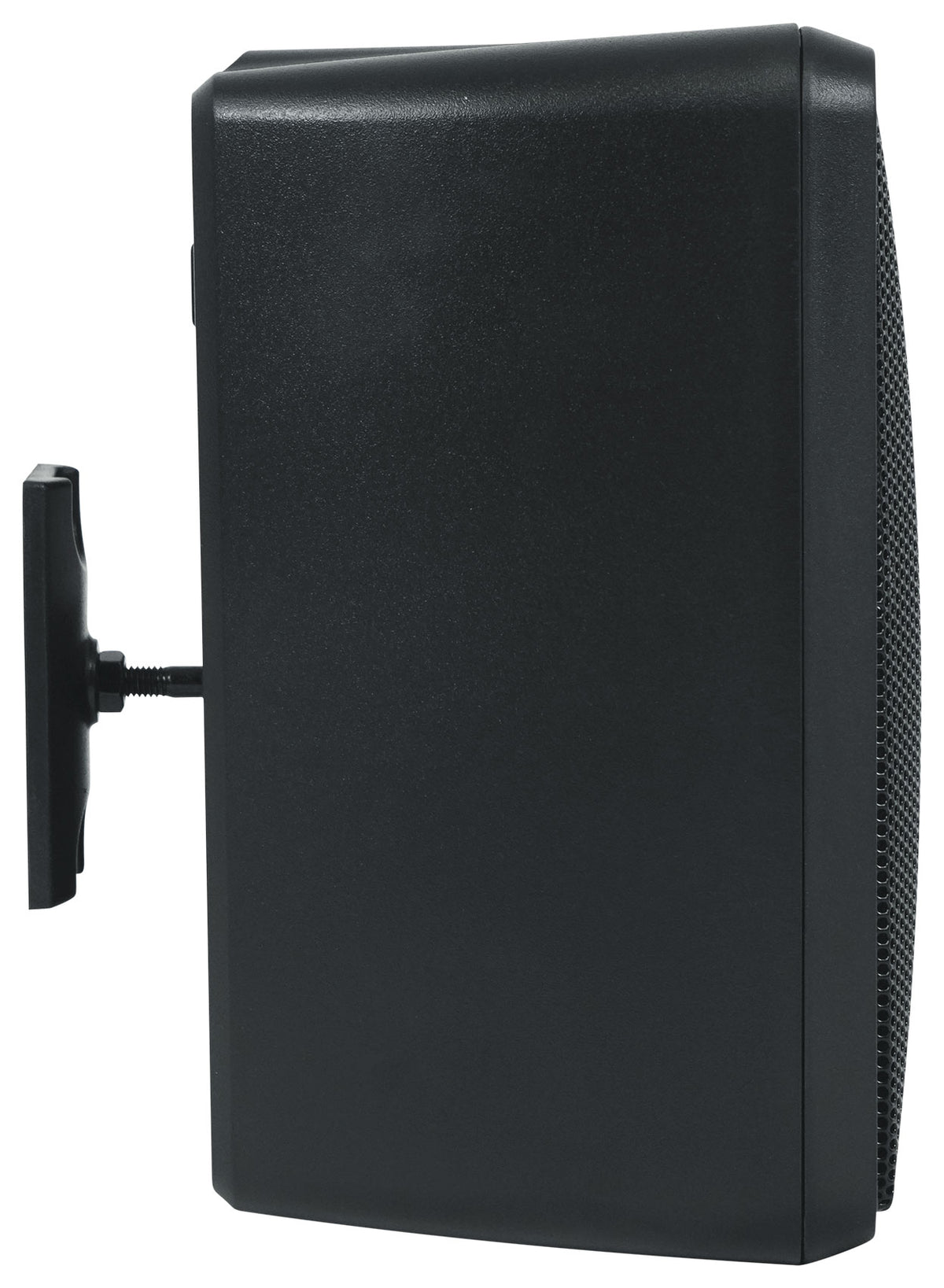

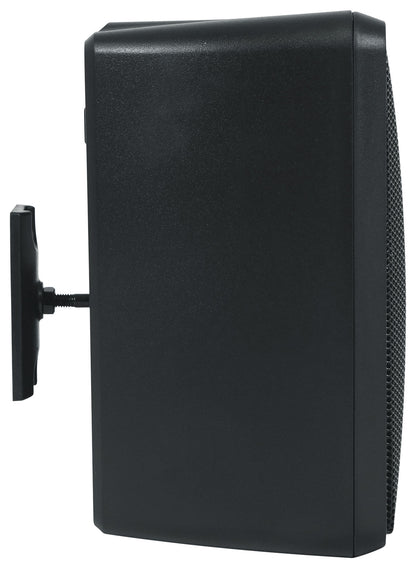

Hidden InvisiBall Mounting
The InvisiBall system mounts through a concealed access point behind the logo, so no visible bracket or hardware breaks the speaker design.
Woven Fiberglass Woofer
A 3" woven fiberglass cone with butyl rubber surround delivers rich, balanced sound and resists moisture better than paper or polypropylene cones.
Priority Paging Built In

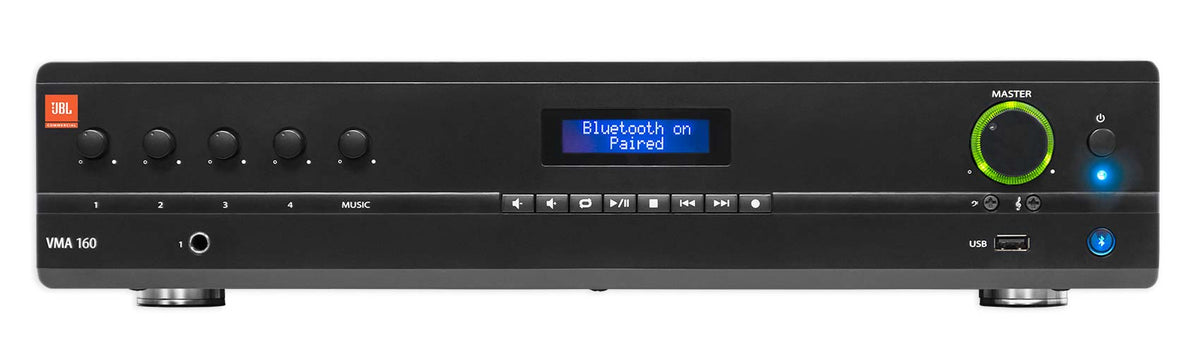

The VMA160 ducks music and plays a chime before page announcements, giving you clear PA capability without manual volume changes.
Wide 100 x 100 Coverage
The broad dispersion pattern from each compact speaker fills a large area, so two units cover a small patio, retail space, or waiting area.
Technical Specifications
- Product Type Commercial 70V Audio System Bundle

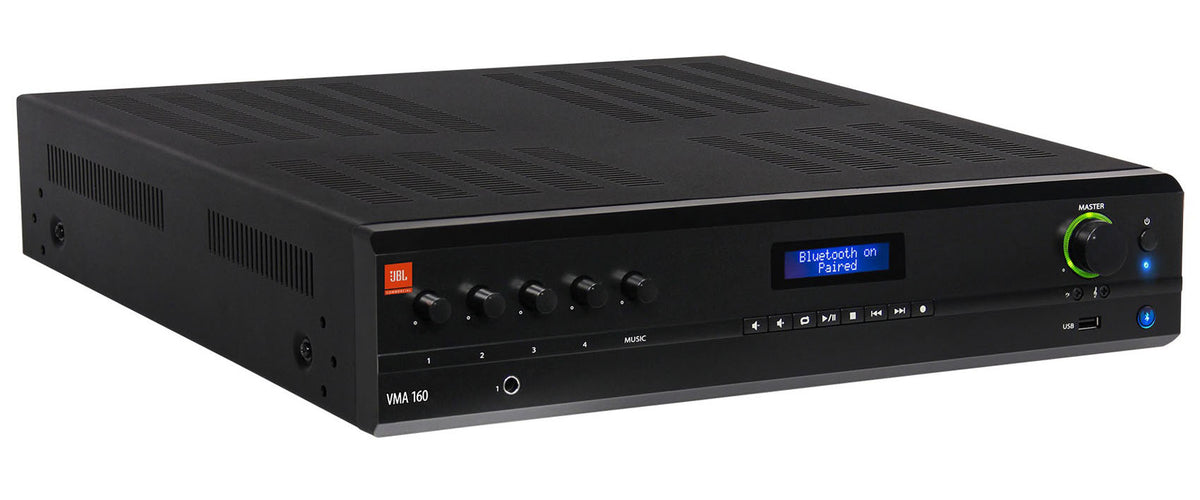

- Amplifier JBL VMA160 60W 70V Mixer/Amplifier
- Amplifier Power 60W Maximum Output

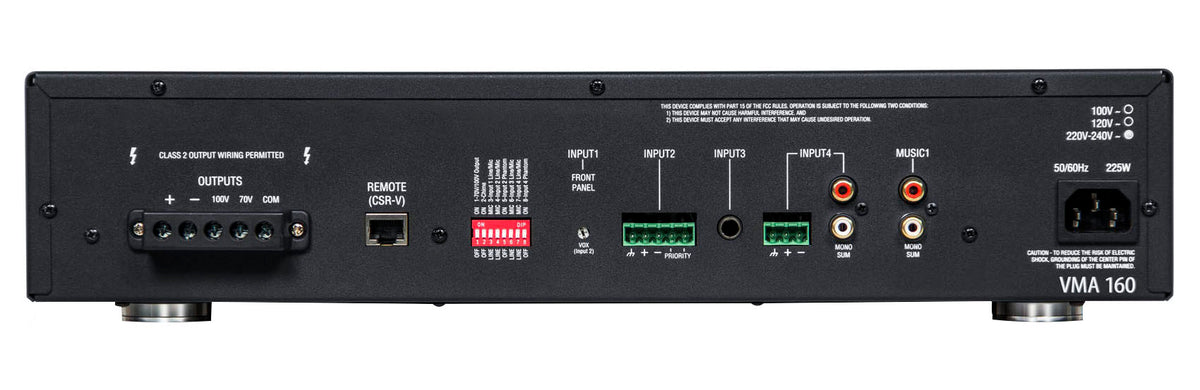

- Amplifier Inputs 5 Channels (Mic, Line, RCA)
- Amplifier Frequency Response 20 Hz to 20 kHz
- Amplifier Dimensions 17" x 16.3" x 3.5"
- Amplifier Weight 19.4 lb

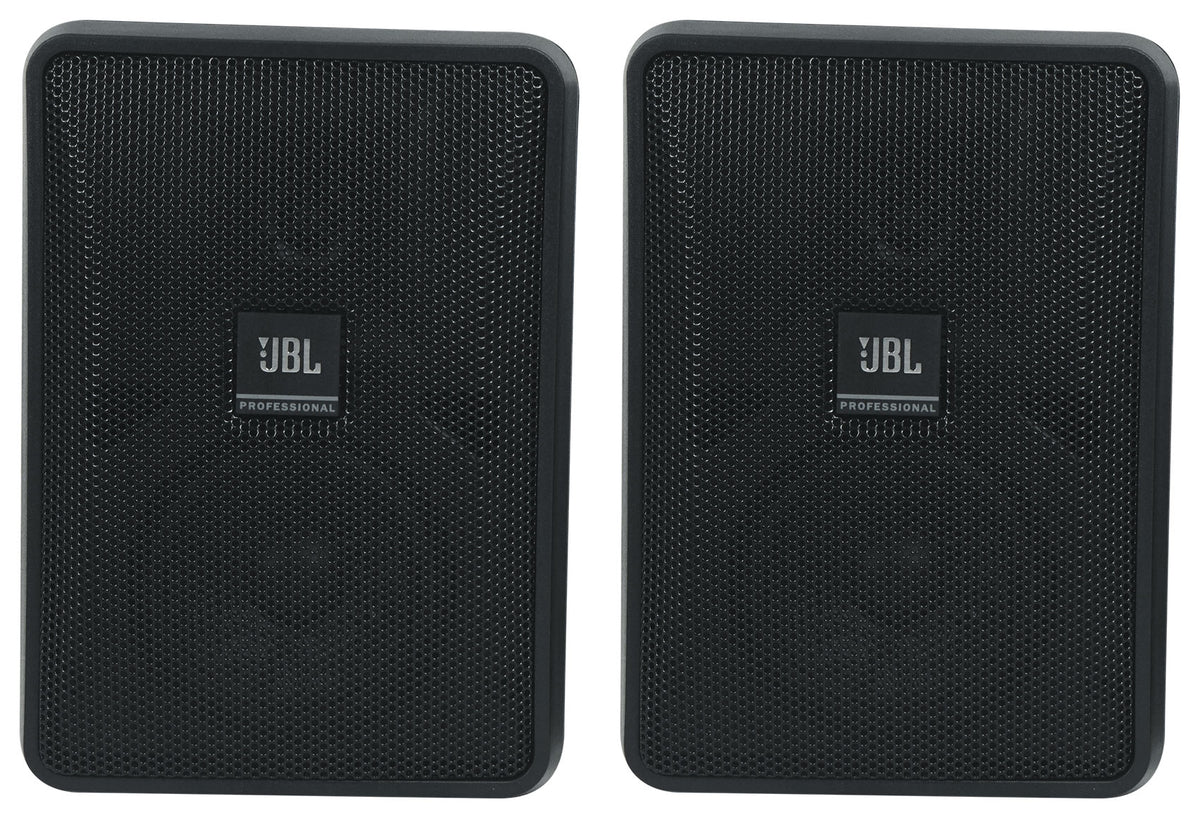

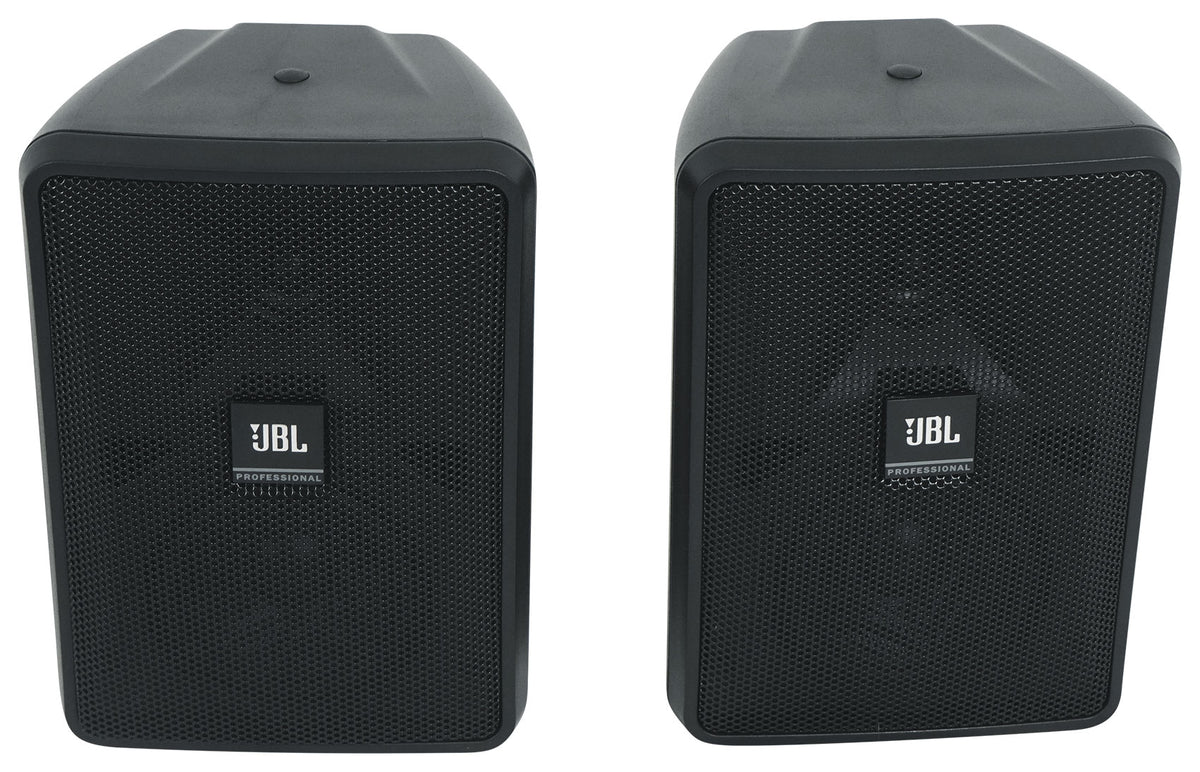

- Speaker Type JBL Control 23-1 3" Indoor/Outdoor Speaker
- Speaker Quantity 2
- Speaker Frequency Range 70 Hz to 20 kHz
- Speaker Sensitivity 86 dB @ 1W/1m
- Speaker Coverage 100 x 100 Degrees
- Speaker Impedance 8 Ohms
- Speaker 70V Taps 15W, 7.5W, 3.7W, 1.8W
- Speaker 100V Taps 15W, 7.5W, 3.7W
- Speaker 8-Ohm Power 50W
- Speaker Outdoor Rating IP44 per IEC 529
- Speaker Color Black
