RV12.2B
Rockville
RV12.2B
RV12.2B
Complete Dual 12" Bass Package, Loaded Vented Sub Box, 400W RMS Mono Amp, 8 AWG Wiring Kit, Dash Remote
Free Shipping
Features
- Dual 12" subwoofers handle 400W RMS / 1200W peak in a vented enclosure
- Bottom ports and a 15-degree cabinet angle aim bass toward the cabin
- Class A/B mono amp delivers 400W RMS at 2 ohms and 200W RMS at 4 ohms
- Speaker-level inputs and auto turn-on connect to factory radios
- Includes a complete 8 AWG wiring kit and dash-mount bass remote
Couldn't load pickup availability

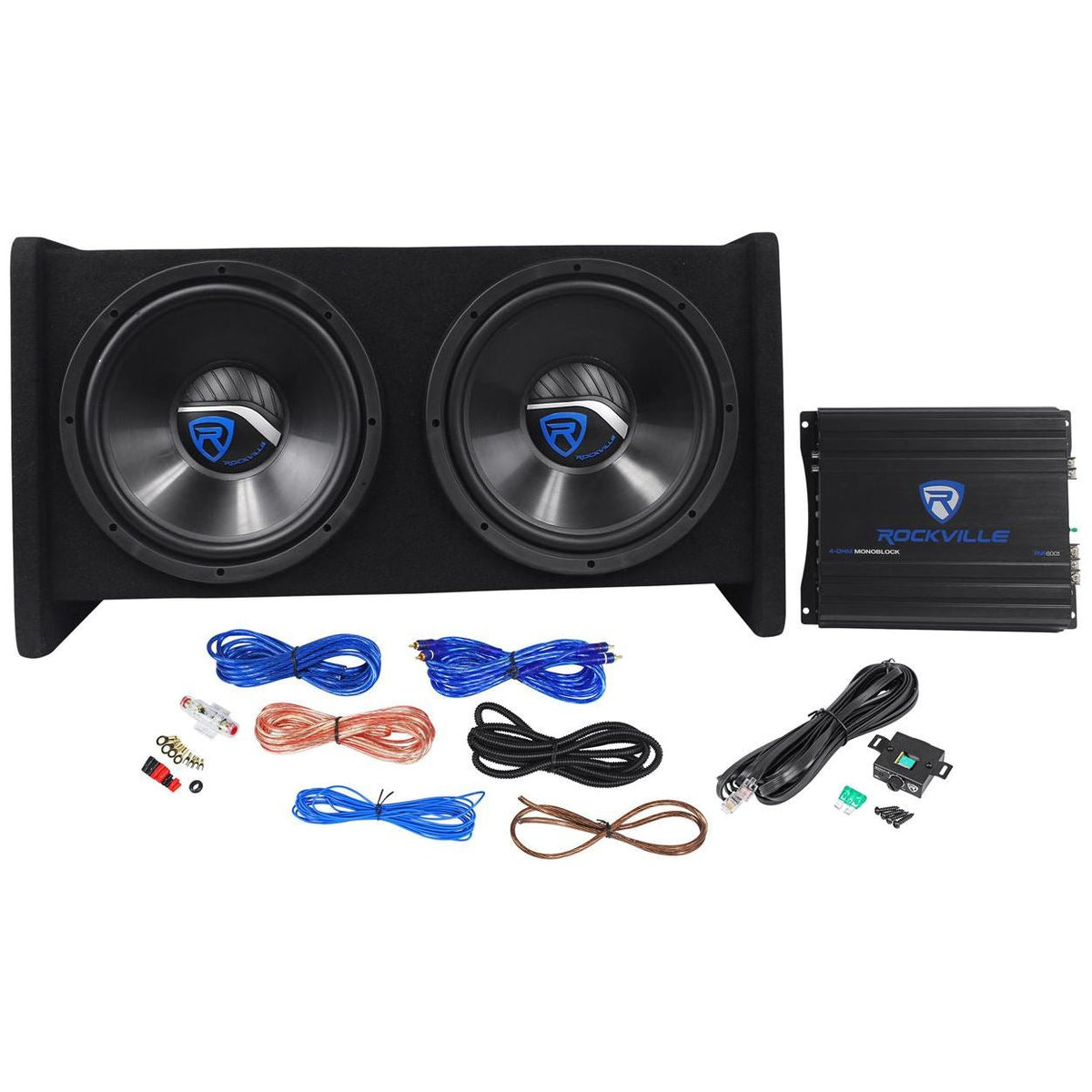

What's Included in the box
- (2) 12" Subwoofers
- (1) Vented Dual 12" Subwoofer Enclosure
- (1) Mono Block Amplifier

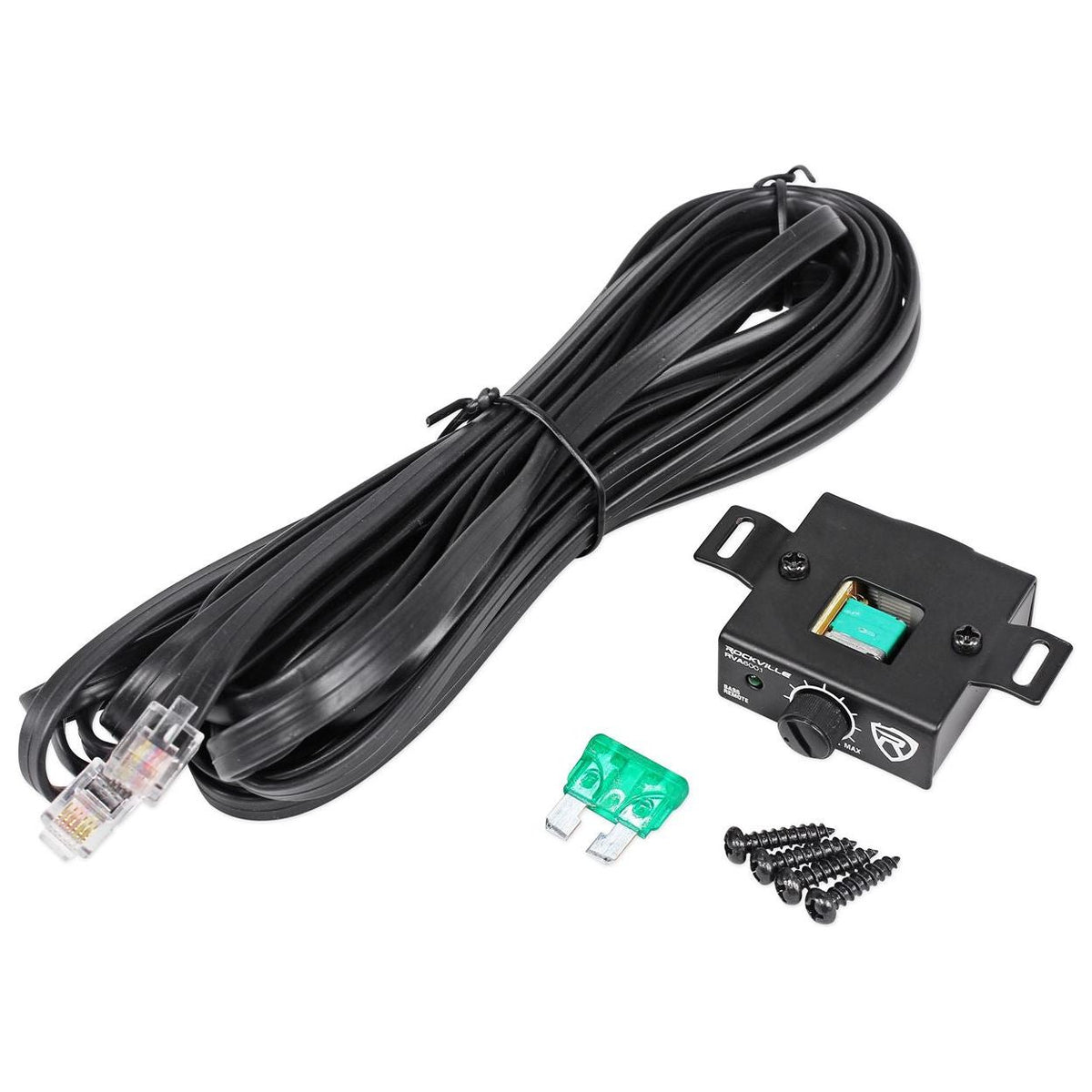

- (1) Dash-Mount Bass Remote with Cable
- (1) 8 AWG Amplifier Wiring Kit
SKU: SKU: RV12.2B
View full details








Product Description

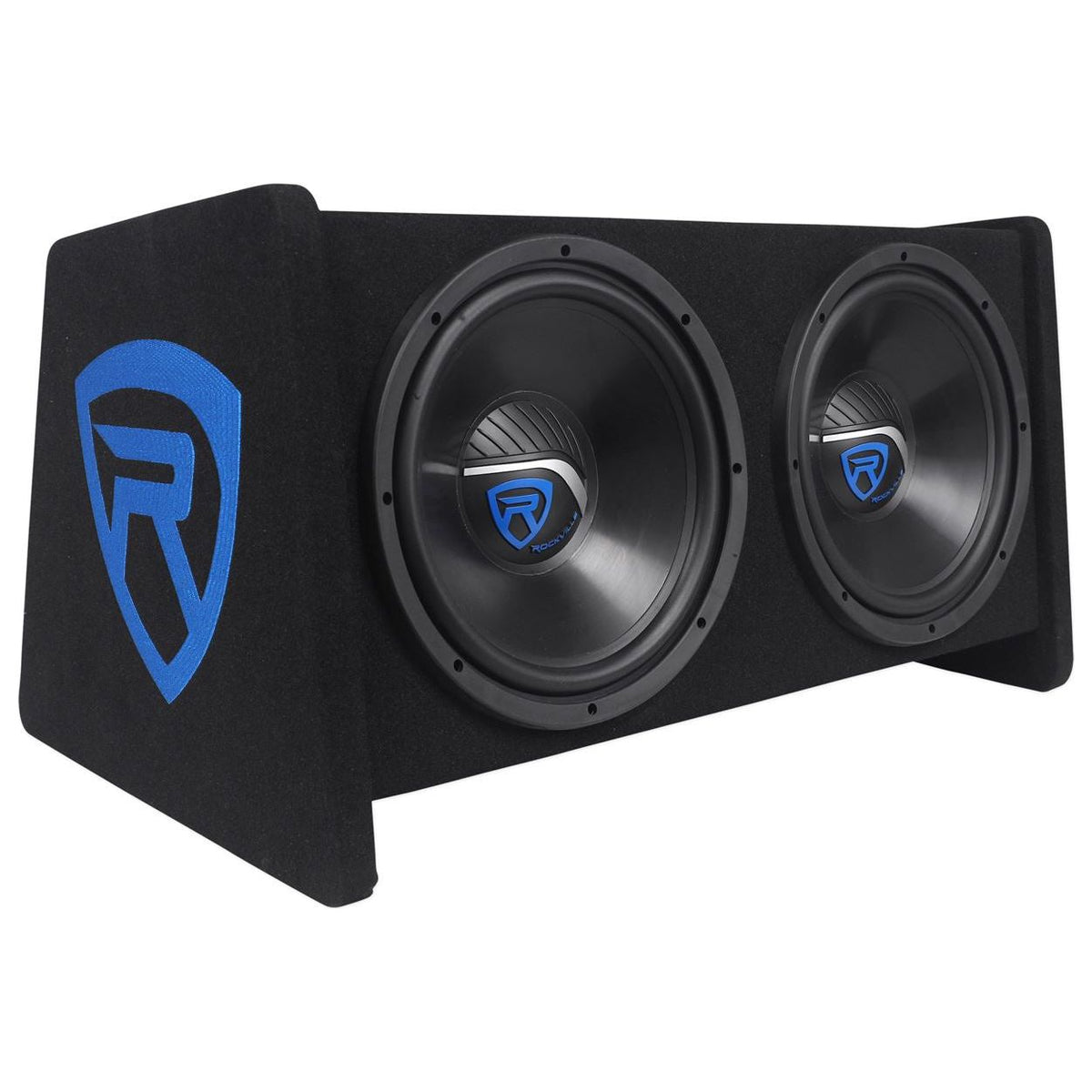

Unleash Booming Bass: Dual 12" Subwoofer System
Features
-
A Full Bass System in One Box
Dual 12-inch subwoofers, a vented enclosure, a mono block amplifier, and an 8 AWG wiring kit come matched, giving you a complete bass install from a single package.
-
Bass Aimed Into the Cabin
Bottom-firing Aero-Port vents and a 15-degree cabinet angle push low frequencies toward the listening area for deep, punchy bass in sedans, coupes, and SUVs.
-
Clean Power at Real Ratings
The Class A/B mono amplifier delivers 400W RMS at 2 ohms and 200W RMS at 4 ohms with under 1% THD, so you get the output you plan around.
-
Works With Factory or Aftermarket Radios
Speaker-level inputs with auto turn-on connect to factory head units, while RCA line inputs and a full-range RCA output pair with aftermarket decks and additional amplifiers.
-
Tune Your Bass From the Dash
A dash-mount bass remote, 50Hz to 250Hz low-pass crossover, 10Hz to 50Hz subsonic filter, and +/- 12dB bass EQ at 45Hz let you tune output for your vehicle.
Technical Specifications
- Product Type Car Subwoofer Package: Dual 12" Vented Enclosure, Mono Block Amplifier, 8 AWG Wiring Kit
- Subwoofer Size 12" (x2)
- Subwoofer Power Handling (Pair) 400W RMS / 1200W Peak
- Subwoofer Frequency Response 35Hz to 500Hz
- Subwoofer Cone Injection-Molded, Talc-Filled, Brushed Polypropylene
- Subwoofer Surround High-Excursion Butyl Rubber
- Subwoofer Dust Cap 3-D Molded
- Subwoofer Spider Linear Progressive
- Subwoofer Voice Coil 1.5" 4-Layer Aluminum
- Subwoofer Motor Structure Bumped and Vented, 60 oz Magnet per Subwoofer
- Enclosure Type Vented, Quasi Transmission Line Design

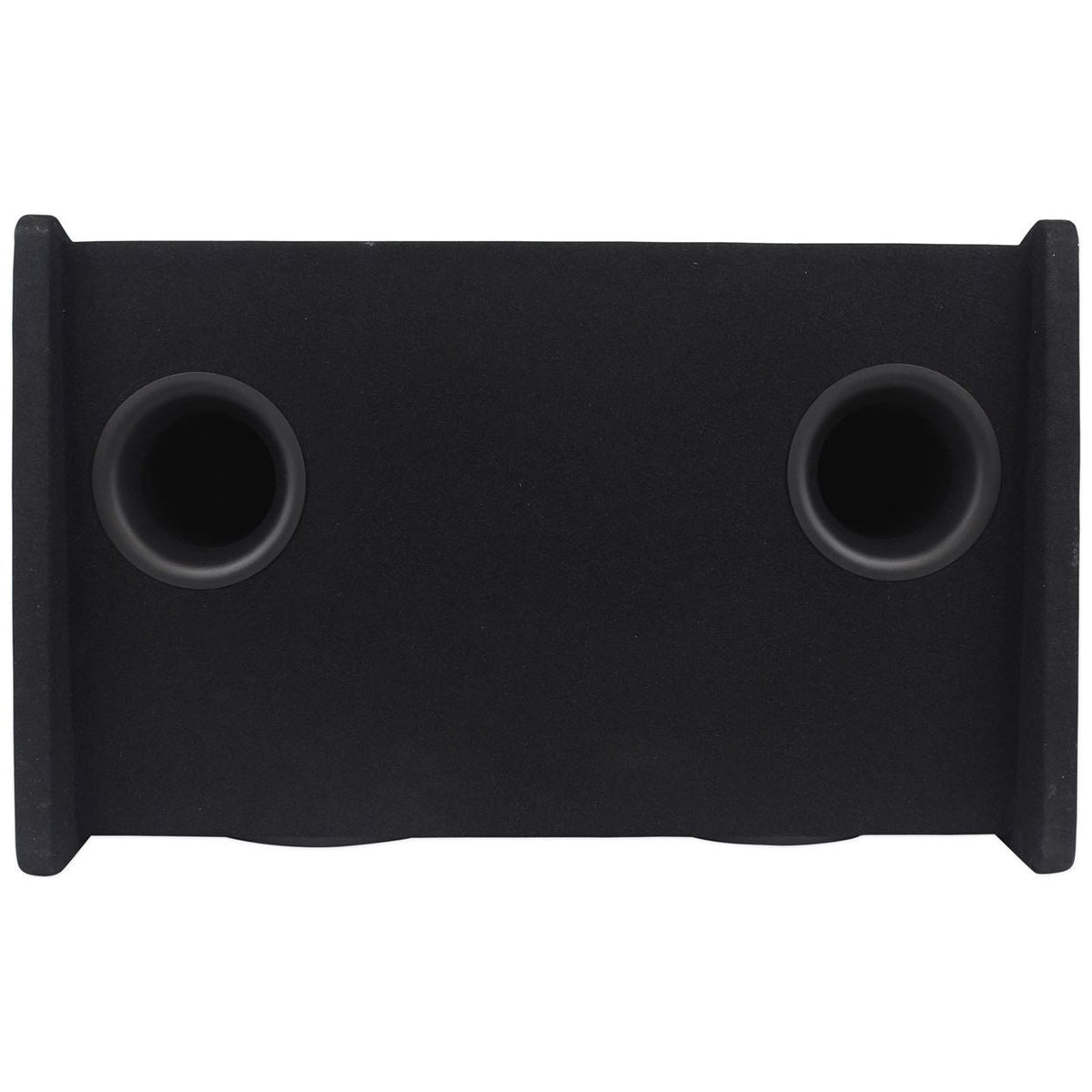

- Enclosure Port Under-Side Bass Reflex Aero-Port
- Enclosure Angle 15 Degrees
- Enclosure Construction Bonded, Stapled, and Braced MDF
- Enclosure Finish Aviation-Grade Tweed Carpet, Rockville Shield Embroidery

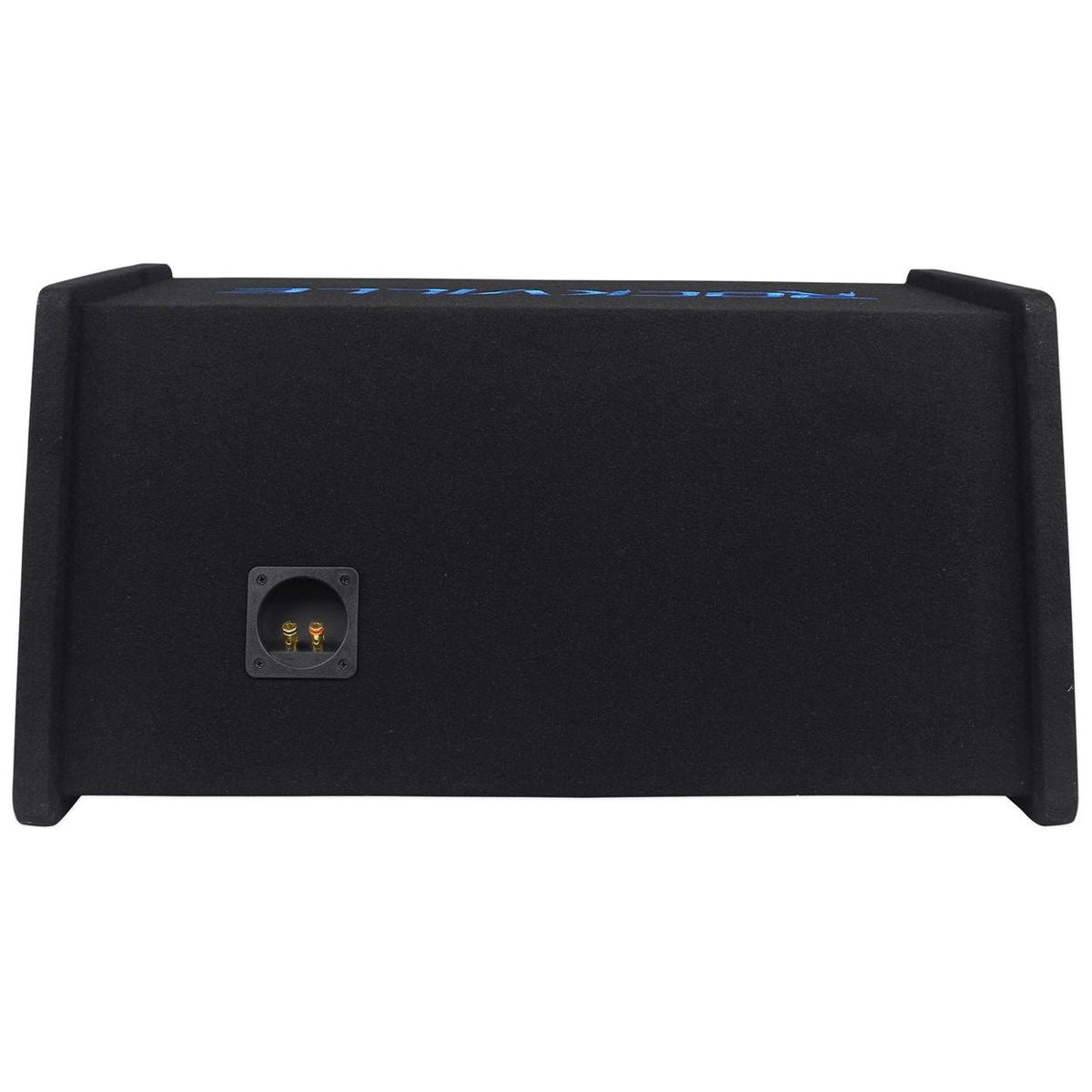

- Enclosure Terminal Mono, Gold-Plated Push Terminal

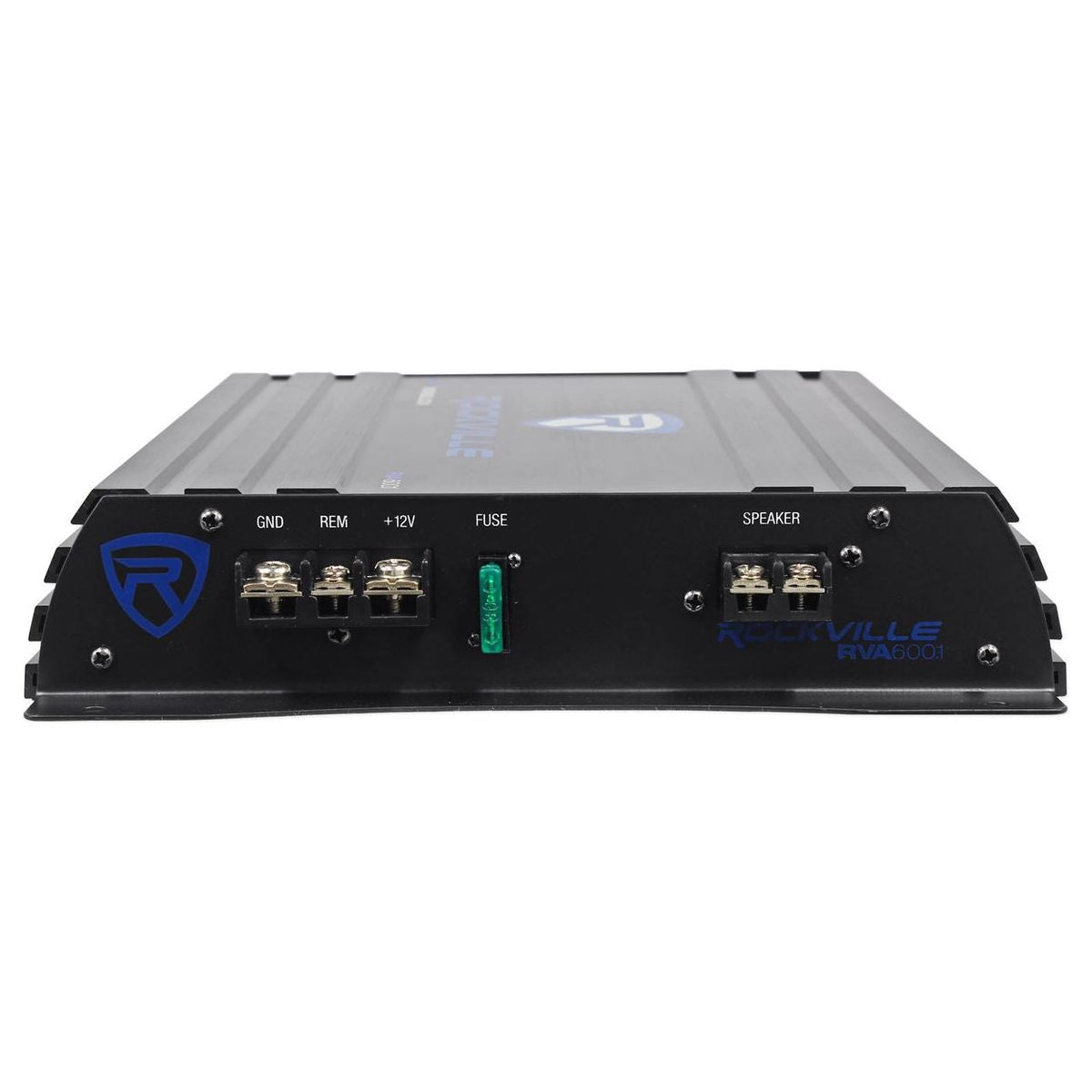

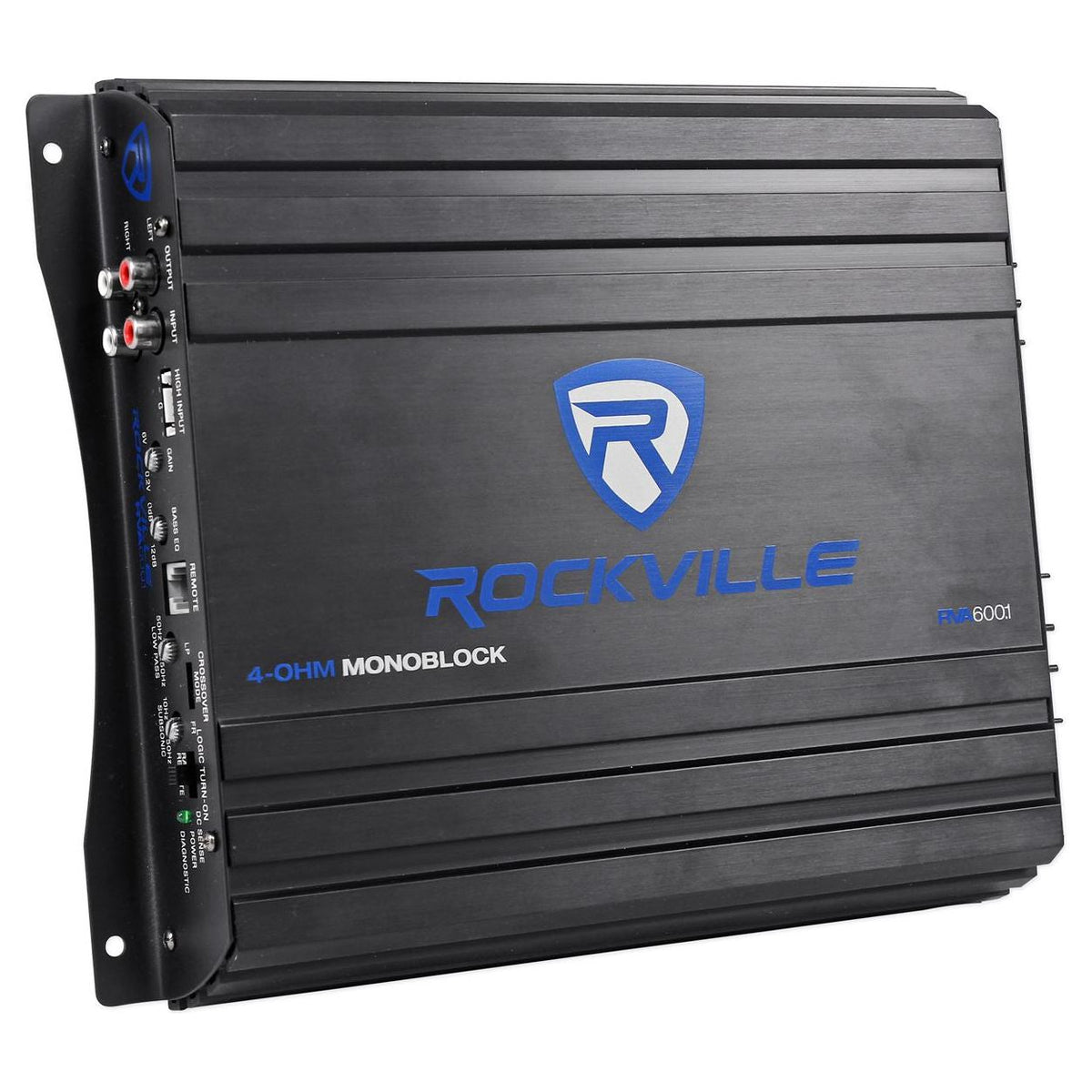

- Amplifier Type Mono Block, Class A/B
- Amplifier RMS Power (2 Ohms) 400W RMS @ 2 Ohms
- Amplifier RMS Power (4 Ohms) 200W RMS @ 4 Ohms, Under 1% THD
- Amplifier Peak Power 1200W
- Amplifier Frequency Response 15Hz to 20kHz (-3dB)
- Amplifier Signal-to-Noise Ratio Over 97dBA (1W into 4 Ohms)
- Amplifier Damping Factor Over 200 @ 100Hz
- Amplifier Power Supply High-Speed MOSFET, 50V Rail
- Amplifier Output Section Bipolar Audio Transistors

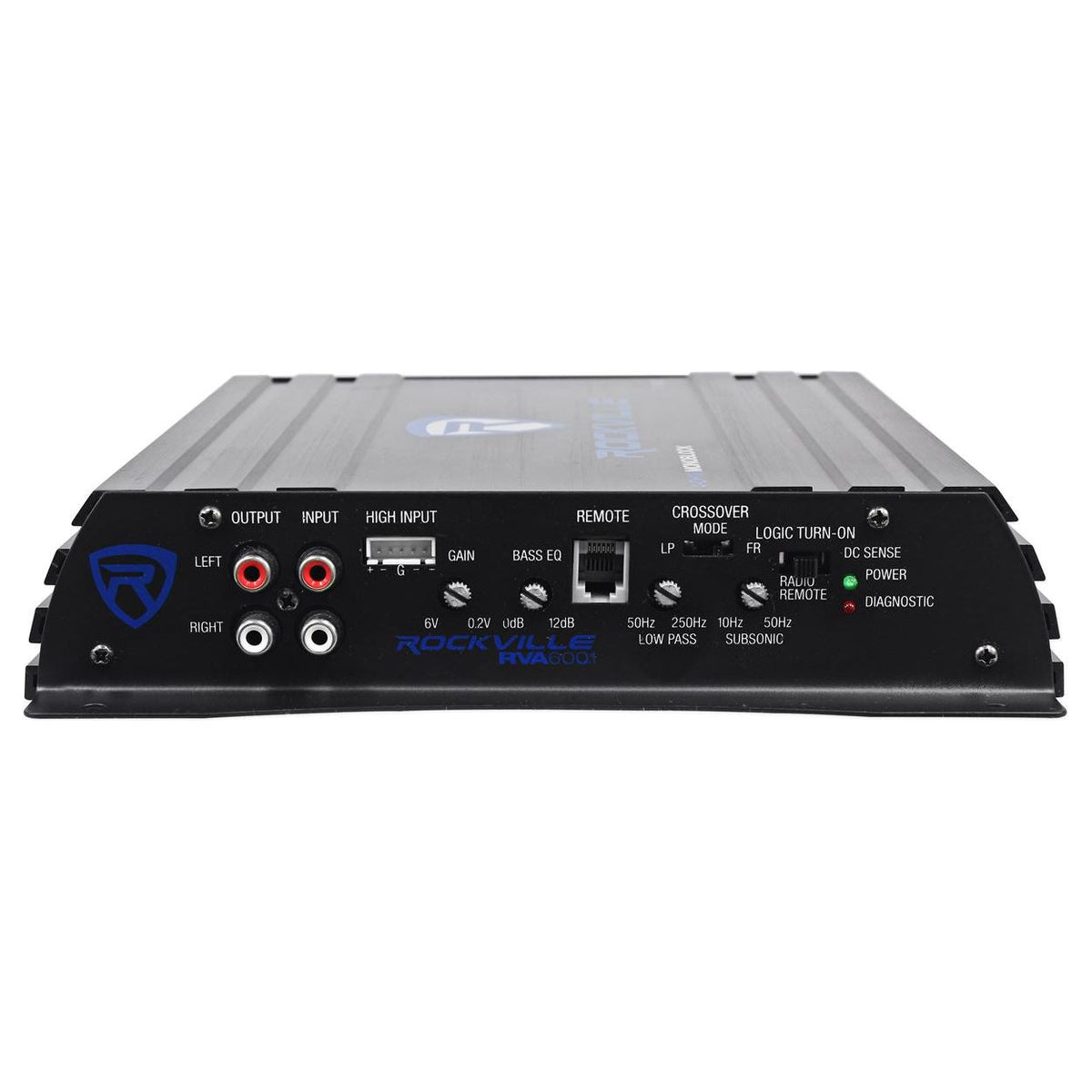

- Amplifier Inputs RCA Line Input, High-Level Speaker Input
- Amplifier Outputs Full-Range RCA Line Output
- Amplifier Input Sensitivity 150mV to 7.2V
- Amplifier Low-Pass Crossover 50Hz to 250Hz, Adjustable
- Amplifier Subsonic Filter 10Hz to 50Hz, Adjustable
- Amplifier Bass EQ +/- 12dB Narrow Q @ 45Hz, Adjustable
- Amplifier Controls Subwoofer / Full Range Switch, Dash-Mount Bass Remote
- Amplifier Turn-On OEM Auto-Start, Mute and Delay Turn-On Circuitry
- Amplifier Protection Thermal, Speaker Short, Overload, and DC, with Auto Thermal Restart
- Amplifier Indicators Power and Diagnostic LEDs

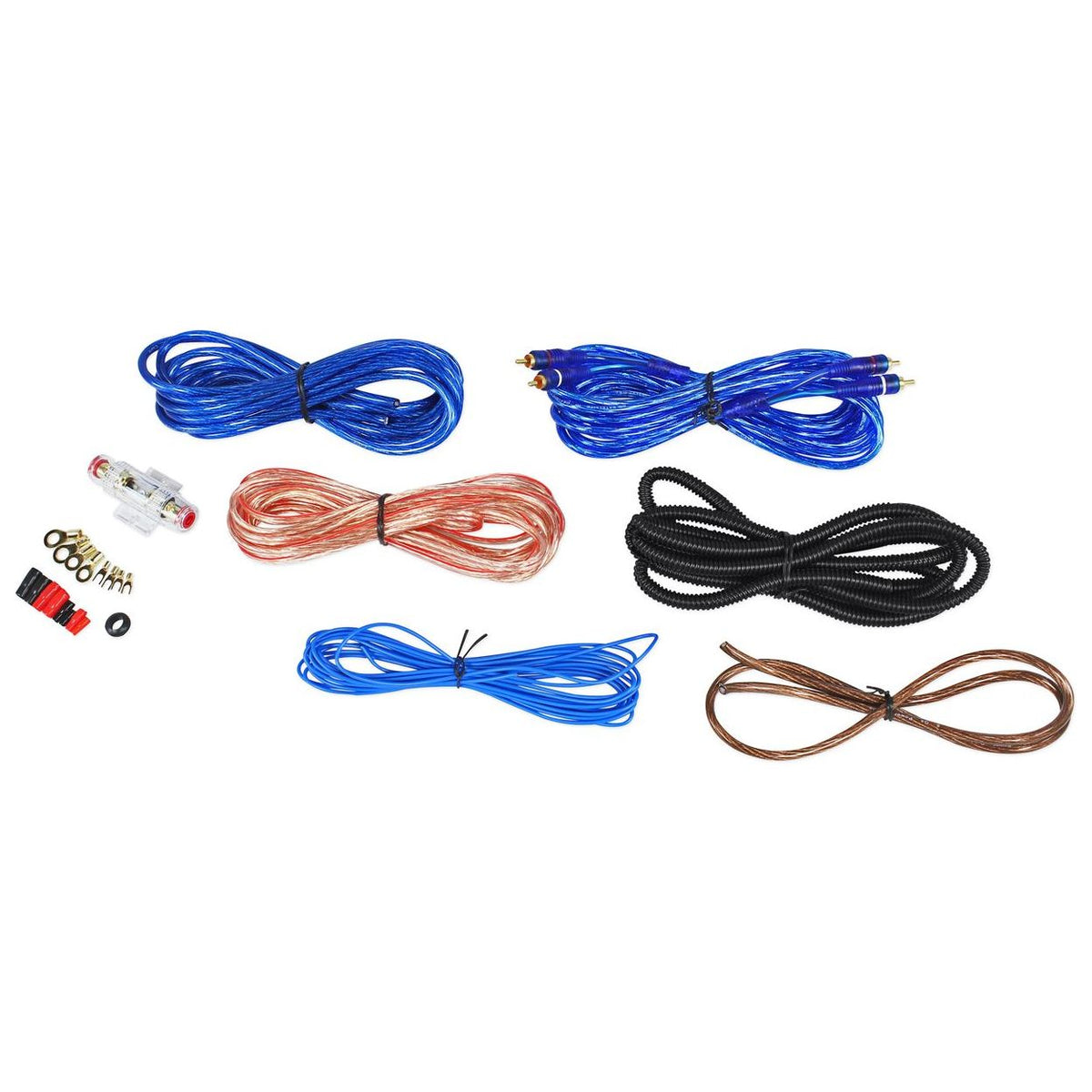

- Wiring Kit Gauge 8 AWG
- Wiring Kit Power Cable 17' 8 AWG Translucent Blue Super Flex
- Wiring Kit Ground Wire 3' 8 AWG Clear Super Flex
- Wiring Kit Remote Wire 17' 18 AWG Blue
- Wiring Kit Speaker Wire 17' 16 AWG
- Wiring Kit RCA Cables Twisted Pair, 100% Copper
- Wiring Kit Fuse 50A ANL, Gold-Plated
- Wiring Kit Fuse Holder ANL, Gold-Plated, Heat-Resistant
- Wiring Kit Loom 7' Split Tube
- Wiring Kit Accessories Wire Ties, Ring Terminals, Butt Connectors, Spades, Grommet
- Enclosure Weight 36.45 lb
- Enclosure Dimensions 29.4" L x 18.4" W x 15.9" H
