Concert 99 Presentation Wireless LM10 Lavalier System (D-Band)
SAMSON
Concert 99 Presentation Wireless LM10 Lavalier System (D-Band)
Concert 99 Presentation Wireless LM10 Lavalier System (D-Band)
UHF Wireless Lavalier System, 80 Channels, 300' Range, CR99 Receiver, CB99 Beltpack, LM10 Mic, Rackmount Kit
Free Shipping
Features
- 80 selectable UHF channels in the D-Band for interference-free operation
- 300' operating range line of sight with true RF diversity
- IR sync matches transmitter and receiver frequency in one touch
- Backlit LCD shows channel, frequency, and transmitter battery life
- CB99 beltpack runs 8 hours on two AA batteries
Couldn't load pickup availability

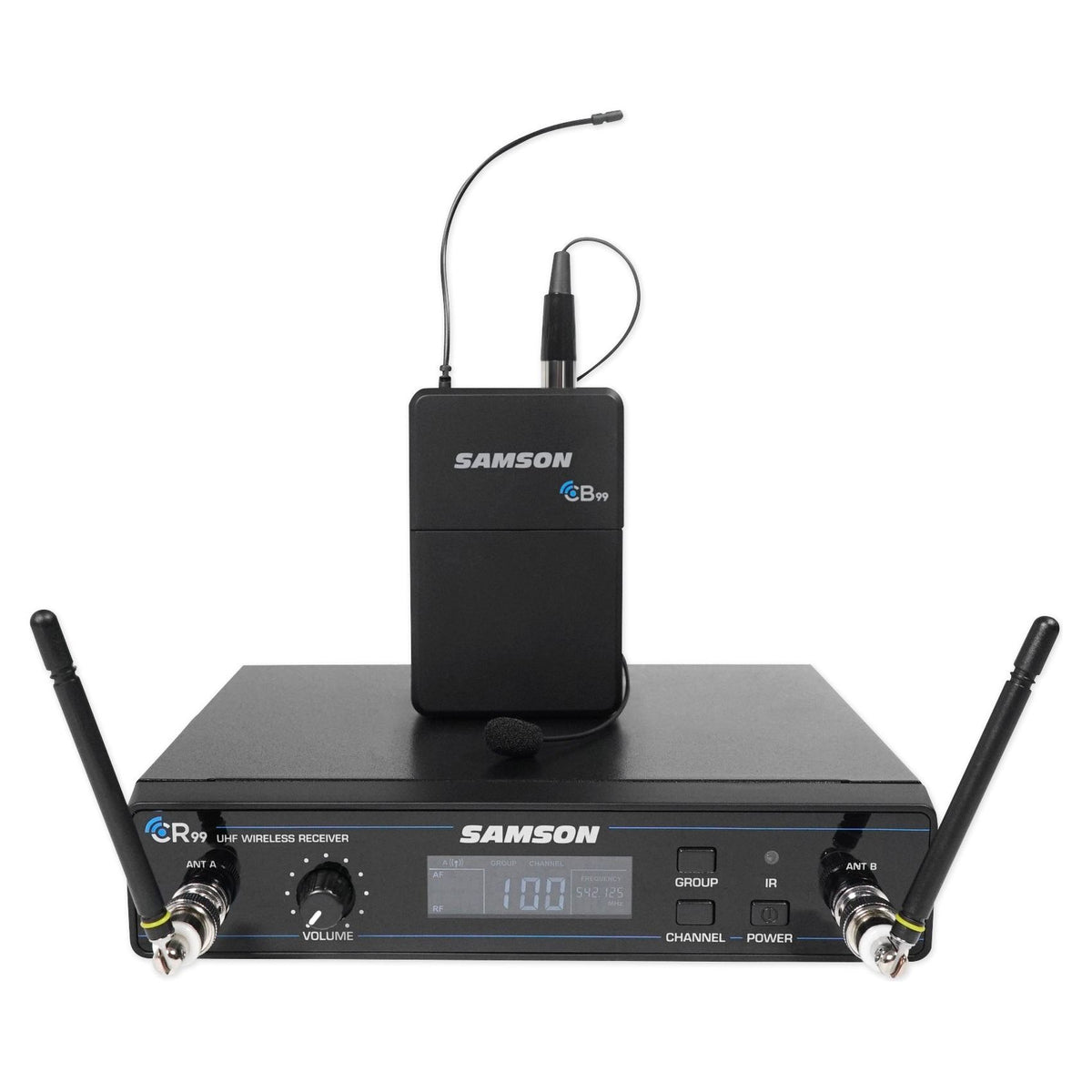

What's Included in the box
- (1) CR99 Wireless Receiver
- (1) CB99 Beltpack Transmitter
- (1) LM10 Omnidirectional Lavalier Microphone

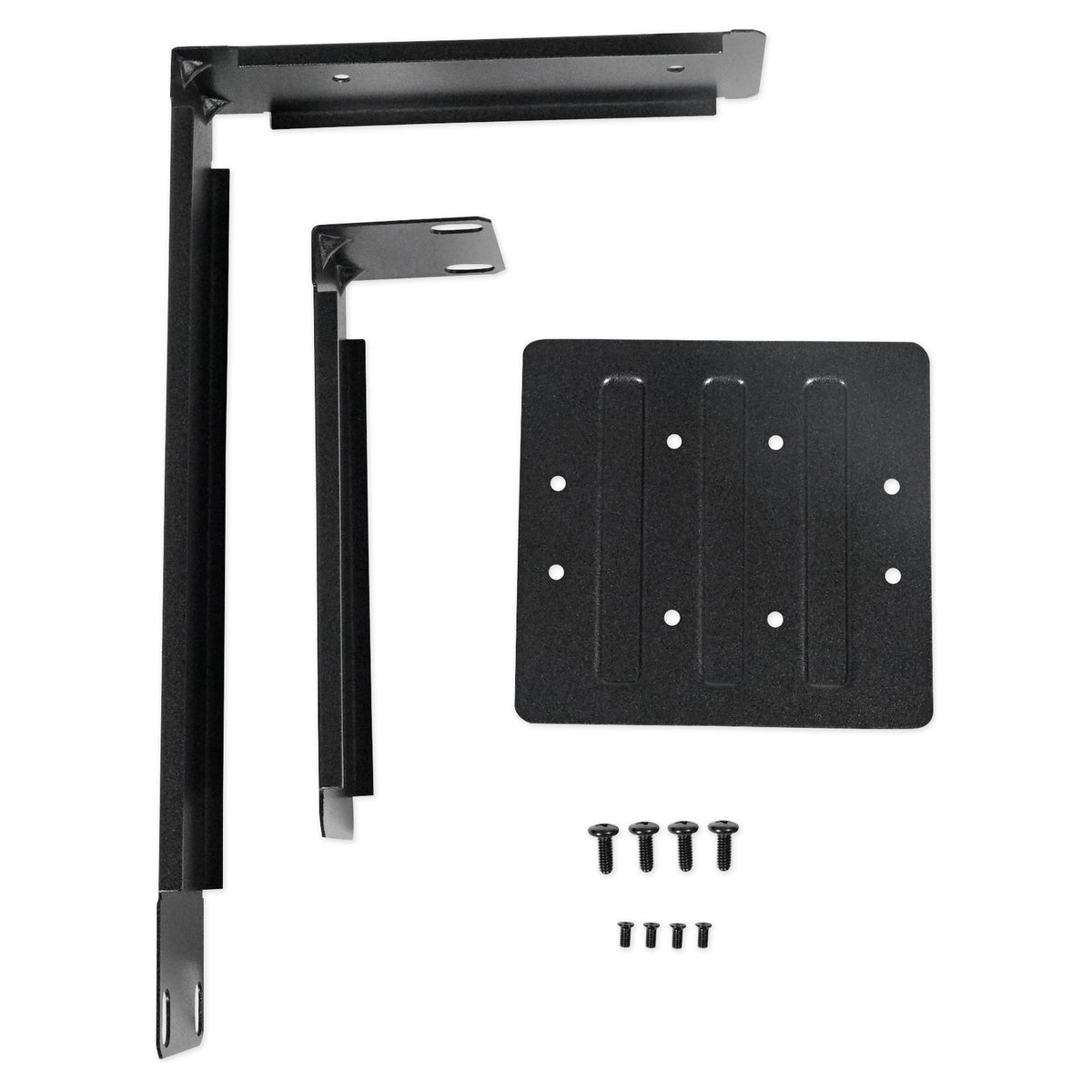

- (1) 19" Rackmount Kit
SKU: SKU: SWC99BLM10-D
View full details






Product Description
Setup is short. Group scan finds an open frequency in your area, then infrared sync matches the transmitter to the receiver wirelessly, no menu diving on the beltpack. True RF diversity uses two antenna paths to reduce dropouts as a presenter walks a room, and pilot tone-key with auto-mute keeps noise out of the PA when the transmitter is off or out of range.
The all-metal receiver has a large backlit LCD readable from across a dark stage. It shows channel number, UHF frequency, and the exact battery life left in the transmitter, so you know before a session whether the pack will last. The CB99 beltpack runs 8 hours on two AA batteries and has variable gain, a popless one-touch mute button, and a metal belt clip. Audio response covers 50Hz to 15kHz with a dynamic range above 103dB.
A 19" rackmount kit is included for permanent installs and mobile racks. The system fits presenters, educators, houses of worship, fitness instructors, conference AV, and theater work where the speaker needs both hands and the mic needs to stay out of sight.
Features
-
Hands-Free Speech Coverage
The LM10 omnidirectional lavalier clips to a collar and feeds the CB99 beltpack, so presenters and instructors keep both hands working.
-
Find A Clear Frequency Fast
Group scan across 80 UHF channels picks an open frequency for your location, then IR sync matches the beltpack without menu navigation.
-
Stays Connected Across The Room
True RF diversity with dual antenna paths and 300' of line-of-sight range reduces dropouts as a speaker walks a stage or aisle.
-
Know Before You Go On
The bright backlit LCD reports channel, UHF frequency, and exact transmitter battery life from across a dark stage or a back row.
-
Install It Or Pack It
An all-metal half-rack chassis with the included 19" rackmount kit fits permanent AV racks and travels in a mobile rack.
Technical Specifications
- Product Type UHF Wireless Lavalier Microphone System
- Frequency Band D-Band
- Available Channels 80
- Working Range 300' (100 m) line of sight
- Audio Frequency Response 50Hz - 15kHz
- Total Harmonic Distortion Less than 1% (@ AF 1kHz, RF 46 dBu)
- Dynamic Range >103dB A-weighted
- Signal To Noise Ratio >90dB
- Tone Key Frequency 35,000 kHz
- Operating Temperature 14 to 140 F (-10 to 60 C)

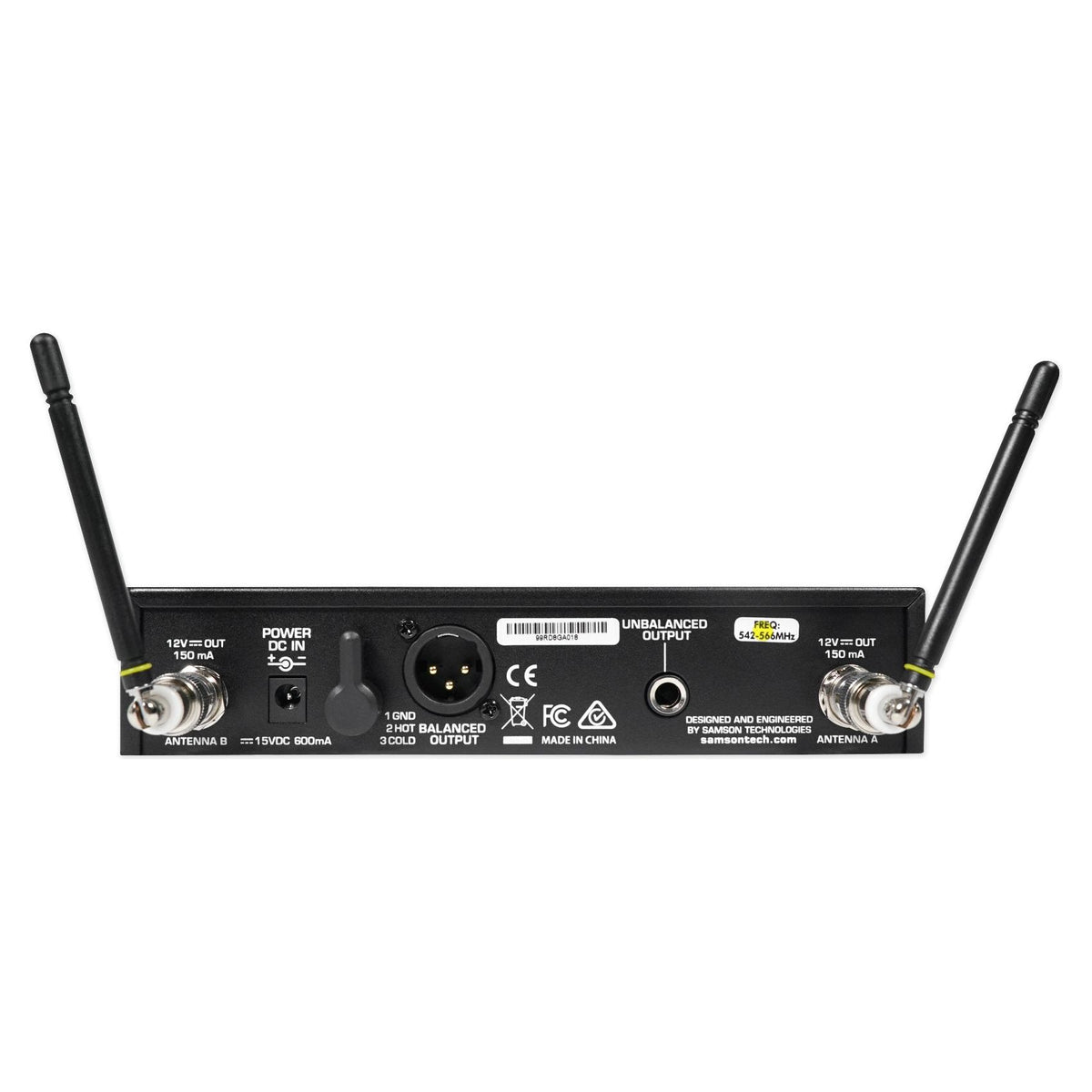

- Receiver CR99, all-metal half-rack, true RF diversity
- Receiver Audio Output Level Unbalanced +14 dBu, balanced +9 dBu
- Receiver Audio Output Impedance Unbalanced 810 ohms, balanced 240 ohms
- Receiver Sensitivity -100 dBm / 30 dB SINAD
- Receiver Image Rejection >50dB
- Receiver Operating Voltage 15 VDC 200 mA

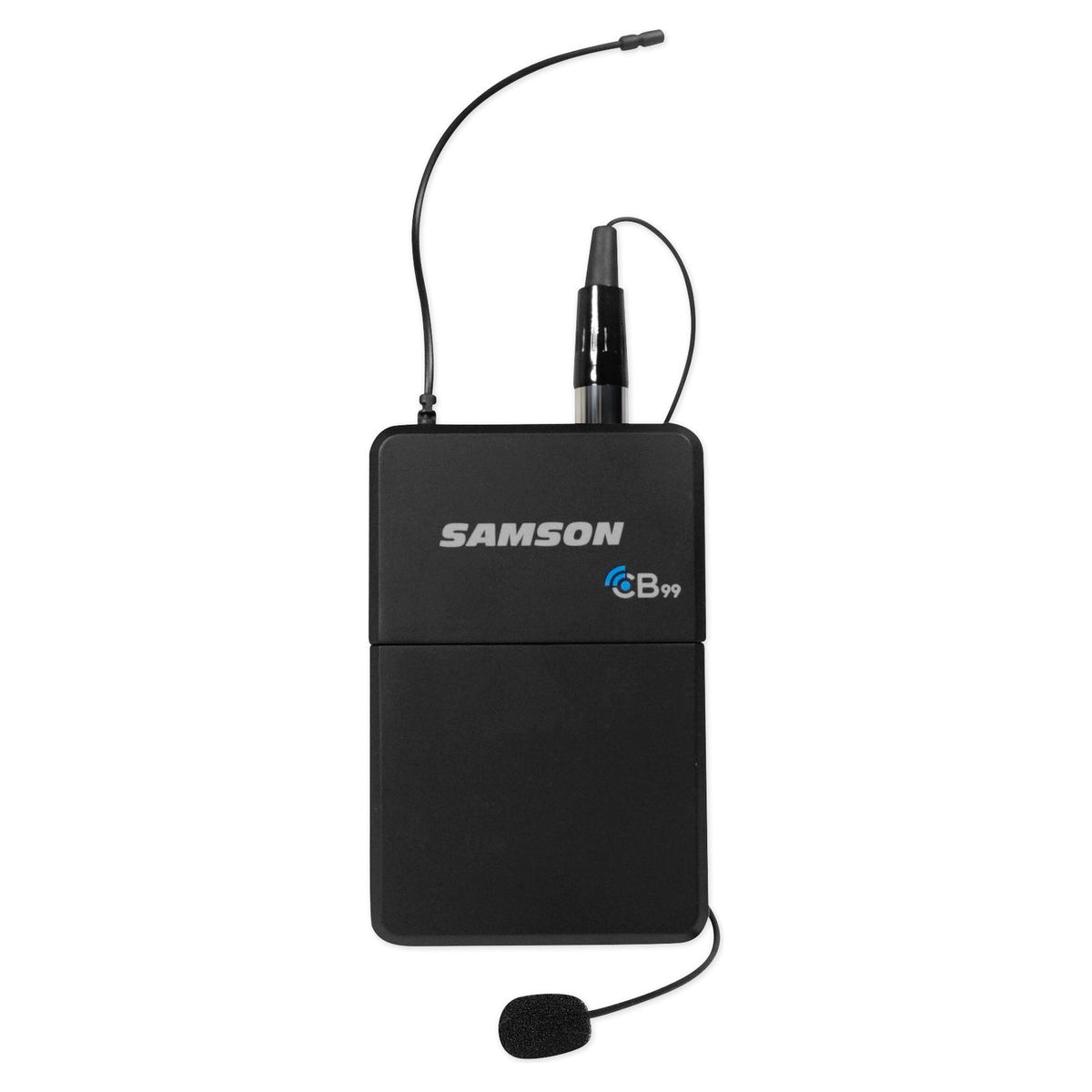

- Transmitter CB99 beltpack
- Transmitter Input Connector Mini-XLR (P3)
- Transmitter Input Impedance 1M ohm
- Transmitter Input Gain Range 38dB
- Transmitter RF Power 10 mW EIRP
- Transmitter Power Requirements 2 x AA (LR6) alkaline batteries, not included
- Transmitter Battery Life 8 hours

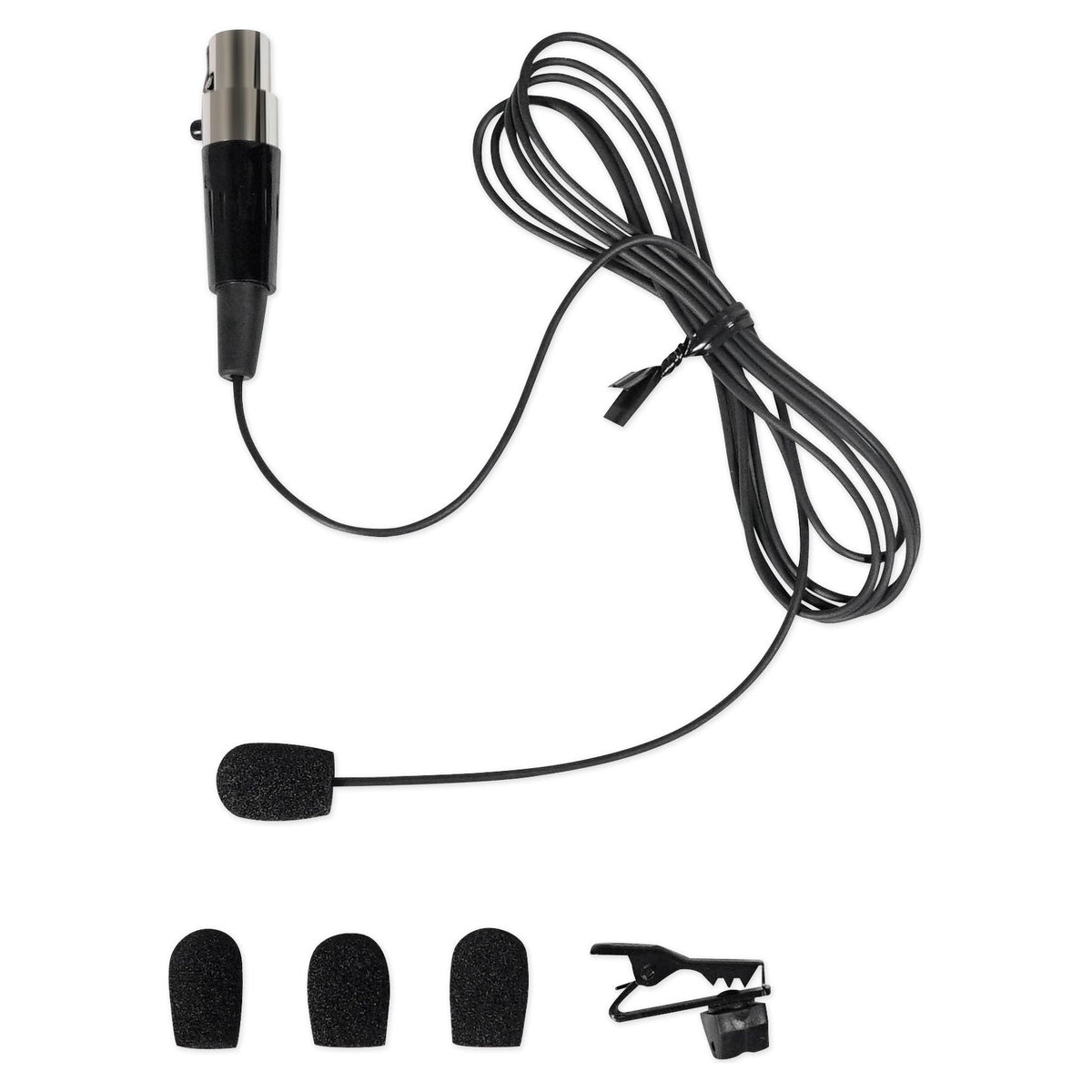

- Microphone LM10 omnidirectional lavalier
- Weight 5.0 lb packaged
- Dimensions 14.724" x 11.575" x 3.386" packaged
