BL8 Condenser Cardioid Boundary Microphone
BL8 Condenser Cardioid Boundary Microphone
Half-Cardioid Boundary Condenser Microphone, 1/2" True-Condenser Capsule, 163 dB Max SPL, Includes Storage Pouch
Free Shipping
Regular price
$269.00
Sale price
$269.00
Regular price
$339.00
Unit price
per
Save 20%
Shipping calculated at checkout.
Features
- 1/2 in. true-condenser sE8 capsule reproduces low frequencies with accuracy
- Transformerless Class-A circuitry keeps headroom high and distortion low
- Switchable 10/20 dB pad handles up to 163 dB SPL inside a kick drum
- Character switch selects classic or modern voicing at the source
- Switchable 80/160 Hz low-cut filter trims stage rumble and HVAC noise
Couldn't load pickup availability
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

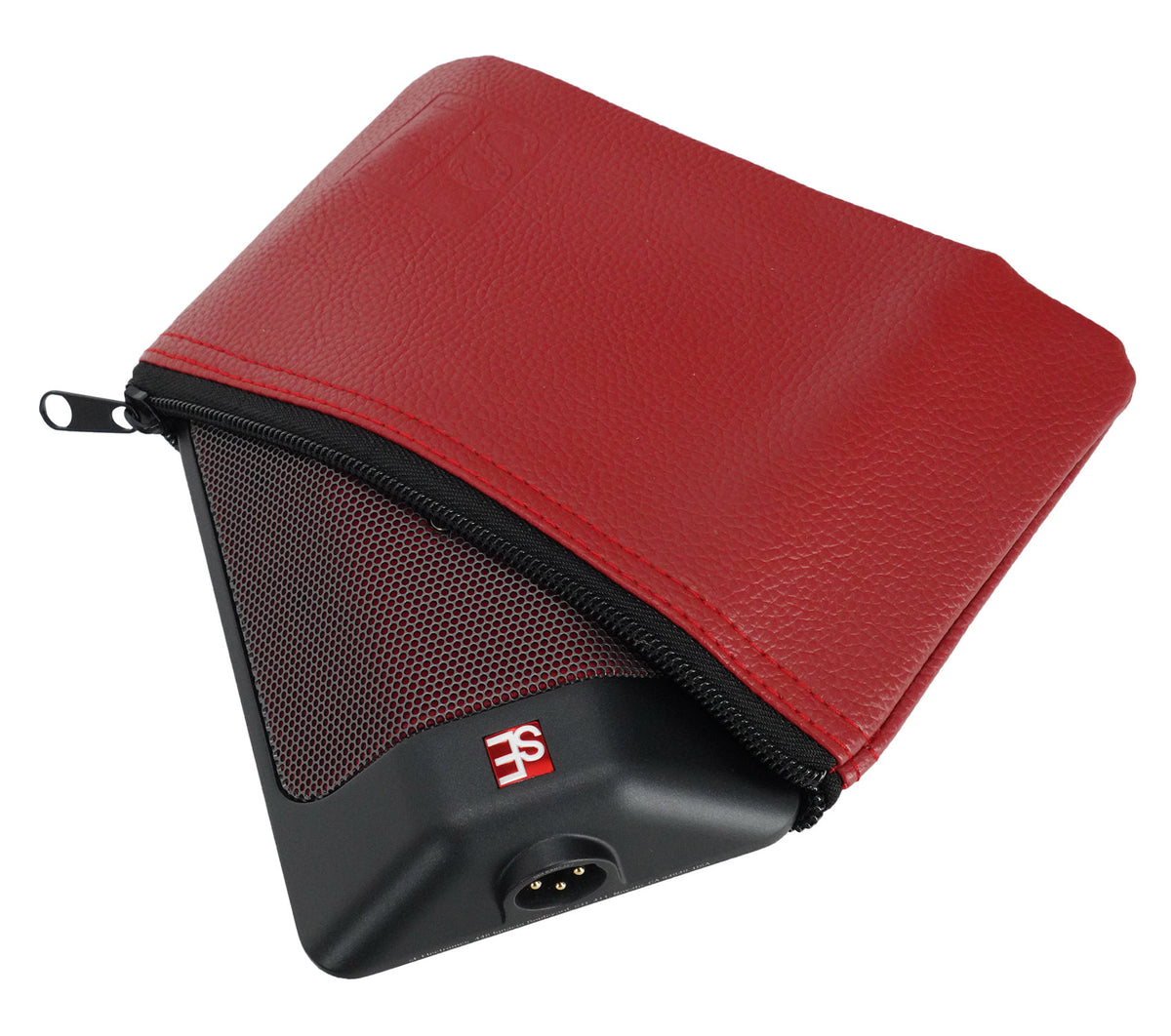

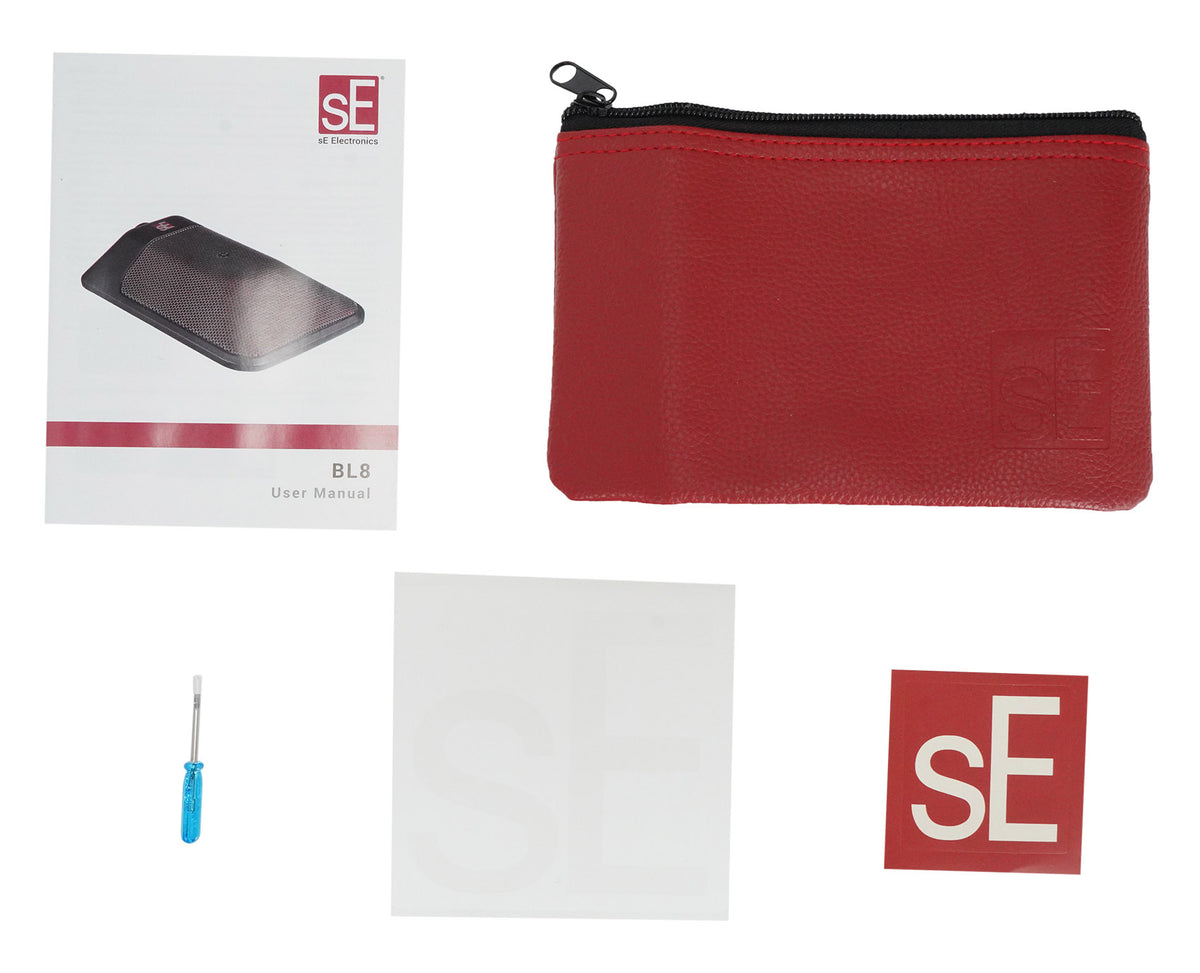

What's Included in the box
- BL8 Microphone
- Pouch
SKU: SKU: BL8
View full details
Product Description

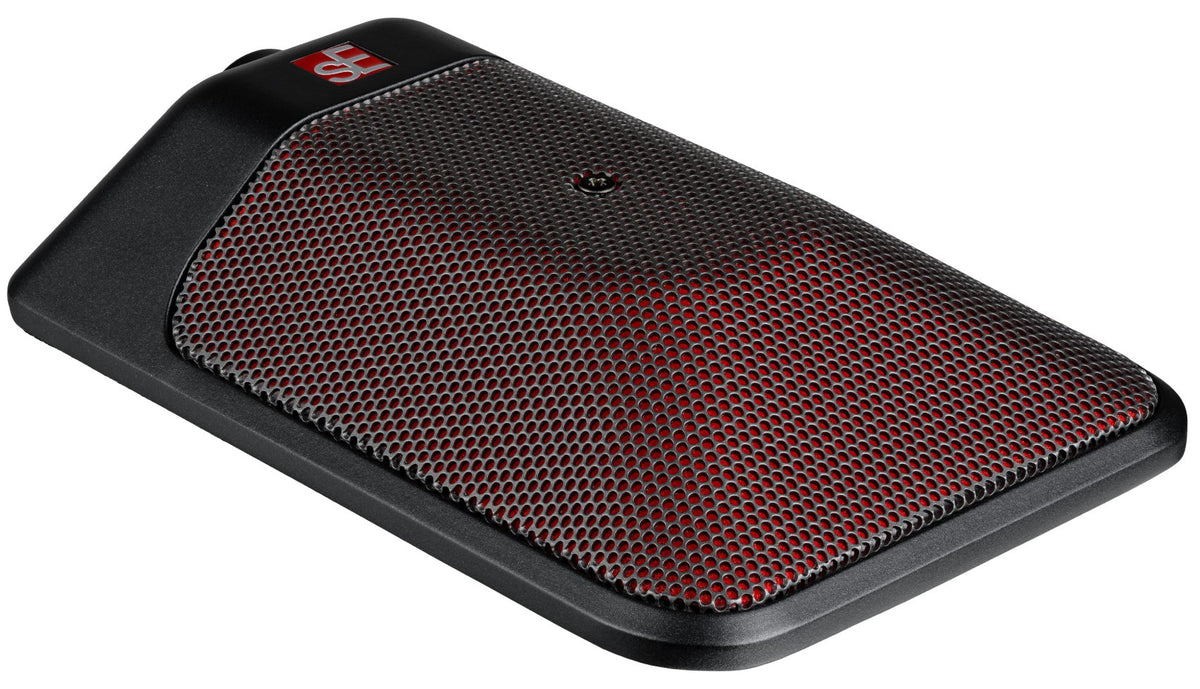

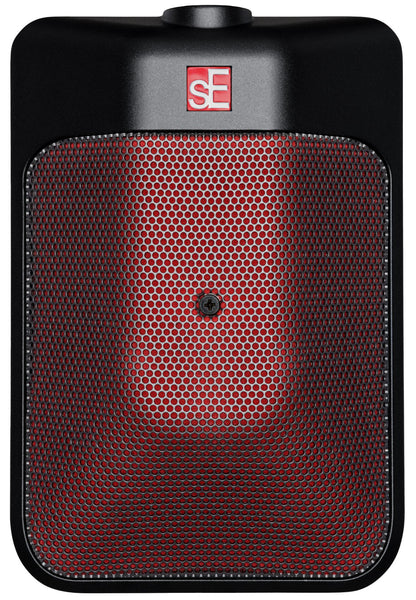

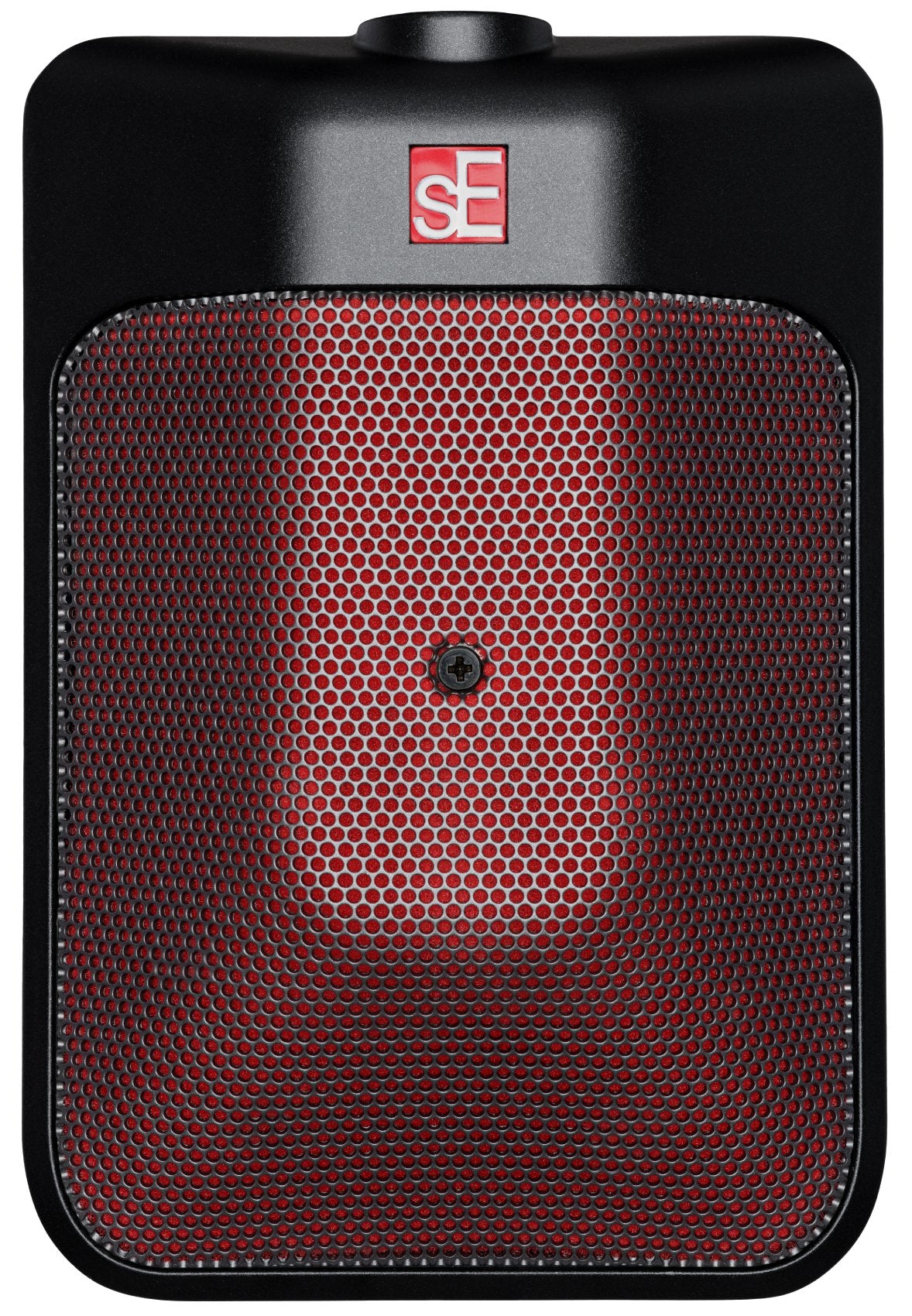

The sE Electronics BL8 is a half-cardioid boundary microphone built for loud, close-range sources. Its hand-crafted 1/2 in. true-condenser sE8 capsule sits in a low-profile housing just 1.12 in. tall, so it drops inside a kick drum, under a piano lid, or flat on a stage floor without a stand or boom in the way.
Transformerless Class-A circuitry gives the BL8 plenty of headroom before distortion, and a switchable 10/20 dB pre-attenuation pad raises SPL handling from 143 dB to 163 dB. That covers a hard-hit kick drum at point-blank range. On the quiet end, low-noise electronics hold the equivalent noise level at 14 dB(A), so speech pickup, conference tables, and room ambience stay clean and detailed. Frequency response runs 20 Hz to 20,000 Hz with accurate low-frequency reproduction.
Two switches shape the sound at the source. The character switch moves between classic and modern voicings, useful when the same kick needs warmth on one session and attack on the next. The low-cut filter, switchable at 80 or 160 Hz (6 dB/oct), trims stage rumble and HVAC noise before it reaches the console.
The half-cardioid pattern treats the mounting surface as an acoustic boundary, which cuts phase cancellation and gives more usable gain before feedback than a standard cardioid lying on the floor. The BL8 runs on standard 48 V phantom power through a 3-pin male XLR, accepts the sE8 omni capsule, and mounts in The Kelly Shu Flatz Isolation System for drum work.
Typical applications include kick drum, cajon, piano, speech and conferencing, room miking and ambience, and stage floor pickup.
Transformerless Class-A circuitry gives the BL8 plenty of headroom before distortion, and a switchable 10/20 dB pre-attenuation pad raises SPL handling from 143 dB to 163 dB. That covers a hard-hit kick drum at point-blank range. On the quiet end, low-noise electronics hold the equivalent noise level at 14 dB(A), so speech pickup, conference tables, and room ambience stay clean and detailed. Frequency response runs 20 Hz to 20,000 Hz with accurate low-frequency reproduction.
Two switches shape the sound at the source. The character switch moves between classic and modern voicings, useful when the same kick needs warmth on one session and attack on the next. The low-cut filter, switchable at 80 or 160 Hz (6 dB/oct), trims stage rumble and HVAC noise before it reaches the console.
The half-cardioid pattern treats the mounting surface as an acoustic boundary, which cuts phase cancellation and gives more usable gain before feedback than a standard cardioid lying on the floor. The BL8 runs on standard 48 V phantom power through a 3-pin male XLR, accepts the sE8 omni capsule, and mounts in The Kelly Shu Flatz Isolation System for drum work.
Typical applications include kick drum, cajon, piano, speech and conferencing, room miking and ambience, and stage floor pickup.

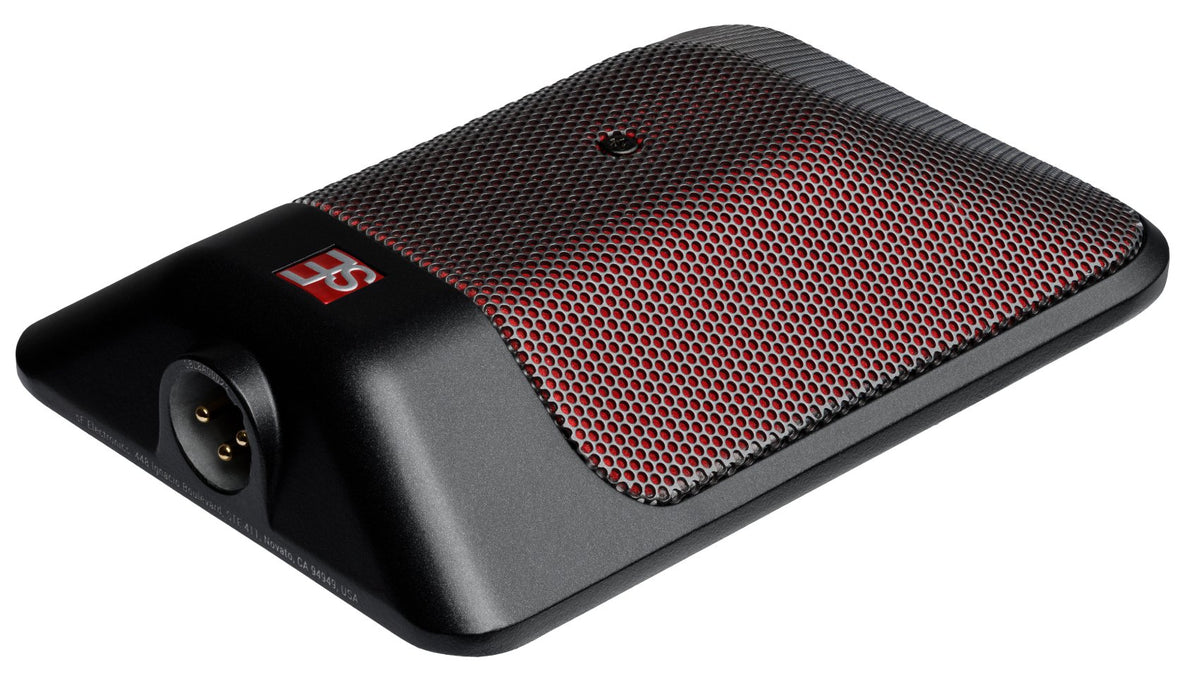

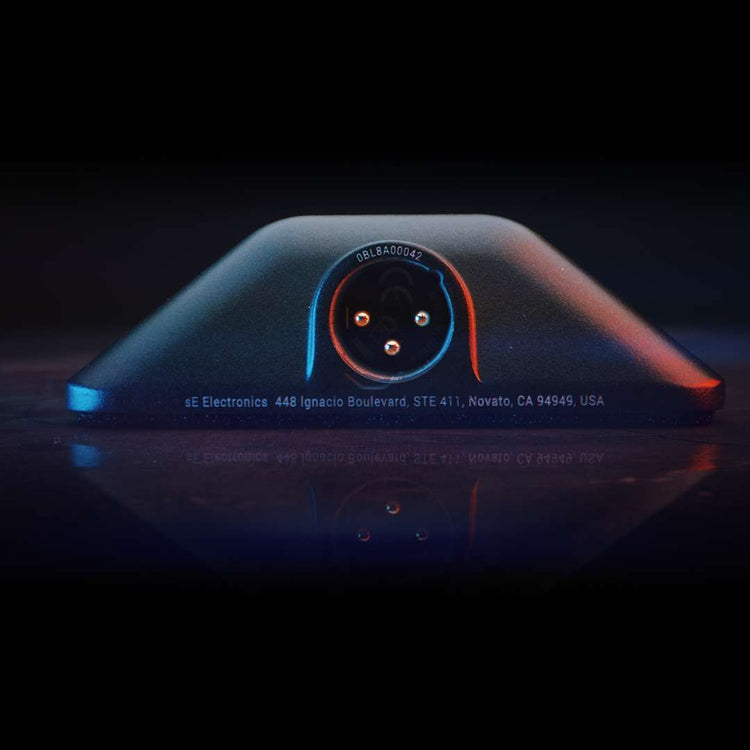

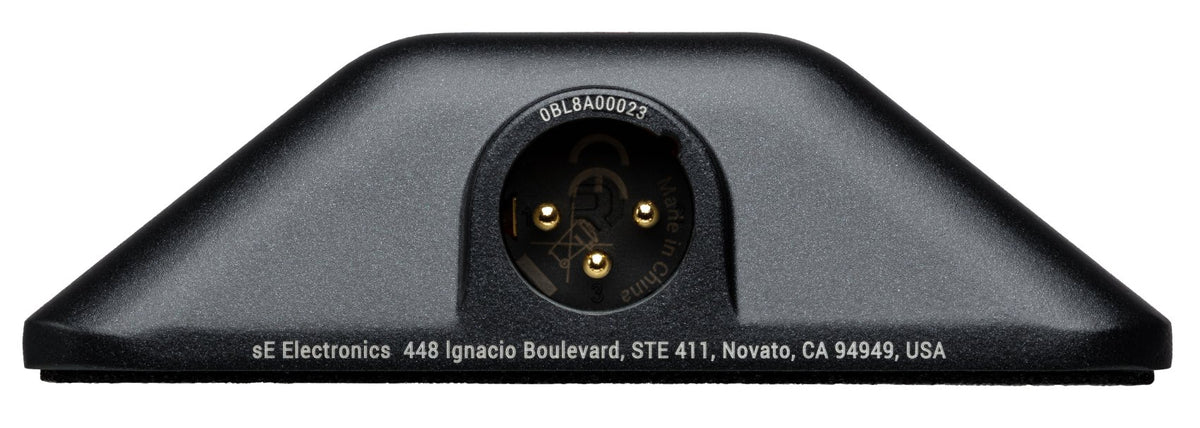

GOLD-PLATED XLR CONNECTOR
Built to last, the BL8 has a gold-plated XLR connector to ensure loss-free, reliable signal connection for years and years of demanding use.

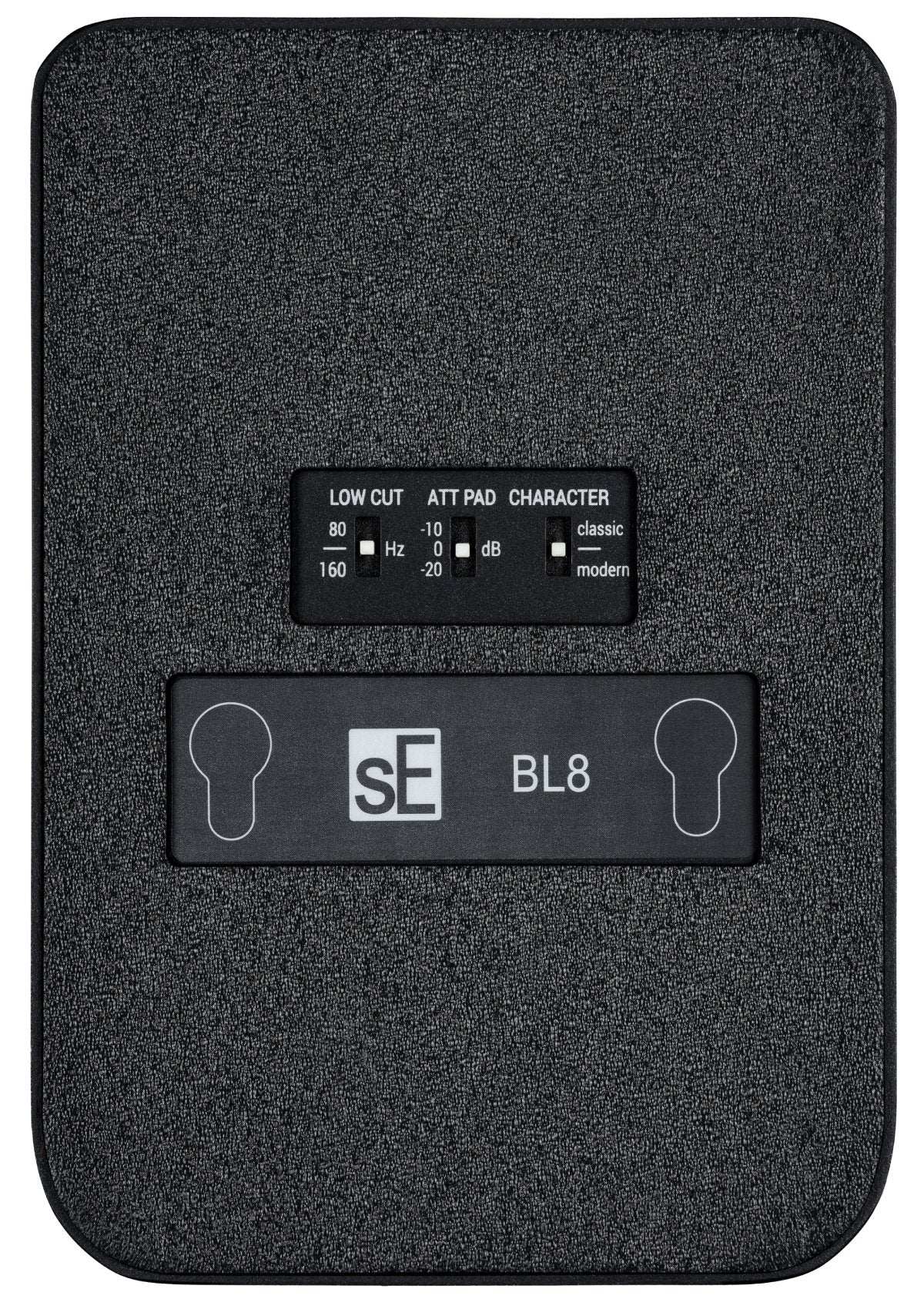

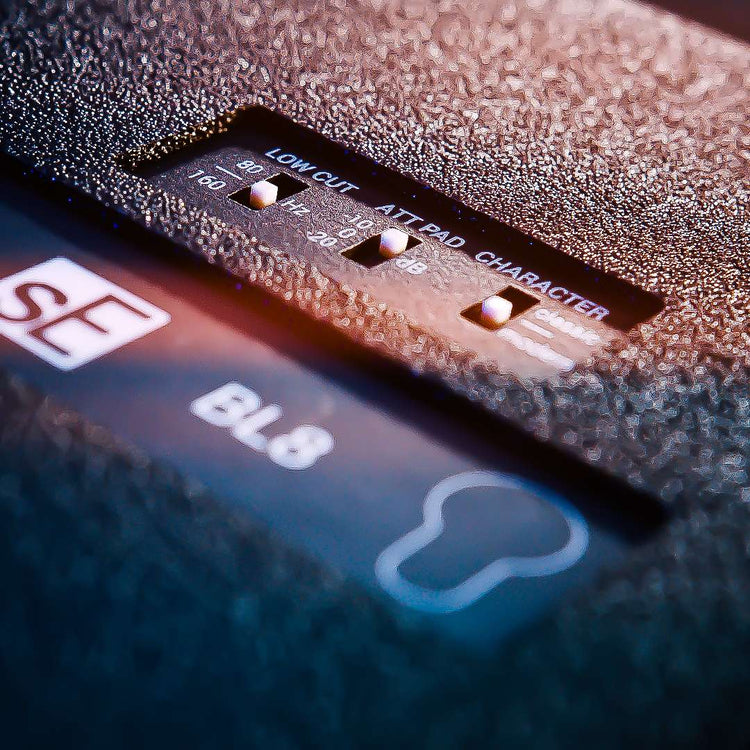

PRE-ATTENUATION PAD AND LOW-CUT FILTER
The integrated low-cut filter and attenuation pad switches make the BL8 a very versatile microphone, excelling at ambience recording, room miking, and can even be used on acoustic pianos while keeping high-SPL sources from overloading your mixer’s input.
CLASSIC AND MODERN VOICINGS ACCOMMODATE FOR LIVE AND STUDIO SETTINGS
The ideal studio kick drum tone is often different than our preferences in a live sound environment. Similar to our award-winning kick-drum mic, the V KICK, the BL8 offers “Classic” and “Modern” voicings. These options both cut and shape the low-mids to emphasize transients and punch. In its center position, the capsule’s neutral response is retained, which is ideal for a variety of other applications.
FEATURING RENOWNED 1/2" TRUE-CONDENSER SE8 CARDIOID CAPSULE

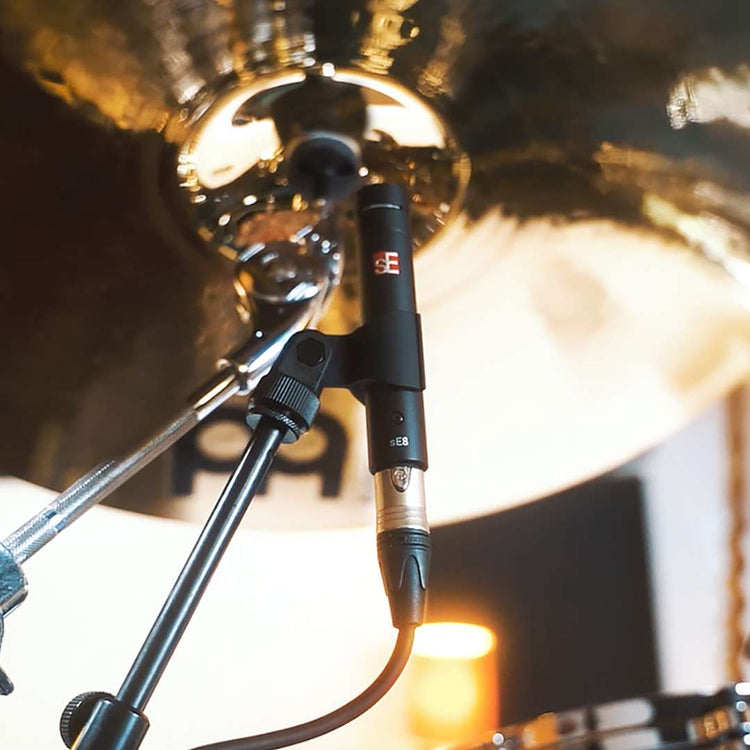

Utilizing the same capsule as the celebrated sE8 small-diaphragm condenser, the BL8 features a hand-crafted, true condenser capsule with an ultra-thin three-micron gold-sputtered diaphragm for superior transient response.
INCREDIBLE DYNAMIC RANGE IN ALL AREAS

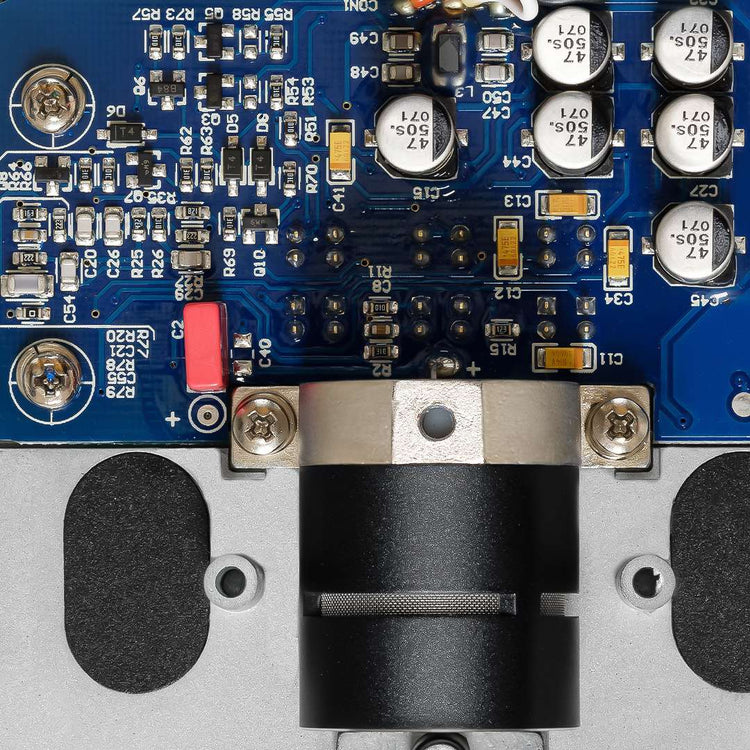

The BL8 utilizes transformerless Class-A circuitry to ensure plentiful headroom without distortion. Its ultra-low-noise electronics enable demanding applications such as grand piano or room miking while also designed to reproduce low frequencies with stunning accuracy, the BL8 is perfect in combination with our V KICK, but can also be used alone, without an additional outer kick-drum mic.
BULLET-PROOF, BUILT LIKE A TANK AND READY FOR THE ROAD

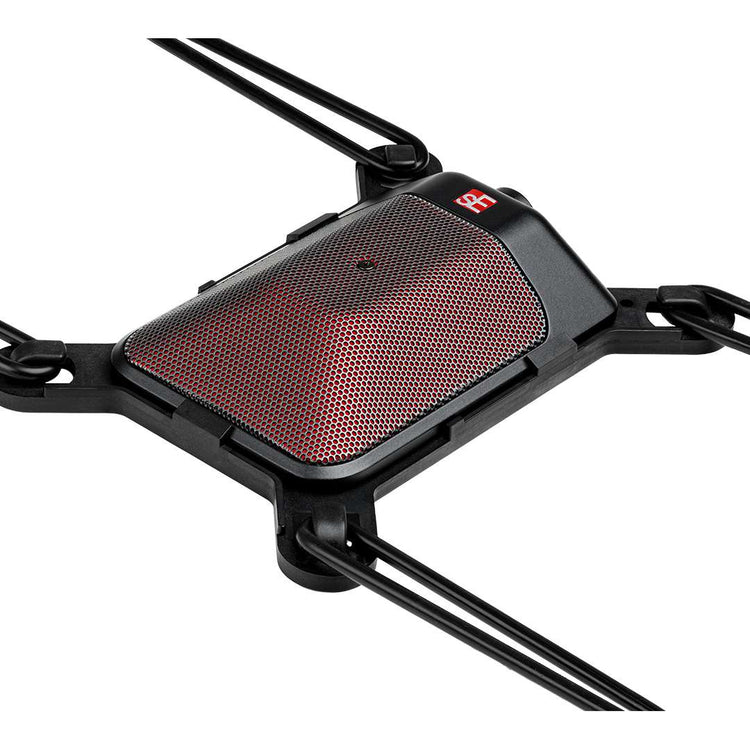

Robustly built, the BL8 features an all-metal construction and a dent-proof grille, perfect for touring environments and busy stages. The BL8 is also compatible with The Kelly Shu Flatz™ Isolation System for easy integration into any kick drum, making it ideal for touring applications.
EASILY MOUNTABLE FOR SIMPLE & SECURE INSTALLATION

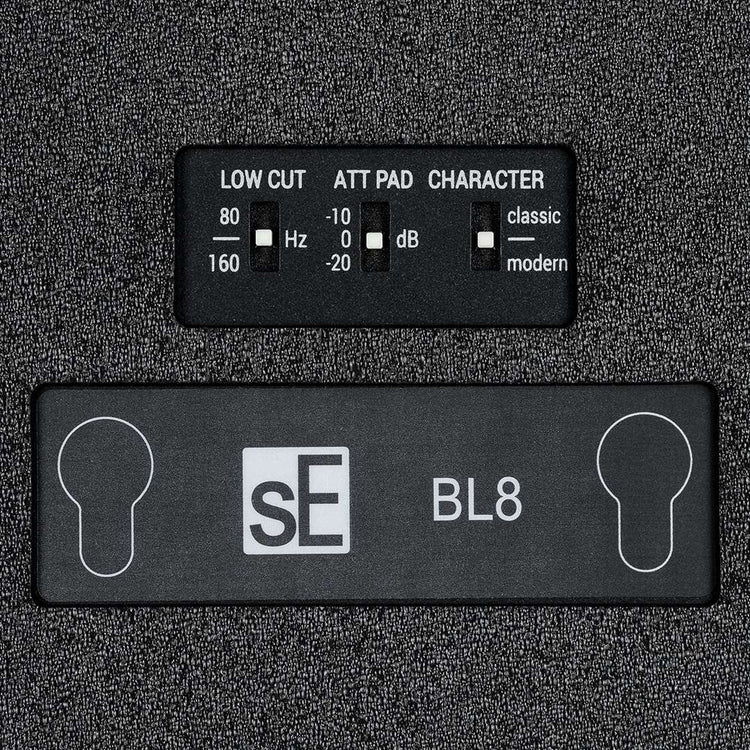

The BL8 microphone is the perfect solution for hassle-free installation in music venues, theaters, and houses of worship. The mounting brackets are conveniently indicated on the bottom of the BL8 and can be easily accessed by removing the casing. Then, the BL8 can be securely mounted onto any flat surface.
Features
-
Built For Loud Sources
A switchable 10/20 dB pre-attenuation pad raises SPL handling to 163 dB, so a hard-hit kick drum stays clean and undistorted at point-blank range.
-
Fits Where Stands Cannot

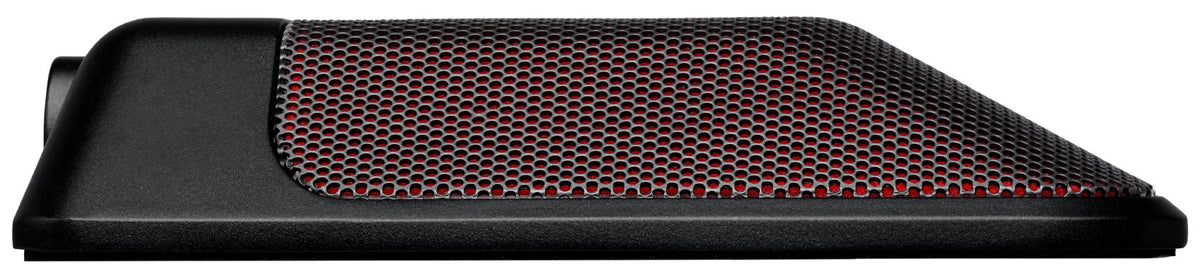

The boundary housing measures just 1.12 in. tall, letting it sit inside a kick drum, under a piano lid, or flat on a stage floor with no extra hardware.
-
Accurate Low End
The hand-crafted 1/2 in. true-condenser capsule reproduces low frequencies with weight and definition, giving kick and cajon tracks real body before any EQ.
-
Two Voices, One Microphone
A character switch selects classic or modern tonality at the source, so you can match the mic to the session instead of correcting it in the mix.
-
Quiet Signal Path
Transformerless Class-A circuitry, a 14 dB(A) noise floor, and an 80 dB signal-to-noise ratio keep speech, conferencing, and room ambience clean and detailed.
