SE Electronics
sE8
sE8
Small-Diaphragm True Condenser Mic, Hand-Crafted 1/2" Capsule, Includes Mic Clip, Thread Adapter, Wind Screen
Free Shipping
Features
- Hand-made 1/2" true condenser capsule with balanced backplate design
- One of the quietest small-capsule mics available at 13 dB self-noise
- 159 dB max SPL with the -20 dB pad for close cymbal and overhead work
- Integrated 80 / 160 Hz low-cut filters and -10 / -20 dB pads
- Compatible with the sE8 omni capsule for open room capture
Couldn't load pickup availability

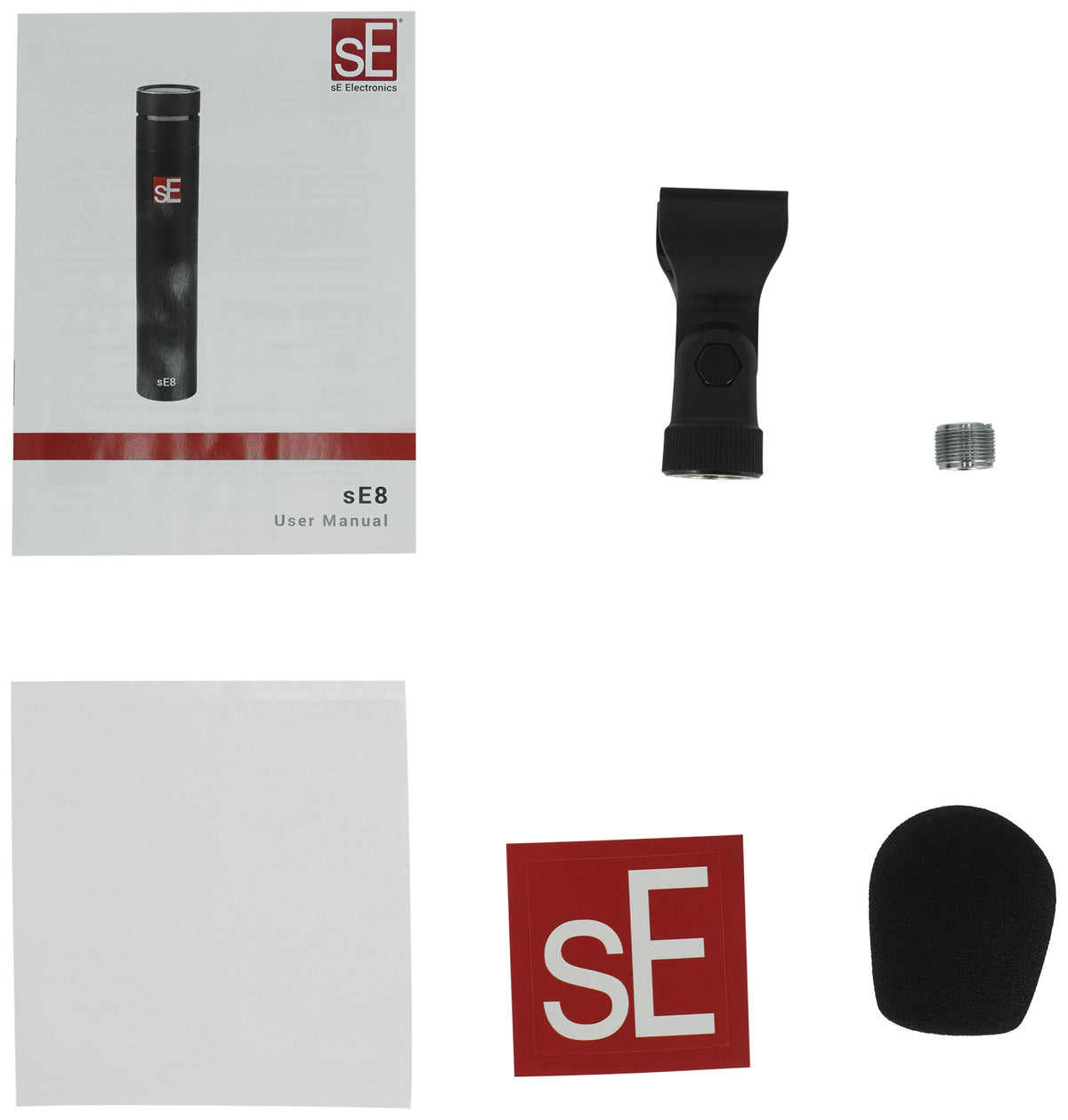

What's Included in the box

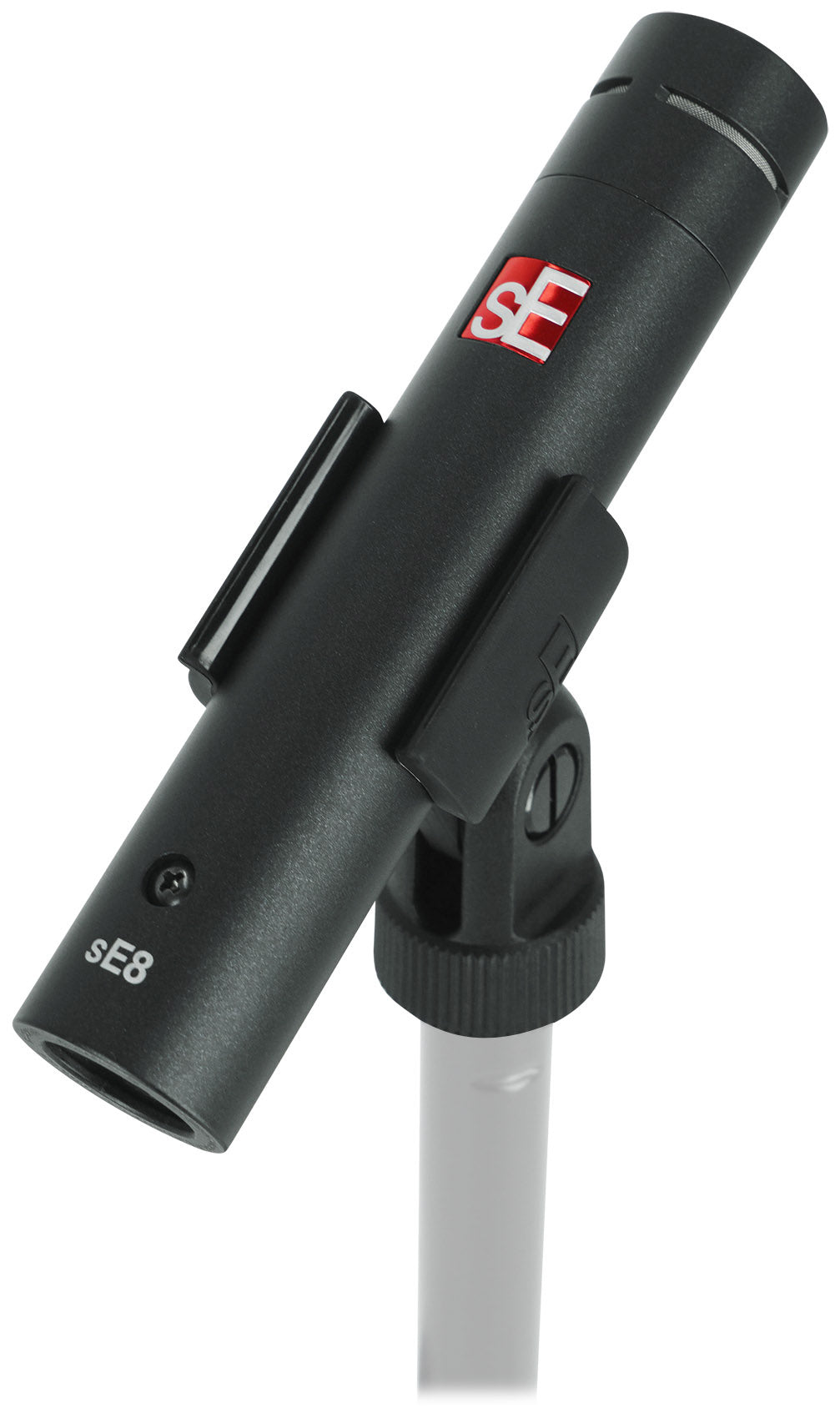

- sE8 Microphone

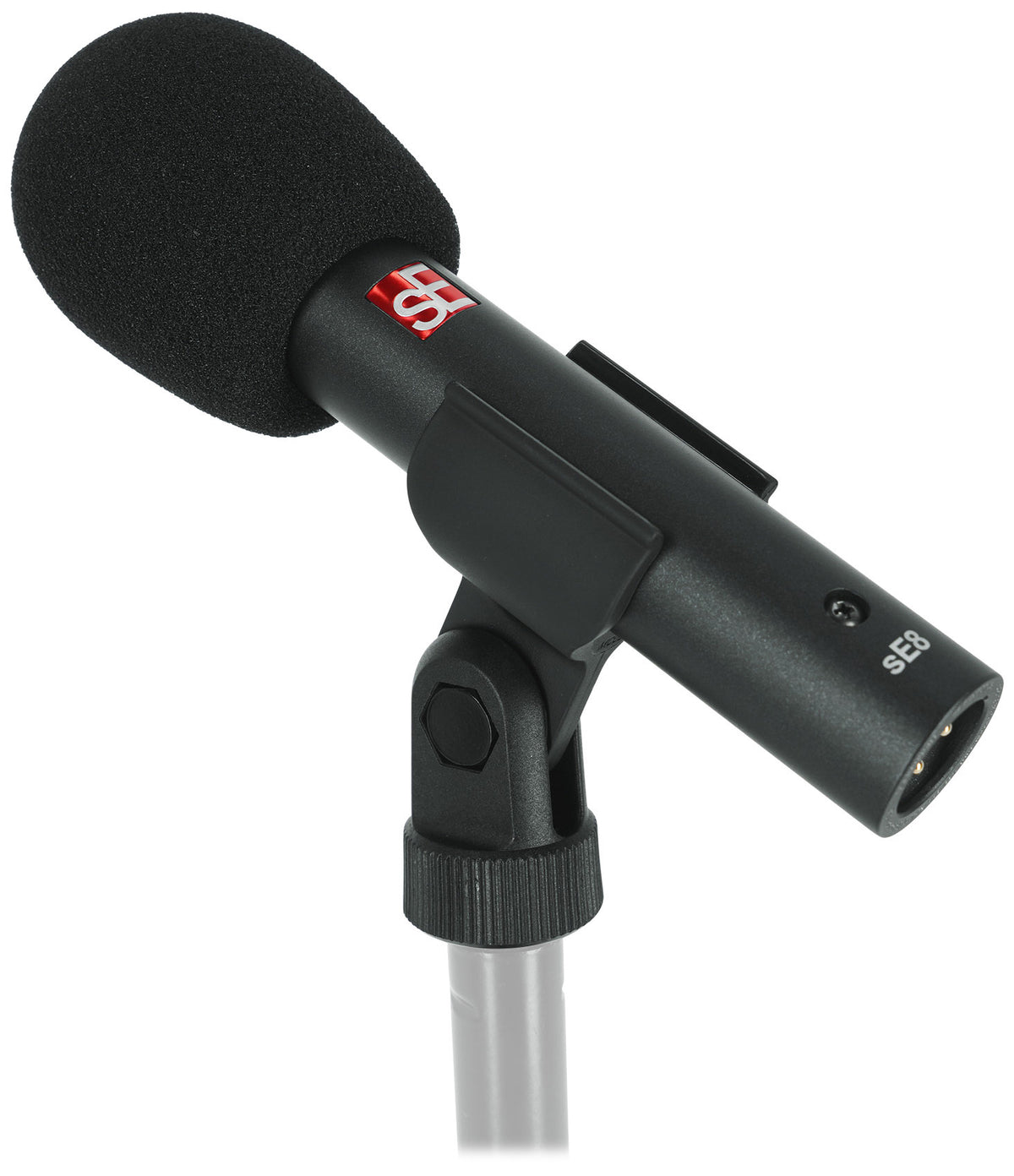

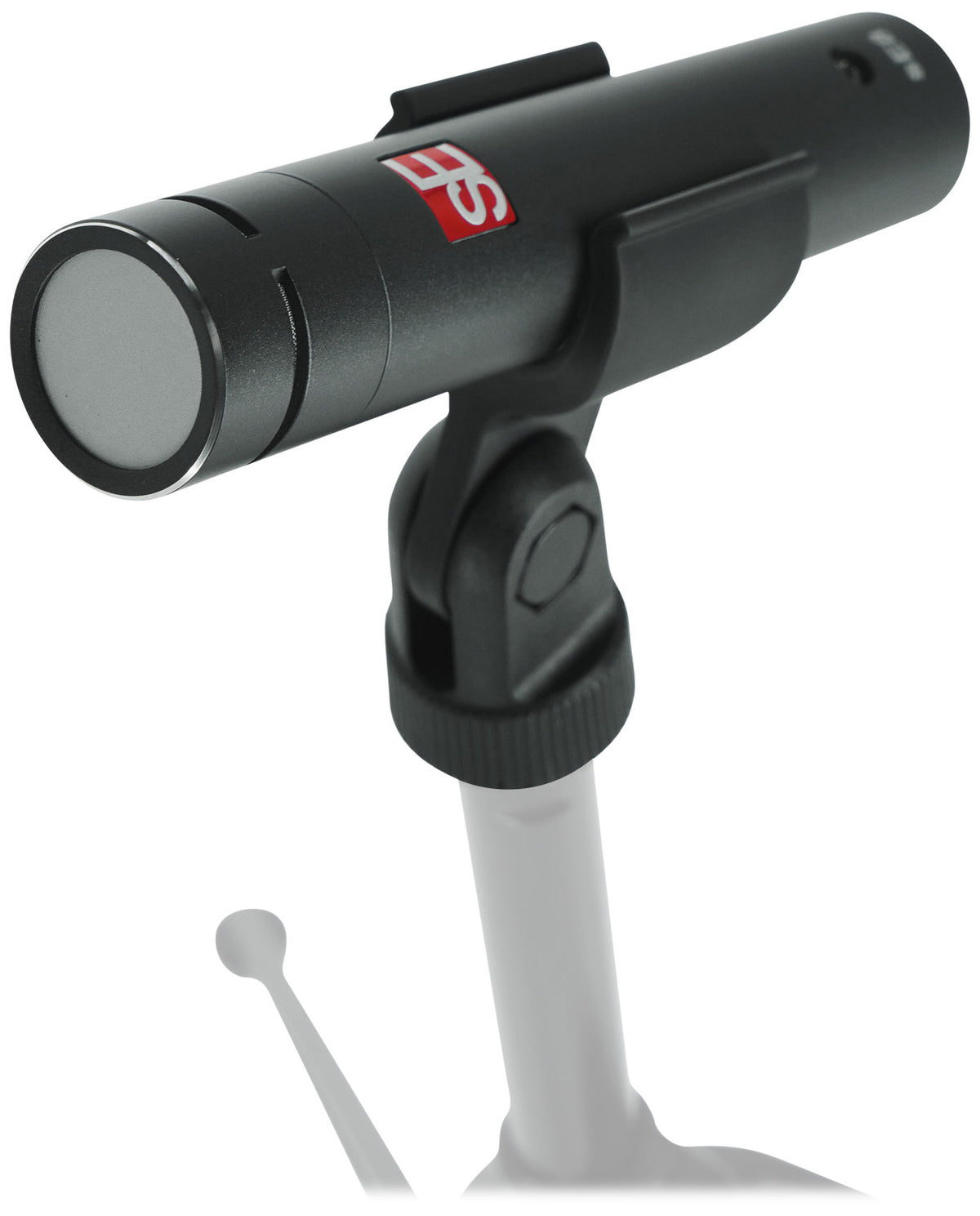

- Mic Clip (with thread adapter)

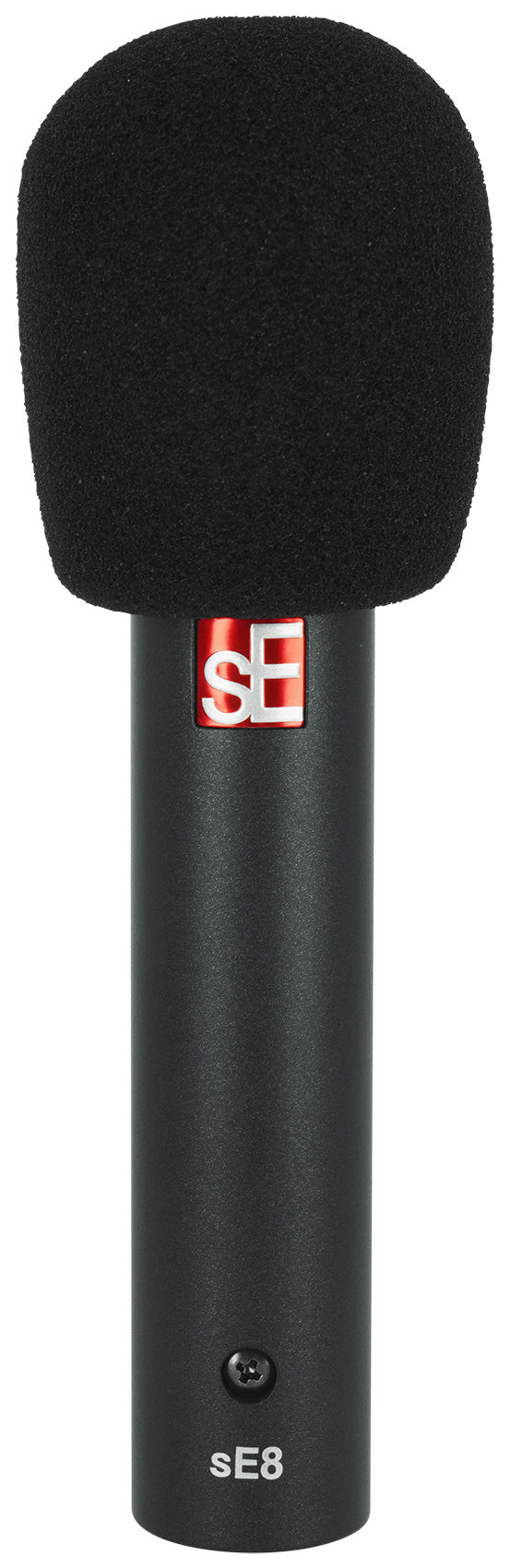

- Wind Screen
SKU: SKU: sE8
View full details









Product Description
Two numbers explain why it holds up there. Self-noise sits at 13 dB, among the quietest in the small-capsule class, so soft acoustic passages stay clean at high preamp gain. Max SPL reaches 159 dB with the -20 dB pad, giving it the widest dynamic range and SPL handling in its class, which means a hard-hit cymbal inches away does not push the capsule into distortion.

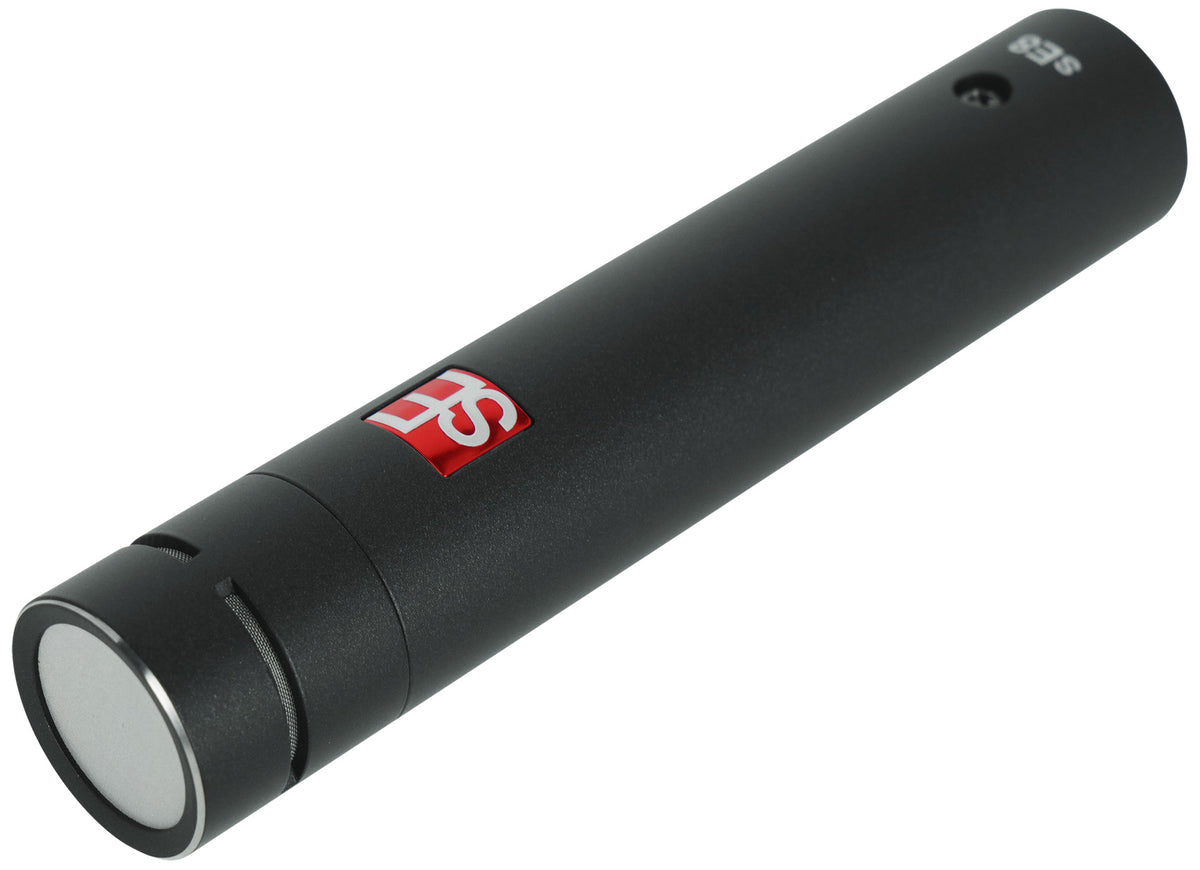

The hand-made 1/2" true condenser capsule uses a sophisticated backplate design that keeps response balanced rather than hyped in the top end, so cymbals sound like cymbals instead of thin and brittle. Integrated 80 and 160 Hz low-cut filters and -10 / -20 dB pads let you shape the signal before it reaches the preamp.

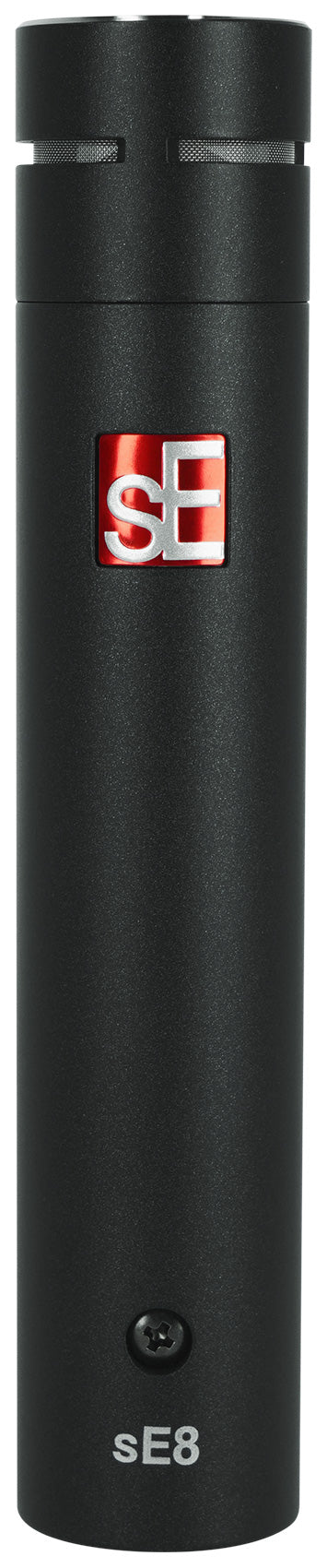

The body is all metal, 23 mm across and 120 mm long at 141 g, small enough to fit between cymbals and toms. It also accepts the sE8 omni capsule (sold separately) when a session calls for open room capture. Mic clip with thread adapter and wind screen are included.
Features
-
Quiet Enough For Anything Delicate
At 13 dB self-noise, this is one of the quietest small-capsule mics made, so soft acoustic guitar and choir takes stay free of hiss.
-
Widest Dynamic Range In Its Class
Max SPL of 159 dB with the pad engaged means a hard-hit cymbal inches from the capsule still prints clean and undistorted.
-
Cymbals That Sound Right
A sophisticated capsule backplate keeps the response balanced instead of hyped up top, so hi-hats and overheads come through full rather than brittle.
-
Shape It Before The Preamp

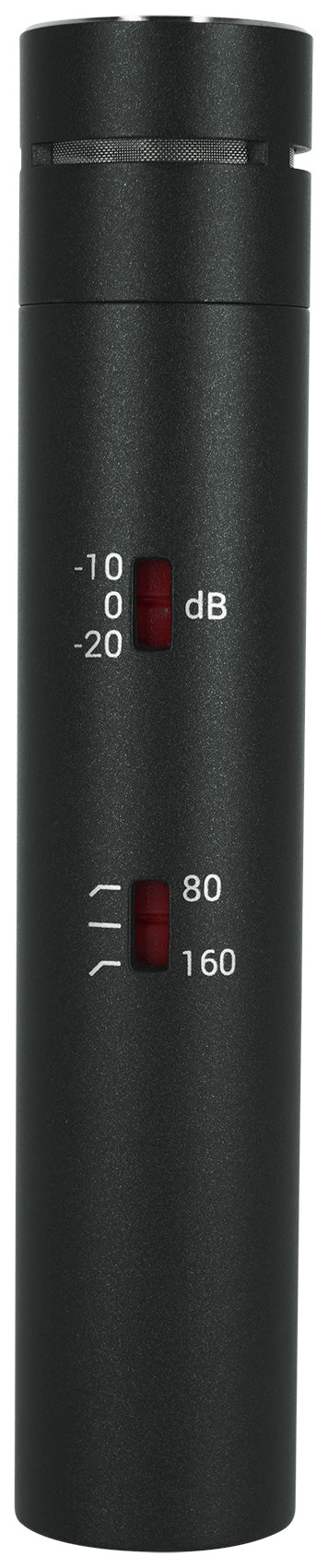

Integrated 80 and 160 Hz low-cut filters plus -10 and -20 dB pads let you set level and low-end trim at the mic itself.
-
Swap The Pattern
The body accepts the optional sE8 omni capsule, so the same microphone covers focused close work and wide, natural room capture.
Technical Specifications
- Product Type Small-Diaphragm True Condenser Microphone
- Capsule Hand-crafted 1/2" true condenser
- Polar Pattern Cardioid
- Frequency Range 20 Hz - 20 kHz
- Sensitivity 25 mV/Pa (-32 dBV)
- Max SPL 139 / 149 / 159 dB (0 / 10 / 20 dB pad, 0.5% THD @ 1 kHz)
- Equivalent Noise Level 13 dB
- Dynamic Range 126 / 136 / 146 dB (0 / 10 / 20 dB pad)
- Signal to Noise Ratio 81 dB
- Low-Cut Filter 80 / 160 Hz, 6 dB / Oct, switchable
- Attenuation Pad -10 / -20 dB, switchable
- Electrical Impedance 110 Ohms
- Recommended Load Impedance Greater than 1k Ohms

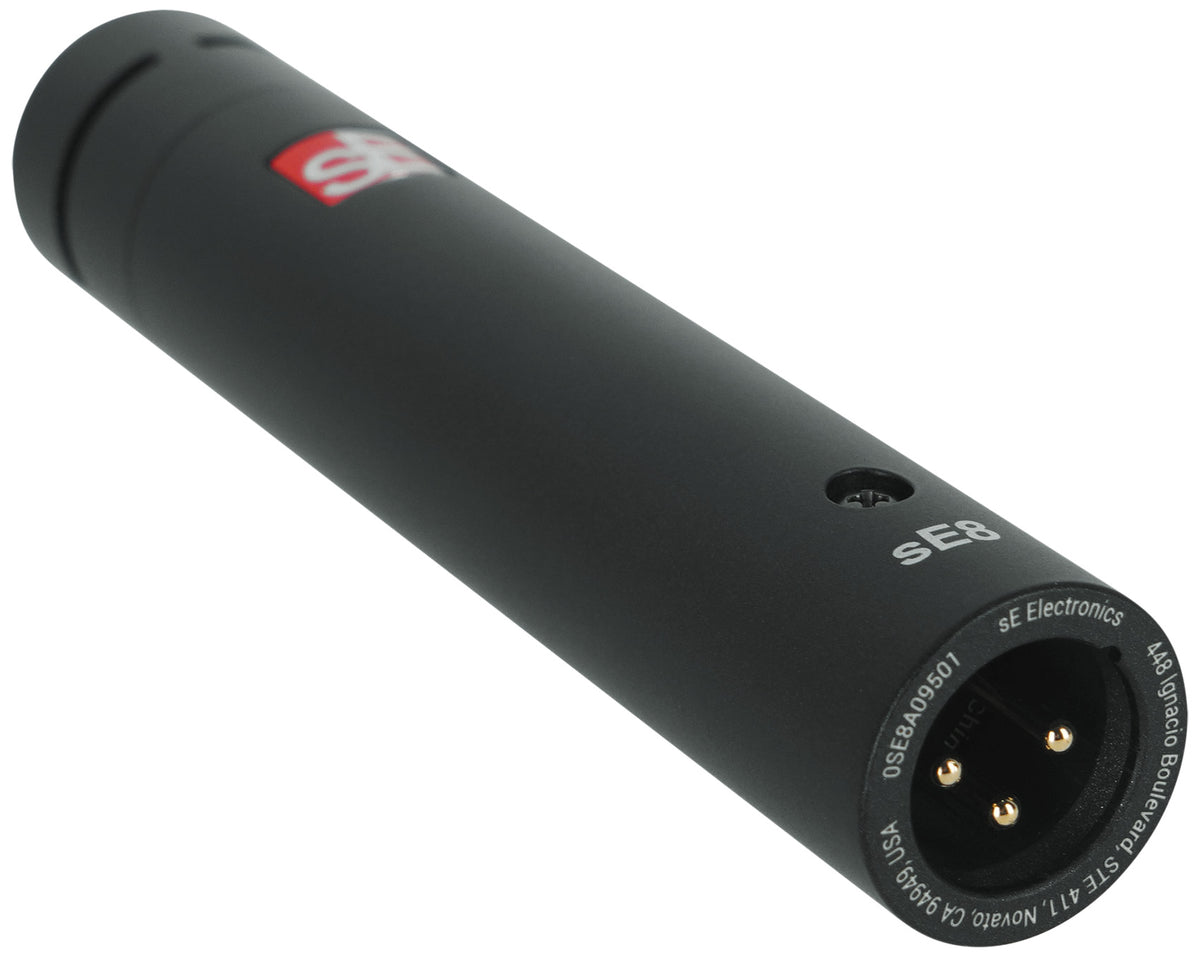

- Connectivity 3-pin male XLR connector
- Powering 48V phantom power (P48 according to IEC 61938)
- Current Consumption 2.7 mA
- Weight 141 g (4.97 oz.)
- Dimensions 23 mm diameter x 120 mm length (0.91 x 4.72 in.)
