SE Electronics

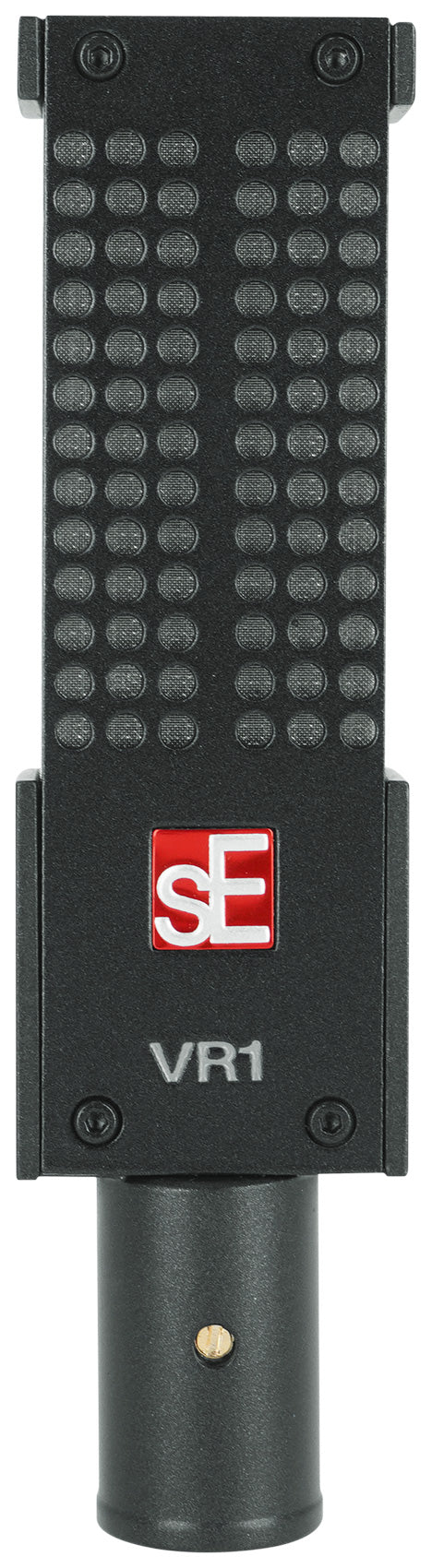

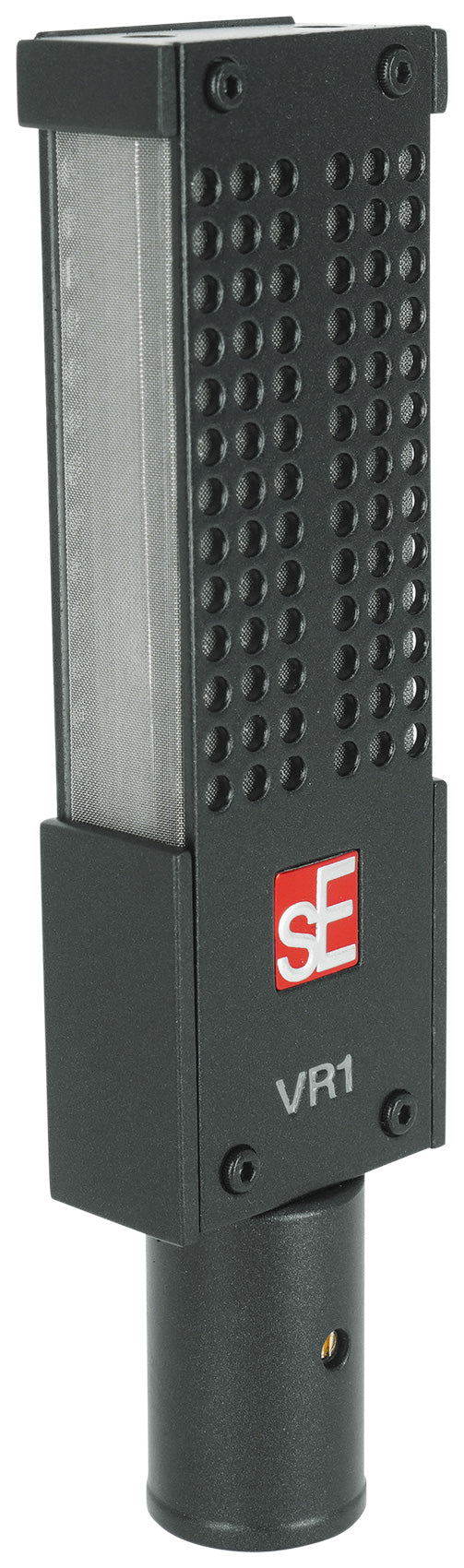

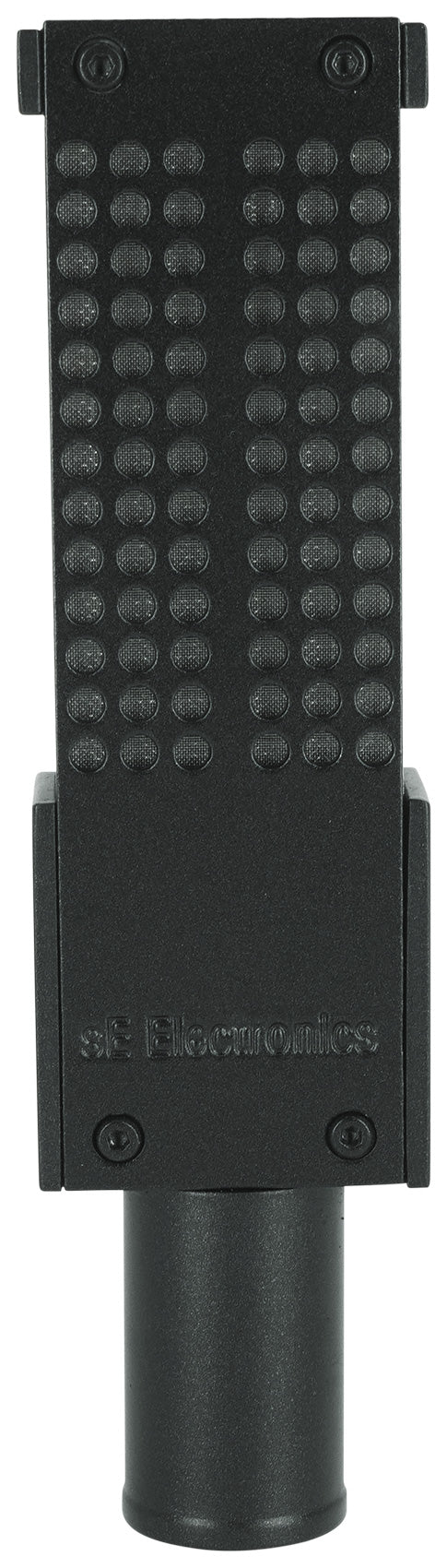

VR1
VR1
Passive Ribbon Microphone, Figure-8, 20 Hz-18 kHz, Shock Mount, Stand Clip, Thread Adapter, Wooden Case
Free Shipping
Features
- Hand-tensioned 2.5 micron aluminum ribbon for open, natural detail
- Figure-8 pattern rejects sound from the sides for tight source control
- Brings out bite and edge from guitar cabs without harsh highs
- 135 dB max SPL handles loud amps and live drum rooms
- Phantom-protected passive design needs no power supply
Couldn't load pickup availability

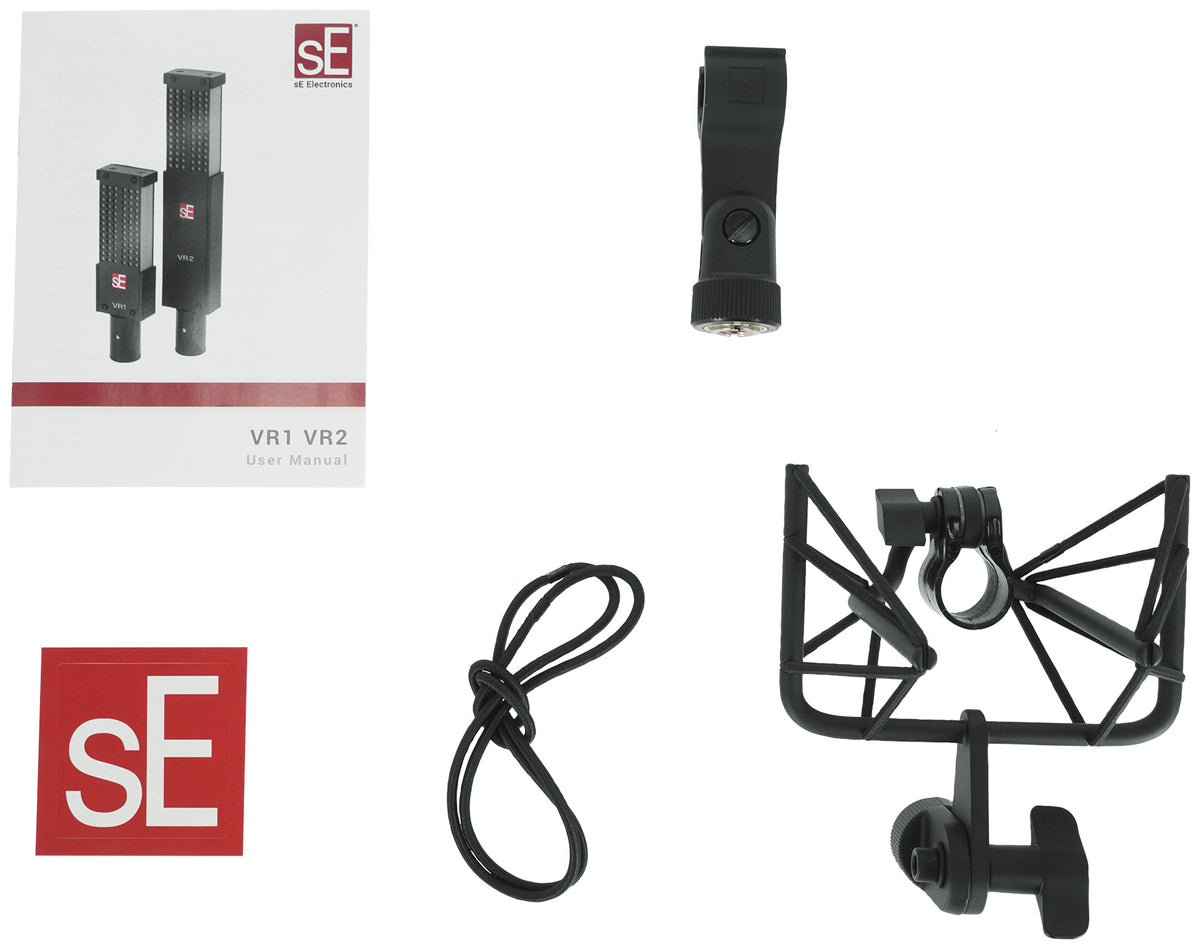

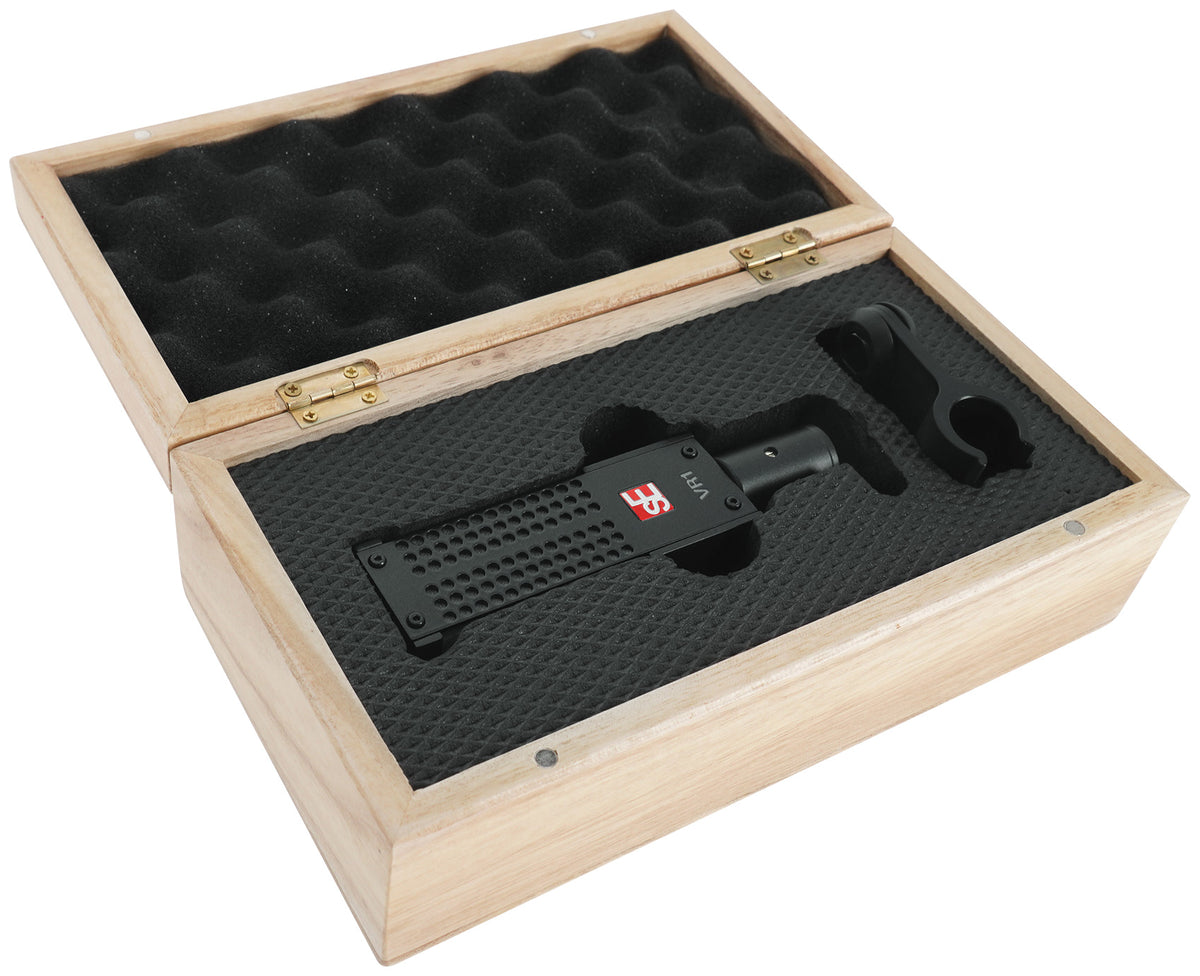

What's Included in the box
- VR1 Microphone

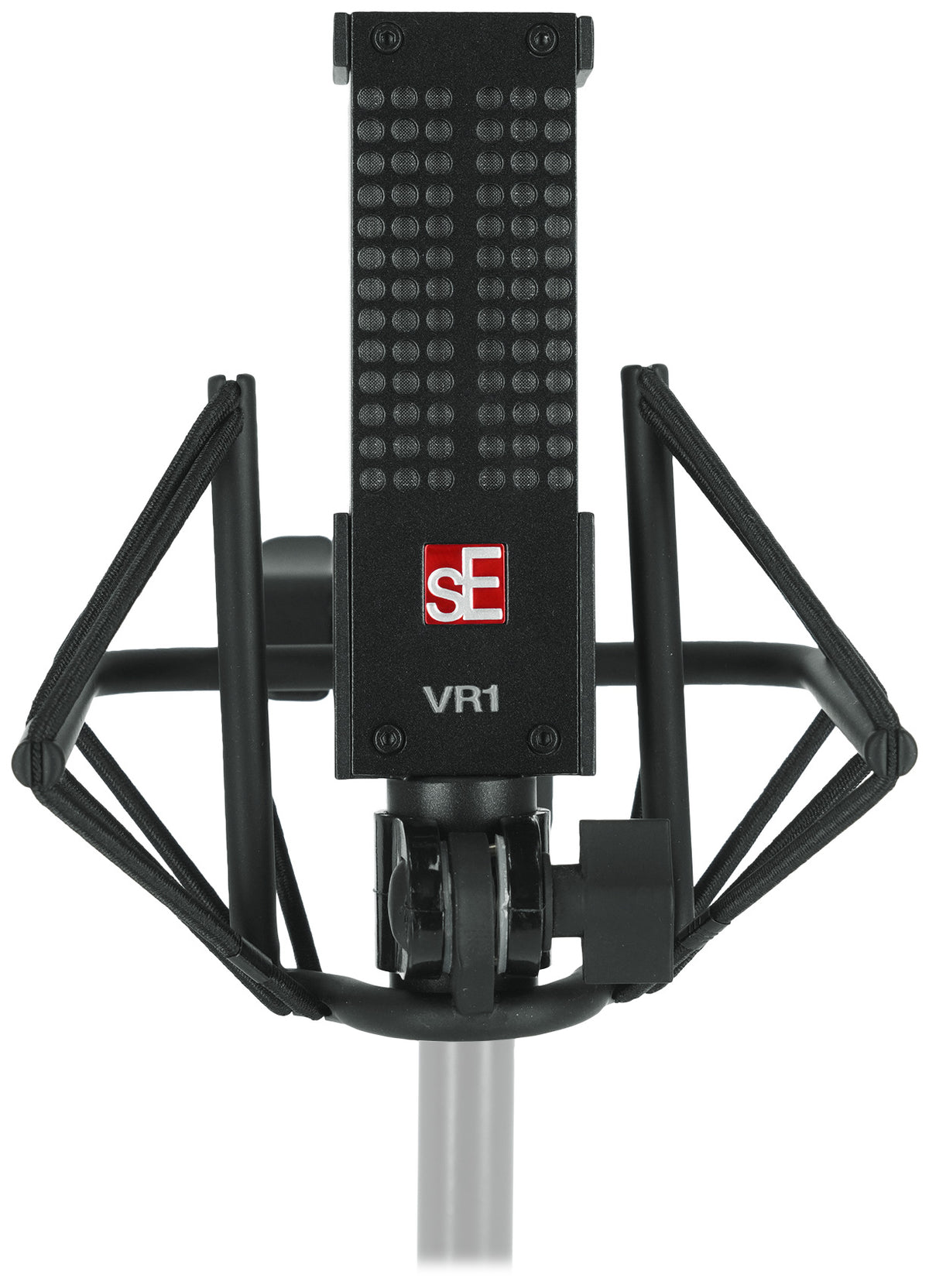

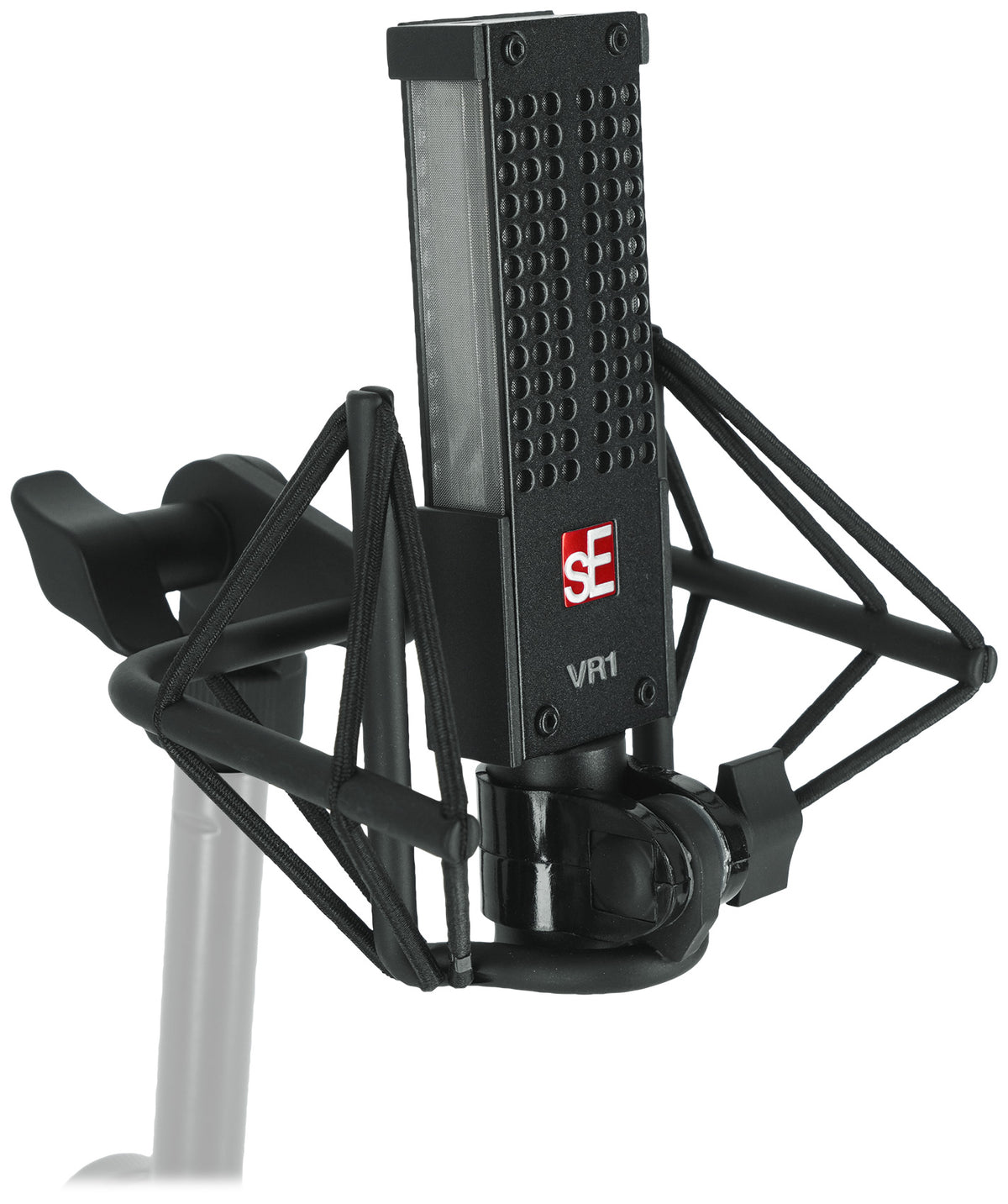

- Shock Mount

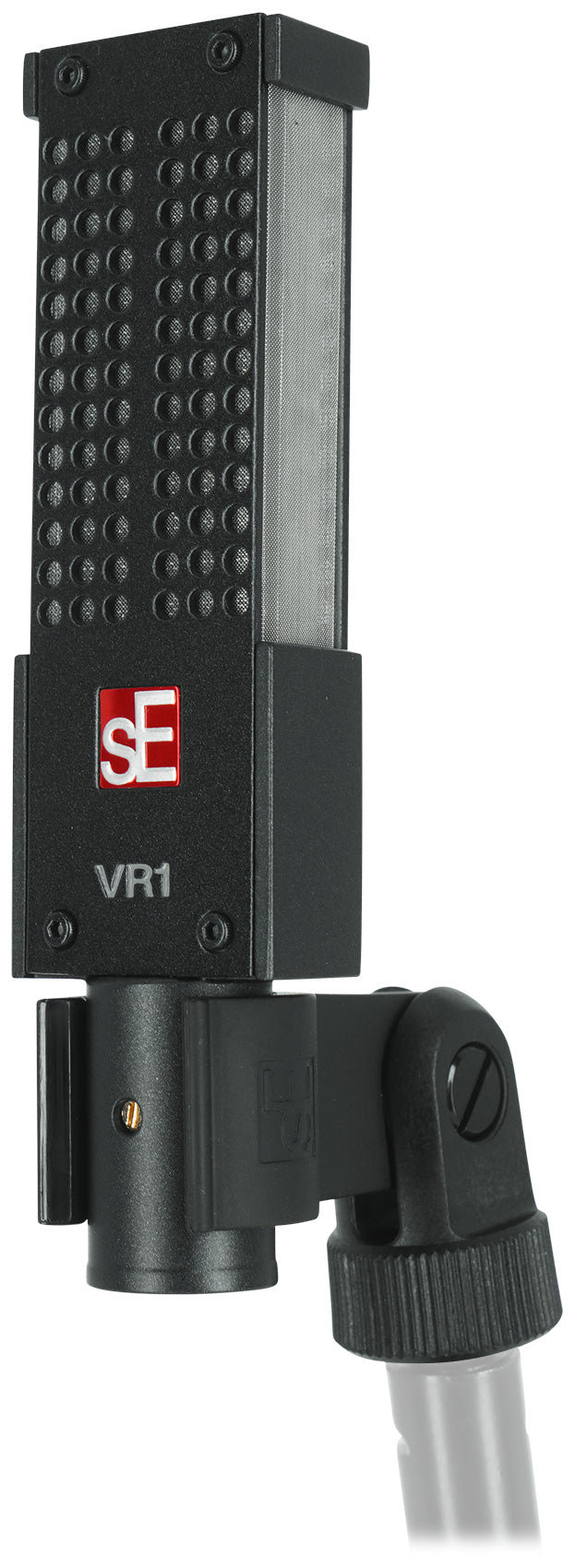

- Microphone Stand Clip
- Thread Adapter

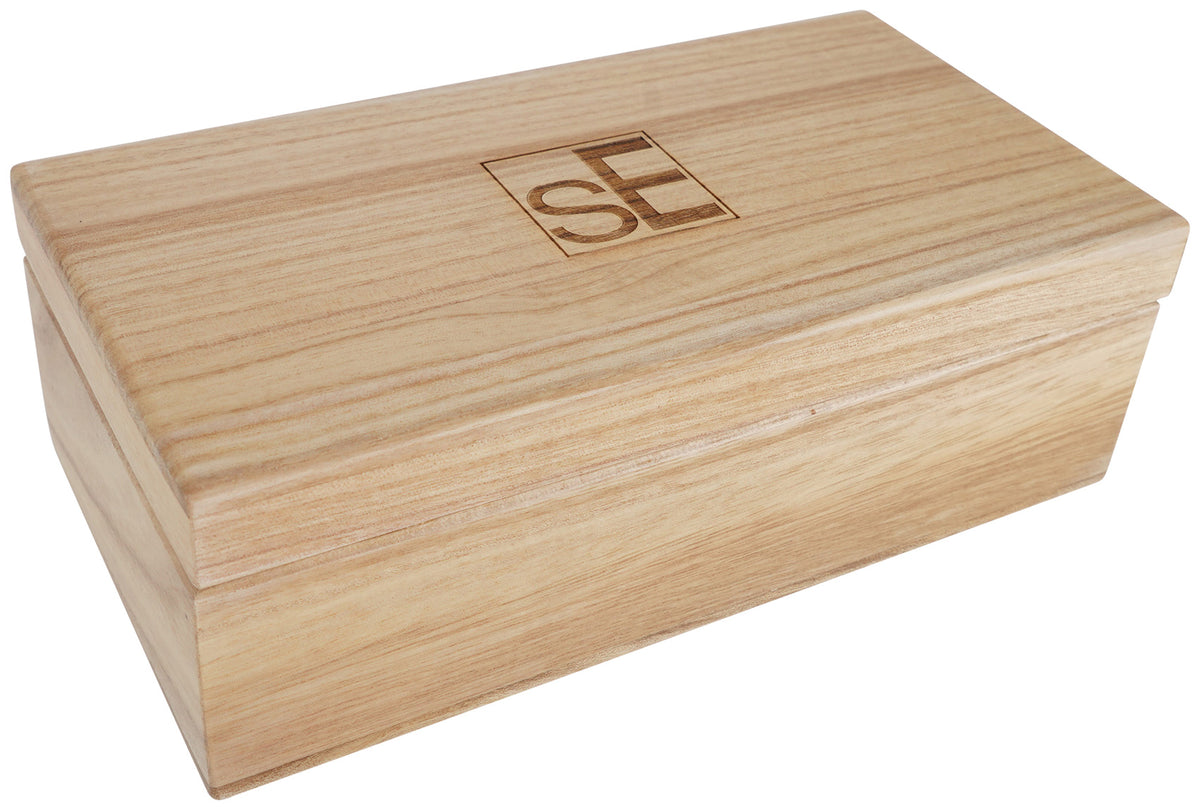

- Wooden Case
SKU: SKU: VR1
View full details











Product Description
On a guitar cab it brings out bite and edge without the harsh upper mids a condenser can add, so distorted tracks sit in a mix with less EQ work. The figure-8 pattern hears equally from front and back while rejecting sound arriving from the sides, which is useful for room miking, classic stereo pairs, and nulling out a source sitting 90 degrees off axis.
Frequency response runs 20 Hz to 18 kHz with 1.8 mV/Pa (-55 dBV) sensitivity and 135 dB max SPL, so it takes a loud amp or a drum room without strain. It needs no power and is phantom-protected, so an accidental 48V feed will not damage the ribbon. Pair it with a preamp that has plenty of clean gain to get the most out of a passive design.
Recommended sources include vocals, drum kit, overheads, room, acoustic guitar, electric guitar cab, orchestral strings, piano, woodwinds, and brass. All-metal housing and a gold-plated XLR connector hold up under daily studio use, and at 230 g it sits easily in the included shock mount. The mic ships in a wooden case with a shock mount, stand clip, and thread adapter, so it is ready to hang or stand-mount out of the box.
Features
-
Ribbon Character, Open Highs
A hand-tensioned 2.5 micron aluminum ribbon covers 20 Hz to 18 kHz, giving natural ribbon midrange without the dull top end of older ribbon designs.
-
Tames Loud Guitar Cabs
135 dB max SPL and a forgiving high end let you place the mic right on a driven cab and get a track that sits in the mix with minimal EQ.
-
Figure-8 Placement Control
The bidirectional pattern rejects sound from the sides, so you can null a nearby source or set up classic stereo room techniques with predictable results.
-
No Power Supply Needed
The passive design runs on your preamp gain alone and is phantom-protected, so an accidental 48V feed will not damage the ribbon element.
-
Ready For The Studio
All-metal housing with a gold-plated XLR connector, plus a wooden case, shock mount, stand clip, and thread adapter for mounting on any stand.
Technical Specifications
- Product Type Passive Ribbon Microphone
- Electronics Passive

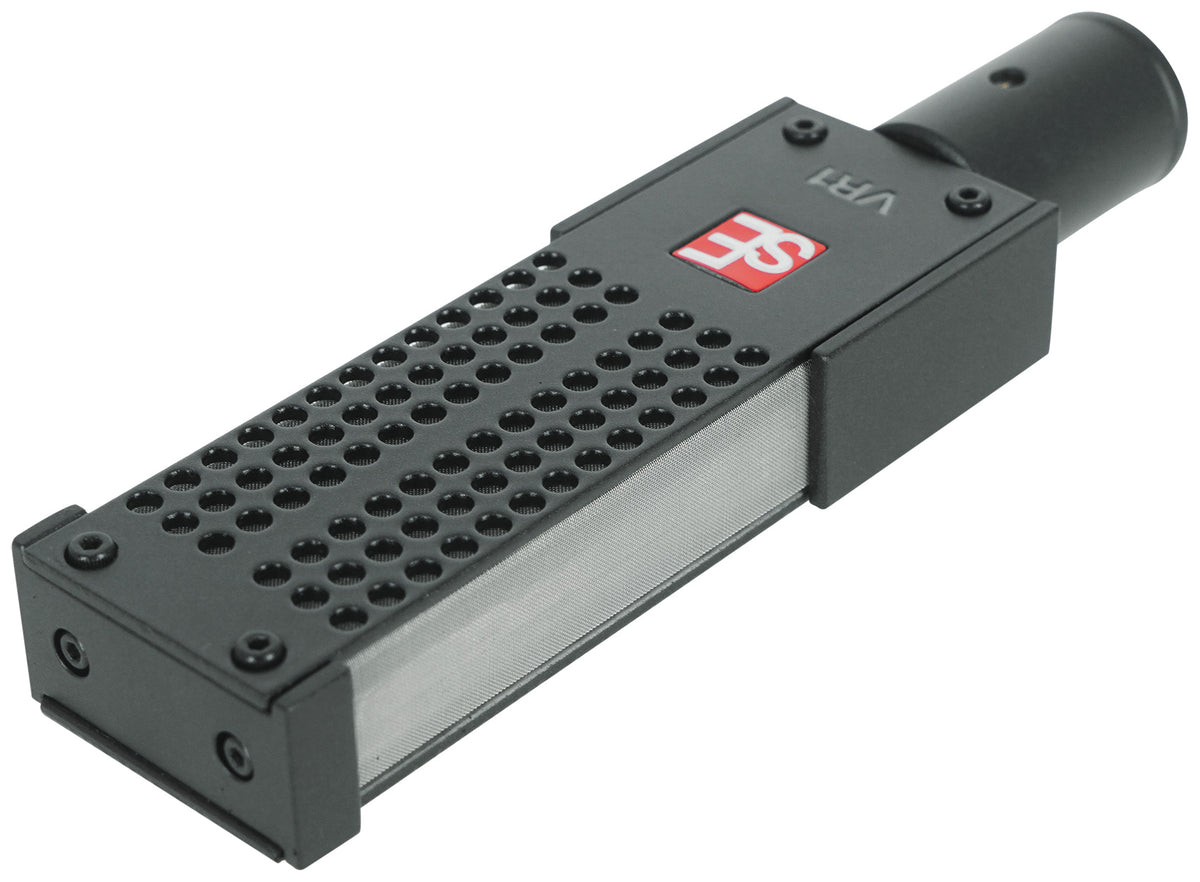

- Transducer Hand-crafted 2.5 micron aluminum ribbon
- Polar Pattern Figure-8
- Frequency Range 20 Hz - 18 kHz
- Sensitivity 1.8 mV/Pa (-55 dBV)
- Impedance 300 Ohms
- Max SPL 135 dB (0.5% THD @ 1 kHz)
- Equivalent Noise Level 19 dB
- Signal To Noise Ratio 75 dB
- Powering N/A (phantom-protected)

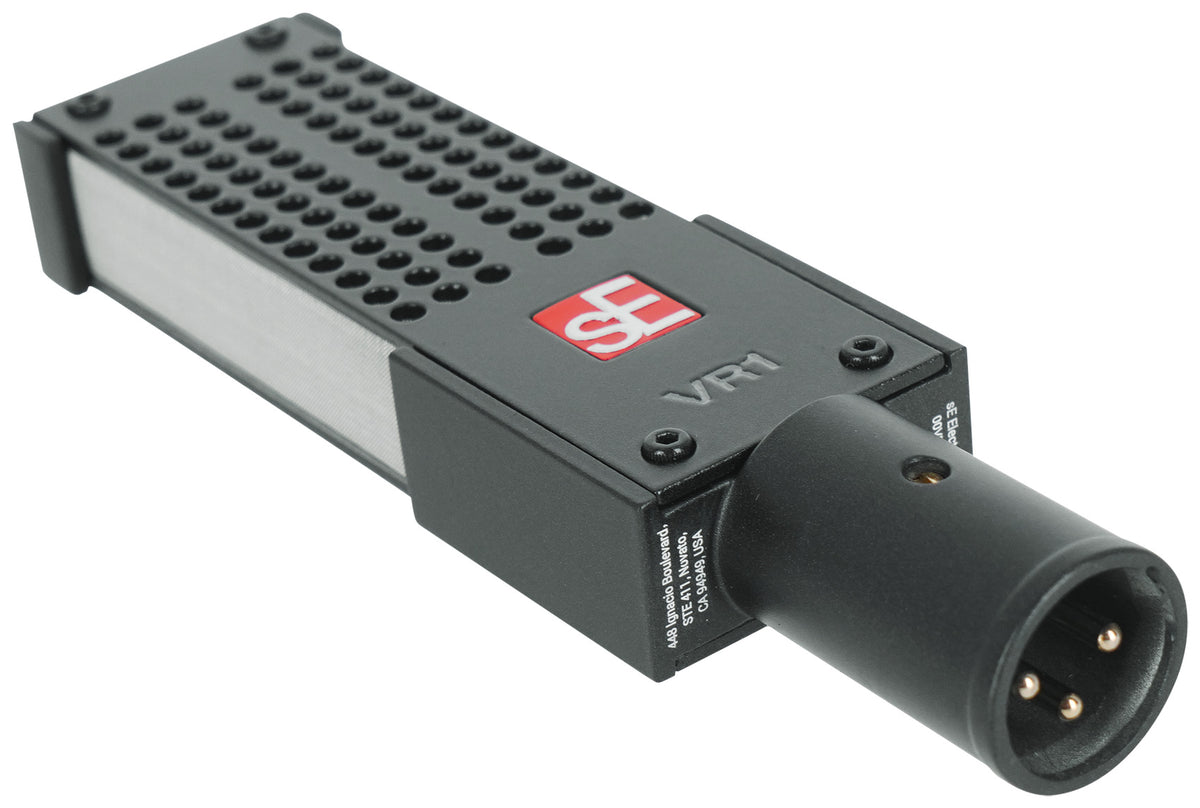

- Connectivity 3-pin male XLR connector
- Recommended Use Vocals, drum kit, overheads, room, acoustic guitar, electric guitar cab, orchestral + strings, piano, woodwinds, brass
- Weight 230 g (8.11 oz)
- Dimensions 20 x 33 x 127 mm (0.79 x 1.30 x 5.00 in)
