SE Electronics

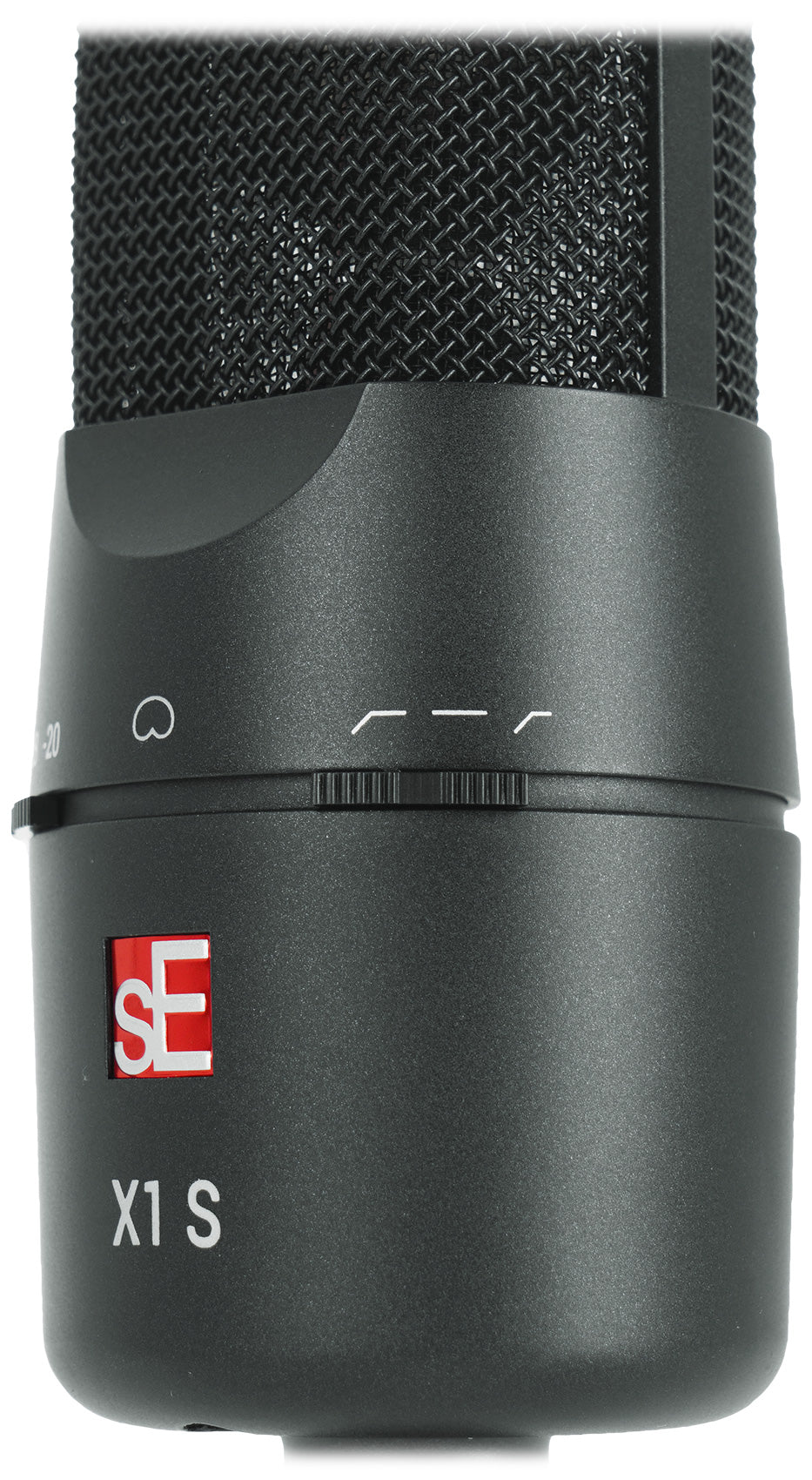

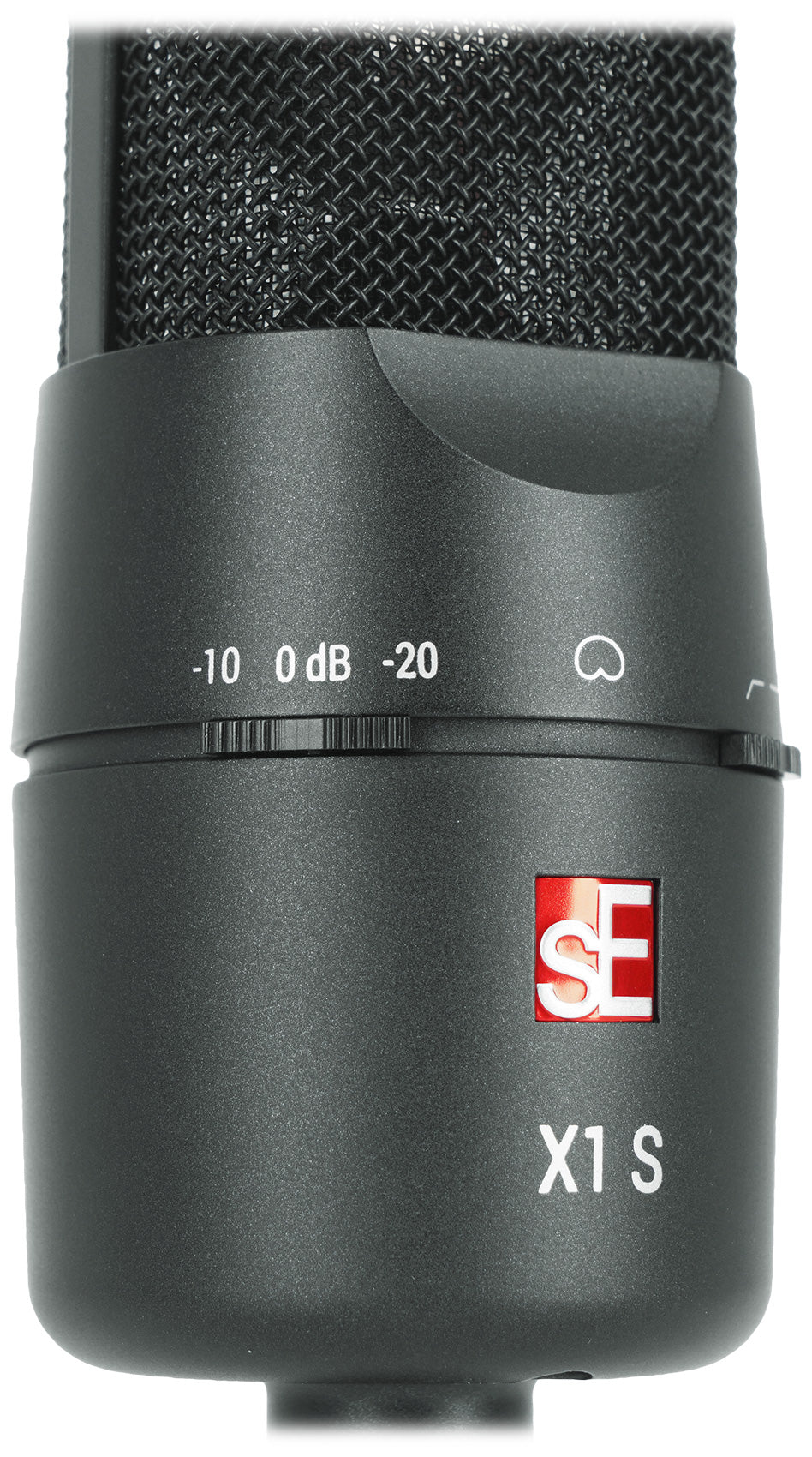

X1 S
X1 S
1 Inch True Condenser Microphone, Cardioid, 160 dB SPL, 9 dB Self-Noise, Stand Clip, Thread Adapter
Free Shipping
Features
- Hand-crafted 1 inch true condenser capsule tuned in sE's own factory
- 9 dB self-noise keeps quiet vocals and acoustic takes clean
- Up to 160 dB max SPL with the 20 dB pad engaged
- Switchable 80/160 Hz low-cut filters and 10/20 dB attenuation pads
- Hand-made metal housing with gold-sputtered diaphragms
Couldn't load pickup availability
What's Included in the box
- X1 S Microphone
- Microphone Stand Clip
- Thread Adapter
SKU: SKU: X1 S
View full details









Product Description
Two numbers define its range. Self-noise sits at 9 dB, low enough that quiet acoustic passages and soft vocals record clean with no audible hiss. Max SPL reaches 160 dB with the -20 dB pad engaged, which is more headroom than most sources will ever need, and the 151 dB dynamic range that comes with it means you are not choosing between quiet detail and loud capability.
Filters add practical control: switchable 80 Hz and 160 Hz low-cut points clear rumble and proximity buildup at two different depths, and 10 dB or 20 dB pads step down output for close work on loud sources. The cardioid pattern rejects the rear, which helps in rooms with untreated walls behind the performer.

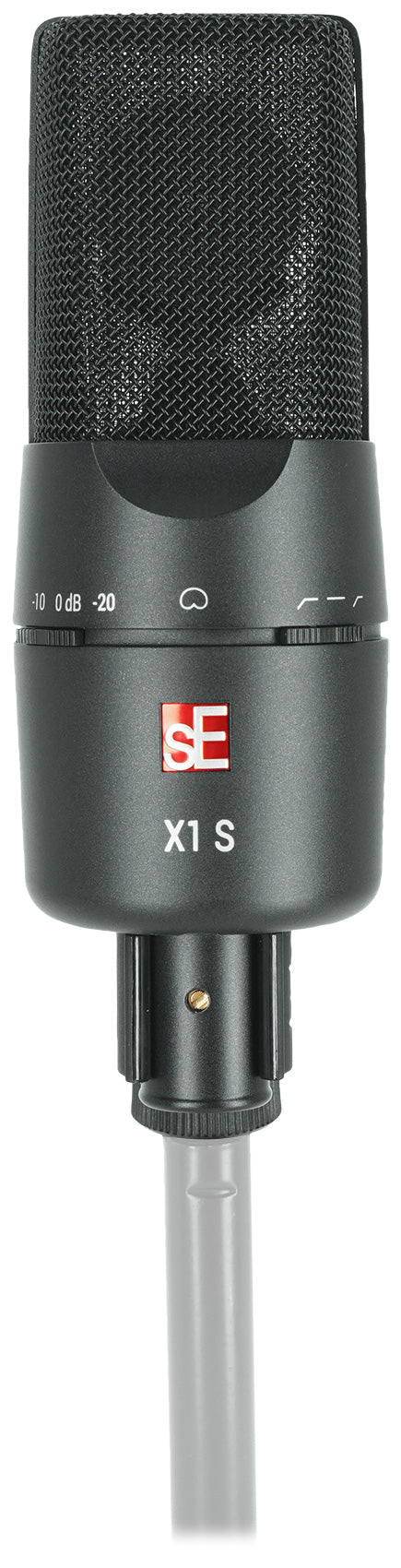

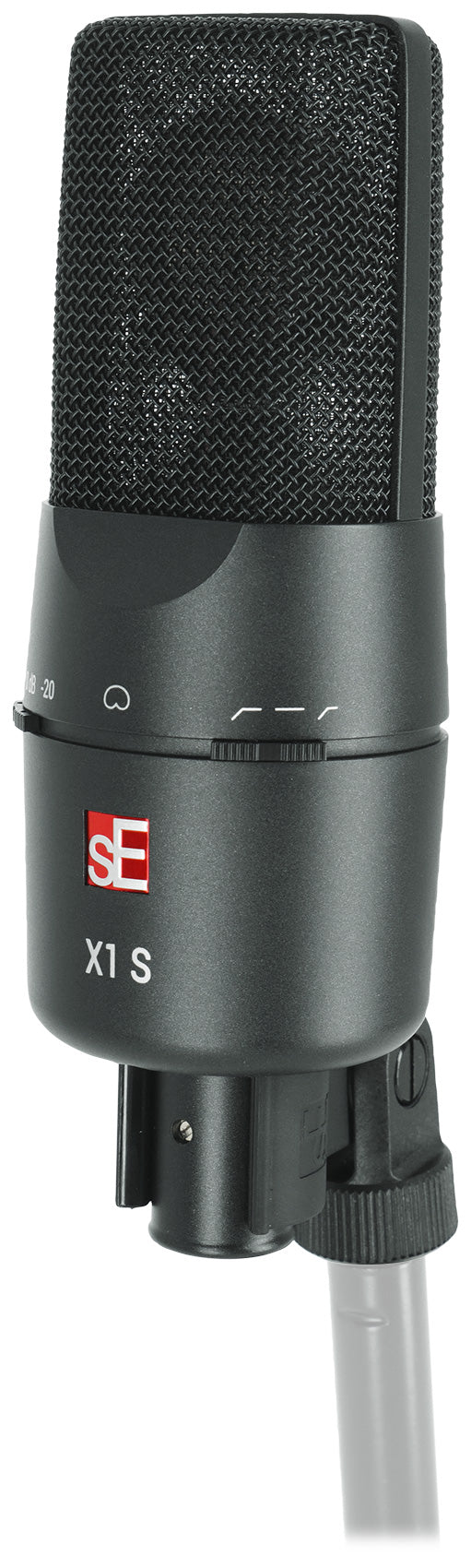

Recommended sources include vocals, drum kit, overheads, room, acoustic guitar, electric guitar cab, orchestral strings, piano, woodwinds, and brass. It runs on 48V phantom power through a 3-pin male XLR into any interface or mixer. At 169 mm long, 58 mm in diameter, and 445 g, the hand-made metal housing sits in the included microphone stand clip with a thread adapter for both common stand sizes.
Features
-
Quiet Enough For Soft Sources
A 9 dB equivalent noise level and 85 dB signal-to-noise ratio keep whispered vocals and fingerpicked guitar free of hiss, even at high gain settings.
-
Headroom For Anything Loud
With the 20 dB pad engaged the capsule handles up to 160 dB SPL, so a snare, kick, or driven cab records cleanly with no distortion.
-
Two Filters, Two Depths
Switchable 80 Hz and 160 Hz low-cut points let you clear floor rumble or heavier proximity buildup on close vocals without touching a plugin.
-
Hand-Tuned Capsule
Each 1 inch true condenser capsule is hand-crafted and individually tuned at the factory, so the sound stays consistent from one mic to the next.
-
Metal Build, Simple Setup
Hand-made metal housing takes daily studio use, and 48V phantom power over a standard XLR means any interface or mixer will run it.
Technical Specifications
- Product Type Cardioid Condenser Microphone
- Capsule Hand-crafted 1 inch true condenser
- Diaphragm Gold-sputtered
- Polar Pattern Cardioid
- Frequency Range 20 Hz - 20 kHz
- Sensitivity 30 mV/Pa (-31 dBV)
- Max SPL 140 / 150 / 160 dB (0 / 10 / 20 dB pad, 0.5% THD @ 1 kHz)
- Equivalent Noise Level 9 dB
- Dynamic Range 131 / 141 / 151 dB (0 / 10 / 20 dB attenuation pad)
- Signal To Noise Ratio 85 dB
- Low-Cut Filter 80 / 160 Hz, 6 dB / oct, switchable
- Attenuation Pad 10 / 20 dB, switchable
- Electrical Impedance 125 Ohms
- Recommended Load Impedance >1k Ohms
- Powering 48V phantom power (P48 according to IEC 61938)
- Current Consumption 6.0 mA

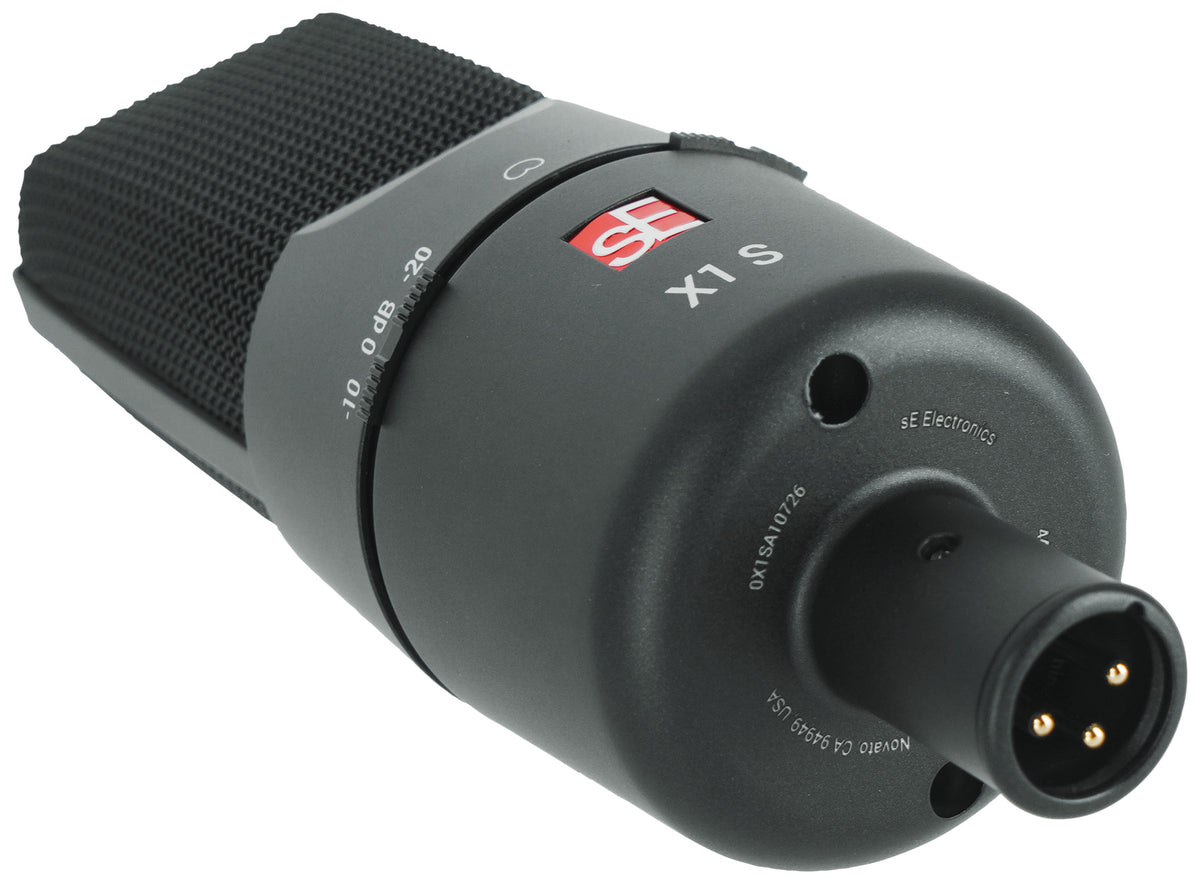

- Connectivity 3-pin male XLR connector
- Recommended Use Vocals, drum kit, overheads, room, acoustic guitar, electric guitar cab, orchestral + strings, piano, woodwinds, brass
- Weight 445 g (15.70 oz)
- Dimensions 58 mm diameter x 169 mm length (2.28 x 6.65 in)
