Ui24R 24-Input Digital Mixer with Wifi, App Control & Recording

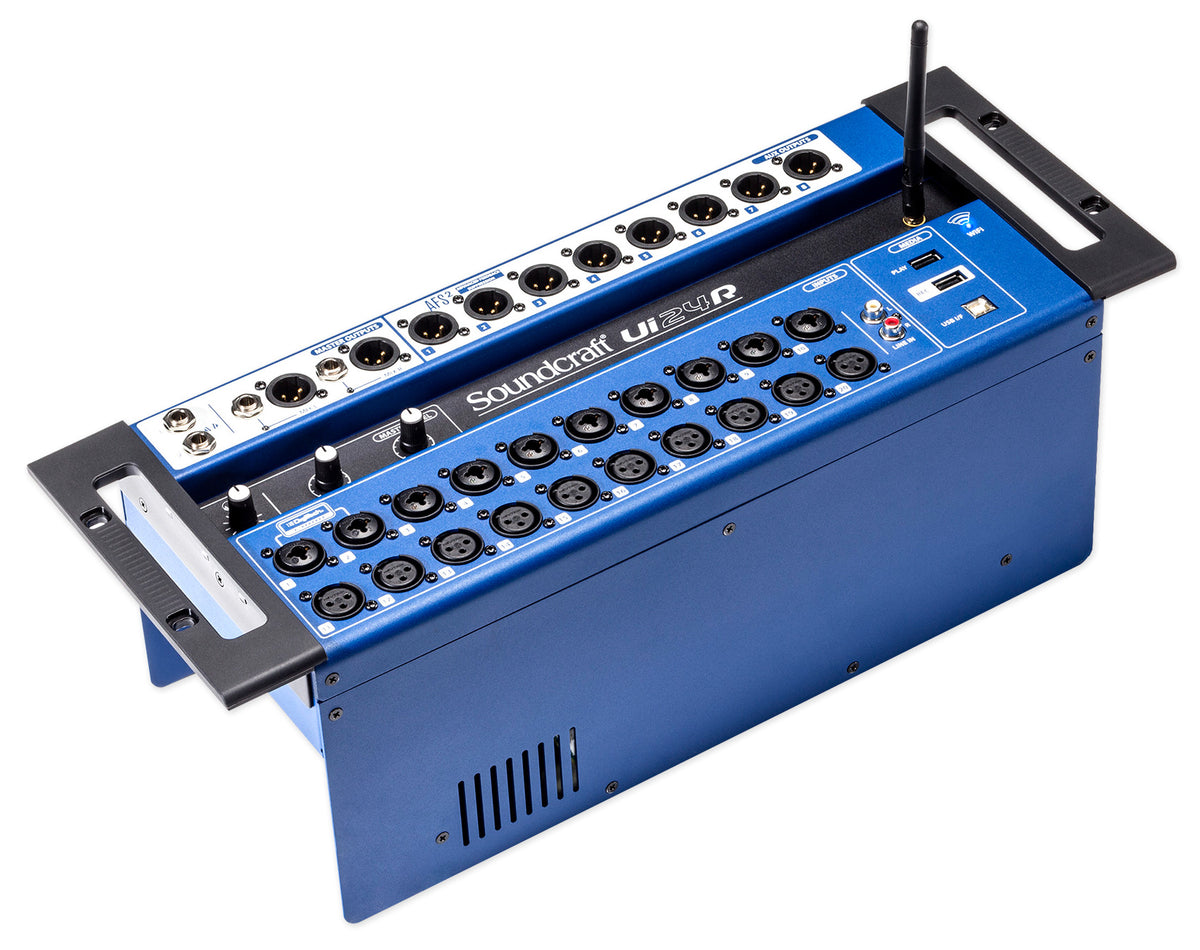

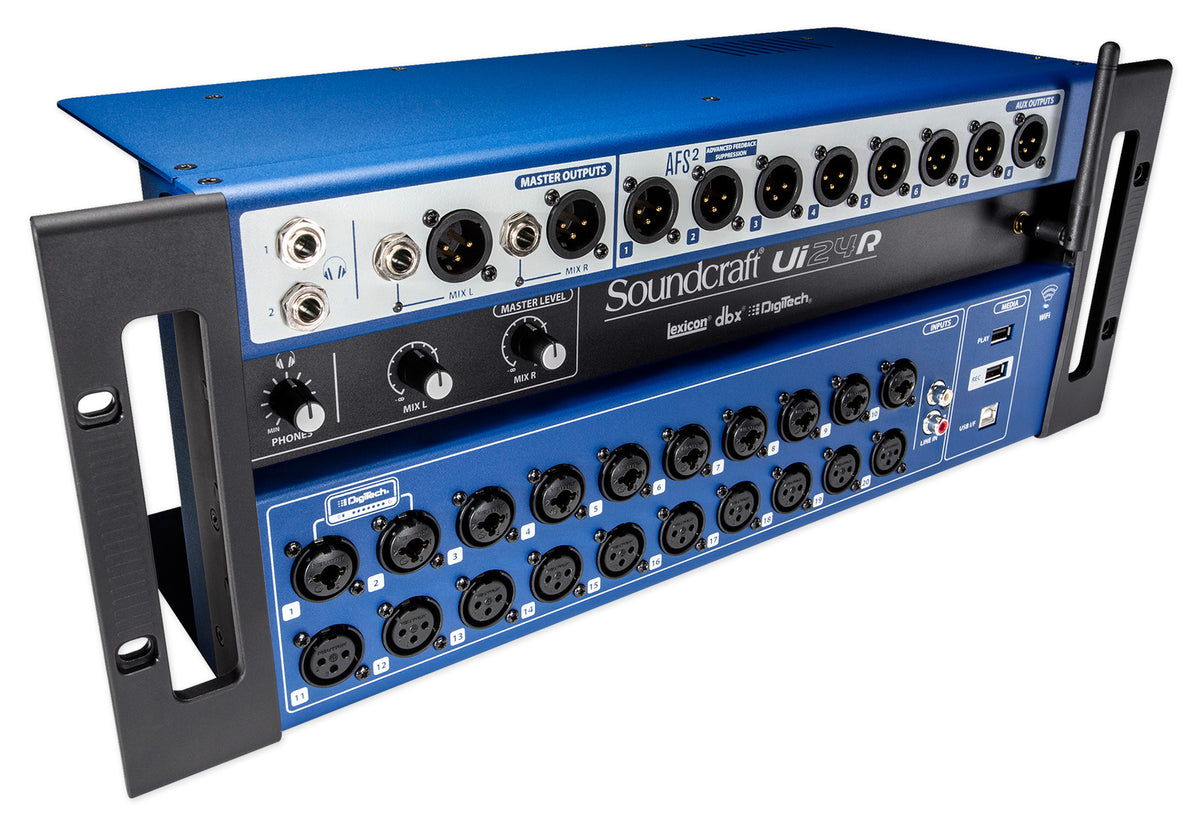

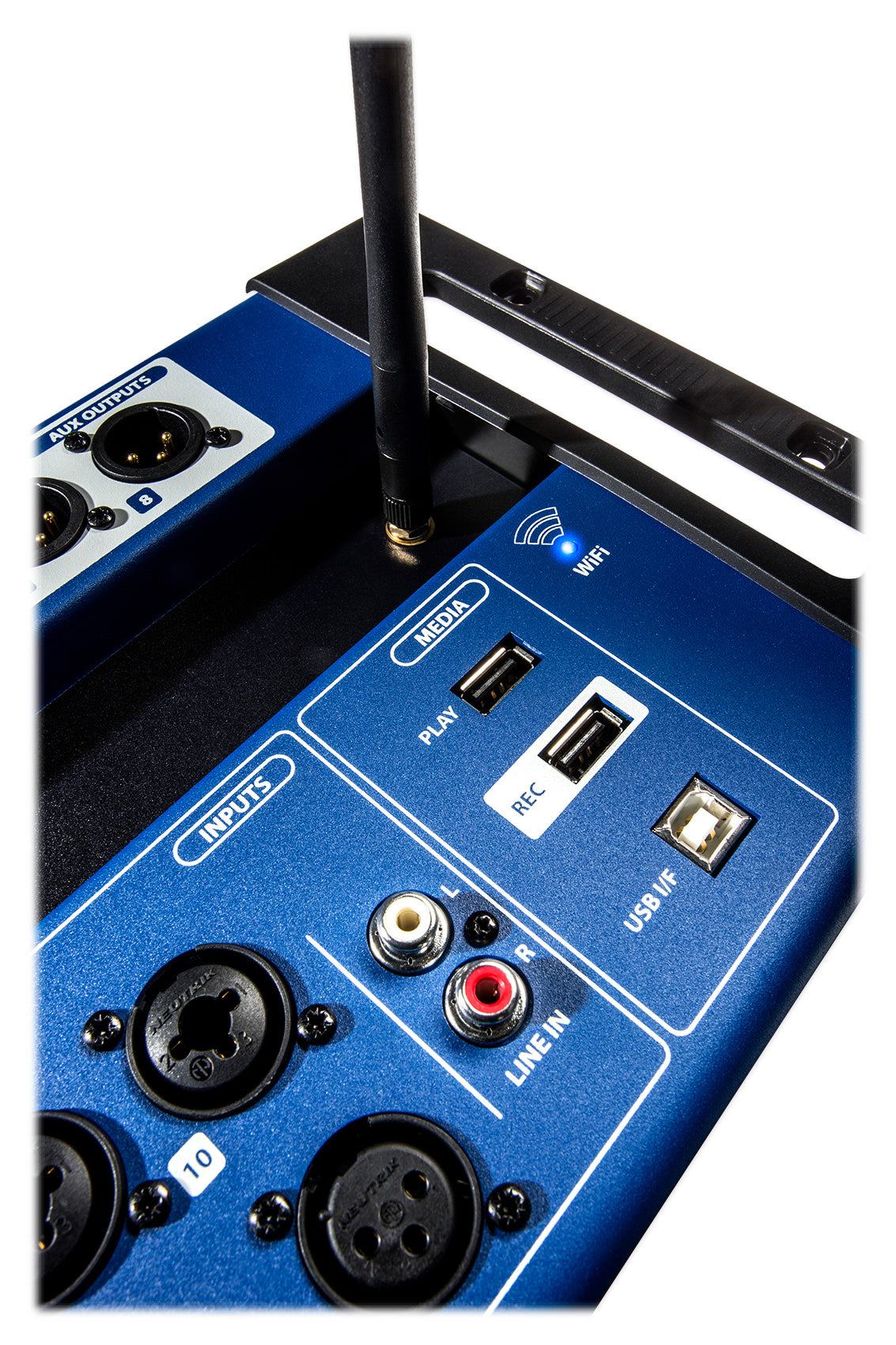

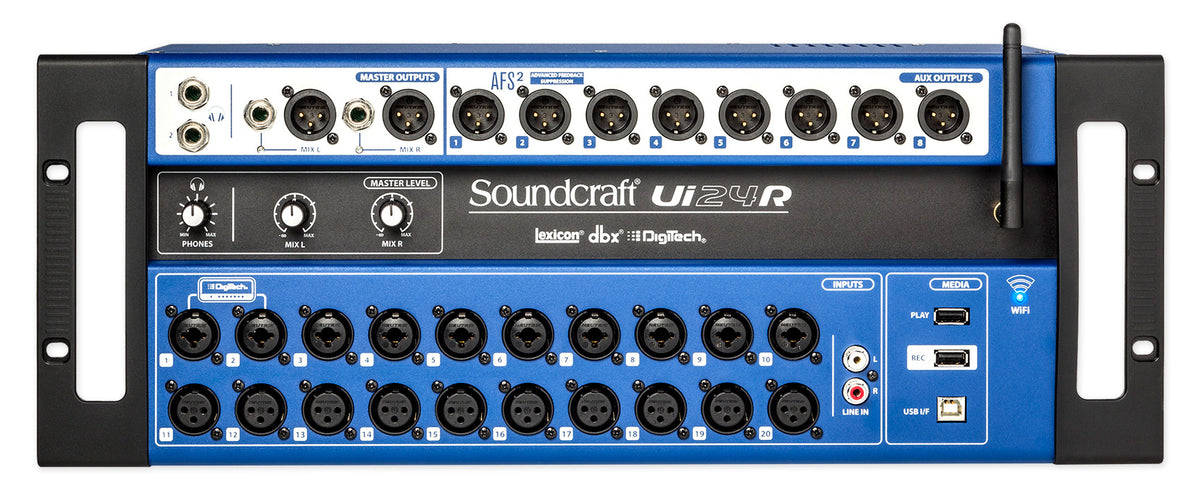

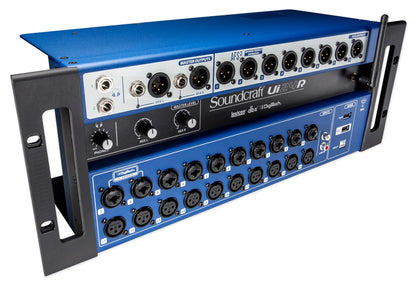

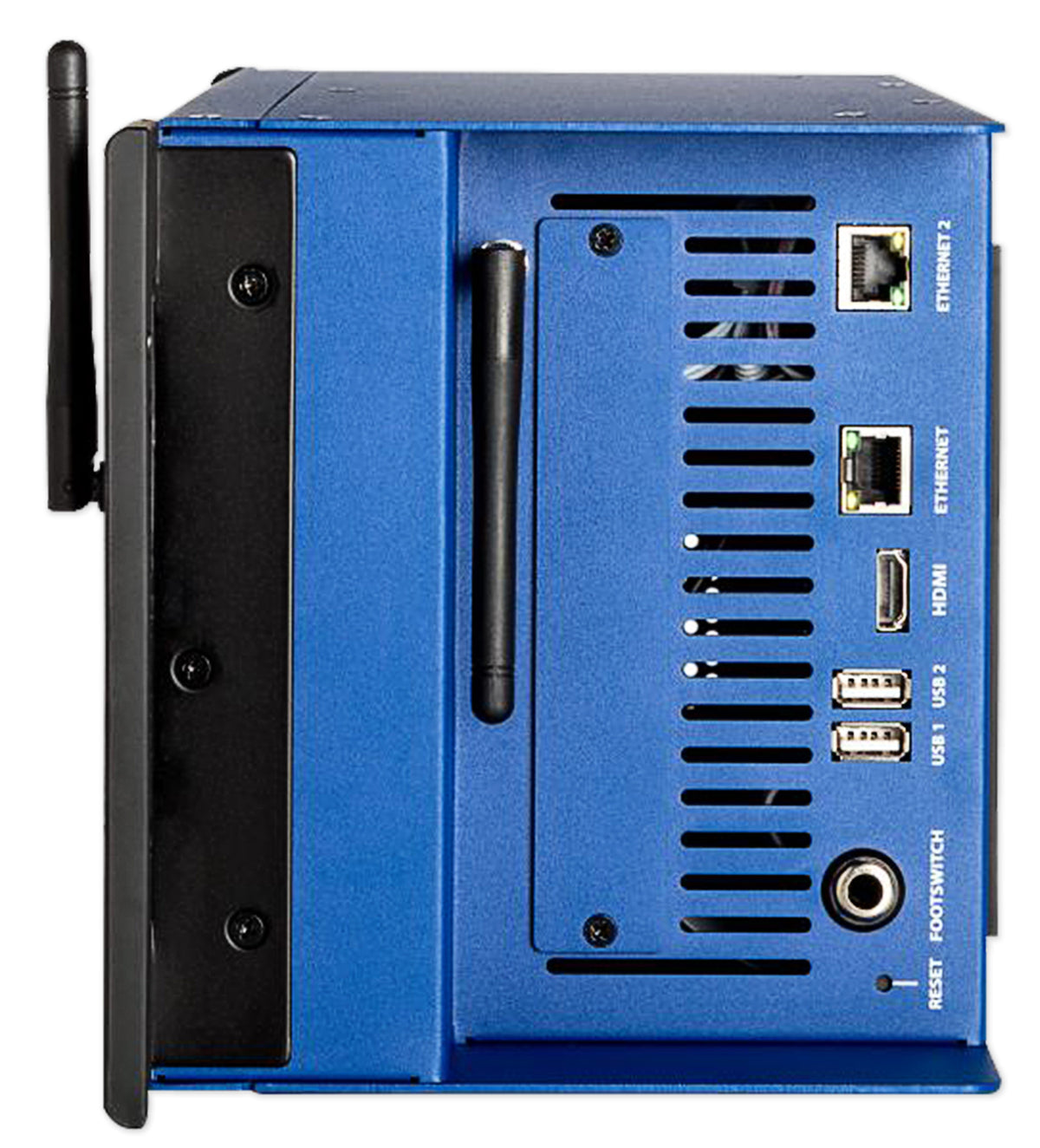

The Soundcraft Ui24R is a rack-mountable digital mixing and multi-track recording system that fits 24 channels of I/O into a 4U enclosure without a physical control surface. It mixes from 10 combo 1/4 inch TRS/XLR inputs, 10 dedicated XLR inputs, 2 line-level inputs, and 2 channels of digital USB playback, with 20 Studer-designed preamps handling the incoming signal. HARMAN technologies run throughout, including dbx AFS2 automatic feedback suppression on every monitor output, DigiTech guitar amp modeling, and Lexicon reverb, chorus, and delay for polishing vocals or acoustic instruments. Control comes from any combination of tablets, phones, or computers running iOS, Android, Windows, or Mac OS browsers, with built-in dual-band Wi-Fi connecting up to 10 devices at once so musicians can adjust their own monitor mix on stage while the front-of-house engineer works the room mix separately. For recording, the Ui24R writes a dual-path, redundant multi-track capture of all 24 inputs and the stereo mix simultaneously to a USB storage device and a connected computer, and its multi-channel USB interface doubles as a way to bring the whole show into a DAW for post-production. Every input channel also carries 4-band parametric EQ, a high-pass filter, a compressor, a de-esser, and a noise gate, with 31-band graphic EQ and real-time frequency analysis on the outputs.
