JBL

SRX922 + SRX922 ACC Caster Board and Cover

SRX922 + SRX922 ACC Caster Board and Cover

Dual 12" 3-Way Powered PA Speaker, 90° x 60° Coverage, Caster Board, Padded Cover, Mains and Side-Fills

Free Shipping

Retail Retail price $4,450.00 Save 37.91%
Sale price $2,763.00
Shipping calculated at checkout.
Features
    • Dual 12" woofers deliver double the low-frequency headroom of single-woofer designs
    • 6.5" horn-loaded mid and 1.5" compression driver for clear, detailed vocals
    • Dual 90° x 60° waveguides provide even, predictable audience coverage
    • Built-in amplification, DSP, and rear LCD for plug-and-play setup
    • Caster board and padded cover make it easy to move and protect between gigs
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • (1) SRX922 Dual 12" 3-Way Powered PA Speaker
    • (1) SRX922 ACC Caster Board with Heavy-Duty Casters
    • (1) SRX922 ACC Soft Padded Cover

SKU: SKU: SRX922+SRX922 ACC

View full details

Product Description

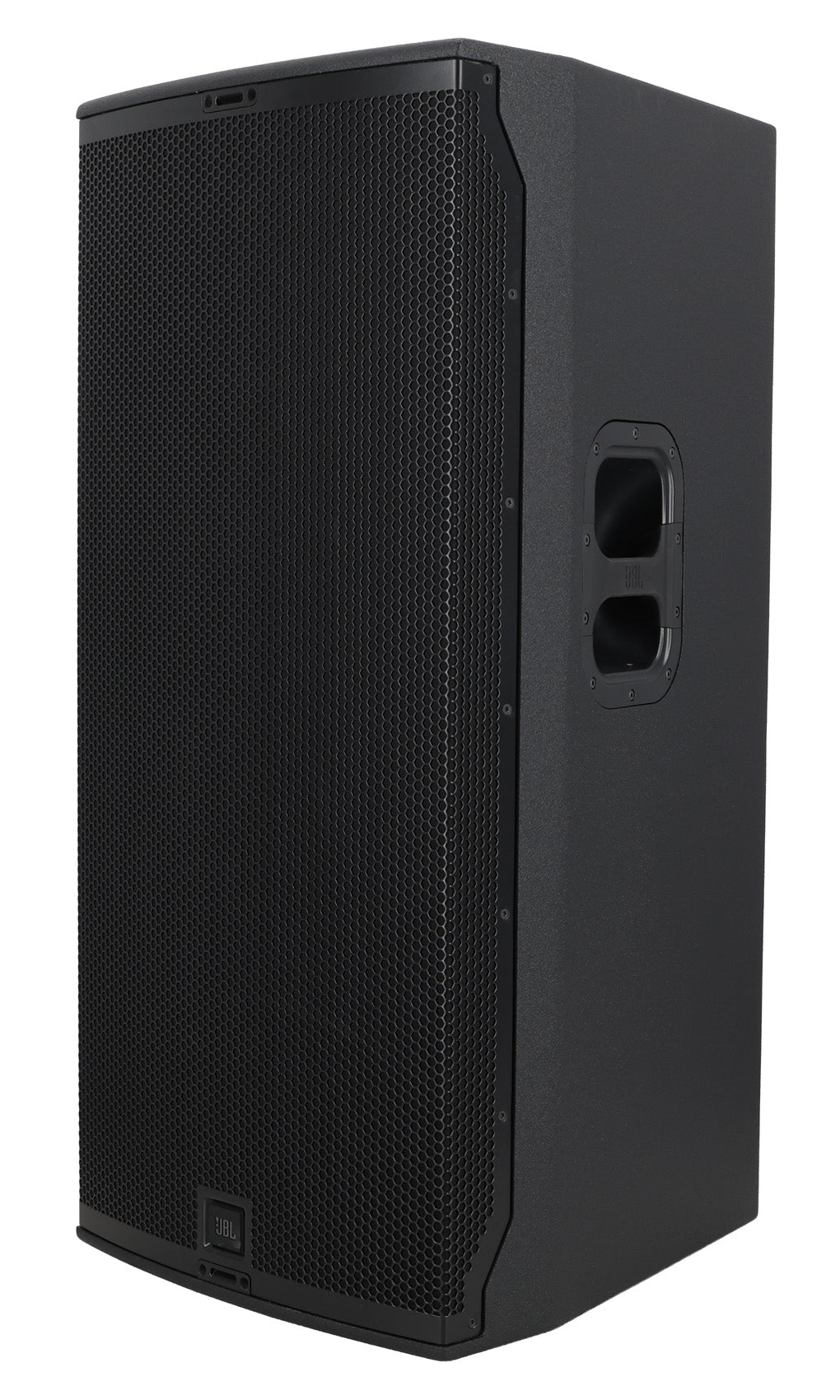

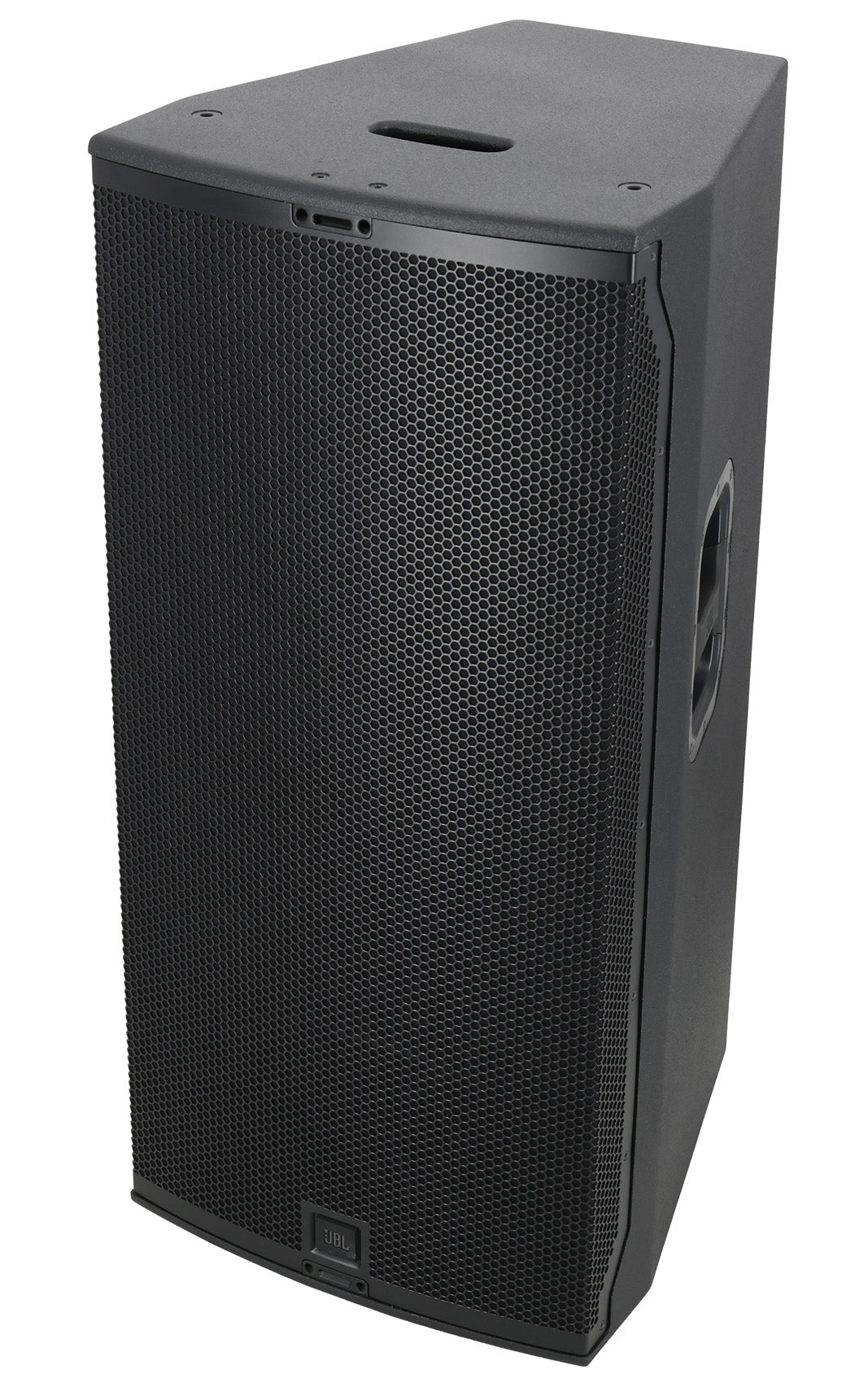

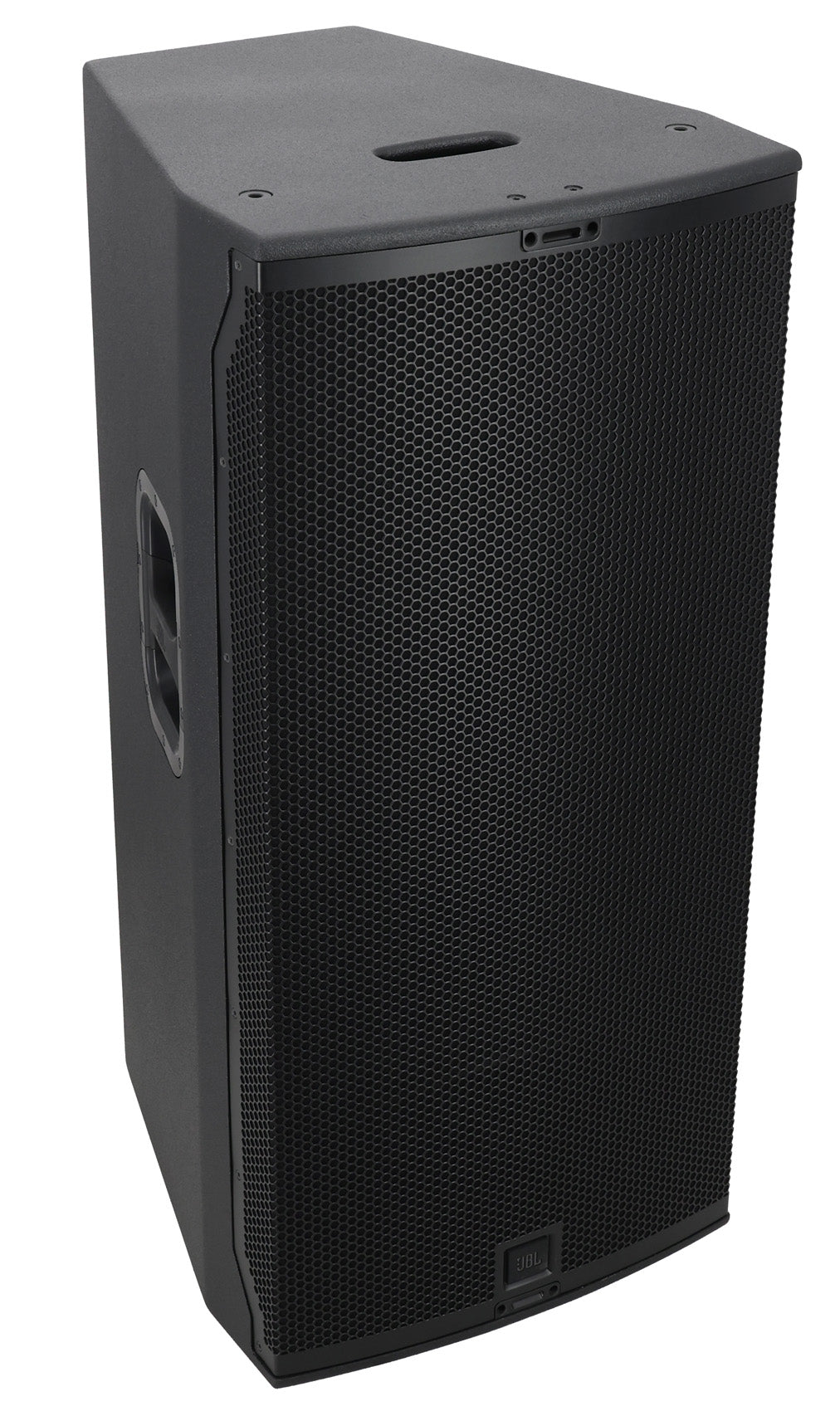

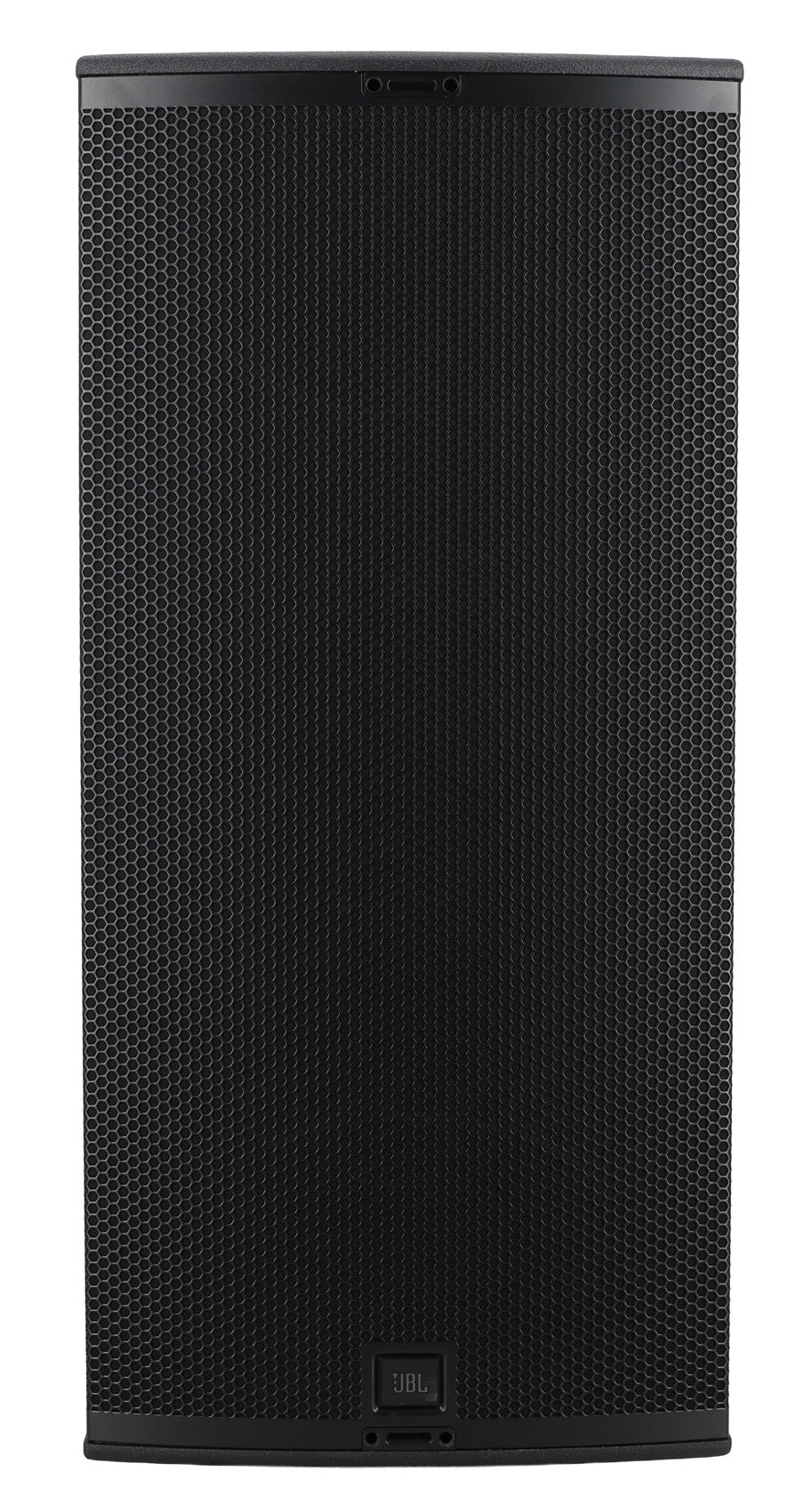

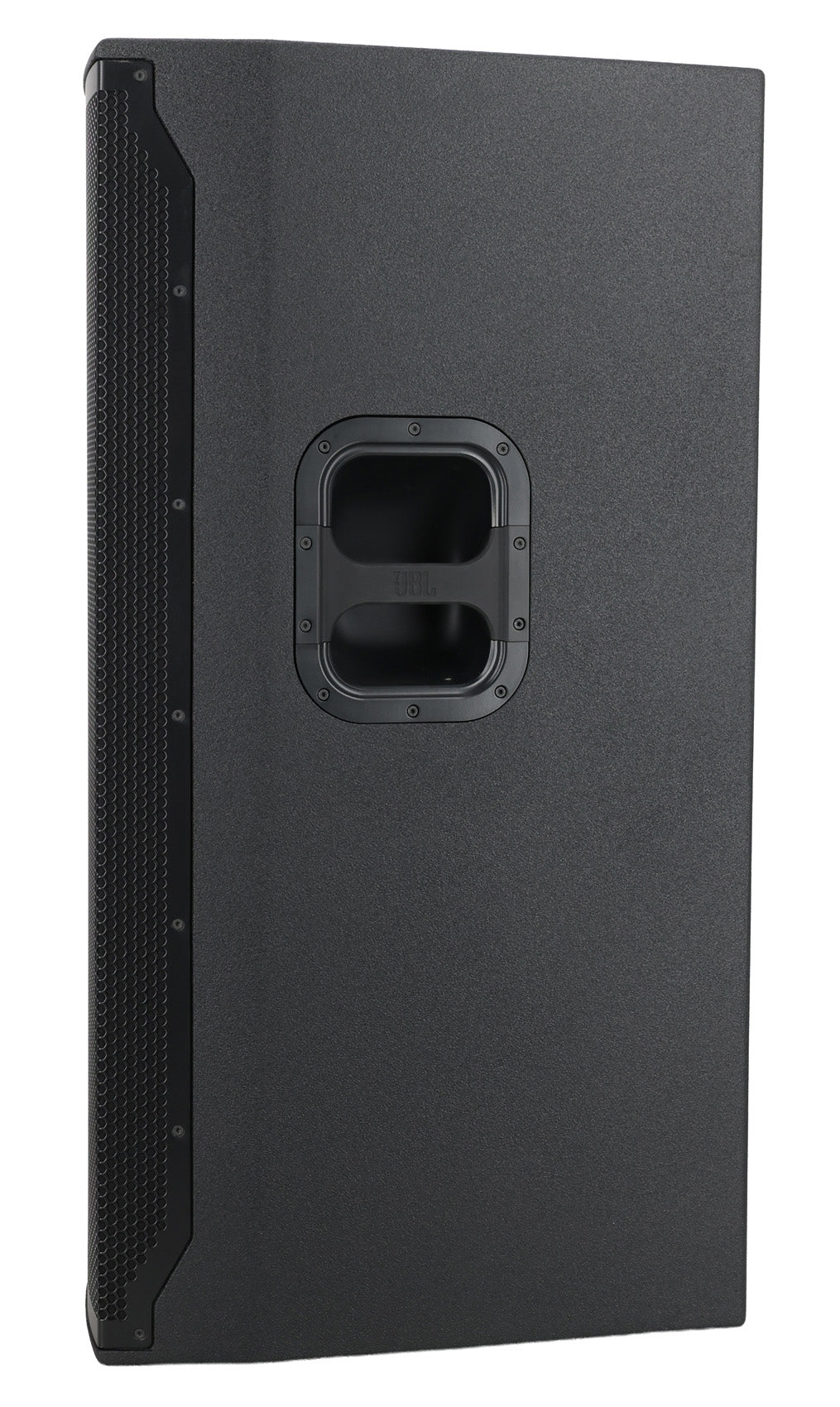

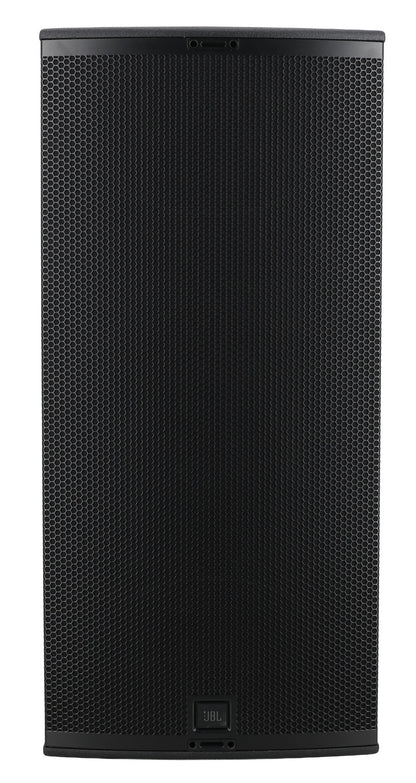

The SRX922 is a dual 12" three-way powered point-source speaker built for high-output mains, side-fills, and point-source fills within larger SRX900 systems, and this bundle pairs it with the SRX922 ACC caster board and padded cover so it rolls in, sets up, and packs out protected. Two symmetrically arranged 12" woofers give double the low-frequency headroom of a single-woofer design, with more output than a traditional 15" three-way box in a noticeably smaller trapezoidal enclosure. A 6.5" horn-loaded midrange driver lets the woofers stay in their most efficient range, while a 1.5" annular-diaphragm compression driver and dual 90° x 60° Progressive Transition waveguides deliver predictable, even coverage across the audience. Four flared ports extend response down to 50 Hz, and an 80 Hz high-pass preset lets you hand the low end to SRX900 subwoofers when the show calls for more bass.

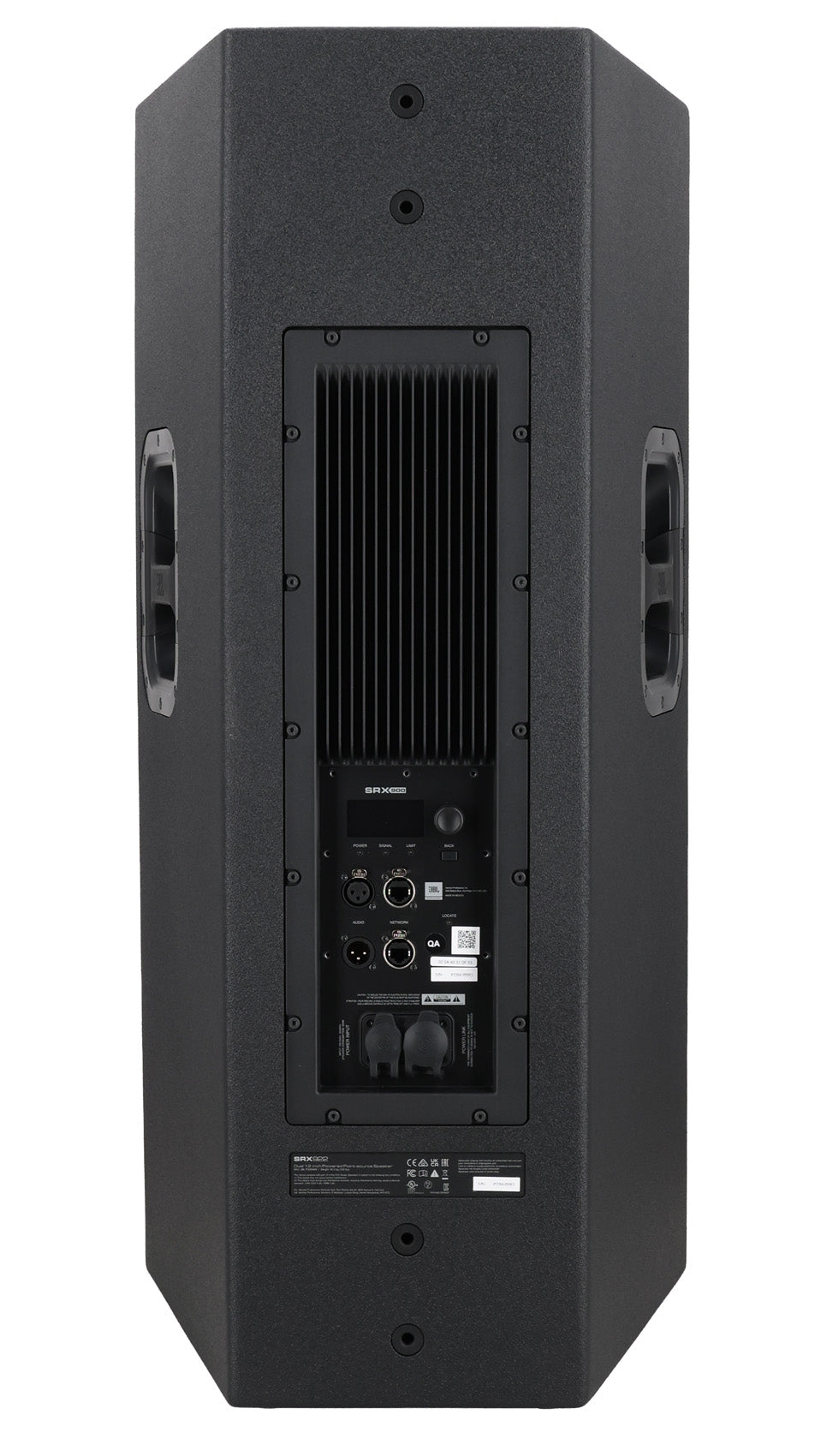

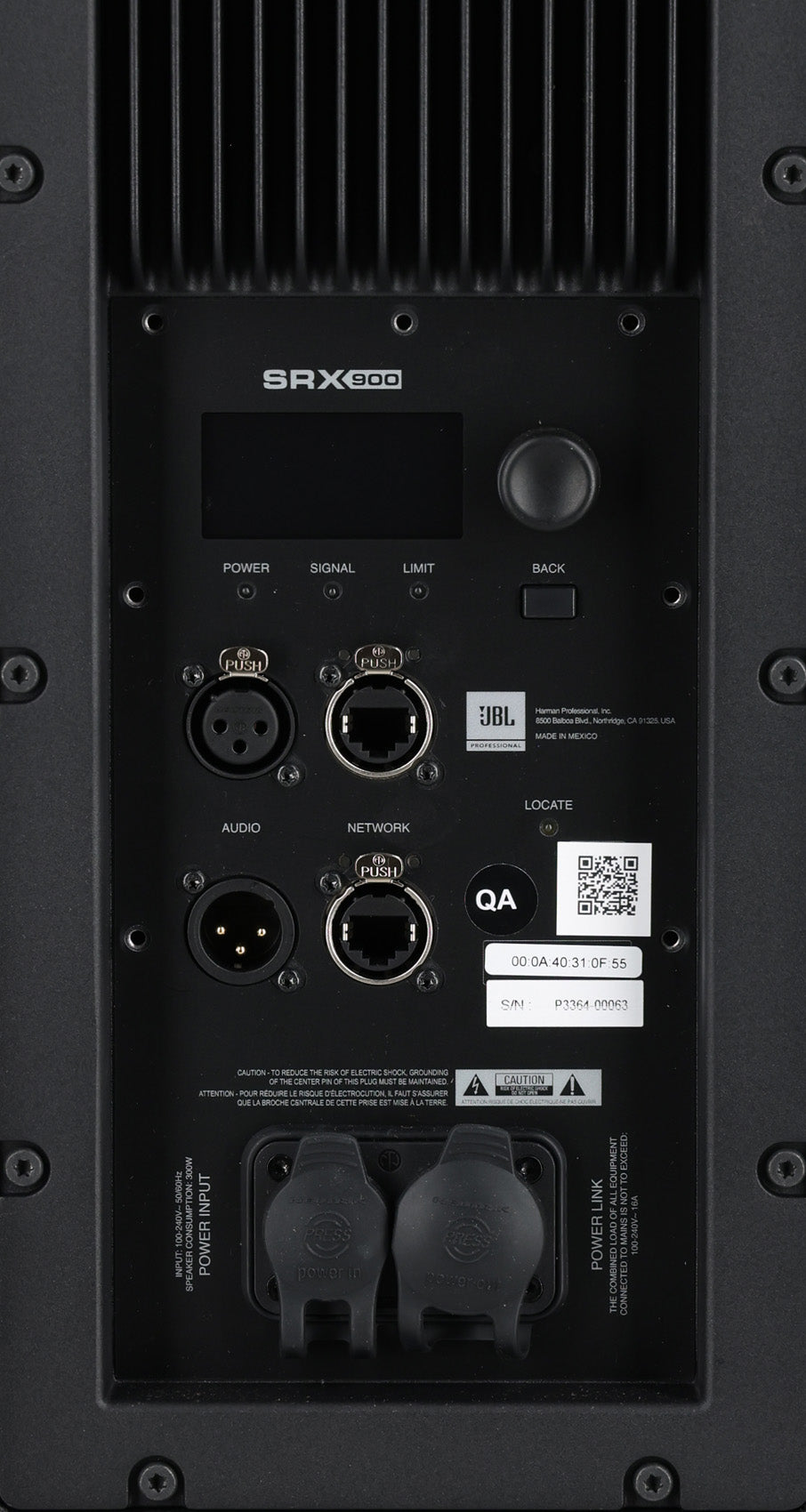

Amplification and DSP are built in, so setup is plug-and-play: the rear LCD handles fast configuration, and the DSP offers 24 user-adjustable filters and up to 2,000 ms of delay for tuning delays and fills. Software control and monitoring runs on Windows, macOS, and iPadOS. Eight M10 QuickLink points accept standard M10 eye bolts for flown installs, and the outdoor-grade Baltic birch plywood cabinet holds up to touring life.

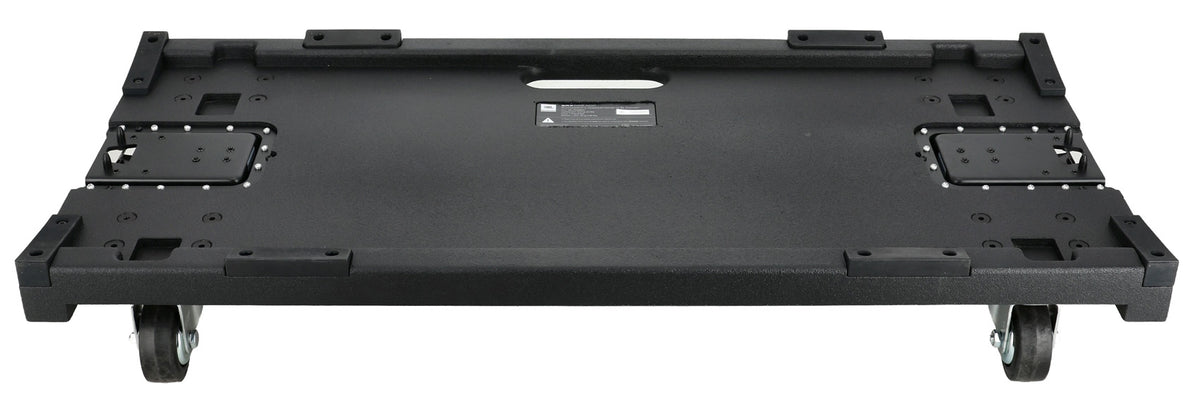

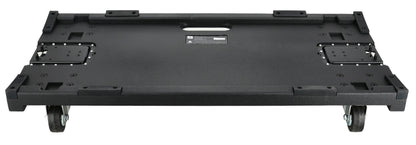

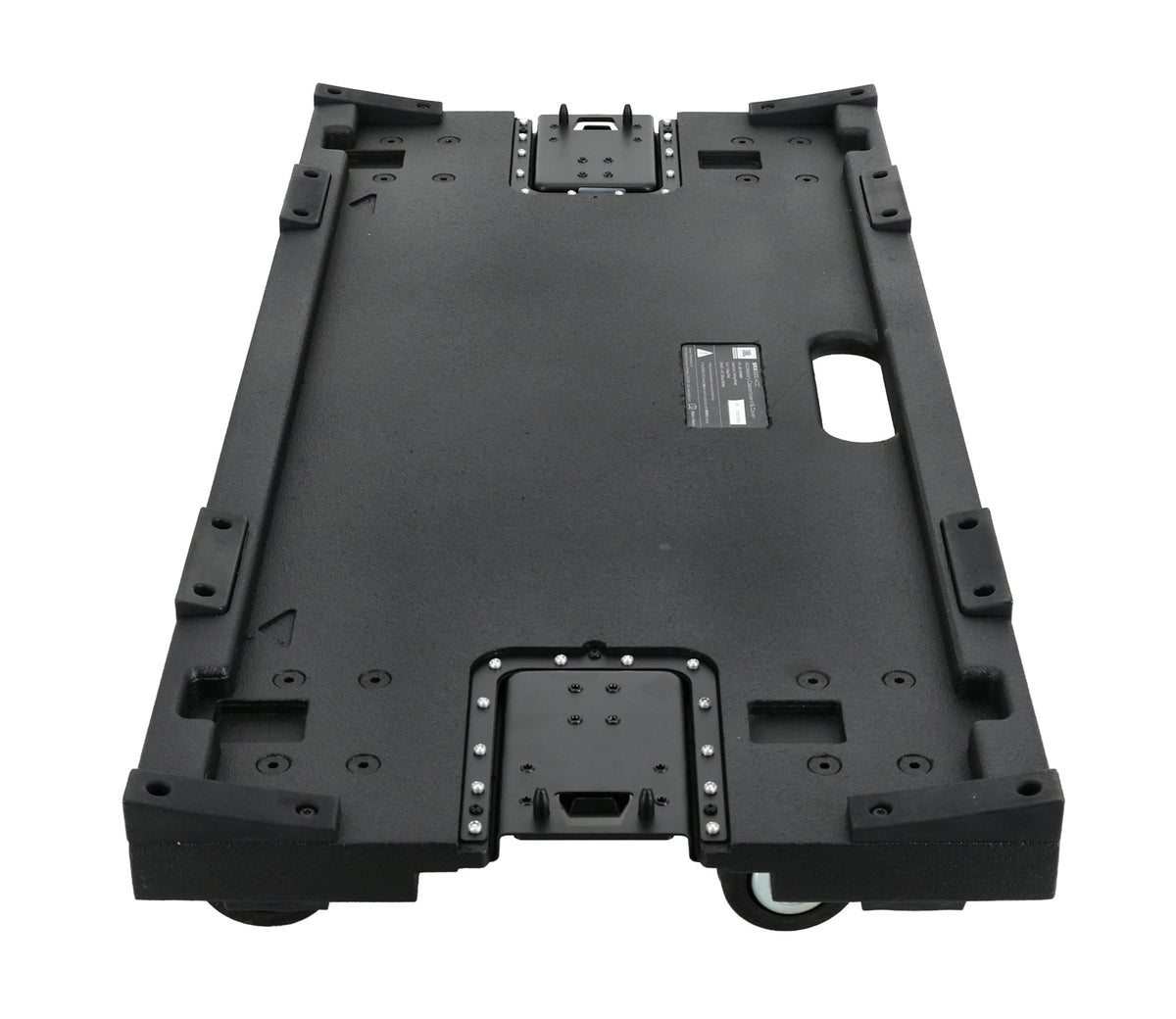

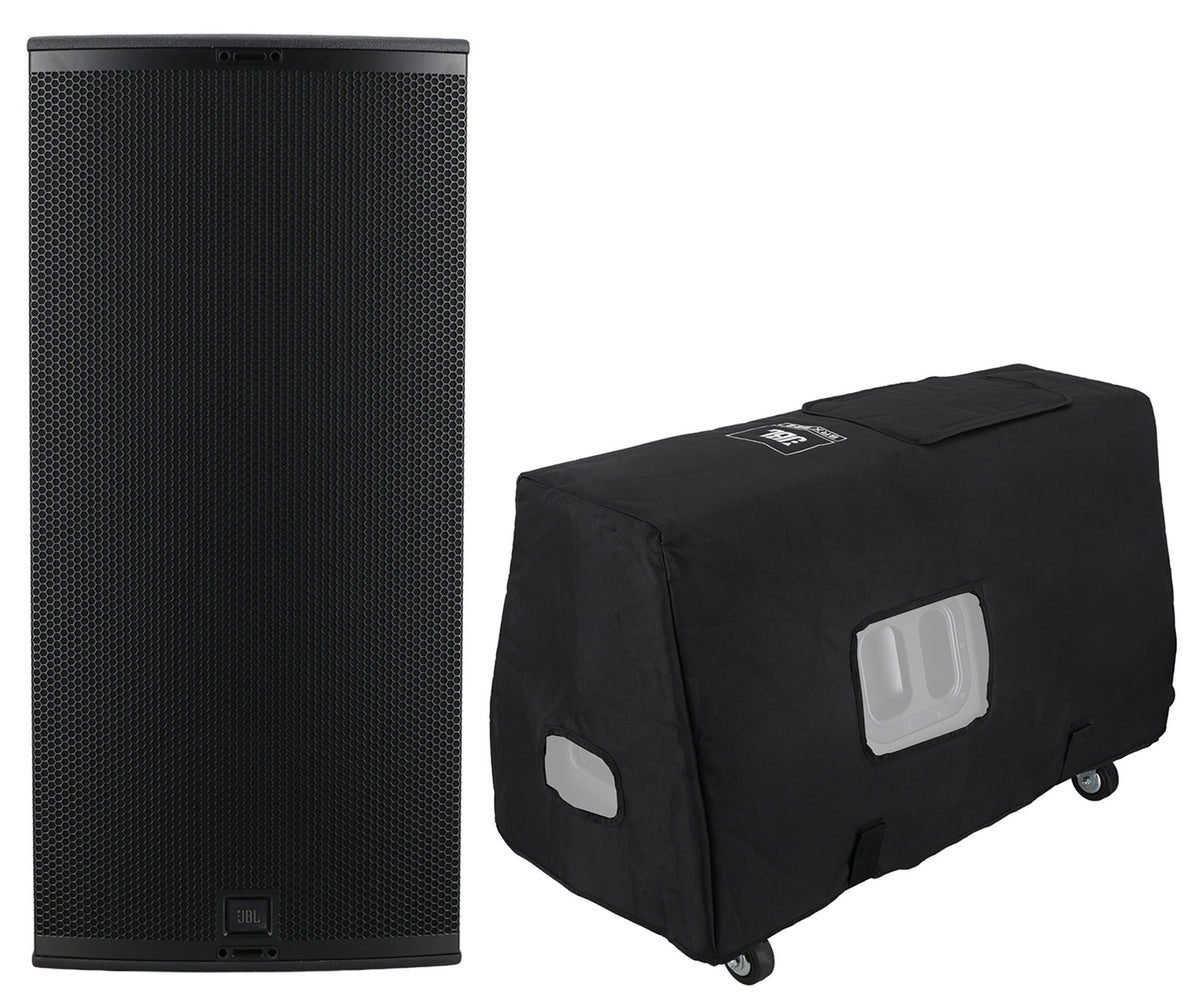

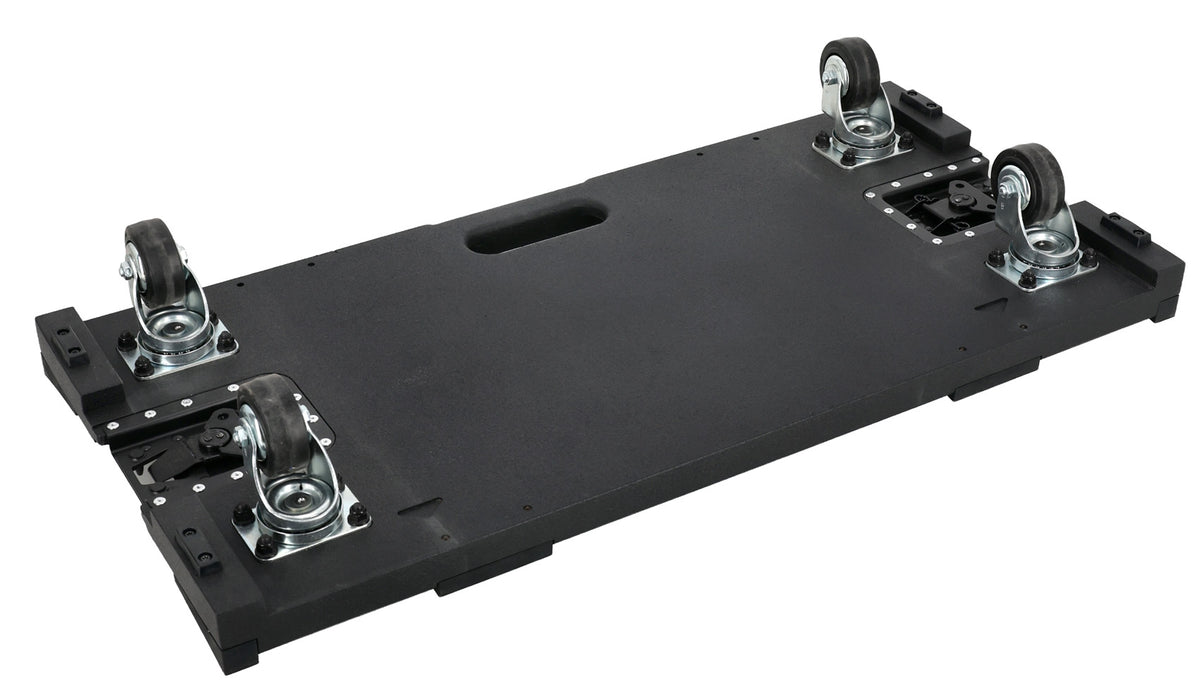

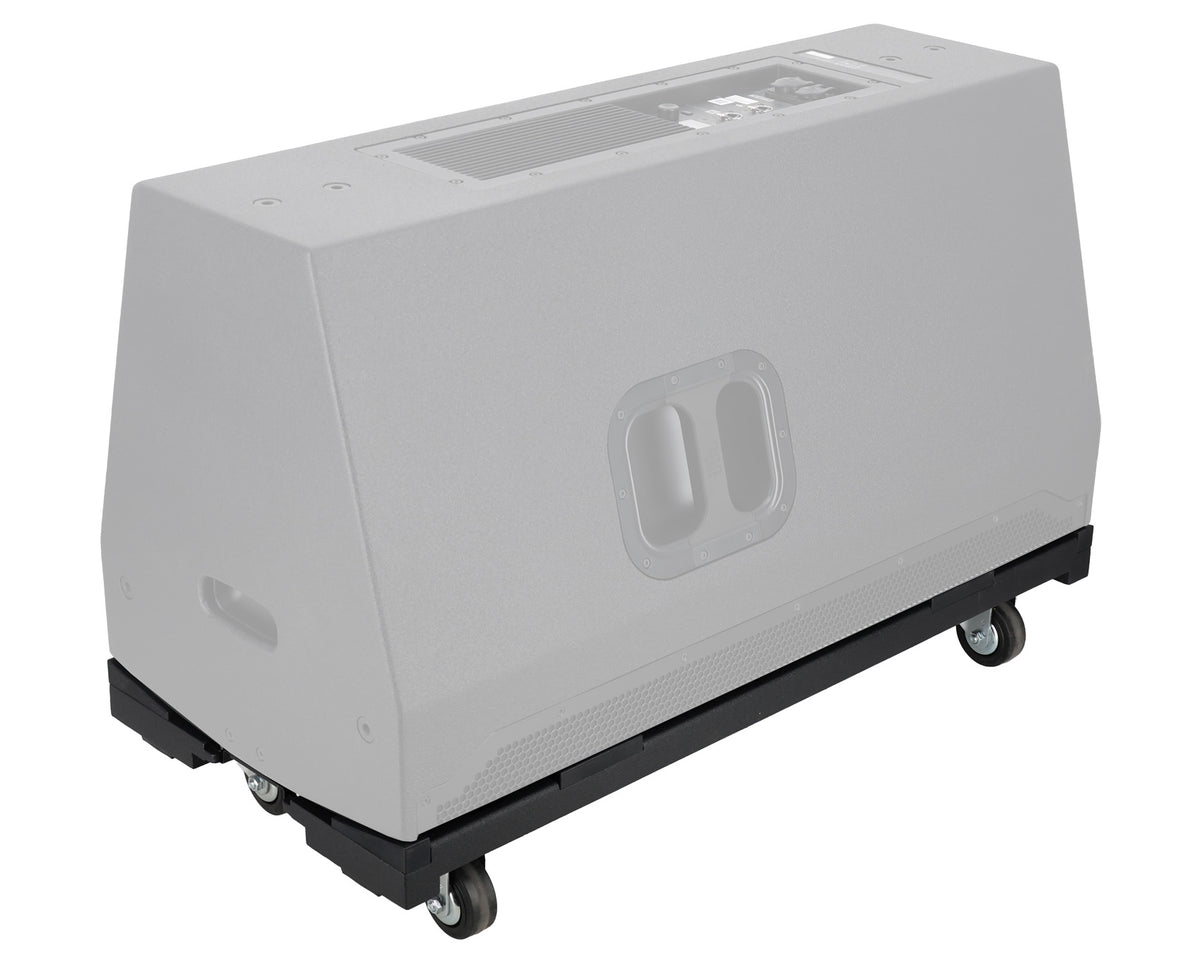

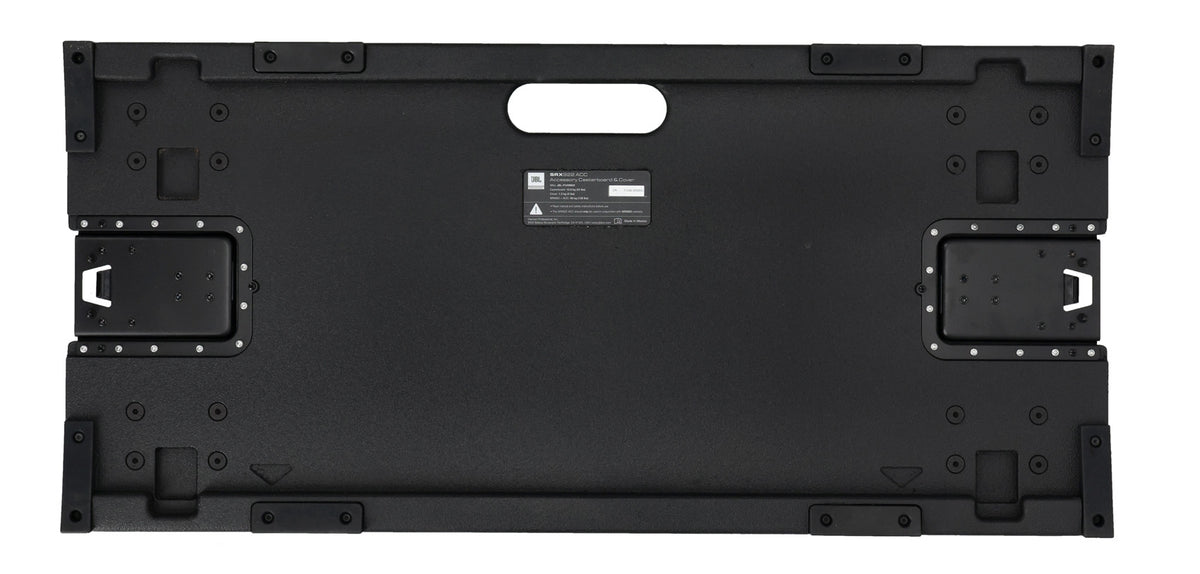

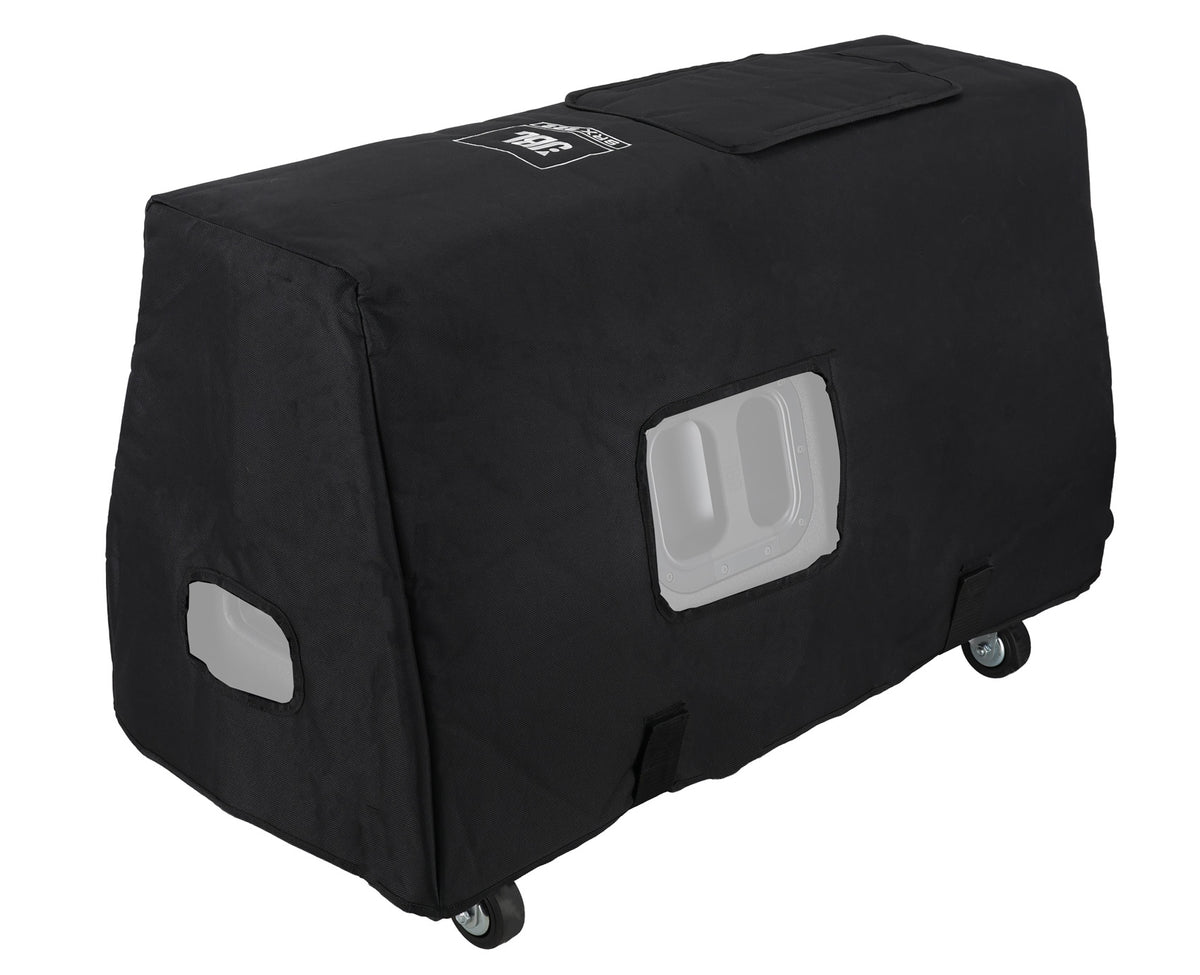

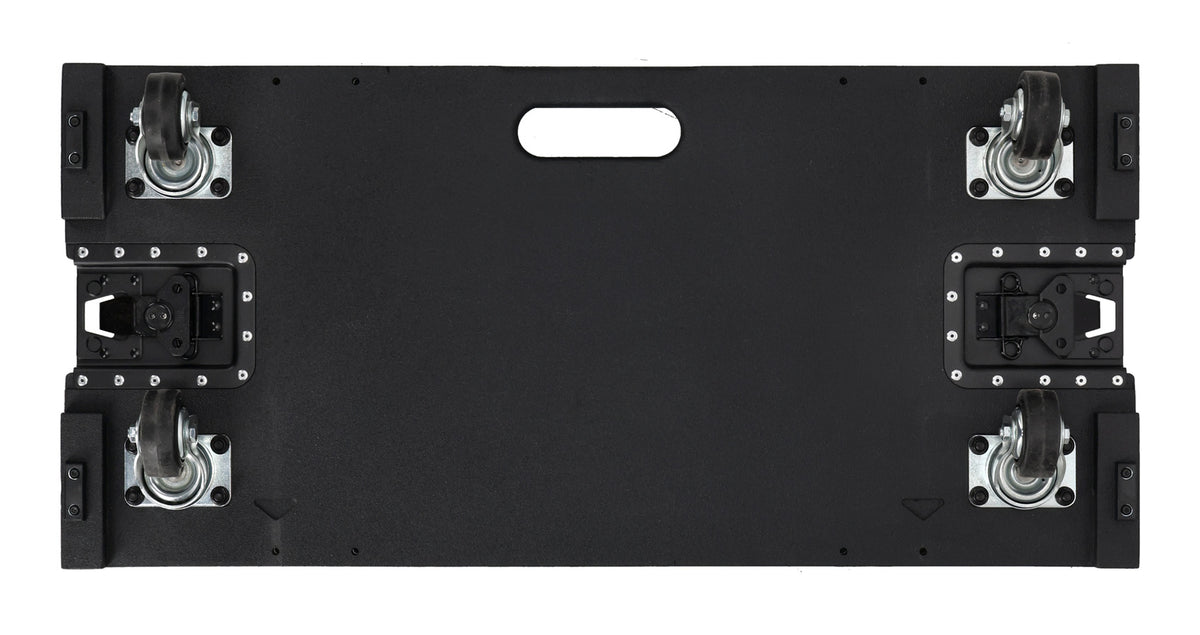

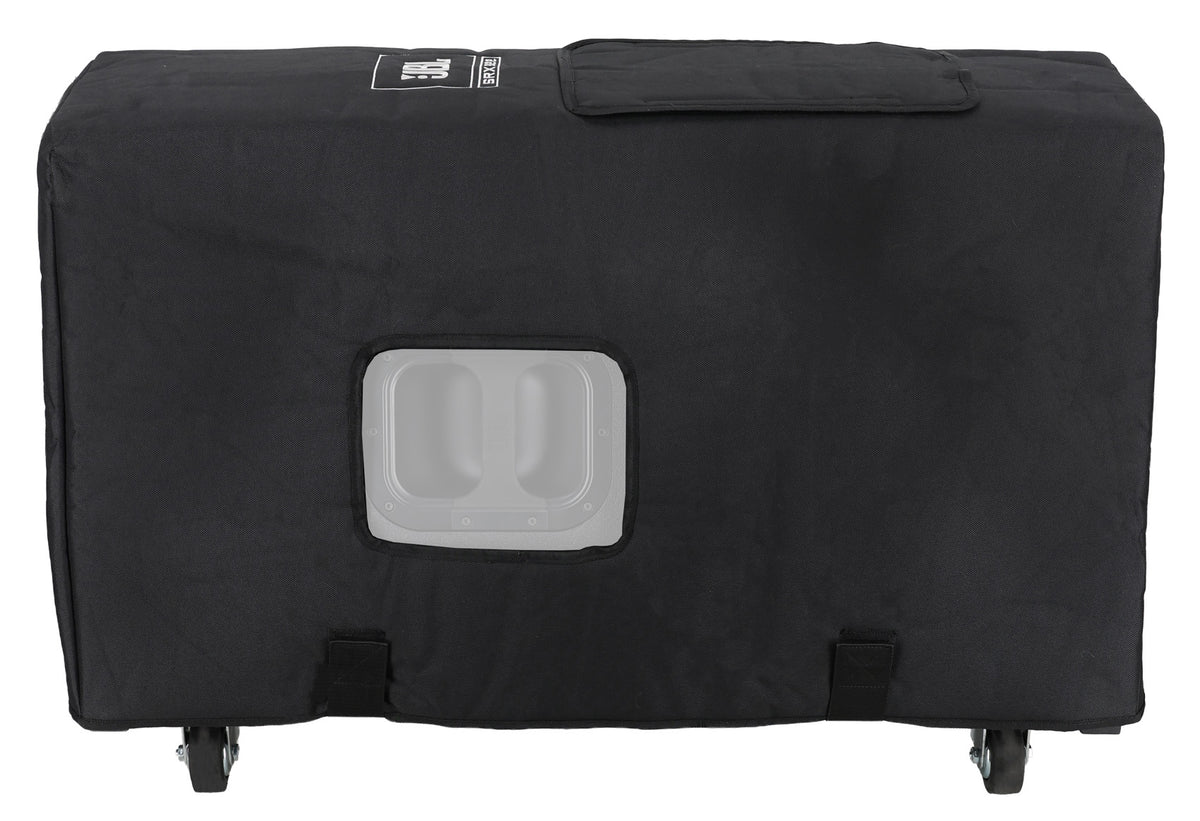

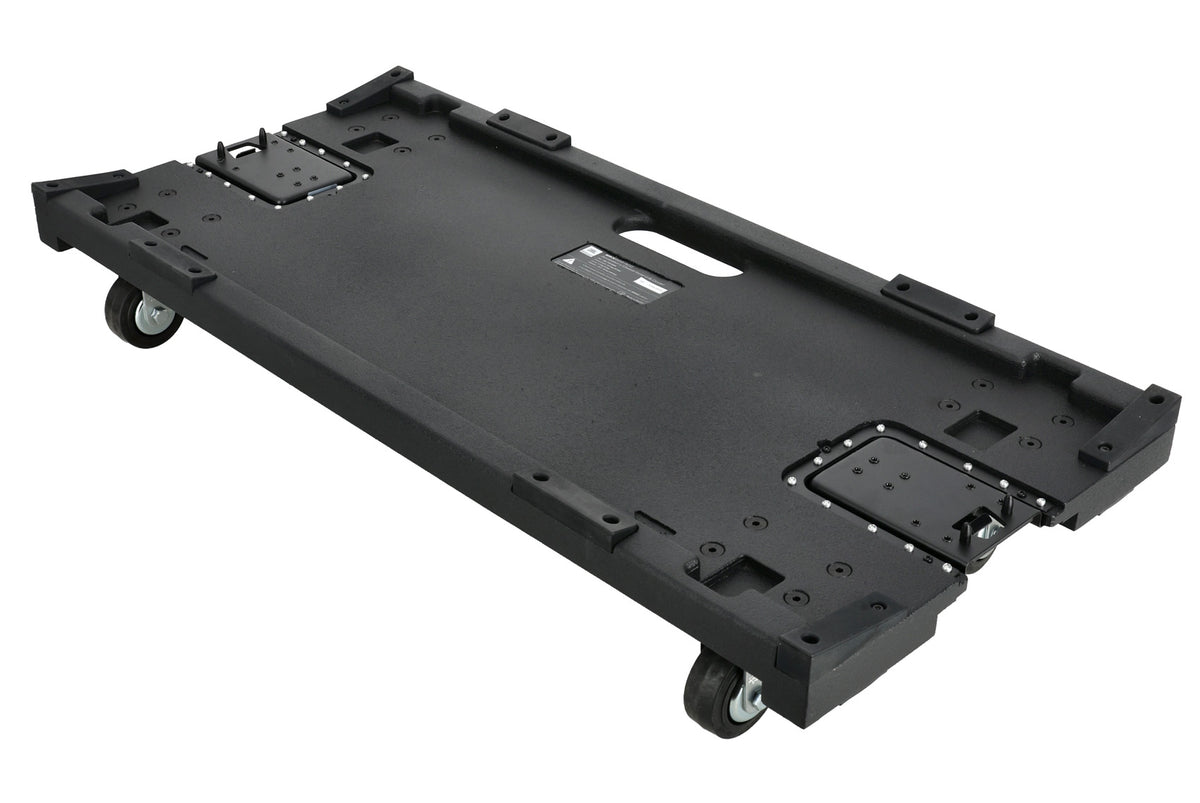

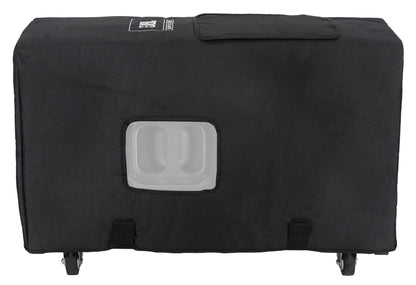

The included caster board uses heavy-duty casters and a new patent-pending latch mechanism, and its stackable design keeps trucks and storage rooms organized. The soft padded cover protects the cabinet finish between shows, so rental companies, production crews, and venues get a speaker that is ready to roll from the dock to the stage.

Included in the Bundle

  • SRX922

    The SRX922 is a compact, acoustically three-way, dual 12-inch powered point-source loudspeaker in a trapezoidal enclosure. It is built for jobs that need high output and tight directivity control from a single box: main PA in a mid-size room, side fill on a loud stage, or a point-source element inside…

    Learn More: SRX922
  • SRX922 ACC

    The SRX922 ACC pairs a caster-board with a soft padded cover so an SRX922 can be rolled instead of carried. Heavy-duty casters take the cabinet across parking lots, loading docks, and venue floors, which removes most of the two-person lifting from a load-in and cuts the number of trips a…

    Learn More: SRX922 ACC

Features

    • More Output in Less Space

      Dual 12" woofers produce more output than a traditional 15" three-way speaker, packing serious low-frequency headroom into a compact trapezoidal cabinet that is easier to handle.

    • Clear, Controlled Coverage

      A horn-loaded 6.5" midrange and 1.5" compression driver feed dual 90° x 60° waveguides, giving every seat consistent, intelligible sound from vocals to cymbals.

    • Plug-and-Play Setup

      Built-in amplification and DSP with 24 adjustable filters, 2,000 ms delay, and a rear LCD let you dial in mains or fills quickly at any venue.

    • Ready for Flying and Systems

      Eight M10 QuickLink points accept standard eye bolts for suspended installs, and an 80 Hz high-pass preset pairs it cleanly with SRX900 subwoofers.

    • Rolls In and Packs Out Protected

      The heavy-duty caster board with a patent-pending latch and stackable design speeds up load-ins, while the soft padded cover protects the cabinet in transit.

Technical Specifications

  • Product Type Powered 3-Way Point-Source PA Speaker with Caster Board and Cover
  • Low-Frequency Drivers (2) 12" Woofers
  • Mid-Frequency Driver 6.5" Horn-Loaded
  • High-Frequency Driver 1.5" Annular-Diaphragm Compression Driver
  • Coverage 90° x 60° (Dual Progressive Transition Waveguides)
  • Low-Frequency Extension 50 Hz
  • Ports (4) Flared
