SUNDOWN AUDIO

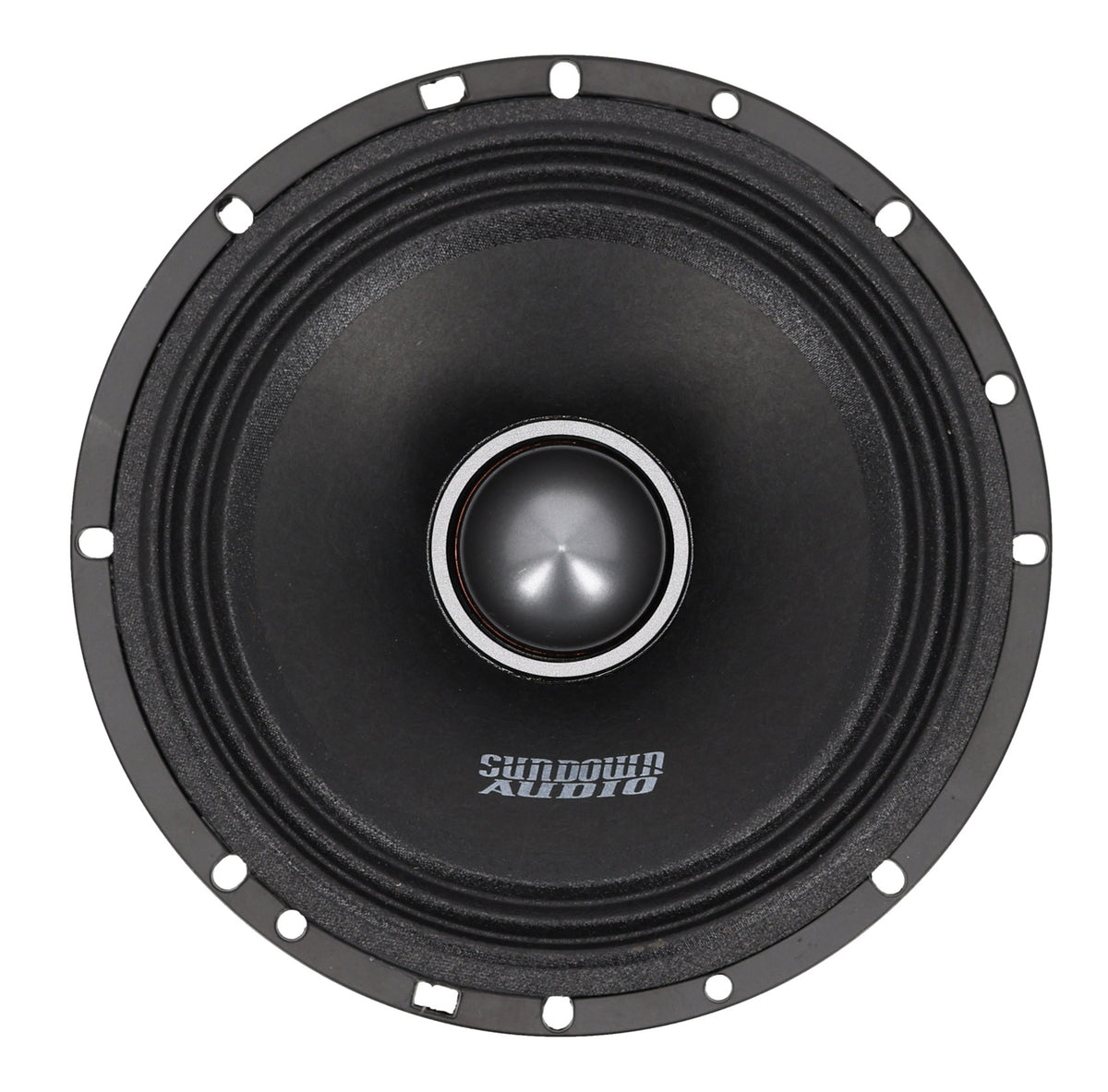

LCMR-6.5 8 Ohm

LCMR-6.5 8 Ohm

6.5" Midrange Speaker, 100W RMS, 8-Ohm, 120Hz-6kHz Range, Phase Plug, Sold Individually
$39.95
$39.95 $71.99
Save 44%
Shipping calculated at checkout.
Features
    • 100W RMS handling in a dedicated 120Hz to 6kHz midrange
    • Phase plug improves off-axis response and cools the coil
    • 92dB sensitivity delivers strong output on moderate power
    • 8-ohm load suits paralleling several speakers in an array
    • 1.51" voice coil in a ferrite motor for consistent output
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • 1 x Sundown Audio LCMR-6.5 6.5" Midrange Speaker (8 Ohm)

SKU: LCMR-6.5 8 Ohm

View full details

Product Description

The LCMR-6.5 is a 6.5-inch midrange speaker rated 100W RMS at 8 ohms, built to cover 120 Hz to 6 kHz and nothing else. Narrowing the job to the midrange is what lets it stay clear at high output: no deep bass to fight, no top-end demands, just vocals and guitars in the band your ears are most sensitive to.

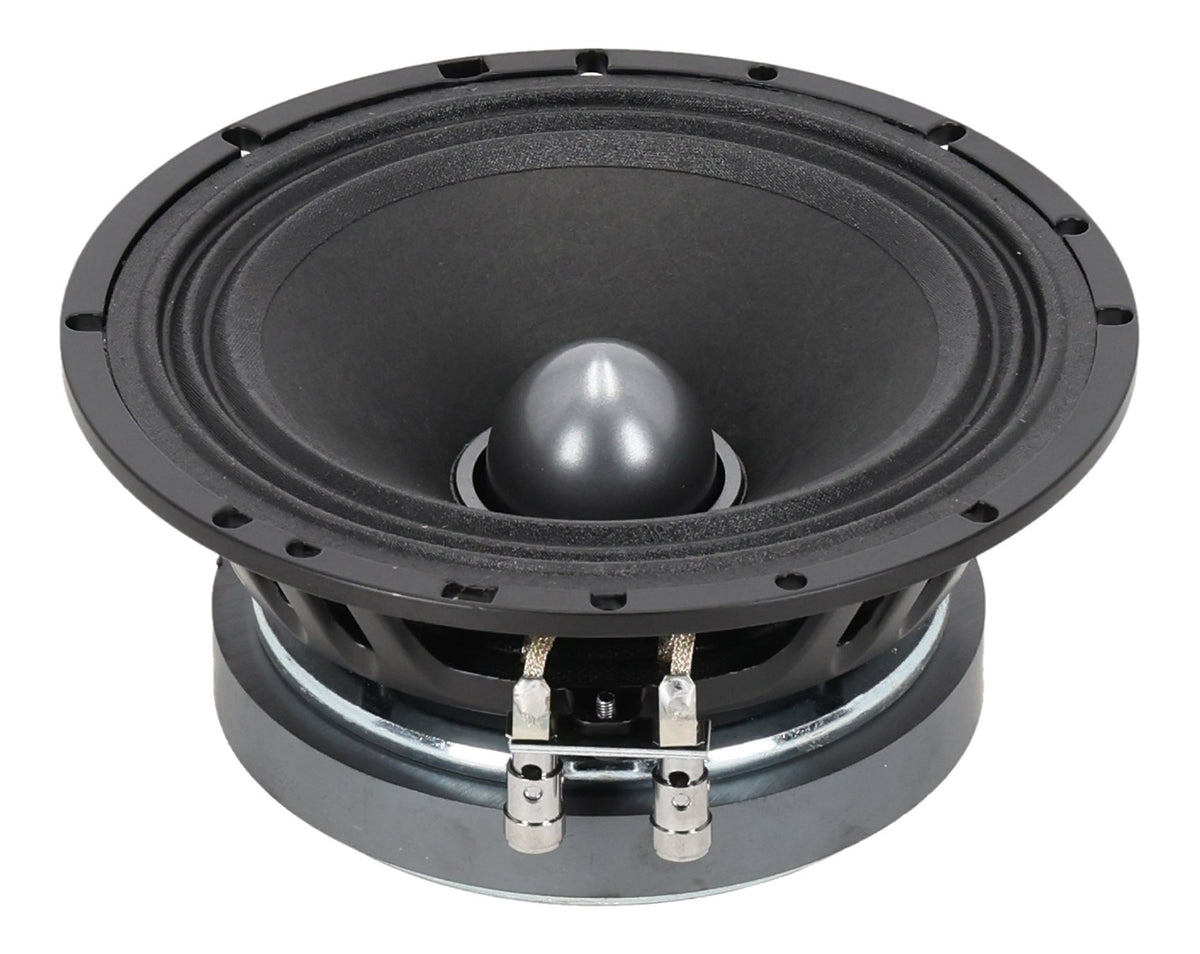

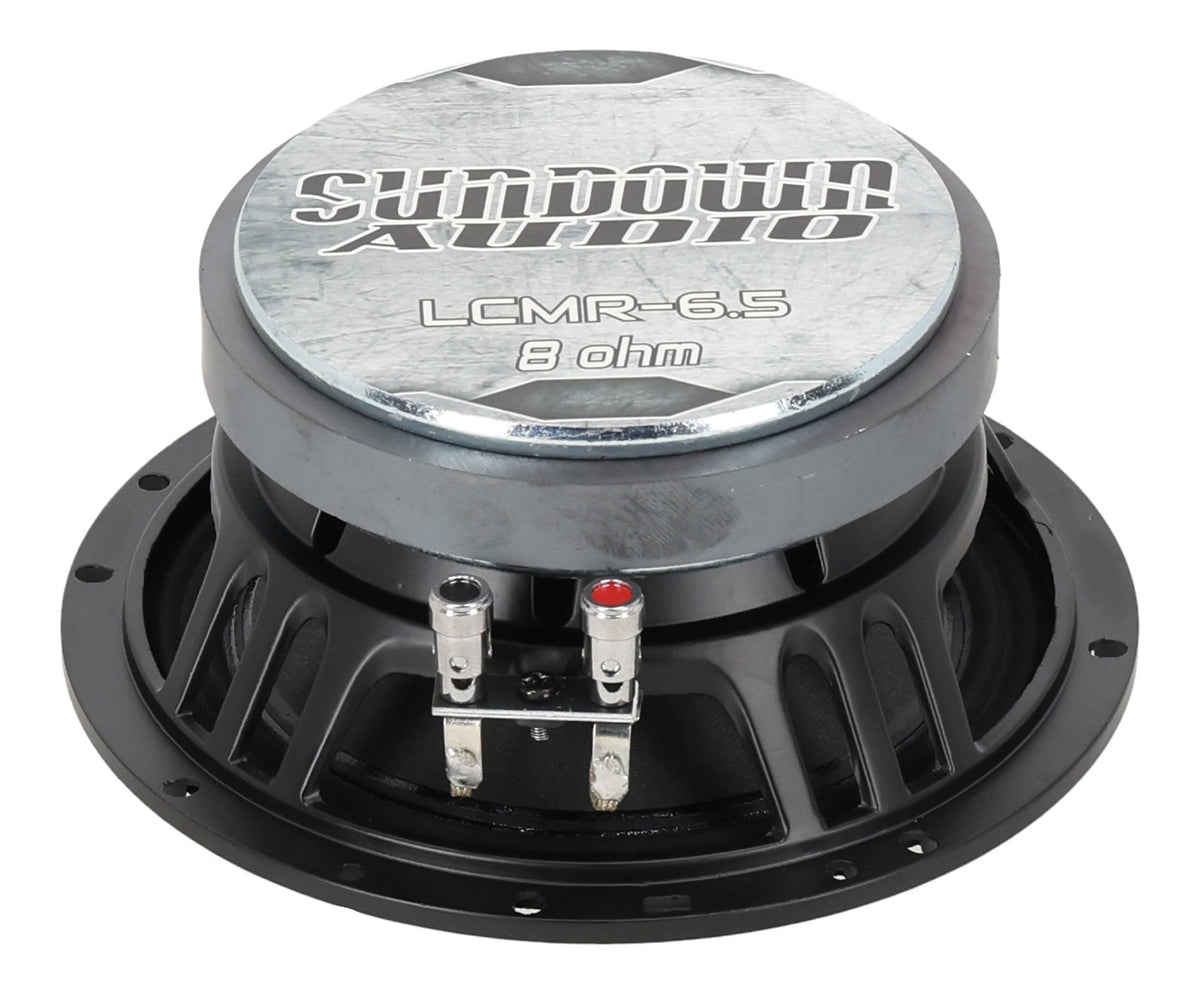

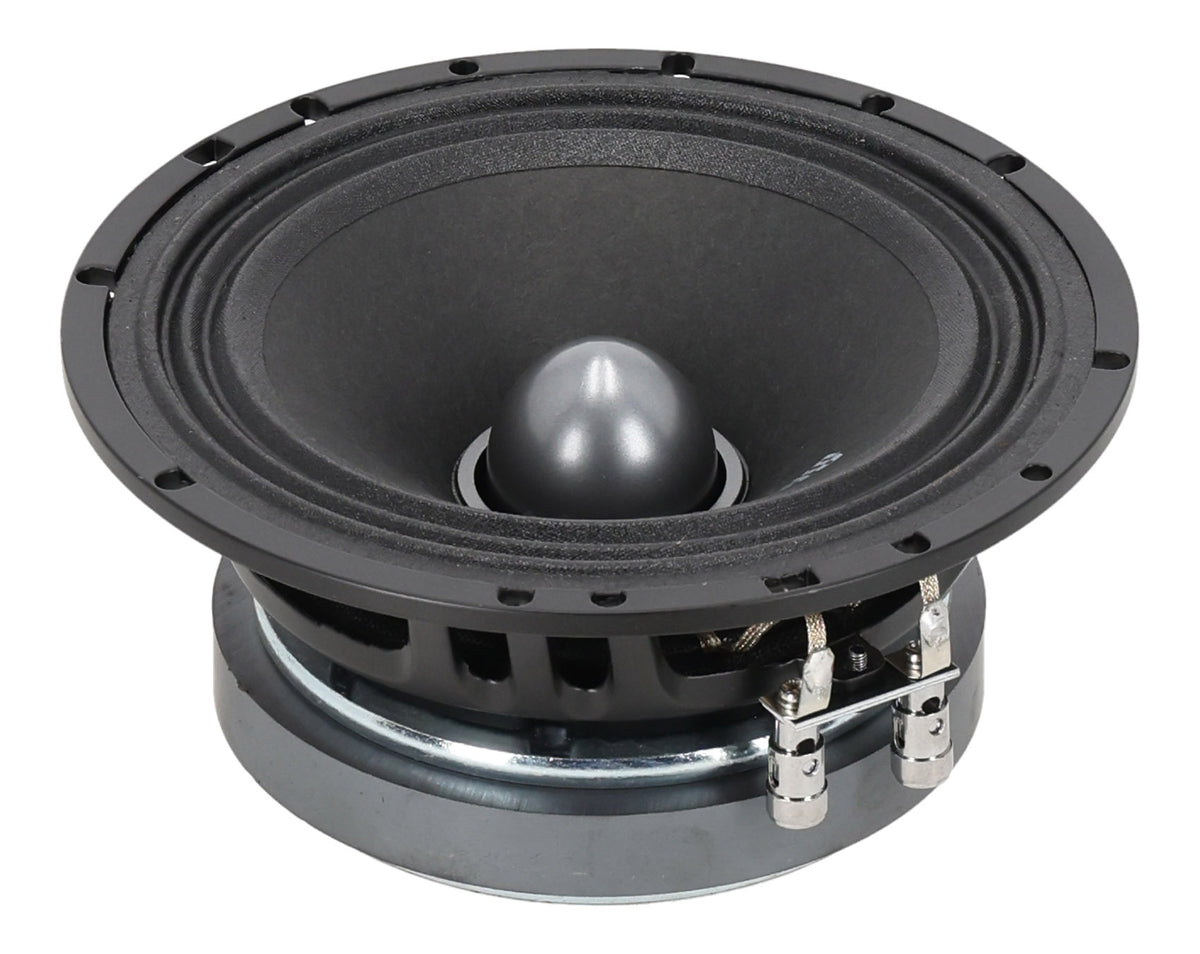

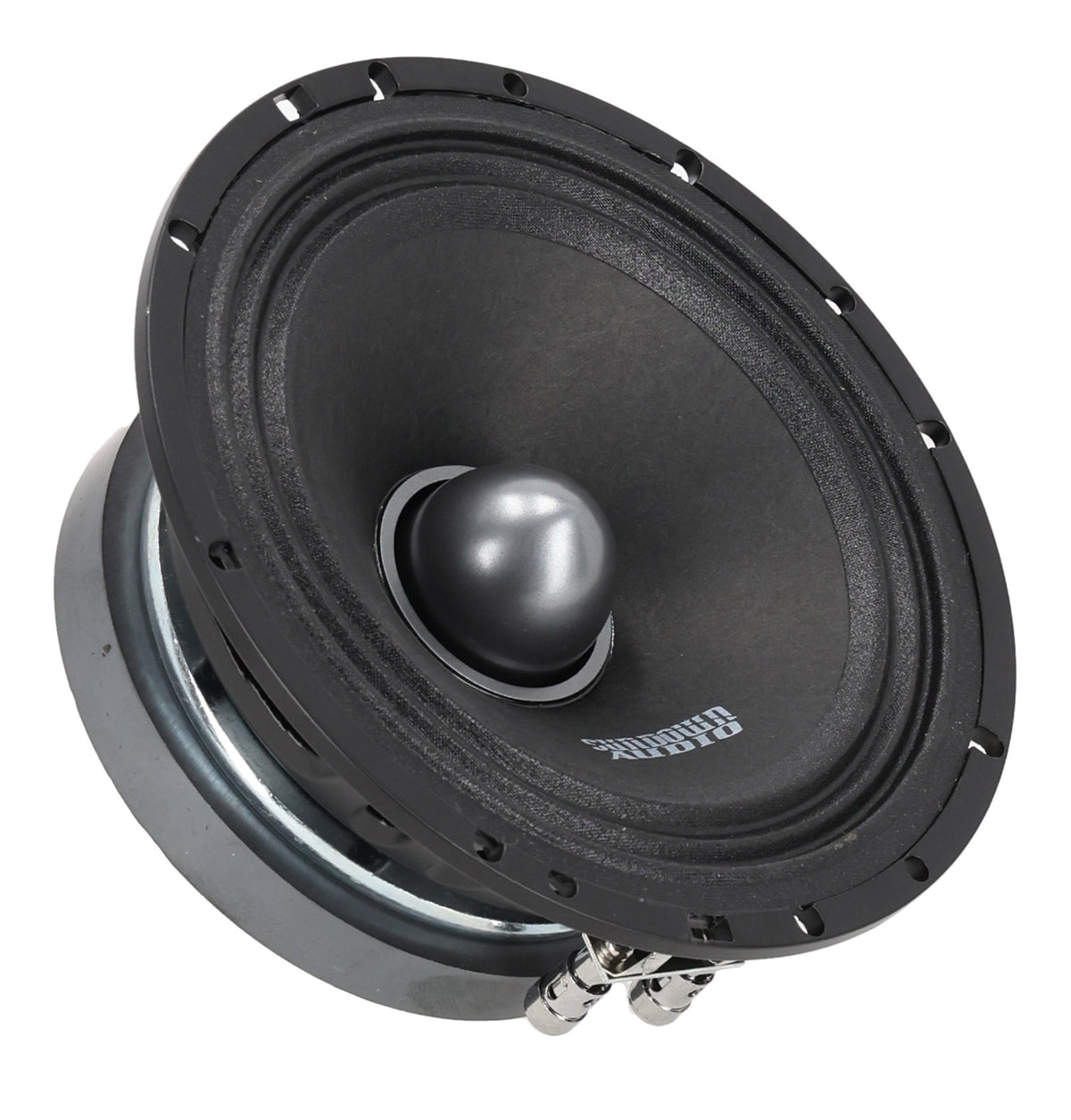

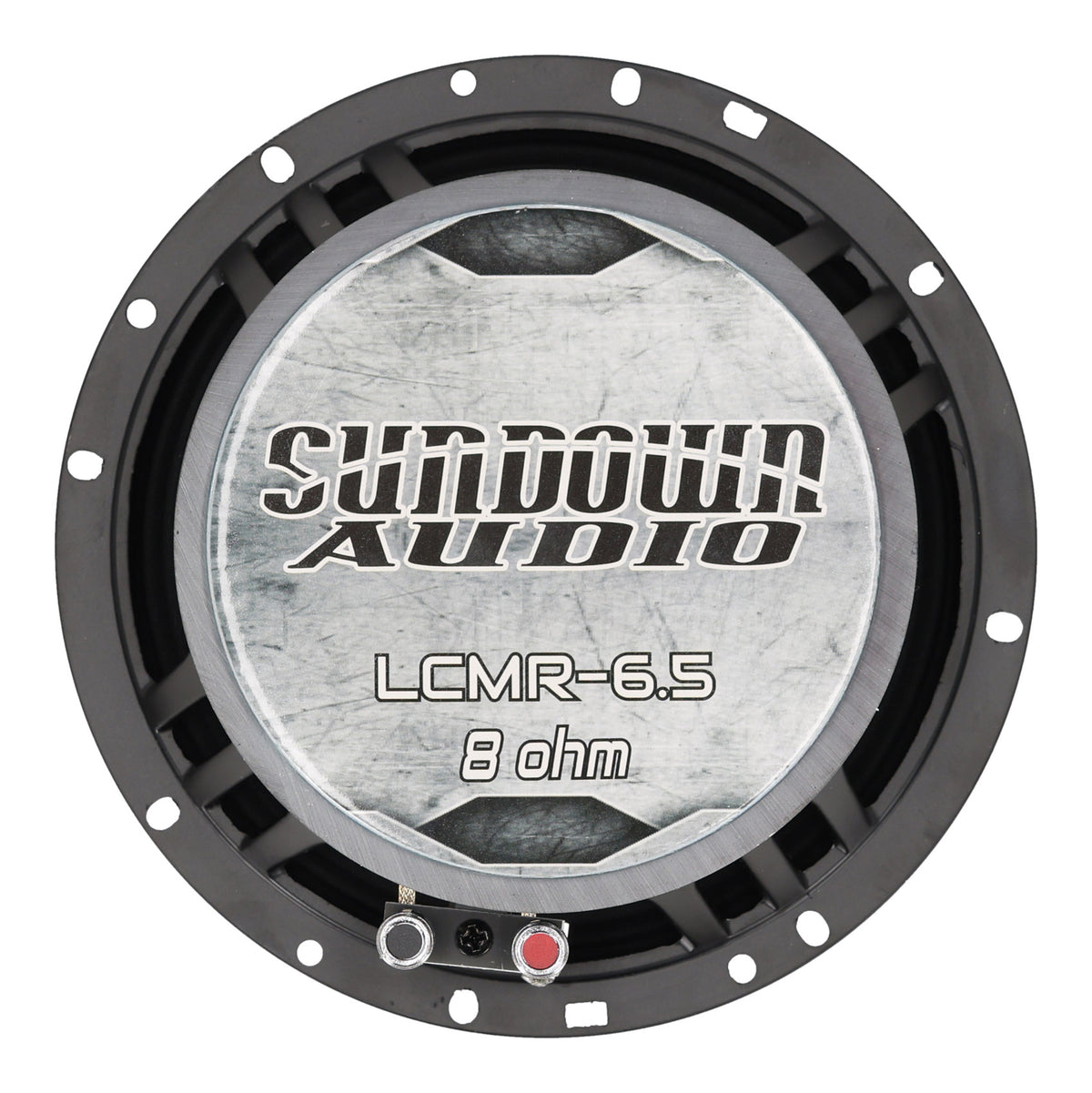

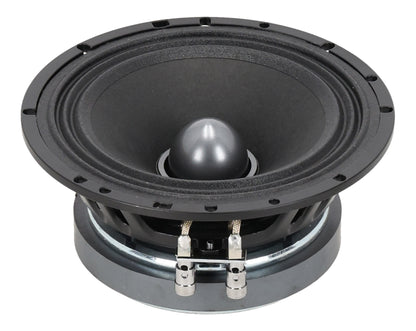

A phase plug replaces the conventional dust cap, keeping response consistent off-axis and moving heat away from the voice coil. The 1.51-inch coil rides in a ferrite motor, and sensitivity is 92 dB, so it plays loud on reasonable power. With an 83.27 Hz resonant frequency and a Qts of 0.409, it behaves predictably on an open baffle or in a door with an active crossover in front of it.

The 8-ohm load is built for arrays. Two in parallel make 4 ohms and four make 2 ohms, which is how door and pillar builds stack midranges without overloading an amplifier. Mounting takes a 5.82-inch cutout and 3.5 inches of depth behind a 6.51-inch outer diameter frame.

Sold individually so you can build a pair or a wall of them.

Features

    • Clarity Where It Counts

      Covering 120 Hz to 6 kHz only, this speaker puts all 100W RMS into vocals and guitars instead of splitting effort across the full range.

    • Consistent Off Axis

      A phase plug in place of a dust cap keeps response even when you are not sitting directly in front, which matters for door-mounted midranges.

    • Cooler Voice Coil

      The phase plug also channels heat away from the 1.51-inch coil, so output holds steady through long, high-volume demo sessions.

    • Made For Arrays

      An 8-ohm load lets you parallel two for 4 ohms or four for 2 ohms, building multi-speaker doors and pillars without stressing an amplifier.

    • Predictable Install Numbers

      A 5.82-inch cutout, 3.5-inch depth, and 6.51-inch frame diameter give you the figures needed to cut baffles before the speakers arrive.

Technical Specifications

  • Product Type 6.5" Car Audio Midrange Speaker
  • RMS Power 100W
  • Impedance 8 Ohms
  • Frequency Range 120Hz - 6kHz
  • Sensitivity 92 dB +/- 2dB (1W/1m)
  • Configuration Sold individually
  • Dust Cap Phase plug
